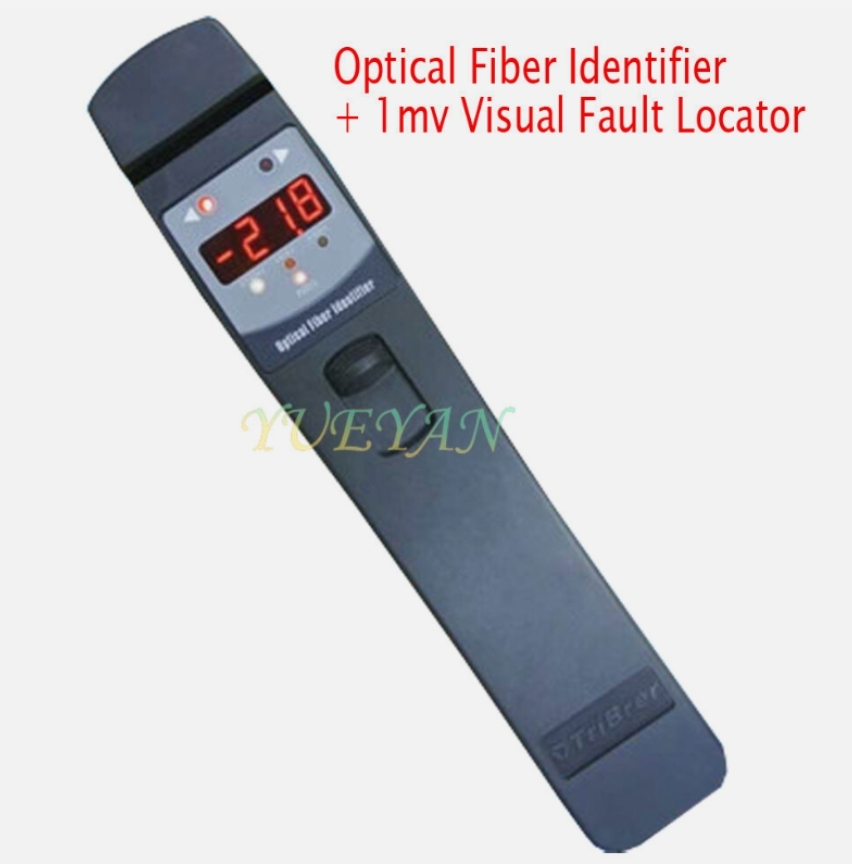

NEW Tribrer AIF420S Fiber Optic Identifier Built in 1mw Visual Fault Locator
Description:
Indicate the signal direction in fiber;
Detect tones 270Hz, 1kHz and 2kHz;
Suitable for 0.25, 0.9, 2.0, 3.0mm fiber, and no need to replace the clamp block, more convenient than others;
Build in VFL 1mW
Battery low indication;
Powered by 2 units of 1.5V AA batteries(Not include)
Wavelength Range: 800nm-1700nm (SM)
Recognizable signal type: CW, 2kHz, 1kHz, 270Hz+-10%
Detector Type: InGaAs 2pcs
Fiber Type: 0.9, 0.25, 2.0, 3.0mm fiber
Sensitivity: +10~-50 dBm
Accuracy: +10dB to -30 dBm(Continuous Wave)
+10dB to -25 dBm(Modulated Signal)
LED Indicator: Signal direction; signal frequency(2kHz/1kHz/270Hz); low battery
Visual Fault Locator: 1mv
Temperature: Storage: -20~+60℃,<90%RH Operating: -10~+50℃,<90%RH
Power Supply: AA x 2(Not Include)
Size/Weight: 230mm x 45mm x 45mm/ 200g
* at 20+-3degree, indoor, 1550nm wavelength, 0.9 fiber, with white coat, 20Hz, error<5%
* 0.25, 2.0, 3.0mm fiber, the performance at continuous wave will be lower
* 1KHz, 2KHz, the performance at modulated signal will be lower
* at 1310nm wavelength, the performance will be lower
 |
