Large Savio Pond Free Waterfall Kit 10 x 20 PVC Liner 6,100 GPH Pump PVCPLS90
Half Off Ponds Savio Pond Free 6100 Waterfall Kit - 10 ft by 20 ft PVC Liner, 6,100 GPH Aqua Pulse Water Pump
Enjoy the soothing sights and sounds of a gentle waterfall without the maintenance and care of a pond. Our exclusive complete waterfall kits are composed of hand-picked components from leading industry brands to deliver the best of each brand for an unbeatable value.
The Savio 31 Waterfall FilterWeir spillway creates a smooth waterfall while the filter reduces potential debris to ensure a gorgeous clear stream. The Savio Engineering Waterfall Well provides a safe place to store your water pump, in an easy to access basin. The Aqua Pulse 6,100 Pond Pump is the heart of your feature and is designed for Pond Free water features. We include a submersible light to make your water feature glow at night, which allows you to enjoy your waterfall after the sun sets. All of this is contained by the durable and puncture-resistant PolyGuard 20-Mil PVC Liner.
The Savio 6100 is the perfect solution for your first waterfall or to expand an existing feature. Start with the kit that includes everything you need to build a water garden or pond.

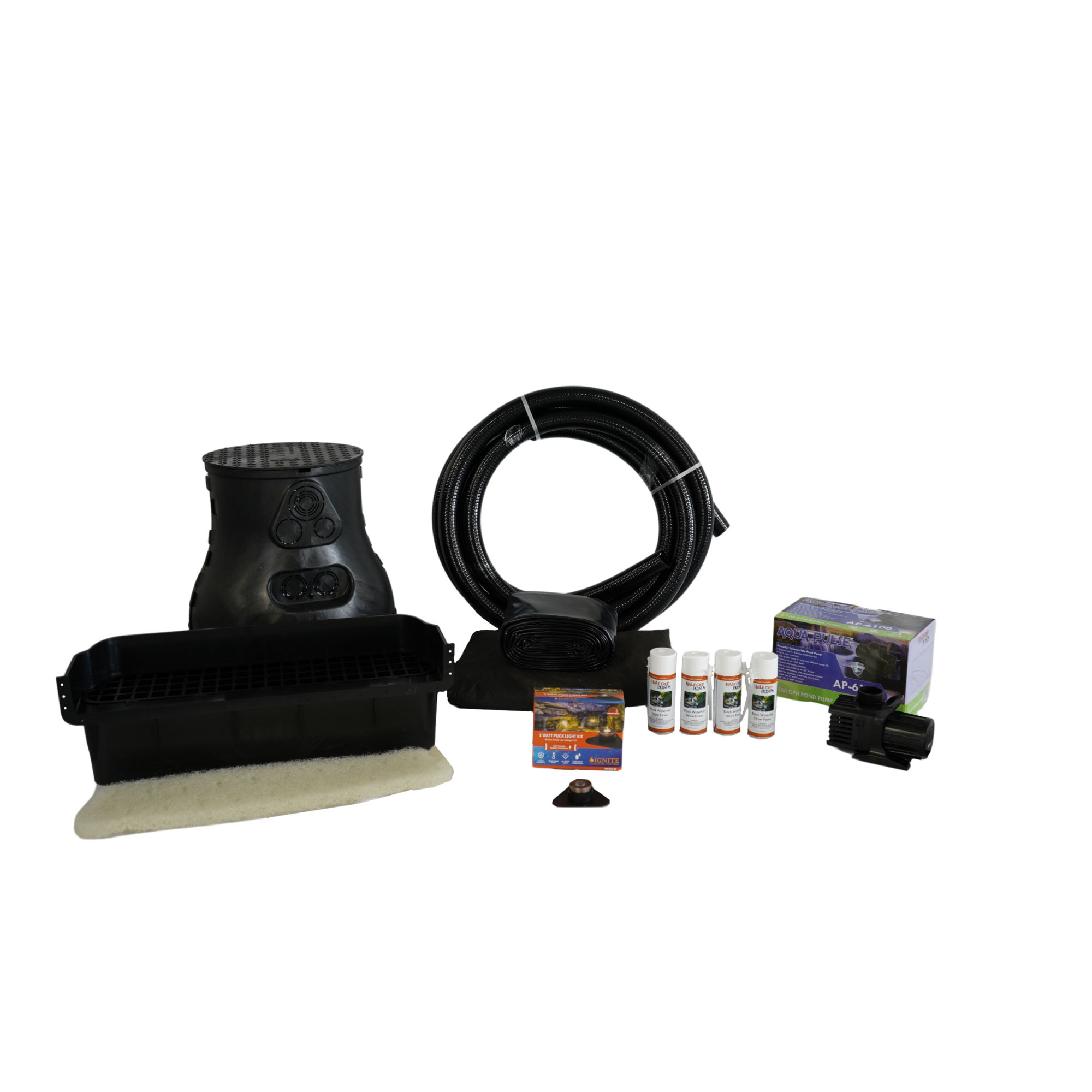

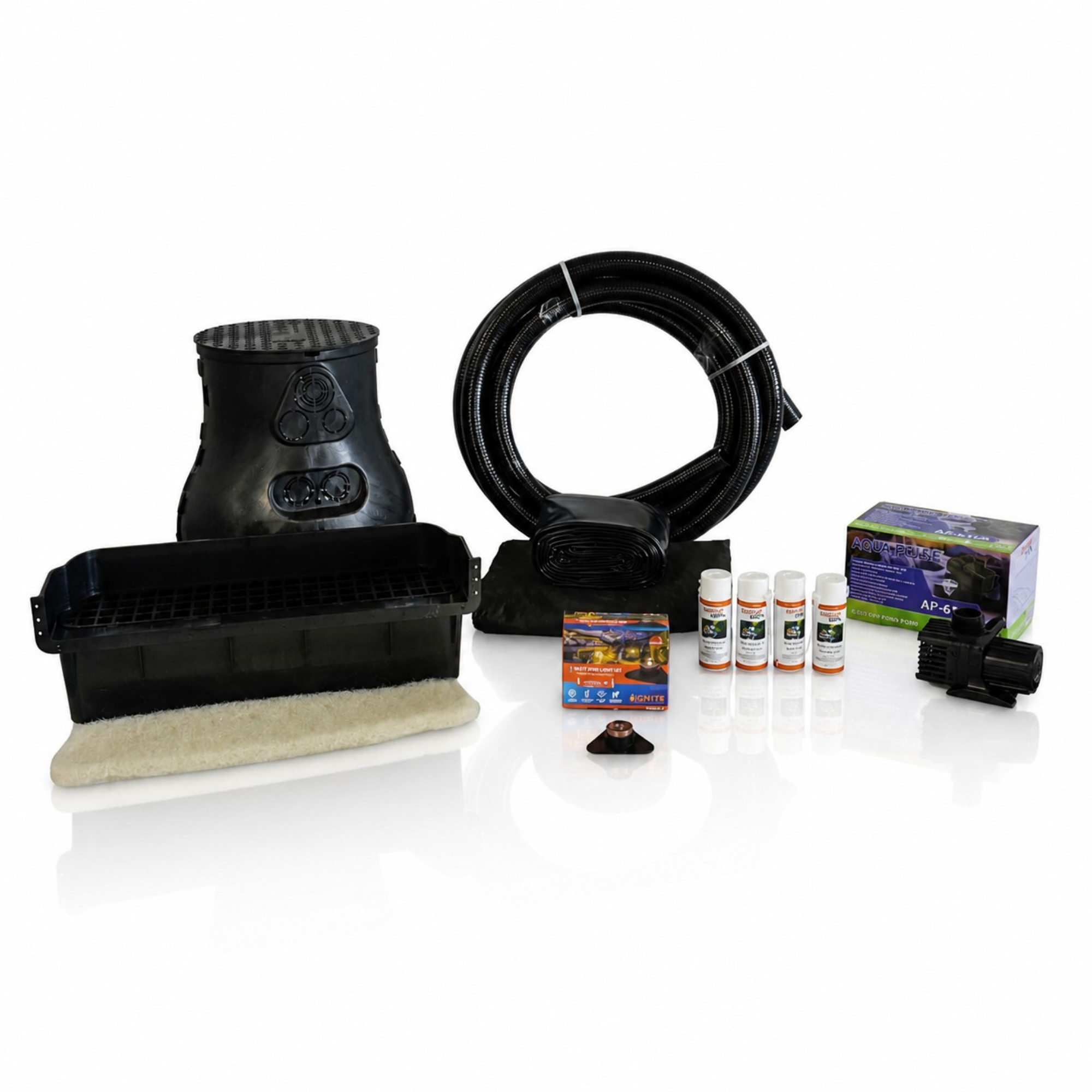

Half Off Ponds - Savio Pond Free 6100 includes:- Savio 31" Waterfal Weir - F060
- Savio Engineering Waterfall Well - WW1000
- Half Off Ponds Aqua Pulse Series 6,100 GPH Submersible Pump - AP-6100
- 20-Mil PVC PolyGuard Pond Liner and UnderGuard Underlaymant
- 2" x 25' Flexible PVC Tubing
- Submersible Light Set - (1) 1-Watt Bronze Puck Light with 6-Watt Transformer

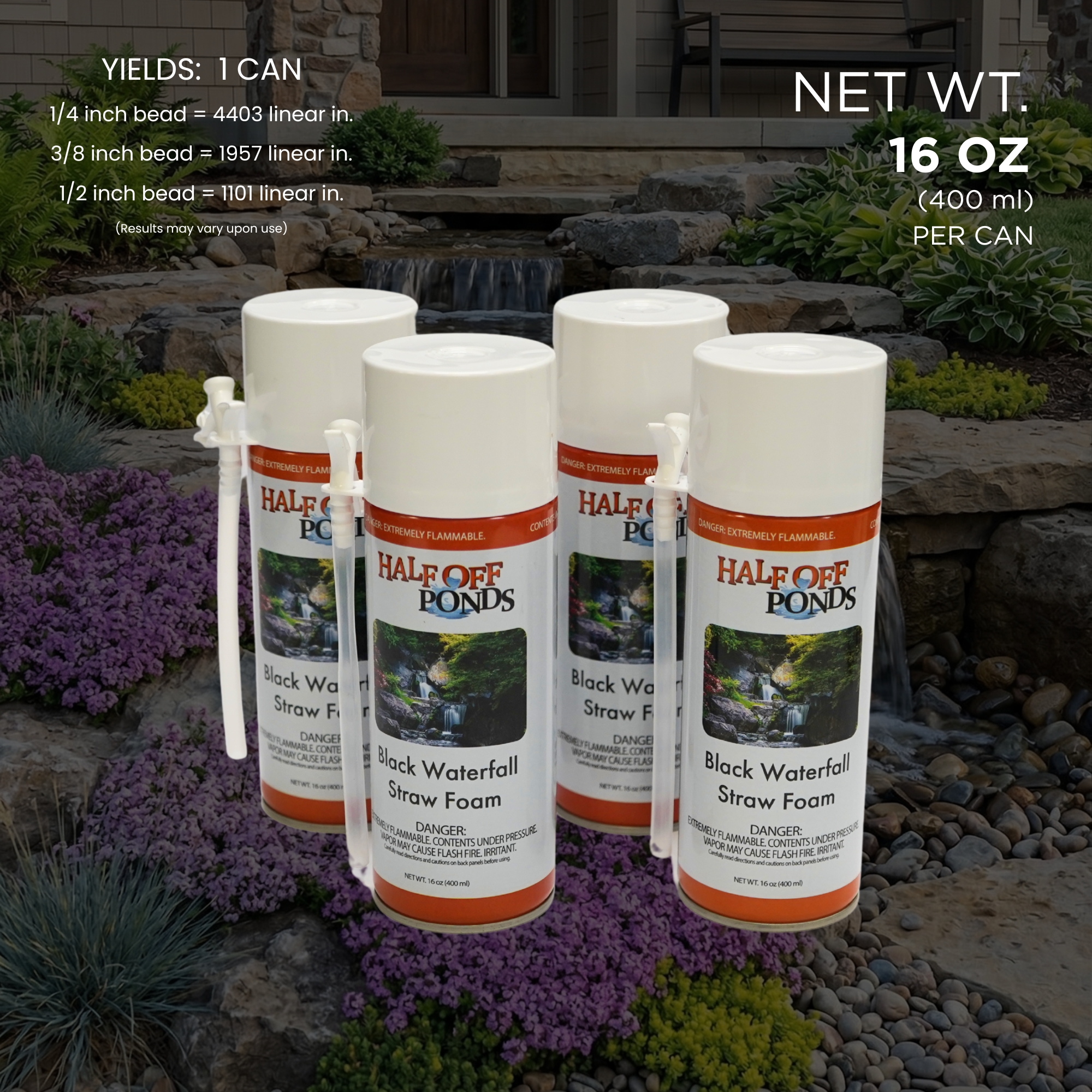

- (4) 12 oz. Savio Black Foam
- All Necessary Plumbing Fittings
This pond free kit contains professional components from leading manufacturers, and is engineered to create a beautiful, low-maintenance backyard garden oasis. We offer the best Pond Free Kit at the best price leveraging our 25 Years of experience designing kits for DYI projects. Save time and money by choosing our kits.
When designing a Pond Free water feature, do not forget to add MatrixBlox! Building with MatrixBlox create a waterfall basin for water chambers that hold 90% more water than filling basins with rock. MatrixBlox reduces the building area required and creates more stored water in a smaller space. MatrixBlox are very strong and can support large boulders to help create a natural look (MatrixBlox NOT Included in this listing).
Our Pond Free Waterfall Kits allow you to enjoy a water feature without the maintenance and expense of a pond. Pond Free applications are safe and do not require fences. We recommend using formulas and guidelines below to determine if your project plans are compatible with this kit.
The Savio Pond Free 6100 Pond Free EPDM Waterfall Kit includes: 10' x 20' of 20-Mil PVC PolyGuard Pond Liner and 200 sqft. of UnderGuard Underlayment (comes in one, or more pieces, equal to the square footage), Savio Waterfall Well - WW1000, Savio 31 Waterfall FilterWeir - F060, Aqua Pulse Series 6,100 GPH Submersible Pump, 2" x 25' Flexible PVC Tubing, 1-Watt LED Bronze Puck Light, and all necessary plumbing fittings.
Pond Free Waterfall Kits include full manufacturer’s warranty on components so you can enjoy your waterfall and stream for years to come. Additionally, there is a Limited Lifetime Warranty on the LifeGuard Pond Liner when installed with UnderGuard!
Main Kit Components
Anjon Manufacturing's 20-Mil PVC PolyGuard Pond Liner
PVC pond liners are the most cost effective versatile and adaptable liners available. Ideal for ponds of all sizes with steep or gentle sloping sides, tight corners, contours and shelving. Pliable and flexible; conforms to a variety of irregular surfaces. Excellent choice for water gardens, fish ponds and backyard waterfalls. PolyGuard PVC Pond Liner is light weight and easy to install.
Attaches easily to waterfall boxes, weirs and skimmers. Remains flexible and pliable even in extreme hot or cold temperatures. Contains plasticizers which will deteriorate in direct sunlight. For best results use ground cover, rocks or gravel to protect PVC liner from direct UV exposure.
Features and Technical Specs
- Pliable and flexible; conforms to a variety of irregular surfaces. Excellent choice for water gardens, fish ponds and backyard waterfalls. This light weight liner is easy to install.
- Attaches easily to waterfall boxes, weirs and skimmers. Remains flexible and pliable even in extreme hot or cold temperatures.
- Contains plasticizers which will deteriorate in direct sunlight. For best results use ground cover, rocks or gravel to protect PVC liner from direct UV exposure.
- Completely safe for fish, wildlife and plants. Standard 5-Year Manufacturer's Warranty for defects in manufacture, materials or workmanship.
Anjon Manufacturing's UnderGuard Underlaymentâ„¢
Enhances soil stability and controls erosion while providing a stable and lasting foundation for water features, retaining walls, trenches, and planting projects.
Features and Technical Specs
- High tensile-strength nonwoven polypropylene fabric is easy to use.
- Enhances soil stability and controls erosion while providing a stable and lasting foundation for water features, retaining walls, trenches, and planting projects.
- Needle punched nonwoven polypropylene geotextile fabric with a random, three-dimensional pore structure and a uniform, felt-like consistency. Superior drainage characteristics versus woven geotextile fabric.
- Virtually indestructible; unaffected by hydrocarbons, mildew, rot, & freeze-thaw cycles while diffusing gas and fluid build up
- Made in the USA & backed by a 20-Year Limited Manufacturers’ Warranty! Made from UV and chemical resistant 100% virgin polypropylene & is 100% recyclable

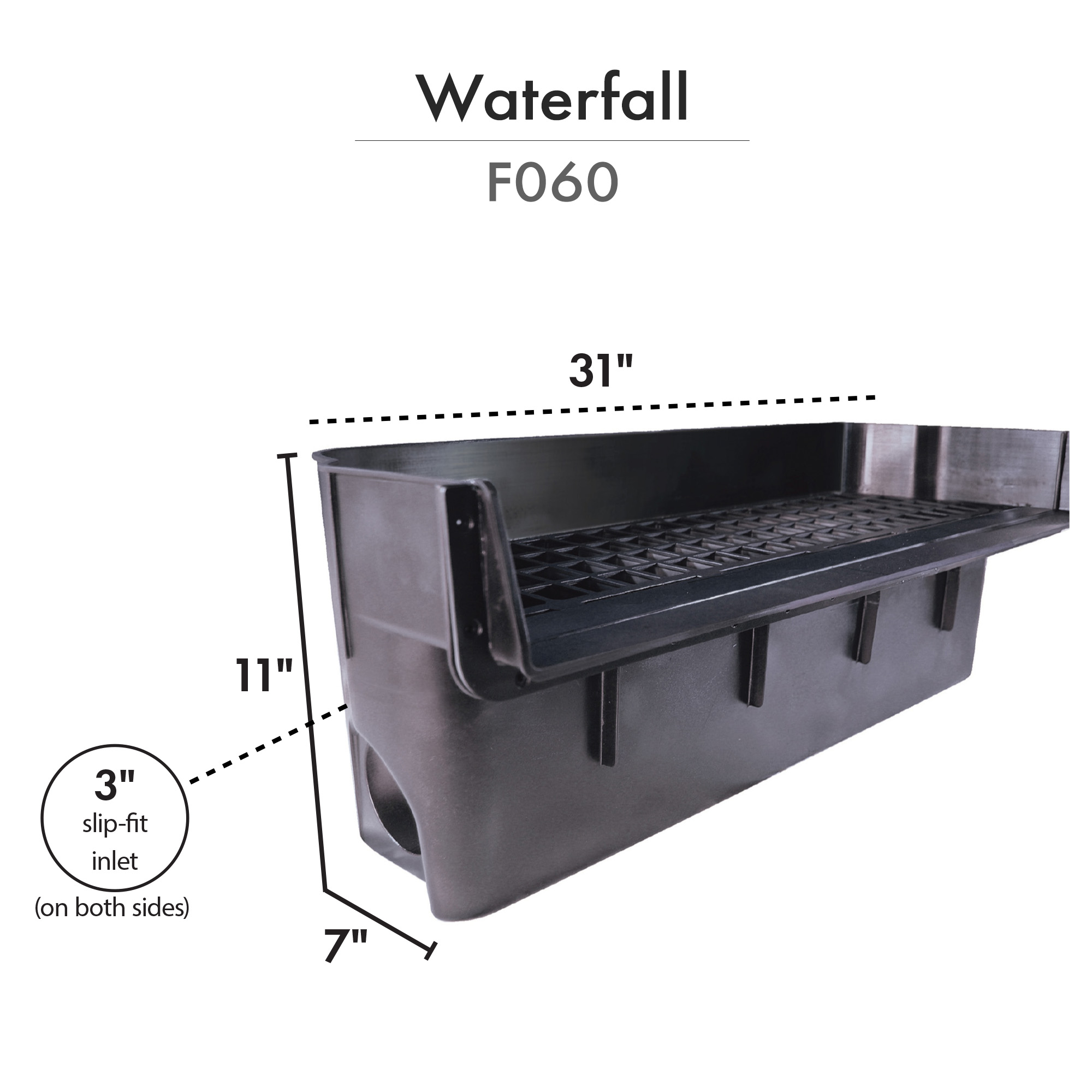

Savio Engineering's FilterWeirâ„¢31
The most important part of paradise is the unmistakable sound of a waterfall in motion. There's nothing quite like it, and now you can create that dramatic centerpiece to any pond, instantly, with Savio FilterWeirs.
Creating appealing waterfalls is easy with FilterWeirs. FilterWeirs provide bio-mechanical filtration and the tranquil sounds and visual splendor of a cascading waterfall. Simple installation, solid construction, professional results. Use multiple units to build cascades and larger waterfalls.
The Savio FilterWeirâ„¢ 31allows you to quickly add the tranquil sound and visual splendor of a cascading waterfall to any pond or water feature. This unit also provides supplemental filtration- to keep your pond cleaner & healthier. Install in concrete or liner ponds - no silicone glue is required.
Features and Technical Specs:
- Waterfall Width: 31 Wide
- Filtration: Bio-mechanical filtration for clear and prestine water
- Max Flow: Up to 10,0000 GPH Max Flow.
- 5 Year Warranty & Made in the USA!

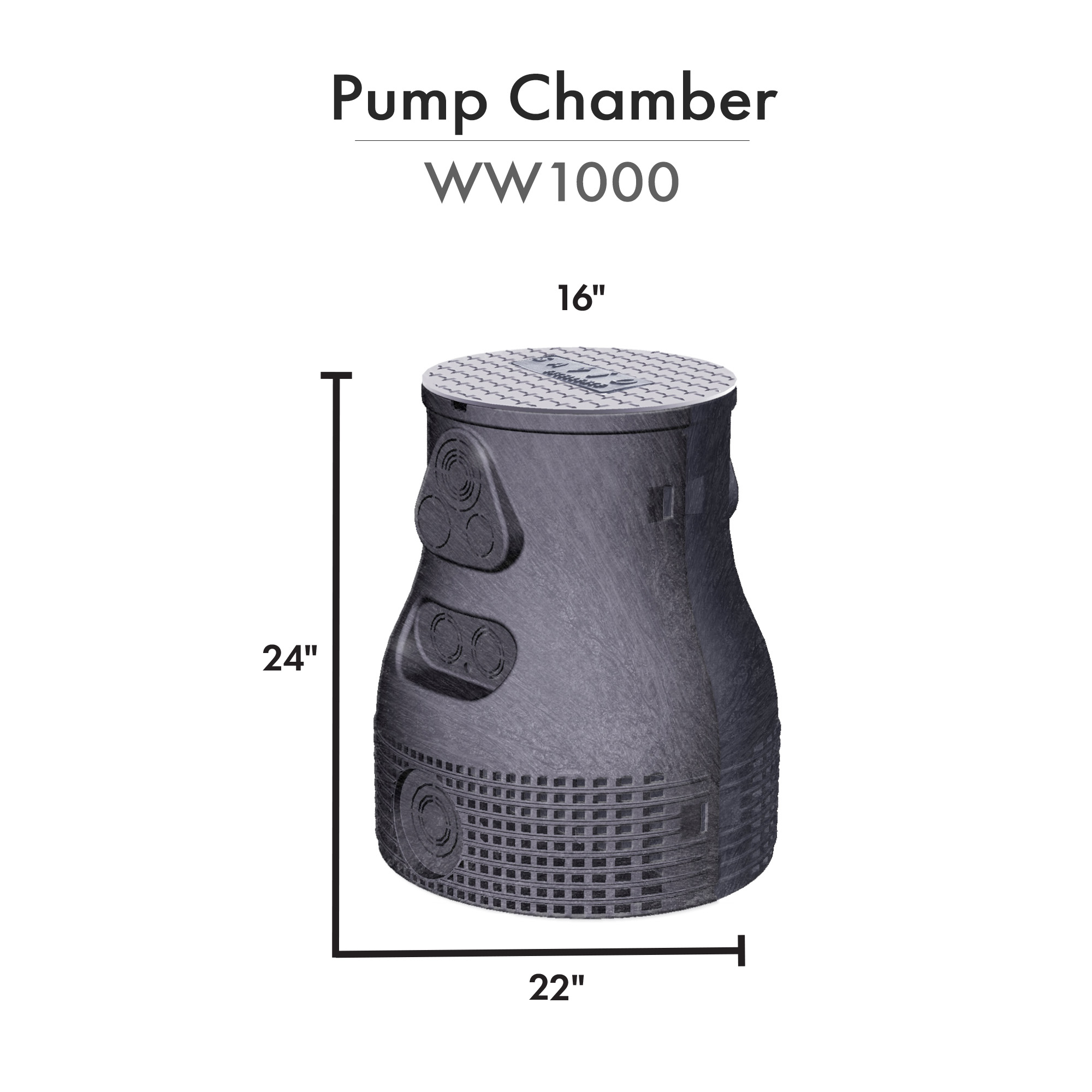

Savio Pond Free® Waterfall Well
Patented design protects your pump from the crushing forces of rock and water with a structurally tough injection-molded housing. Durable snap-fit enclosure is easy to assemble and contains no moving parts.
Multiple uses for irrigation, rain collection, drainage, and lift-pump applications. Handles flows up to 15,000 GPH. Undoubtedly the hardest working gardening product in your pondless water feature, the Savio Pond Free Watefall Well blends seamlessly with the surrounding landscape.
Features and Technical Specs:
- Max Flow Rate: 15,000 GPH
- Holding Capacity: 35 Gallons
- Dimensions: 18" x 22" x 24"
- 5 Year Warranty & Made in the USA!
Half Off Ponds Aqua Pulse Series 6,100 GPH Submersible Pump
Features and Technical Specs
- Extremely energy efficient magnetic drive technology is an ideal choice for fountains, waterfalls and most ponds
- Upright design with space-saving footprint makes this pump ideal for skimmer and pondless waterfall installations. Intake screen prevents clogging while passing solids up to 0.25 inch
- Asynchronous drive motor can be controlled with variable speed controller (not included) that permits you to increase or decrease pump flow as needed
- Vortex impeller passes solids to .25. Engineered for 24-hour continuous use; overload sensor prevents burnout
- Contains no oil; completely safe for fish, wildlife and aquatic plants. Backed by a 2-Year Manufacturer's Warranty!
Half Off Ponds Flexible PVC Pipe
Pipes, hoses and tubing are the 'circulatory system' any Koi pond, water garden or waterfall. Selecting the right pipe, hose or tubing for any project, from a residential backyard pond to commercial water feature or muncipal project, is a key decision to create and maintain a healthy water environment.
Half Off Ponds Flexible PVC Pipe is ideal for ponds and waterfalls requiring high-strength and flexible hose that resists kinking and collapsing. This tubing withstands freezing without compromising its' structural integrity, durability, or strength.
Features and Technical Specs
- Extremely flexible; will not kink or collapse even around tight turns, bends or curves.
- Can be frozen solid without losing strength or structural integrity.
- Smooth wall interior improves water flow while preventing friction loss. Flexible and strong, will not collapse or kink around bends or curves.
- Works with standard schedule 40 PVC slip or barb fittings.
- Certified Fish & Wildlife Safe by Guardian Systems and backed by a 25-Year Manufacturer's Warranty!
- Backed by a 25-Year Manufacturer's Warranty!
Patriot Pond Lighting 1-Watt Bronze Puck Light w/ 6-Watt Transformer
Features and Technical Specs
- (1) Cylindrical polished bronze fixture.
- 20' Low voltage power cord.
- Installation options - use 4.5" triangle base or the brass puck by itself.
- 45-degree beam angle LED bulbs produce 45 lumens of light and last 40,000 hours.
- Completely submersible; safe to use in and around water features.
Large Savio Pond Free Waterfall Kit 10 x 20 PVC Liner 6,100 GPH Pump PVCPLS90
- Industry Leading Materials - This pond free kit contains professional components from leading manufacturers, and is engineered to create a beautiful, low-maintenance backyard garden oasis.
- Stunning Pond Free Waterfalls - When designing a Pond Free water feature, do not forget to add MatrixBlox! Building with MatrixBlox create a waterfall basin for water chambers that hold 90% more water than filling basins with rock. MatrixBlox reduces the building area required and creates more stored water in a smaller space. MatrixBlox are very strong and can support large boulders to help create a natural look (MatrixBlox not Included in this listing).
- Child and Pet Safe - Our Pond Free Waterfall Kits allow you to enjoy a water feature without the maintenance and expense of a pond. Pond Free applications are safe and do not require fences. We recommend using formulas and guidelines below to determine if your project plans are compatible with this kit.
- Everything You Need in One Box - This Kit Includes: 10' x 20' of 20-Mil PVC PolyGuard Pond Liner and 200 sqft. of UnderGuard Underlayment (comes in One, or more pieces, equal to the square footage), Savio Waterfall Well - WW1000, Savio 31" Waterfall FilterWeir - F060, Aqua Pulse Series 6,100 GPH Submersible Pump, 2" x 25' Flexible PVC Tubing, 1-Watt LED Bronze Puck Light, and all necessary plumbing fittings.
- A Kit You Can Trust - Pond Free Waterfall Kits include full manufacturer's warranty on components so you can enjoy your waterfall and stream for years to come. Additionally, there is a 10-Year Warranty on PolyGuard Pond Liner when installed with UnderGuard! May ship in more than one box.
FAQs & Calculations to Help Select the Correct Kit
1. How Many Gallons of Water does My Water Feature Hold?
Rectangular Ponds
Length x Width x Average Depth x 7.48 = Gallons
Example: A rectangular pond 15’ long, 10’ wide and 1.5’ Deep Pond is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: A rectangular pond 15’ long, 10’ wide and 1.5’ Deep Pond is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Oval Ponds
Length x Width x Average Depth x 0.8 x 7.48 = Gallons
Example: An oval pond 15’ long, 10’ wide and 1.5’ deep is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: An oval pond 15’ long, 10’ wide and 1.5’ deep is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Round Ponds
Length x Width x Average Depth x 7.48 =Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Streams
Length x Width x Average Depth x 0.25 x 7.48 = GALLONS =Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
2. How Big of a Pump Do I Need??
Minimum pump size is determined by pond type, water volume, head height and friction loss. The minimum pump size recommendations are:
Water Garden, Few Small Goldfish
Circulate total pond water valoume every 2 hours.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Fish Pond, Several Small Fish
Circulate total pond water valoume every 1 hour.
Example: 3,800 GPH pump for a 3000-gallon pond with 2’ waterfall.
Example: 3,800 GPH pump for a 3000-gallon pond with 2’ waterfall.
Koi Pond, Several Large Fish
Circulate total pond water valoume every 3/4 hours.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Calculating Head Height
Dynamic head pressure is found by taking the vertical height of your waterfall; the distance between where your pump is (typically in the skimmer) and where your waterfall is, and adding the static head pressure (pipe and fittings) 1’ for every 10’ of tubing and 1’ for every elbow or “T” fitting.
Example: 3' (vertical height) + 2.5 (25' of tubing) + 2' (for 2 elbows) = 7.5' of Dynamic Head Pressure
Note:It is important to take into consideration while calculating how much flow will be at the top of your waterfall by accounting for the head height due to the laws of fluid dynamics. Please refer to the flow chart above to help choose the correct pump.
Example: 3' (vertical height) + 2.5 (25' of tubing) + 2' (for 2 elbows) = 7.5' of Dynamic Head Pressure
Note:It is important to take into consideration while calculating how much flow will be at the top of your waterfall by accounting for the head height due to the laws of fluid dynamics. Please refer to the flow chart above to help choose the correct pump.
3. What Size Tubing Do I Need?
| Tubing Size | Efficiency GPH | Minimum GPH | Maximum GPH |
|---|---|---|---|
0.5” |
< 300 |
60 |
420 |
0.75” |
< 720 |
300 |
900 |
1” |
< 1,200 |
700 |
1,500 |
1.25” |
< 1,600 |
900 |
3,200 |
1.5” |
< 2,600 |
2,000 |
4,400 |
2” |
< 4,800 |
3,000 |
6,800 |
3” |
< 9,000 |
6,000 |
14,000 |
4” |
< 21,000 |
14,000 |
28,000 |
6” |
< 42,000 |
33,000 |
60,000 |
