4-ROW RADIATOR FIT 1987-2006 JEEP WRANGLER YJ TJ 2.4L 2.5 4.0 4.2L L6 #2101
Items Description

   Welcome to our store!

  • All of our products support easy return and lifetime warranty(product quality issues only,human damage and product damage in daily use are not included).
  • We will process the order and deliver the product within one day.Please make sure your address and the city zip code are correct. Please understand that once orders are shipped, we cannot control the transit times thereafter.
  • If you have any questions or suggestions,please contact us,we'll do our best.


    Please check the item picture and size to make sure this is what you exactly need.

Radiator Configuration:
High Performance Racing Spec.
4-Row of tubes Core Racing Design
Tank Material: AA5052 Aircraft Grade Aluminum

Core Size:18 7/64"(H)*20"(W)*2 7/16"(T)

Overall Size:25 63/64"(L)*4 21/64"(H)*23 1/32" (W)

Inlet Hose Connection: 1 1/4 " Passenger Side
Outlet Hose Connection: 1 1/2 " Driver Side
MOUNTING BRACKET SPECS
24 3/8" WIDE BOLT HOLES CENTER TO CENTER
13 1/4" VERTICAL BOLT HOLES CENTER TO CENTER

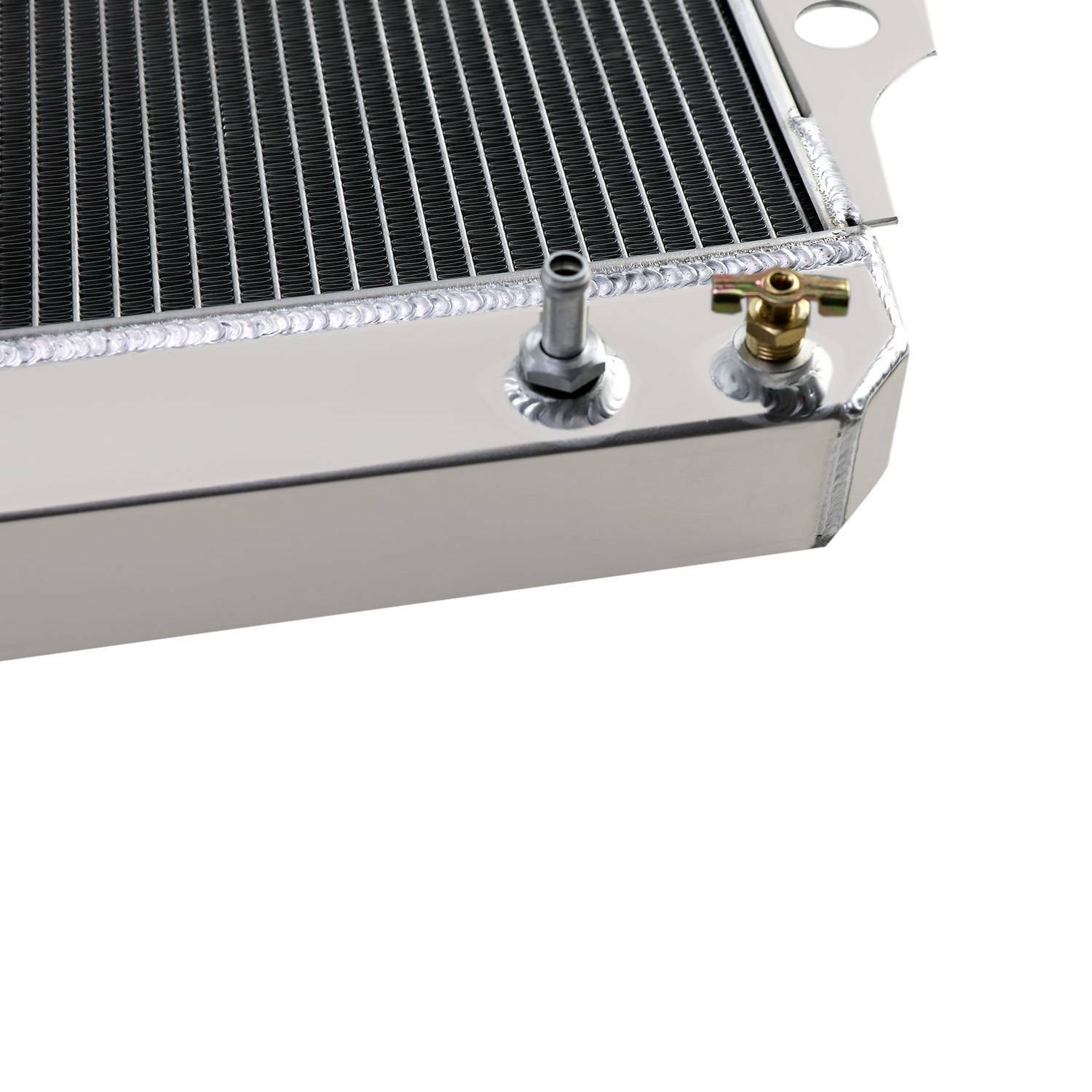

OEM Style Brass Petcock Drain

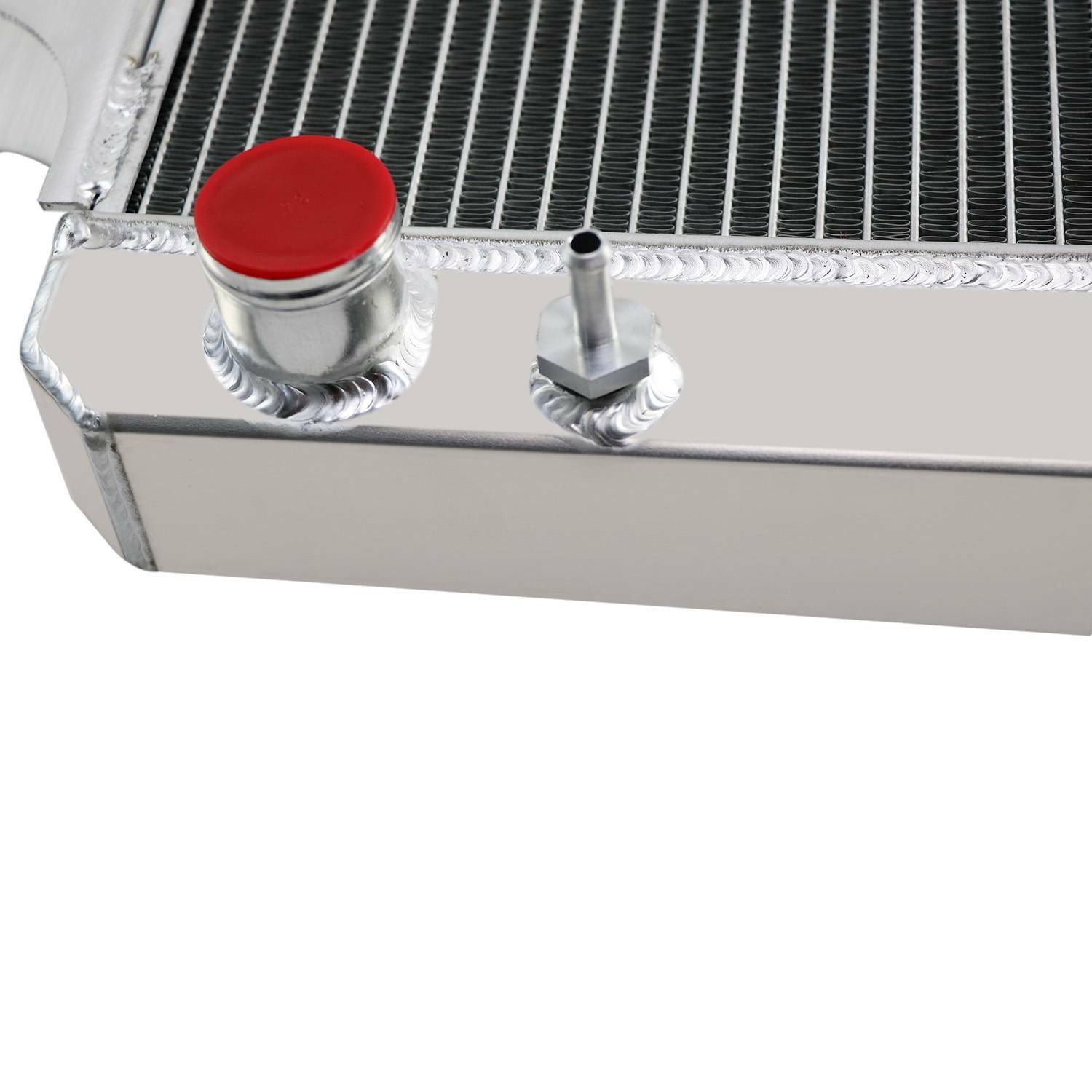

CNC Machined Filler Neck and Cap

Description:
1.Our Radiator is made of AA5052 aircraft aluminum,5052 Aluminum major alloying element is magnesium,has a higher strength and greater corrosion resistance (including to salt water).
2.Higher density core: cooling rows are spaced 3/8" apart,giving you 25% more rows within the core than other aluminum radiators sold on eBay.
3.14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators.AA5052 aluminum radiator core can be made more efficient by changing the tube spacing and fin count. If the tubes are placed closer together and the fins are packed in tighter a denser core is created that throws off much more heat. A high efficiency core can have tubes on 3/8" centers and fin counts increased to 14 to 16 FPI,That may not seem like a big deal but the surface area is greatly increased. Combined with all the additional fins between the tubes this provides approximately 30% to 45% better cooling than the OEM radiator had.

The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG. Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full AA5052 Aluminum Construction.aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure.


Fitment：
2006            Jeep  Wrangler  65th Anniversary Edition   6Cyl 4.0L 242CID
2003-2004   Jeep  Wrangler  Rubicon                               6Cyl 4.0L 241CID
2005-2006   Jeep  Wrangler  Rubicon                               6Cyl 4.0L 241CID
2003-2004   Jeep  Wrangler  Rubicon                               6Cyl 4.0L 242CID
2005-2006   Jeep  Wrangler  Rubicon                               6Cyl 4.0L 242CID
1997-2004   Jeep  Wrangler  Sahara                                  6Cyl 4.0L 242CID
2003-2004   Jeep  Wrangler  SE                                        4Cyl 2.4L 148CID
2005-2006   Jeep  Wrangler  SE                                        Cyl 2.4L 148CID
1997-2002   Jeep  Wrangler  SE                                        4Cyl 2.5L 150CID
2006            Jeep  Wrangler  SE                                        6Cyl 4.0L 242CID
1997-2004   Jeep  Wrangler  Sport                                    6Cyl 4.0L 242CID
2005-2006   Jeep  Wrangler  Sport                                    6Cyl 4.0L 242CID
2004            Jeep  Wrangler  Unlimited                              6Cyl 4.0L 242CID
2005-2006   Jeep  Wrangler  Unlimited                             6Cyl 4.0L 242CID
2005-2006   Jeep  Wrangler  Unlimited Rubicon              6Cyl 4.0L 242CID
2003-2004   Jeep  Wrangler  X                                         6Cyl 4.0L 241CID
2005-2006   Jeep  Wrangler  X                                         6Cyl 4.0L 241CID
2002-2004   Jeep  Wrangler  X                                         6Cyl 4.0L 242CID
2005-2006   Jeep  Wrangler  X                                         6Cyl 4.0L 242CID

No Fitting Instructions Supplied.

Full set in box and 100% brand new.

Professional Installation is Highly Recommended.

All our products are 100% fully tested to ensure top quality.

We guarantee that all our products are made of best materials and advanced manufacture technique.
