Features:

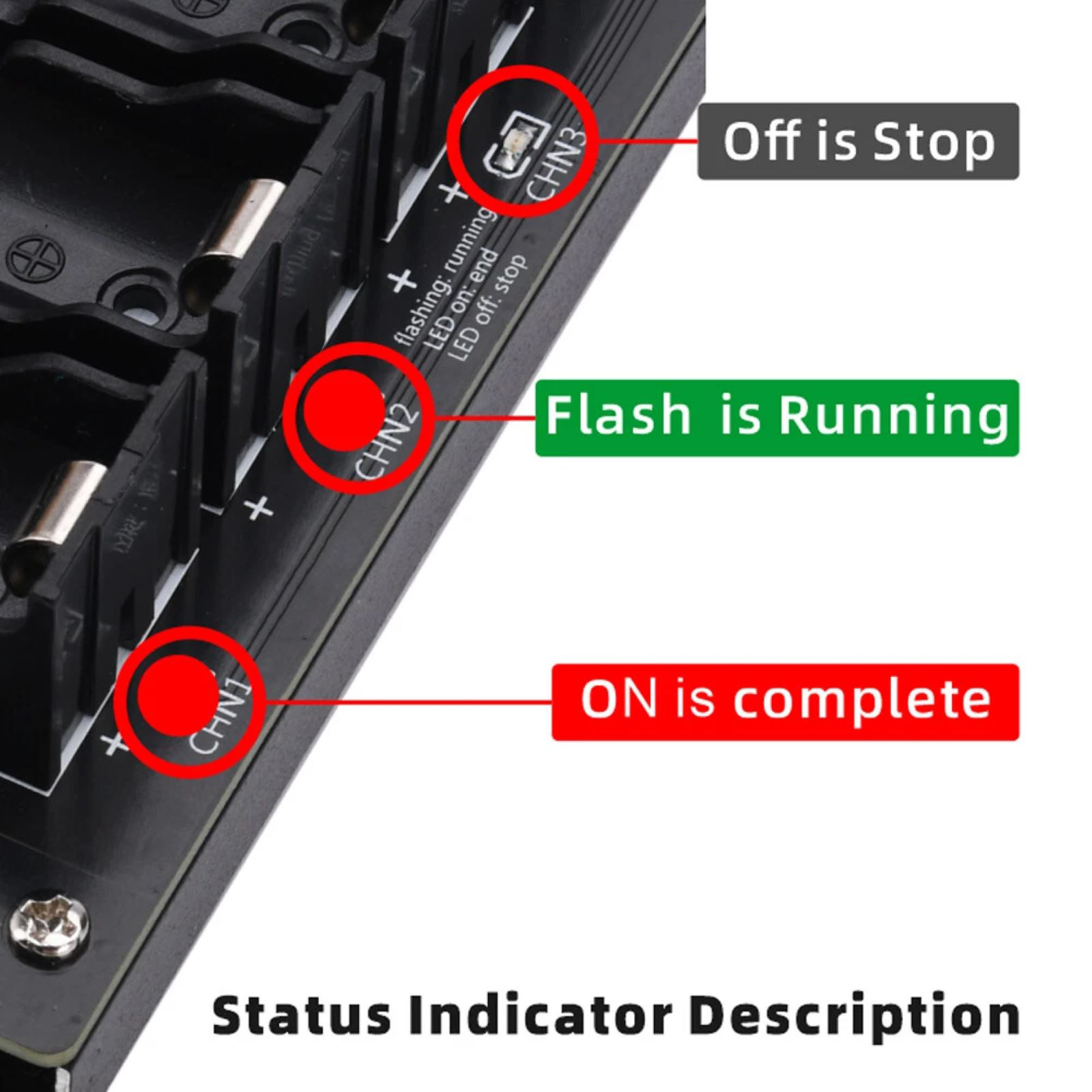

External Discharge Terminal and Working Indicator: The blue segment at the upper end is the external discharge terminal, and the lower end has the working indicator of the corresponding channel.

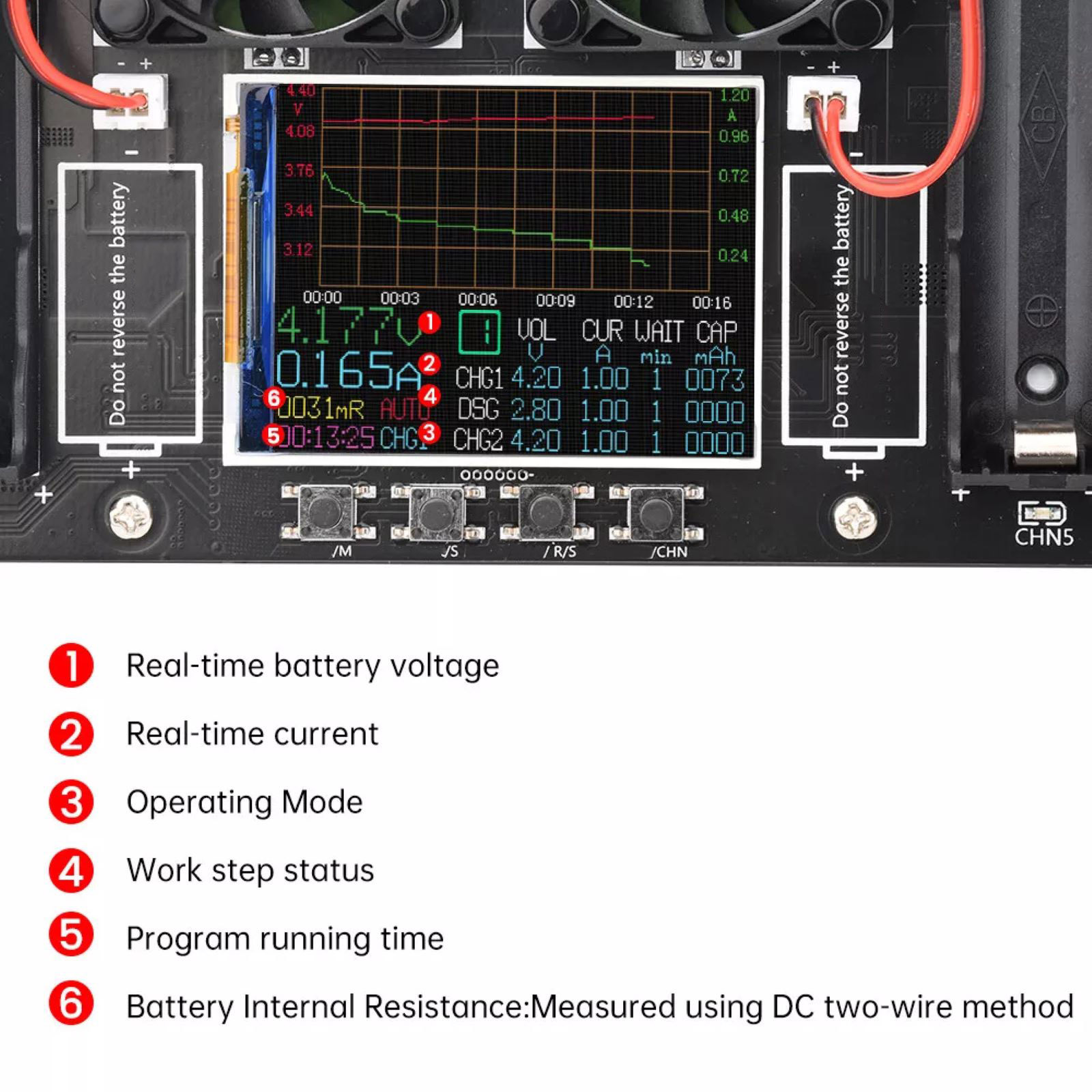

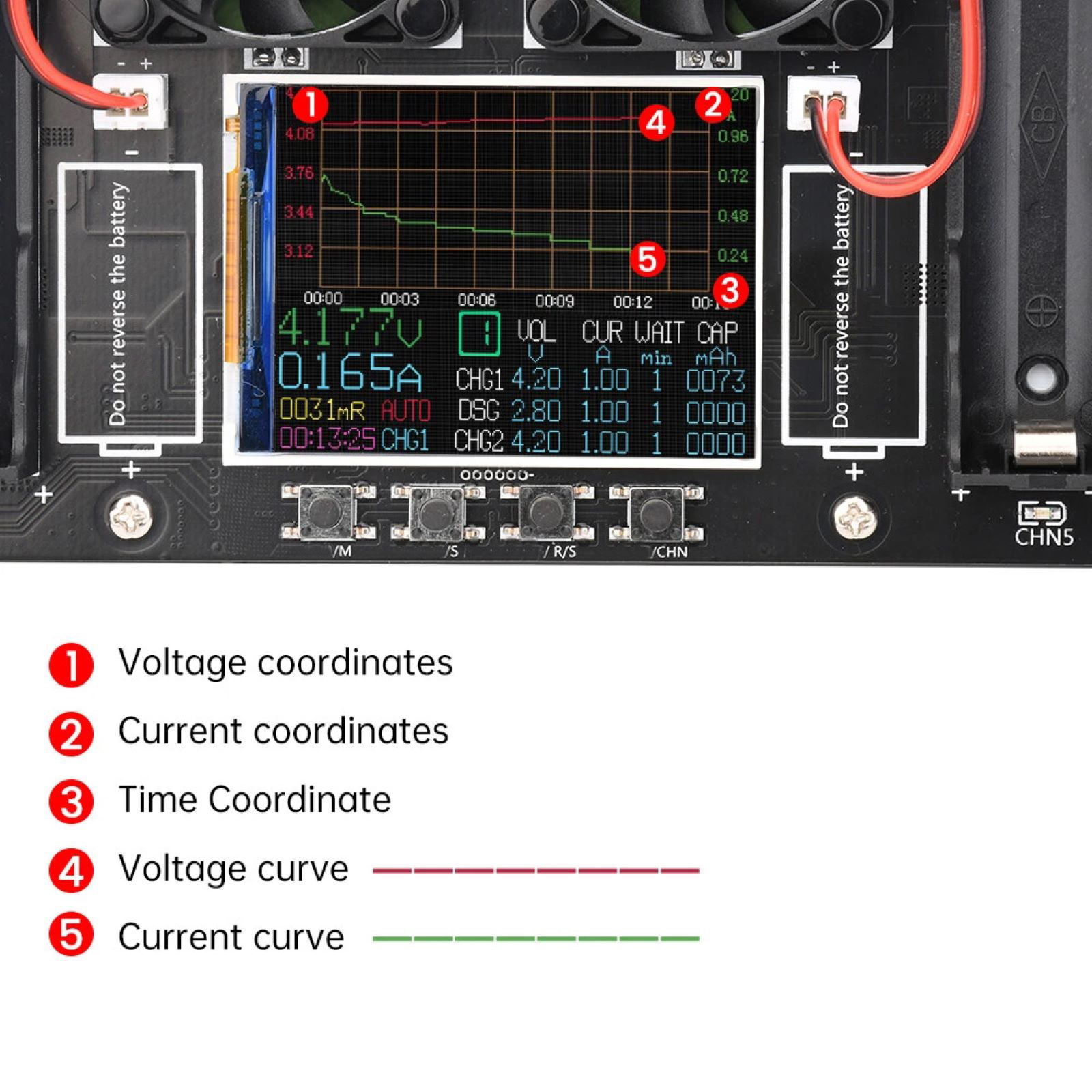

Voltage and Current Display: Voltage and current curve display, real-time voltage and current readings.DC two-wire method to measure internal resistance.

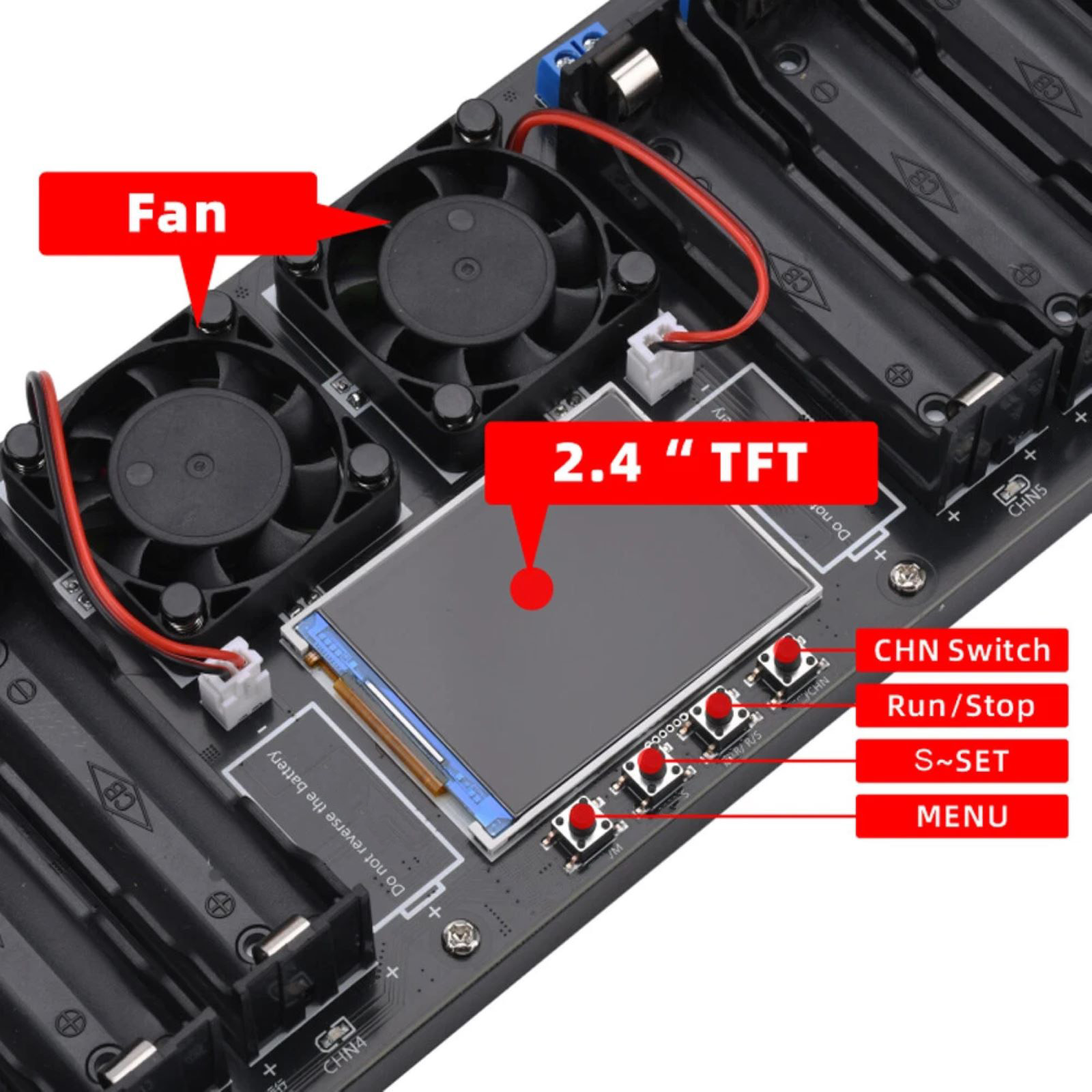

Heat Dissipation: U-shaped groove at the back is combined with PCB board, and the fan actively dissipates heat to form a heat dissipation channel.
Battery Holder: 18650 battery holder using a compact battery holder, suitable for flat battery measurement.
Channel Type: 8 independent channels, each unrelated, independent operation, without mutual influence.
Channel Synchronisation: Supports 8 channels to set up synchronisation. Also, can set up each channel parameter individually.
Cycle Charging and Discharging: Only supports charging-discharging-charging 1 cycle in automatic mode, does not support multiple cycles.
Specifications:
Display: 2.4in LCD Screen

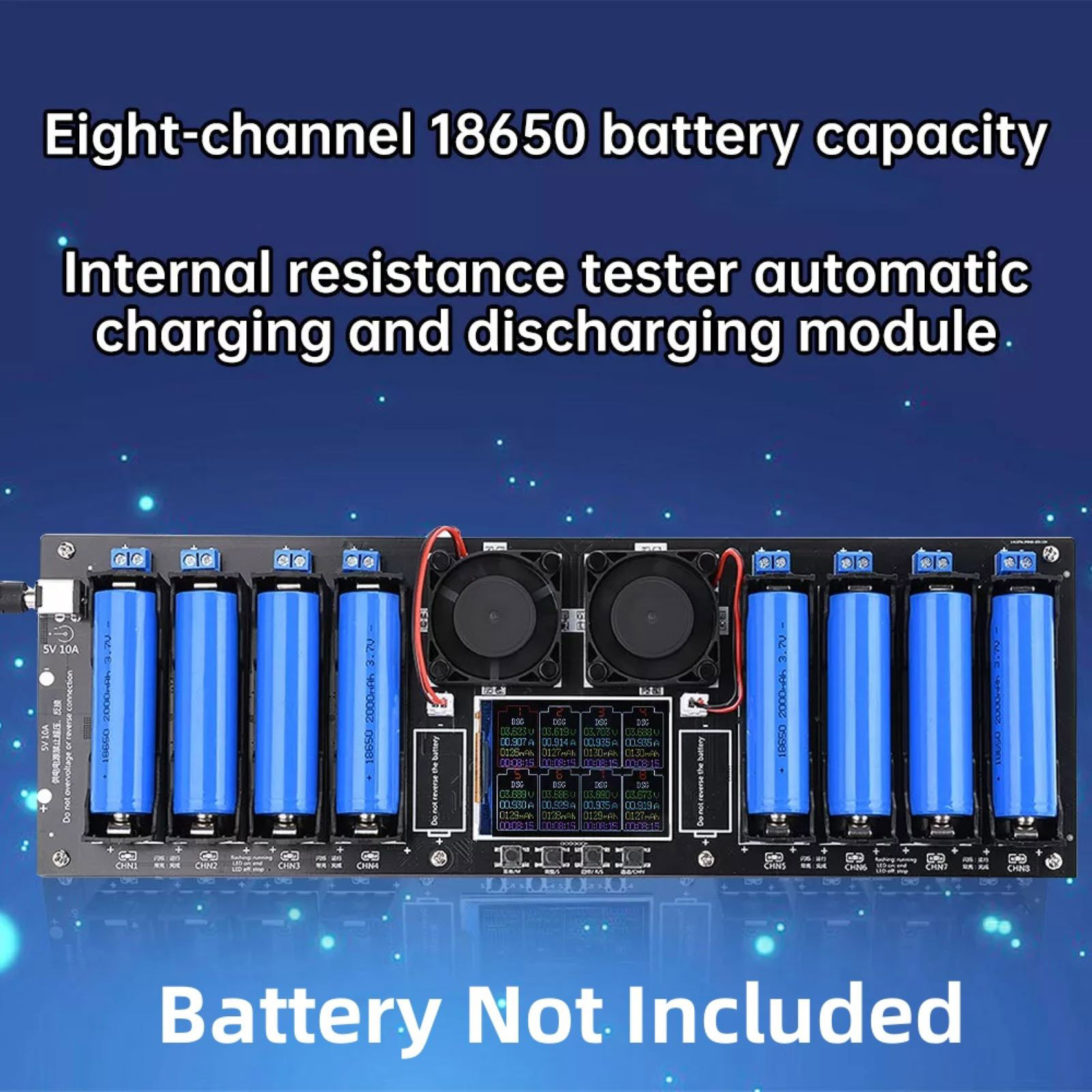

Applicable Battery: Can accommodate 8pcs 18650 batteries (Batteries are not included)
Working Voltage: DC5V 10A (Standard bare metal, without power supply). Overvoltage will damage the machine

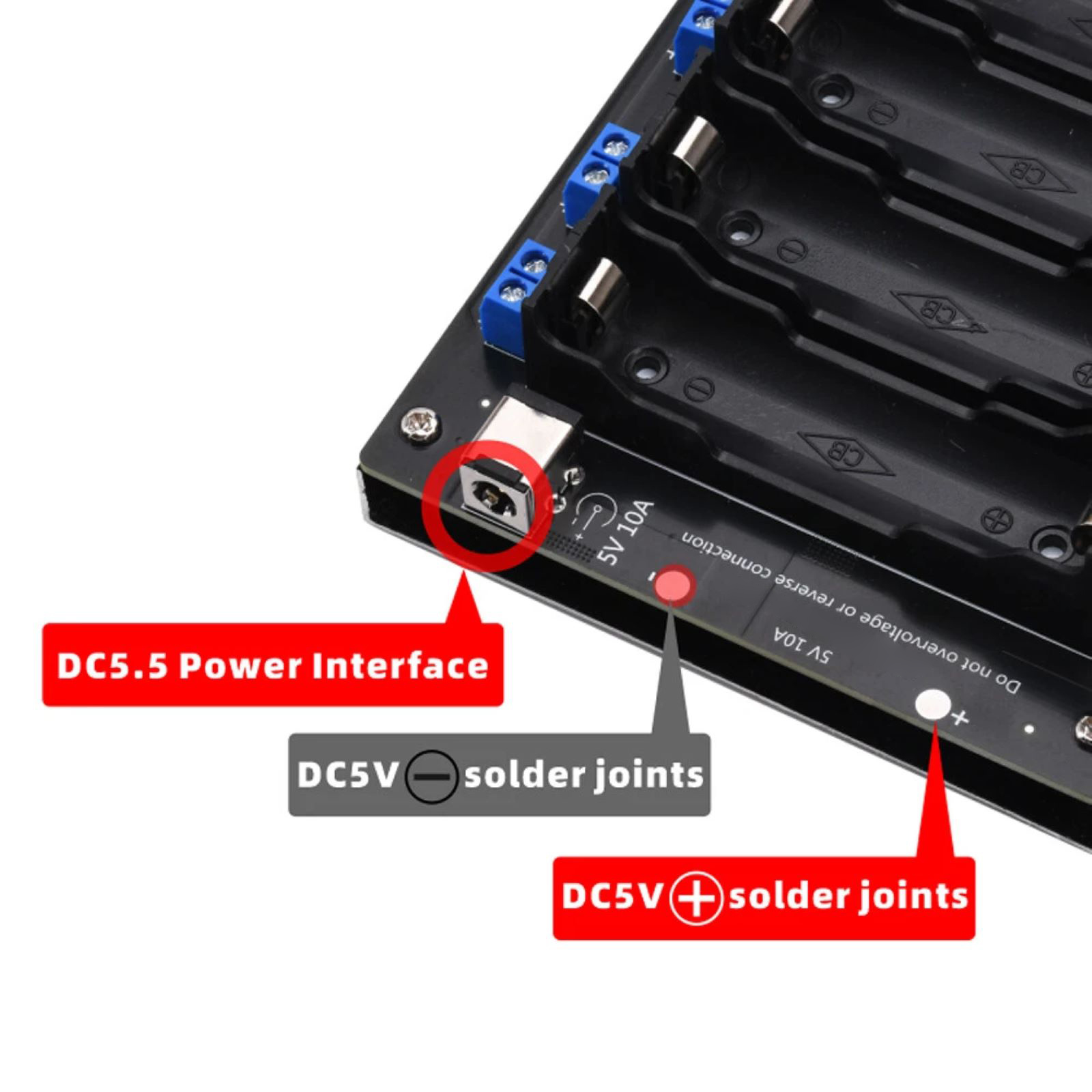

Power Supply Interface: DC5.5 high-current interface, 5V positive and negative welding points
Power Supply Reverse Protection: Built-in reverse protection. Reverse power supply prohibited
Charging Current: Each channel independently maximum about 1A, non-adjustable

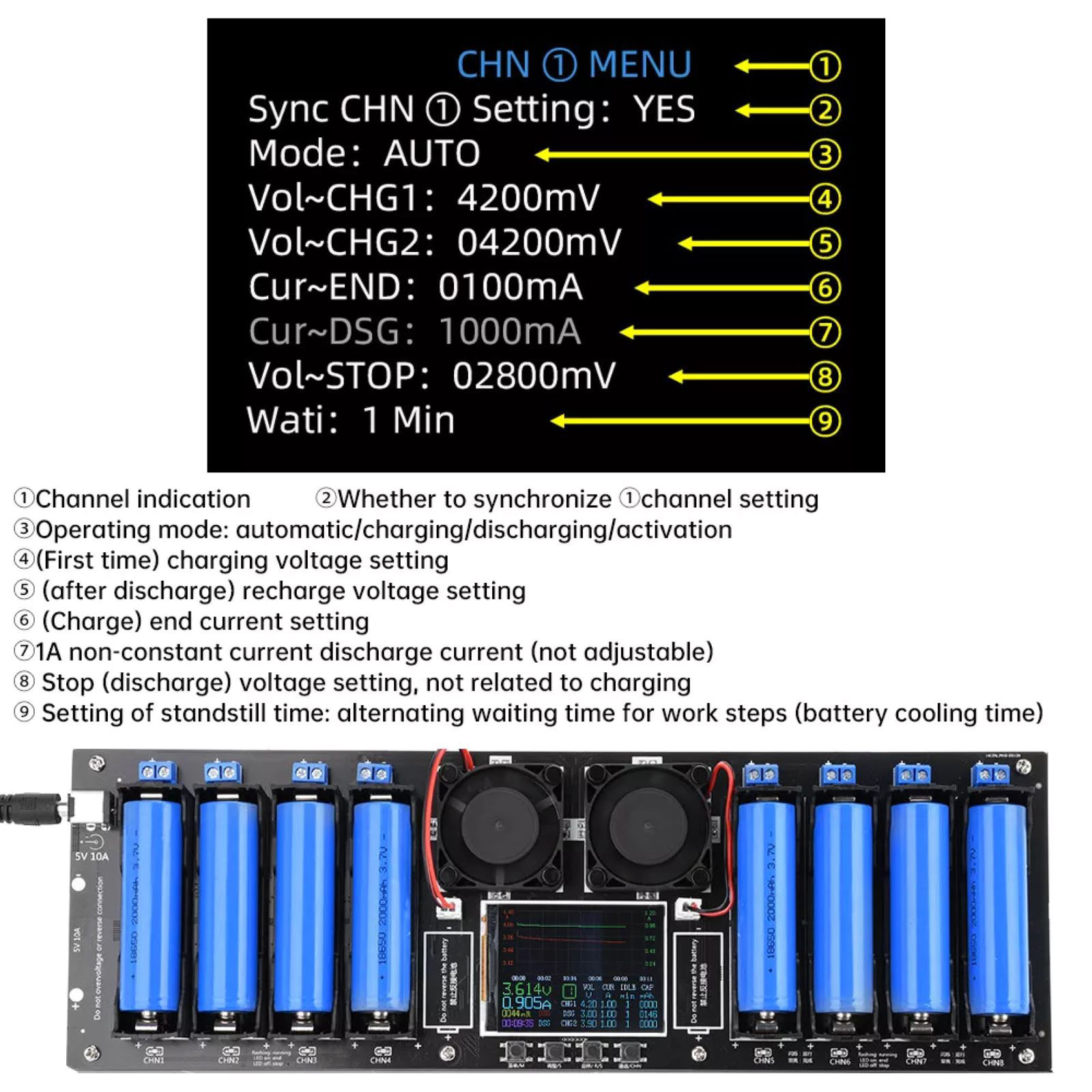

Charging Stop Voltage: 3.7V, 3.8V, 3.9V, 4.0V, 4.1V, 4.2V (6 adjustable steps)
Recharge Stop Voltage: 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 3.6V, 3.7V, 3.8V, 3.9V, 4.0V, 4.1V, 4.2V (13 adjustable steps)
End Current: 100mA, 200mA, 300mA (adjustable)
Discharge Current: Each channel independently maximum about 1A, non-constant current discharge, non-adjustable
Discharge Stop Voltage: 2.0V, 2.1V, 2.2V, 2.3V, 2.4V, 2.5V, 2.6V, 2.7V, 2.8V, 2.9V, 3.0V, 3.1V, 3.2V, 3.3V, 3.4V, 3.5V, 3.6V (17 adjustable steps)
Standing Time: 1~5 minutes (adjustable)

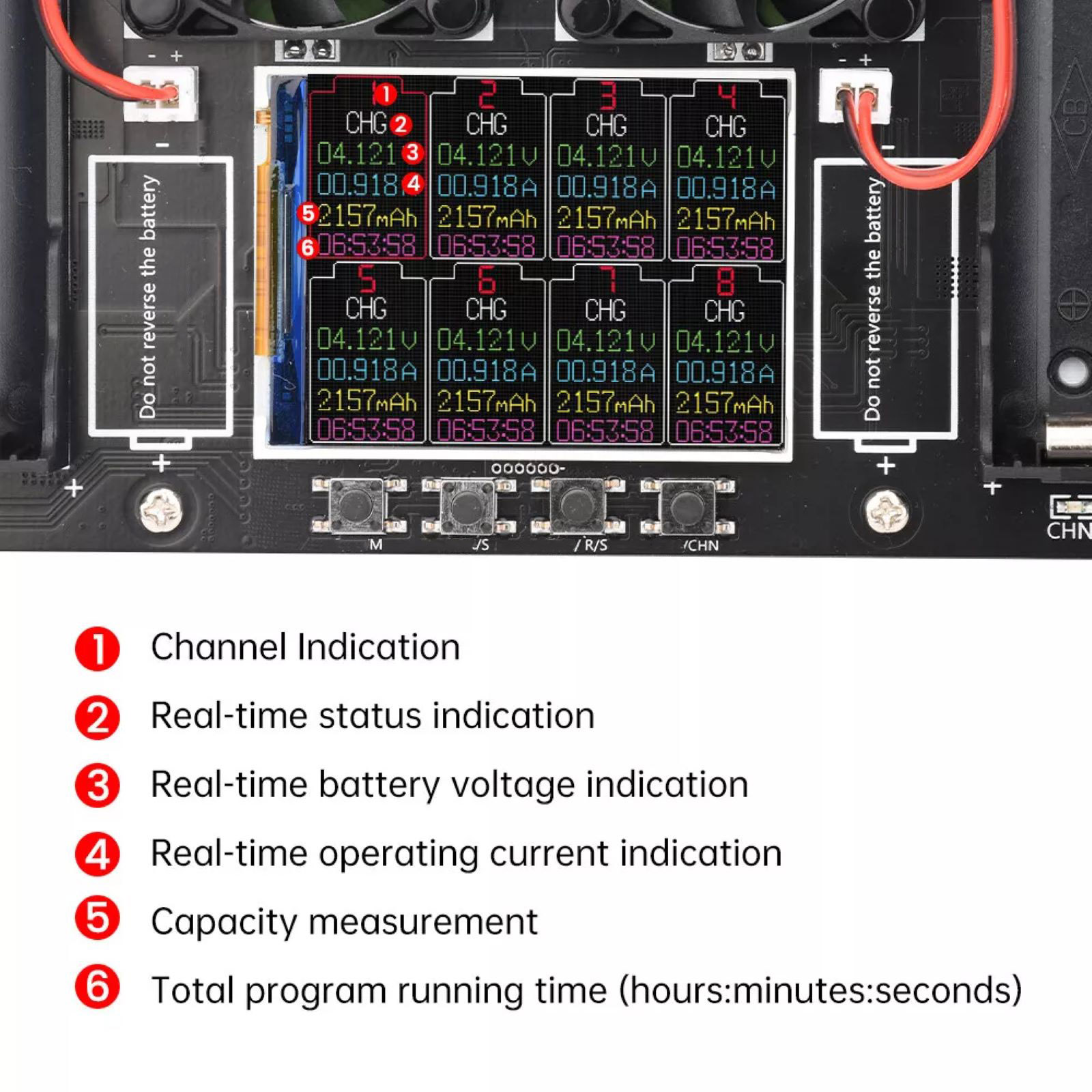

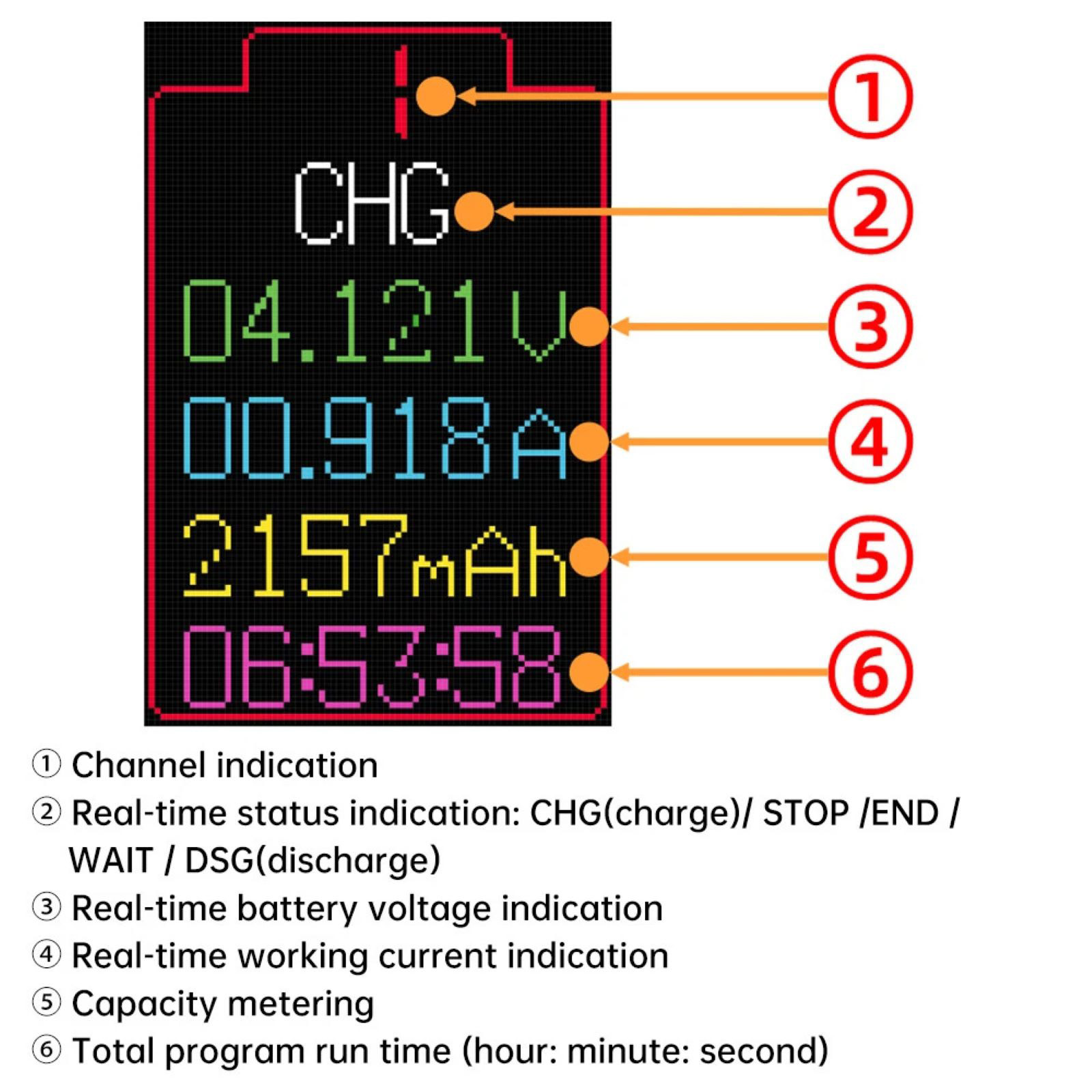

Status Preview: Supports 8-channel status preview on 1 screen
Single-Channel Detail Display: Supported
Single-Channel Charging and Discharging Curve Display: Supported
Internal Resistance Detection: DC two-wire method, only for same-batch sorting analogy
Heat Dissipation Mode: Active heat dissipation
Overheating Protection: Supported
Cyclic Charging and Discharging: Only 1 cycle of charging-discharging-charging is supported in automatic mode. Multiple cycles are not supported

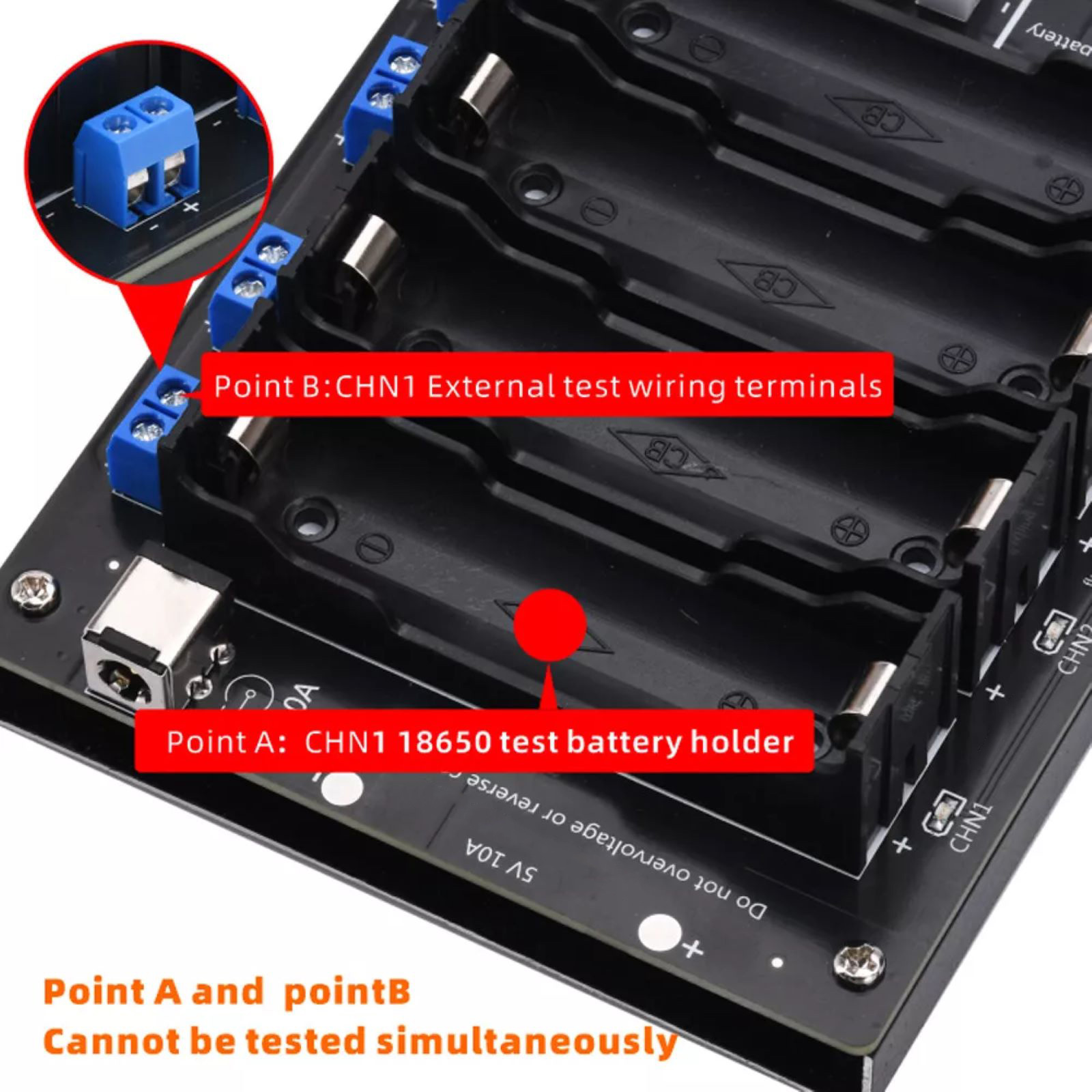

External Test: Supported. Can be discharged through the 2P terminal external. A single channel can only support the battery holder or external test at a time. Cannot use both simultaneously.
Battery Reverse Connection Protection: Built-in reverse connection protection. Reverse connection of the battery prohibited
Modes:

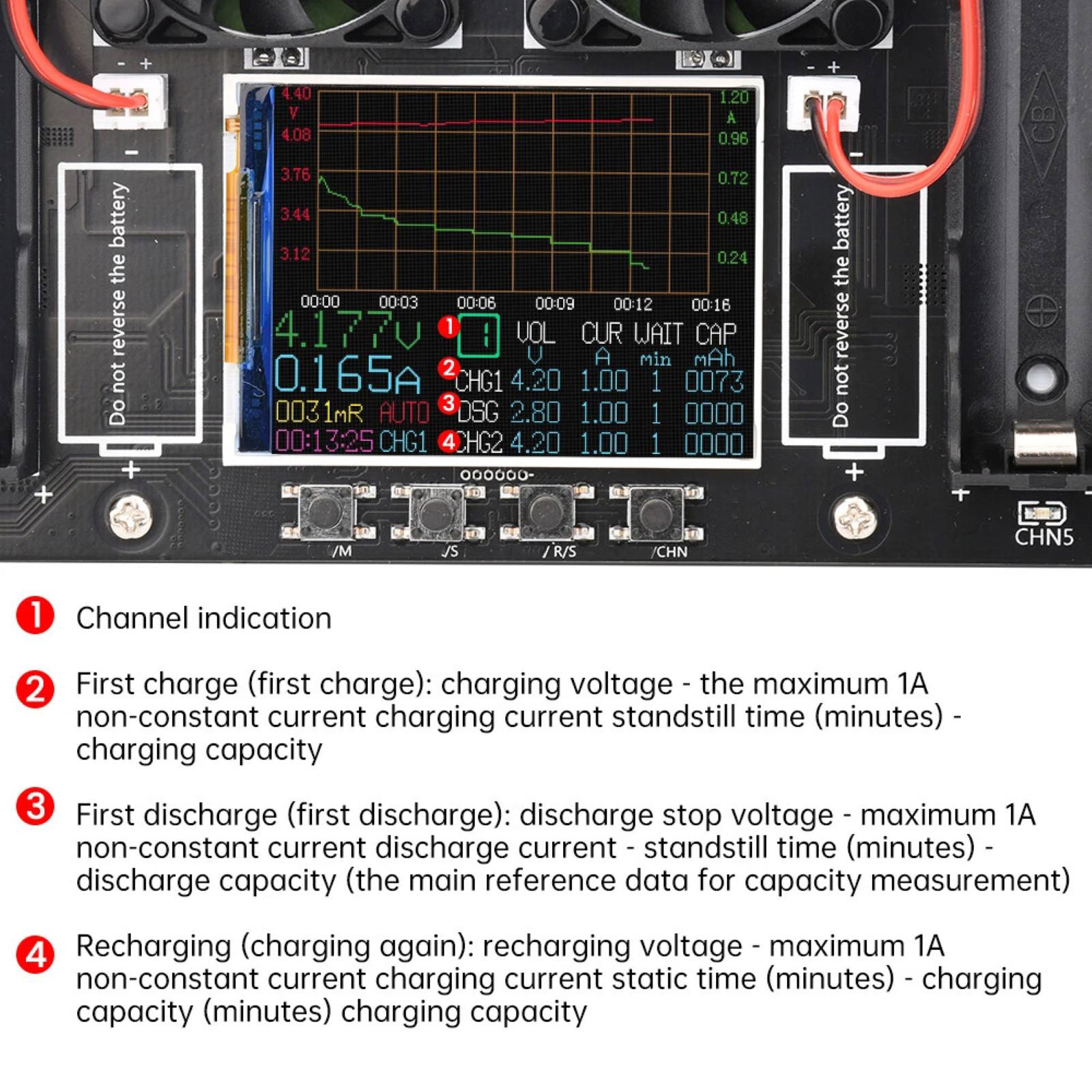

Automatic Mode: Program starts → Charges at 4.2V until current < stop current for 30s (first charge complete) → Quiescent → Discharges until load voltage < stop voltage for 10s (discharge complete) → Quiescent → Recharges at recharge voltage (4.2V or user-set) until current < stop current for 30s or battery reaches recharge voltage → Program ends
Charging Mode: Program starts → Charges at 4.2V (or user-set voltage) until current < stop current for 30s or battery reaches set voltage → Charging complete
Discharge Mode: Program starts → Discharges until load voltage < stop voltage for 10s → Discharge complete
Activation Mode: For professional use only. Forced charging at stop voltage. Manual termination required
NOTE: To ensure optimal performance and safety of this product, we recommend installation and use by professionals with relevant expertise. Users may also refer to online installation tutorials for self-installation. In case of any issues, please feel free to contact the seller for support.

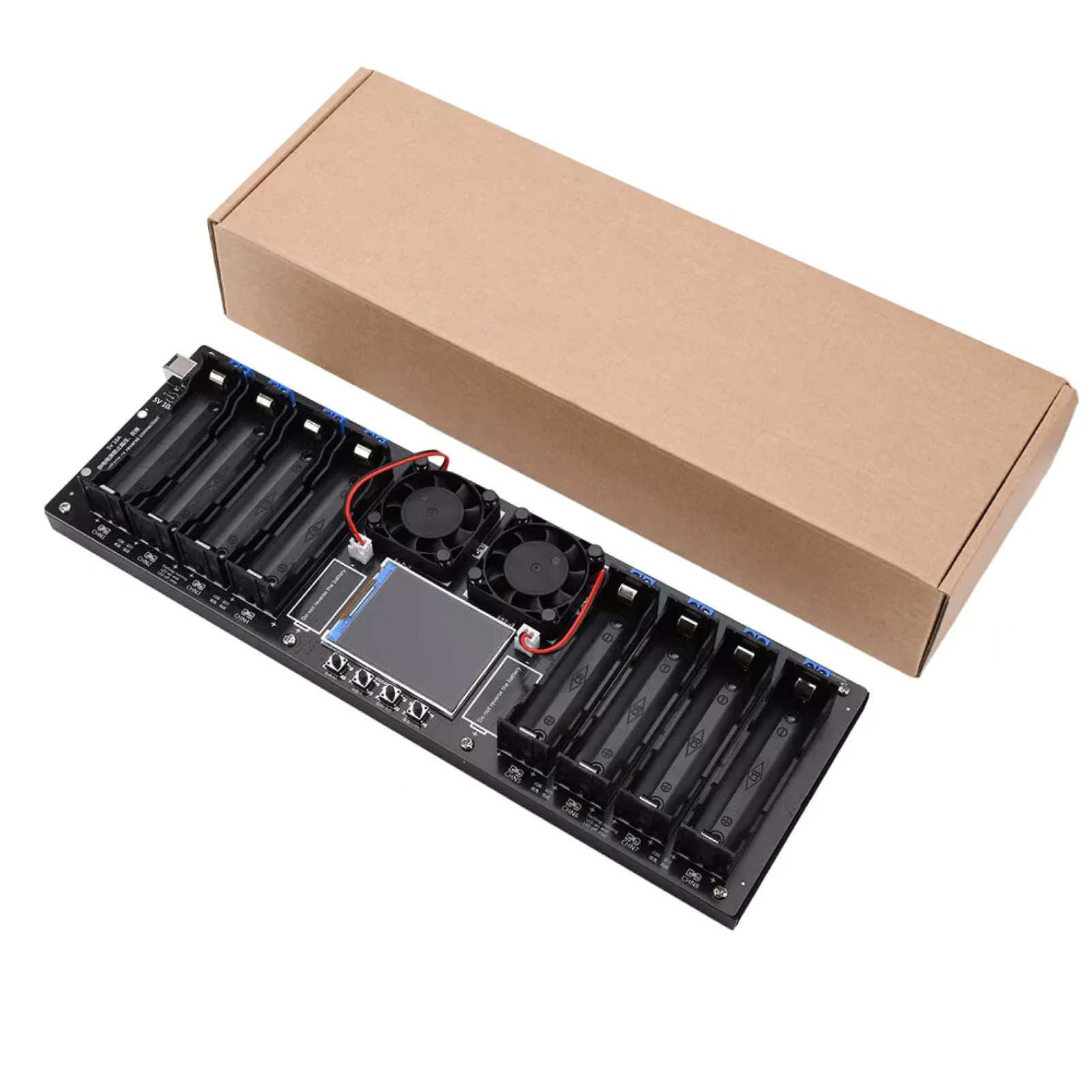

Package Included:
1 x Detector
1 x Crowbar
