Gloss Meter Yg60 60 Degree 1000 Gu Glossy Test Equipment
Product Description


Brief Introduction



1. YG60 one angle smart glossmeter, whose complete proprietary intellectual property rights are fully owned by 3nh, was researched and developped complying with the international standard ISO2813 and China national standard GB/T9754, also the standard ASTM D 523 and ASTM D 2457.

2. YG60 features the accurate measurement, simple operation and stable performance. 5 groups of data can be displayed on screen simultaneously, easy to compare. The standard data value can be manually input.

3. YG60 has four measuring modes.

Basic Mode, the simplest sample measurement mode;

Statistical Mode, the measuring mode with statistical function, display the measurement value, average value, max value, min value, standard deviation value, differential value and the PASS/FAIL result; Continous Mode, the times of measurement and time interval can be set before measuring, when press the measuring key, the instrument will operate according to the setting.

QA Mode, for quality control at production line.

4. Now YG60 has been widely used by our customers all over the world in many industries, like painting, lacquer, ink, coating, leather, paper, printing, plastics, electronics, furnitures, wood, decorating, ceramics, tiles, metals, hardware, marble, electroplating, package, food, cosmetics, pharmacy, cloth, garment, textiles, traffic signage, etc.



Application:



Widely used in the filed of paints,coating,plastics,ink,rubber,printing,paper, glass, handware, ceramic, marble etc.

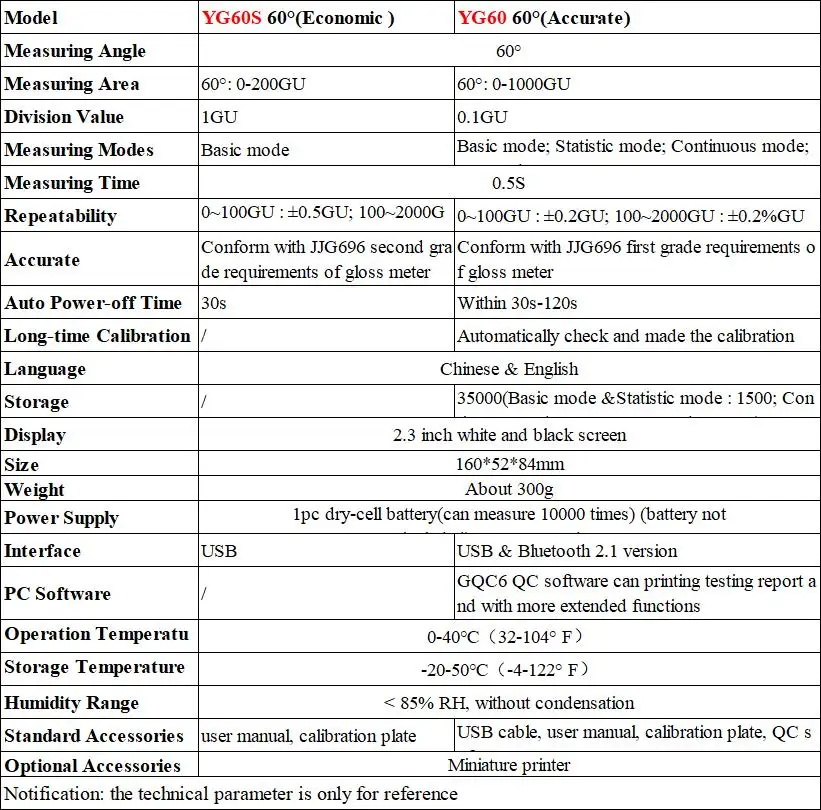

Specification:



Model

YG60S 60°(Economic )

YG60 60°(Accurate)

Measuring Angle

60°

Measuring Area

60°: 0-200GU

60°: 0-1000GU

Division Value

1GU

0.1GU

Measuring Modes

Basic mode

Basic mode; Statistic mode; Continuous mode; QC mode

Measuring Time

0.5S

Repeatability

0~100GU : ±0.5GU; 100~2000GU : ±0.5%GU

0~100GU : ±0.2GU; 100~2000GU : ±0.2%GU

Accurate

Conform with JJG696 second grade requirements of gloss meter

Conform with JJG696 first grade requirements of gloss meter

Auto Power-off Time

30s

Within 30s-120s

Long-time Calibration

/

Automatically check and made the calibration

Language

Chinese & English

Storage

/

35000(Basic mode &Statistic mode : 1500; Continuous mode : 10000; QC mode: 10000)

Display

2.3 inch white and black screen

Size

160*52*84mm

Weight

About 300g

Power Supply

1pc dry-cell battery(can measure 10000 times) (battery not included)or use USB Charge

Interface

USB

USB & Bluetooth 2.1 version

PC Software

/

GQC6 QC software can printing testing report and with more extended functions

Operation Temperature Range

0-40℃(32-104° F)

Storage Temperature Range

-20-50℃(-4-122° F)

Humidity Range

< 85% RH, without condensation

Standard Accessories

user manual, calibration plate

USB cable, user manual, calibration plate, QC software

Optional Accessories

Miniature printer

Notification: the technical parameter is only for reference

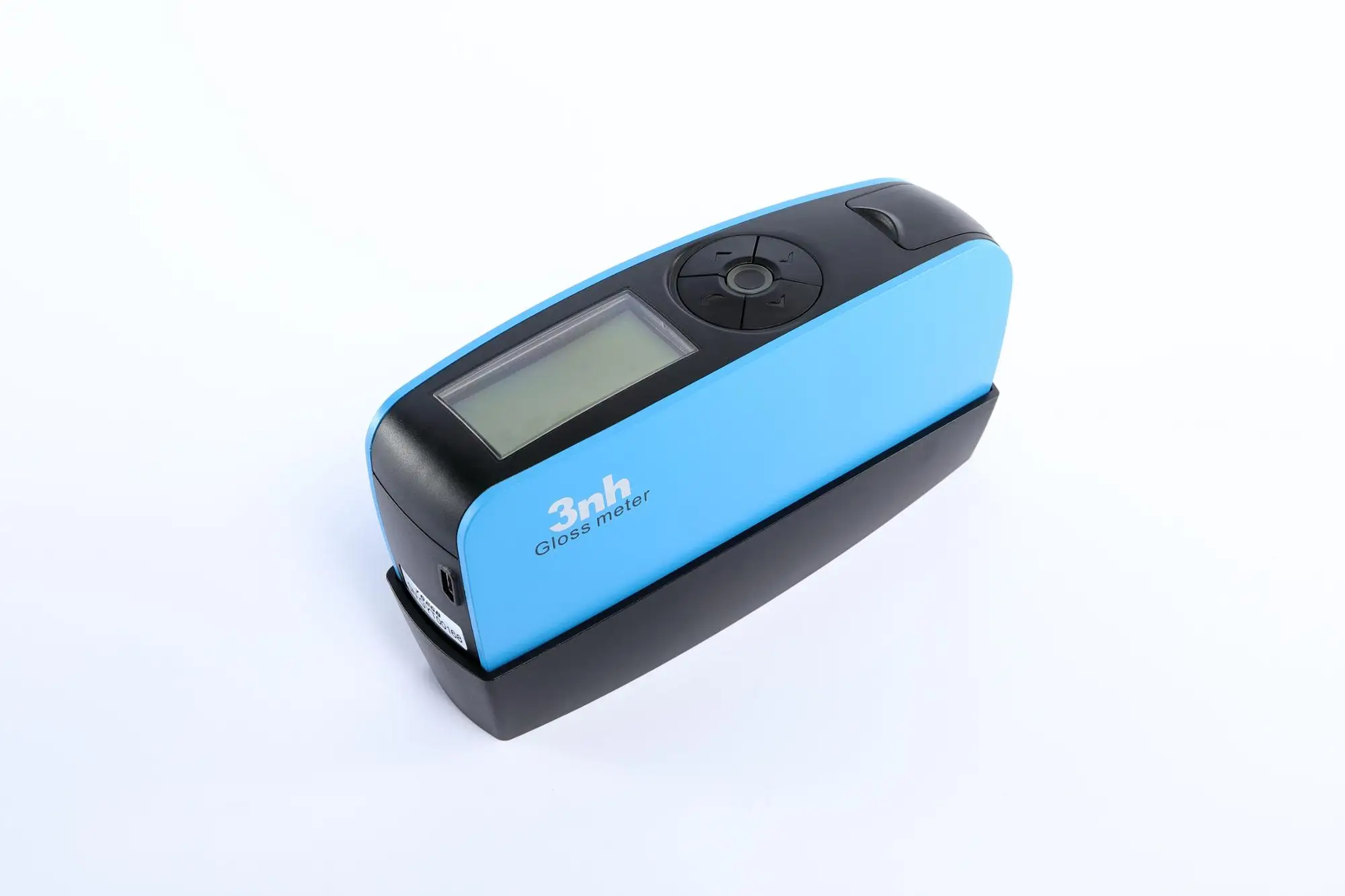

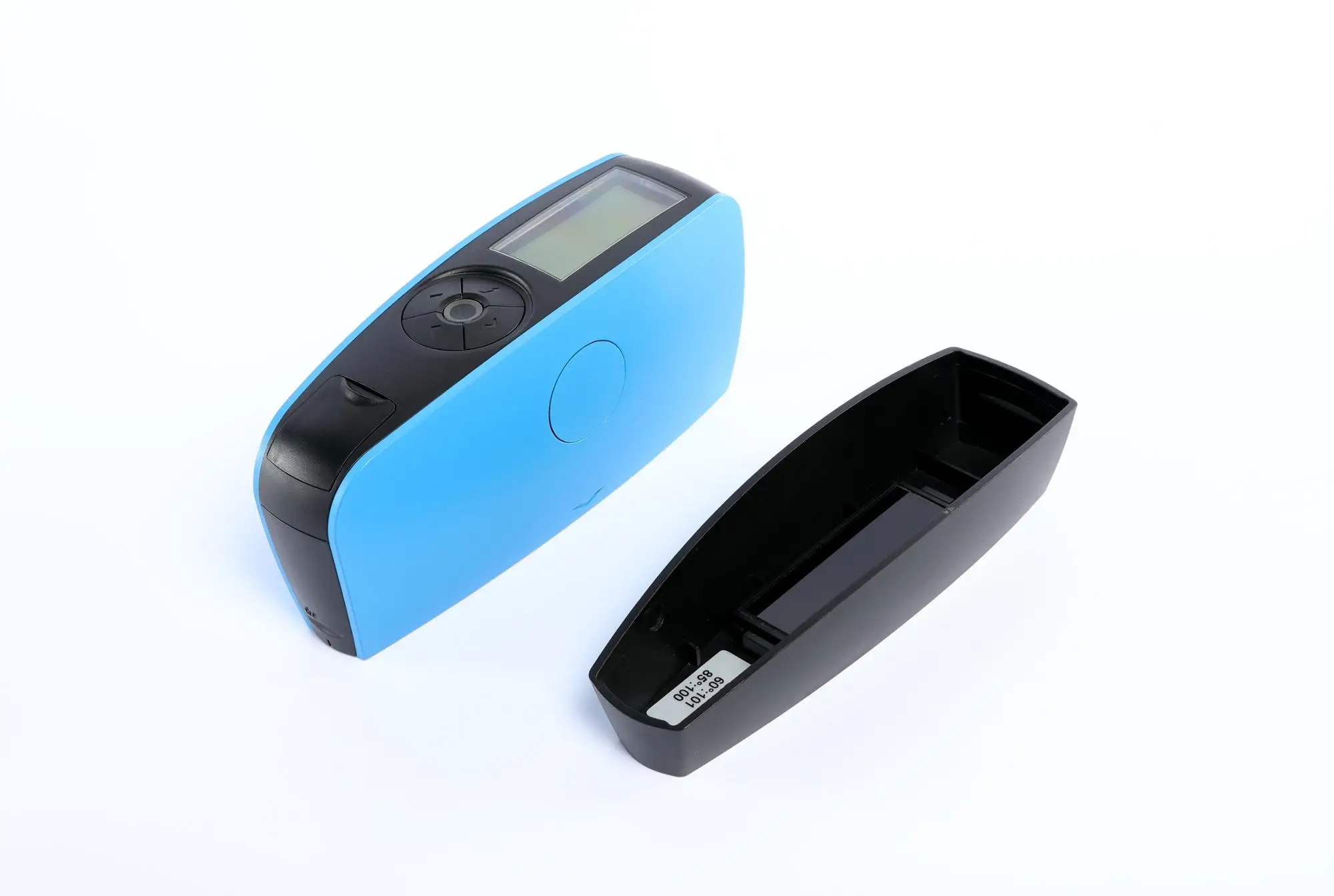

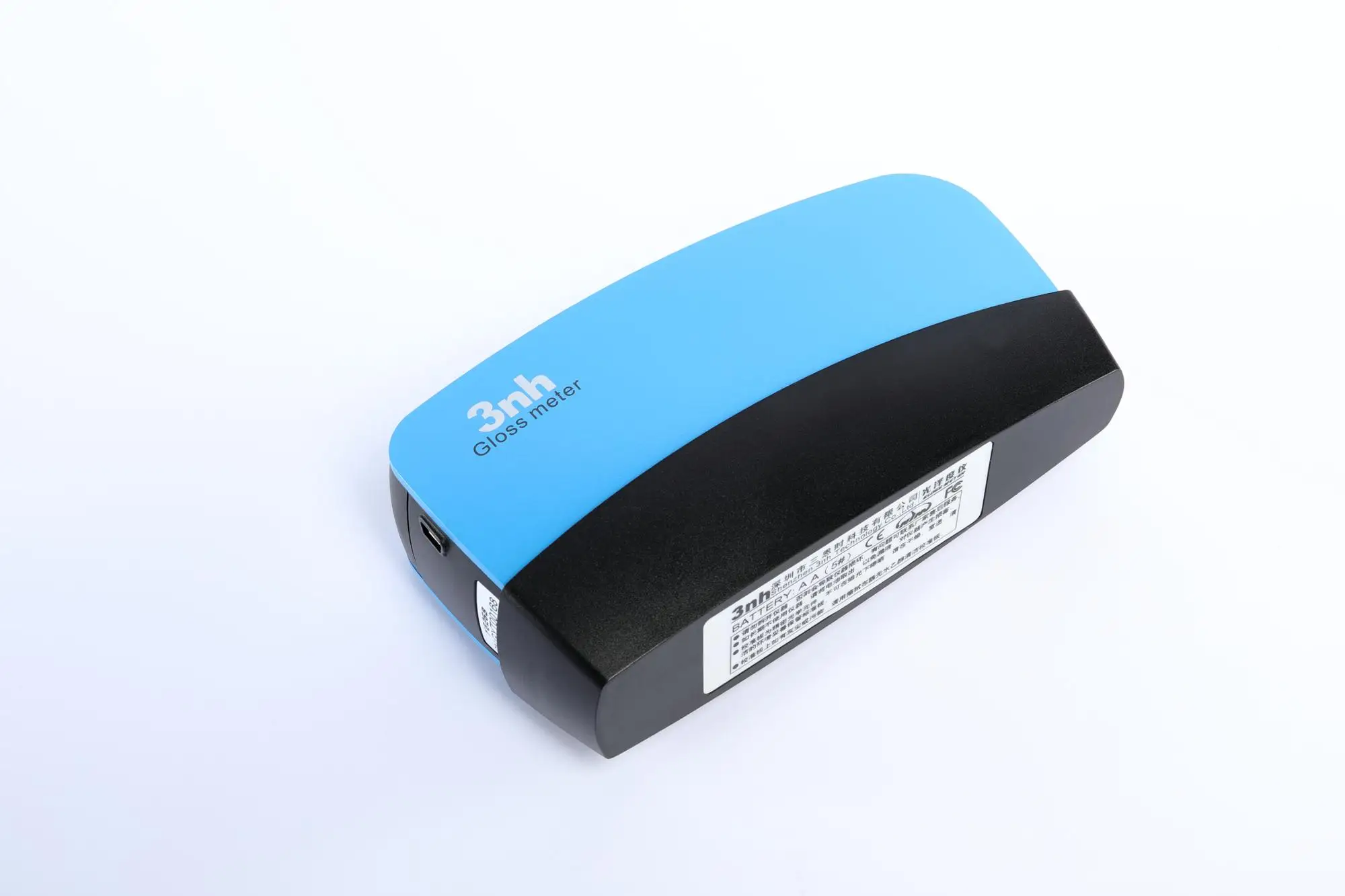

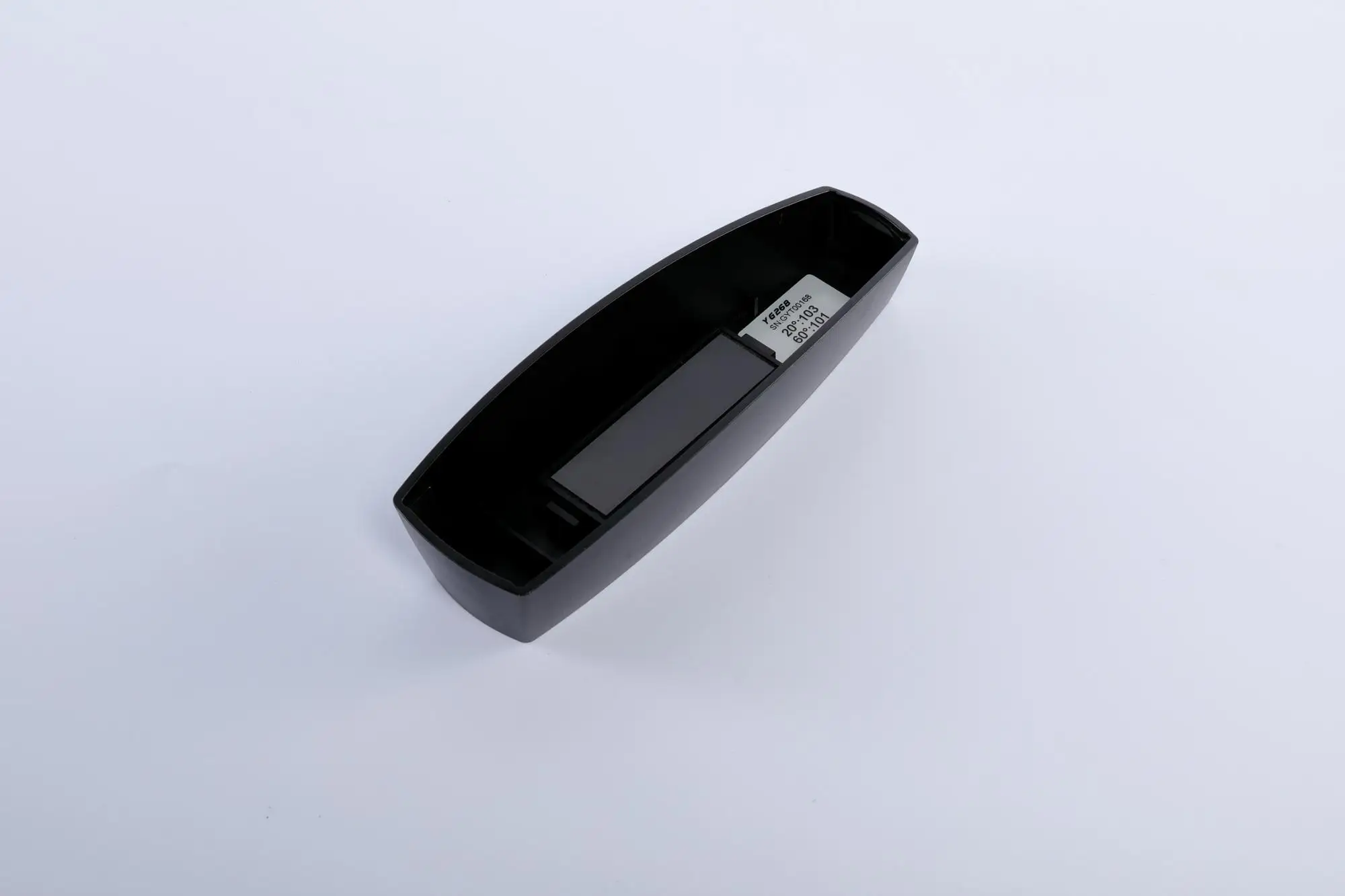

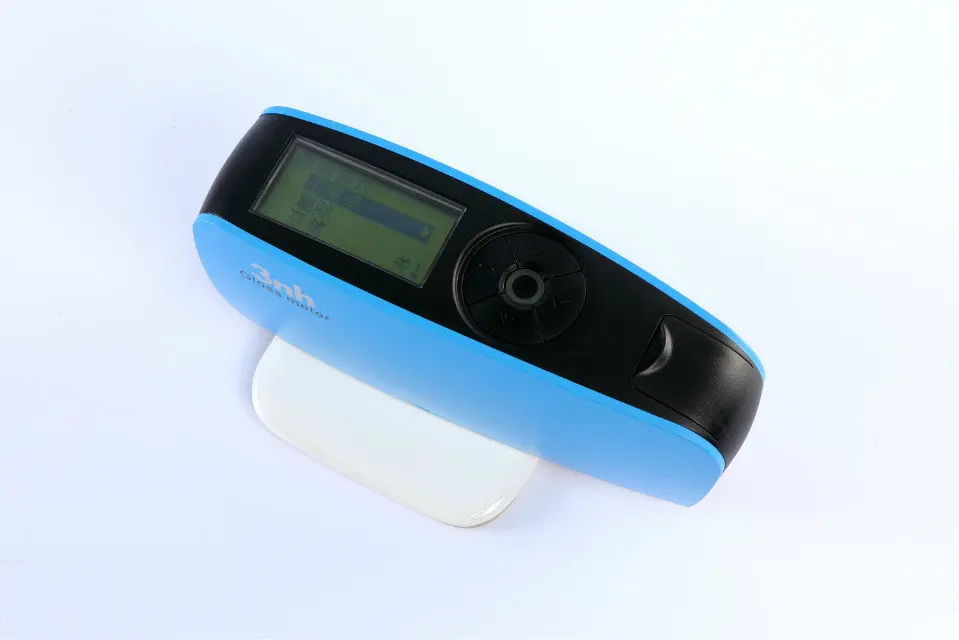

Product Images
