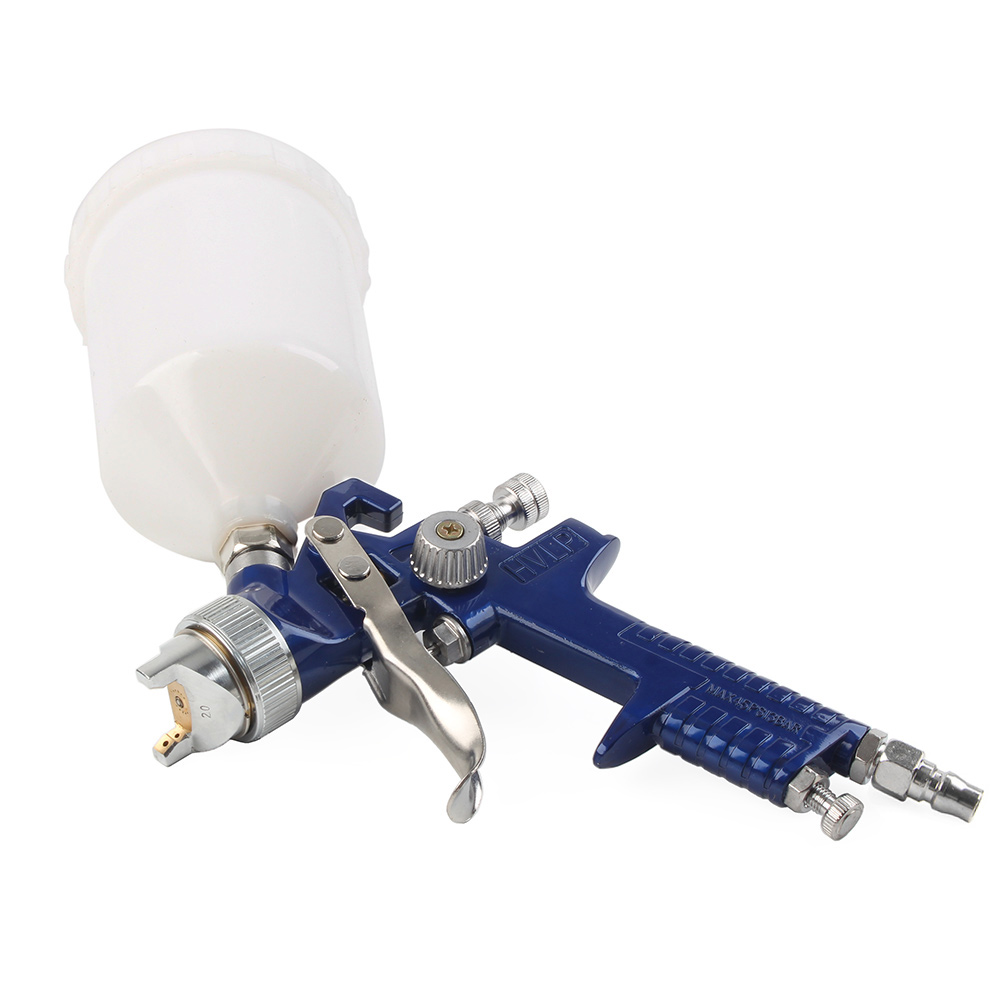

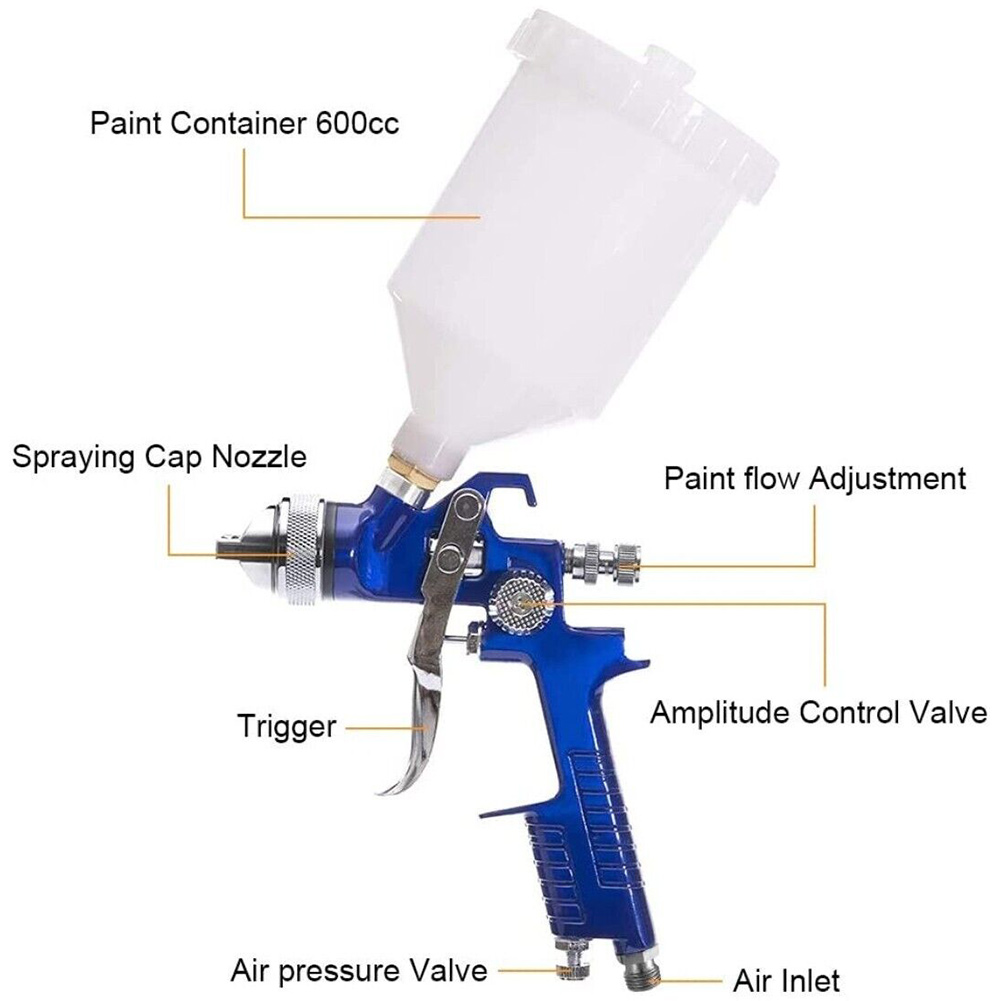

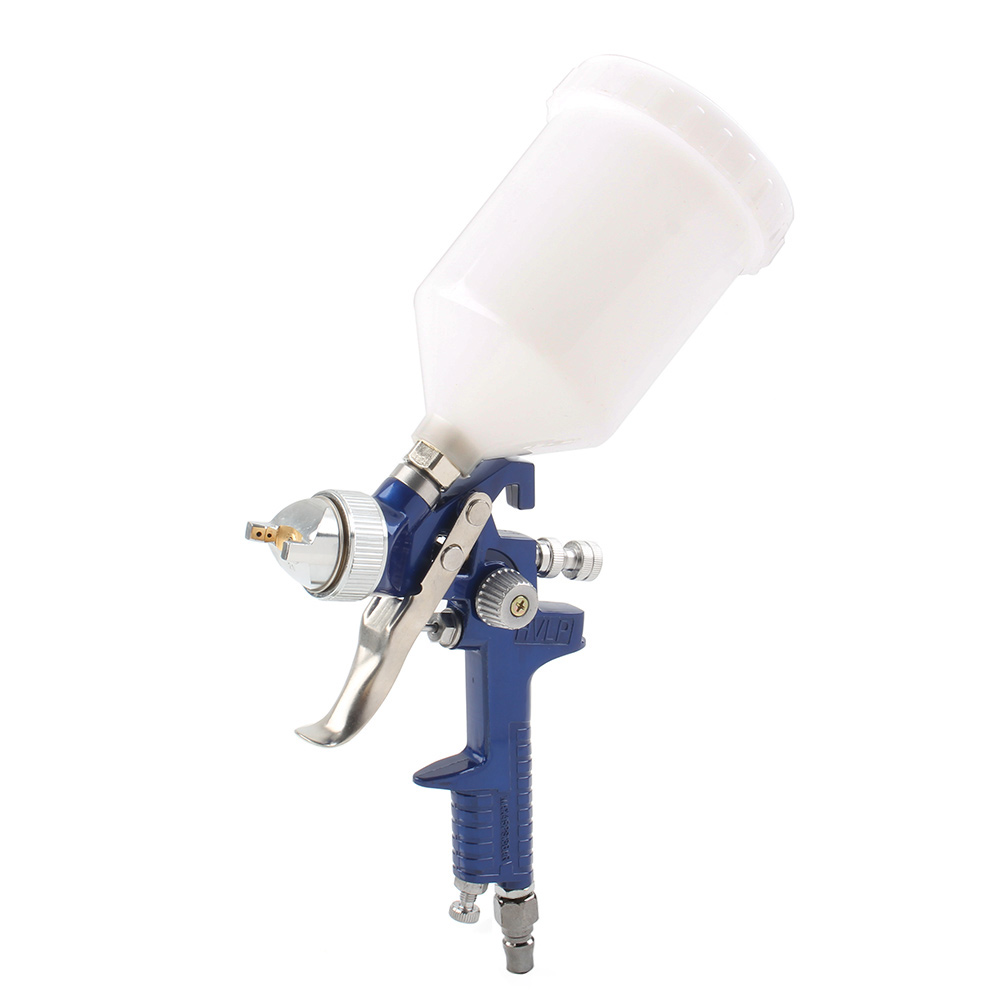

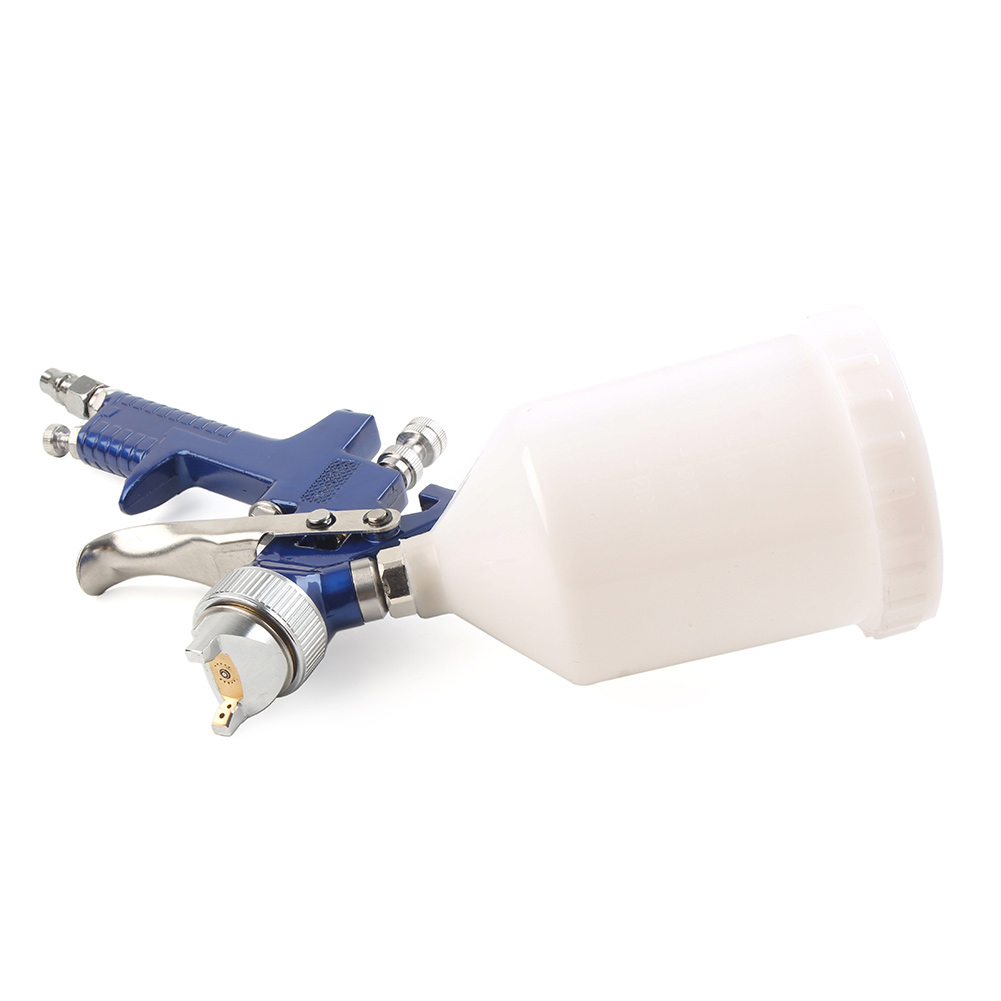

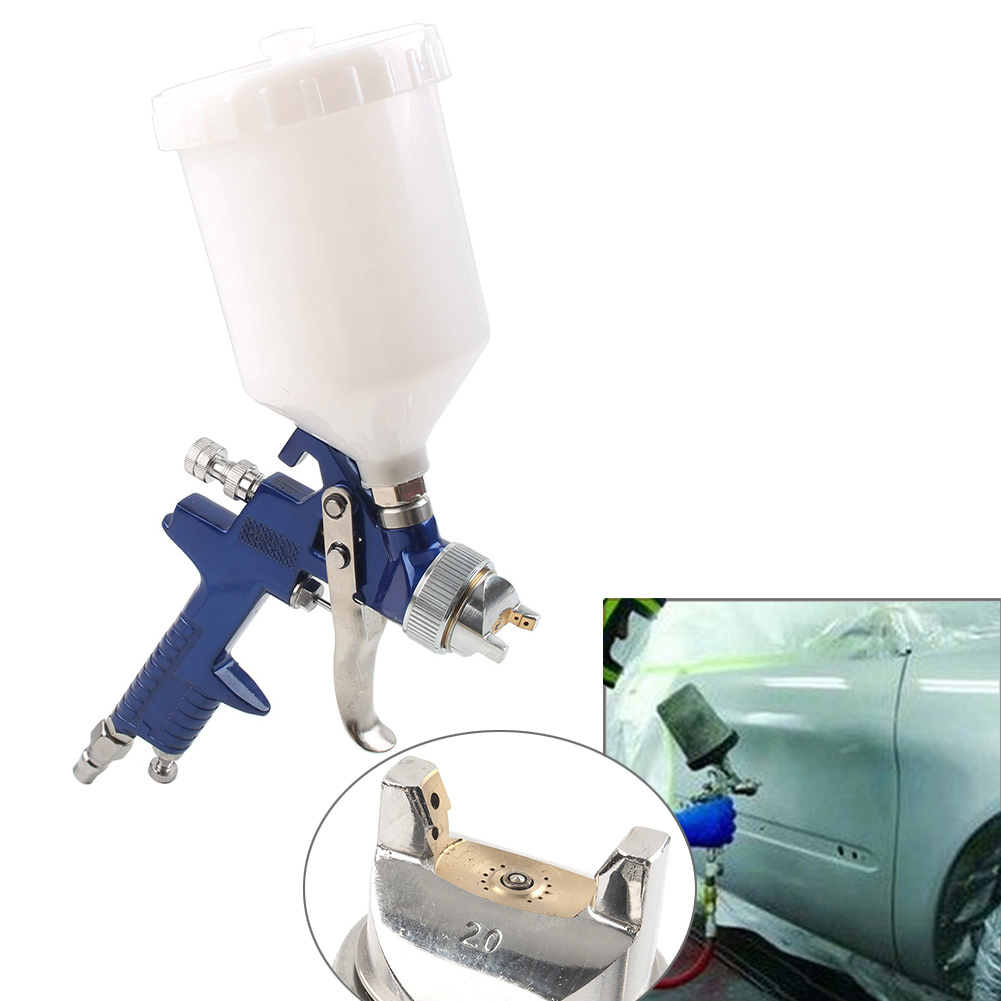

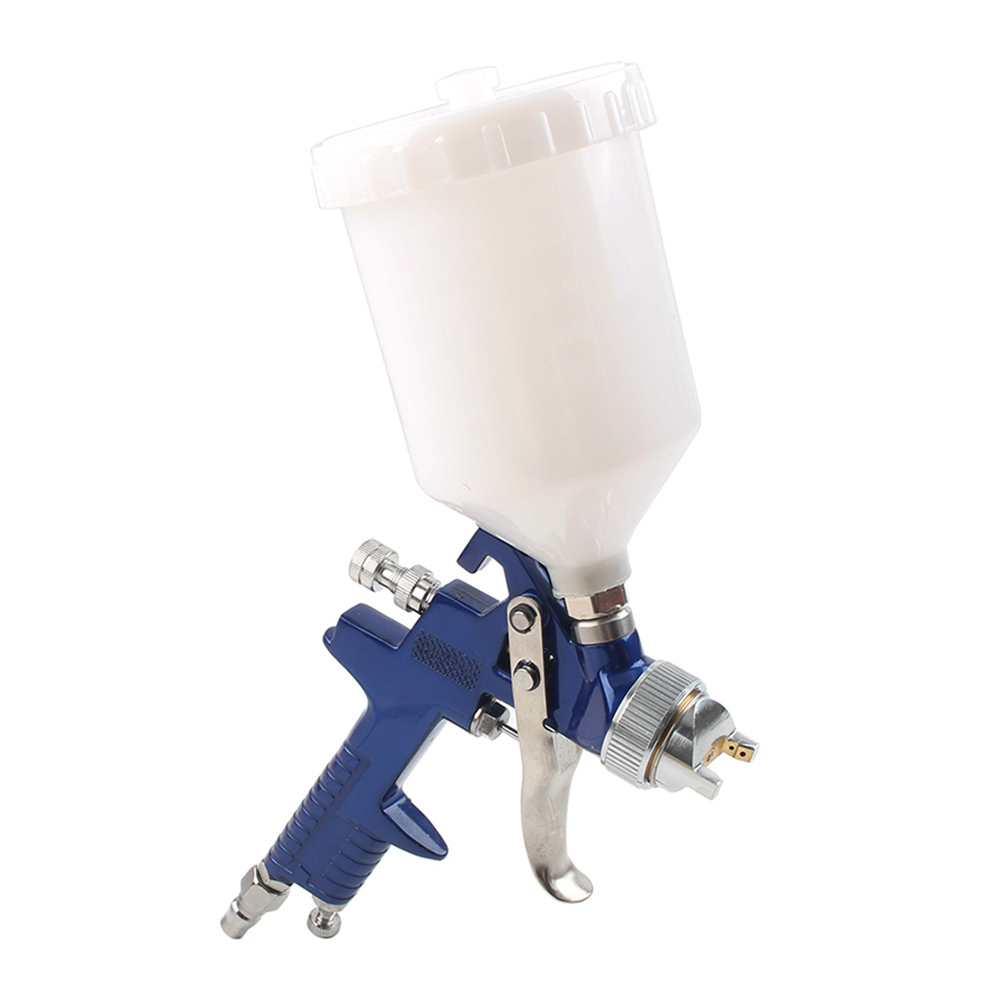

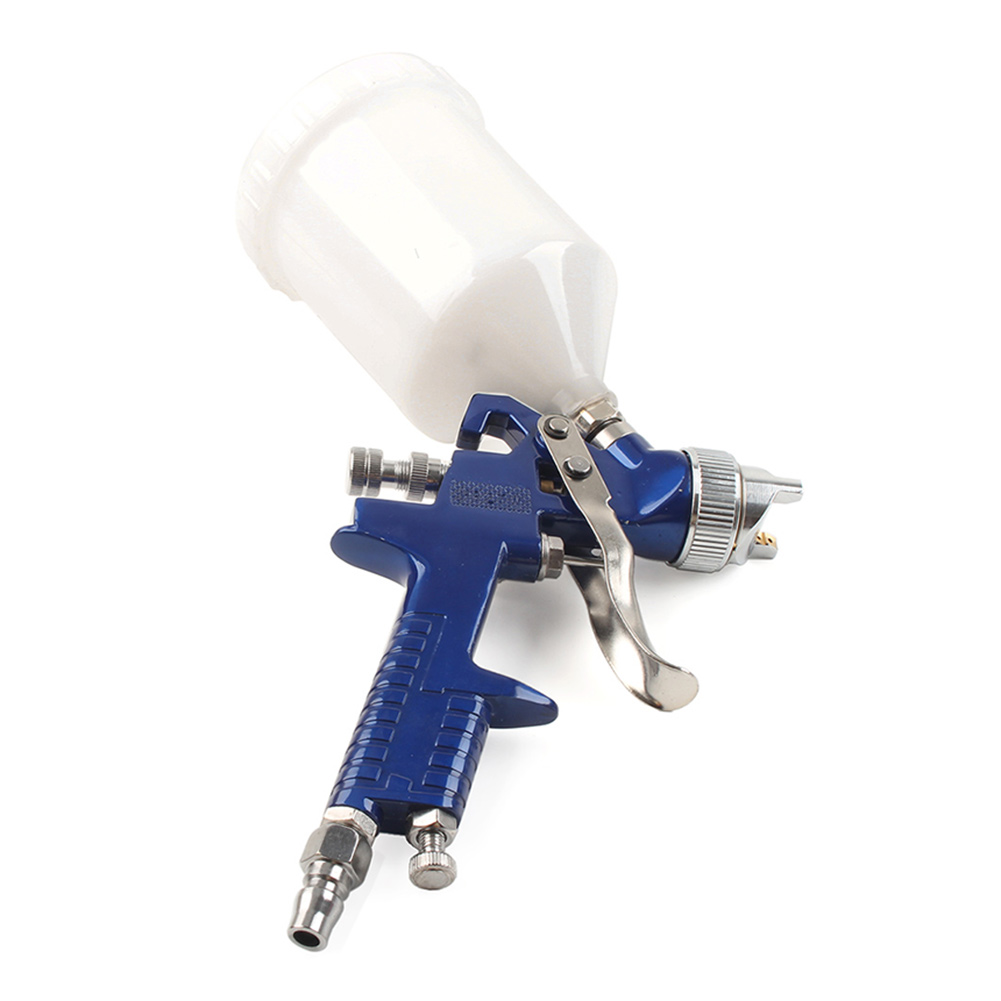

HVLP H827 Spray Gun Airbrush 600ml Cup 1.4mm 1.7mm 2.0mm Gravity Airbrush Nozzle Needle For Painting Car Furniture Wall

Features:

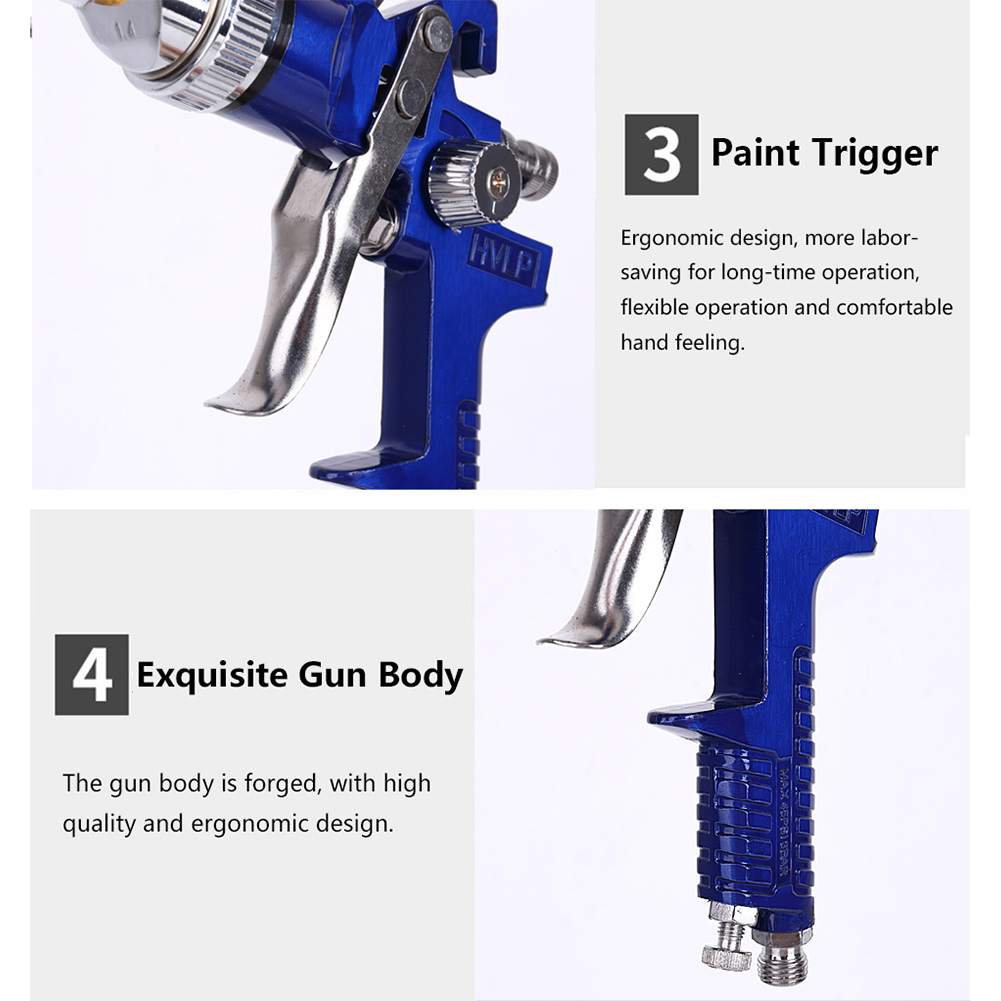

1. Non-slip, ergonomic handle and trigger, fit in palm, comfortable to grip.

2. Wide application: HVLP spray gun, very efficient, less overspray, better than others, suitable for painting car, wall, furniture, etc.

3. Large container: sturdy plastic bottle, with 600ml capacity, holding a lot of liquid for continuous long work & less frequent refilling.

4. The gravity feed design helps to reduce the waste of residual material in the color cup, thereby helping you save costs and materials.

5. HVLP type and high atomization low nozzle air pressure: high capacity and low pressure and excellent spraying efficiency, saving paint and protecting the environment.

6. Materials of the needle and nozzle of the HVLP spray gun are made of high-quality stainless steel, which is sturdy and durable, can be used for a long time, wear-resistant and scratch-resistant.

7. HVLP spray gun is equipped with HVLP (High Volume Low Pressure) technology. With this technology, spraying with low air pressure results in optimal atomisation. Due to this difference in pressure, the liquid substance is atomised into small drops with a correspondingly smaller spray mist.

Specification:

Condition: 100% Brand New

Material: Aluminum + Copper + Stainless Steel + PVC

Color: Blue

Model: H-827

Intake Screw: 1/4"

Spray Bottle Capacity: 600ml

Spray Width: 160-240mm

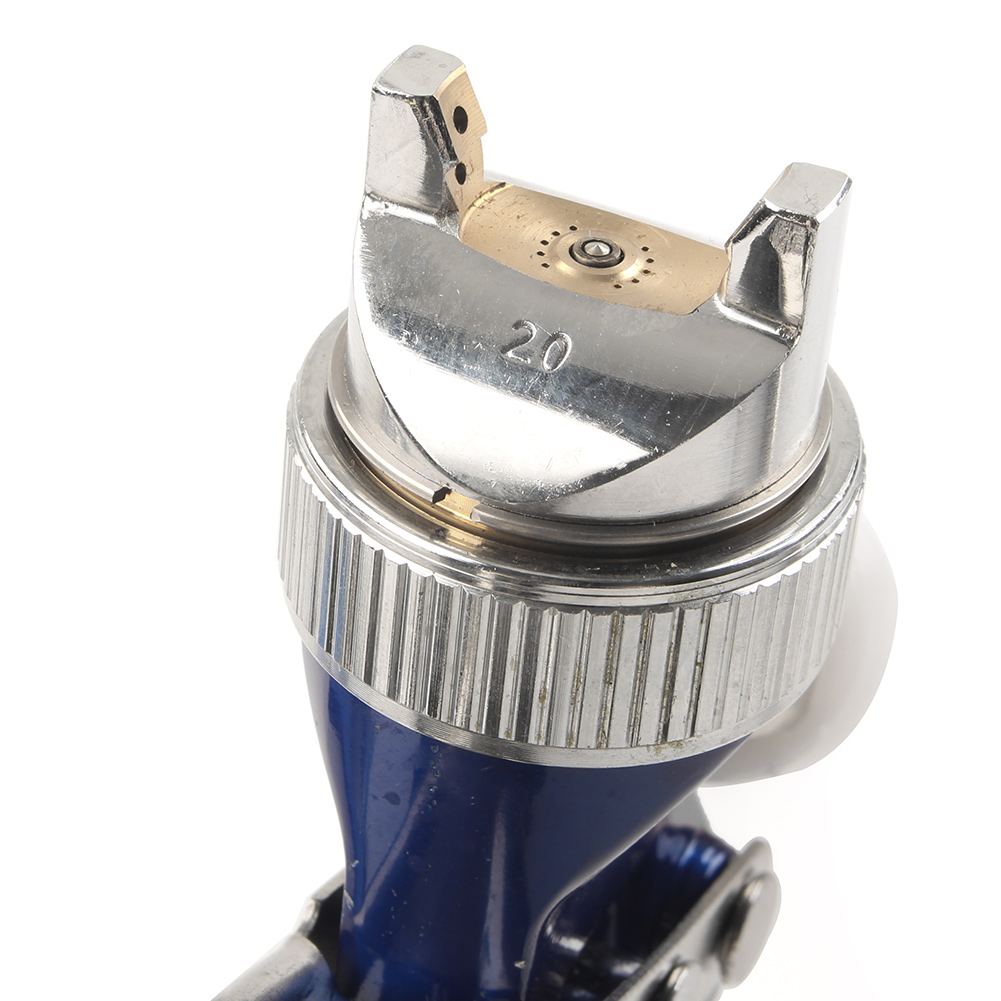

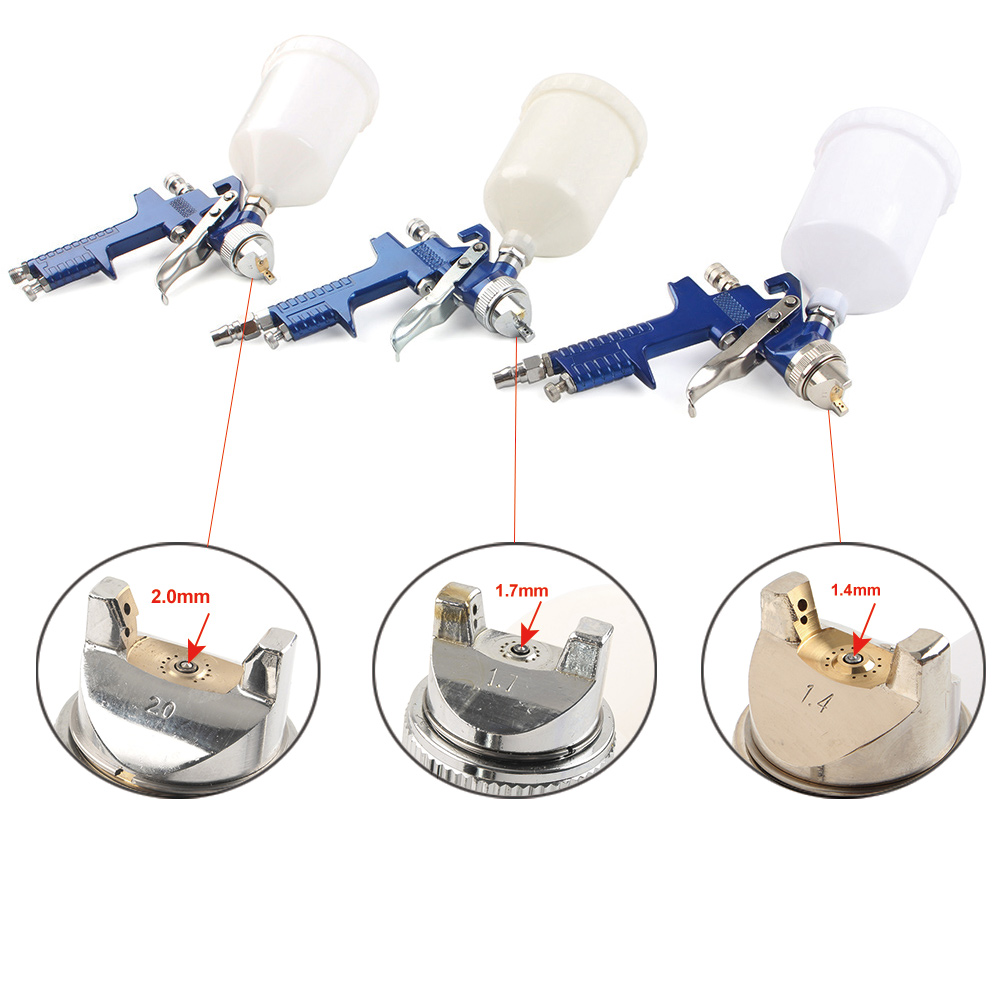

Nozzle Size: 1.4mm /1.7mm/2.0mm(Optional)

Best Spraying Distance: 280mm

Feed Type: Gravity Feed

Packing Included:

1 x Spray Gun

1 x Plastic Cup

1 x Cleaning Brush

1 x Filter

1 x Tool Wrench

1 x Manual

Instructions:

1. Pour the paint with good proportion into pot and connect with the feed joint.

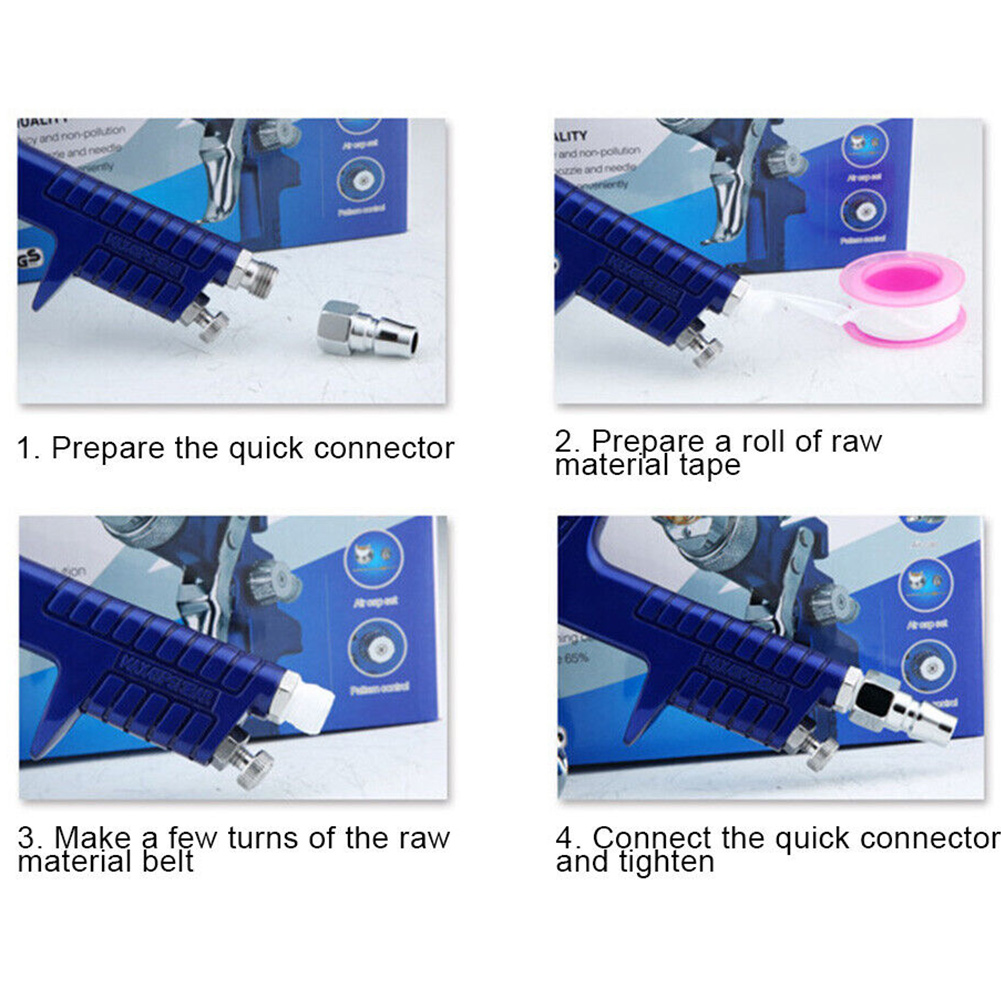

2. Connect the compressed air to the air inlet connector.

3. Pull the trigger and adjust the proper working air pressure (3.5-4.5bar).

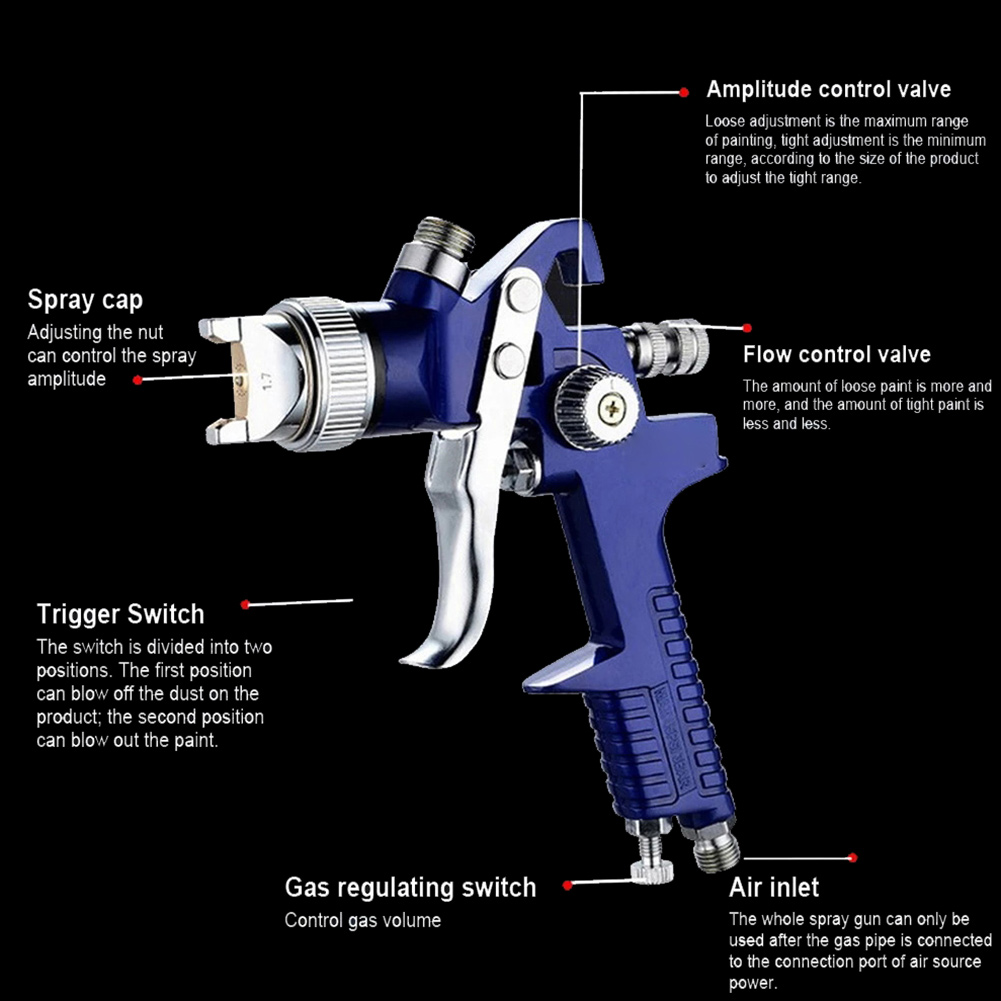

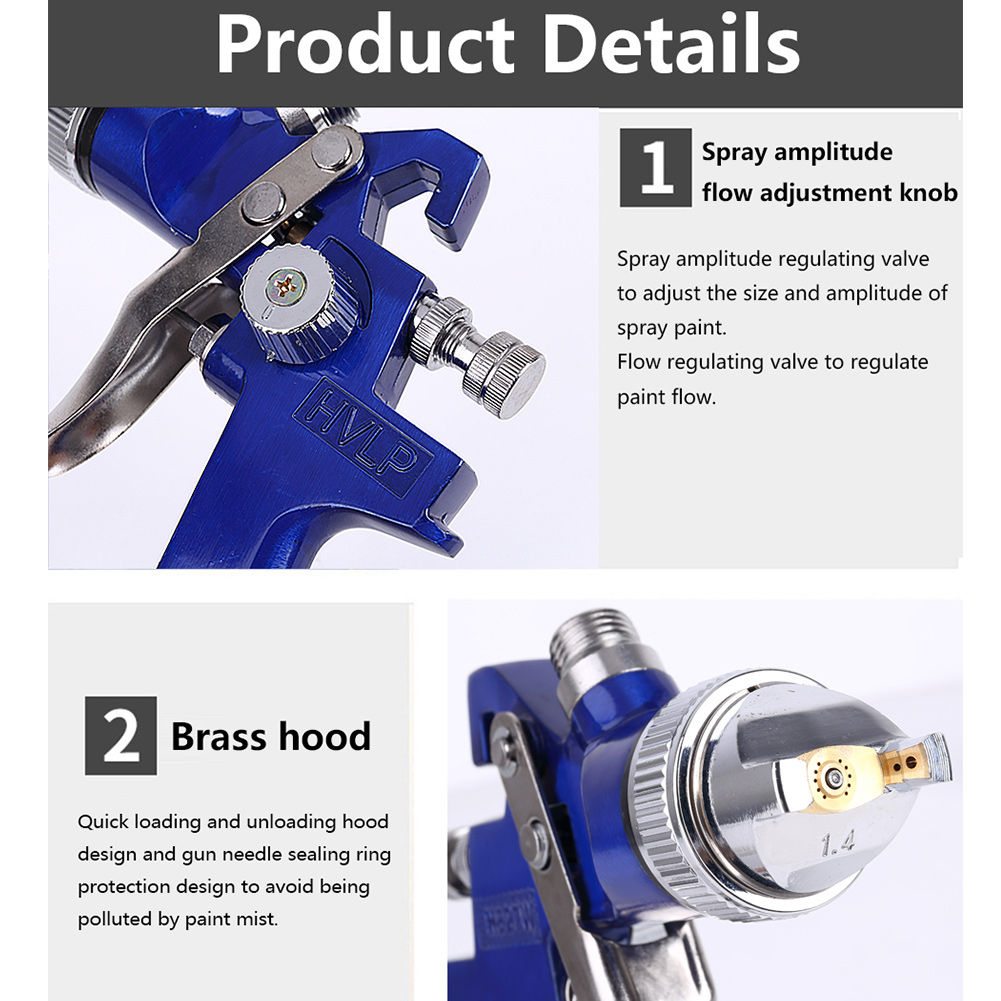

4. Adjust the amount of paint and spray width (adjust as needed).

5. Parallel and vertical spray on the cleaning surface (spray distance is about 20cm / 7.9in).

Difference Between Upper and Lower Pots:

1. The lower pot S is suitable for spraying horizontally or less than 45 degrees up and down.

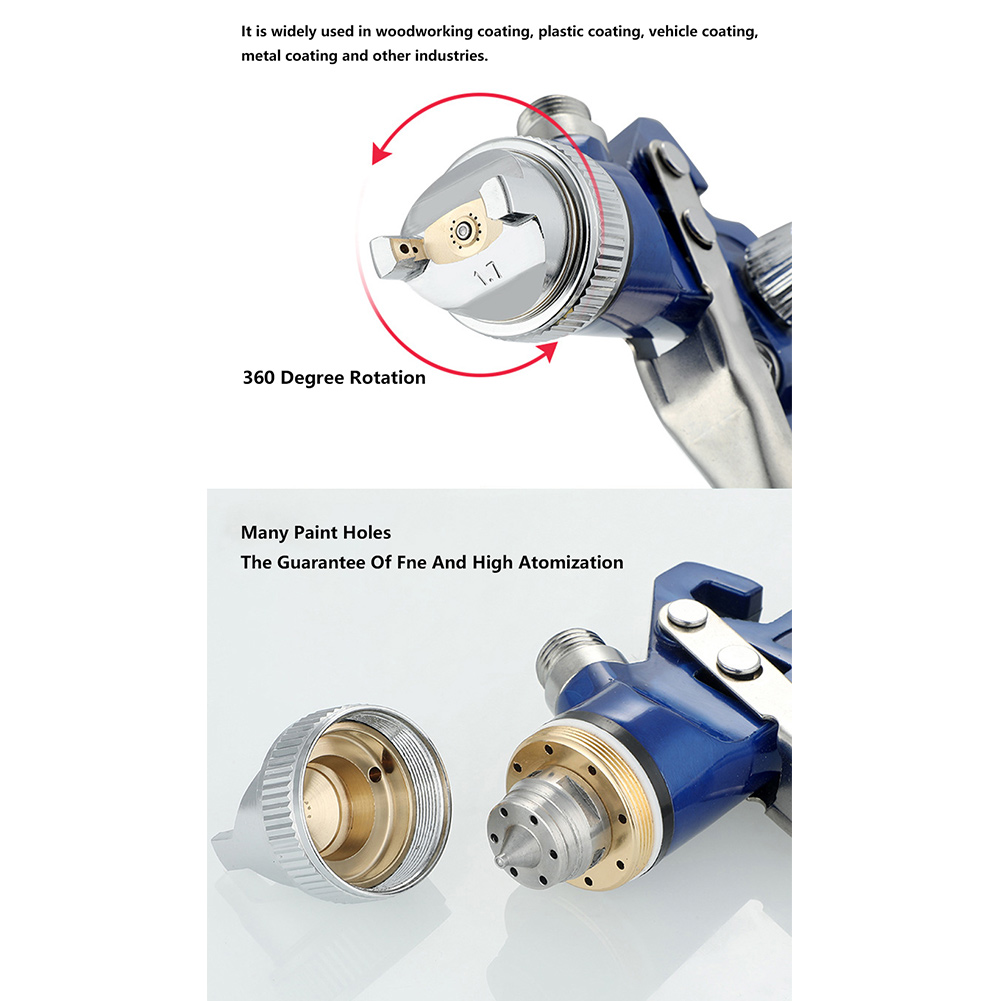

2. The upper pot G can be rotated, suitable for 360-degree spraying.

3. The lower pot have large capacity, and the upper pot have small capacity, chosen according to the usage scenario.

Spray Gun Cleaning Method:

At the end of each day's work, clean the spray gun with water. The cleaning method is as follows: let Tianna water(Nitrocellulose lacquer thinner)or spray gun water spray out from the gun body like oil spray. Repeat the operation. After cleaning, close the paint and dry it by hanging. Every other week, the needle nozzle and atomizing cap need to be removed, then soaked in Tianna water, cleaned, dried, applied with a little pneumatic oil, and then installed into the spray gun. Note that the nozzle interface is wrapped with white sealing tape to ensure the airtightness of the spray gun. If the viscosity of high spray paint, two or three days can be operated once. If the paint is properly maintained, it will increase its service life and maximize its value.

Notes:

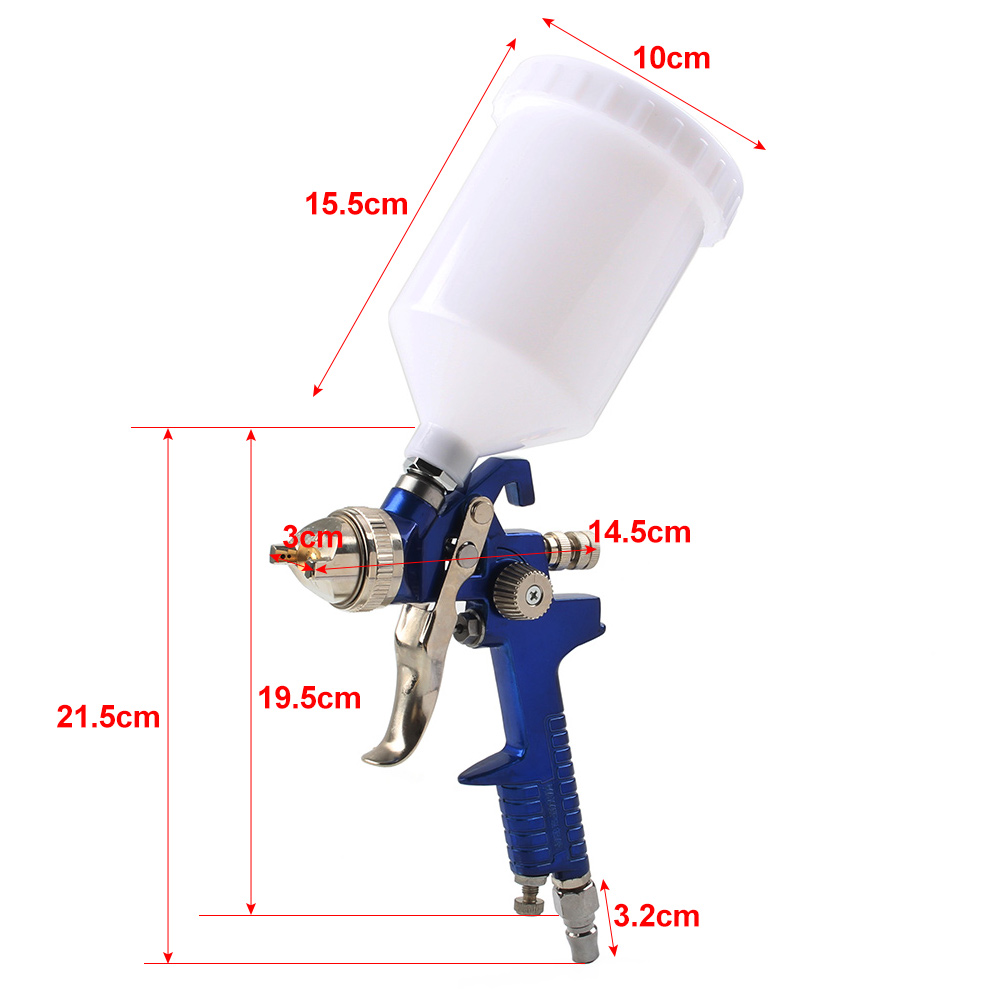

1. All dimensions are measured by hand, there may be small deviations.

2. With the use of spray gun long time, the nozzle will slowly wear, need to replace the needle nozzle accessories.

3. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
