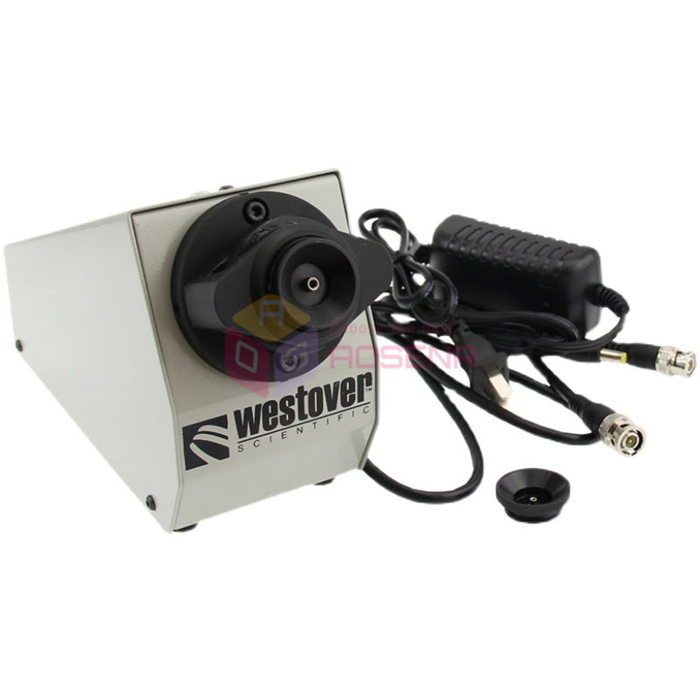

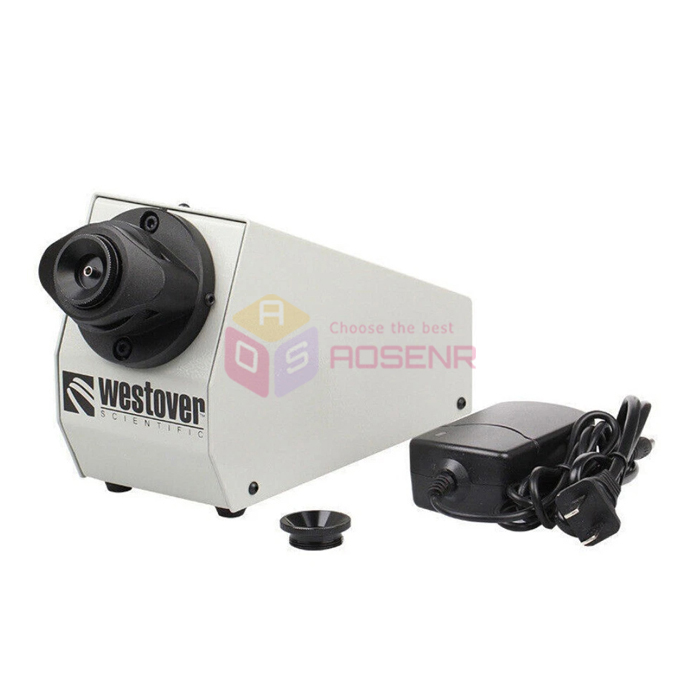

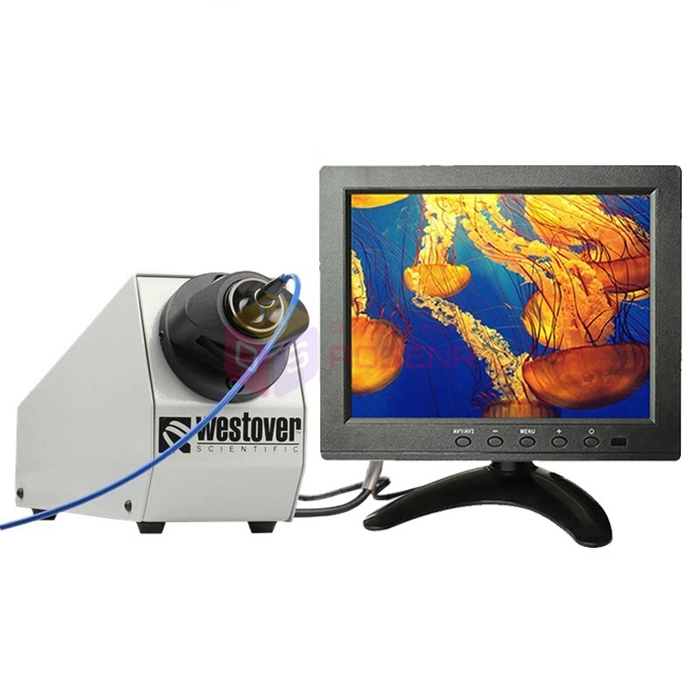

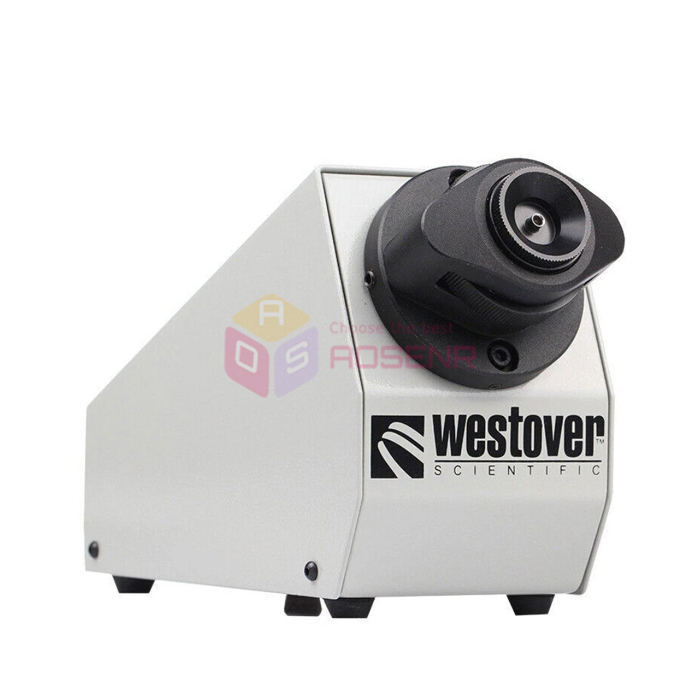

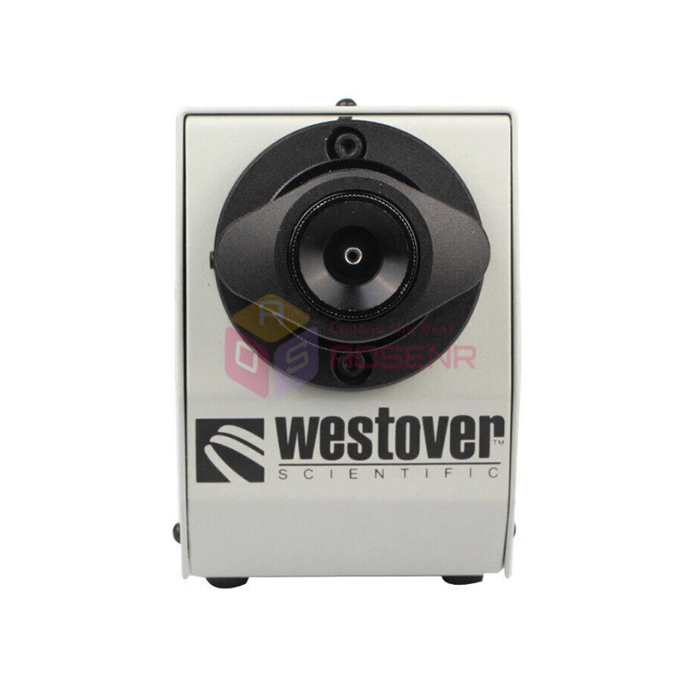

Desktop 400X Optical Fiber End Face Inspection Microscop 1.25/2.5mm Adapter with 8'' Display Screen
Suit for APC SC FC LC adaptes.
Description:
Benchtop optical fiber detector, mainly used for optical fiber end face ceramic core, optical module (such as: SFP), optical devices and other microscopic quality detection. And widely used in the device manufacturers, optical communication key laboratory scientific research, instrument school teaching, archaeology and other fields.
Features:
1, Fast detection and convenient, accurate and efficient, clear image.
2, Pre-center positioning, the core image is always displayed in the center position.
3, With 2 adapter: 2.5mm and 1.25mm connector ports.
4, Long working life, internal LED lighting bulb life of up to 100000 hours.
5, Laser safety, built-in CCD camera to view the optical fiber end face, even if the inspection is being transmitted laser.
6, Suitable for a wide range, basically can check all of the optical fiber connector.
Specification:
Type: Desktop Optical Fiber Inspection
Model: TS-400X
Voltage: DC12V
Magnification: 400X
Adpater: 1.25mm / 2.5mm
Size: 220X110X140mm
Weight: 3kg

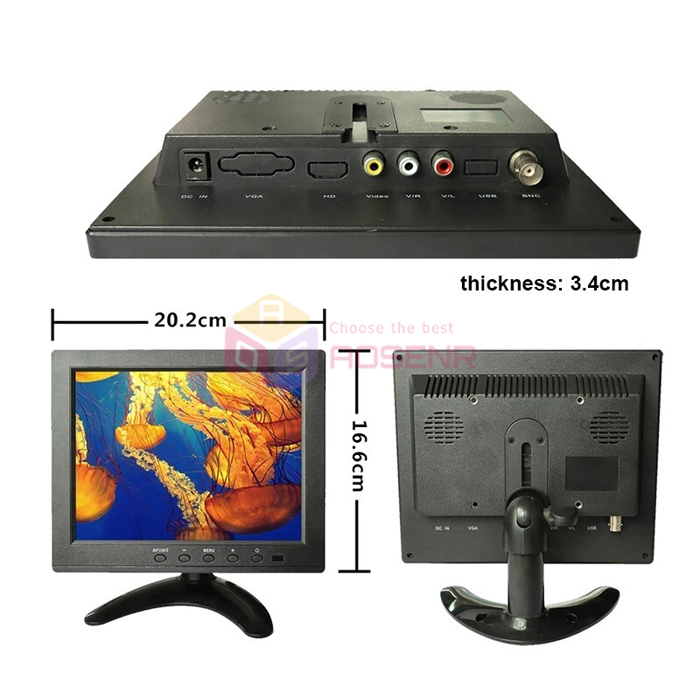

Display screen parameter:
Type: 8'' display screen
Resolution: 800*600/1024*768
Luminance: 220cd/250cd
Contrast ratio: 400:1
Power supply: 12V 2A
Screen backlight: LED
Signal input interface: AV/BNC
Function optional: VGA/BNC/AV touch
Working temperature: -10~+50℃
What's in Package:
1x Optical Fiber Inspection
1x 1.25 Adapter
1x 2.5mm Adapter
1x Power Adapter
1x 8'' Display Screen (According to your choice)
