Metal Waterproof Biometric RFID 125KHZ Fingerprint Access Controller
- Fingerprint capacity: 200
- Card capacity: 2000
- Card Reading Type: Supports 125KHz EM Card
- Operating Voltage:DC12–24V
- Reading Distance:2–5cm
- Standby Current:≤35mA
- Ambient Humidity:0–95% RH
- Ambient Temperature:-40–60°C
- Alarm Output:≤20A
- Electric Lock Output:≤1A
- Unlock Duration:0–99s (adjustable)
- Unlock Time:0–300s (adjustable)
- Read Operate by infrared remote
- Contain reader mode, the transmission format could be adjusted by users.
- Support multi access ways: Card+Fingerprint, multi cards or multi fingerprints
- Support admin card/admin fingerprint
- Relay NO/NC/COM output

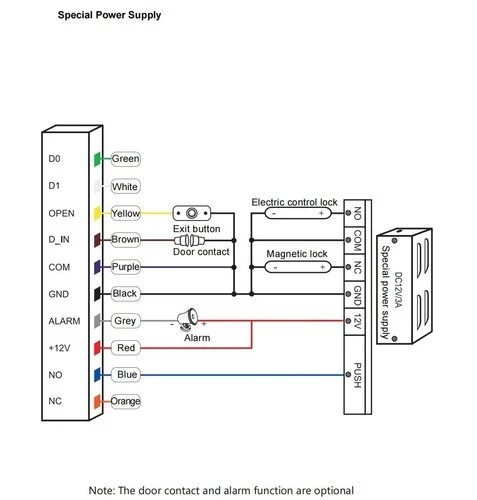

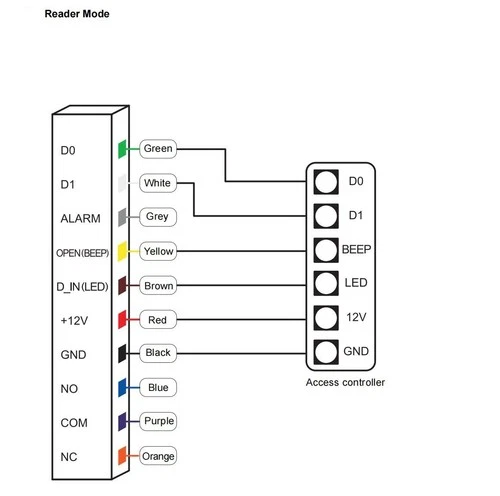

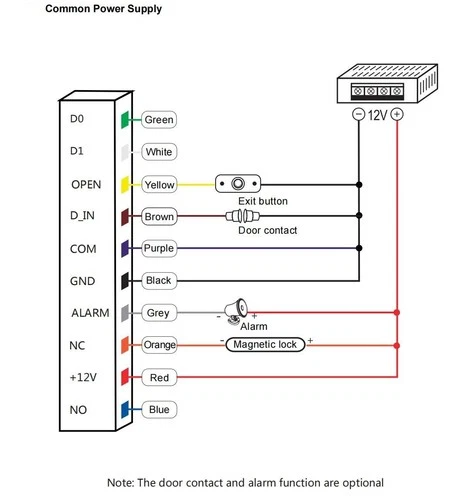

Wiring:
No. | Color | Marks | Description |
1 | Green | D0 | Wiegand input (Wiegand output as reader mode) |
2 | White | D1 | Wiegand input (Wiegand output as reader mode) |
3 | Grey | ALARM | Alarm signal MOS tube drain output end (optional) |
4 | Yellow | OPEN/ BEEP | Exit button input end (Beeper input as reader mode) |
5 | Brown | D_IN/ LED | Door contact switch input end (LED input as reader mode) (optional) |
6 | Red | +12V | Positive power supply |
7 | Black | GND | Negative power supply |
8 | Blue | NO | Relay NO end |
9 | Purple | COM | Relay COM end |
10 | Orange | NC | Relay NC end |
Package：
- 1pc access control
- 1pc remote
