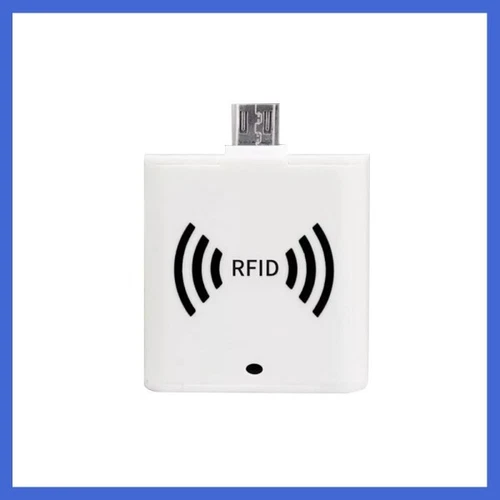

FH-930 USB OTG reader is designed for a Android platform, this small portable reader which work with android mobile with App support,
application for:
1. Library management
2. Assets management
3. Office files tracking
4. Retail shop
5. Assets tracking
6. Outdoor/Exhibition e-ticket checking
7. Personal management
8. Logistics
Specification |
|
| Specification | |
| Model# | FH-930 |
| Performance Index | |
| Frequency range | 902-928MHZ（or customized） |
| RF output | Max 18dBm |
| Communication interface | USB OTG |
| Application software | Provide with Android SDK and APP |
| Tag Operation Performance | |
| Reading distance | 0-50cm (depend on tag & environment) |
| Tag operation | Read / Write / Kill / Lock the tag |
| Air interface | EPC global UHF ISO-18000-6C (EPC G2) |
| Mechanical and Electrical Performance | |
| Dimension | 40*40*12mm |
| Power supply | TYPE-C |
| Weight | 25g |
| Humidity | 5% to 95%, non-condensing |
| Protection grade | IEC IP52 |
| Operation temperature | -20 ºC to +60 ºC |
| Storage temperature | -40°C to 80°C |
Package：
1 x UHF reader/writer
