Built-in Air Pump
ANCEL S200 Car Smoke Leak Detector EVAP Pipe Smoking Generator Pipe Leakage Analyzer Tester EVAP System Diagnostic Tools
WHY DID CUTOMERS CHOOSE ANCEL S200 AGAIN AFTER THE PURCHASE?
With ANCEL S200 EVAP Leak Detector, you can greatly reduce the troubleshooting duration for evap leaks and other problems.
ANCEL S200 is a professional auto pipe leak tester. It will help us position leakage on any pipe system quickly and exactly,such as EVAP system,Intake system, exhaust system and so on. It helps technician and car user to solve problem quickly at one time, greatly eliminating repeated repairing work, significantly reducing diagnostic time.
Whether it’s for the auto repair business or a car owner, the cost of labor, increasing complexity of vehicles and limited access to many components, all these made ANCEL S200 car smoke machine automotive more important and cost-effective than ever.
HOW TO WORK ON THE SMOKE LEAK DETECTOR?
With this automotive smoke machine leak detector, you can detect Crankcase System, Intake System, Exhaust System, Fuel Tank System, EVAP System, Throttle Shafts, Engine Block, Turbo Test System, Cooling System Test, Various Pipe Fittings Test, etc.
✔️ Crankcase System Test: Excessive pressure or corrosion of the crankcase is the main reason to damage the seal of the crankcase and cause oil leakage.
✔️Intake System Test: Leakage in the air intake system will lead to insufficient intake of the car engine, which will result in scant engine power.
✔️Car Sealing Test: Poor airtightness of the car may lead to a lot of inconvenience like inability to keep warm dusty, not soundproof, and not waterproof , etc.
✔️ Fuel Tank System Test: When there are gaps in the fuel tank and piping caused by improper installation or insufficient sealing of the fuel tank cap, it can cause leaks in the fuel tank system.
✔️ Turbo Test: The leakage of coolant would cause the engine to report high water temperature. Various Pipe Fittings Test: Smoke testing of brake hoses, power steering hoses, cooling system hoses, air conditioning system hoses, turbocharger hoses, fuel hoses, intake and exhaust system hoses, etc.
EVAP System Test: Leakage of the fuel evaporation system will cause fuel vapor to leak into the atmosphere, causing waste and pollution or unstable engine idling.
✔️ Exhaust System Test: Unpurified harmful gases to be discharged into the atmosphere or increase vehicle noise is the main disadvantage when leaks happened in the exhaust.
✔️ Various Pipe Fittings Test: Smoke testing of brake hoses, power steering hoses, cooling system hoses, air conditioning system hoses, turbocharger hoses, fuel hoses, intake and exhaust system hoses, etc. Note: Not applicable to air conditioning system piping
ANCEL S200 smoke leak detector supports multi-system testing, especially EVAP system
EVAP System Test
Intake System Test
Exhaust Systems Test
Crankcase system test
Car Sealing Test
Fuel Tank System Test
Turbo System Test
Various Pipe Fittings Test
EVAP S200 vacuum leak tester can produce lots of smoke within 10s, help mechanic detect the leaks in pipe system.

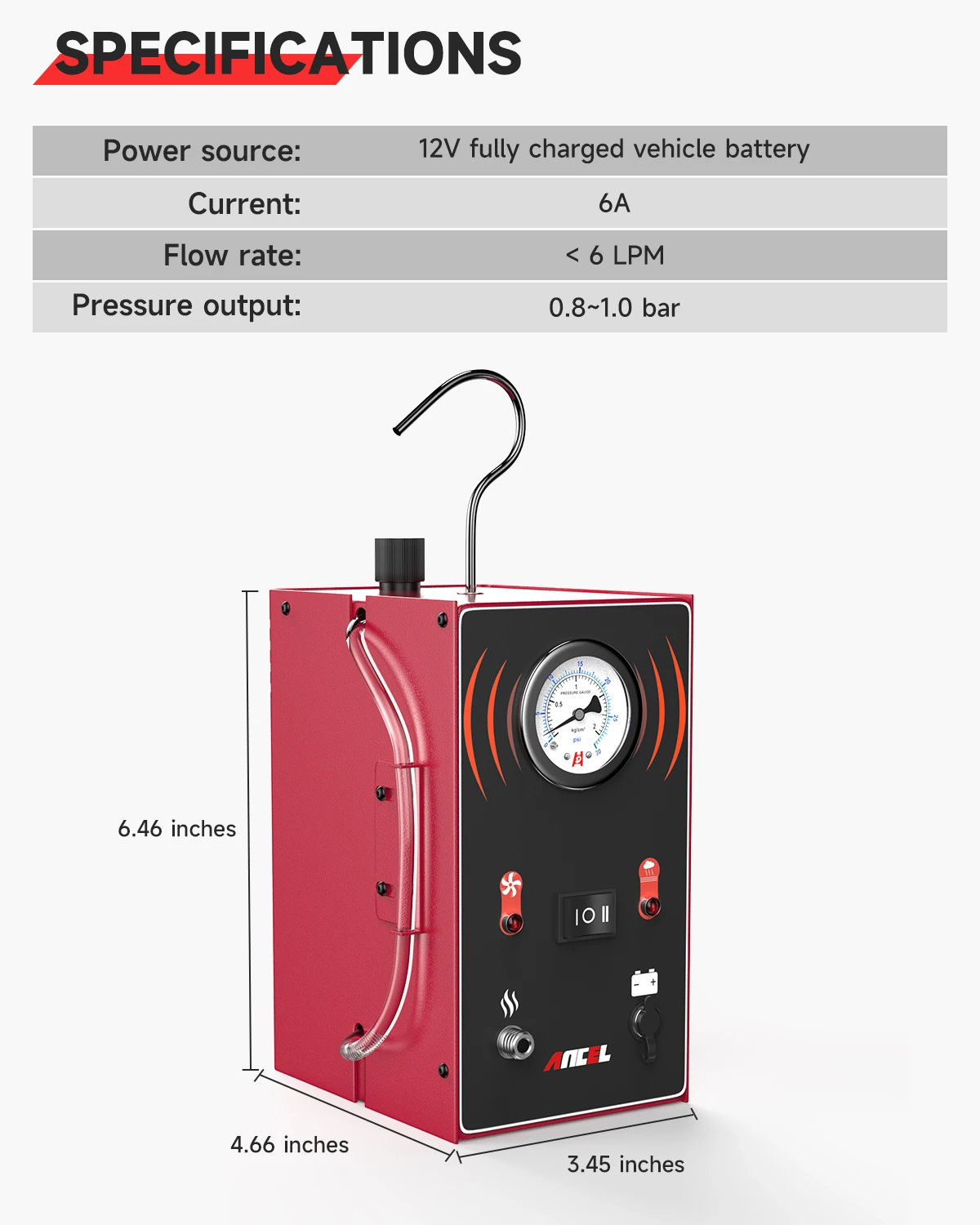

Power source:12V Fully Charged vehicle batteryCurrent:6A
Flow rate: <6 L/min
Pressure output:0.8-1.0 bar (0.8-14.5psi)
LCD: (320*240 DPI) TFT color display
External power supply: 12V or 24V Powered by battery
Minimum working voltage: 9V
Maximum working voltage: 30V
Maximum measuring voltage: 100V
Minimum measuring voltage: 0.1V
Resistance measurement range: 1 ohm~200K ohm
Current measuring range: 0~18A
Maximum continuous current: 18A
READY SMOKE LEAK DETECTOR
Air Supply Method: Built-in air source
Output Pressure: 0.8-14.5psi
Smoke Environmentally non-toxic/air
Smoke dual-mode Design
One-click for the desired function

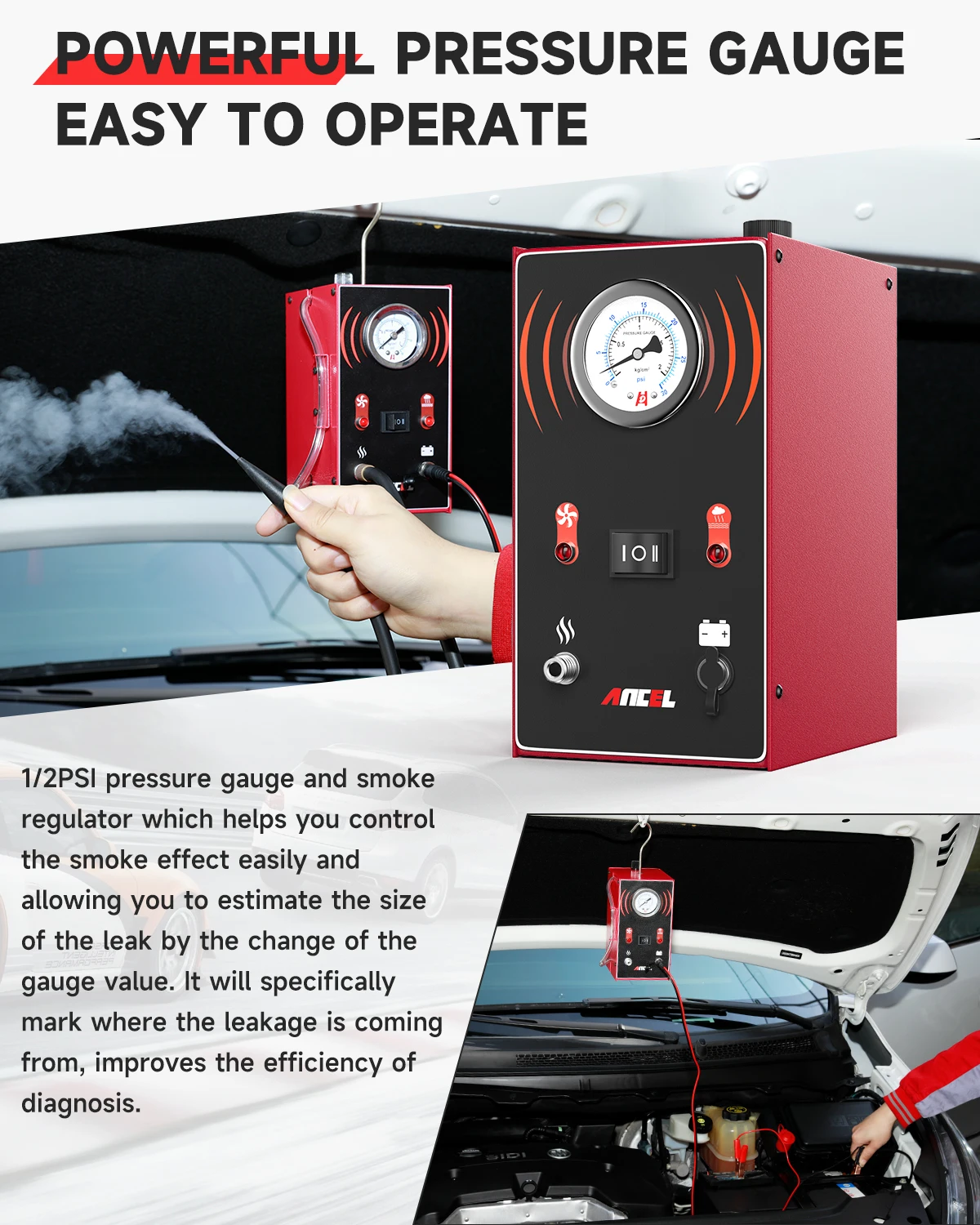

ABCEL S200 smoke leak detector has a powerful pressure guage, easy to operate
1/2psi pressure gauge and smoke regulator which helps you control the smoke effect easily and allowing you to estimate the size of the leak by the change of the gauge value.It will specifically mark where the leakage is coming from,improves the efficiency of diagnosis
How to work with ancel S200 smoke leak detector
Step1: Fill in 10ml-20ml test oil (baby oil) to the detector
Step2: Disconnect the pipe that needs to be connect with the detector
Step3: Connect detector with DC12V battery,device starts to work
Step4: The pipe will be filled with smoke,check the leak points

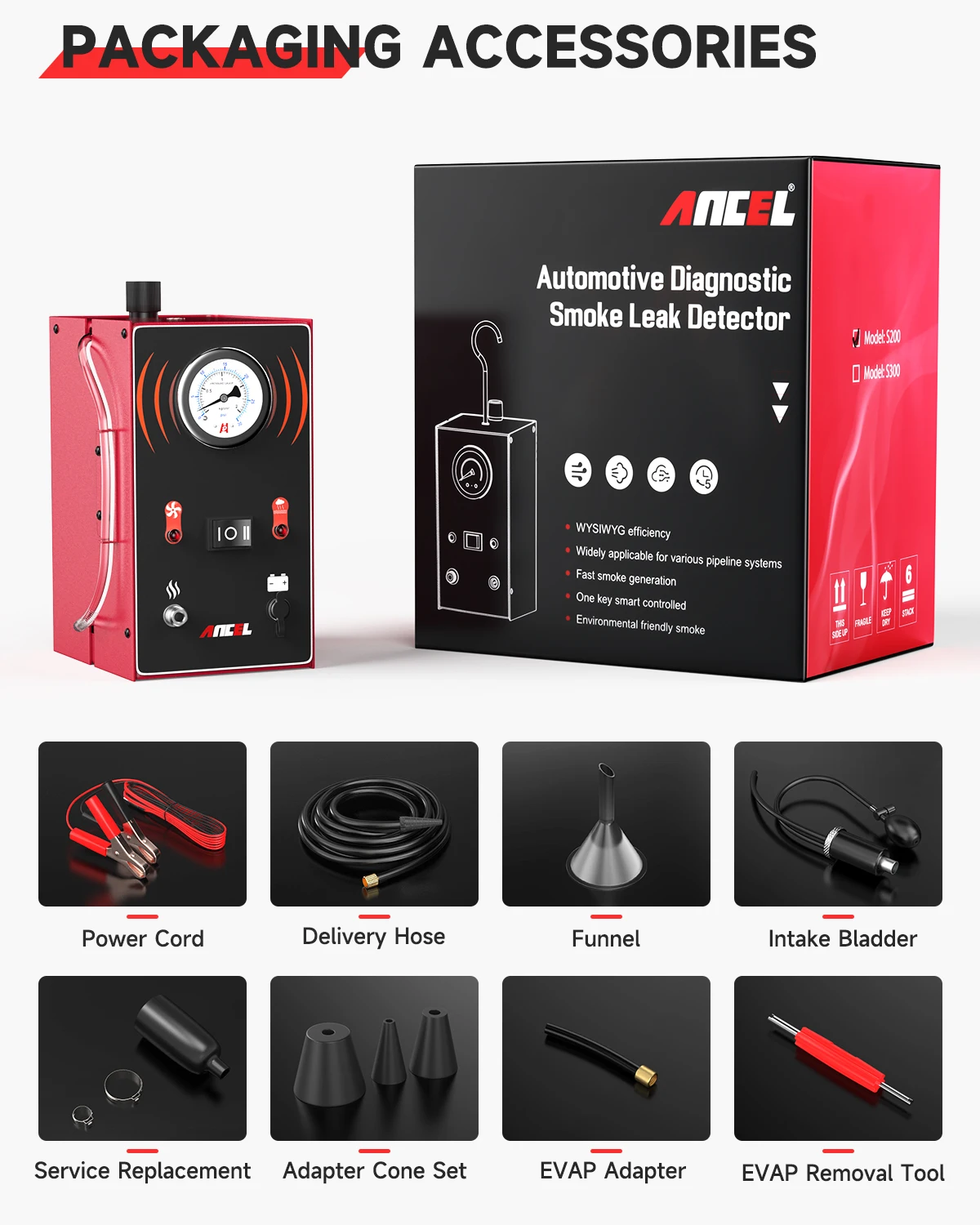

PACKIING LIST
S200 CAR SMOKE MACHINE HAS WIDE RANGE OF ACCESSORIES, help you test leaks better!
POWER CORD 一 For connecting power supply to the unit, in order to drive the unit. Fitting size 5.5x2.5mm.
SMOKEDELIVERY HOSE 一 For introduction of smoke from the unit to Adapter Cone/Universal Intake Bladder or to thevacuum pipe directly.
FUNNEL一 Refilling assistant tool to prevent the smoke oil from flowing into the casing during filling, which would cause unexpected failure.
INTAKE BLADDER 一 Applicable for 25~140mm opening, especially when the opening is not round shaped. Note: avoid contact to oil and high temperature.
INTAKE PUMP REPLACEMENT RUBBERT 一 The rubber could be replaced with new one withoutreplace the whole Intake Bladder.
ADAPTER CONE一To fit the intake and exhaust,seal the system andintroduce smoke into the system. eg. fuel tank, cooling system, engine oil filler port, exhaust etc.
What is the need of leak detection?
In order to prevent serious damage being done through faulty pipes, it is essential to install Our Leak Detector that will detect a problem before disaster hits. it will alert you to even the smallest of leaks so that you can resolve them quickly.
|
|
|
|
|---|---|---|
|
Wide Applicability |
Viewable Pressure Gauge |
Overheat & Anti-frost Protection |
Confirm that The Air Supply is Normal and The Fuel Filler Port is Properly Locked.
1.There is pressure gauge model,block the smoke outlet,if the air supply is normal,the pressure gauge will rise.Unless the pressure gauge itself is faulty and broken.
2.Block the cigarette outlet,then release it,your fingers should feel the air flow.
3.Light the lighter and the aim at the flame with cigarette butt,the flame will swing or go out.
Car Battery Power Supply Conditions:
Full 12V Voltage,Battery is in Good Health,Power Consumption is 60W
1.The power indicator light is on and the voltage is not lower than 12V to be considered as a normal power supply.
2.The power indicator light is off:Check the power supply,including the power cord.
3.The reserve connection of the power supply will also cause the indicator light not to light up.
Use Mineral Smoke Oil:[Johnson & Iohnson Baby Oil Pink Label]
The water-containing liquid(like oil to the touch)is a mixture of water and glycerin. Such equipment cannot be used.The consequences of misuse:the smoke output is small,and the cigarette nozzle is dripping.After a long time,the liquid will be carbonized,and the carbon deposits will be formed on the surface of the heating components.At this time,even if you replace the normal e-liquid,the amount of smoke will not be large.
You need to purchase oi,we recommend you to buy this oil:Johnson&Johnson baby oil (pink package, with mineral ingredients)
