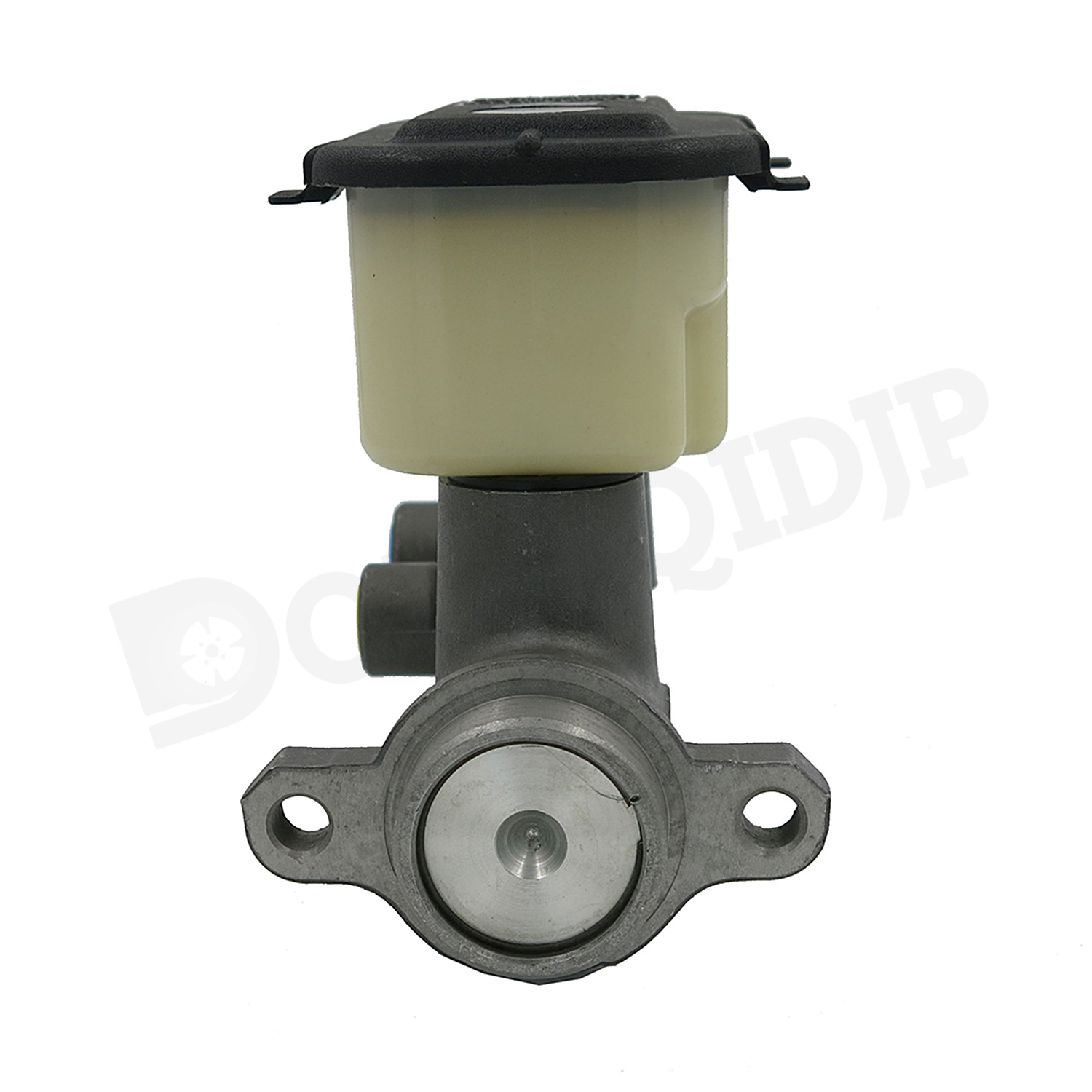

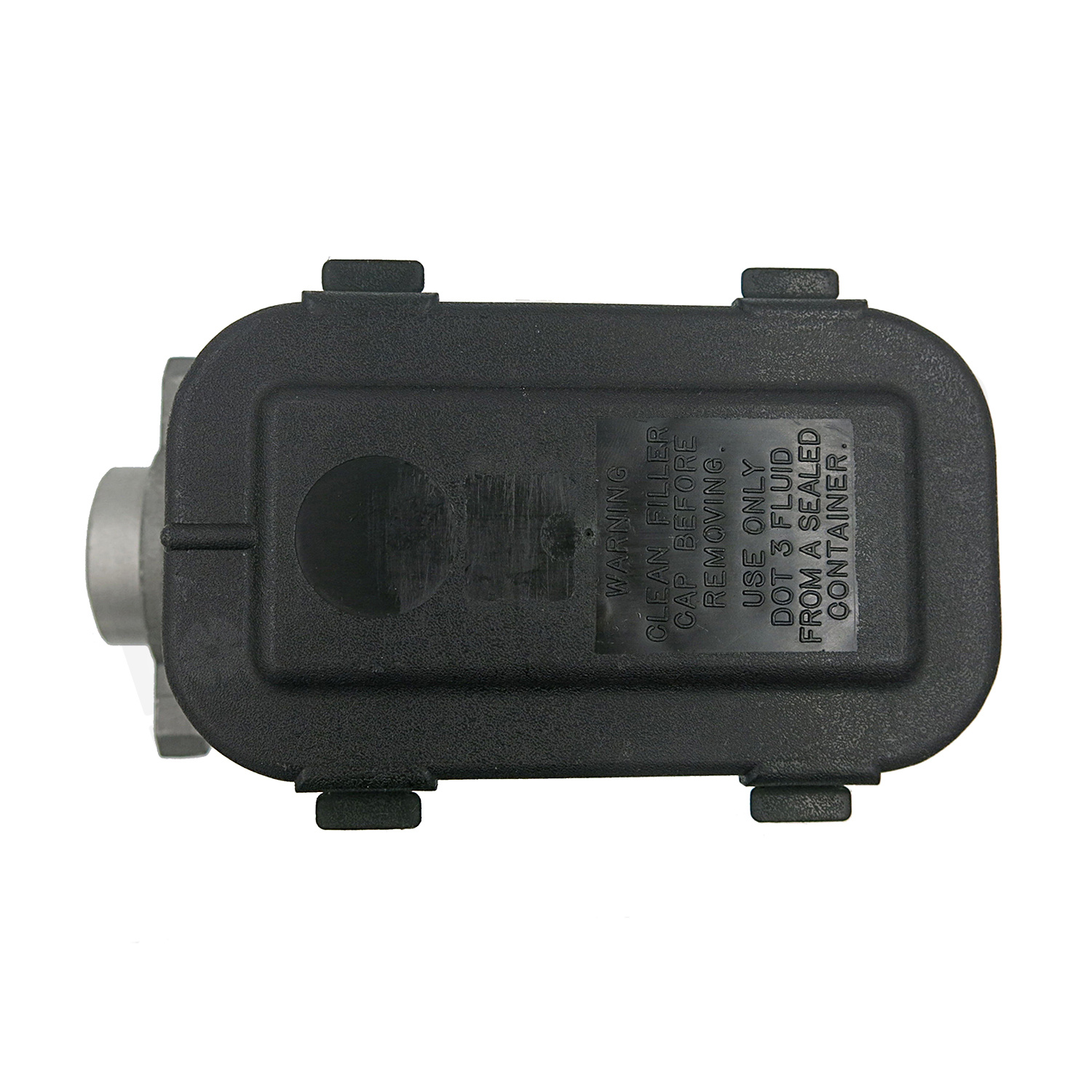

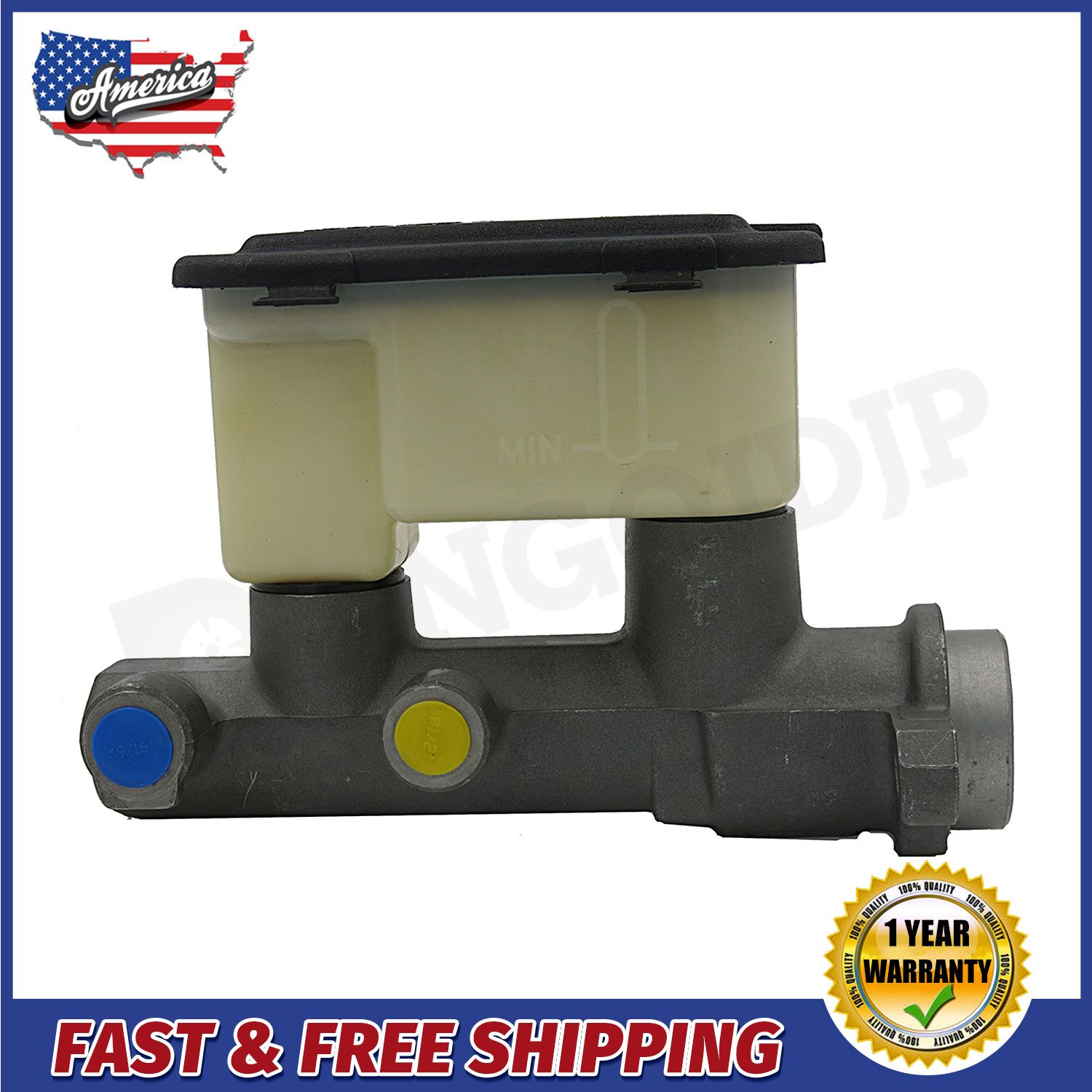

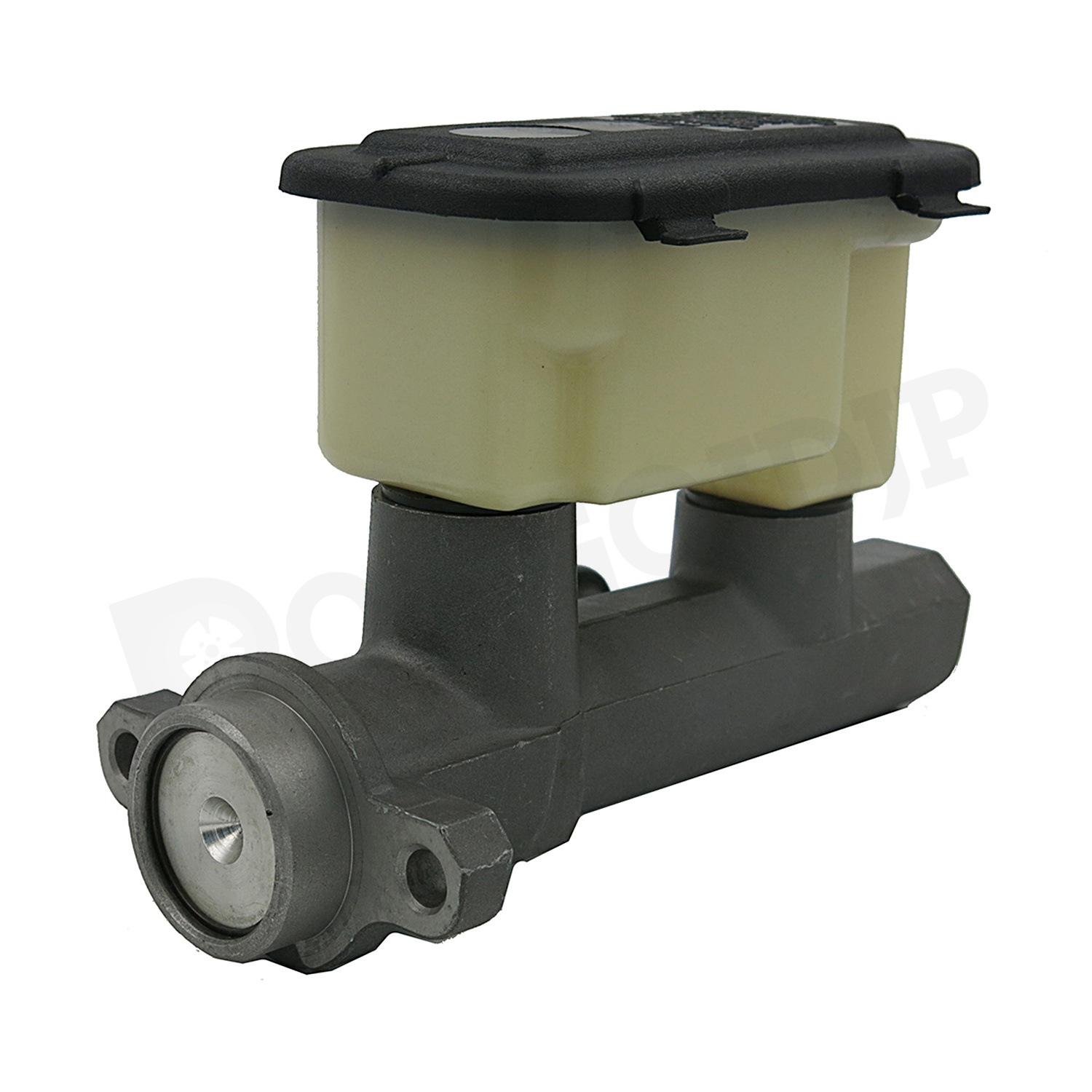

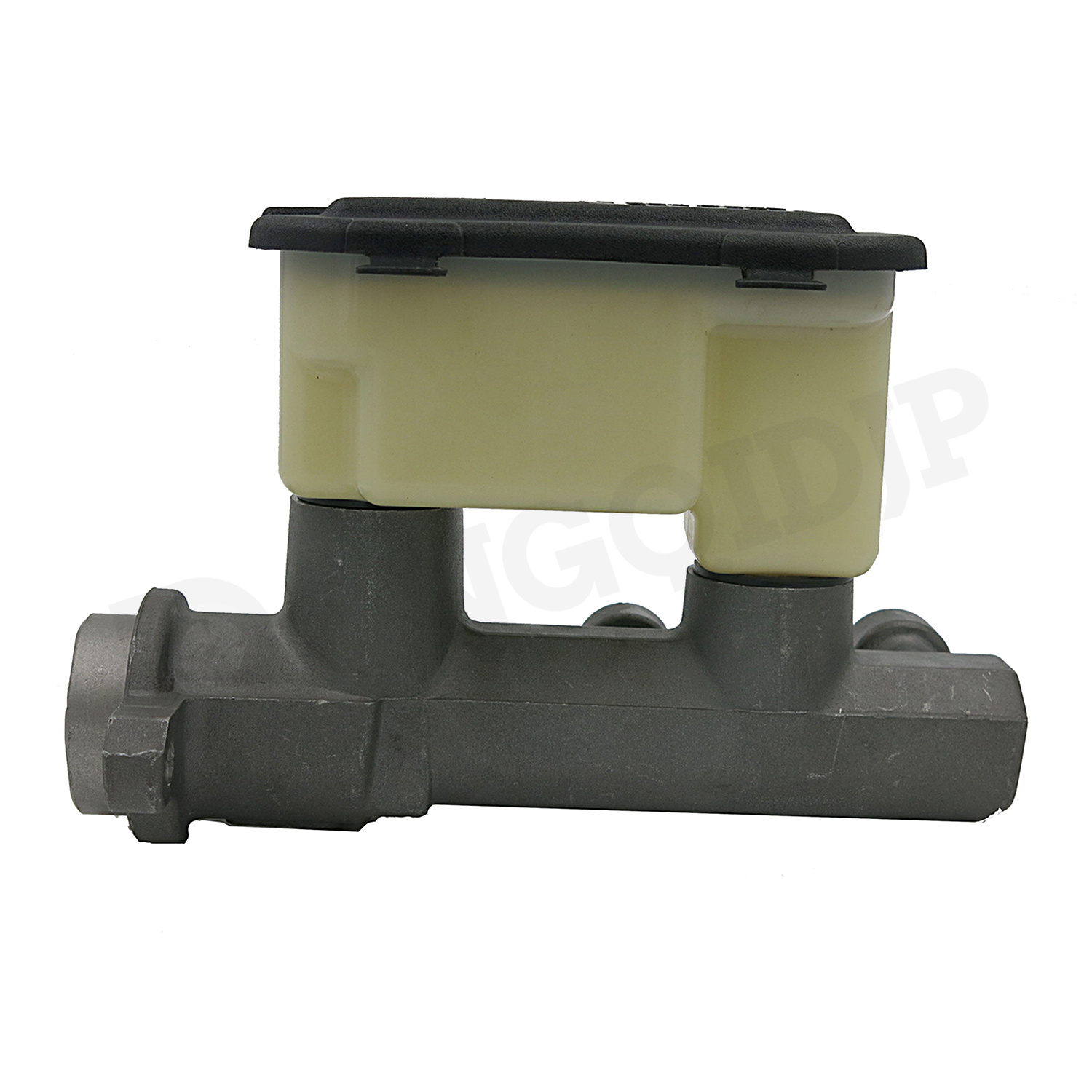

New Brake Master Cylinder for 88-00 GMC Chevy C1500 Suburban K1500 Ram 1500
Product Info
Features:
►100% Strict QC & Fitment Tested
►Good Sealing Performance
►Premium Housing Material
►Uneasy to Deform
►Strong Pressure Resistance
►Direct Replacement, Easy Installation
►Backed up by 1 year warranty.
Note: Please use the"Compatibility"to make sure the for more vehicle information to ensure your vehicle is compatible or contact us to help you find it.
Compatible with the following vehicles:
Year Make Model
1999-2000 Cadillac Escalade
1992-1994 Chevrolet Blazer
1996-1997 Chevrolet Boss
1988-1999 Chevrolet C1500
1992-1999 Chevrolet C1500 Suburban
1988-2000 Chevrolet C2500
1992-1999 Chevrolet C2500 Suburban
1988-1999 Chevrolet K1500
1994-1999 Chevrolet K1500 Suburban
1988-2000 Chevrolet K2500
1992-1999 Chevrolet K2500 Suburban
2000-2001 Chevrolet Sonora
1995-2000 Chevrolet Tahoe
1994-1996 Dodge Ram 1500
1988-1999 GMC C1500
1992-1999 GMC C1500 Suburban
1988-2000 GMC C2500
1992-1999 GMC C2500 Suburban
1988-1999 GMC K1500
1992-1999 GMC K1500 Suburban
1988-2000 GMC K2500
1992-1999 GMC K2500 Suburban
1992-2000 GMC Yukon

Product Specifications:
Master Cylinder Bore Diameter 1-1/8 in
Master Cylinder Material Aluminum
Number of Outlets 2
Rearward Outlet Size 1/2-20
Reservoir Included Yes
Sensor Included No
Package Quantity 1
Fitment Type Direct Replacement
Install

The brake master cylinder is a key component for safety.In order to ensure your safety and reasonable use of this product, please read this manual carefully before installation and use.


  • First, screw off the old brake pipe of the master brake cylinder, and then remove it from the vacuum booster.
  • Take out the brake master cylinder and remove the dust plug from the fluid hole.
  • Install the mounting hole of the brake master cylinder flange into the corresponding mounting screw of the vacuum booster, then install the spring washer, and finally screw in the hexagon nut for tightening.
  • Screw the brake pipe into the corresponding oil outlet hole of master cylinder and tighten it in place.
  • Screw off the reservoir cap, fill the tank with brake fluid, open the bleed screw of brake wheel cylinder or caliper, and then exhaust the air in the whole brake pipeline, then add the brake fluid to about 5mm below the maximum scale mark of the storage tank, and then tighten the reservoir cap.

Note:

  • When installing the vacuum booster, make sure that the liquid storage tank is upward after loading and can not be installed reversely.
  • Check whether there is oil leakage at the connection between oil pipe and master pump.
  • Pay attention to protect the oil pipe thread from damage and prevent the brake fluid from flowing.
When Does the Master Cylinder Need to be Replaced?
  • Oil leakage occurs between the brake master cylinder and the booster;
  • Oil leakage from the piston rod positioning screw;
  • Juddering when braking;
  • There is noticeable resistance when the brake pedal is depressed.
Brake Master Cylinder Daily Maintenance
  • Check the wear of the main cylinder bore. Keep the surface of the main cylinder bore smooth and free from corrosion.
  • Check if the storage tank is damaged or aged, check the filter screen and remove accumulated sediment.
  • Check if the vent hole of the liquid storage tank cover is blocked and ensure it is unobstructed;
  • Check if the buoy can move freely up and down; If not, replace the reservoir assembly.
