Fertilizer Injector Dispenser Proportioner 12-3000L/h 1%-5% 4C-30C Auto Dosing Tools Dosing Device Controllable Dosing Devic

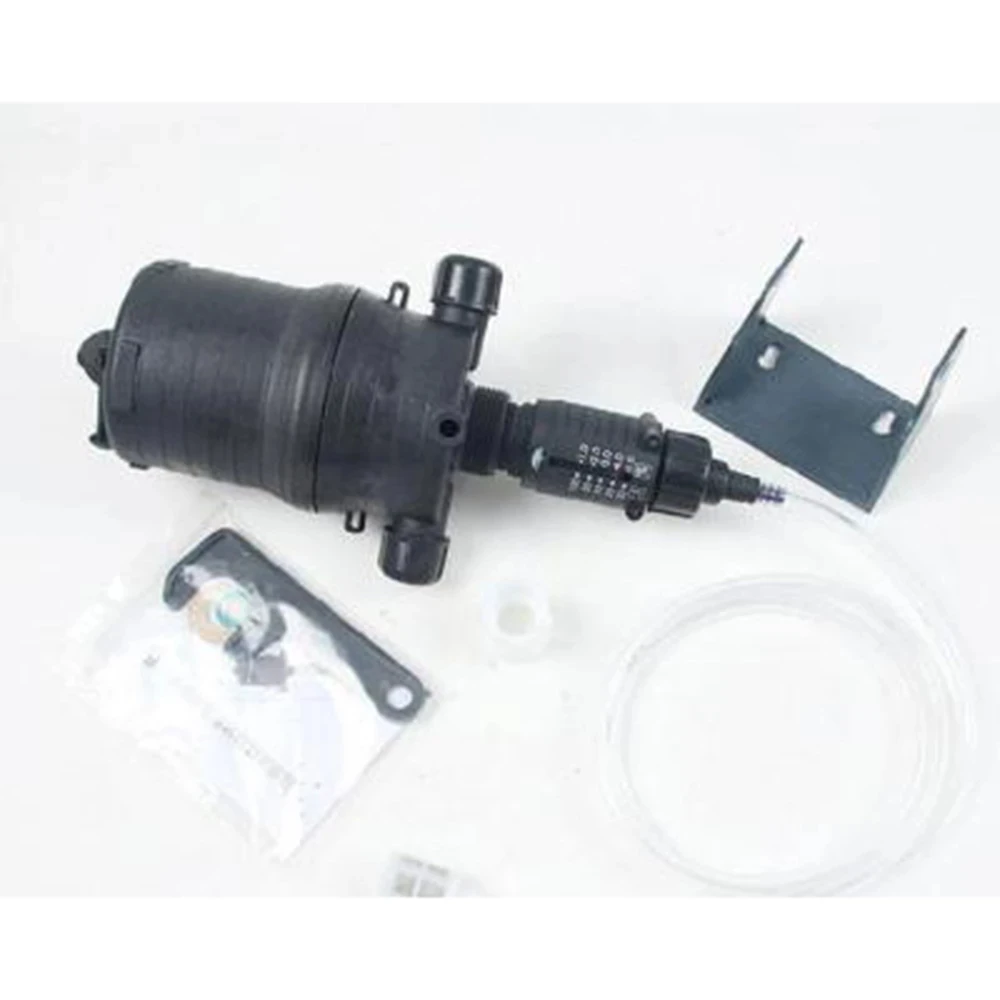

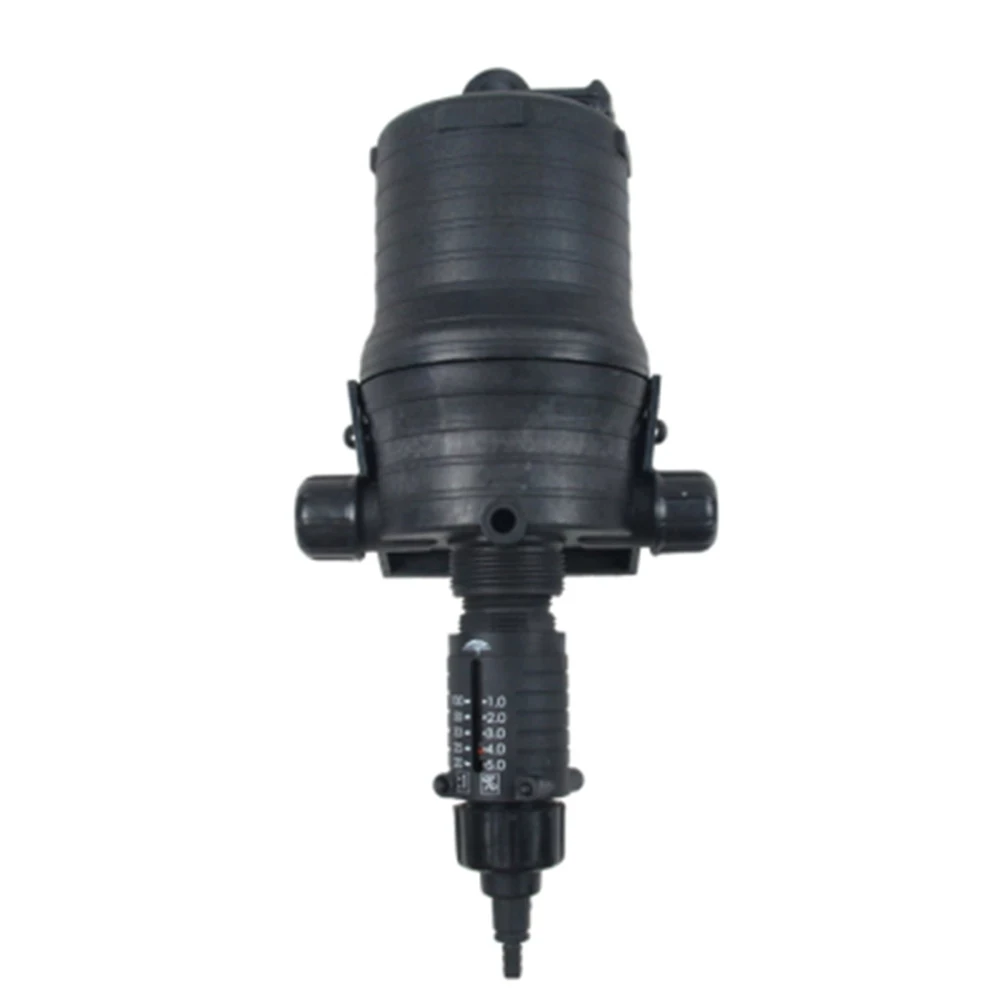

This item is a pressure water flow for power, pressure loss is small, without the need for any other power facility, water power the dozer for engine, drive the piston and connecting rod dosing device, the liquid additive direct inhalation and dissolved in water. This device motion in acylinder, the pressure to go out at the same time, the device will be installed at the bottom of the additive in the container through the catheter into the flow in uniform. Moving up and down
repeatedly, so as to achieve the additive in a homogeneously continuously added to the water flow effect.

The proportional pump can adjust the proportion of the additive in the injected water flow according to the actual situation, so that the additive is evenly added, the specific method is as follows:

1- Loosen the screw and remove the U-shaped adjustment lock from the upper part of the proportional pump.

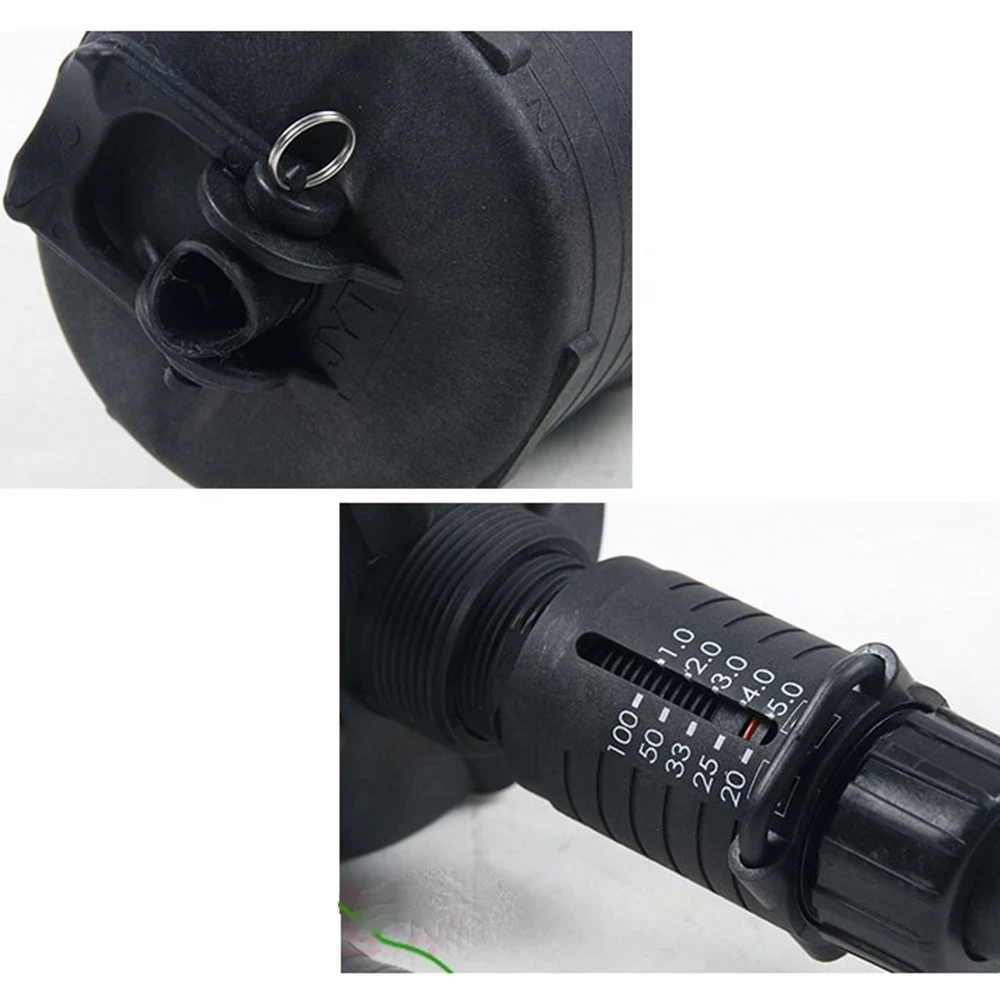

2- Preset the ratio of liquid additive to water according to the ratio of the water scale on the proportional pump:
Counterclockwise adjustment is to increase the specific gravity of the liquid additive.
Clockwise adjustment is to reduce the specific gravity of the liquid additive.
The percentage on the proportional pump is calculated as the final water output of the proportional pump is 100.
3- Turn the adjuster until the U-shaped adjustment so that the upper hole is inserted into the notch of the proportional pump.
4- Press the U-shaped adjustment lock into the notch of the proportional pump until it is fastened to each other.

Specification:

Model: Black
Proportion range: 1% - 5%
Flow range: 12-3000 liters / hour
Water flow temperature: 4 degrees -30 degrees
Working water pressure:0.3-4 kg

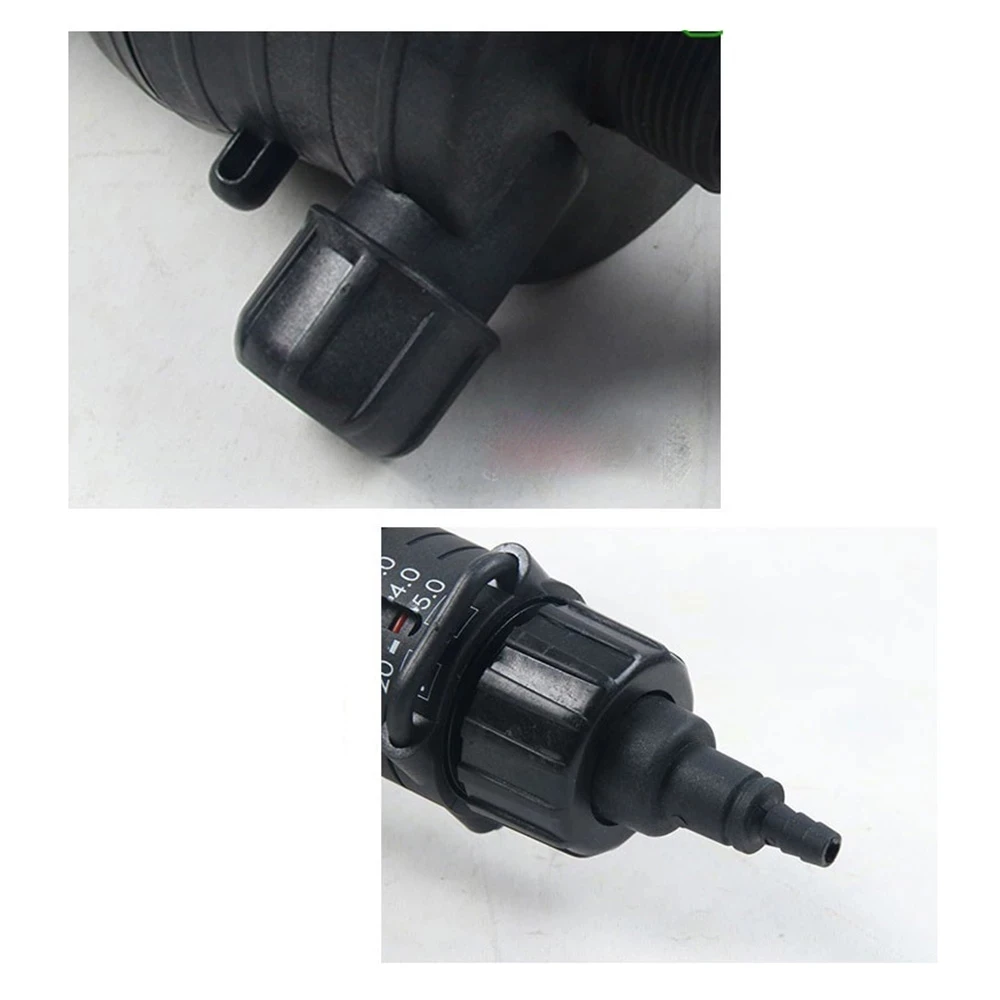

Inlet and outlet diameter: 32mm/25mm Standard installation
