Product Introduction
Features

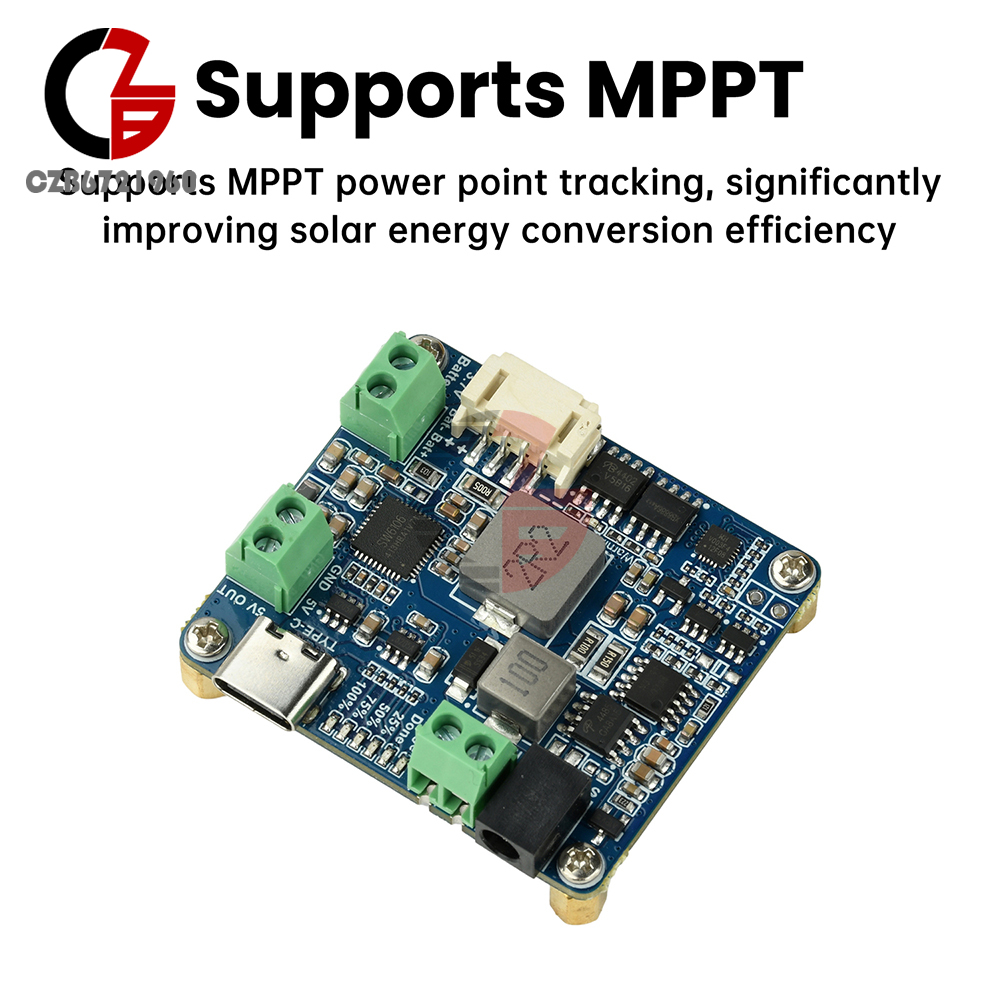

1. Supports MPPT (Maximum Power Point Tracking) to significantly enhance solar conversion efficiency

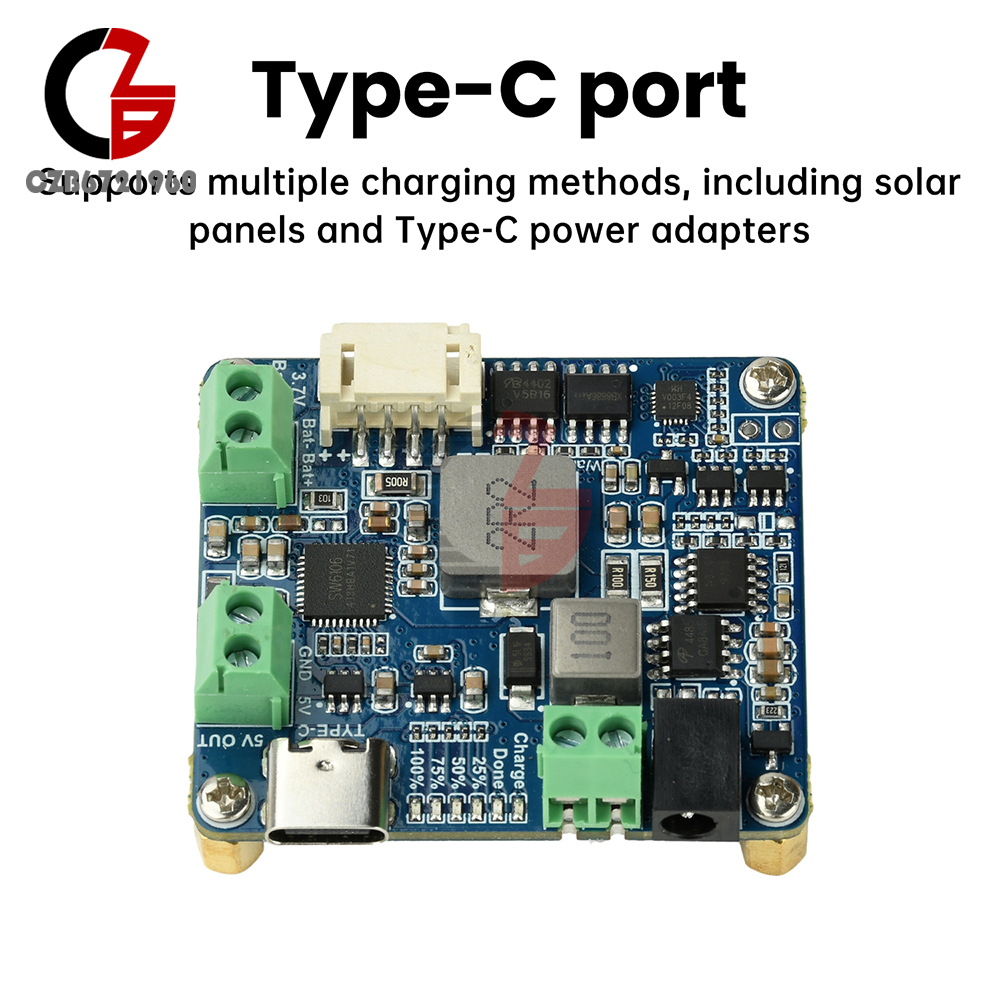

2. Supports multiple charging methods including solar panels and Type-C power adapters

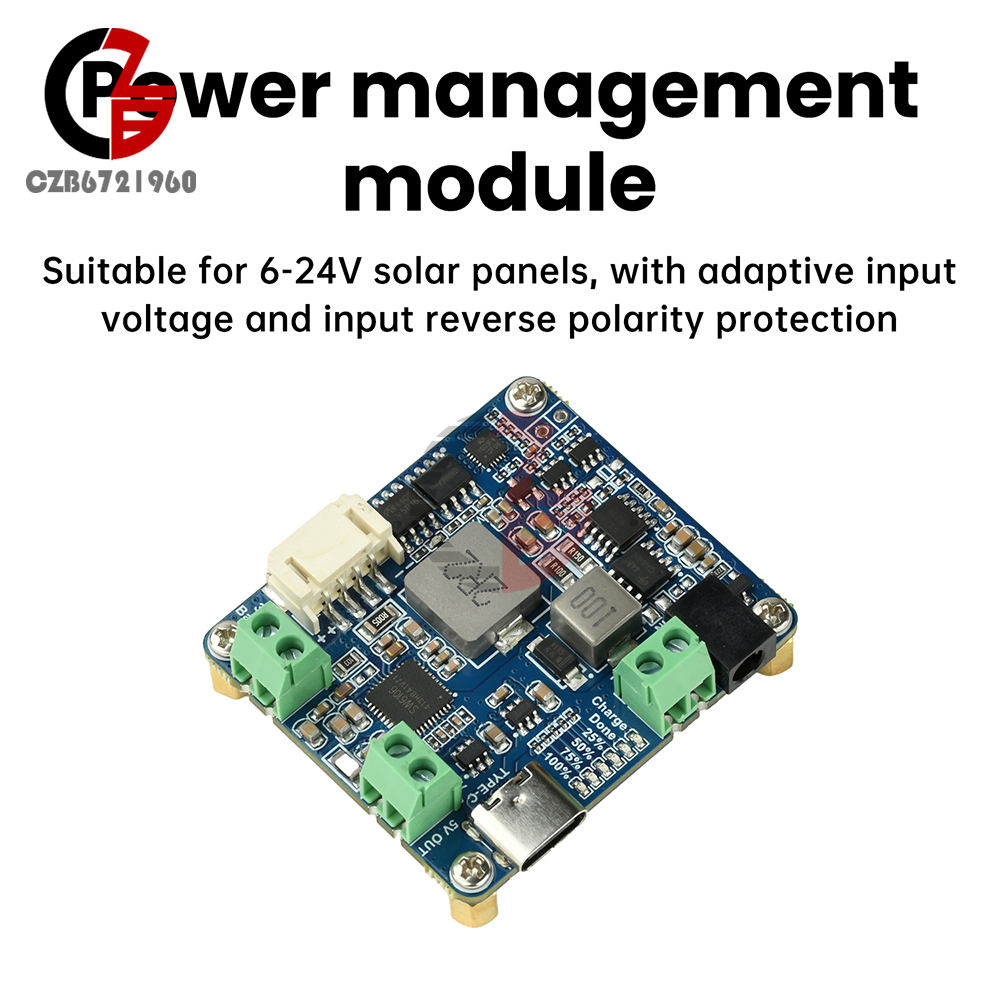

3. Compatible with 6-24V solar panels, featuring adaptive input voltage and reverse polarity protection

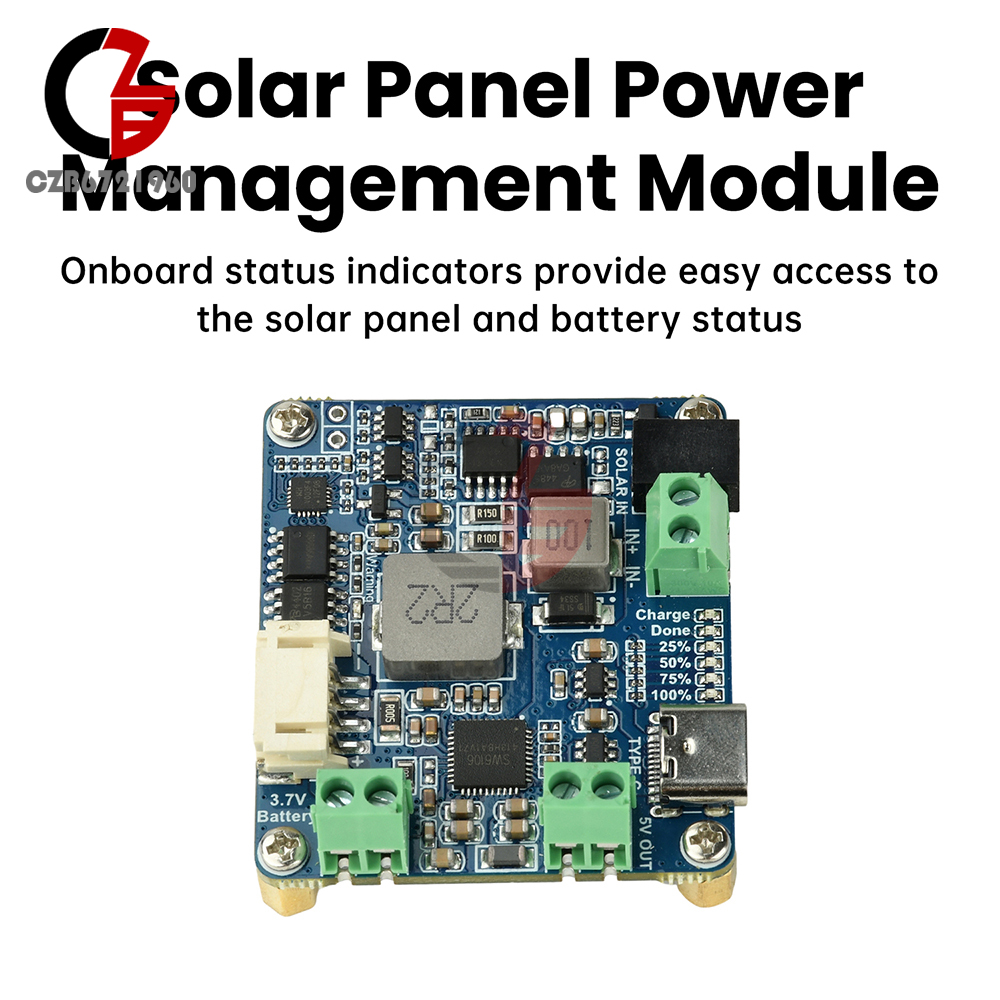

4. Onboard status indicators for easy monitoring of solar panel and battery conditions

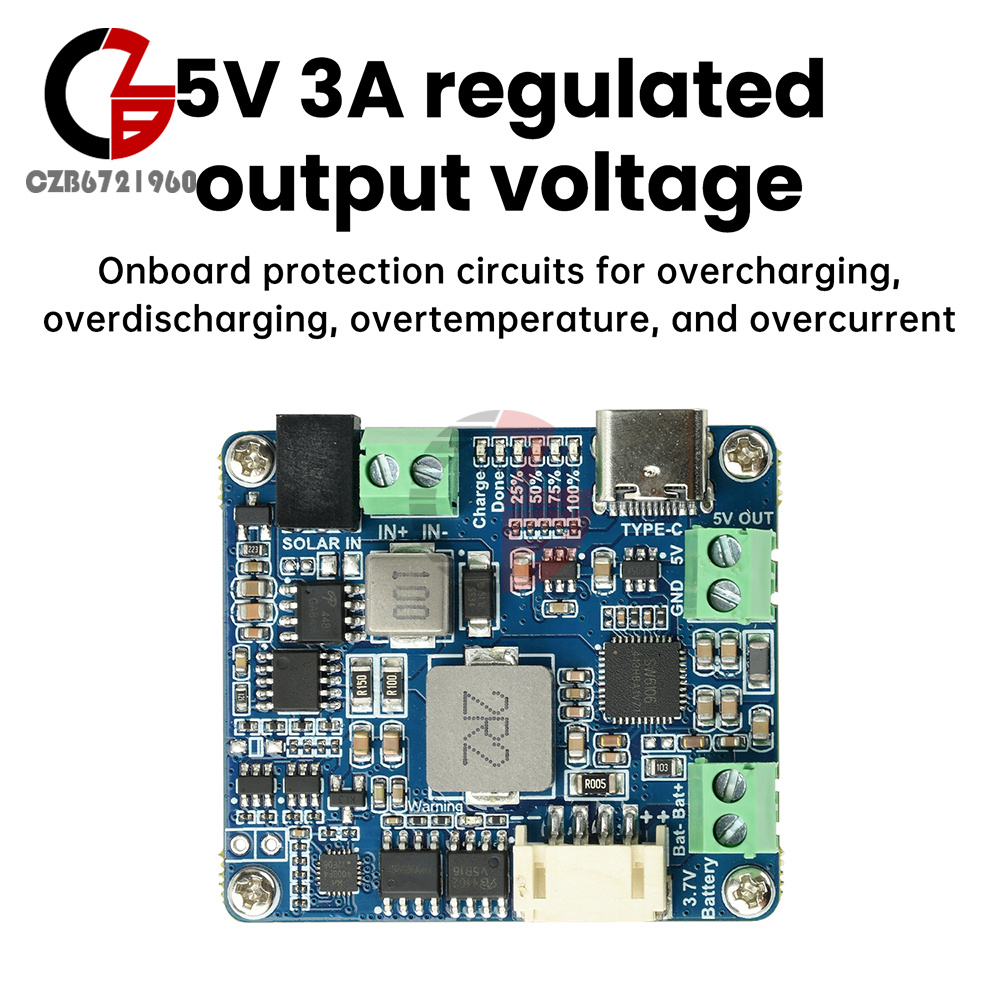

5. Integrated protection circuits including overcharge, over-discharge, overtemperature, and overcurrent protection
Parameter

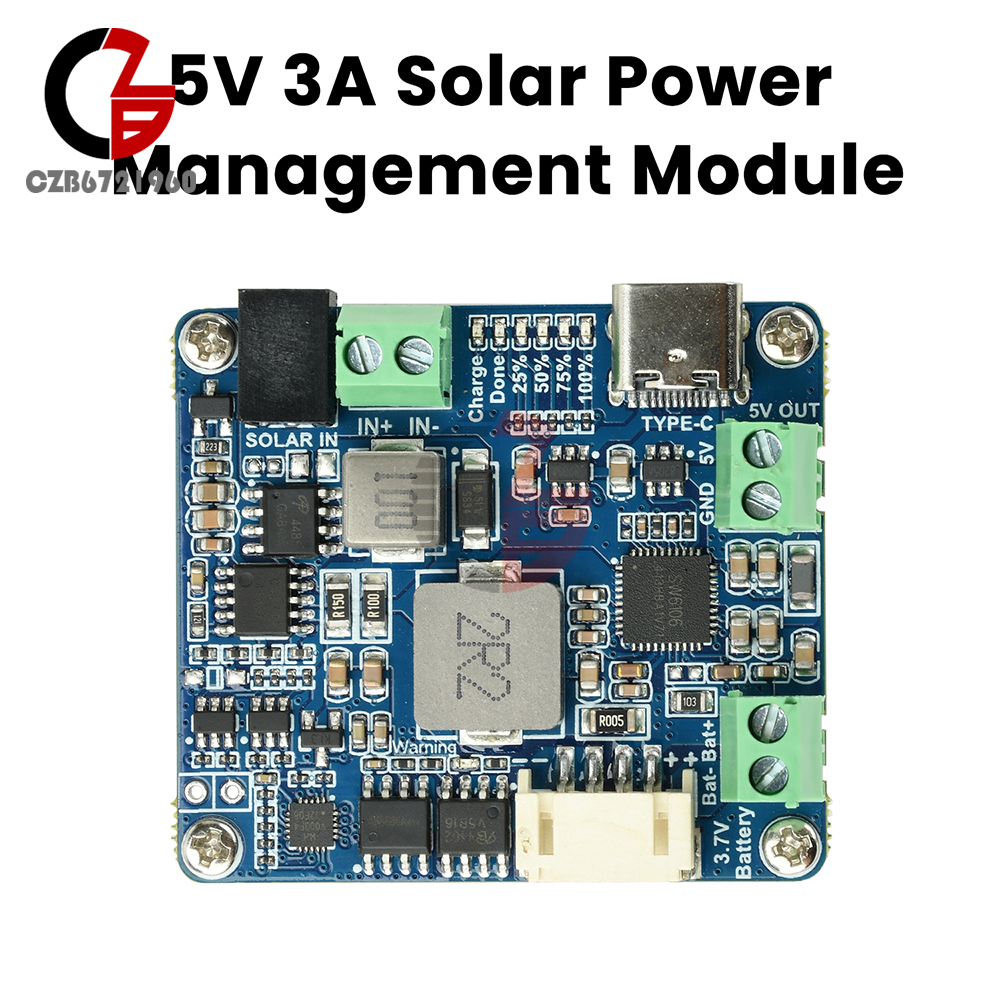

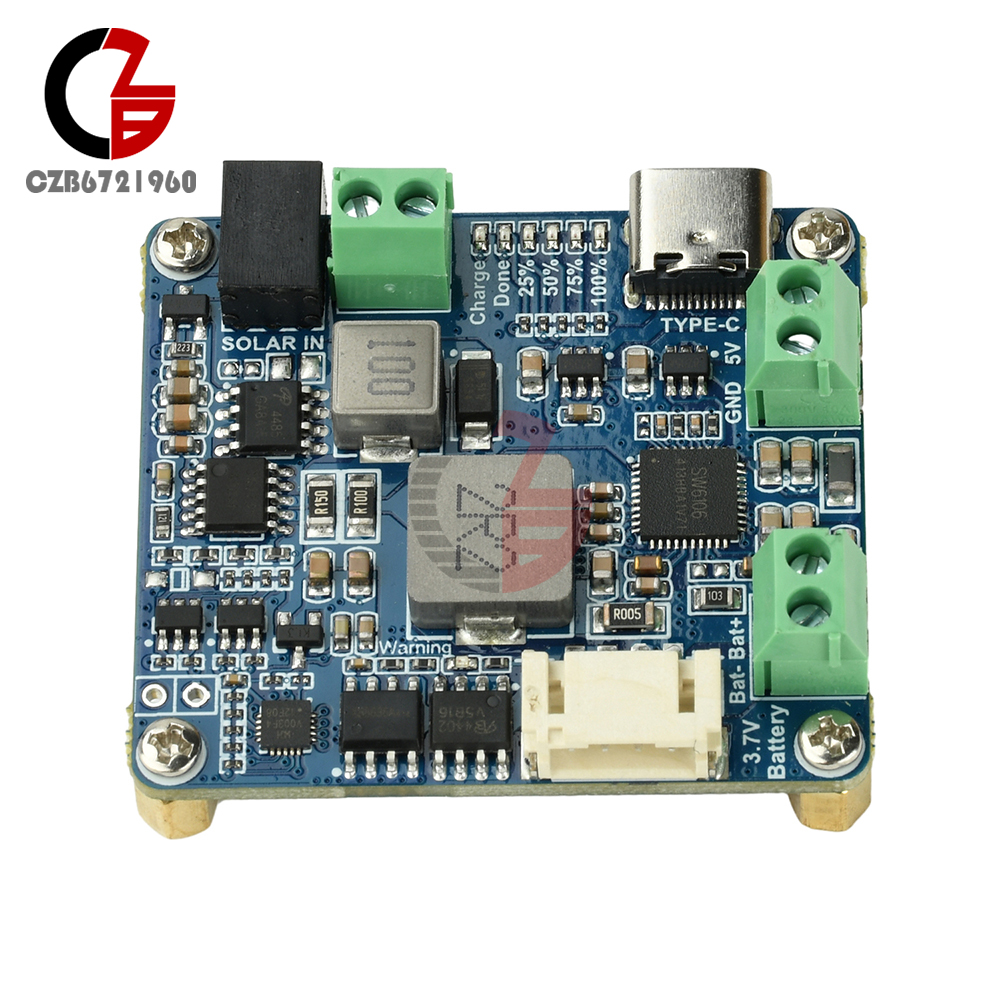

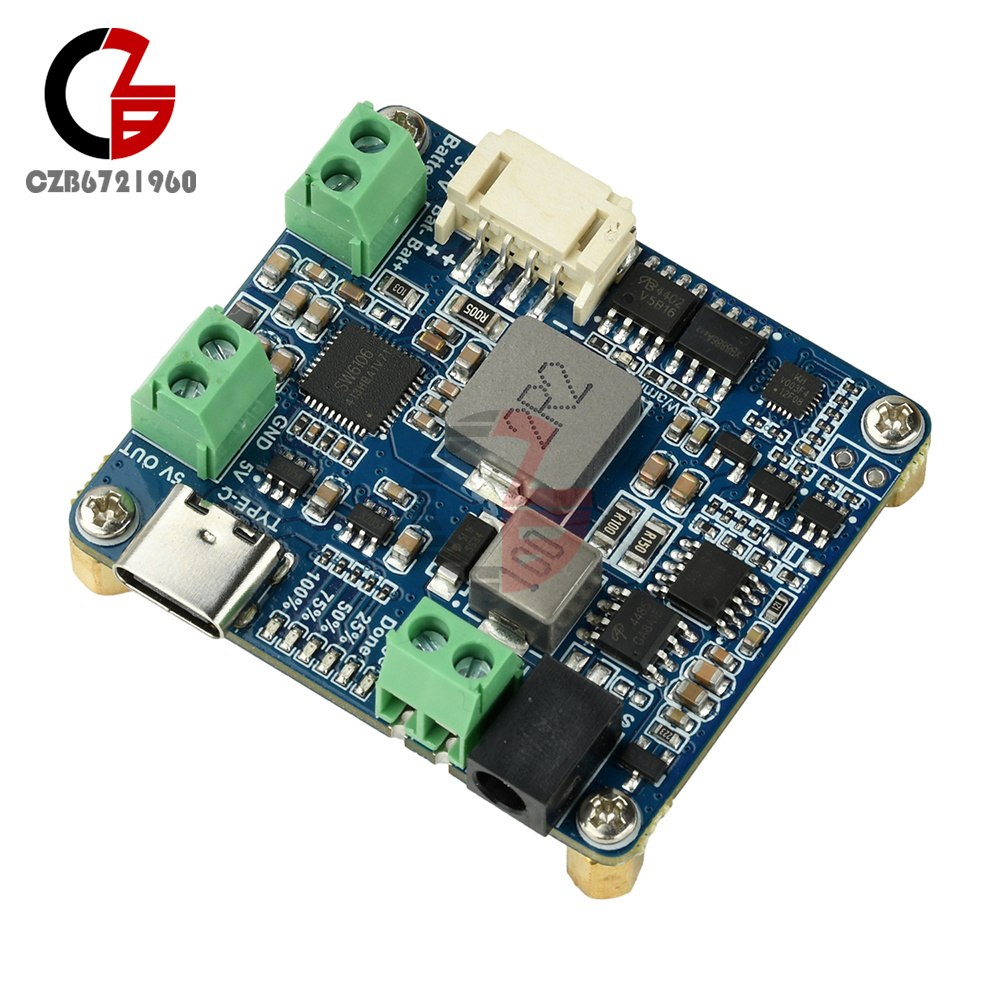

A power management module for 6-24V solar panels, supporting charging of 3.7V rechargeable lithium batteries via solar panels or Type-C interfaces. Provides stable 5V/3A output (supporting multiple protocols including PD/QC/FCP/PE/SFCP), incorporates MPPT power point tracking and multiple protection circuits. Operates efficiently, stably, and safely, suitable for solar power generation, low-power IoT, and other eco-friendly projects.
Product Parameters:
Solar Panel Input Voltage: 6-24V
Charging Methods: Solar Panel, Power Adapter, USB
Lithium Battery Specification: 3 x 18650 cells (not included in shipment)
USB Input Voltage: 5V (Type-C port, supports PD fast charging protocol)
Power Output: 5V/3A (Type-C port, terminal blocks)
Charge Cut-off Protection Voltage: 4.2V ±1%
Over-Discharge Protection Voltage: 3.0V ±1%
Solar Panel Charging Efficiency: Approx. 78%
USB Charging Efficiency: Approx. 93%
Battery Boost Output Efficiency: Approx. 90%
Quiescent Current (Max): <30mA
Operating Temperature: -40°C to 85°C
Package include
Power Management Module*1

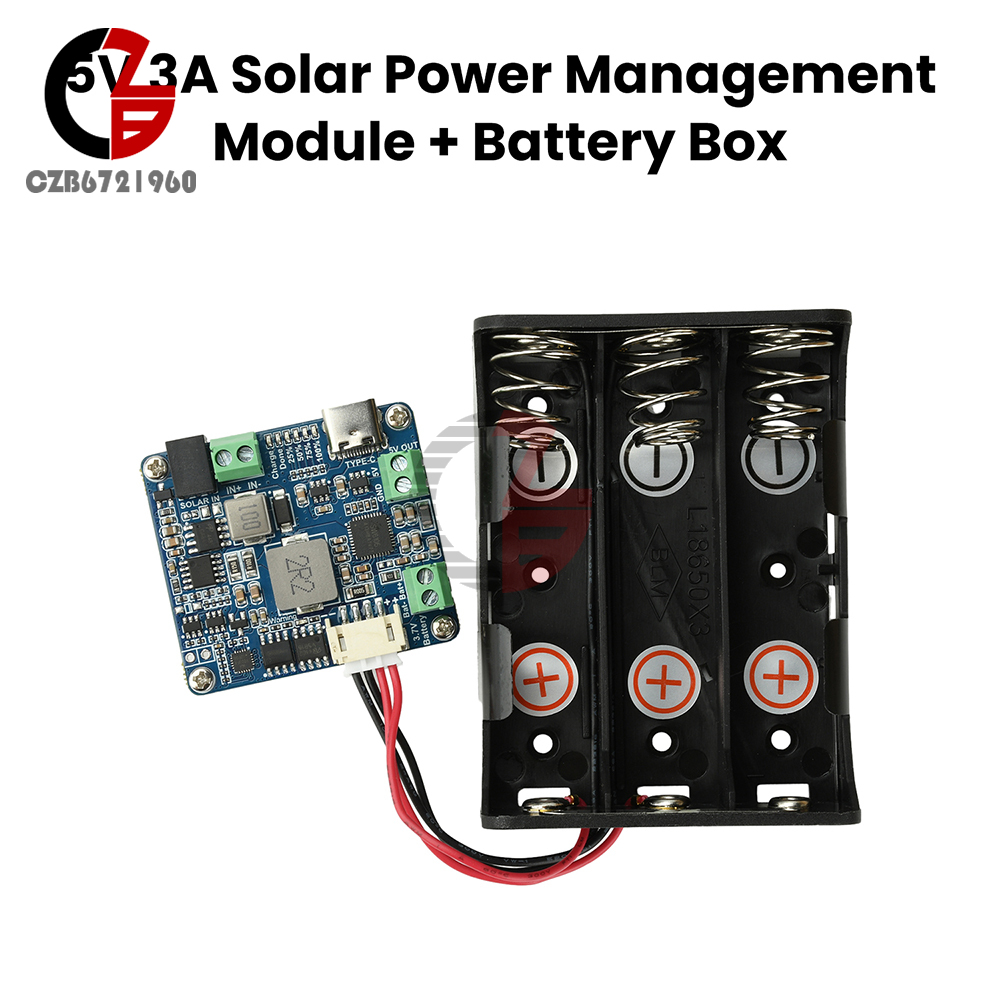

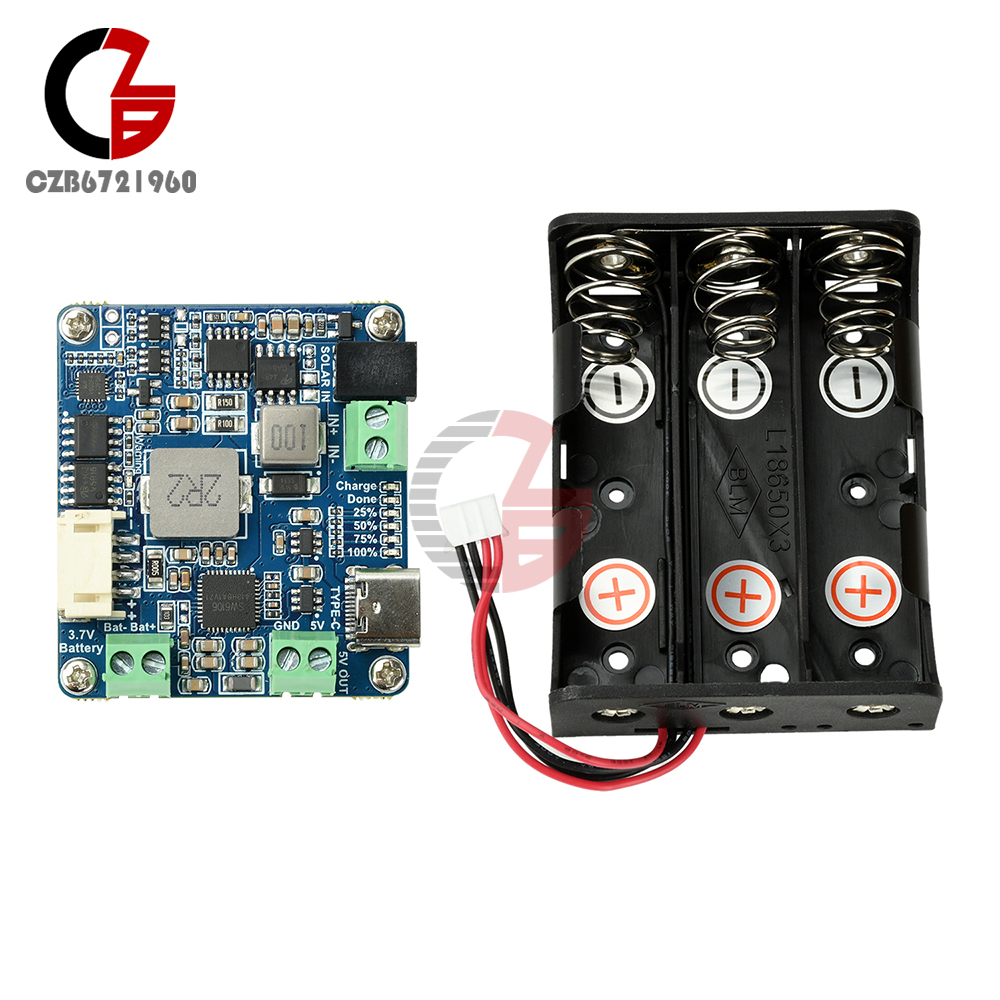

Battery Case*1 (Optional)
