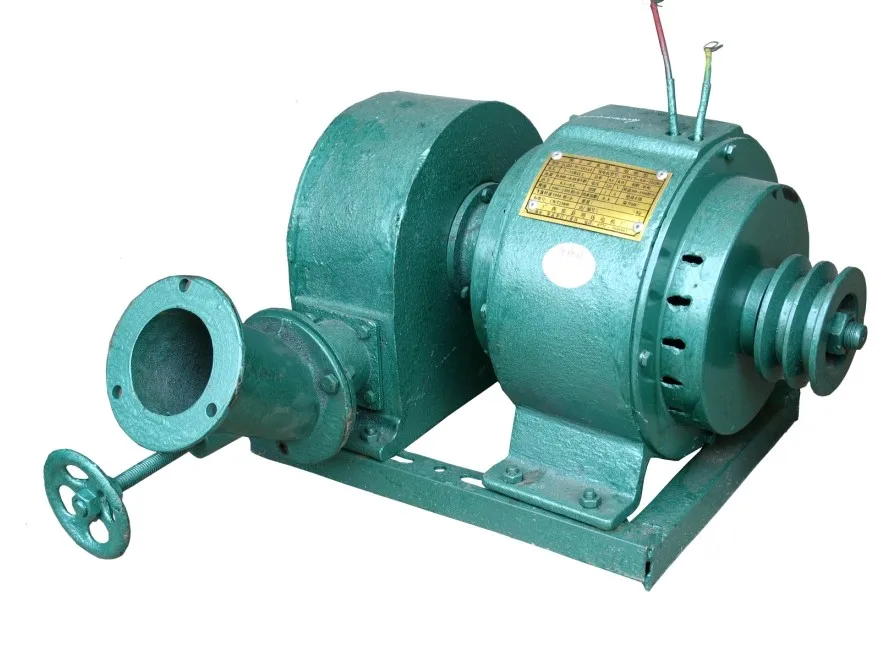

600W Hydroelectric Generator 220v Impulse Power Generation Copper Core Wire

Design head: 10-20 meters, flow rate: 0.07-0.01 m³/s, pipe diameter: 9 cm weight:70KG


Impulse hydraulic generator unit, also known as horizontal hydraulic turbine generator unit, is a hydraulic turbine unit with high head and small flow, and the required water head range is 7-40 meters, which is suitable for use in high mountain areas. Its working principle is: in the hydraulic turbine, the jet from the nozzle does not follow the tangential direction, but along the direction of a certain angle with the rotating plane of the runner, and enters the bucket blade from one side of the runner, Then leave the bucket leaf from the other side.
The biggest characteristics of impulse hydraulic power generation unit are: 1. Under the normal condition of water, water resources can be reasonably used to generate electricity. 2. In case of rain and drought, diesel engine can be used to drive power generation without water.
