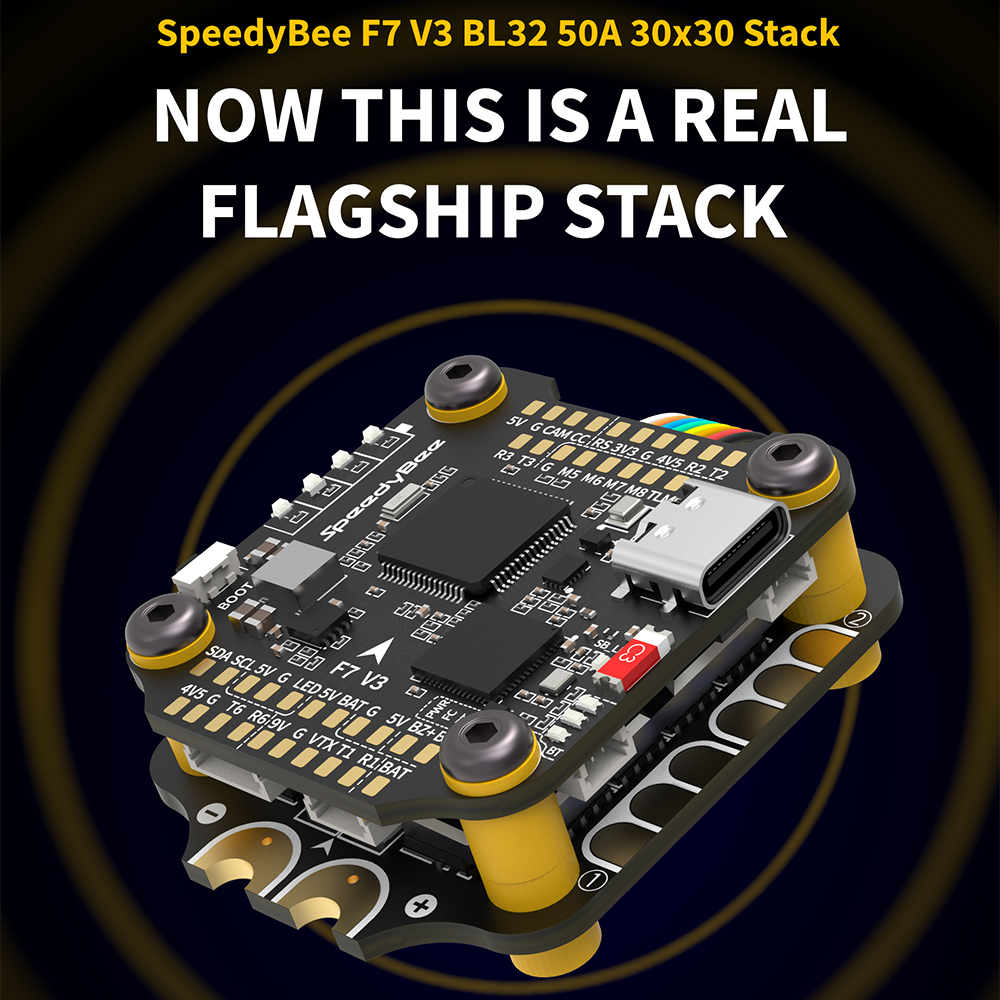

SpeedyBee F7 V3 Flight Stack 3-6S Lipo F7 V3 Flight Controller & BL32 50A 4in1 ESC 30.5 x 30.5mm 500MB Flash for FPV Freestyle Drone Model
Features:
1. Up to 128KHz PWM Frequency ESC.

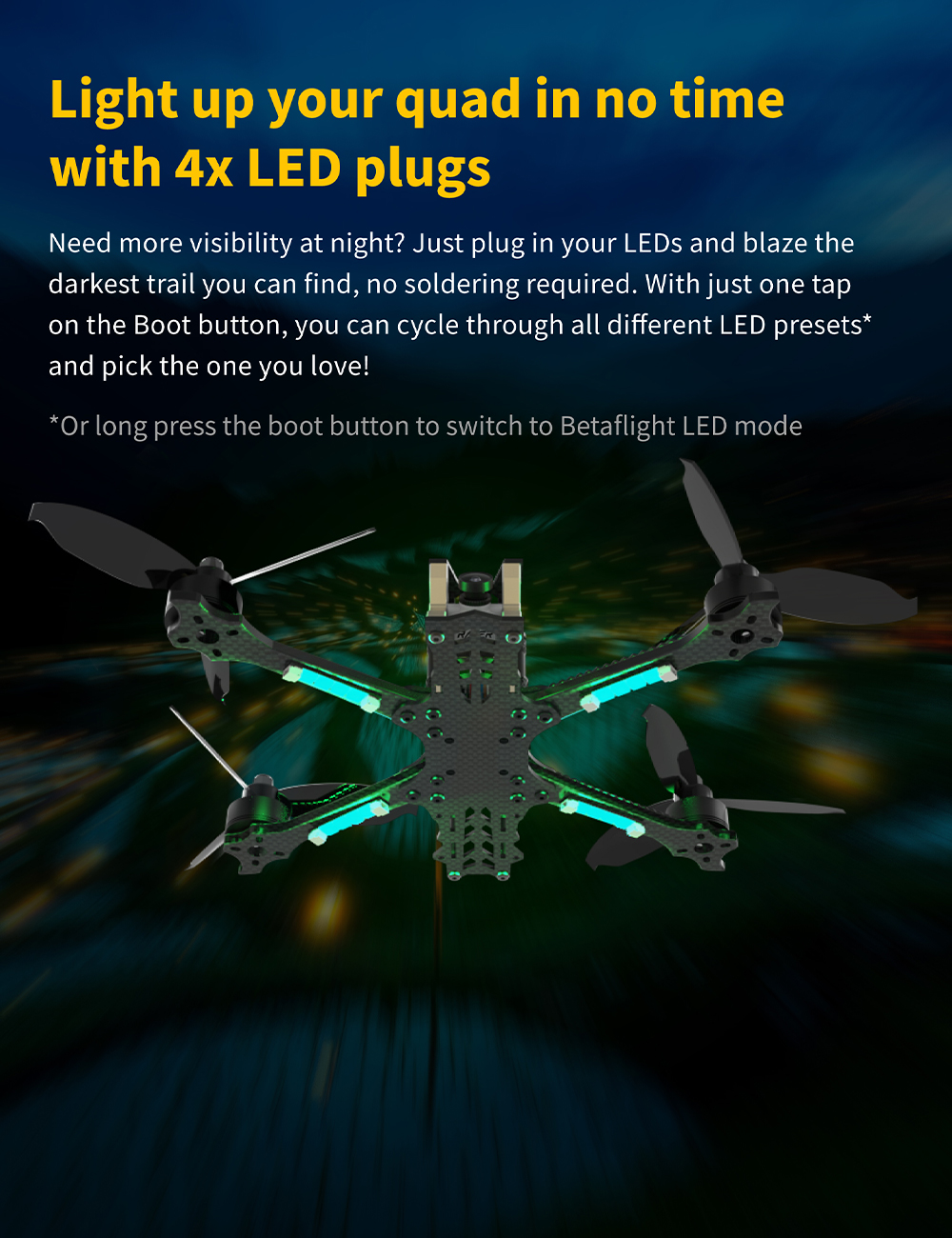

2. Built-in 4x LED Strip Plugs.

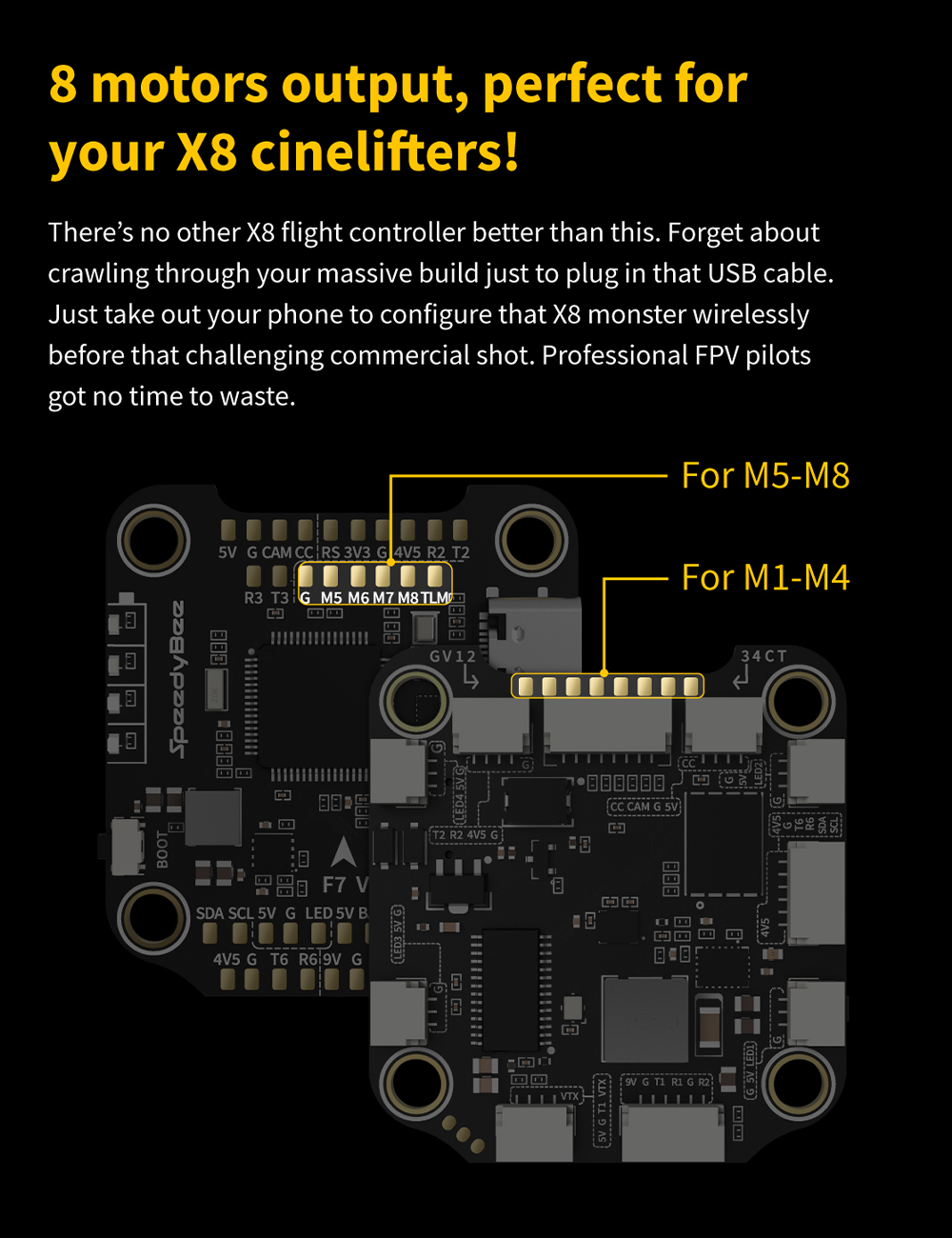

3. Support up to 8 motors.

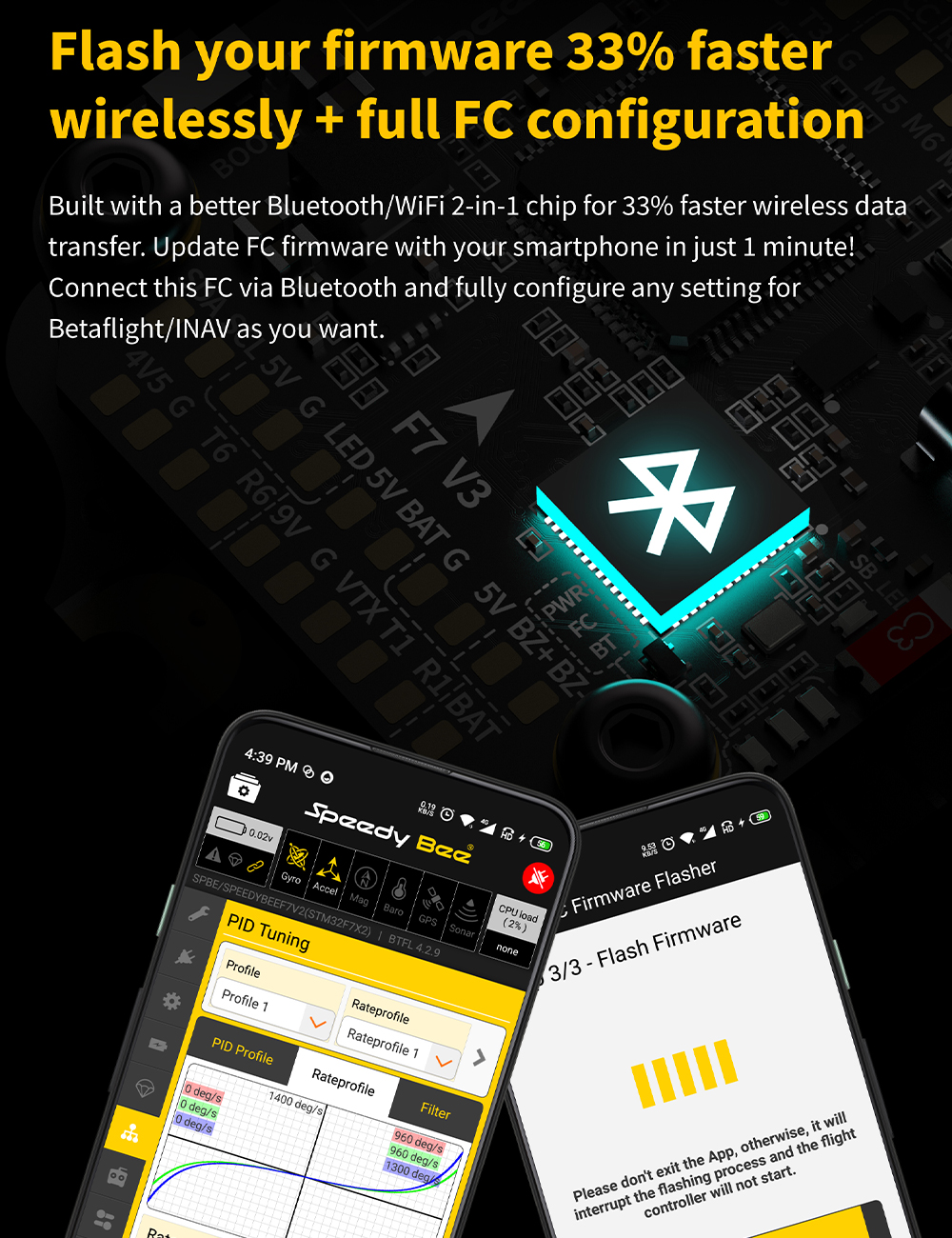

4. 33% Faster Wireless firmware flashing+ full Betaflight configuration.

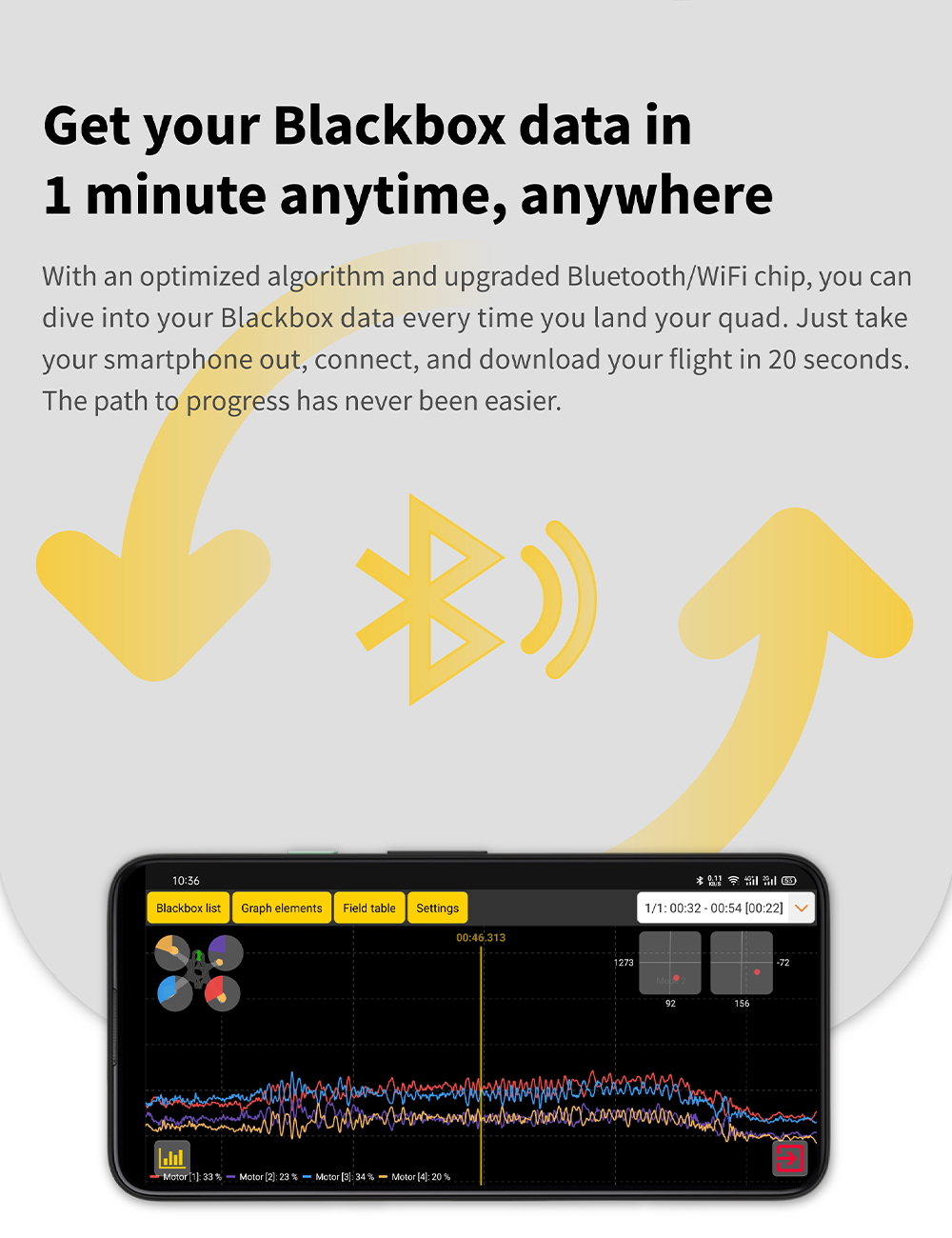

5. Get full Blackbox data in 1 minute wirelessly.
6. Wireless motor direction changing for BLHeli32/BLHeli_SBlueJay via SpeedyBee app.

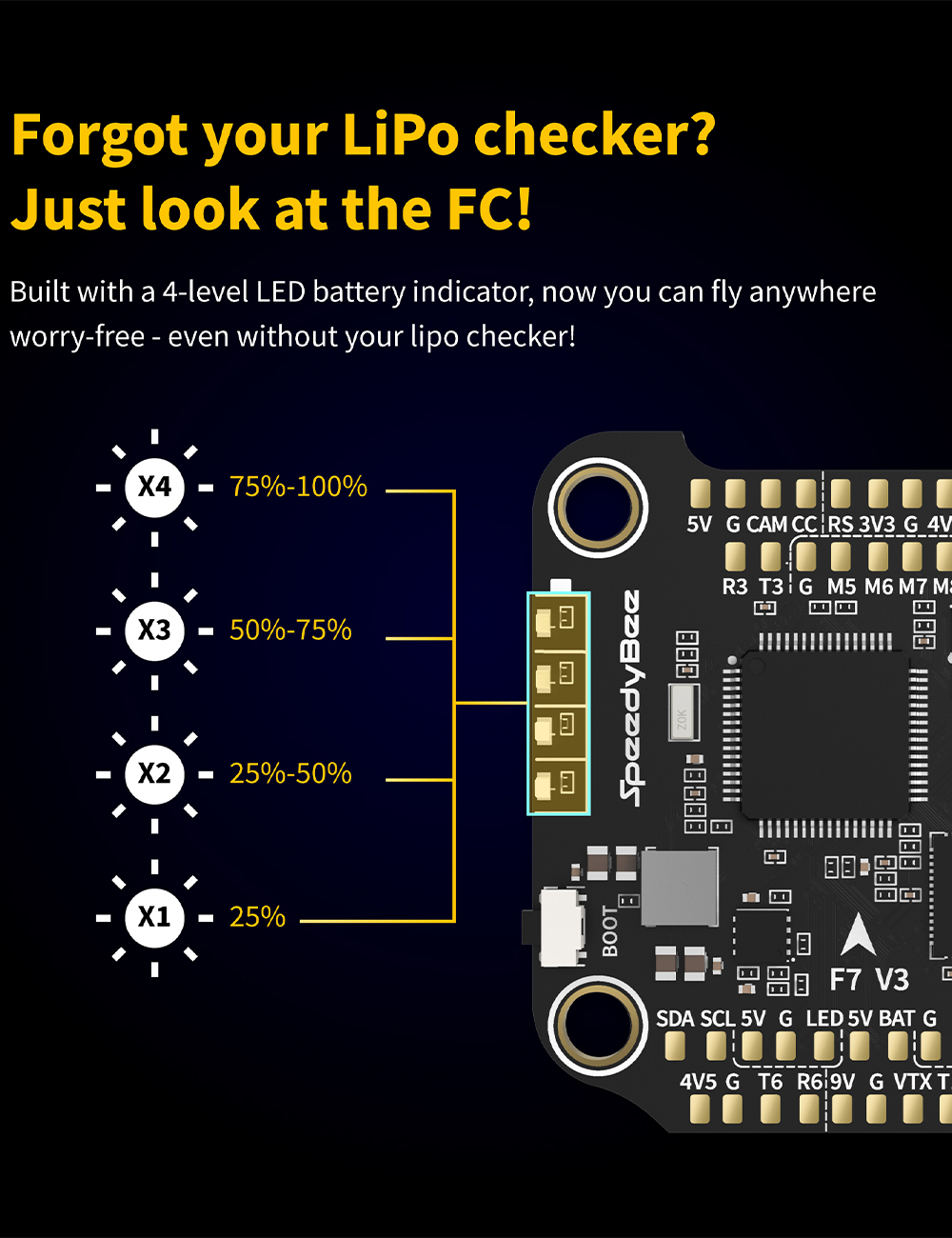

7. Onboard 4-level battery life indicators.

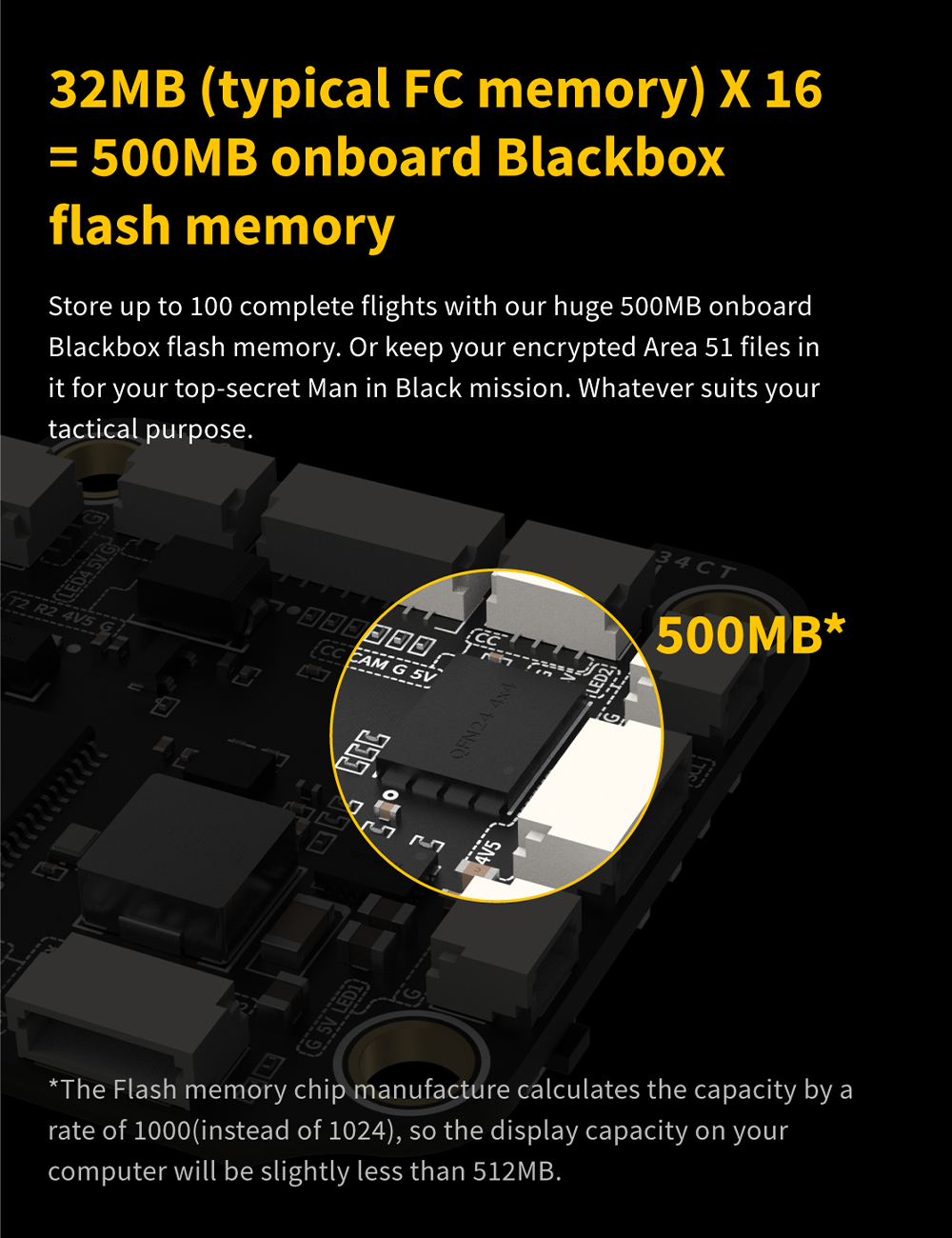

8. 500MB super huge onboard Blackbox flash memory.

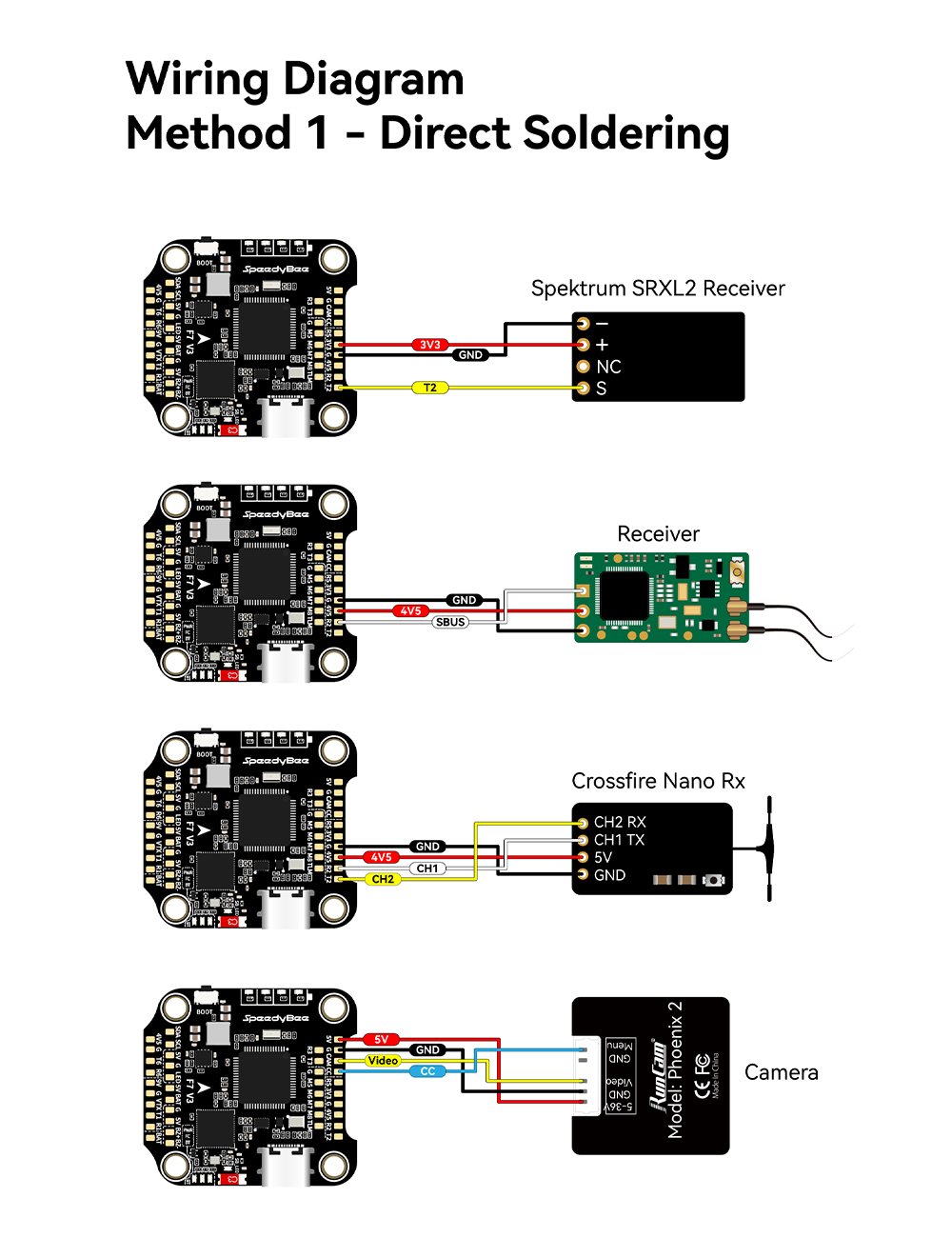

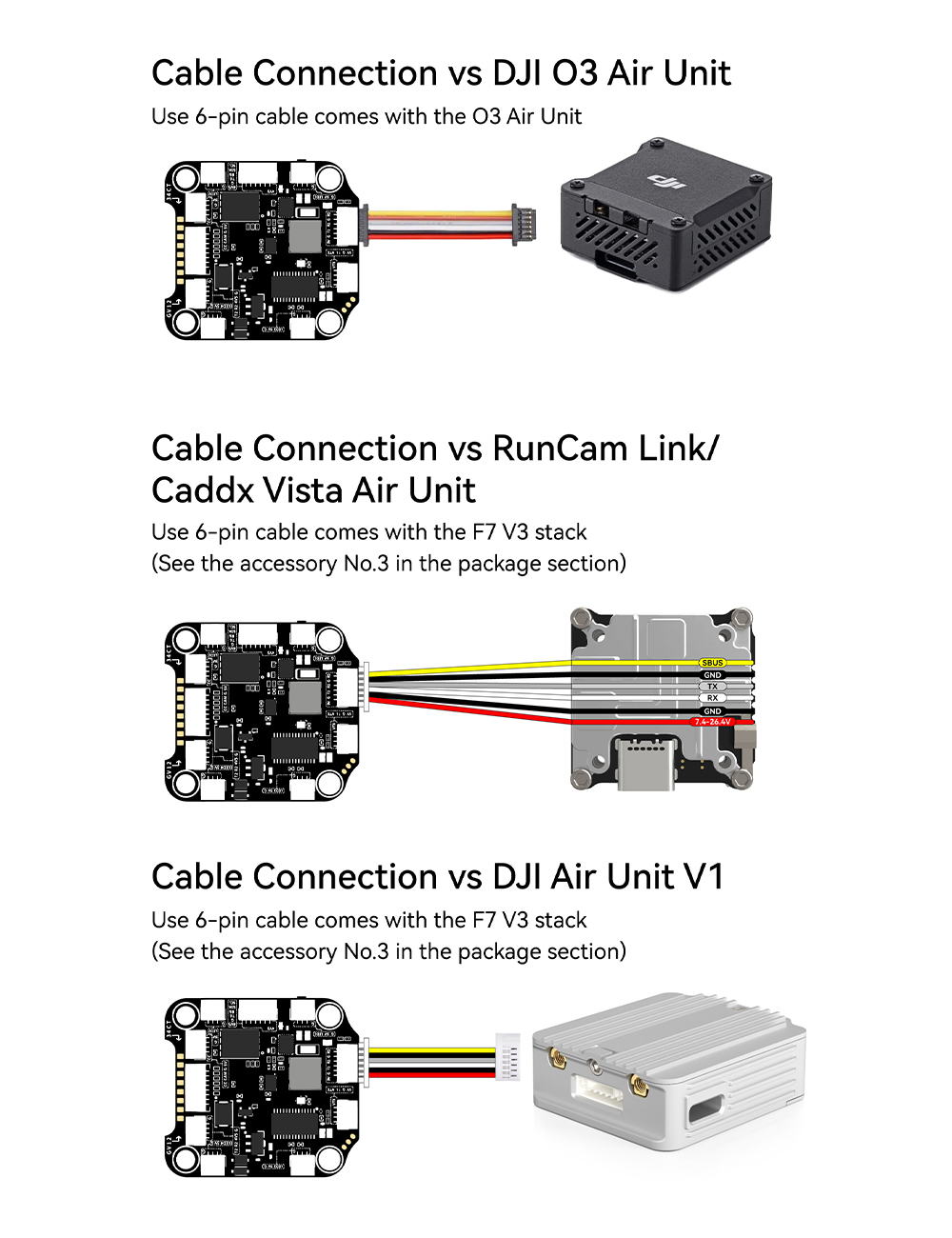

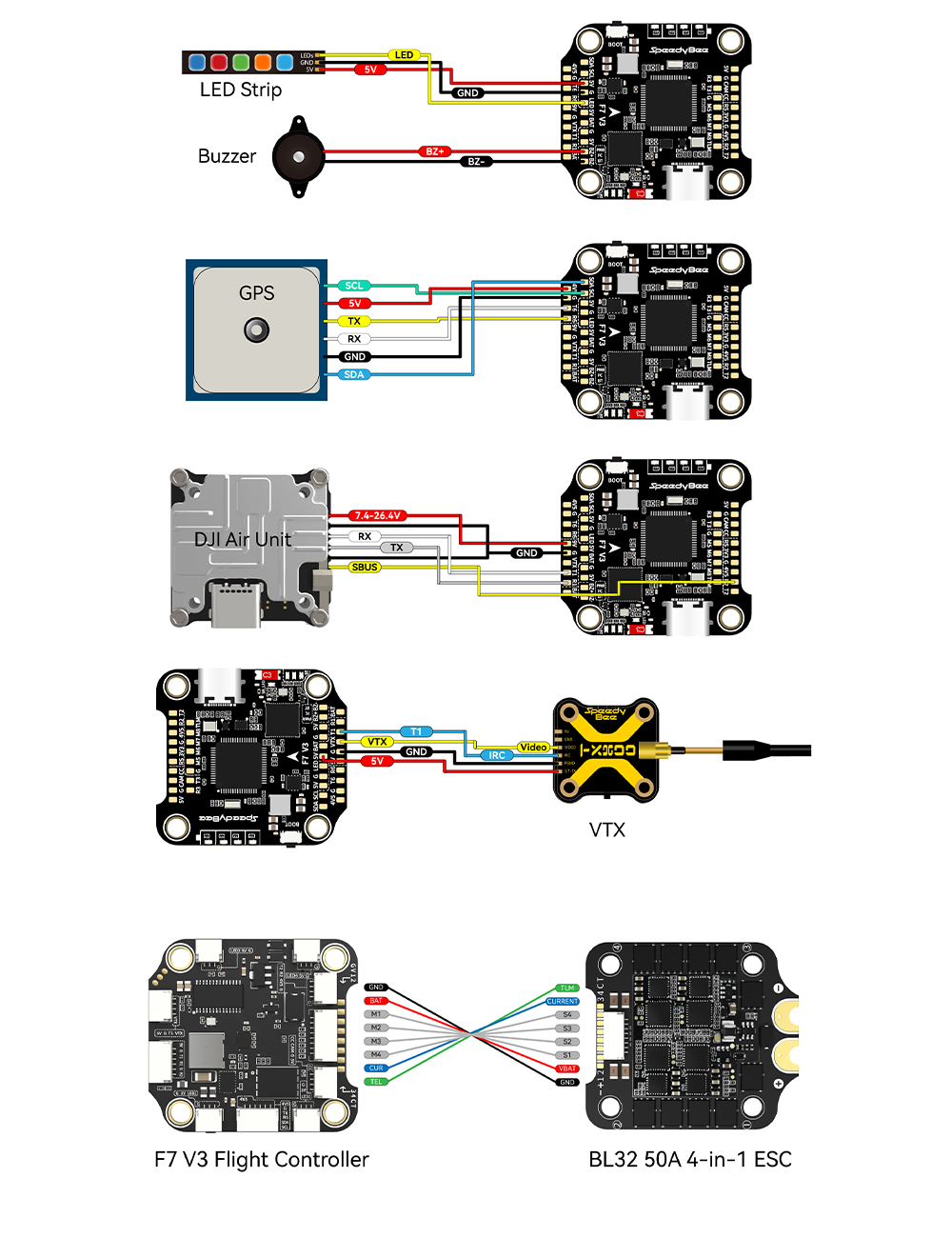

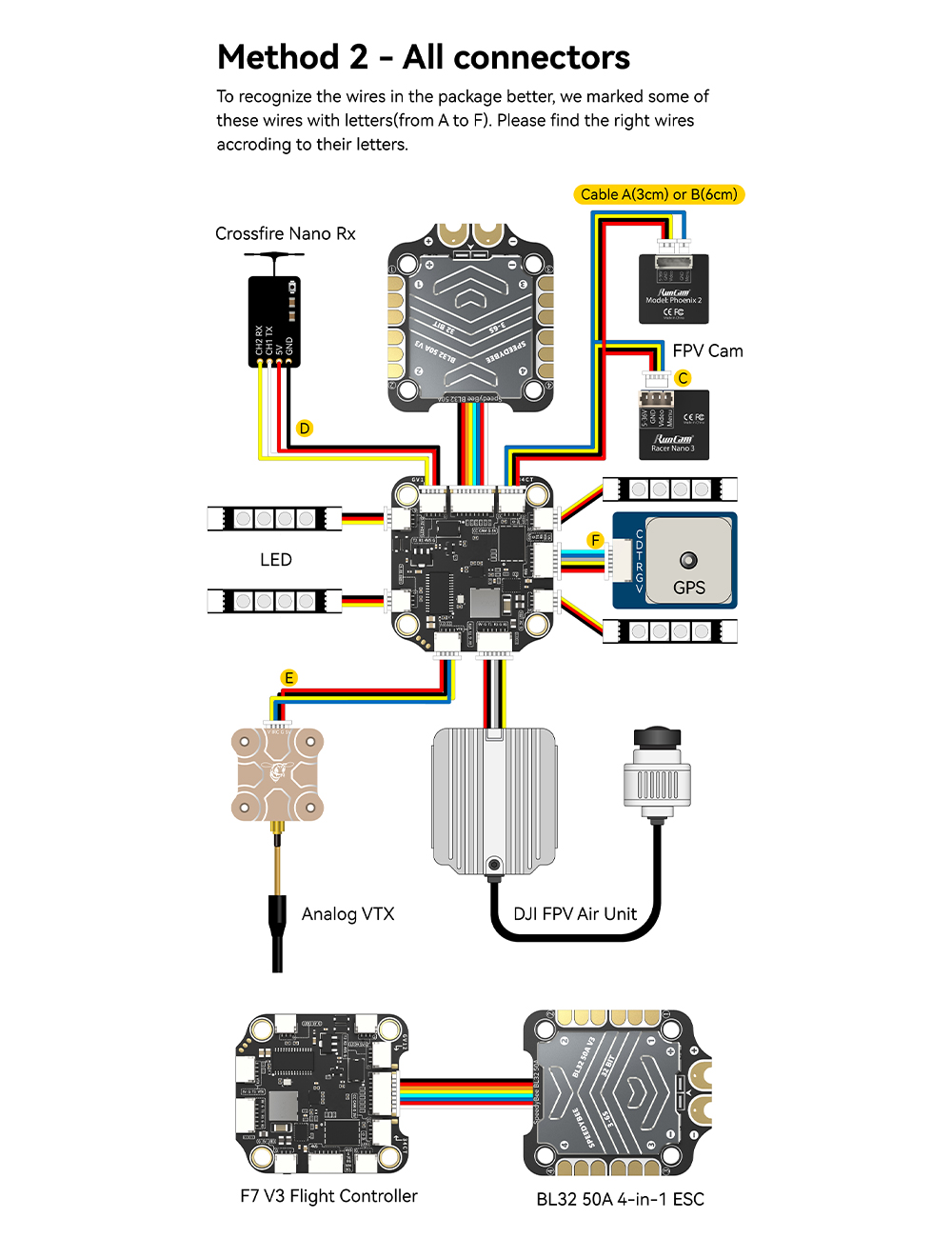

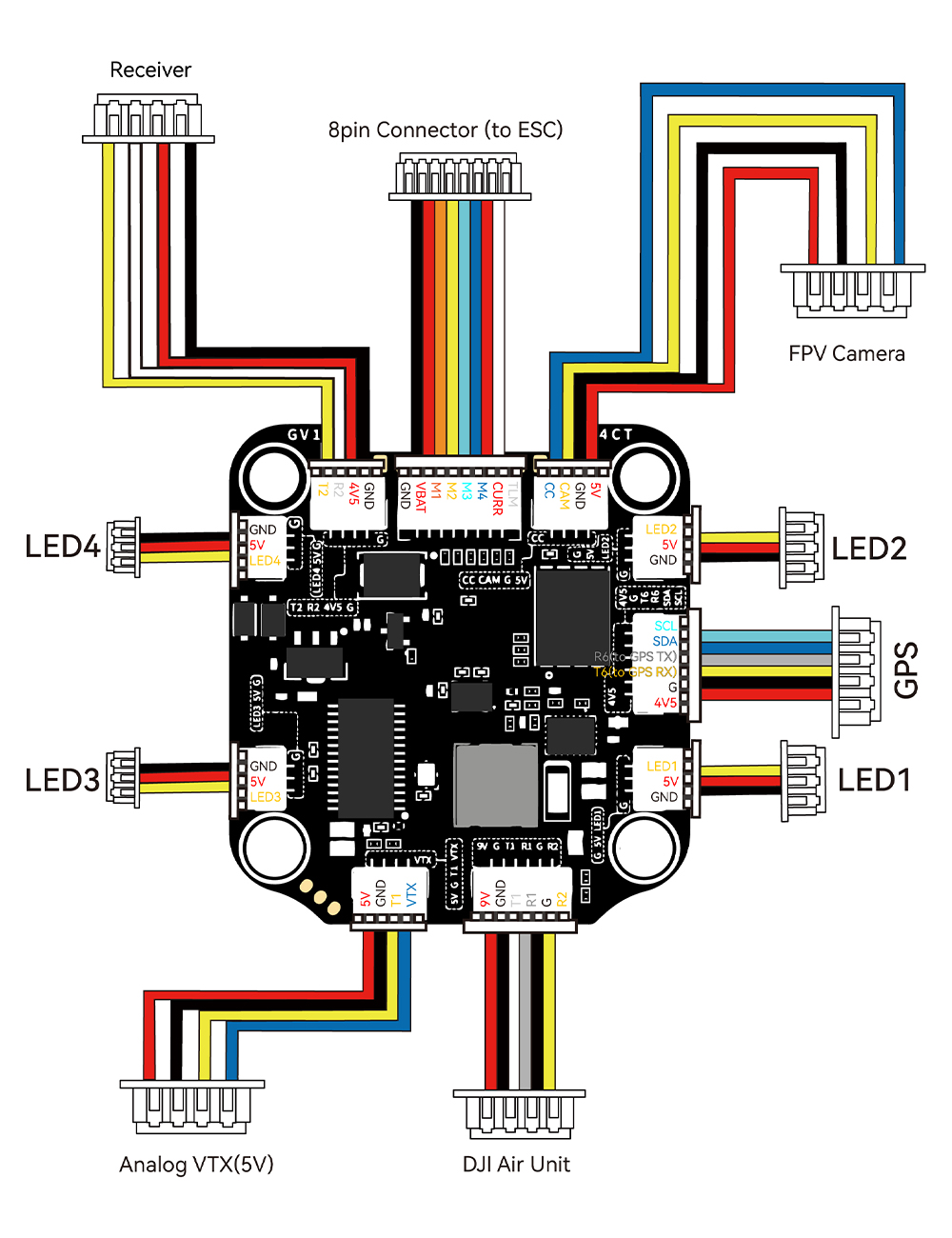

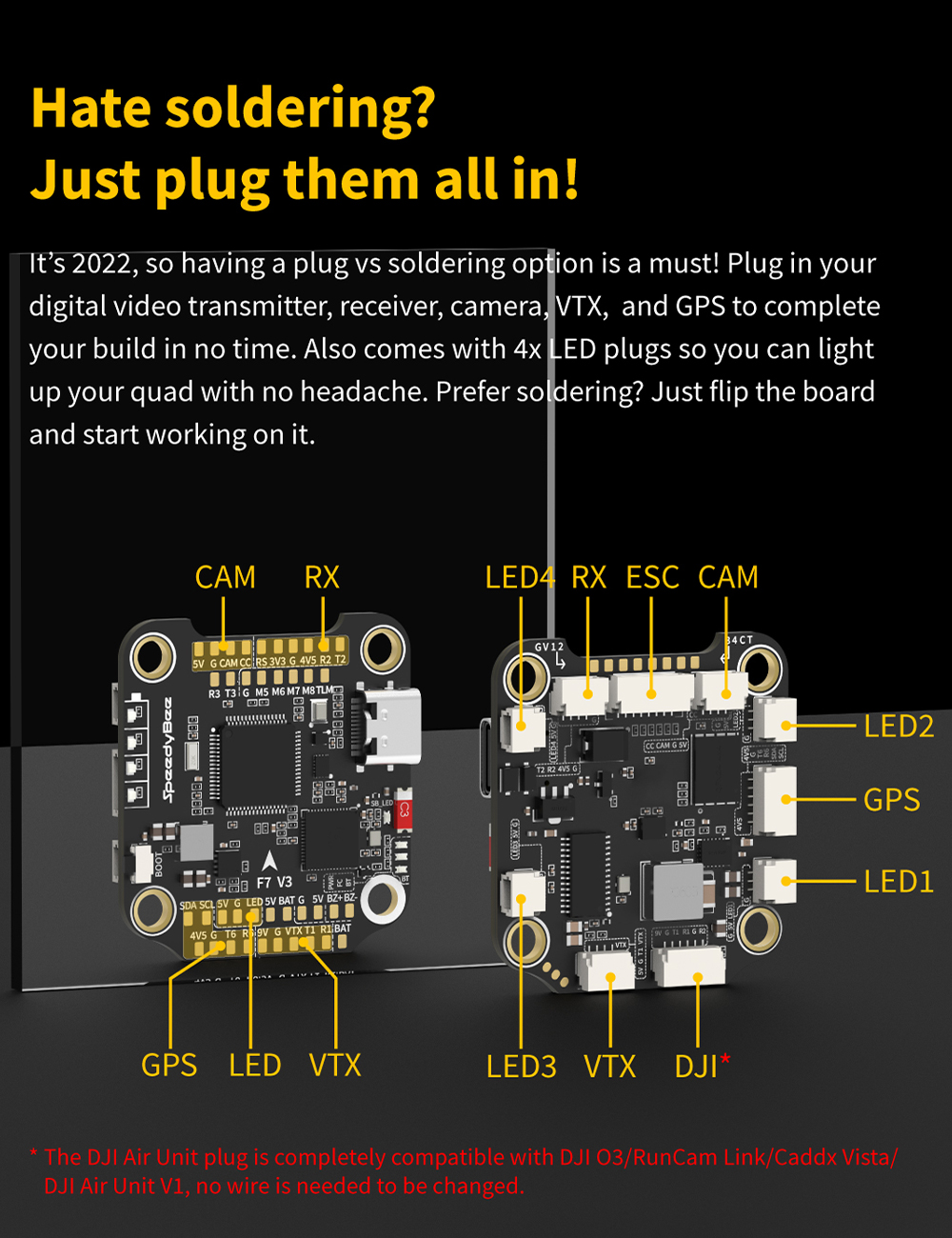

9. Solder-free plugs for digital video transmitter, receiver, camera, VTX.GPS, and 4x LED strips.
Description:

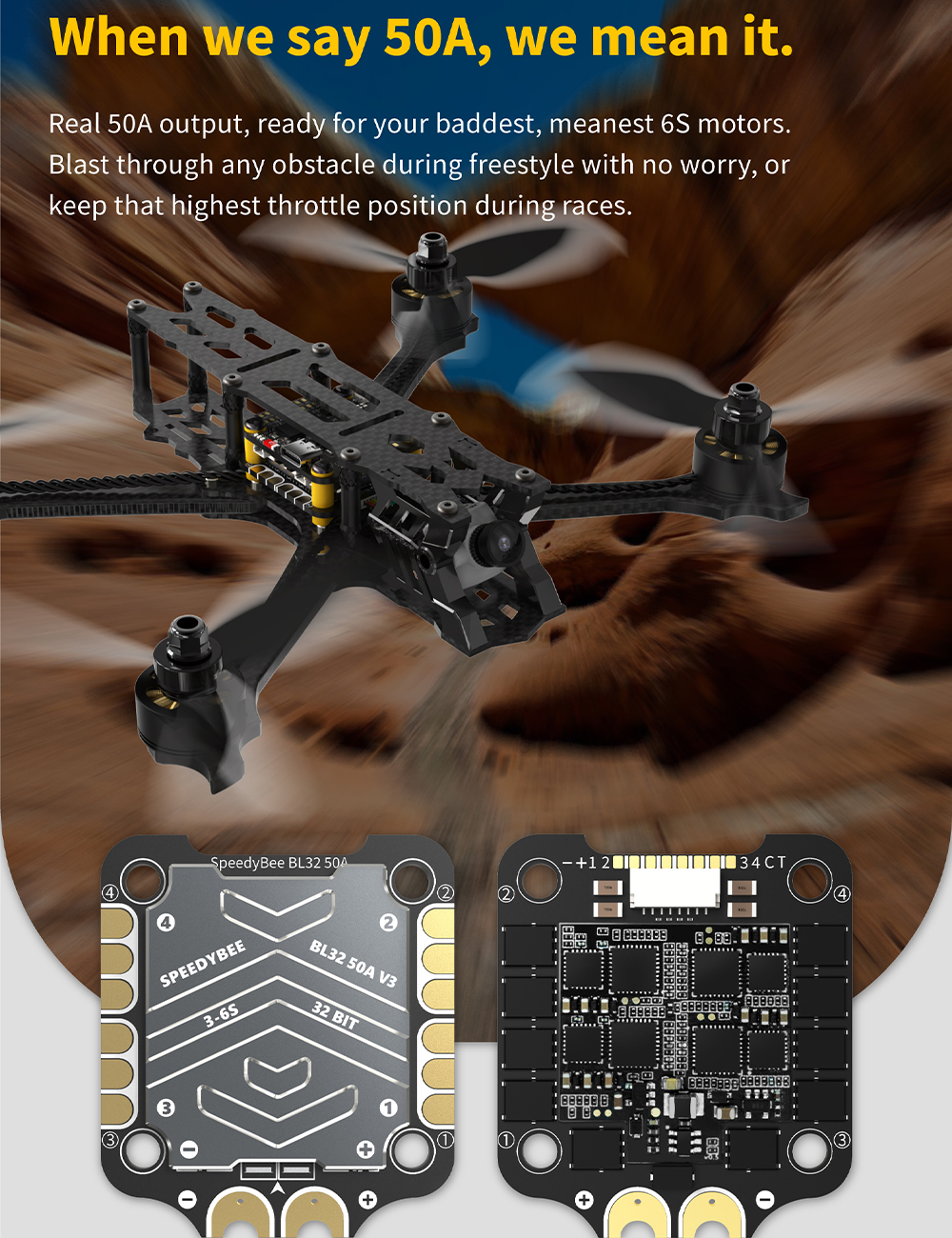

The ESC has been upgraded from the 45A of V22 to the actual 50A, and heat sinks and TVS surge diodes have been added The F7 V3 flight control supports 8 motors, wirelessly flashing flight control firmware and black box analysis, with a speed increase of 33%. It also supports welding free full socket connection to all peripherals.

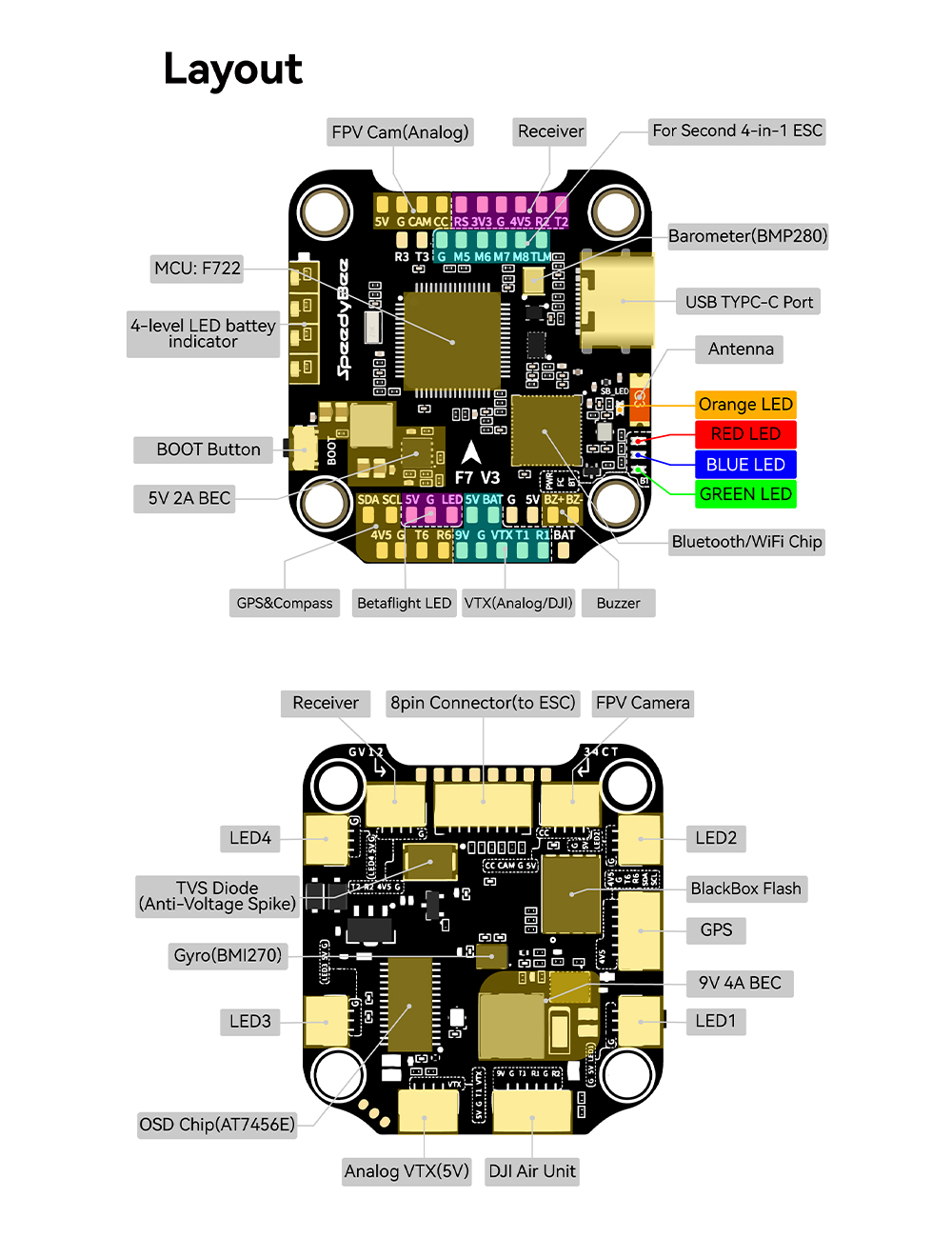

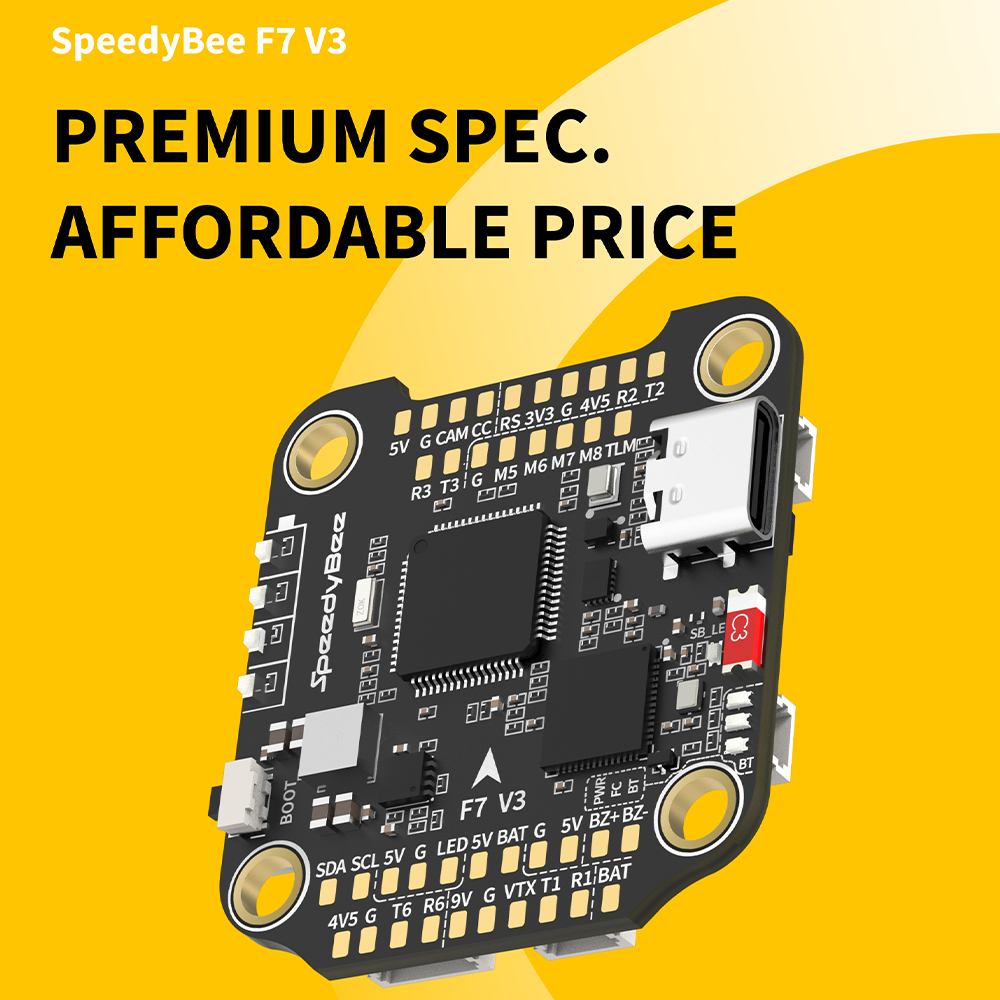

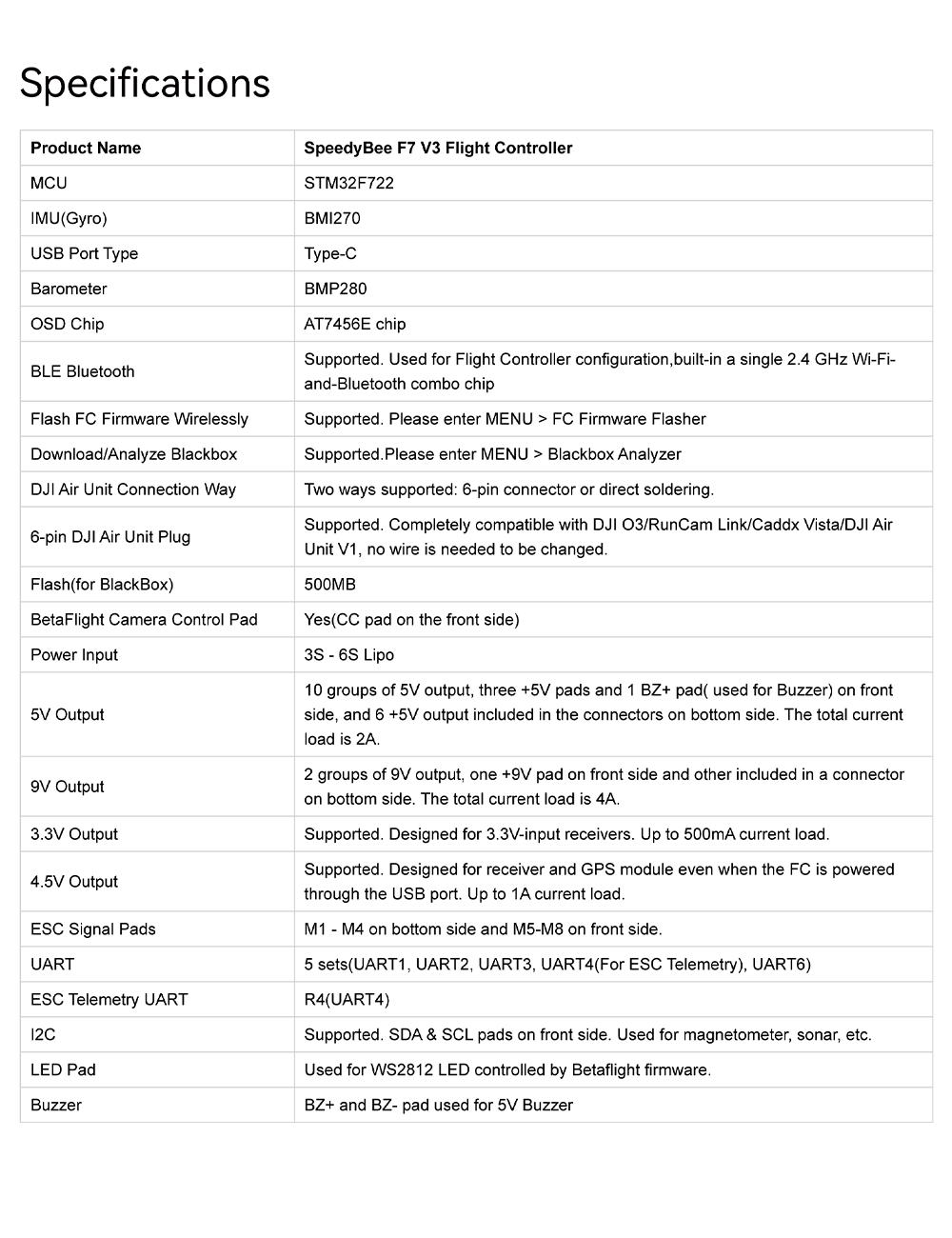

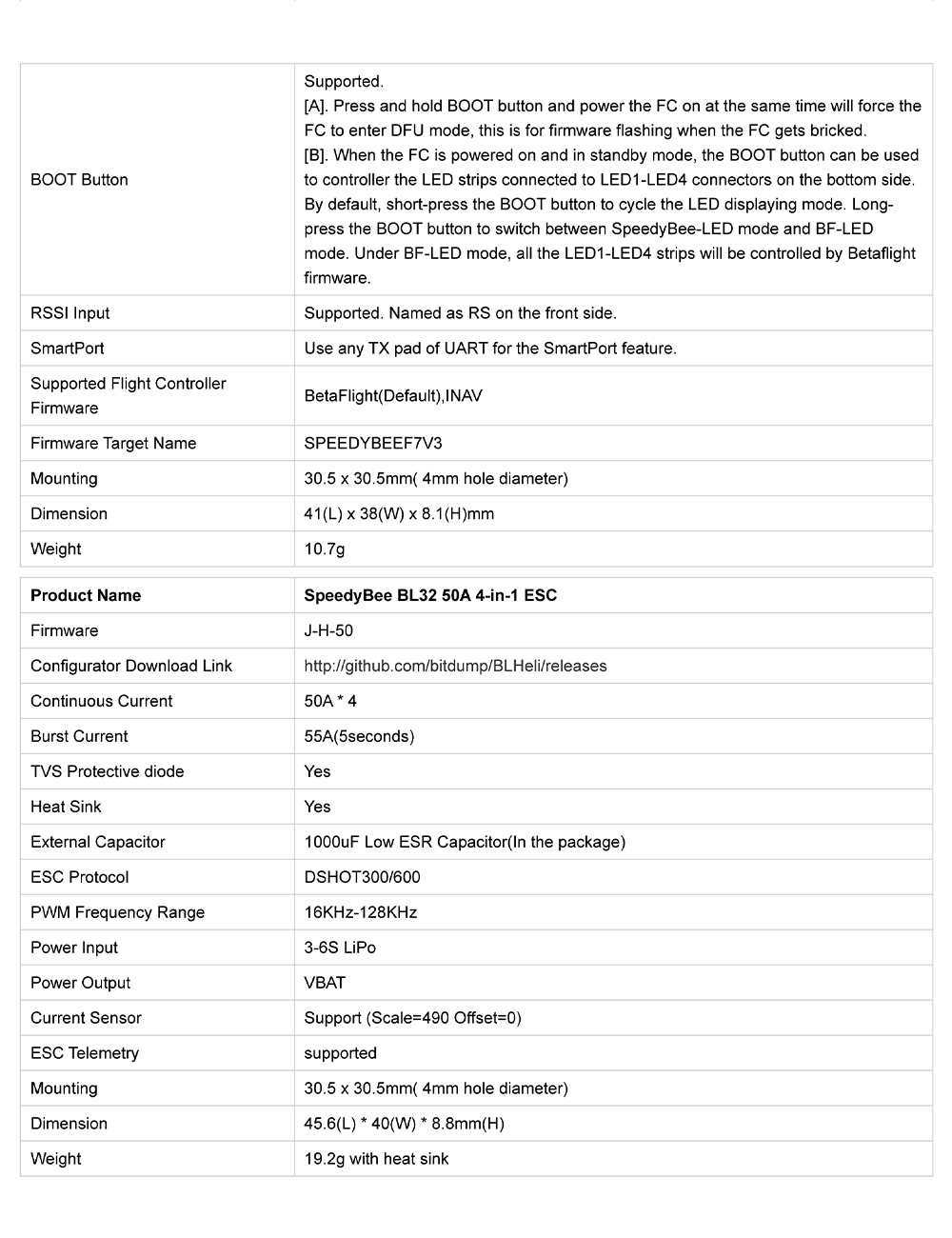

F7 V3 Flight Controller Specifications:
MCU: STM32F722
IMU(Gyro): BMI270
USB Port Type: Type-C

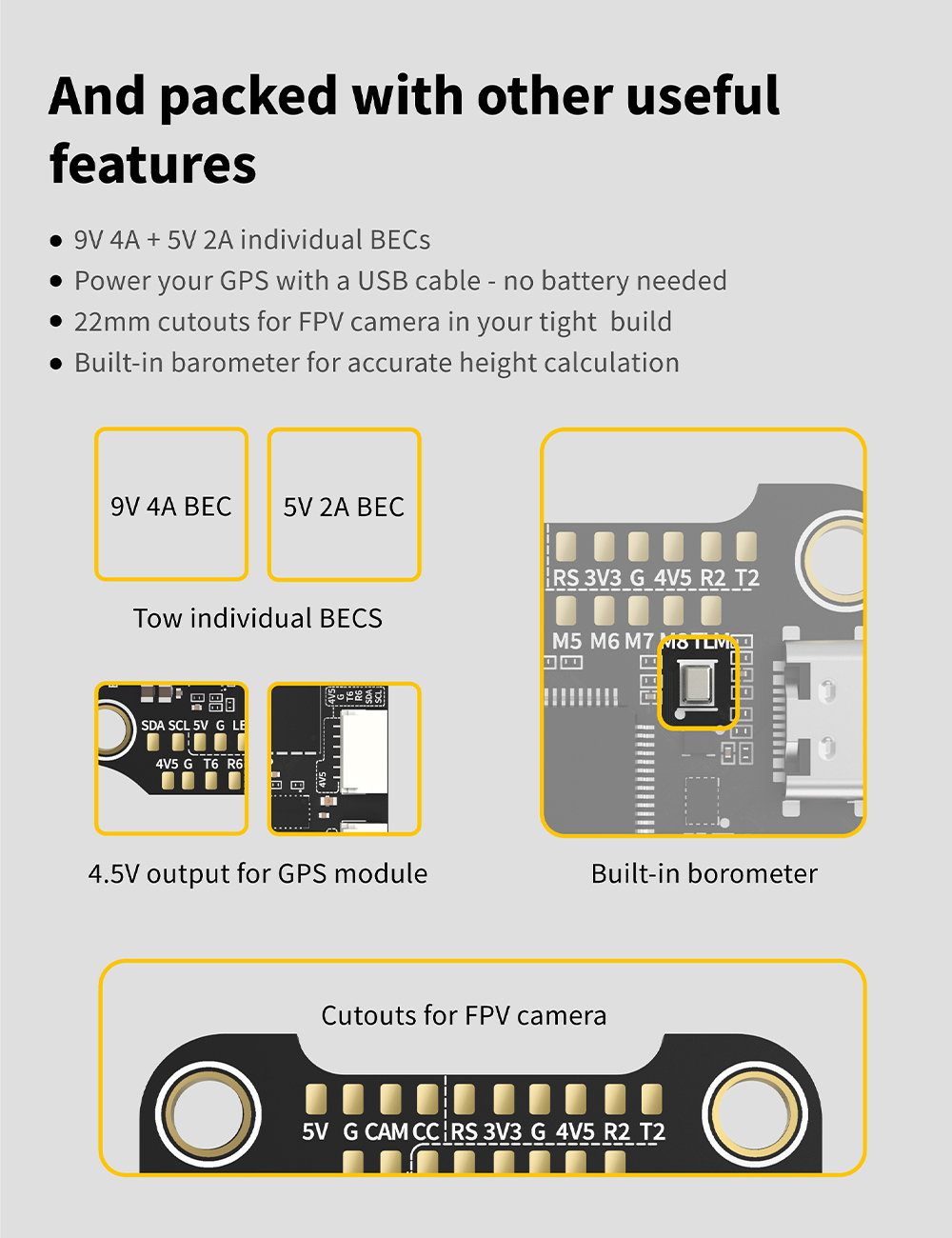

Barometer: BMP280
OSD Chip: AT7456E chip
Flash(for BlackBox): 500MB
Beta Flight Camera Control Pad: Yes(CC pad on the front side)
Power Input: 3S -6S Lipo
ESC Signal Pads: M1 -M4 on bottom side and M5-M8 on front side.
Firmware: BetaFlight(Default),INAV
Mounting: 30.5 x 30.5mm( 4mm hole diameter)

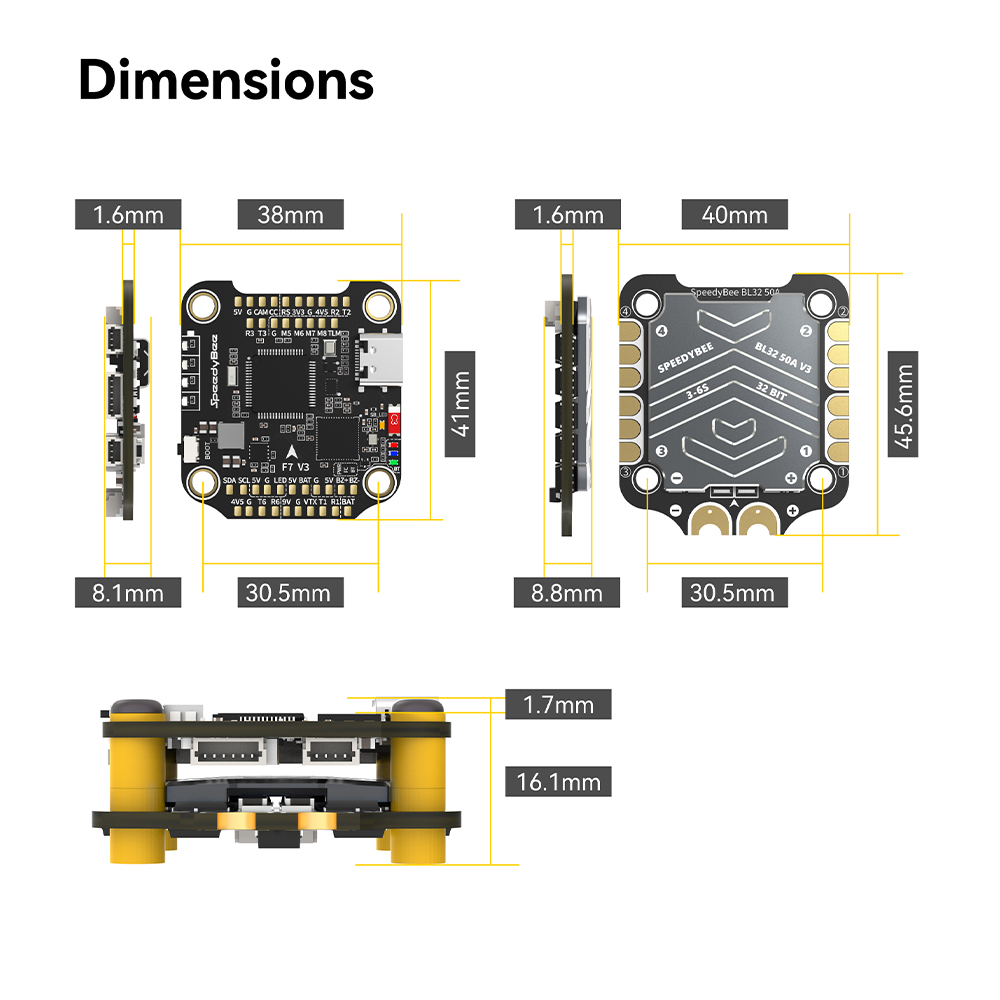

Dimension: 41(L)x 38(W)x 8.1(H)mm
Weight: 10.7g

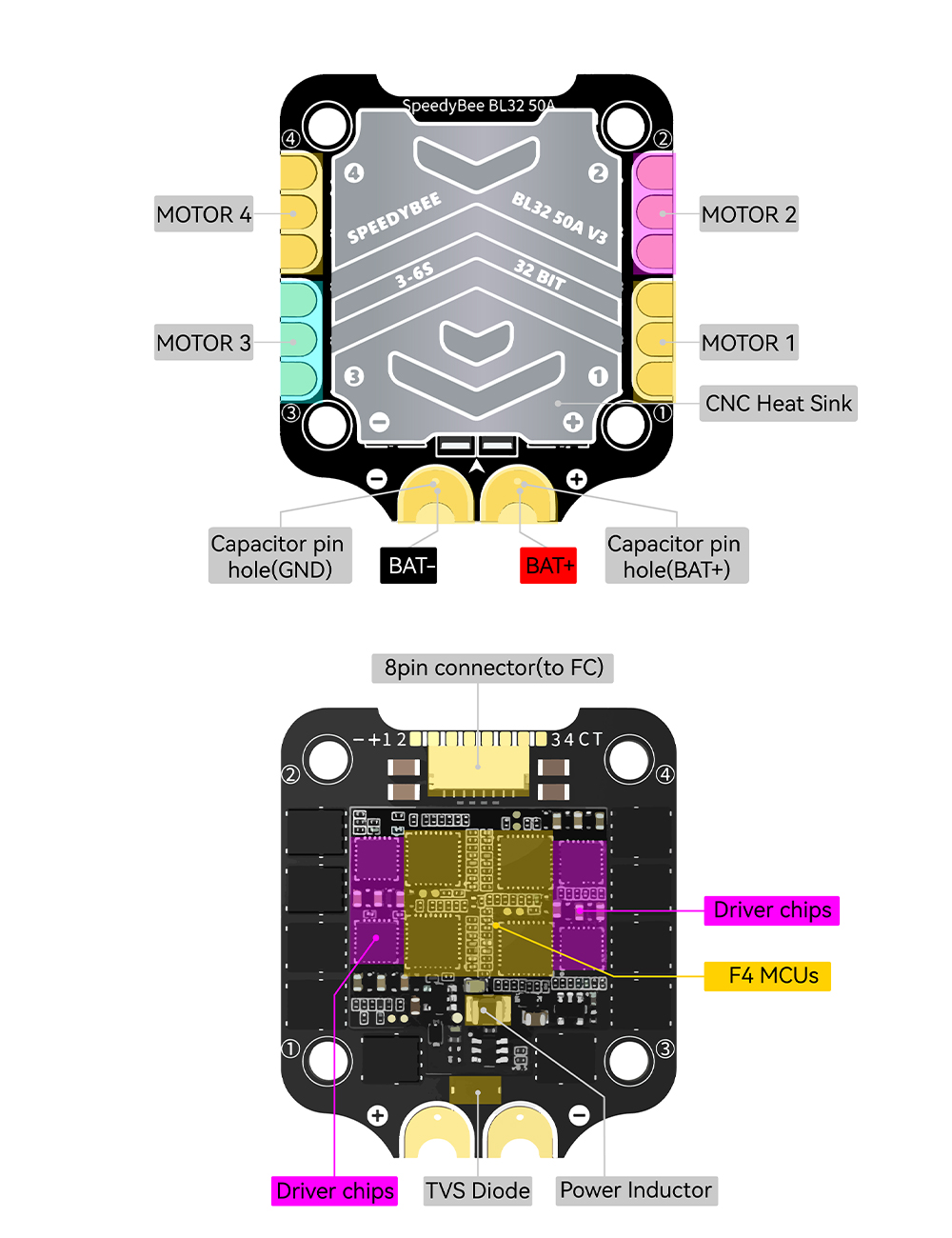

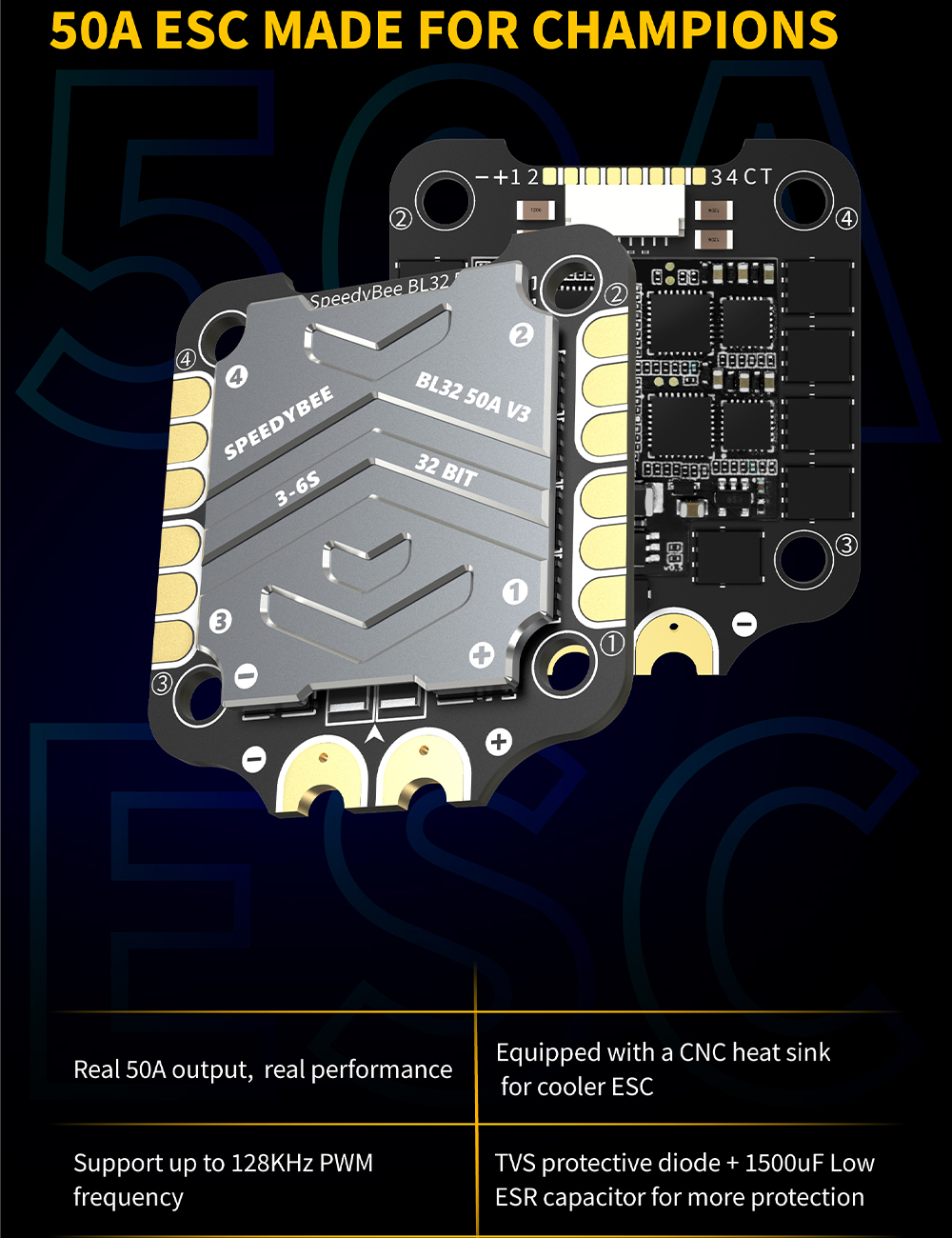

BL32 50A 4-in-1 ESC Specifications:
Firmware: J-H-50
Continuous Current: 50A*4
Burst Current: 55A(5seconds)

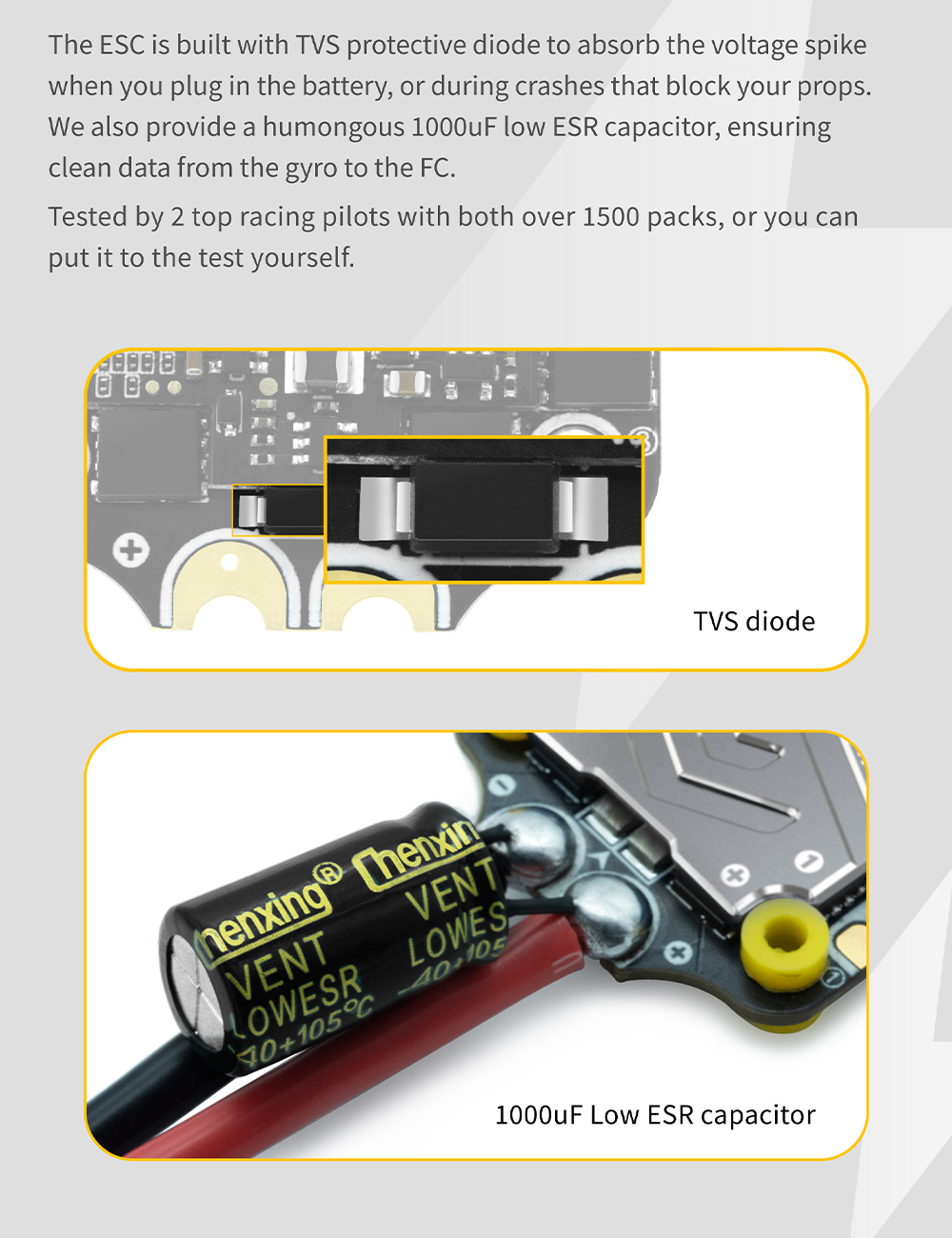

TVS Protective diode: Yes

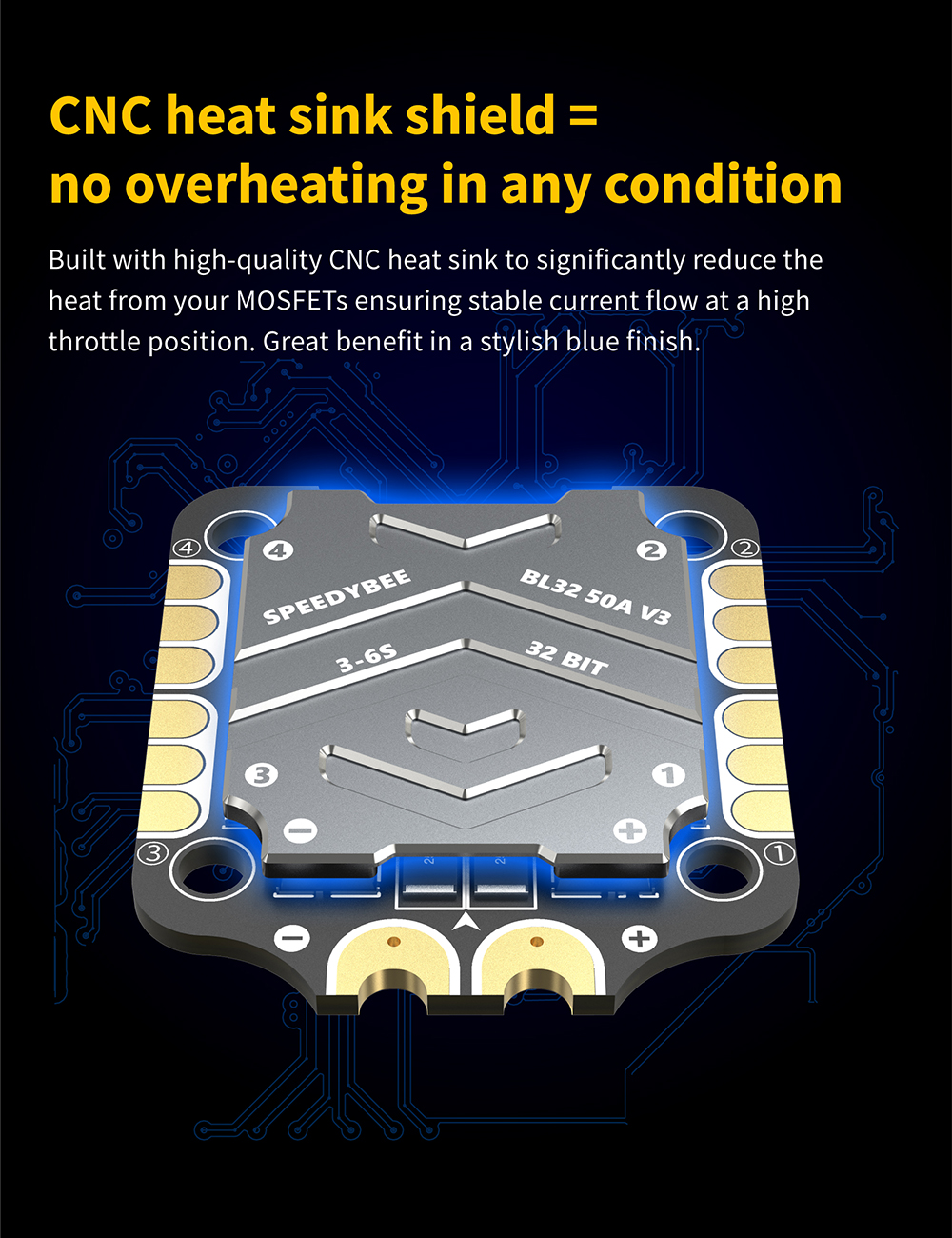

Heat Sink: Yes

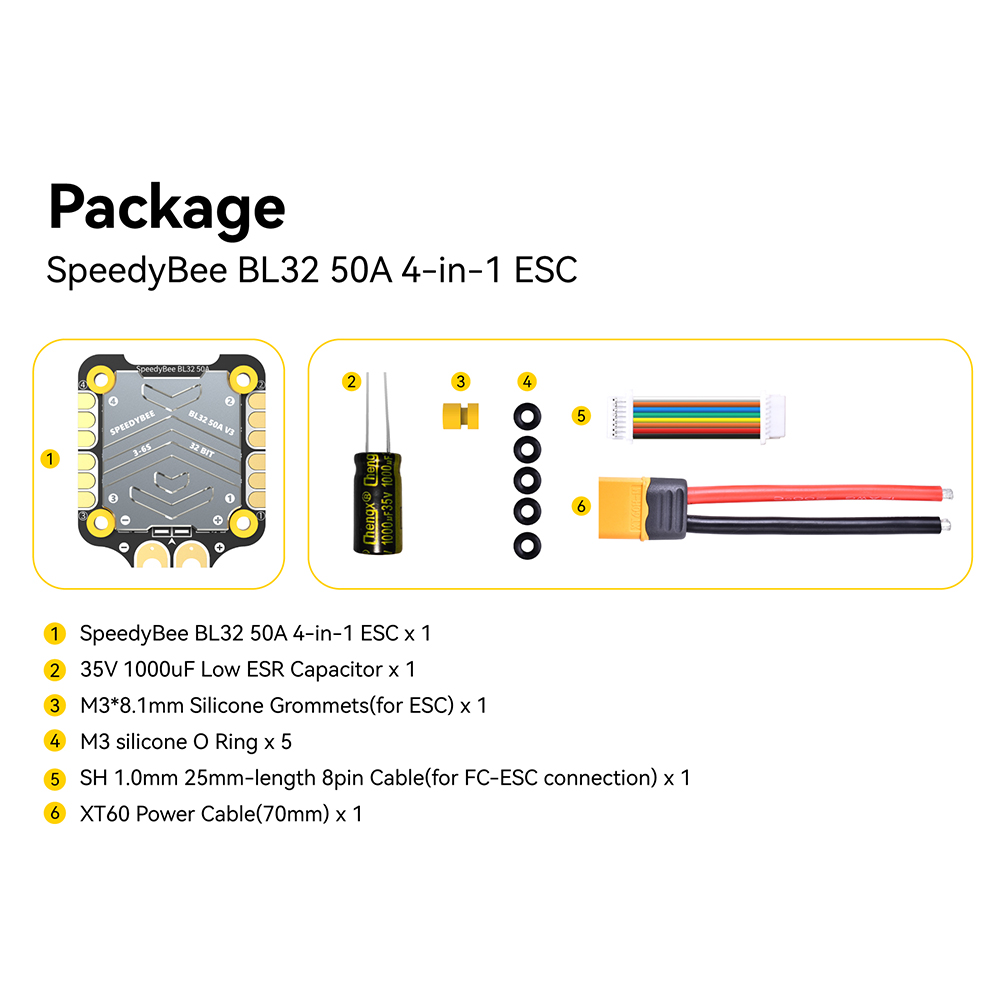

External Capacitor: 1000uF Low ESR Capacitor(In the package)
ESC Protocol: DSHOT300/600

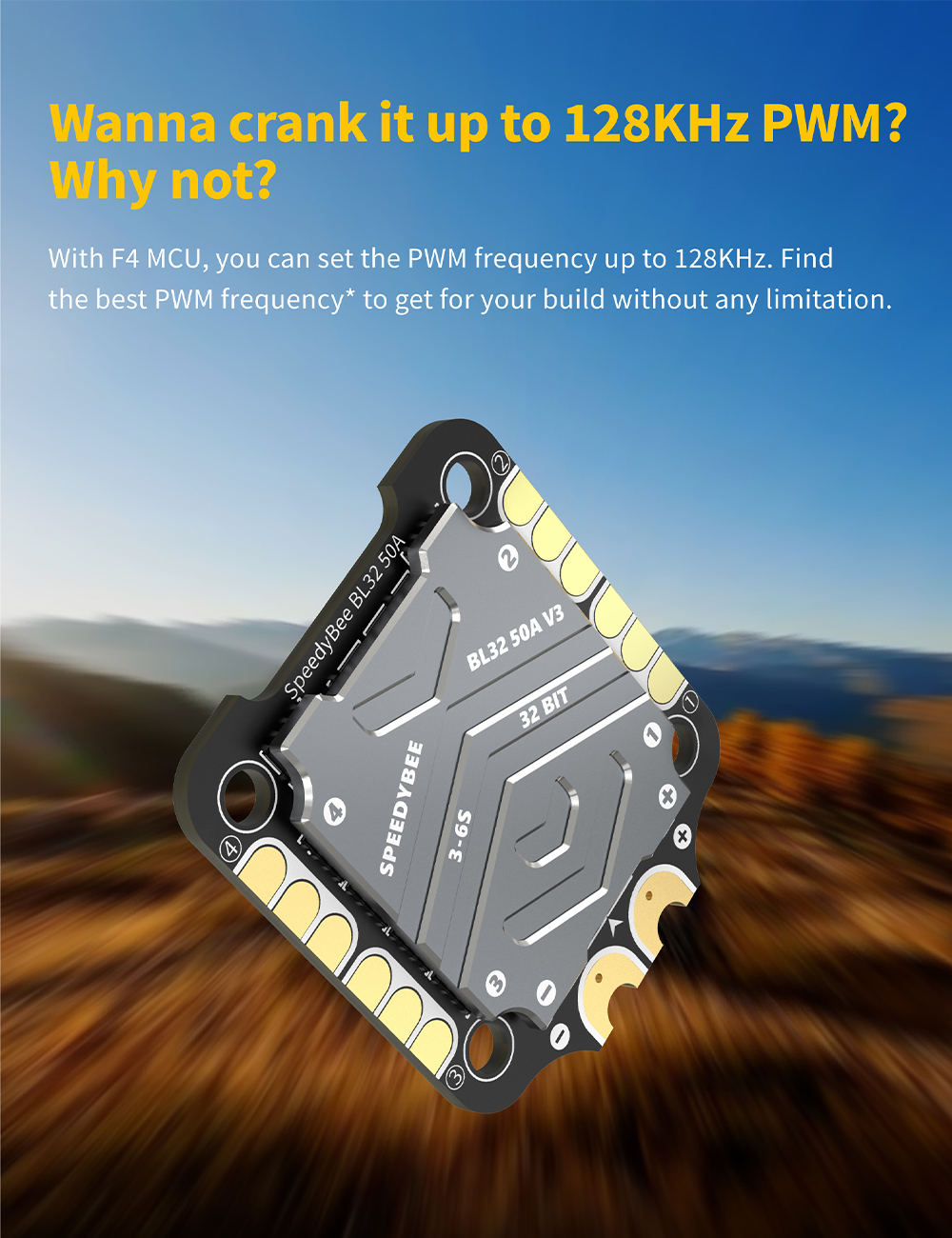

PWM Frequency Range: 16KHZ-128KHZ
Power Input: 3-6S LiPo
Power Output: VBAT
Mounting: 30.5 x 30.5mm( 4mm hole diameter)
Dimension: 45.6(L)* 40(W)*8.8mm(H)
Weight: 19.2g with heat sink

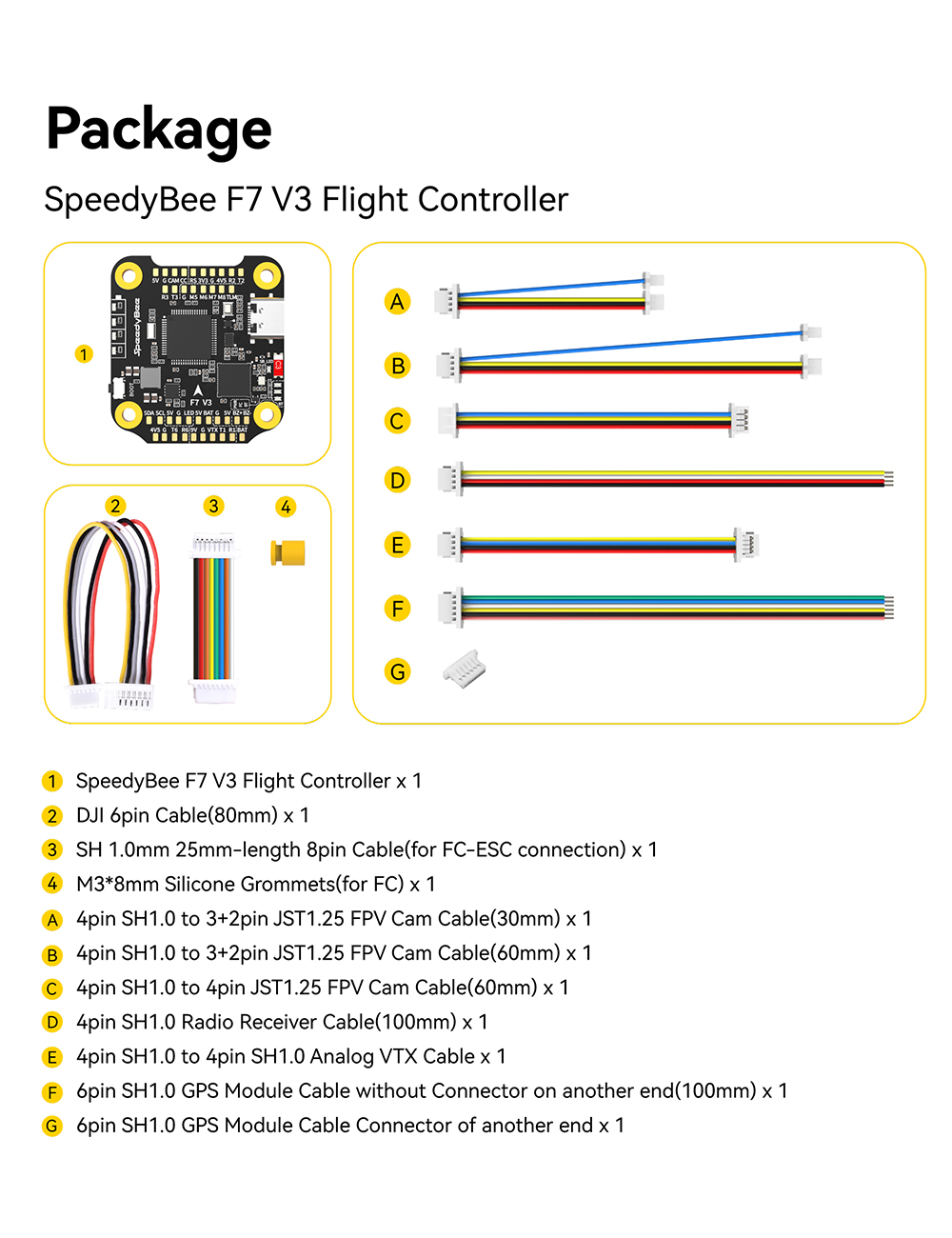

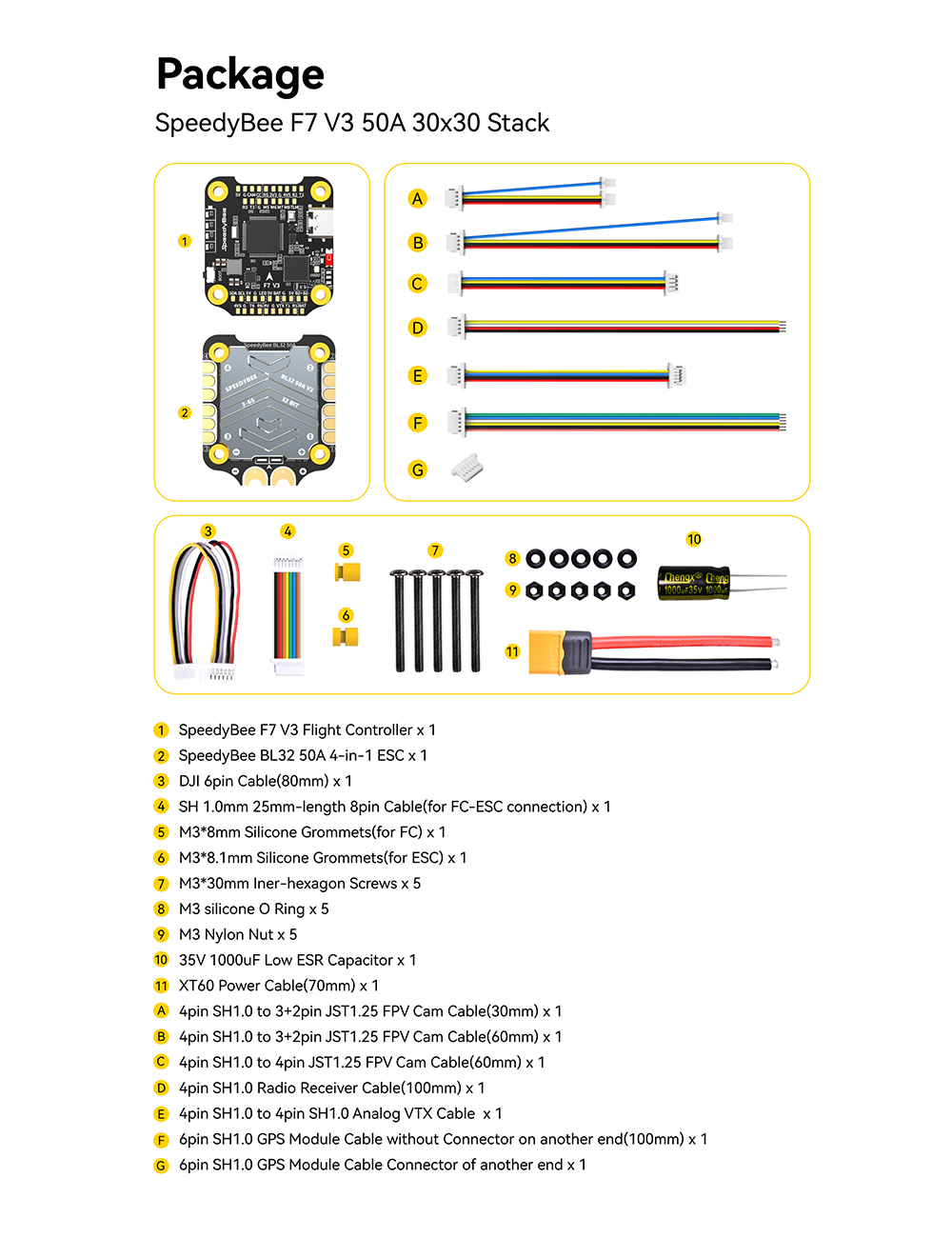

Package contents:
SpeedyBee F7 V3 Flight Controller x 1
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
Before purchase:
1.All the goods are ready stock, we will arrange the shipment at once if we receive the order.
2.Please read the item description, if you have any question, do not hesitate to contact us.
3.No warranty,if you receive a defect item,please contact us at once with item picture.
4.Use the vouchers for more saving.
After purchase:
1.If you are satisfied,please express your use feeling.
2.Please contact us before you are going to give us bad review. We are helpful and will solve the problems. If you receive a defect item,please contact us at once with item picture or video.
