| Item Specifics |
|---|
| Country of Origin | United States | | Brand | goodshepherd18 | | Type | CV Axle Assembly | | Interchange Part Number | 66-5228/60-5228/TO-8234/TO-8094/60-5227 | | Manufacturer Part Number | GP1110885DH | | Placement on Vehicle | Front, Left | | OE/OEM Part Number | 60-5287/TO-9508A,/TO-8-129AM/TO-9129A | | Manufacturer Warranty | 1 Year | | Color | Black | | Fitment Type | Direct Replacement | | Universal Fitment | No | | Performance Part | No | | Superseded Part Number | 60-5287/TO-9508A,/TO-8-129AM/TO-9129A | | Surface Finish | Polished/Rust Protected | | Vintage Part | No | | ABS Ring Included | Yes | | ABS Ring Included | Yes | | Axle Features | ABS | | Axle Nut Hex Size | 1.18 in / 30 mm | | Axle Nut Included | Yes | | Axle Nut Locking Type | Open Groove | | Axle Nut Thread Size | M22 x 1.5 | | Cotter Pin Included | No | | Hardware Included | No | | Hazardous Material | No | | Hazardous Material | No | | Drive Type | FWD | | Drive Type | FWD | | Input Shaft Connection Style | Spline | | Output Shaft Connection Style | Spline | | Number of Inboard Splines | 20 Teeth | | Number of Outboard Spline | 26 Teeth | | Overall Compressed Length | 25.51 in / 648 mm | | Model-1 | For Pontiac Vibe 2003-2010 | | Model-1 | For Pontiac Vibe 2003-2010 | | Model-2 | For Toyota Corolla/Matrix 2003-2014 | | Note-1 | Fits For 2009-2018 Toyota Corolla 1.8L V4 FWD | | Note-2 | Fits For 2003-2010 Pontiac Vibe 1.8L V4 FWD | | Note-3 | Fits For 2003-2014 Toyota Matrix 1.8L V4 FWD |

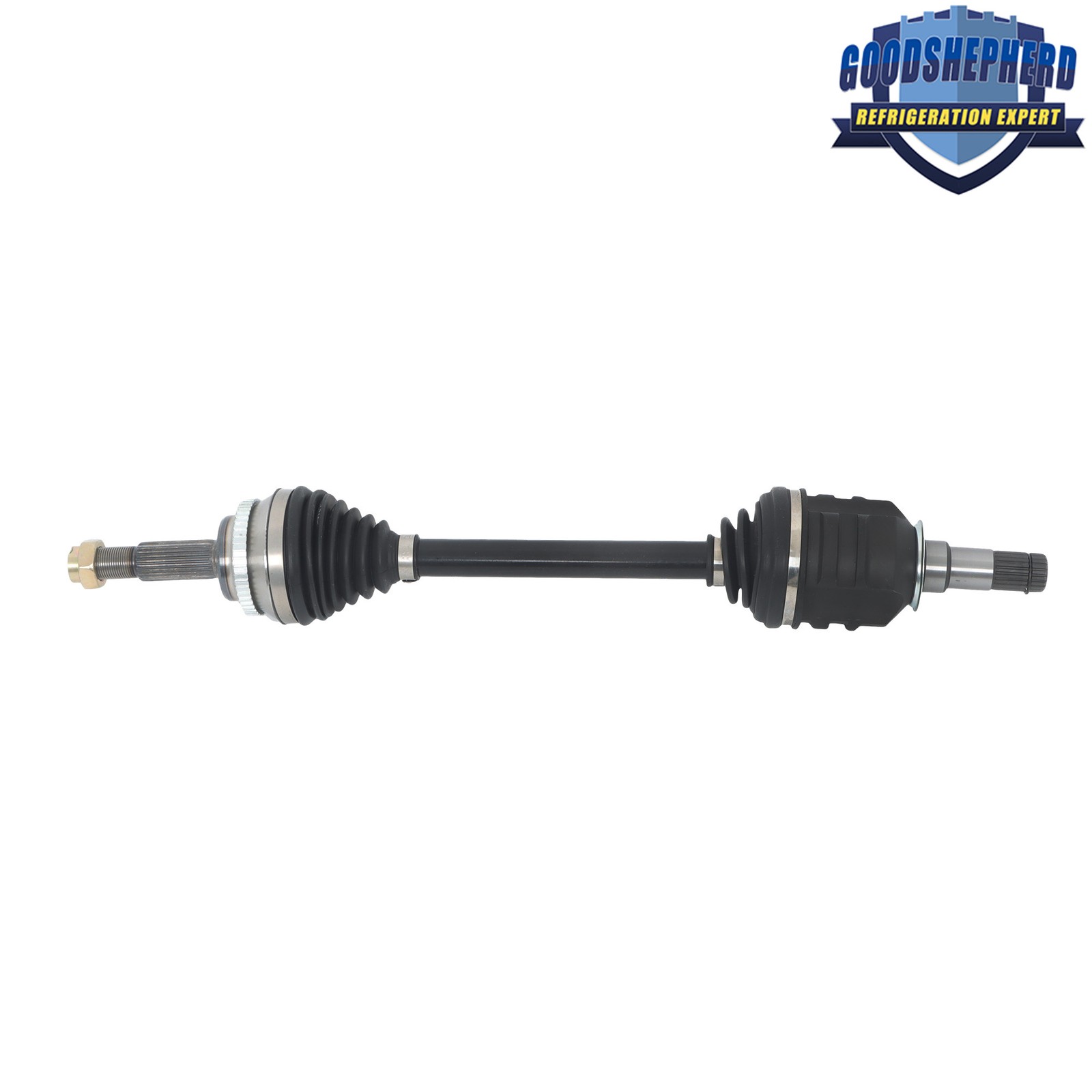

Front Left CV Axle Shaft For Toyota Corolla Toyota Matrix 2003-2018 FWD L4 1.8L
|
|
Fitment: - For Pontiac Vibe 2003 - 2006 Base 1.8L Manual Transmission Front Wheel Drive Front Left
- For Pontiac Vibe 2007 - 2008 Manual Transmission Front Left
- For Pontiac Vibe 2009 - 2010 1.8L Front Left
- For Toyota Corolla 2009 - 2012 1.8L Front Left
- For Toyota Corolla 2013 - 2018 All Trim Levels Front Left
- For Toyota Matrix 2003 - 2006 Base, XR 1.8L Manual Transmission Front Wheel Drive Front Left
- For Toyota Matrix 2007 - 2008 5 Speed Manual Transmission Front Left
- For Toyota Matrix 2009 - 2013 1.8L Front Left
- For Toyota Matrix 2014 All Trim Levels Front Left
- Note-1: Fits For 2009-2018 Toyota Corolla 1.8L V4 FWD
- Note-2: Fits For 2003-2010 Pontiac Vibe 1.8L V4 FWD
- Note-3: Fits For 2003-2014 Toyota Matrix 1.8L V4 FWD
Description: - 100% New and High Quality
- Direct Replacement
- 1 Year Warranty
- Type: CV Axle Assembly
- Location : Front Left (Front Driver Side)
Product Information: - ABS Ring Included: Yes
- Axle Features: ABS
- Axle Nut Hex Size: 1.18 in / 30 mm
- Axle Nut Included: Yes
- Axle Nut Locking Type: Open Groove
- Axle Nut Thread Size: M22 x 1.5
- Cotter Pin Included: No
- Hardware Included: No
- Hazardous Material: No
- Inboard Clip Included: Snap Ring
- Surface Finish: Black Coating
- Drive Type: FWD
- Input Shaft Connection Style: Spline
- Output Shaft Connection Style: Spline
- Number of Inboard Splines: 20 Teeth
- Number of Outboard Splines: 26 Teeth
- Overall Compressed Length: 25.51 in / 648 mm
- Note: The measured length is the compressed length, and the axis is extendable. When you receive it, the shaft may not fully extend, which will not affect normal installation and use. Please check the length before purchasing
OE Number: - 66-5228, 60-5228, TO-8234, TO-8094, 60-5227, 60-5287, TO-9508A,, TO-8-129AM, TO-9129A
Package Include: 1 × Front Left CV Axle Shaft W/O Product Instruction
Notes:
Instruction is not included. Professional installation is highly recommended！ Not sure of fitment, please feel free to contact us. Please check pictures, vehicle compatibility, OE number and product description to ensure the fitment. Step-By-Step Guide On How To Replace CV Joints： - Prioritise safety precautions by parking the vehicle on a level surface, engaging the parking brake and wearing appropriate safety gear. This includes gloves and safety glasses. Safety should be a top priority throughout the entire process.
- Utilise the hydraulic jack to lift the front or rear of the vehicle, depending on the axle you’re replacing. Once lifted, secure the vehicle on jack stands to provide a stable working environment.
- Use the lug wrench to remove the wheel on the side where you’ll be replacing the CV joint and axle.
- Start by removing the cotter pin from the castle nut on the ball joint. Proceed to loosen and remove the castle nut. Use a pry bar to carefully separate the ball joint from the steering knuckle. Also, check the signs of bad ball joints when disconnecting suspension components.
- Remove the calliper bolts and hang the calliper out of the way. If necessary, detach the ABS sensor or brake line, ensuring that brake components are appropriately handled during the process.
- Locate and remove the axle nut using the appropriate socket. This is a crucial step in releasing the CV joint and axle from the wheel hub.
- Using a pry bar, gently release the CV joint from the car’s transmission or differential. Pull the axle out from the wheel hub, carefully navigating through any obstacles in its path.
- Insert the new axle into the wheel hub assembly, securing it properly. Pay attention to aligning the splines and push the axle into the transmission or differential, ensuring a snug fit.
- Reattach the ball joint to the steering knuckle and tighten the castle nut.Install a new cotter pin.Reconnect the calliper, ABS sensor and any other components you detached.Tighten the axle nut to the manufacturer’s specifications.Put the wheel back on and lower the vehicle.
|
