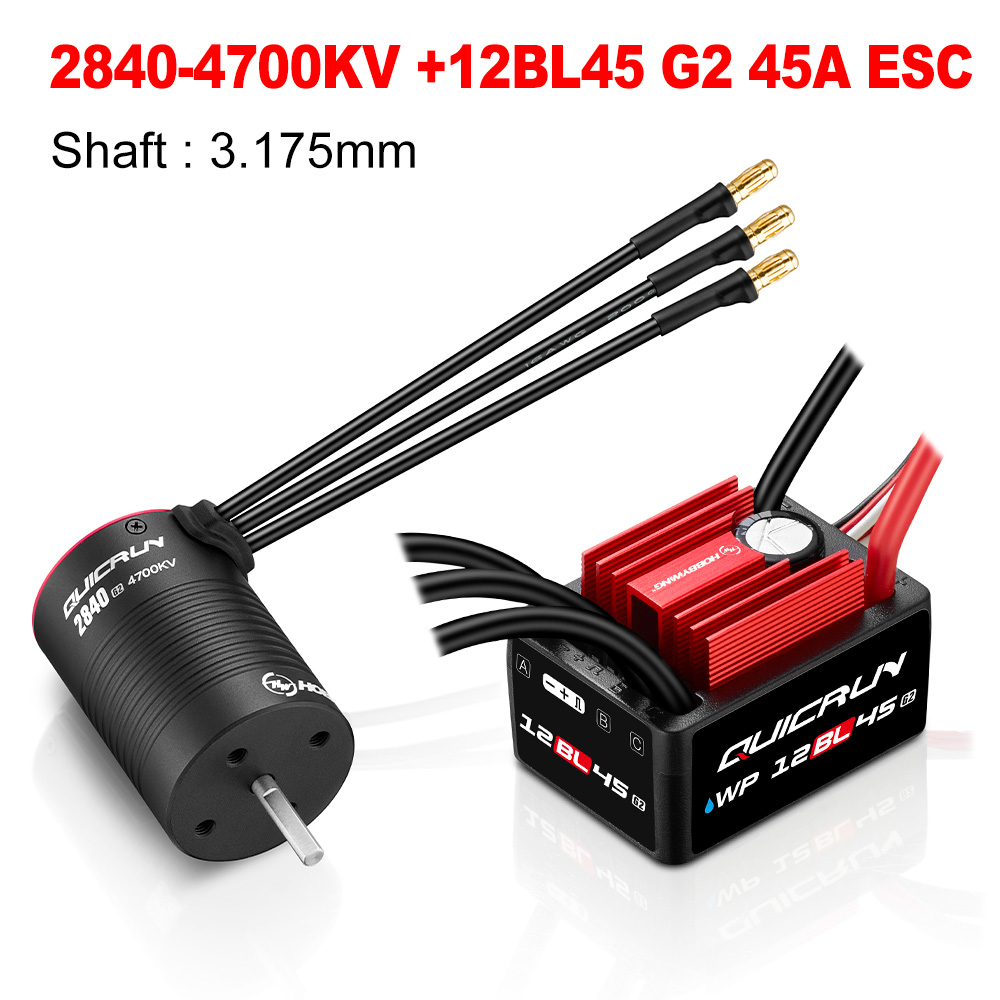

HOBBYWING Brushless Sensorless Combo QUICRUN 2840 2850 Motor 12BL45 G2 45A ESC 3.175mm Shaft WaterProof For 1/12 1/14 1/16 RC Cars



Please note that this product is multi-option and has separate motors and ESCs for sale

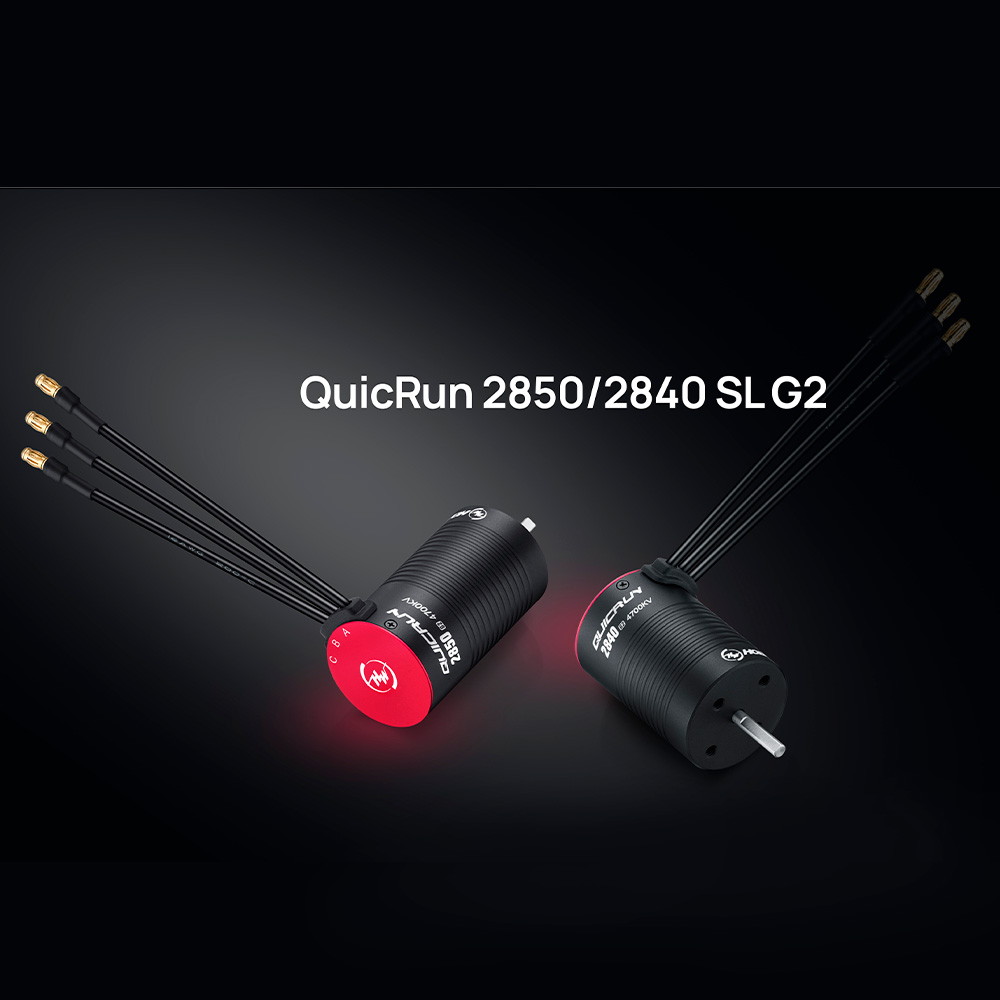

Motor Features:

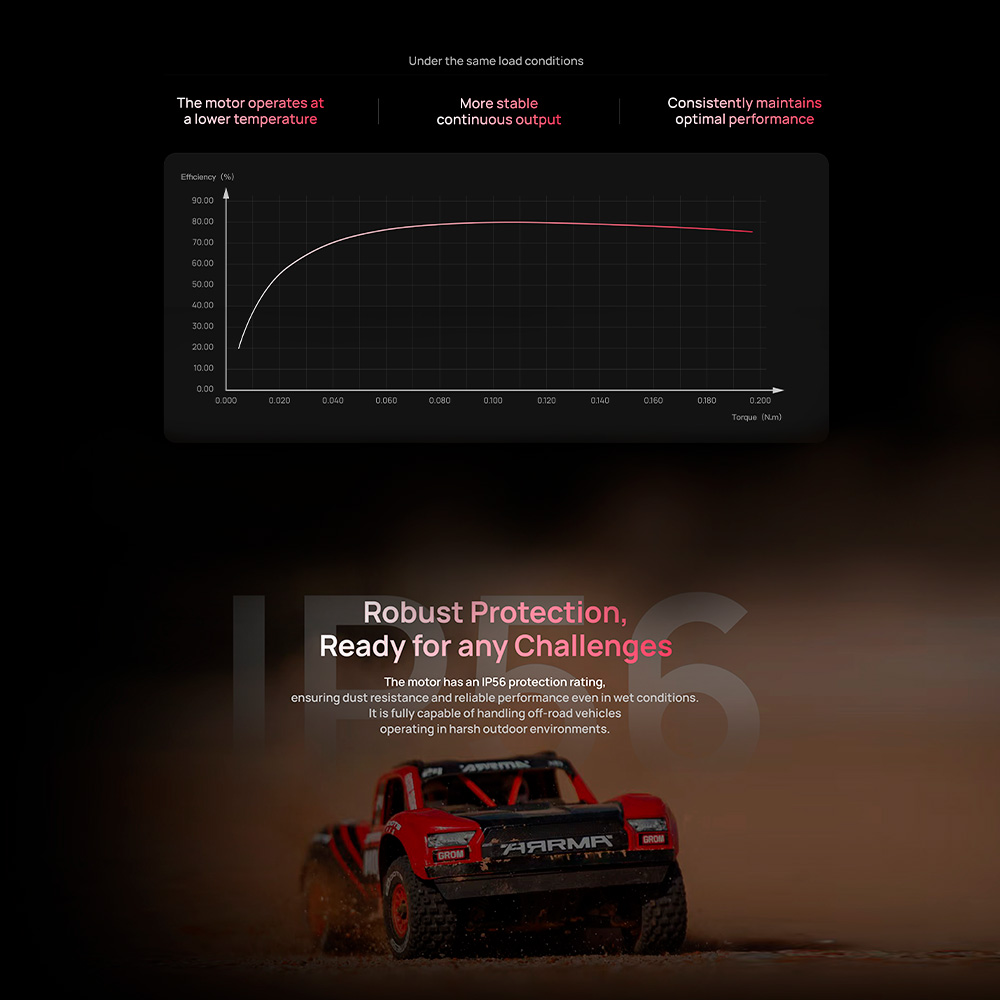

1. lP56 protection rating, Robust Protection,Ready for any Challenges
2. The motor comes pre-soldered with high-qualitygold-plated 3.5mm connectors,eliminating the hassle of soldering
3. Silicon Steel Laminations Selected 0.2mm Thick,High-strength Explosion-proof Rotor,High-temperature Resistant Enameled Wire
4. The 2840 4700KV motor is suitable for both 1/14 1/16 scale models.
5. The 2850 4700KV/3400KV motor is suitable for both 1/12 1/14 scale models.

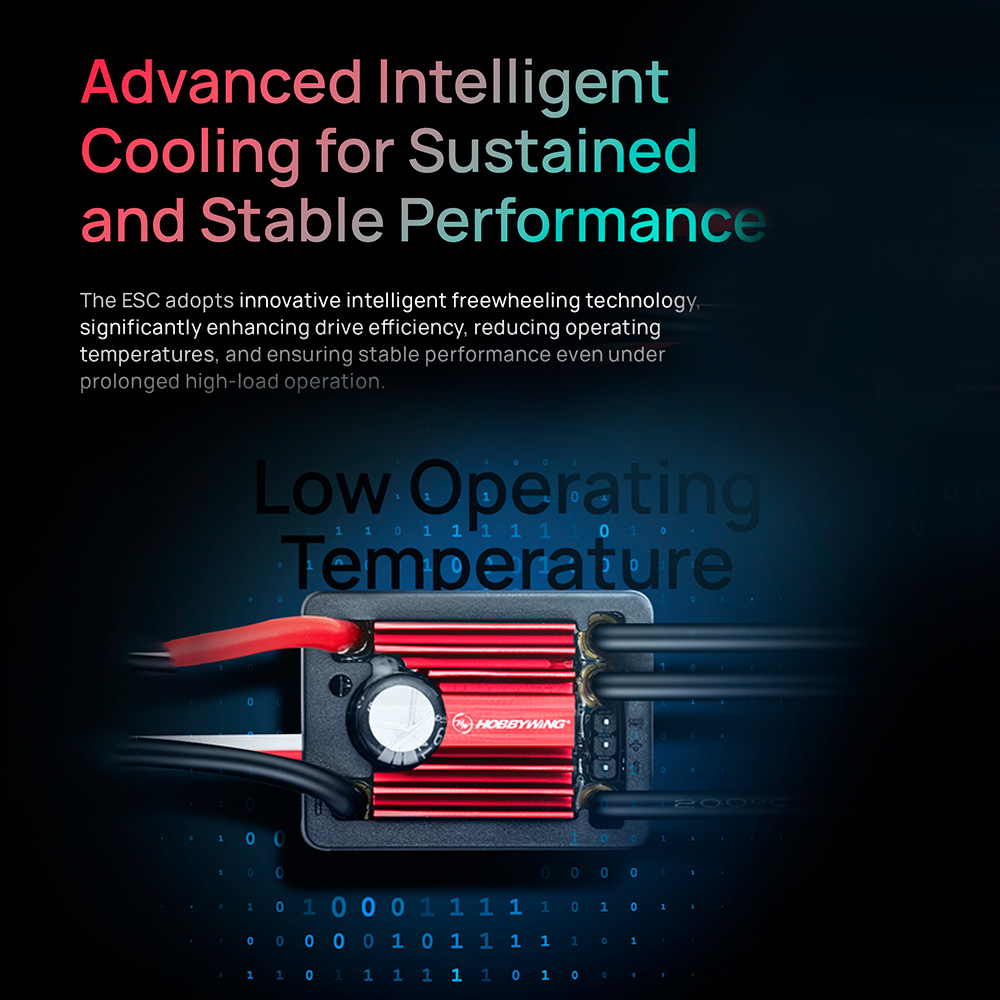

ESC Features:
1.  Built-in High-Power BEC,The BEC provides a continuous current of 4A,A maximum output current of 7A.
2. Supporting selectable voltages of 6V/7.4V

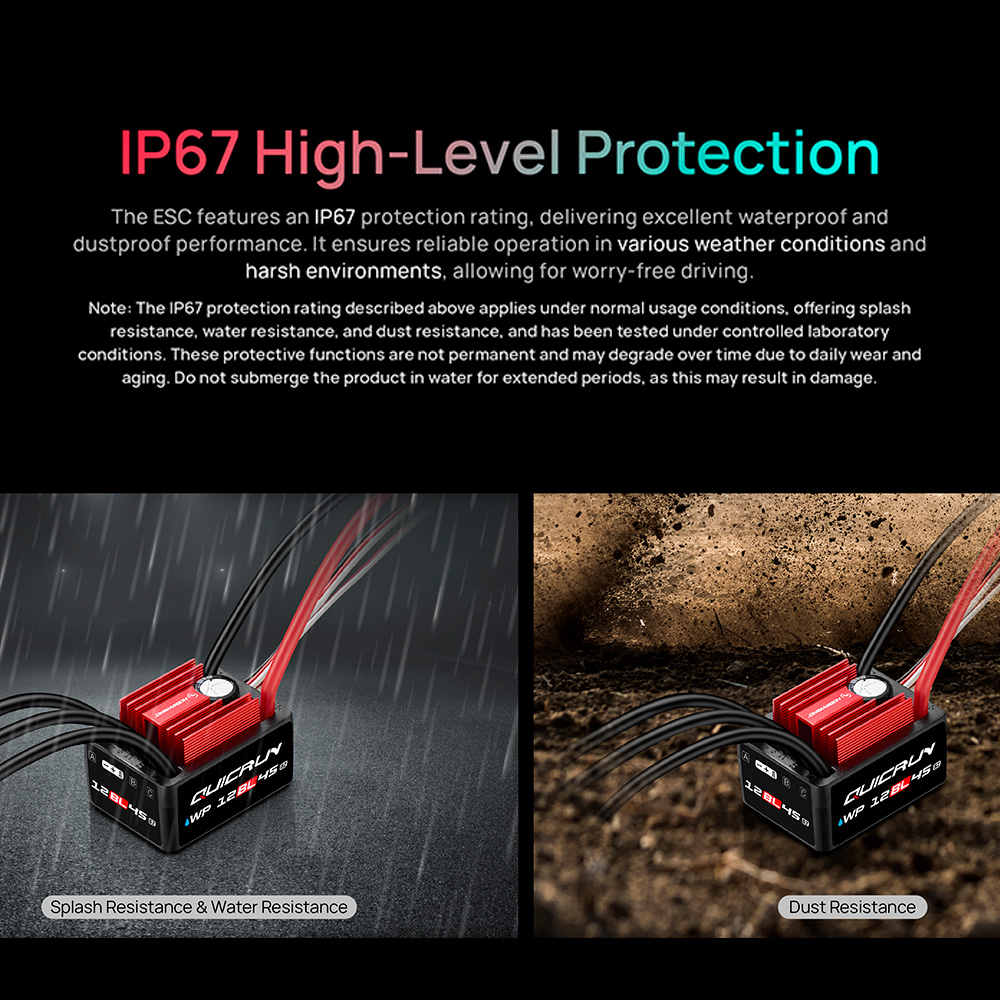

3. The ESC features an lP67 protection rating, delivering excellent waterproof and dustproof performance.
4. Supports three parameter adjustment methods: LCD Program Box Pro.LED Program Box, and SET button.

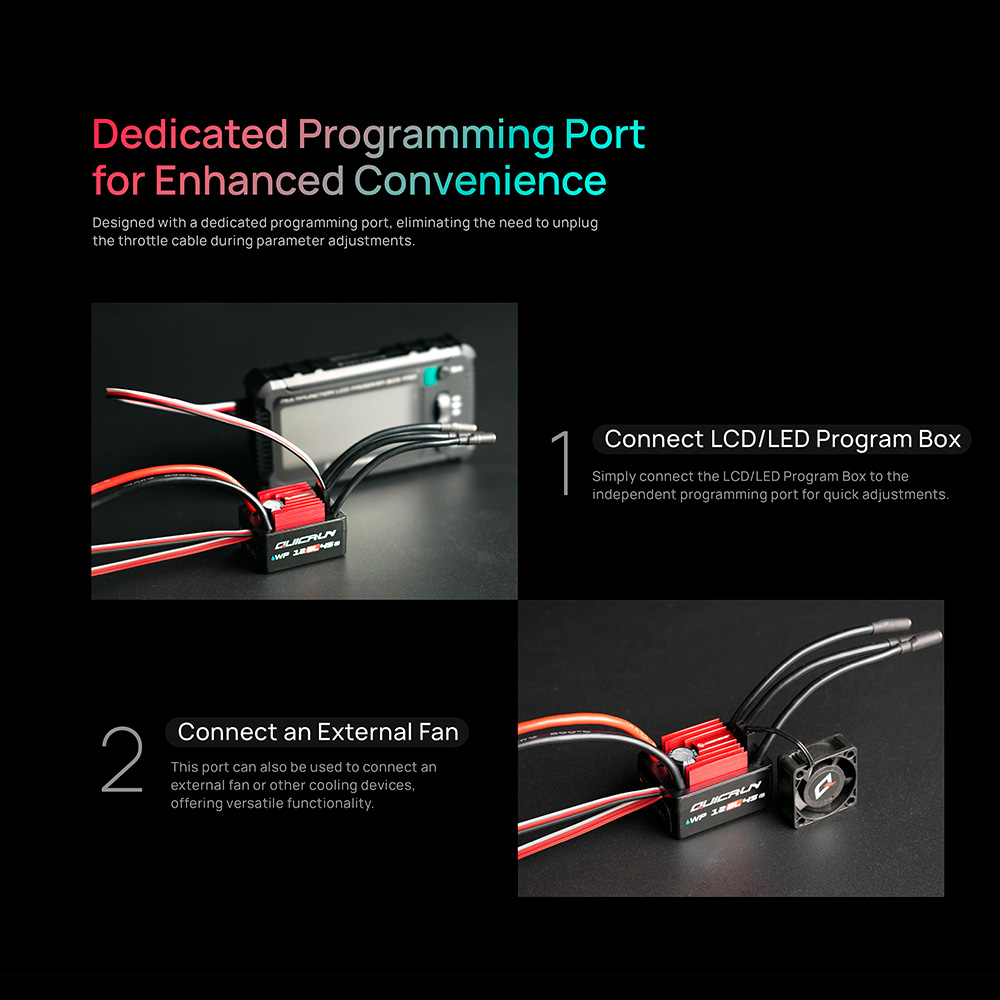

5. versatile functionality Programming Port,can the throttle cable during parameter adjustments,or Connect an External Fan.

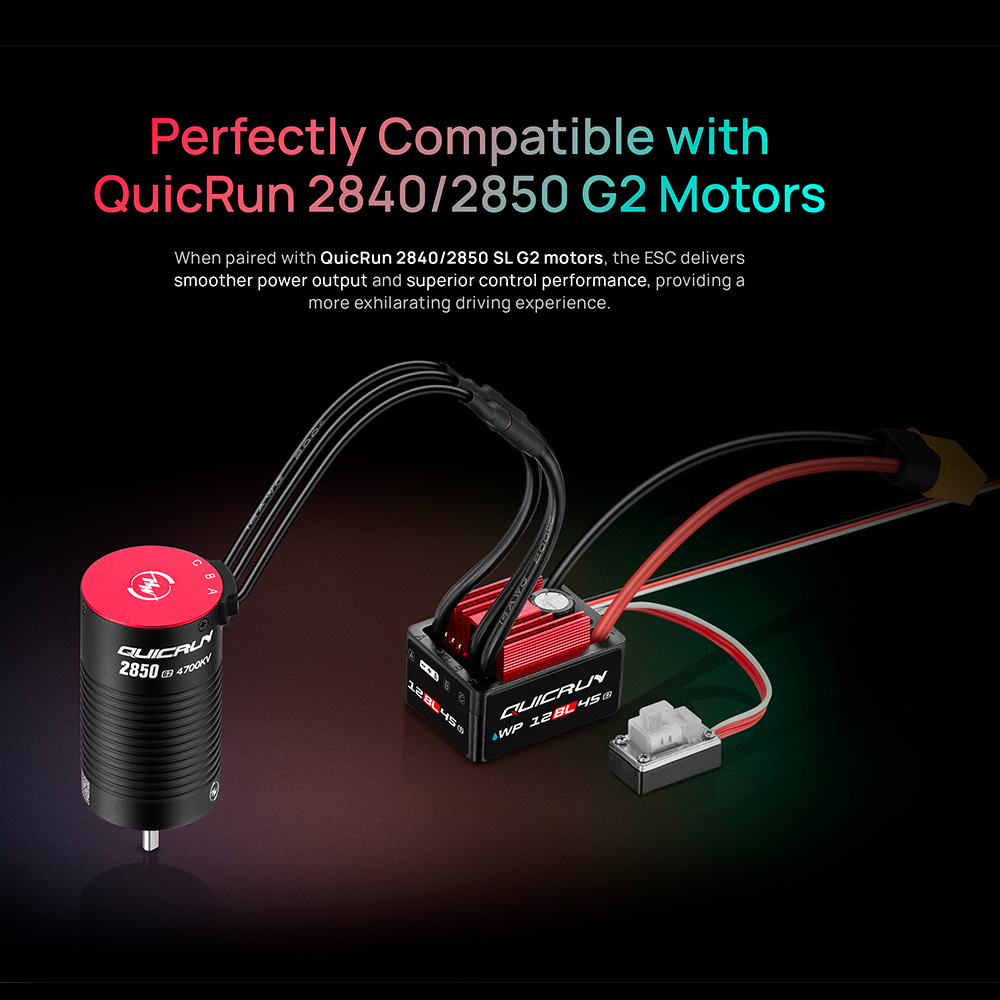

6. Perfectly Compatible withQuicRun 2840/2850 G2 Motors
7. Suitable for both 1/12 & 1/14 scale hobby vehicles.

Description:
WaterProof Brushless Combo,45A ESC When paired with QuicRun 2840/2850 SLG2 motors, the EsC deliverssmoother power output and superior control performance, providing amore exhilarating driving experience.Suitable for both 1/12 1/14 scale RC vehicles.

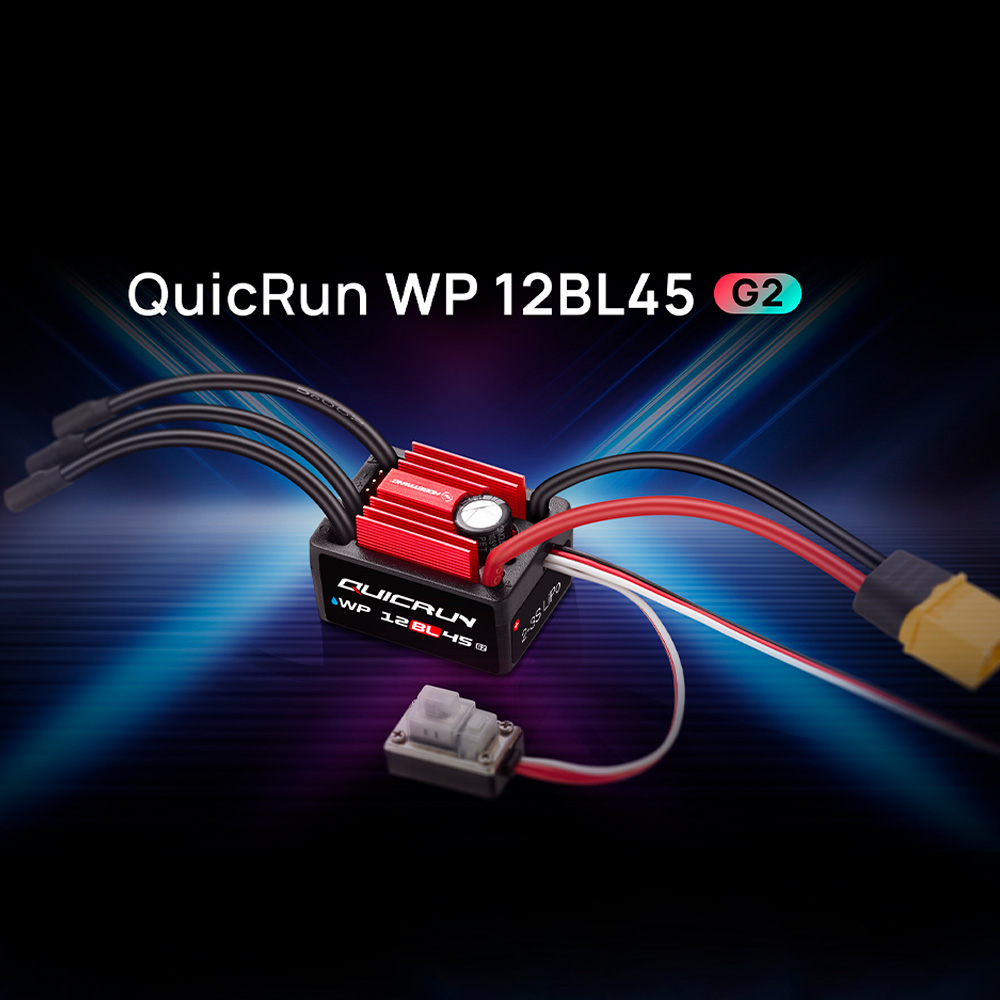

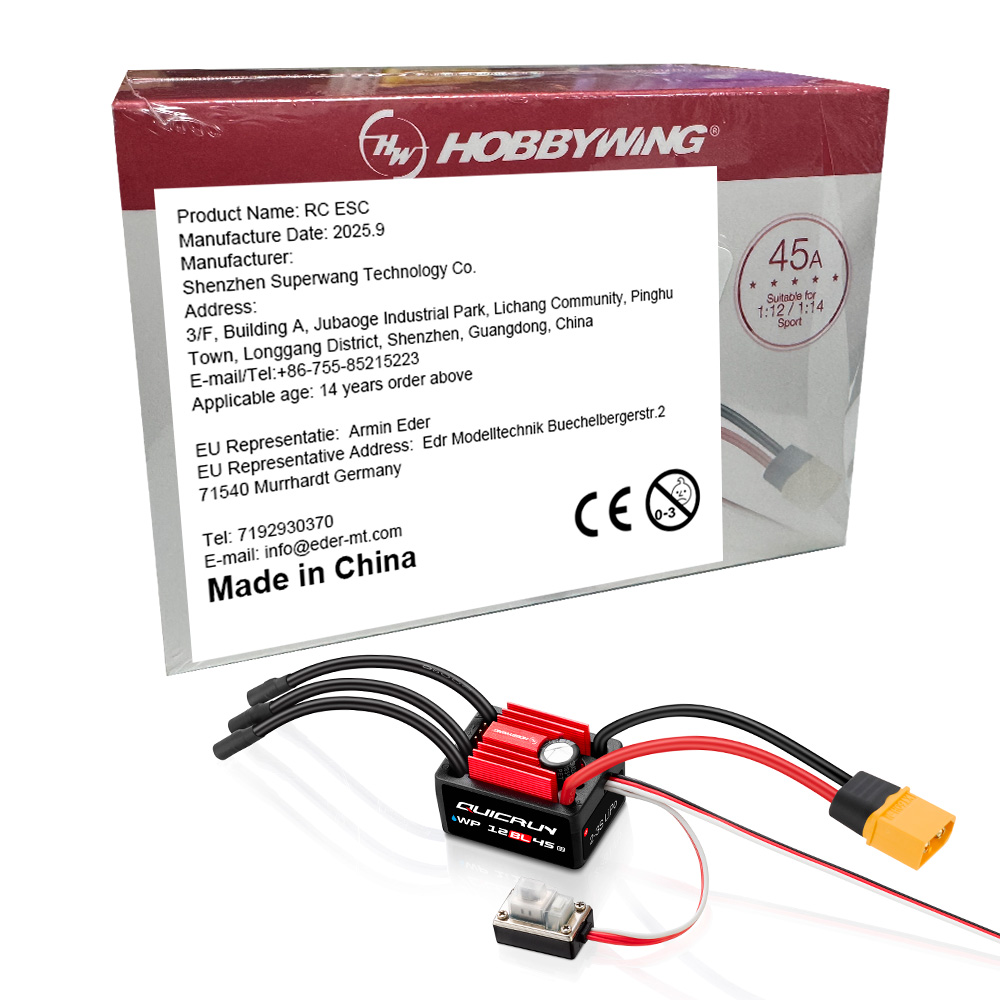

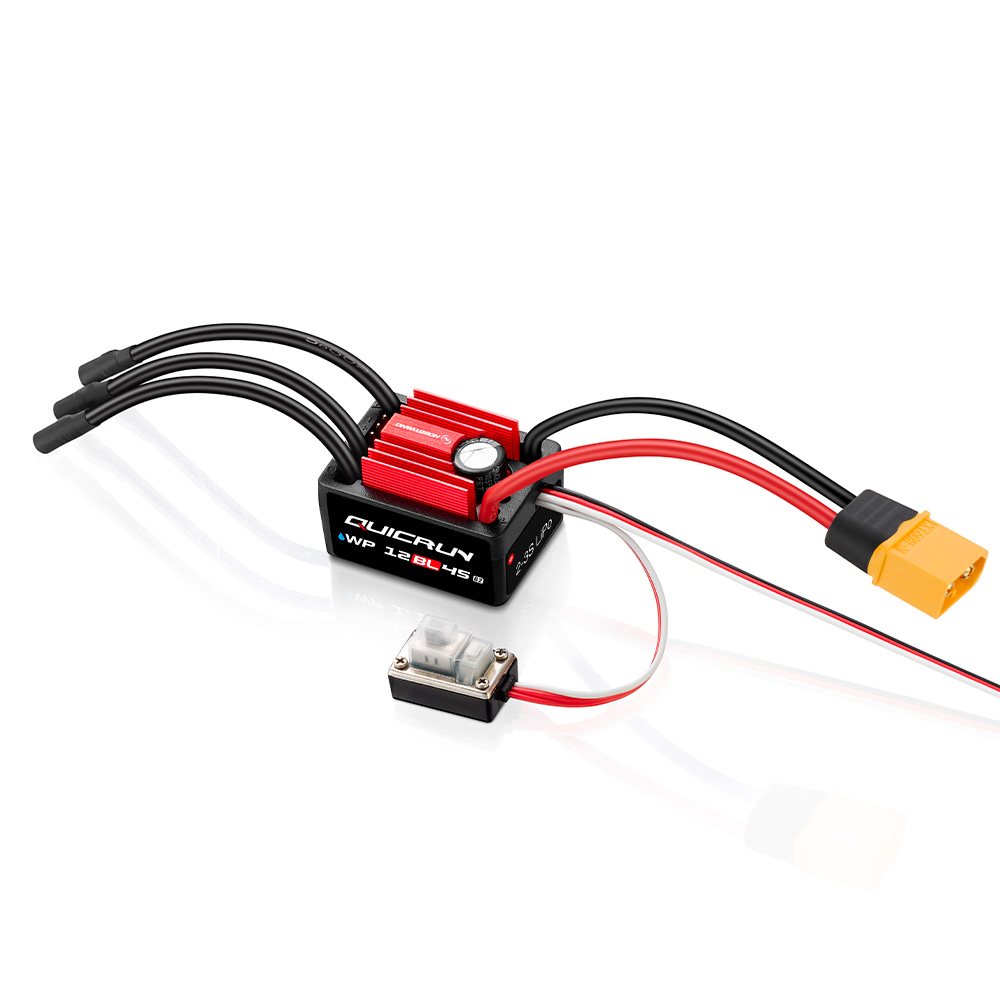

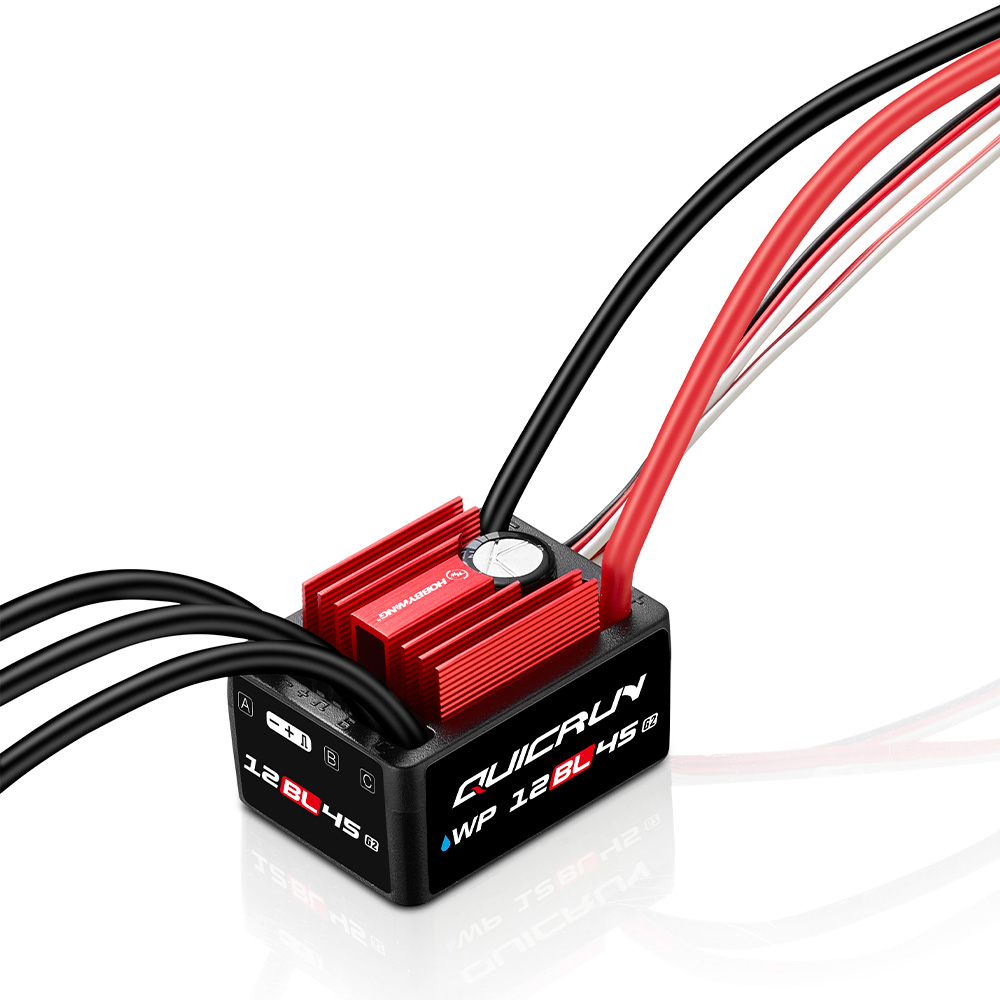

45A ESC Specifications:
Item:  Brushless
Sensorless
45A ESC
Scale: 1/12 1/14
Waterproof:  lP56
Cont./Peak Current:  45A/200A
Input Voltage:  2-3S
BEC Output:  6V/7.4V,4A
Input Connectors: XT60
Output Connectors: 3.5MM Gold (female)
Firmware Upgrade: Not Supported
Applicable Motor: QUICRUN 2840/2850 G2
Motors:Sensorless/Sensored Brushless Motor (only in sensorless mode)

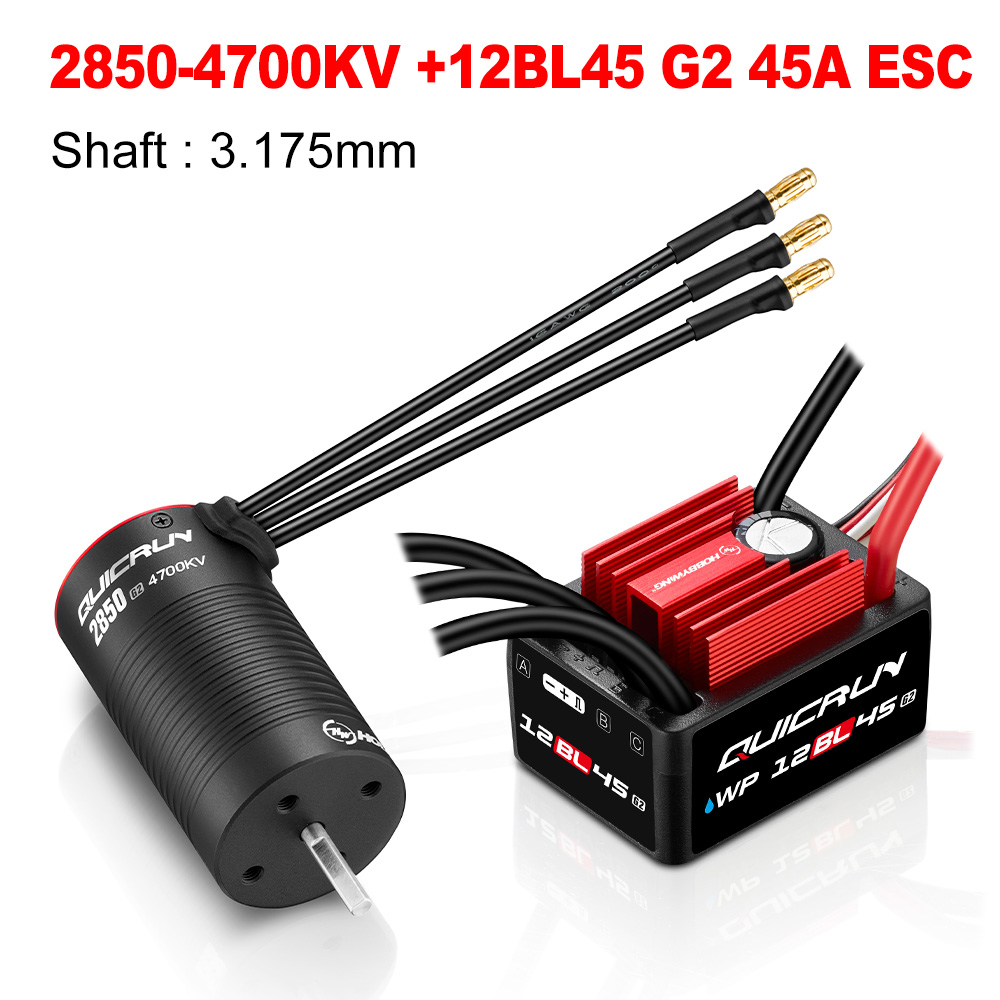

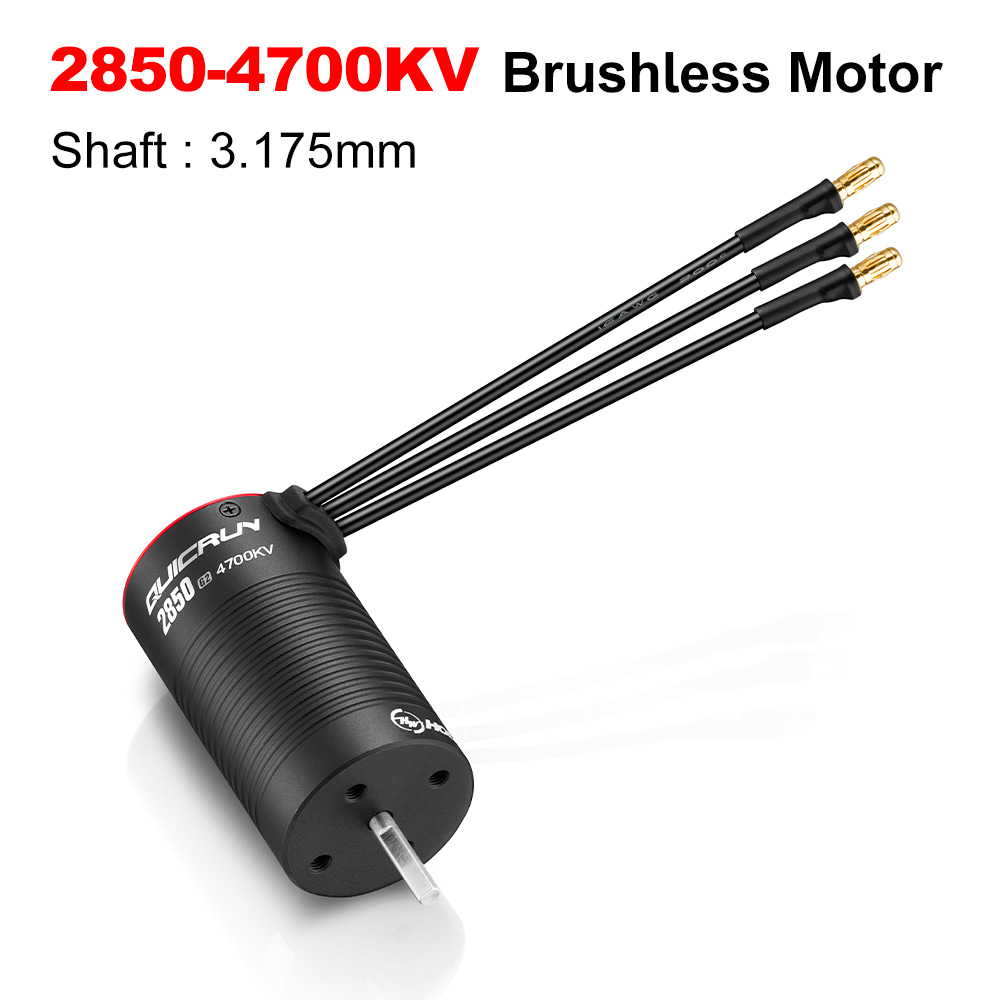

2850-4700KV Specifications:
Item: 2850-4700KV G2 Brushless Sensorless Motor
Scale: 1/12th、1/14th
Pole: 4
LiPo Cells: 2S
No-load Current(A): 4.3A
O.D.(mm): 28
Length (mm): 50.5
Shaft Diameter (mm): 3.175
Front Bearing: D9*D4*T4
Rear Bearing: D9.525*D3.175*T3.967

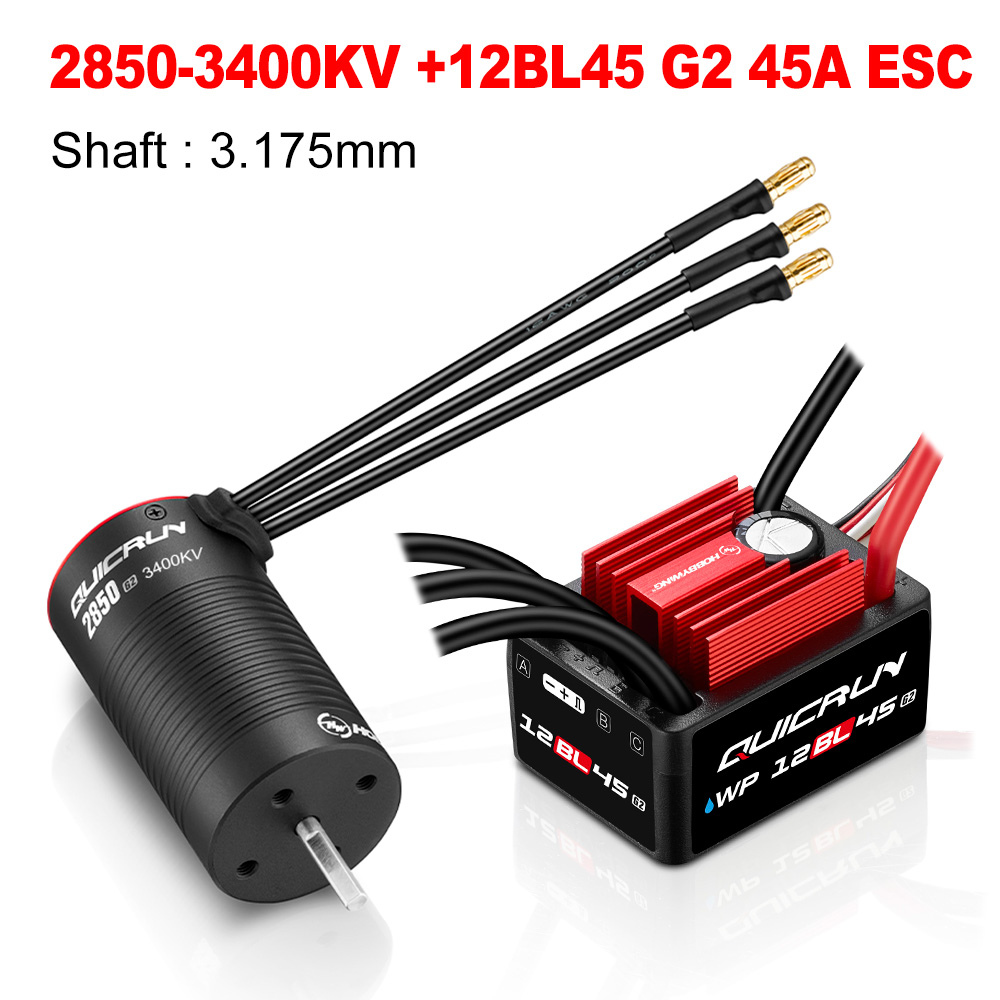

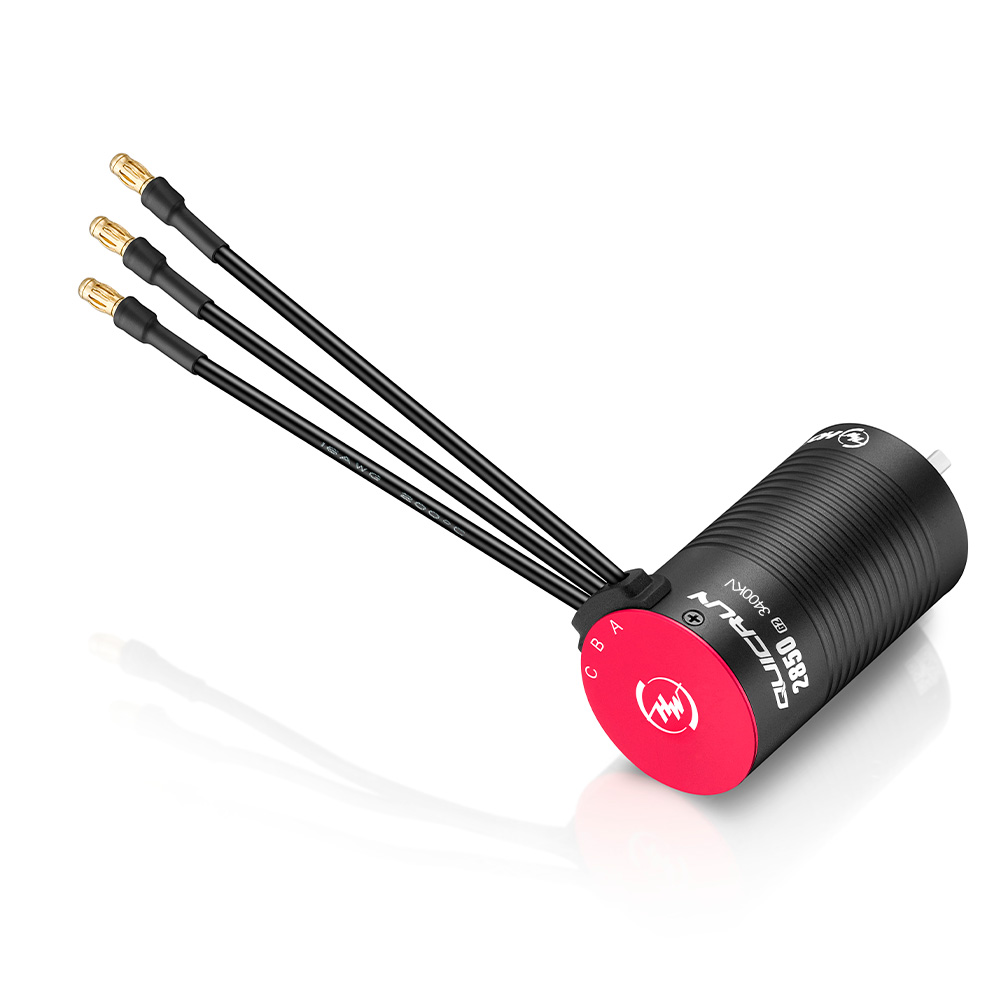

2850-3600KV Specifications:
Item: 2850-3400KV G2 Brushless Sensorless Motor
Scale: 1/12th、1/14th
Pole: 4
LiPo Cells: 2S-3S
No-load Current(A): 2.8A
O.D.(mm): 28
Length (mm): 50.5
Shaft Diameter (mm): 3.175
Front Bearing: D9*D4*T4
Rear Bearing: D9.525*D3.175*T3.967

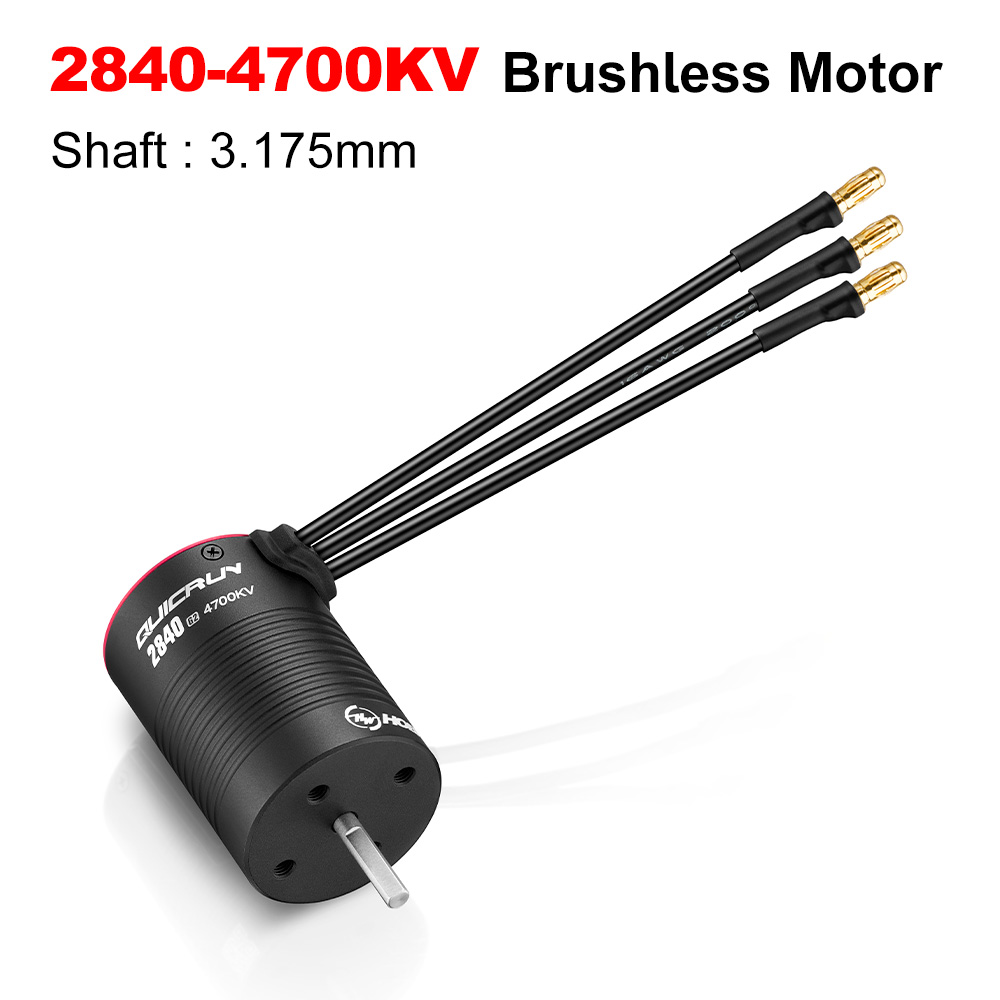

2840-4700KV Specifications:
Item: 2840-4700KV G2 Brushless Sensorless Motor
Scale: 1/12  1/16
Pole: 4
LiPo Cells: 2S
No-load Current(A): 3.1A
O.D.(mm): 28
Length (mm): 40.5
Shaft Diameter (mm): 3.175
Front Bearing: D9*D4*T4
Rear Bearing: D9.525*D3.175*T3.967

Package contents:
It is your choice













Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm
deviation.Thanks!
