RX1264 Wireless 1.2G 64CH FPV image FM Analog Audio Video Transmission Module
Popular
Product Introduction
Product Features:

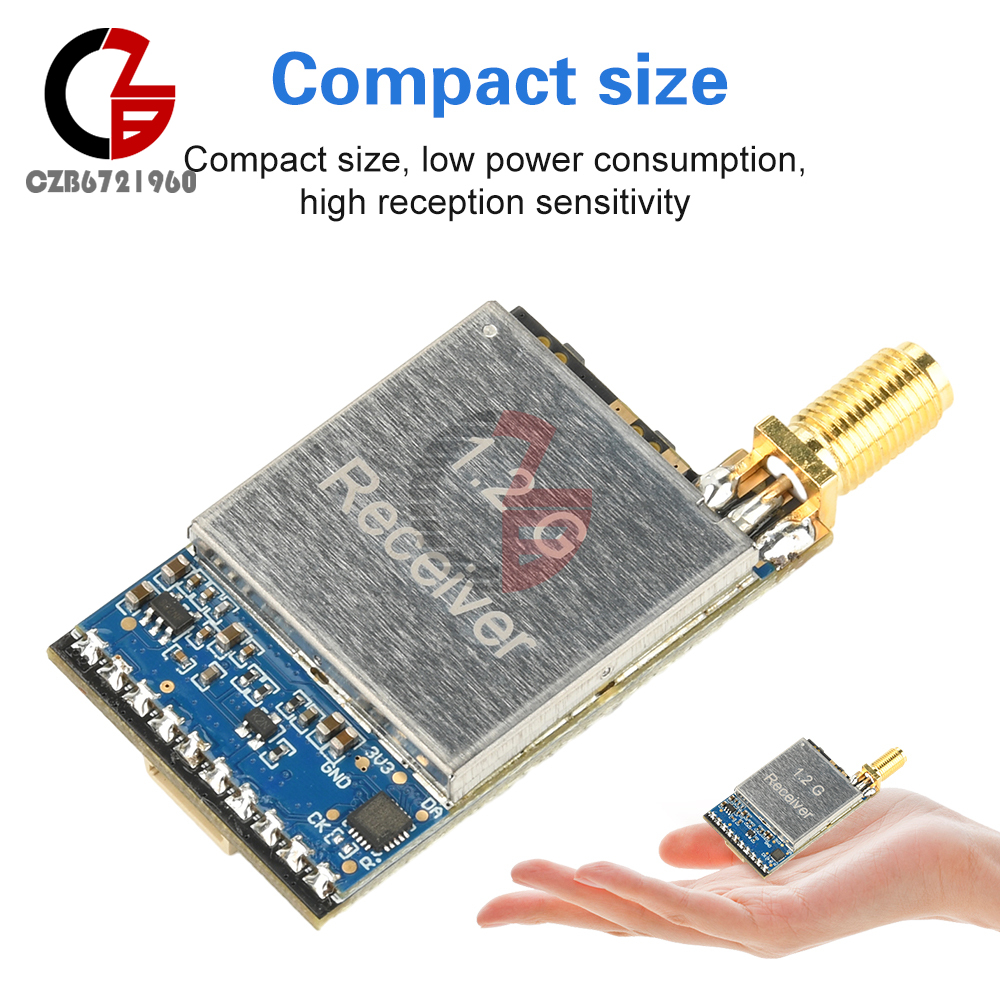

1. Compact size, low power consumption, high reception sensitivity.

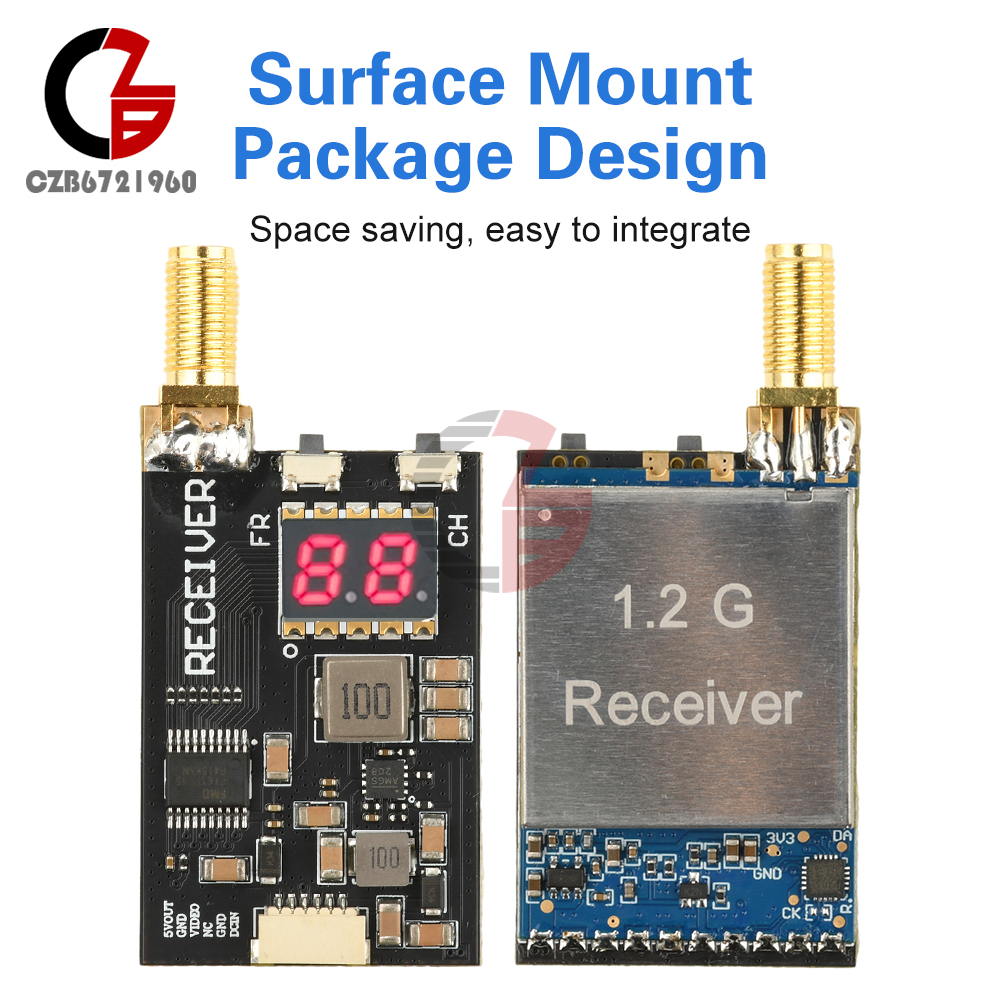

2. Surface-mount package design saves space and facilitates integration.

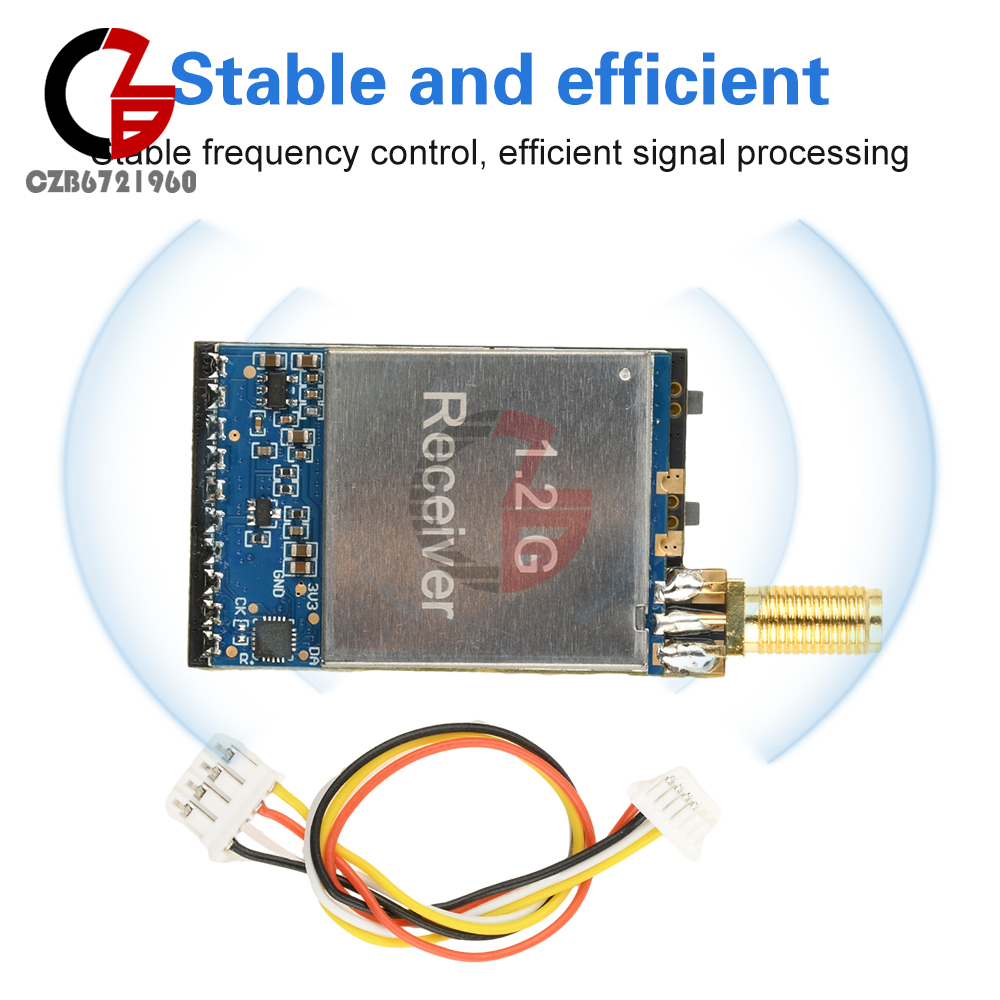

3. Stable frequency control with efficient signal processing.

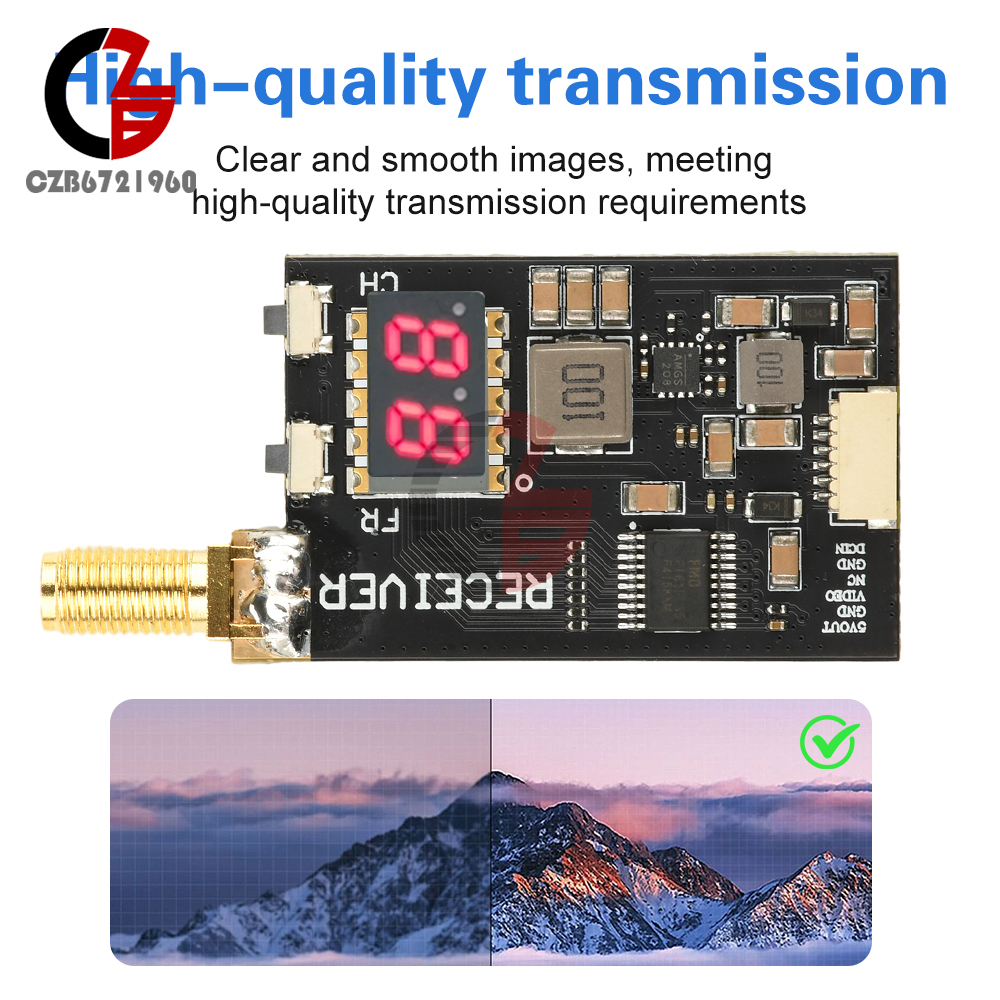

4. Clear and smooth images meet high-quality transmission requirements.

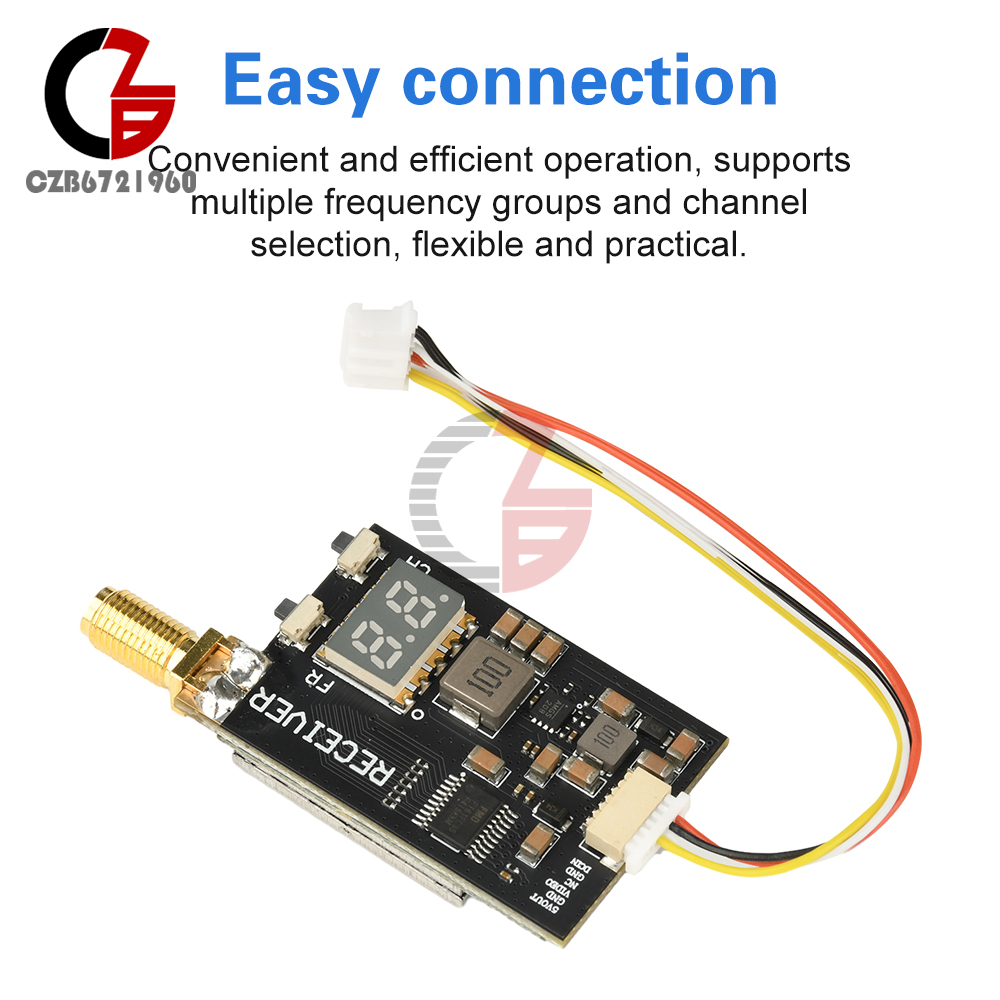

5. Simple connection, convenient and efficient operation; supports multiple frequency groups and channel selection for flexible practicality.
1. Compact size, low power consumption, high reception sensitivity.
2. Surface-mount package design saves space and facilitates integration.
3. Stable frequency control with efficient signal processing.
4. Clear and smooth images meet high-quality transmission requirements.
5. Simple connection, convenient and efficient operation; supports multiple frequency groups and channel selection for flexible practicality.
Product Specifications:
Modulation: Wideband FM modulation
Video Format: NTSC/PAL
Supply Voltage: DC 8-26V
Supply Current: 120mA
Receive Frequency Range: 1080~2200MHz
Intermediate Frequency (IF): 480MHz
Antenna Port Impedance: ±200kHz
Local Oscillator Frequency Stability: ±200kHz
Input Local Oscillator Leakage: -65dBm
Receiver Sensitivity: -95dBm±2
Input Level Range: -95dBm±5dBm
Video Output Impedance: 75Ω, Typ.
Video Output Level: 1±0.2Vp-p, Typ.
Video Polarity: Negative Polarity
Video Frequency Response: ±5dB, Max. 50Hz
Differential Gain: ±5dB, Max
Differential Phase: ±5 Deg., Max
3dB IF Bandwidth: 16.5MHz
Signal-to-Noise Ratio (S/N): 38dB, Min
Operating Temperature: -10~+85℃
Storage Temperature: -30~+85℃

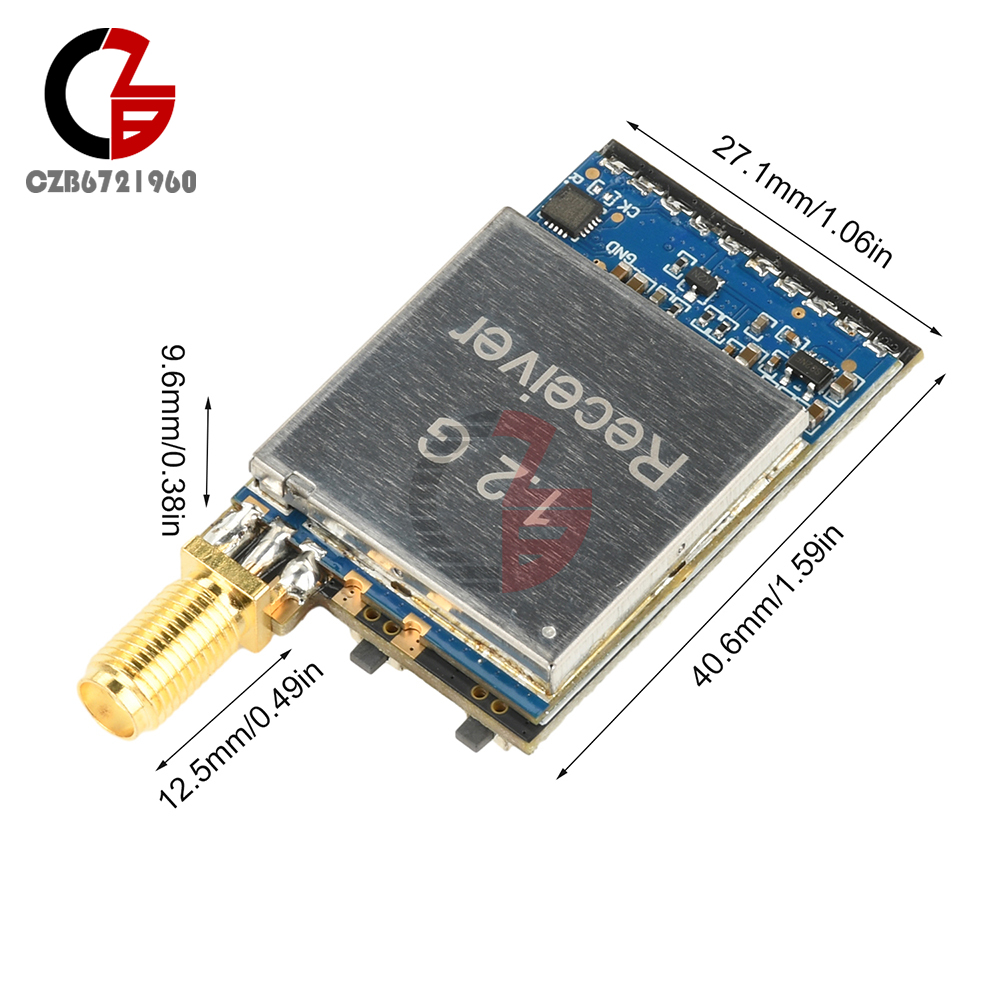

PCB Board Size: 40mm*27mm (excluding interfaces)
Modulation: Wideband FM modulation
Video Format: NTSC/PAL
Supply Voltage: DC 8-26V
Supply Current: 120mA
Receive Frequency Range: 1080~2200MHz
Intermediate Frequency (IF): 480MHz
Antenna Port Impedance: ±200kHz
Local Oscillator Frequency Stability: ±200kHz
Input Local Oscillator Leakage: -65dBm
Receiver Sensitivity: -95dBm±2
Input Level Range: -95dBm±5dBm
Video Output Impedance: 75Ω, Typ.
Video Output Level: 1±0.2Vp-p, Typ.
Video Polarity: Negative Polarity
Video Frequency Response: ±5dB, Max. 50Hz
Differential Gain: ±5dB, Max
Differential Phase: ±5 Deg., Max
3dB IF Bandwidth: 16.5MHz
Signal-to-Noise Ratio (S/N): 38dB, Min
Operating Temperature: -10~+85℃
Storage Temperature: -30~+85℃
PCB Board Size: 40mm*27mm (excluding interfaces)
Interface Description:
Line 1: 5V-OUT
Line 2: GND
Line 3: VIDEO-OUT Line 2: GND
Line 3: DCIN-(8-26V)
Line 1: 5V-OUT
Line 2: GND
Line 3: VIDEO-OUT Line 2: GND
Line 3: DCIN-(8-26V)
Button Functions and Frequency Channel Table:
Short press “FR” button to select frequency groups 1, 2, 3, 4, 5, 6, 7, 8.
Short press “CH” button to select channels 1, 2, 3, 4, 5, 6, 7, 8. Long press ‘FR’ or “CH” button to perform automatic channel search.
Short press “FR” button to select frequency groups 1, 2, 3, 4, 5, 6, 7, 8.
Short press “CH” button to select channels 1, 2, 3, 4, 5, 6, 7, 8. Long press ‘FR’ or “CH” button to perform automatic channel search.
Package Contents:
Module*1
Connection Cable*1
Module*1
Connection Cable*1
