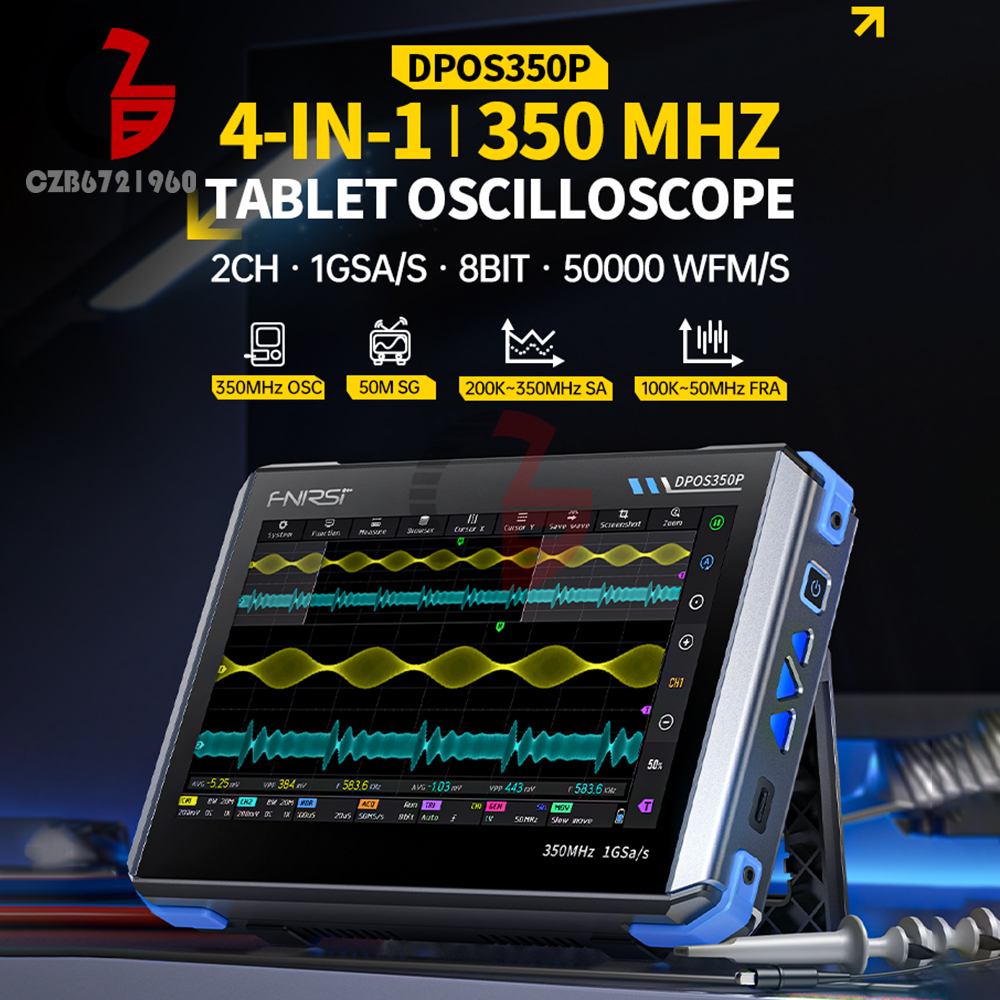

FNIRSI DPOS350P 4-in-1 Digital Oscilloscope Signal Generator Spectrum Analyzer

Popular

    Product Introduction

    Features:

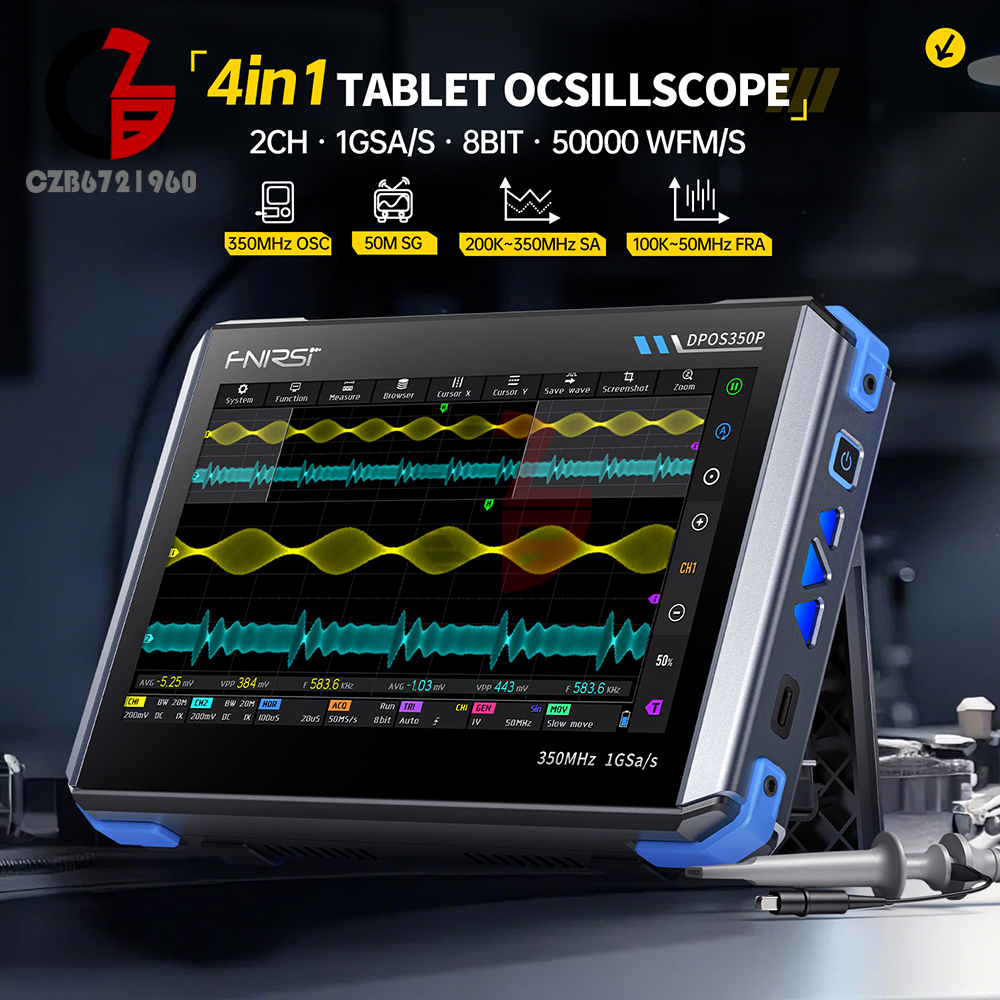

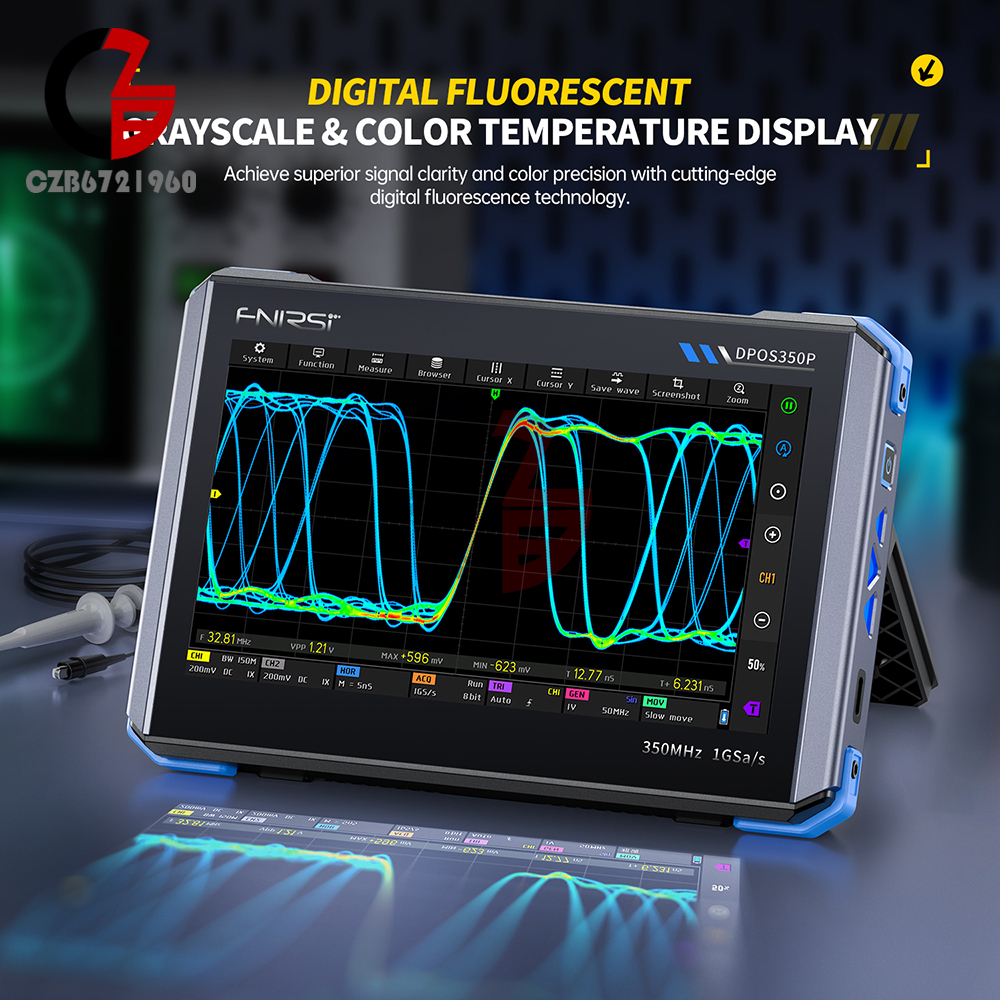

    1. Compact size, powerful performance: Combines a digital fluorescent oscilloscope, full-featured signal generator, spectrum analyser, and frequency response analyser in one unit.
    2. High-voltage burn protection: The front-end input design features a high-voltage-resistant design, ensuring it can withstand over 400V at any setting without being damaged.
    3. QC Fast Charging Function: Built-in 3.7V/8000mAh polymer lithium battery with integrated QC 2.0 protocol, supporting up to 18W charging. Fully charged, it can operate continuously for 3 hours.

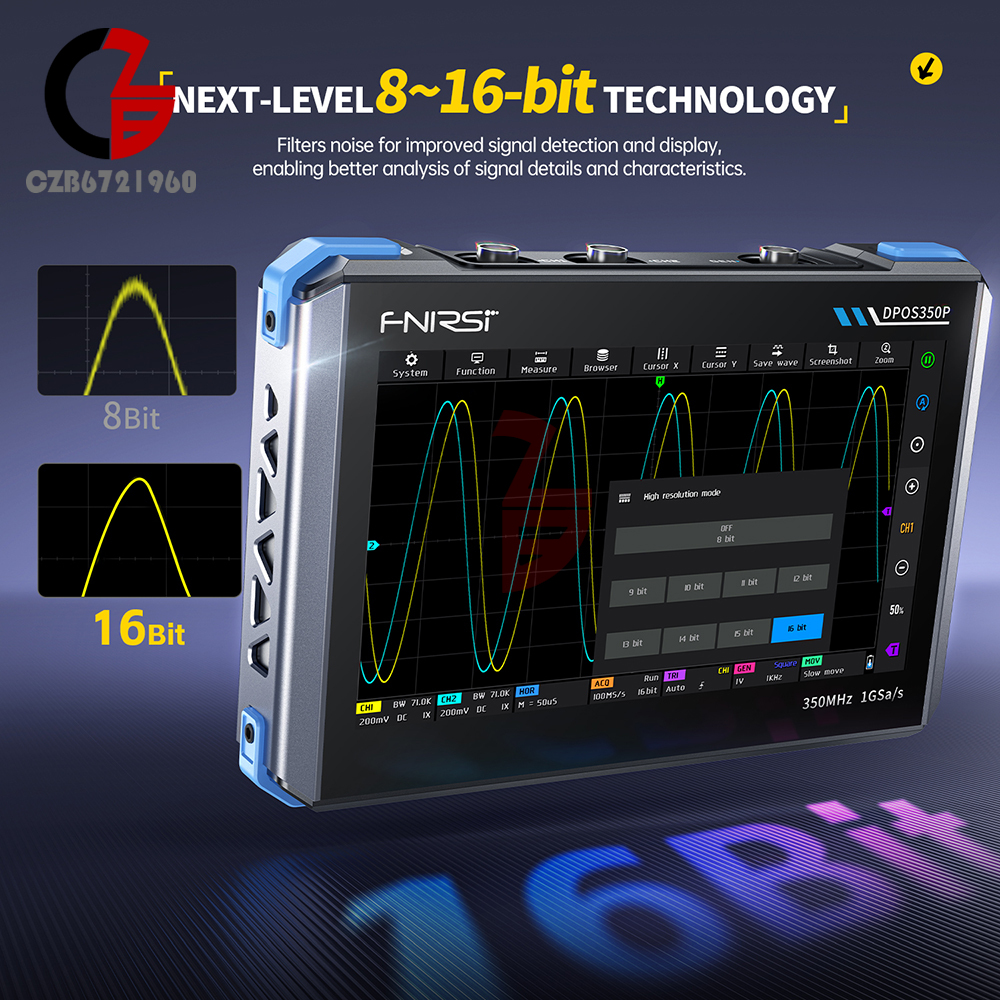

    4. High-Resolution Mode: Supports up to 16-bit resolution. High-resolution mode effectively removes noise components, offering optimal signal detection and display capabilities, aiding in the analysis of signal details and characteristics.
    5. Dual-channel input design: Features two input channels with an input impedance of 1MΩ (18pF), enabling simultaneous measurement of two different signal groups.

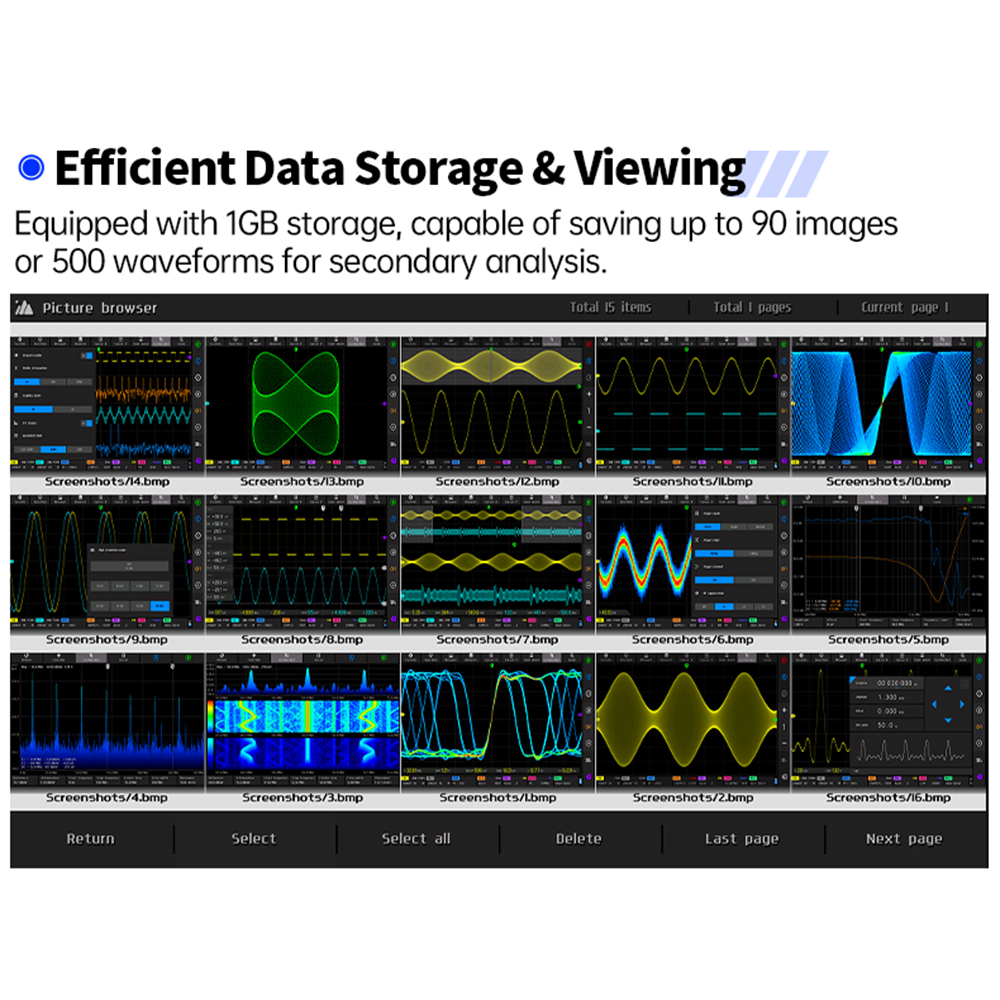

    6. One-button waveform screenshot saving: Built-in 1Gbit storage space, capable of storing up to 90 images or 500 waveform groups, allowing for secondary analysis of saved signals.
    7. Full-featured signal generator: Can output 14 types of waveform signals, with adjustable output frequency up to 50 MHz, amplitude 0-5 V, offset +2.5 V, and duty cycle 0.1%-99.9%. Features a unique clipping output function, capable of storing up to 500 custom signals.

    Specifications
    Product Name: Four-in-One Multi-Function Tablet Oscilloscope
    Product Model: DPOS350P
    Expansion Interface: USB Transfer Interface
    Total Power Consumption: 10W
    Screen Resolution: 1024x600 High Resolution
    Firmware Upgrade: Supports ISO Image Upgrade
    Charging Requirements: QC 18W-12V/1.5A
    Battery Specifications: 3.7V/8000mAh
    Interaction Method: Capacitive Touchscreen
    Dimensions: 190mm x 128mm x 37mm
    Oscilloscope Parameters
    Number of Channels: 2
    Input Impedance: 1MΩ/14PF
    DC Accuracy: ±2%
    High-Resolution Mode: 8-bit to 16-bit

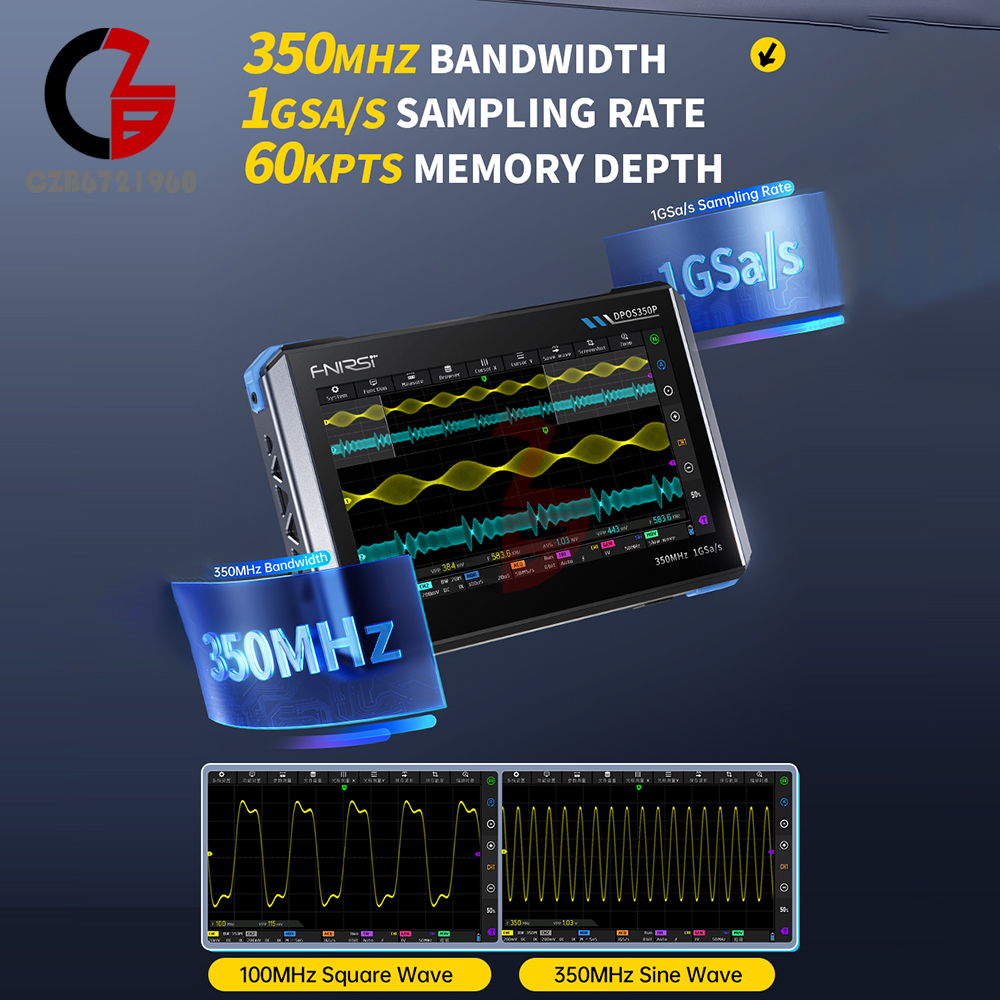

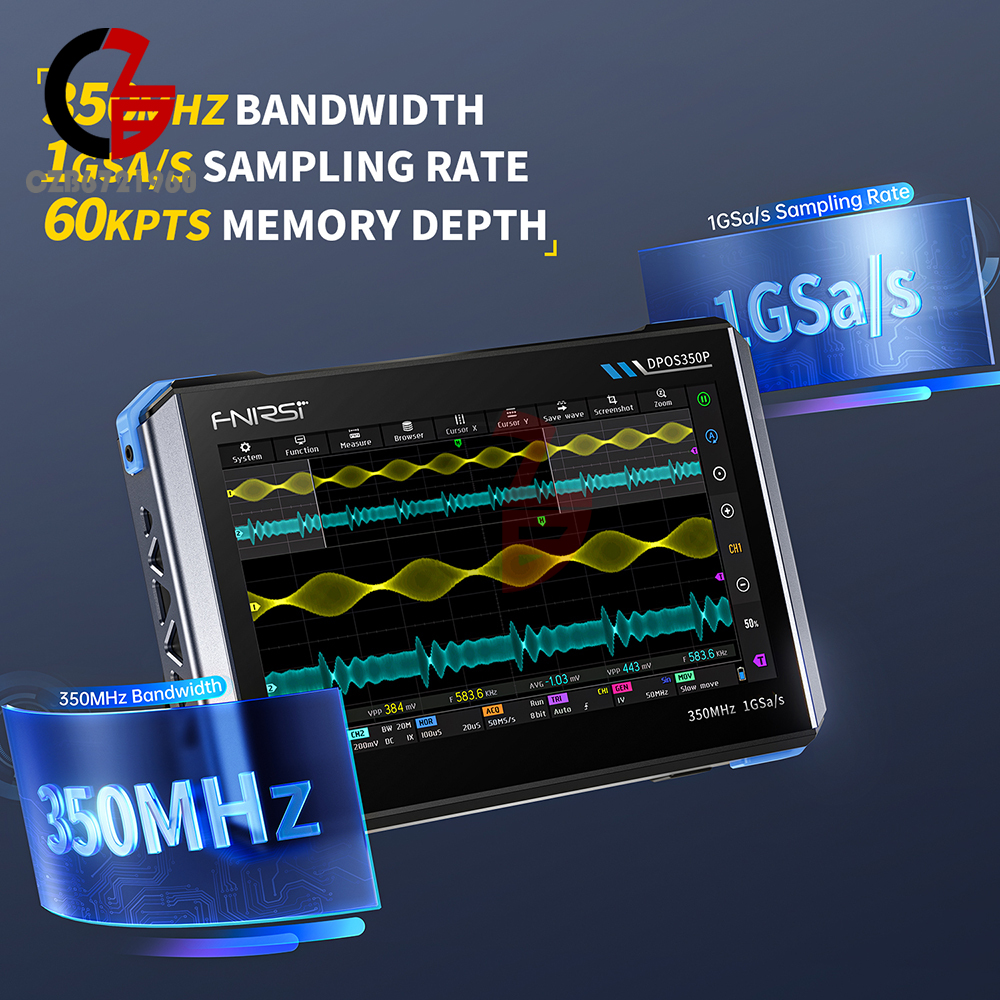

    Analogue Bandwidth: 350MHz
    Time base range: 5 nS to 50 S
    Time accuracy: ±0.01%
    Parameter measurement: 12 types
    Rise time: 1 nS

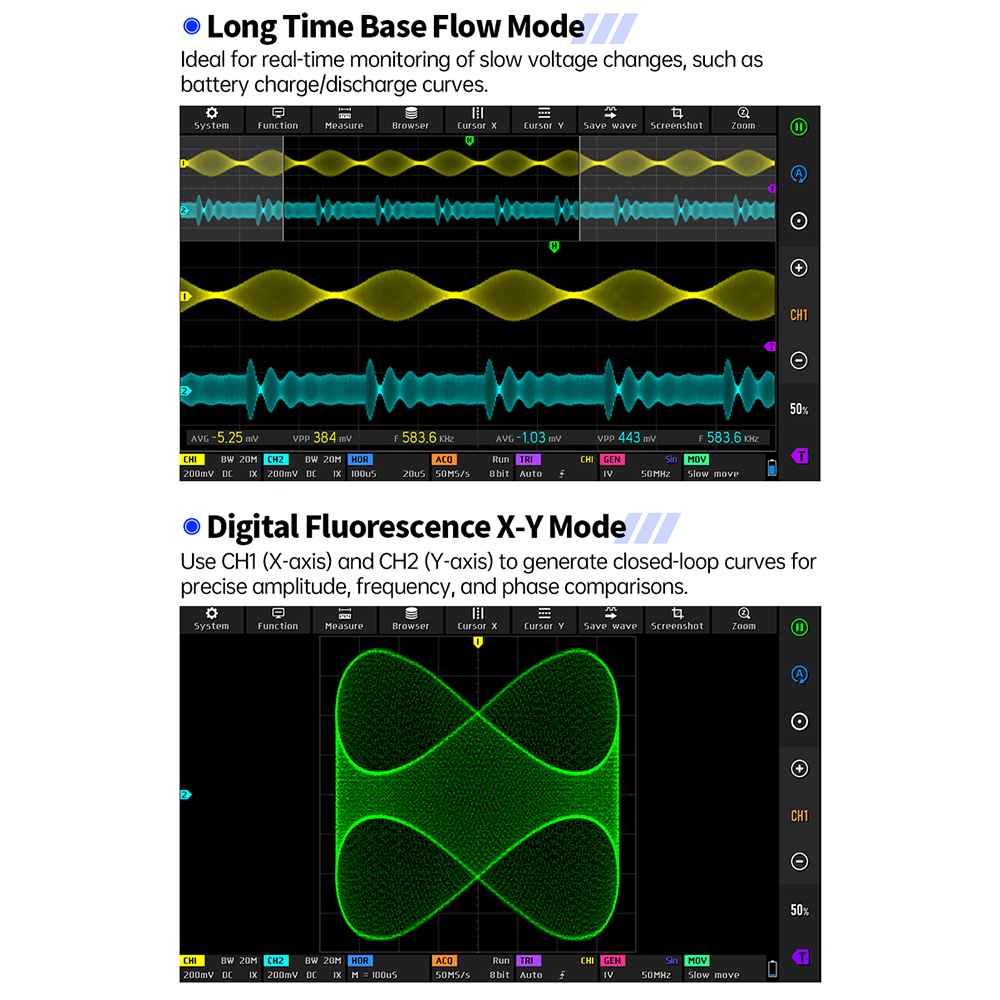

    Rolling time base: 50 mS to 50 S
    Input coupling: DC/AC

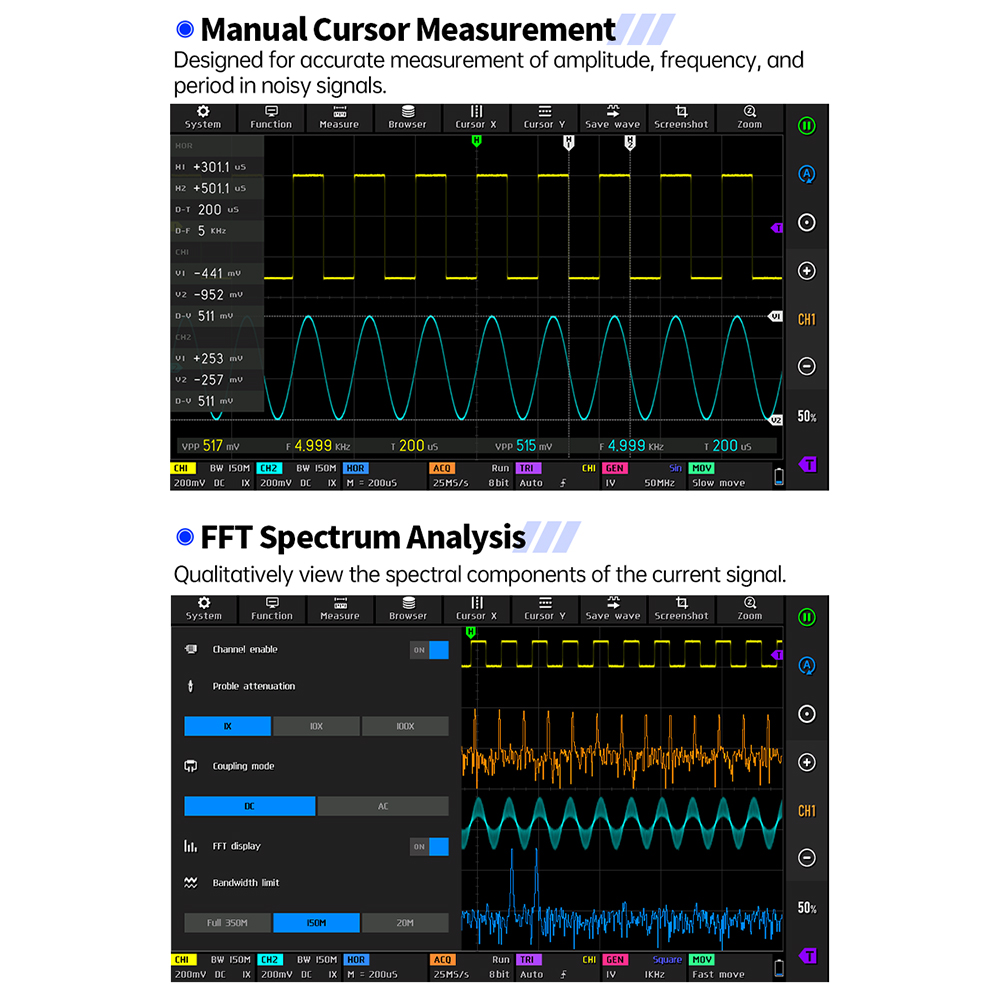

    Cursor measurement: Time, period, frequency, level, voltage
    Maximum sampling rate: 1 GSPS

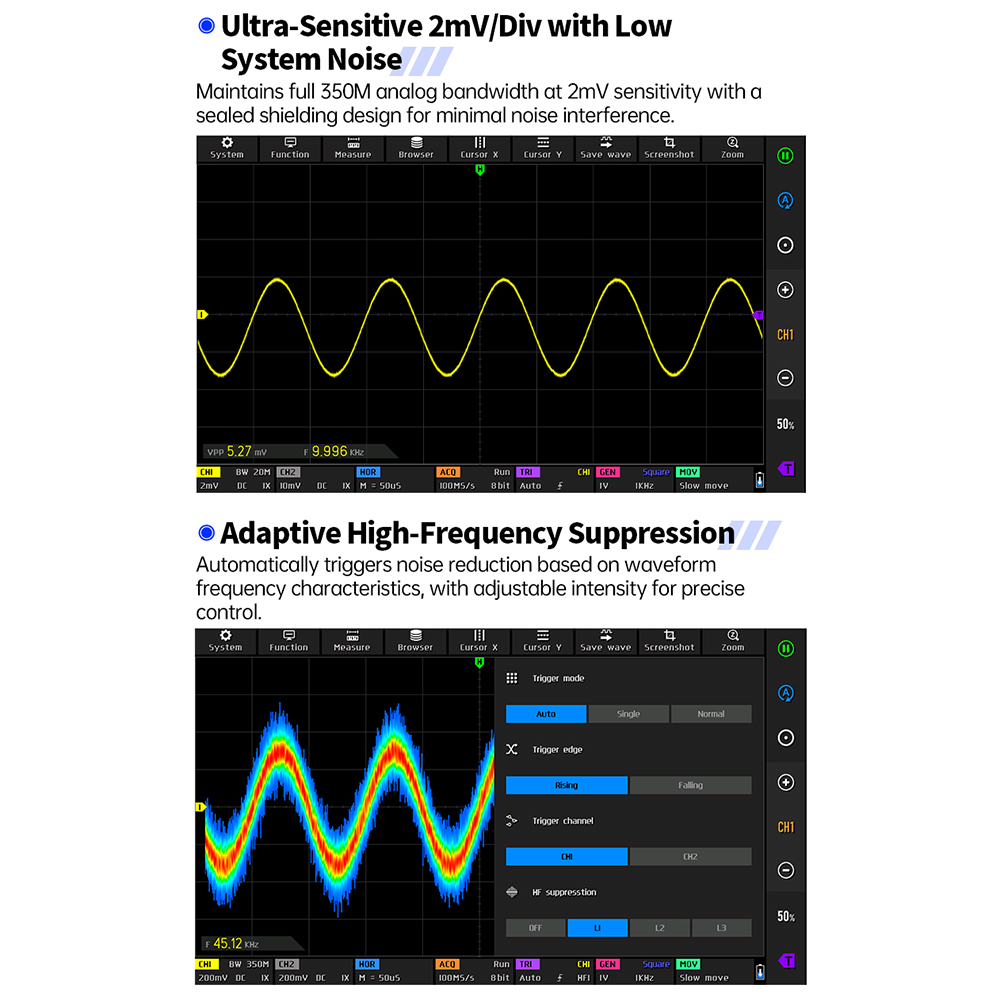

    Vertical sensitivity: 2 mV to 20 V
    Probe Gain: 1X/10X/100X

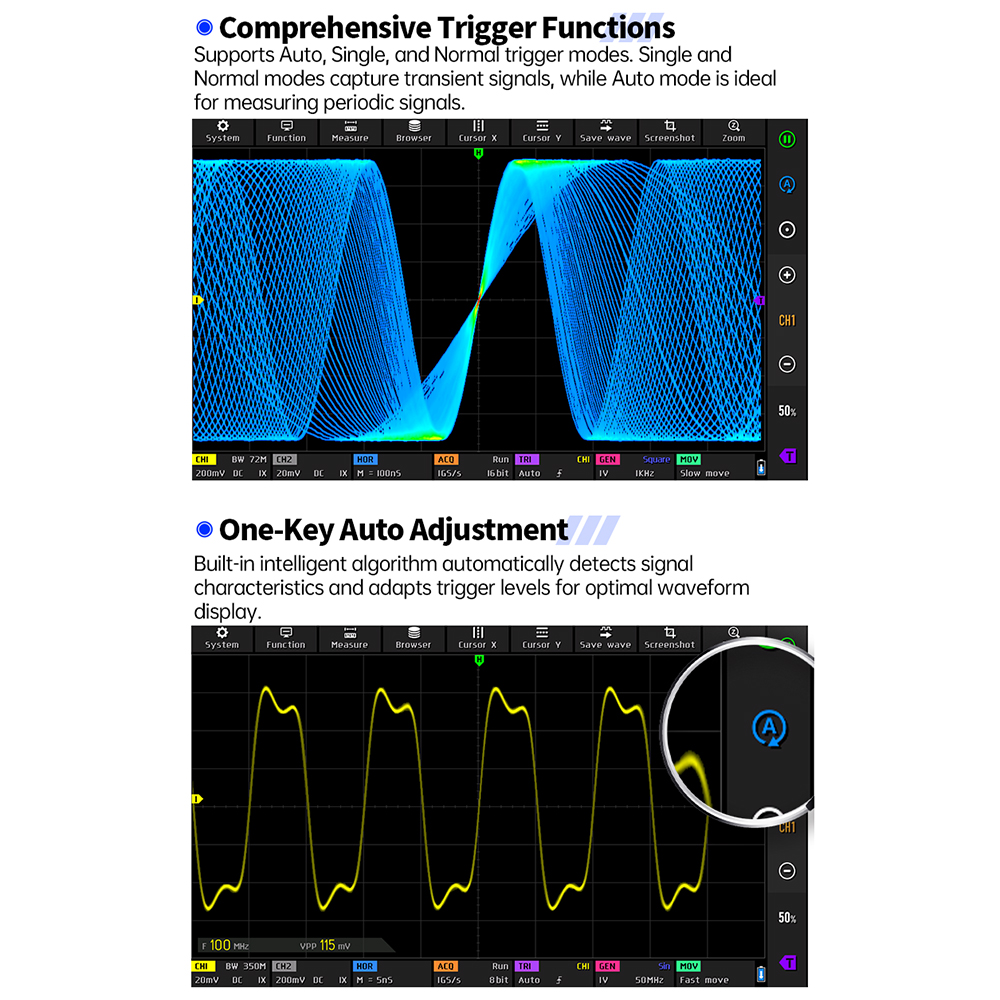

    Trigger Detection: Digital Trigger
    Storage Depth: 60Kpts
    Vertical Range: 16mV to 160V

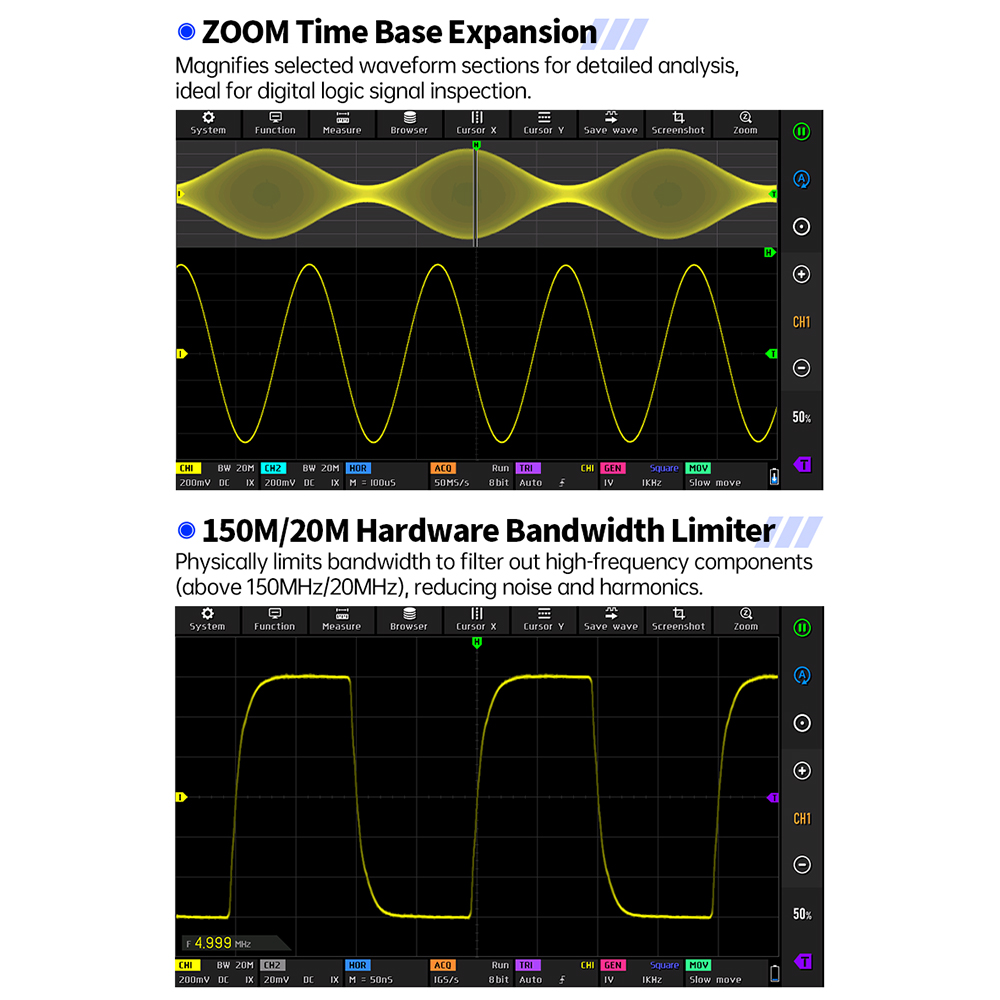

    Hardware Bandwidth Limit: 150M/20M
    Trigger Channels: CH1/CH2
    Signal Generator Parameters
    Waveform types: 14 standard functions + clipping
    Frequency: 0 to 50 MHz (only sine wave; other waves up to 10 MHz/5 MHz/3 MHz)
    Amplitude: 0 to 5 Vpp
    Offset: -2.5 V to +2.5 V
    Duty cycle: 0.1% to 99.9%
    Frequency resolution: 1 Hz
    Amplitude resolution: 1 mV
    Offset Resolution: 1 mV
    Duty Cycle Resolution: 0.1%
    Custom Truncation: 500 groups

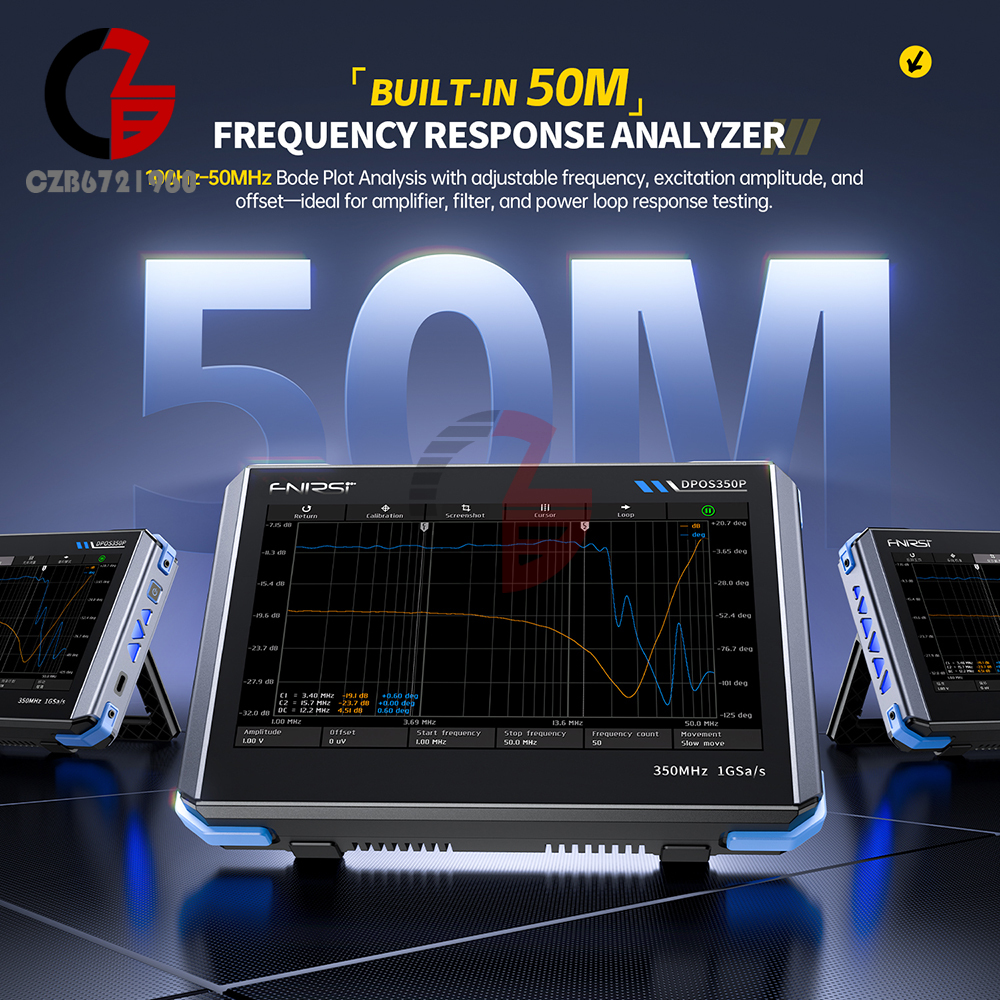

    Frequency Response Analyser
    Excitation Signal Frequency: 100 Hz to 50 MHz
    Excitation Signal Amplitude: 0 to 5 VPP
    Excitation Signal Offset: -2.5 V to +2.5 V
    Excitation Frequency Count: 20 to 500
    Cursor Measurement: Frequency/Gain/Phase
    Operating mode: Single/Loop
    System calibration: Supported

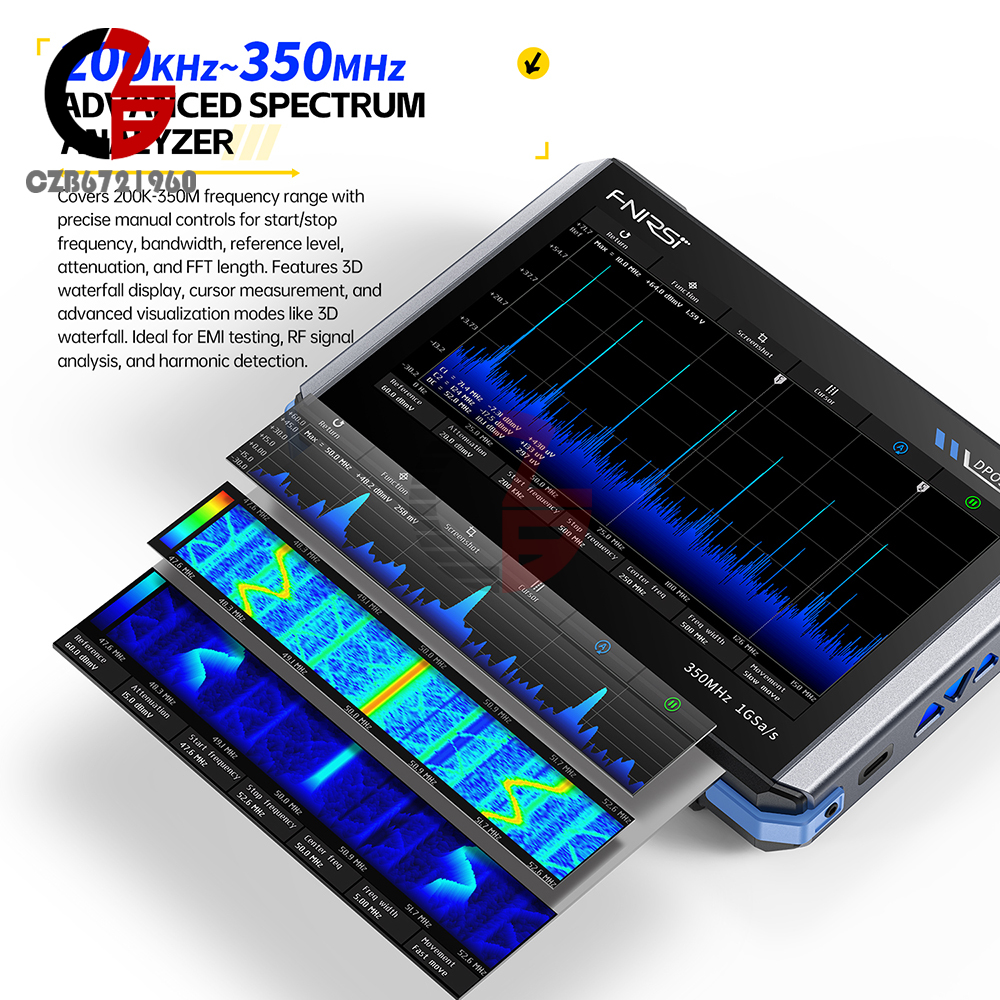

    Spectrum analyser
    Conversion method: FFT
    FFT length: 4K to 32K
    Frequency range: 200 kHz to 350 kHz
    Level range: -60 dBmV to +260 dBmV
    Cursor measurement: Frequency/Amplitude
    Marking parameters: Highest energy harmonic
    Waterfall diagram: Supported
    3D Waterfall Diagram: Supported
    Automatic Adjustment: Supported
    System Calibration: Supported

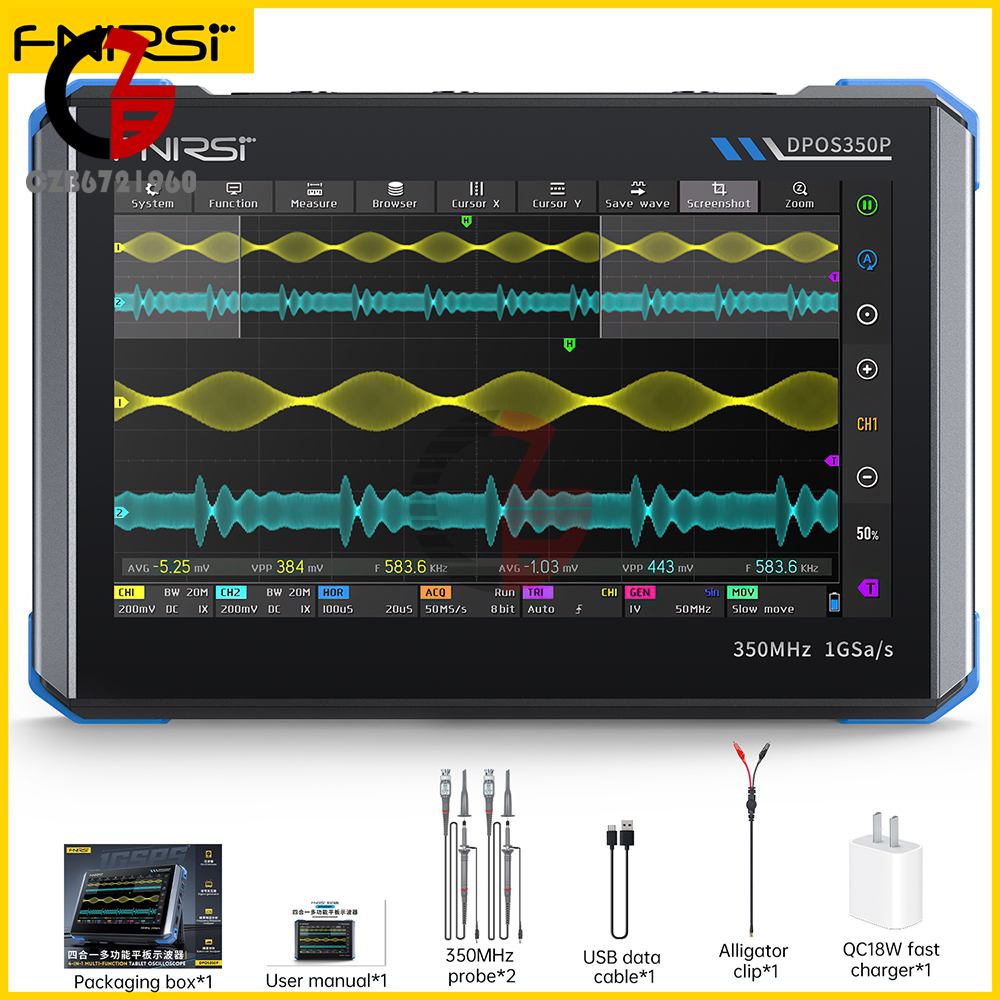

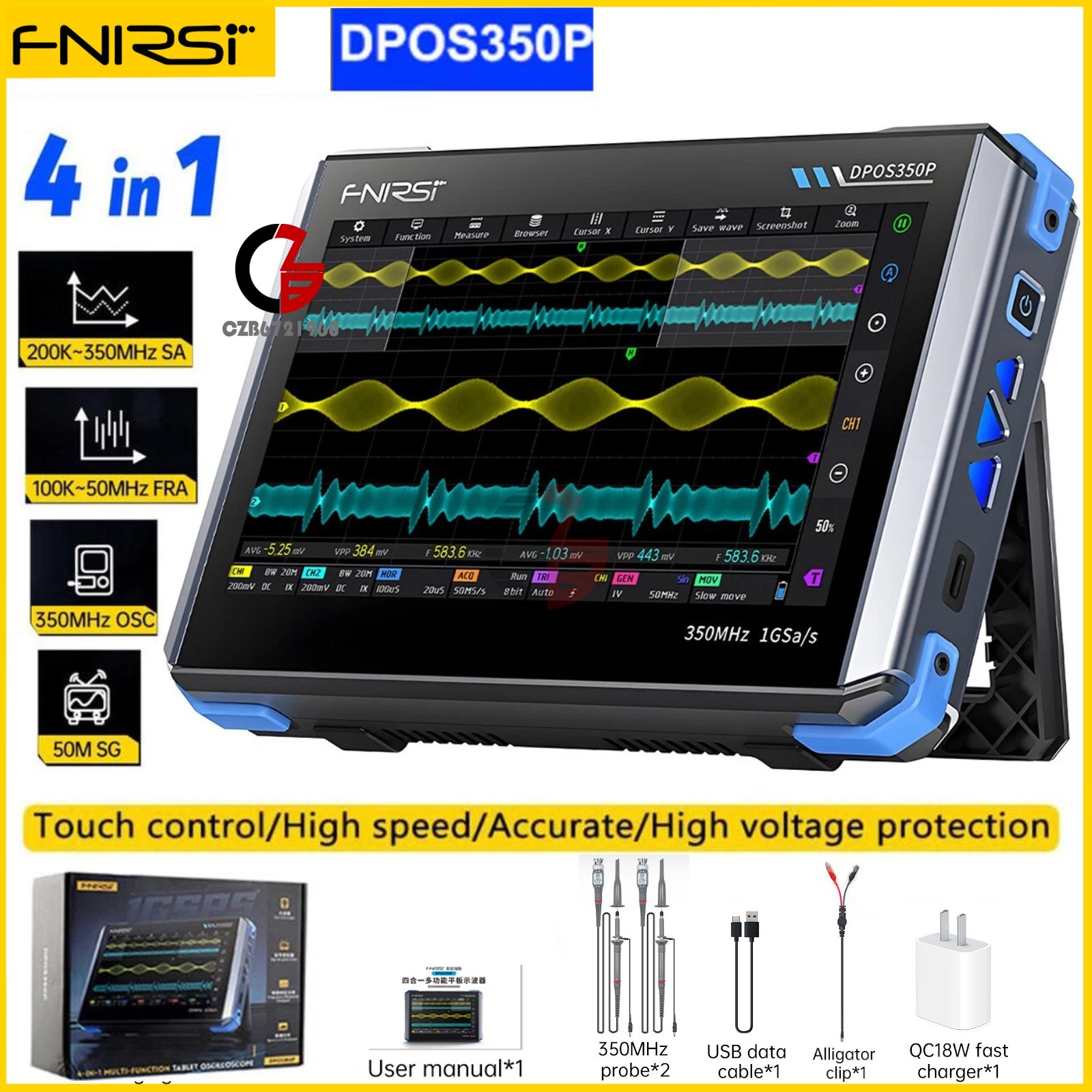

    PACGING List:
    Main Unit ×1
    Colour Box ×1
    Manual ×1
    350M Probe ×2
    QC18W Charger ×1
    USB Data Cable ×1
    Alligator Clip Cable ×1
    Manual ×1
