This is listing is for my new ETH-Compact ethernet controller which Includes MikroCNC Motion Control Software Which Has Both Traditional, Industrial, And Plasma Screensets AND my new External THC Sensor Module to enable for torch height control for your plasma CNC production robot!
Both of these unit's quality is exceptional, and is made in the EU!
The most advanced Plasma specific CNC features like internal THC features BUILT in to the unit's firmware including digital filtering of signals for "Bullet Proof" EMI protection, as well as Kerf detect, anti-plunge option, and THC-lock from G-code!

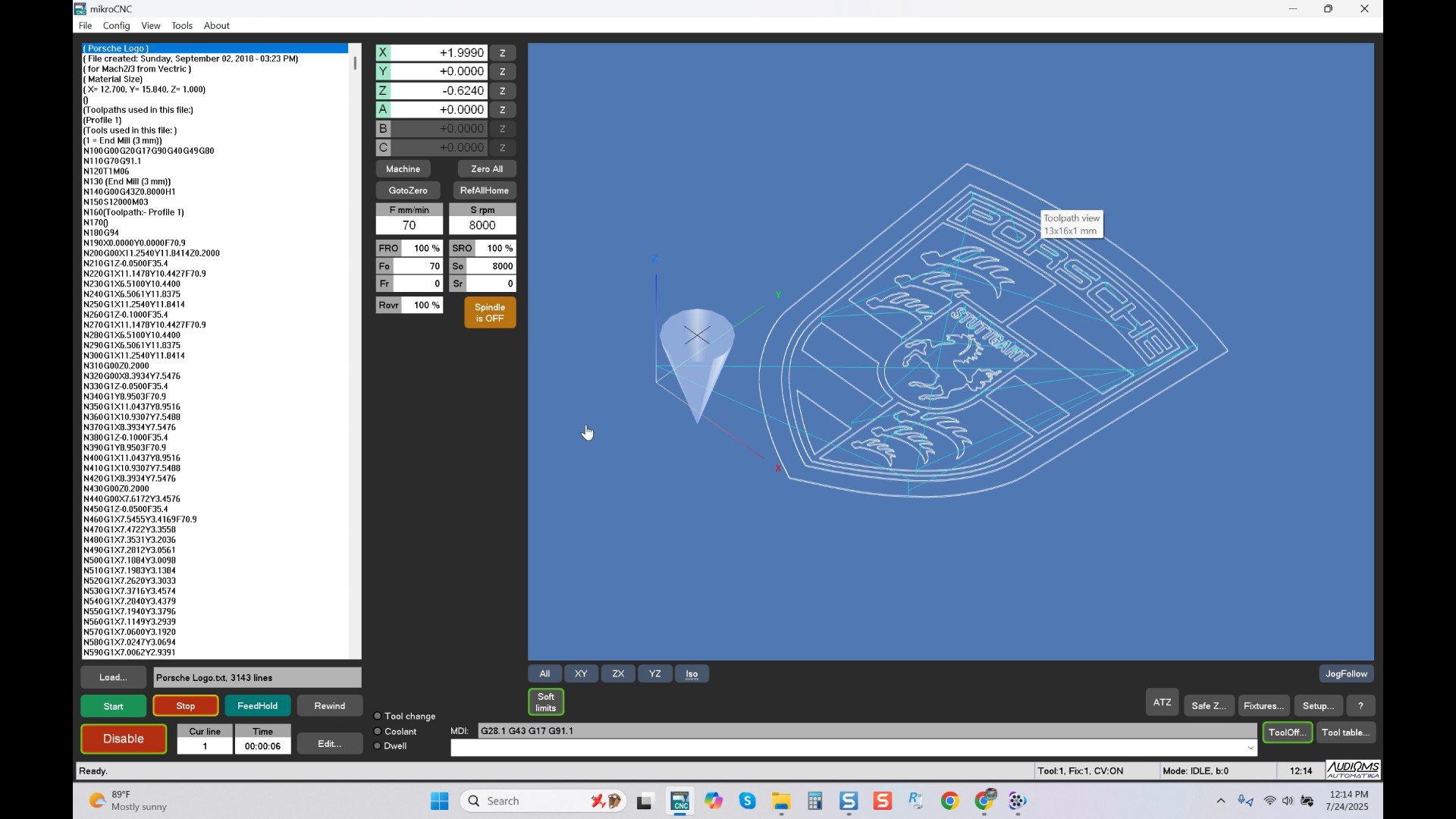

The screenshot below is of MikroCnc
Here's MikroCNC In Action.

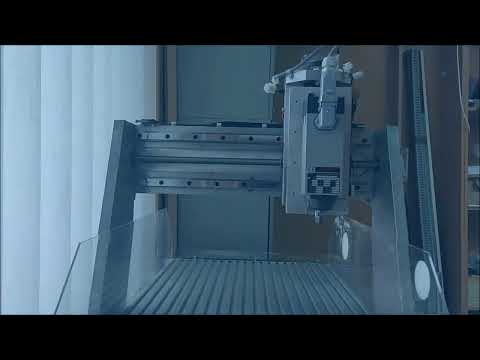

MikroCNC Demonstration
Video will open in a new window
Using the eBay App? Paste link into a browser window:

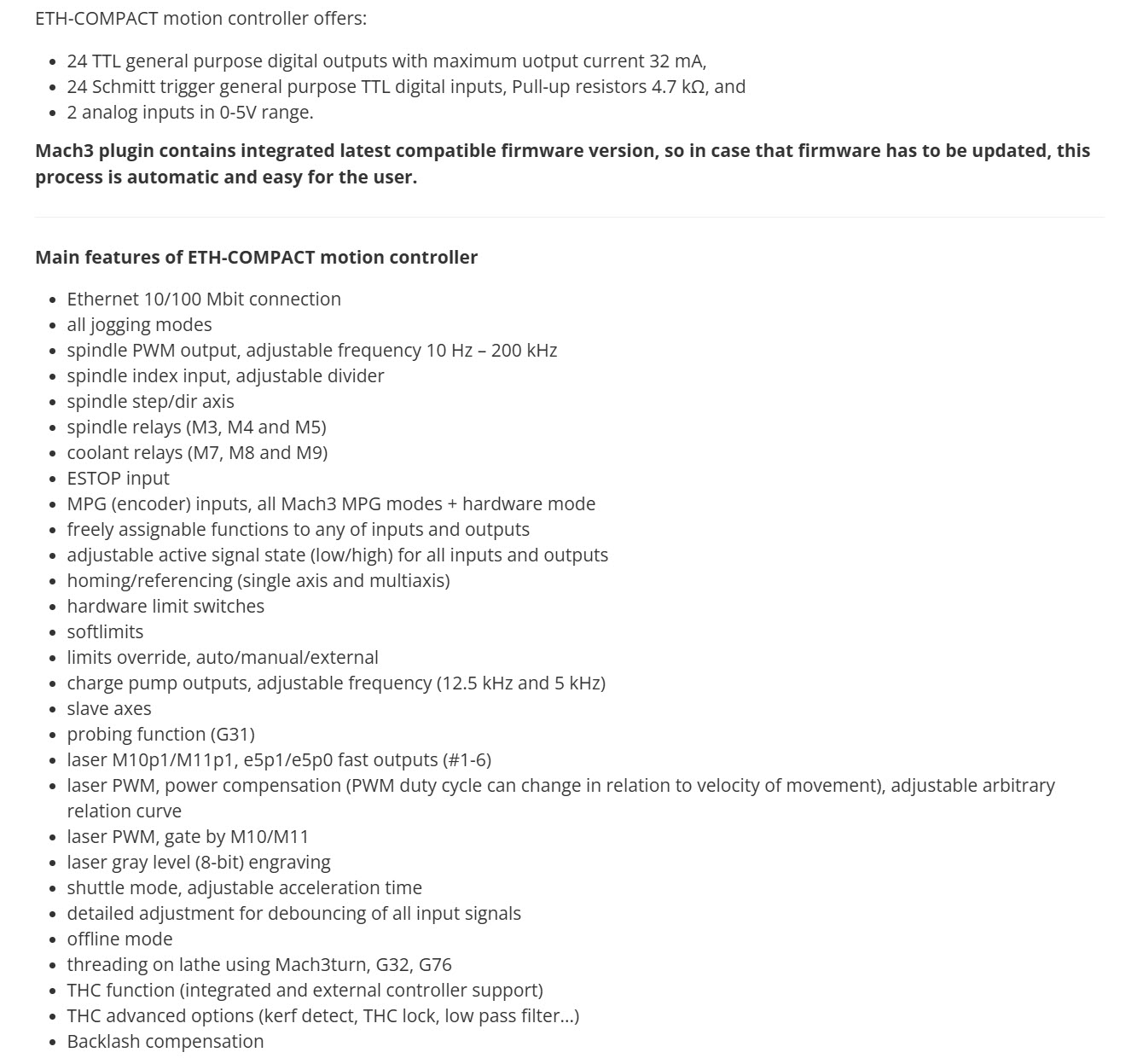

The feature Set is listed below:

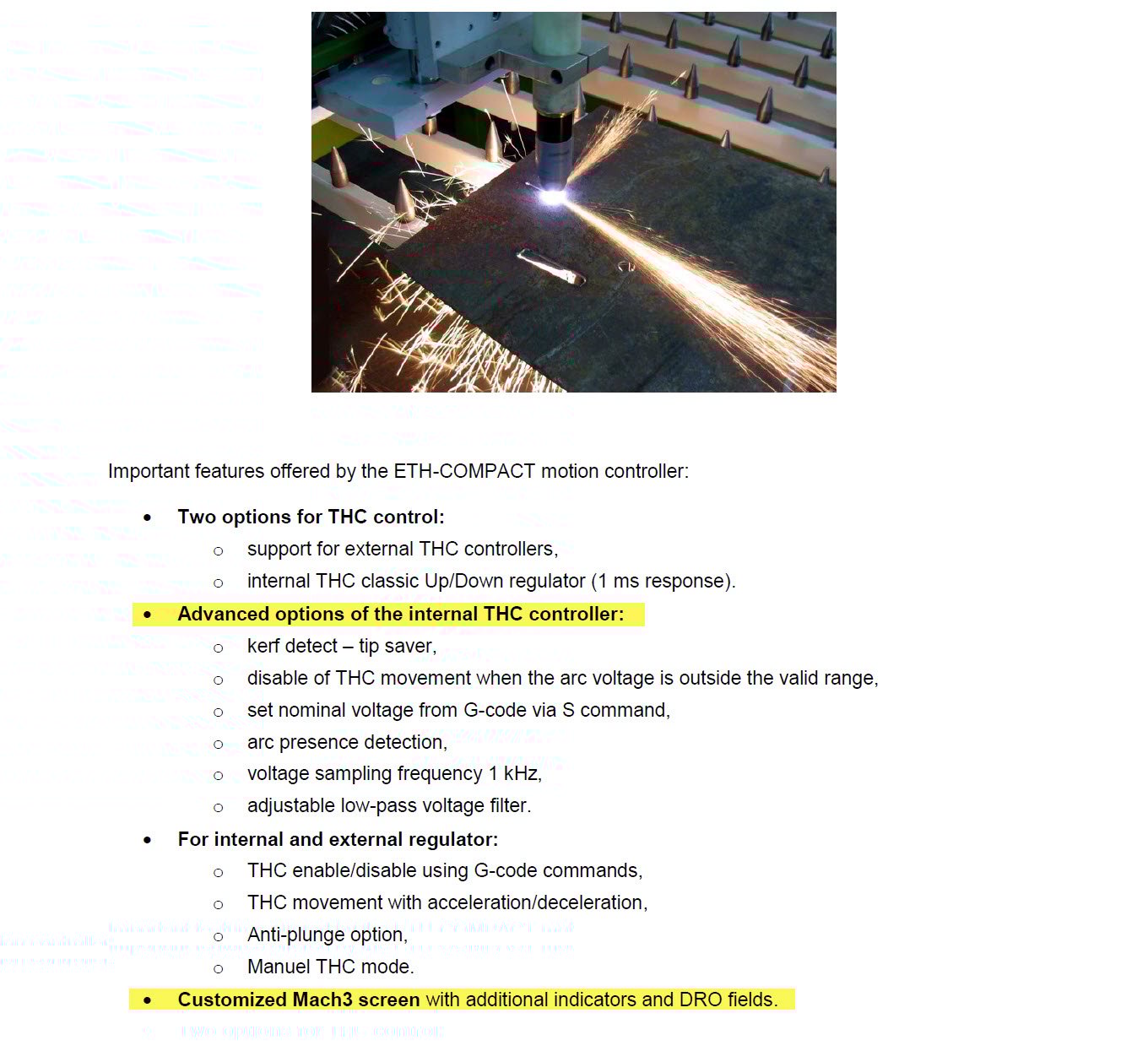

Plasma CNC Specific Features When Using The INCLUDED THC External Sensor Module.
The THC Sensor Module Is Also Offered In An Internal Unit To Be Mounted Inside Your Plasma Controller When It Has Built In Voltage Conditioning.
This unit is designed to be mounted on your plasma directly as its the "external" mount version to support a 50:1 voltage divider due to your plasma system not having a low voltage output. (Meaning your plasma cutter only outputs 300v)
If your plasma system supports a conditioned voltage at 10v then you'll want to purchase my "internal" mount version to be mounted within your CNC controller.
If you're uncertain of what type of system you have then message me before purchasing!!
Here's the the link to it: https://www.ebay.com/itm/136273973130
If you're uncertain of what type of system you have then message me before purchasing!!
Please Confirm Which Version You Require Before Ordering.
Here's an overview of me discussing the THC Sensor.

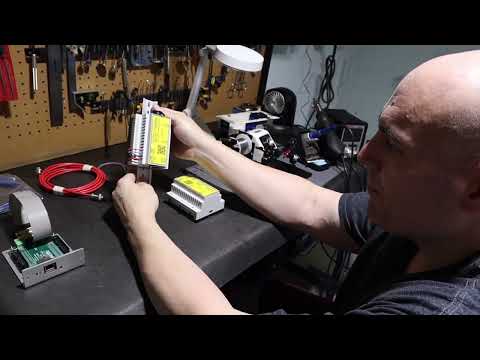

THC Sensor Module Overview
Video will open in a new window
Using the eBay App? Paste link into a browser window:
Here's a video of these components live.

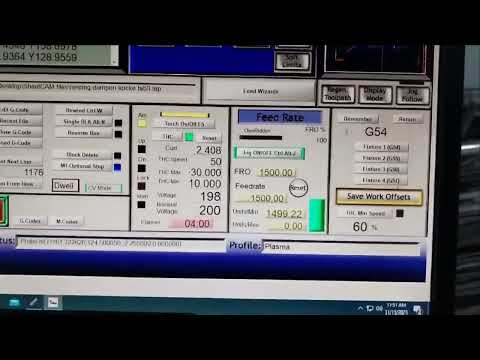

Torch Height Control Sensor Live
Video will open in a new window
Using the eBay App? Paste link into a browser window:

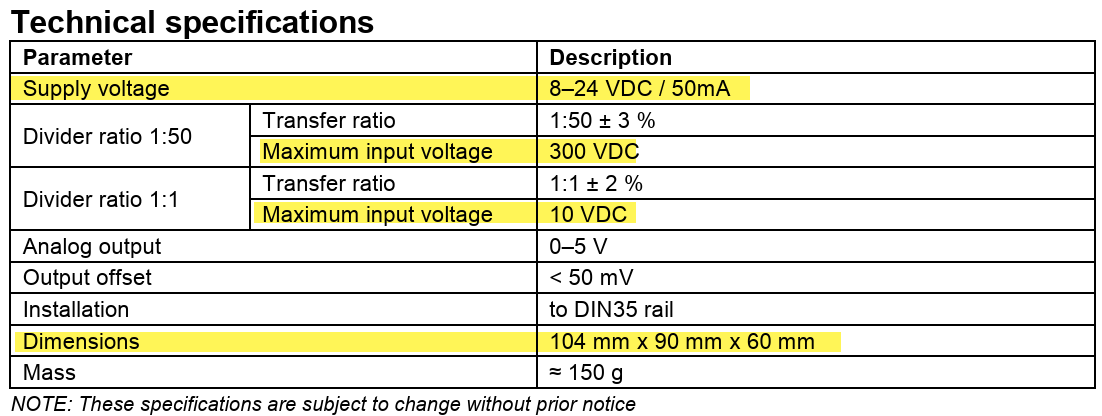

THC Sensor V3 is a device designed to enable monitoring of plasma torch arc voltage by the ETH-Compact motion controller in order to realize THC function (AKA Torch Height Control).
More closely, the role of the THC Sensor is to adapt arc voltage obtained from a plasma inverter and transfer it in safe and reliable way to the motion controller.
The THC Sensor features galvanic isolation of the signal from plasma inverter and two input options are possible: with voltage divide ratio 1:50 or 1:1.
Using THC regulator integrated in ETH-Compact motion controller allows for integrated torch height control for plasma cutting CNC Robots.
The Input circuit of THC Sensor is designed to suppress EMI that is present during plasma cutting.
The Input circuit, output circuit, and power supply circuit are all galvanically isolated one from each other.
This revision THC Sensor introduces additional new filters for the ETH-Compact ethernet controller added to prevent EMI penetration on input circuit from high voltage peaks from utilizing different types of plasma inverters.

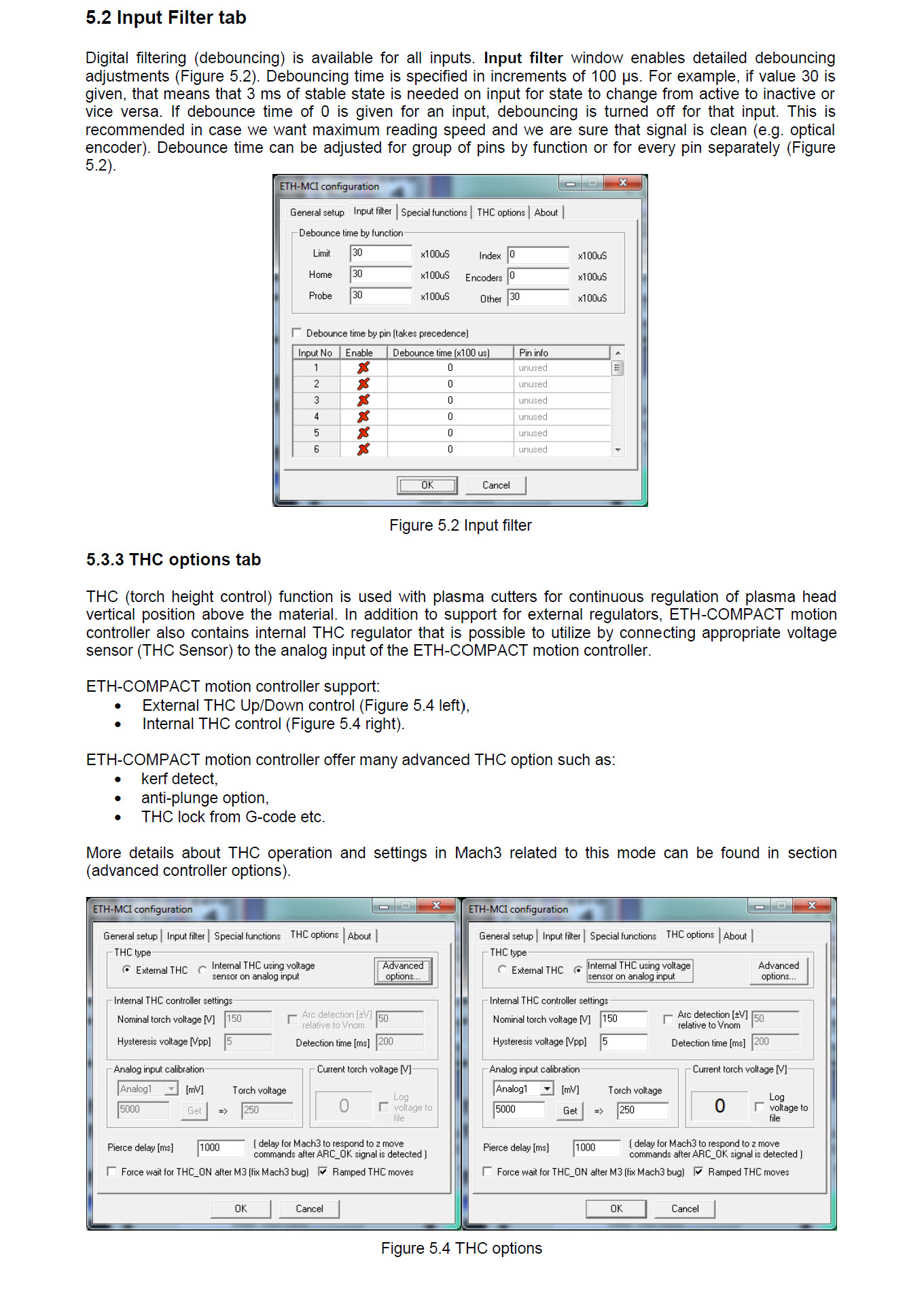

The ETH-Compact ethernet controller when utilizing this THC sensor provides advanced features within its firmware for end users to combine them with a custom free Mach3 screen set for "peak tuning" of your robot.
This motion control software has no G-code limit, and is free to use for life with the purchase of this controller
Please review the videos below covering this controller

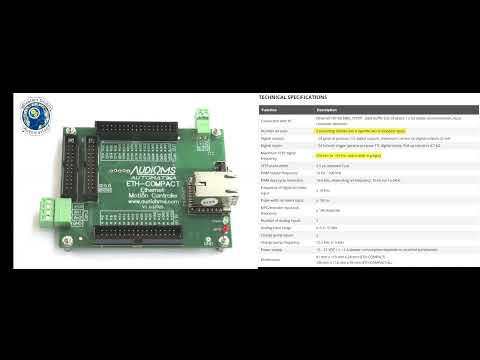

ETH Commercial Video
Video will open in a new window
Using the eBay App? Paste link into a browser window:
MikroCNC Software Promo
Video will open in a new window
Using the eBay App? Paste link into a browser window:

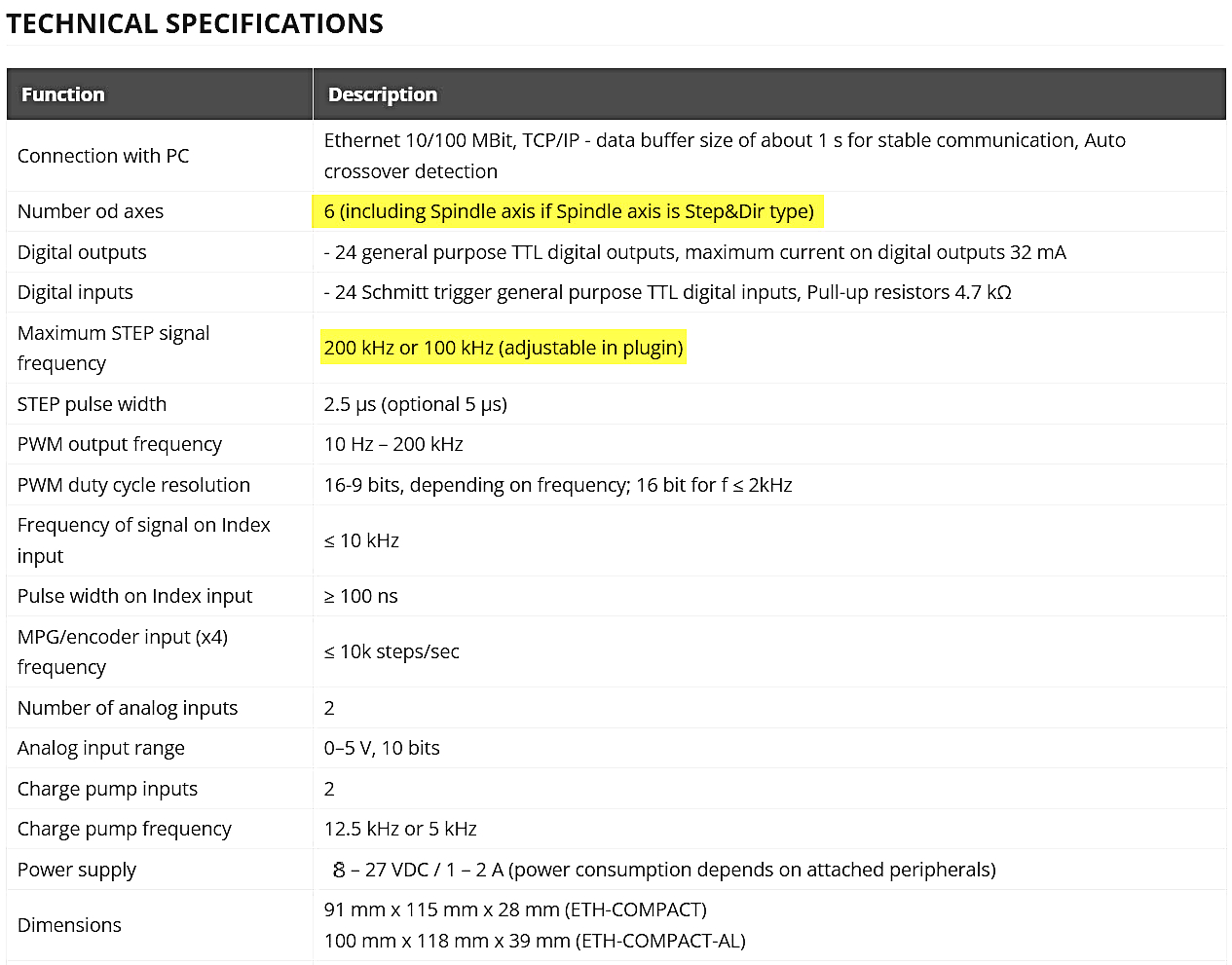

This system provides the end user the most stable automation controller utilizing ethernet control signals transmission.
This unit allows you to use any Windows operating system from 7-10 in either 32bit, or 64 bit architecture including both laptop, desktops
This controller is fully compatible with Mach3, Mach4, and MikroCNC
The Package Includes The Components Below For Internal CNC Controller Mounting.
ETH-Compact Ethernet Controller Board
CAT7 ethernet cable with gold plated connectors for "bullet proof" signals
(90 degree) LPH-26 ribbon communication cable with required gender changer and EMI Filter to connect to connect your breakout board, or drive.

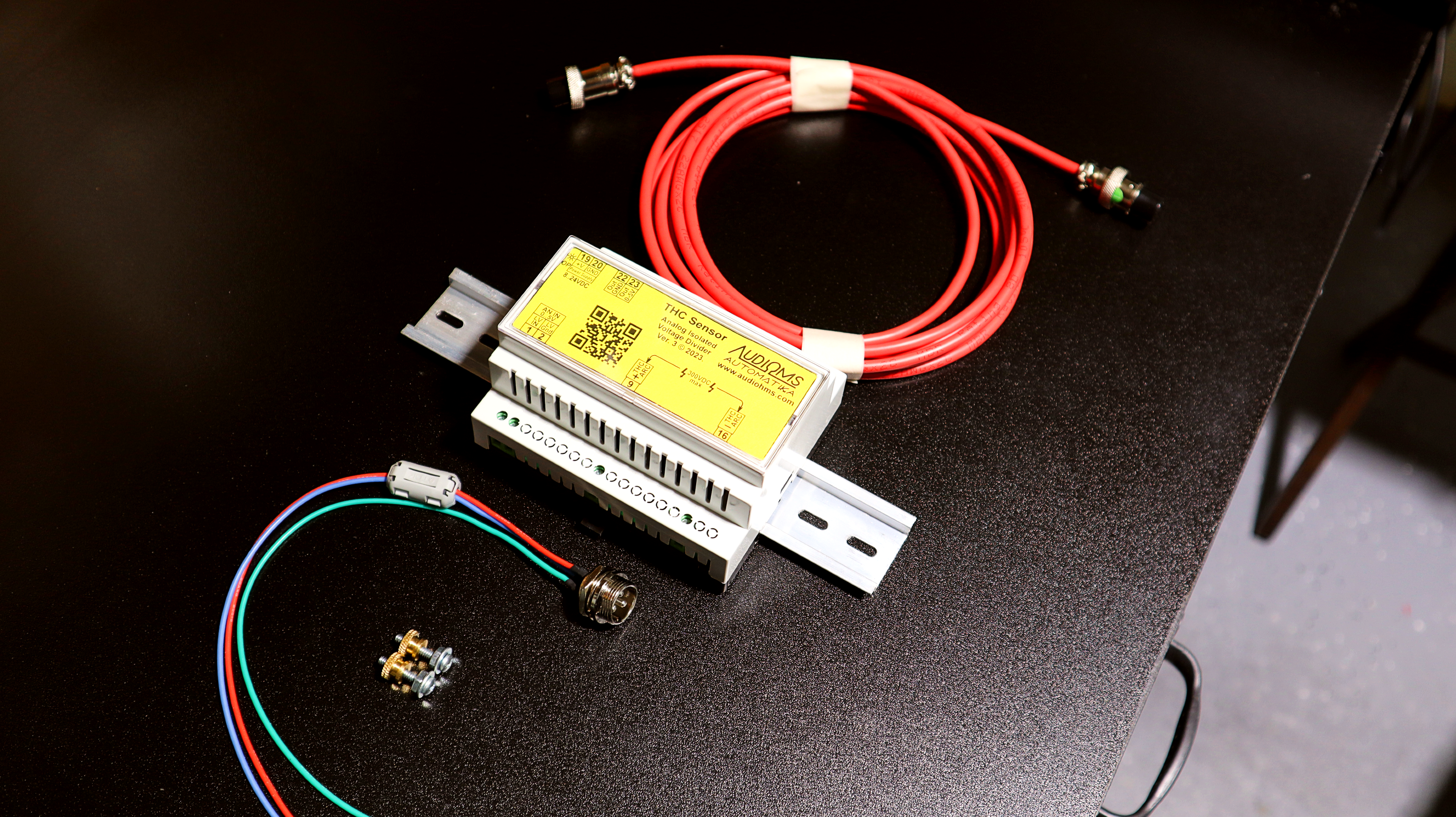

Audio Ohms THC Sensor Module With Integrated EMI filtered GX-16 Male Connector
15ft 22awg Double Shielded Assembled GX-16 3 Pin Female To Female Data Transfer Cable
12v 3a Power Supply With Built In Inline Switch
DIN Rail With Thumb Screw Tool Less Mounts Mounting Hardware
GX16 Male Panel Mount Connector Pre-wired, and Filtered For Mounting In Your CNC Electronics Enclosure
Shipping the system in the US is FREE and will be shipped via UPS Ground with signature due to the value involved. If you require expedited shipping, please contact me for a quote.
All my international orders are handled through eBay's Global Shipping Program as they offer us both the best protection against loss, and damages. Please review their policy for a shipping quote based on your specific location as they don't disclose it to me.
