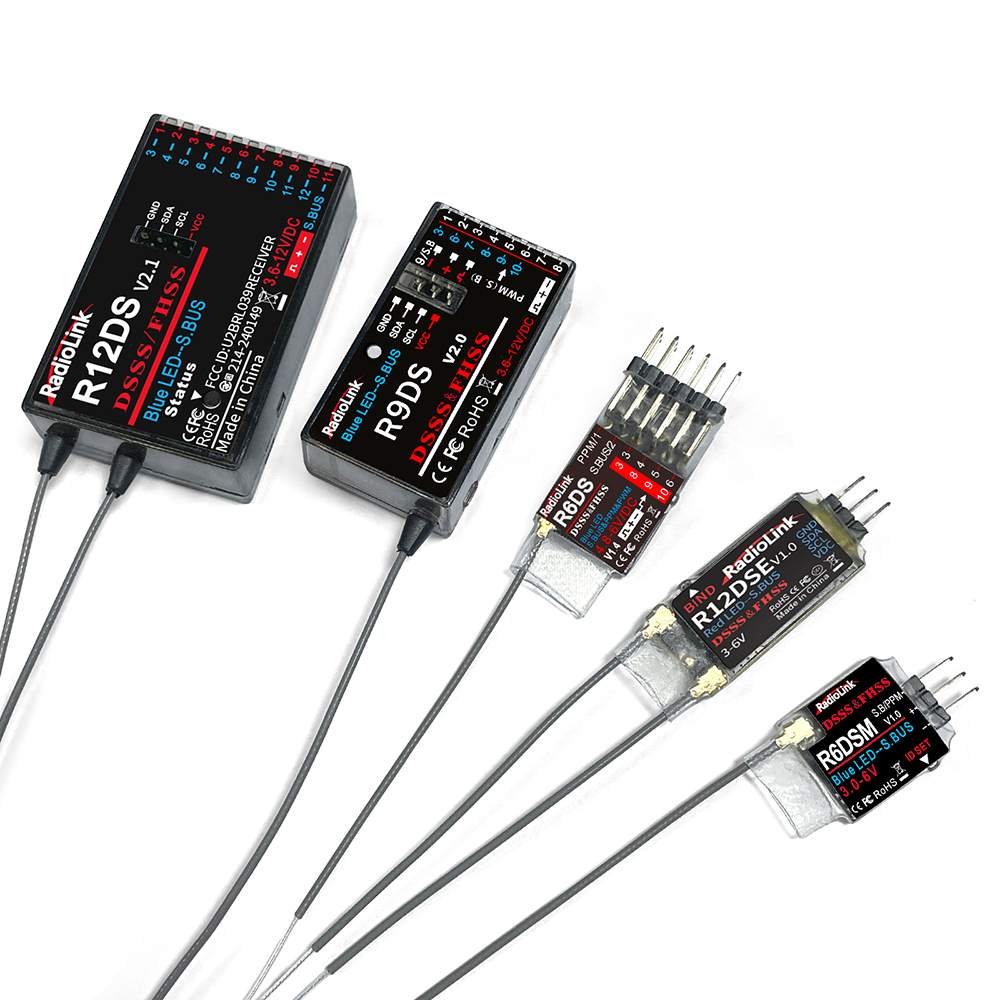

RadioLink RC Receiver R12DS R12DSE R9DS R6DS R6DSM 2.4G 6/9/10/11/12CH Receiver for RC Transmitter AT10II/AT10/AT9S Pro/AT9S/AT9
Features:
1. Excellent Anti-interference: with DSSS&FHSS pseudo random algorithm to give receiver excellent anti-interference ability.
2. Fast Response: High resolution ratio of 4096, the stability of 0.25us, to provide a quicker, low-latency connection for the driver.
3. Long Range Control: Outstanding control range up to 600/4000miles in the air. (Actually control range depends on the using environment).
4. Quick to Bind: Just press bind button over 1 second, no need any setting on transmitter when they are binding.
5. Anti-polarity Protection: With reverse polarity protection circuit, won't damage the receiver even you plug wrong polarity.

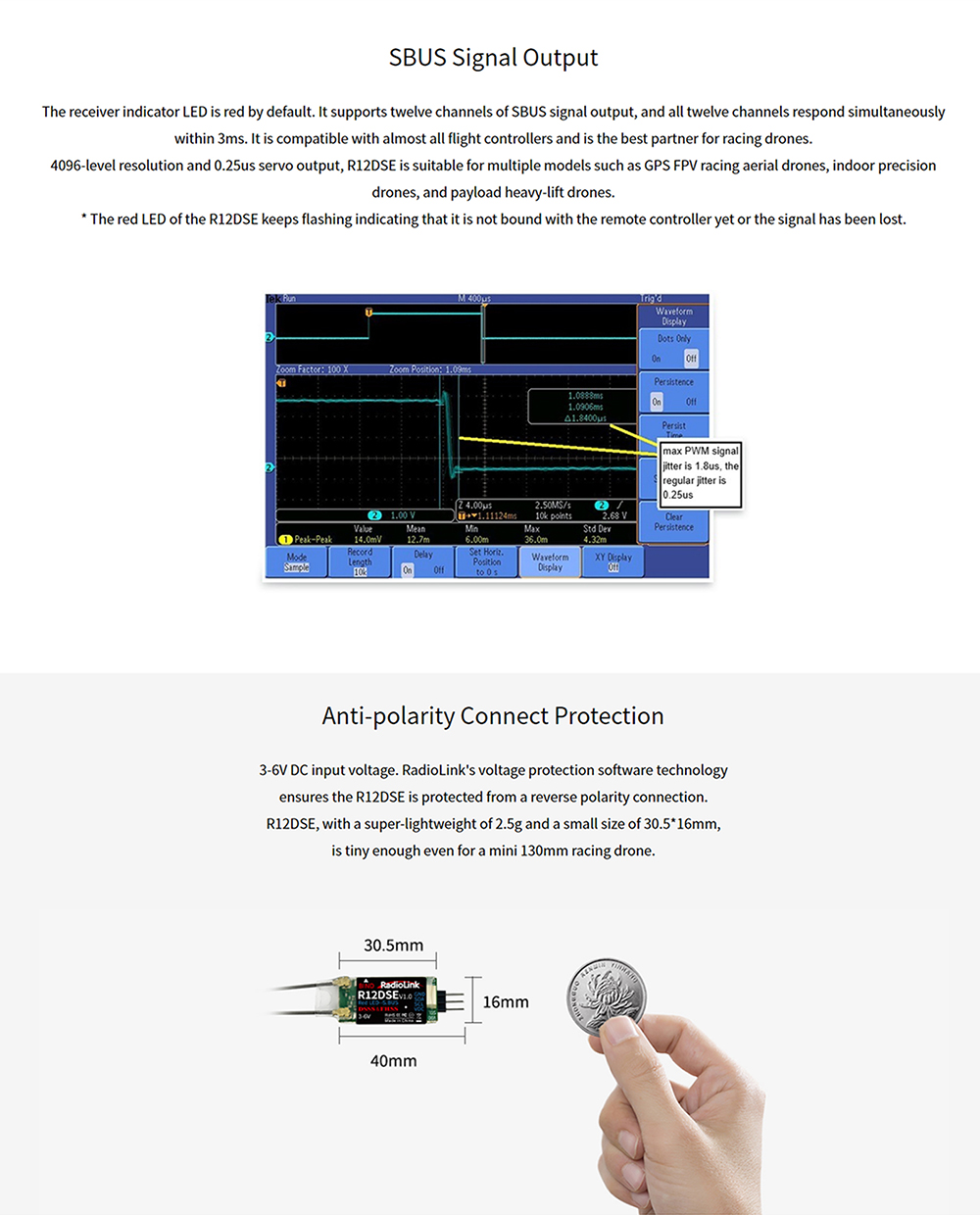

6. 6/9/10/11/12 Channels:Support PWM/PPM/SBUS signal output, ideal for most aircraft,compatible with AT10II/AT10/AT9S Pro/AT9S/AT.
Description:
RadioLink RC Receiver R12DS R12DSE R9DS R6DS R6DSM 2.4GHz work,Fast Response. 6ch/9ch/10ch/11ch/12ch Receiver compatible with AT10II/AT10/AT9S Pro/AT9S/AT9,it is the best choice for racing drone.
Specifications:
R12DS:
Channels Qty: 11 channels for PWM signal output;
12 channels for SBUS&PWM signal output.
Signals: PWM/SBUS&PWM
Operating Voltage: 3.6-12V
Operating Current: 38-45mA@5V
Section Precision: 4096, 0.25us per section
Control distance: 4000 meters(2.49Miles) in the air, 2000 meters(1.24Miles) on the ground (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).
Compatible with extended telemetrymodule PRM-01
Compatible transmitter: AT10II/AT10/AT9S Pro/AT9S/AT9
R12DSE:
Channels Qty: 12 channels
Signals: SBUS/PPM
Operating Voltage: 4.8~6V
Operating Current: 38-45mA@5V
Section Precision: 4096, 0.25us per section
Control distance: 4000 meters (2.48Miles) in the air (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).
Compatible transmitter: AT10II/AT10/AT9S Pro/AT9S/AT9
R9DS:
Channels Qty: 9 channels for PWM signal output;
10 channels for SBUS&PWM signal output.
Signals: SBUS&PWM
Operating Voltage: 3.6-12V
Operating Current: 38-45mA@5V
Section Precision: 4096, 0.25us per section
Control distance: 4000 meters(2.48Miles) in the air(Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).
Compatible with extended telemetrymodule PRM-01 and PRM-03.
Compatible transmitter: AT10II/AT10/AT9S Pro/AT9S/AT9

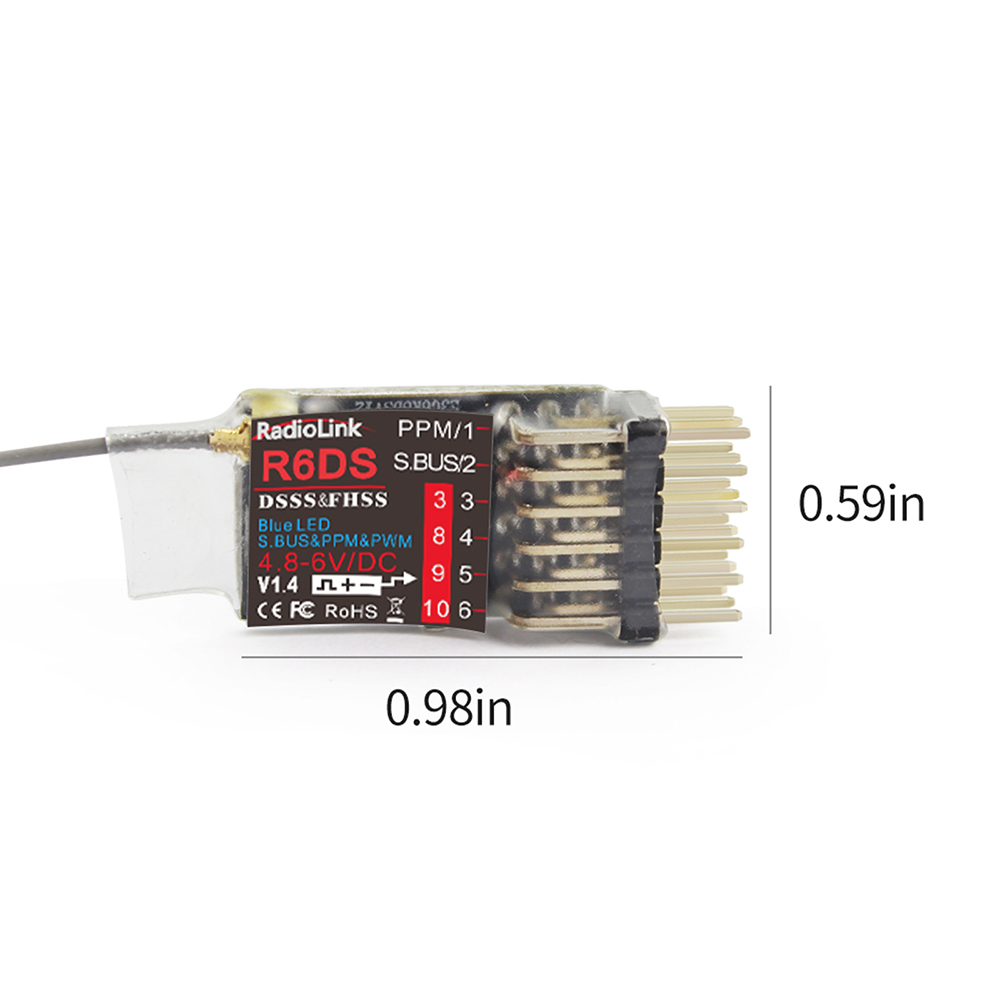

R6DS:
Channels Qty: 6 channels for PWM signal output;
10 channels for SBUS/PPM&PWM signal output.
Signals: SBUS/PPM&PWM
Operating Voltage: 4.8-6V
Operating Current: 38-45mA@5V
Section Precision: 4096, 0.25us per section
Control distance: 600 meters(1968.5ft) in the air (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).
Compatible transmitter: AT10II/AT10/AT9S Pro/AT9S/AT9
R6DSM:
Channels Qty: 10 channels for SBUS/PPM signal output
Signals: SBUS/PPM
Operating Voltage: 3~6V
Operating Current: 38-45mA@5V
Section Precision: 4096, 0.25us per section
Control distance: 600 meters(1968.5ft) in the air (Maximum range tested in unobstructed areas free of interference and may vary depending on local regulations).
Compatible transmitter: AT10II/AT10/AT9S Pro/AT9S/AT9
Package Included:
1 x RC Receiver
Note:
Only the above package content, other products are not included.
1.Due to the difference between different monitors,the picture may not reflect the actual color of the item. We guarantee the style is the same as shown in the pictures.
2.Due to the manual measurement and different measurement methods, please allow 1-3mm deviation.Thanks!
