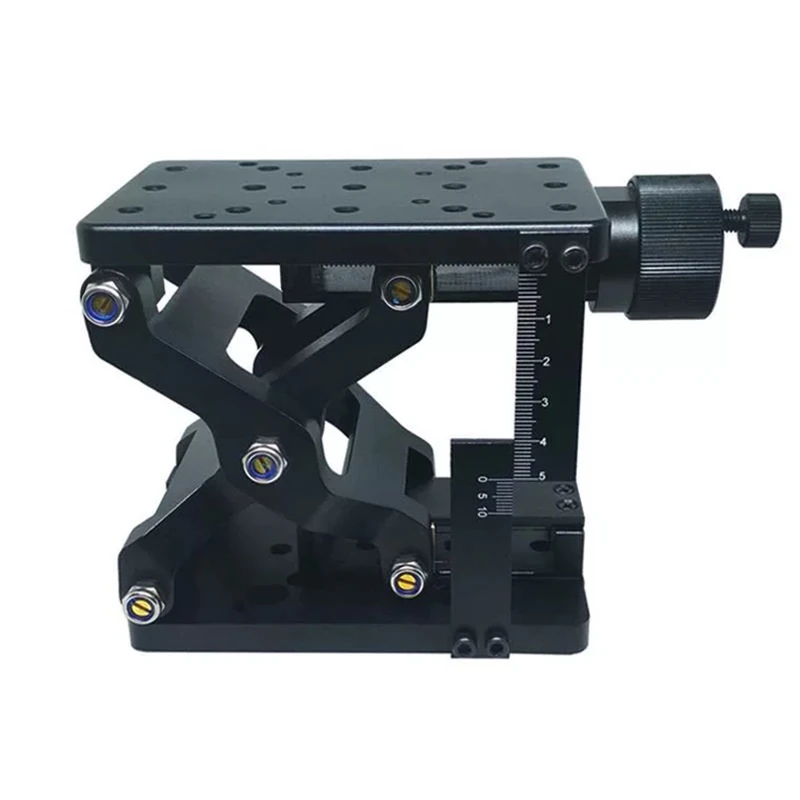

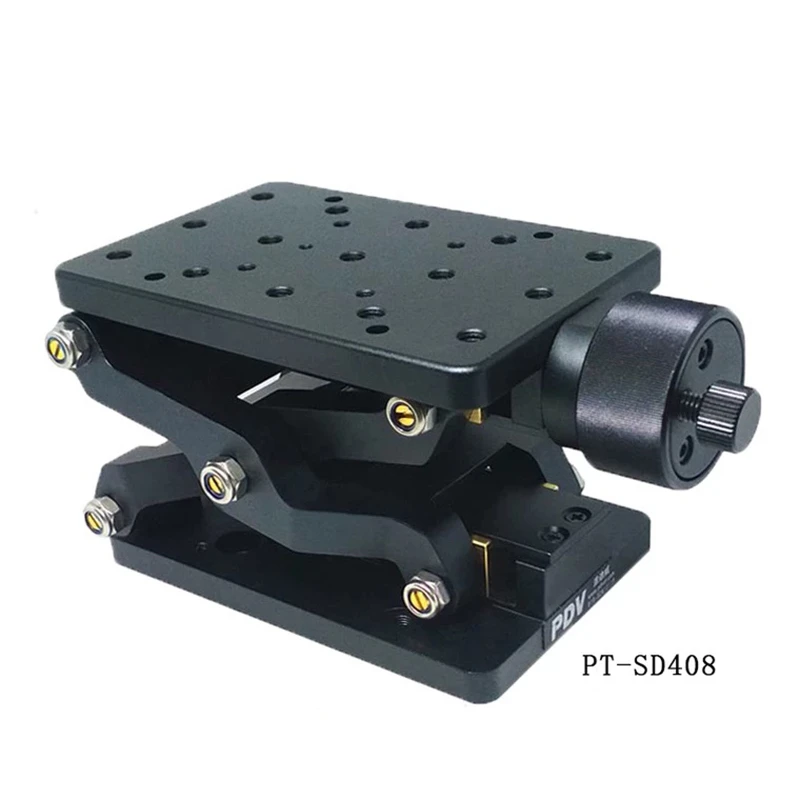

PT-SD408S 60mm travel Manual Lab Jack Z-axis Optical Lift Manual Optical Sliding lifting platform                                                                                    Table with ruler


Features:

1. For large stroke, not quantitative, large load adjustment movements

2. Scissor lift support, lapping screw drive, dual-rail over five-axis positioning mechanism to ensure that the exercise is absolutely smooth, comfortable, high precision, large load

3. Both sides of the upper and lower porous design, applicability, can be used for installation surface

4. Equipped with locking hand wheel, safe and reliable

5. The base and table have standard hole spacing of the connection hole for easy combination with other products

APPLICABLE: Used for large stroke, non-quantitative, large load lifting adjustment
Travel Range: 60mm--Load Capacity: 20kg
CLEAR SCALE:Assemble a clear scale to accurately measure the lifting height.
USER-FRIENDLY DESIGN: Our Lift Platform adopts scissor type lifting support, fine grinding screw drive and double-guide five-axis over-positioning mechanism to ensure absolute stability and comfort. Safe and reliable with locking handwheel.
EASY TO INSTALL: The upper and lower sides are designed with a porous position, which can be used as a mounting surface for strong applicability. The base and the table have standard hole spacing holes for easy combination with other series of products. › See more product details

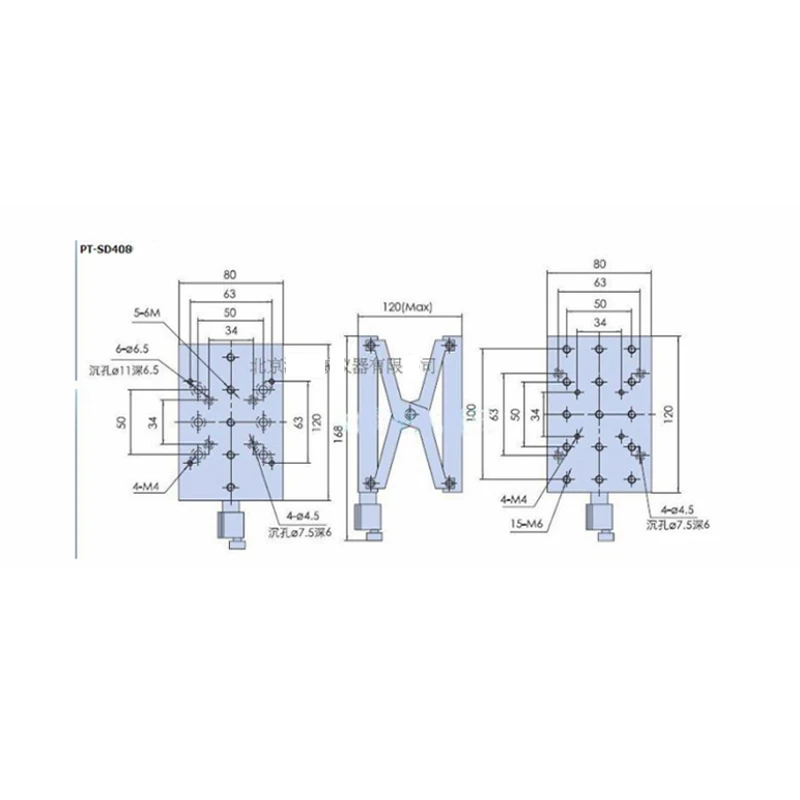

Specifications:
Model Number: PT-SD408S
Platform size: 120mm x 80mm
Driving Mode: Comminution Lead Screw
Travel Range: 60mm
Minimum Adjustment: 5μ (Reference)
Load Capacity: 20Kg
Weight: 2kg
Material: Duralium
Material – Finish: Aluminum Alloy - Black-Anodized
Actuator Type: Precision Whet Thread
