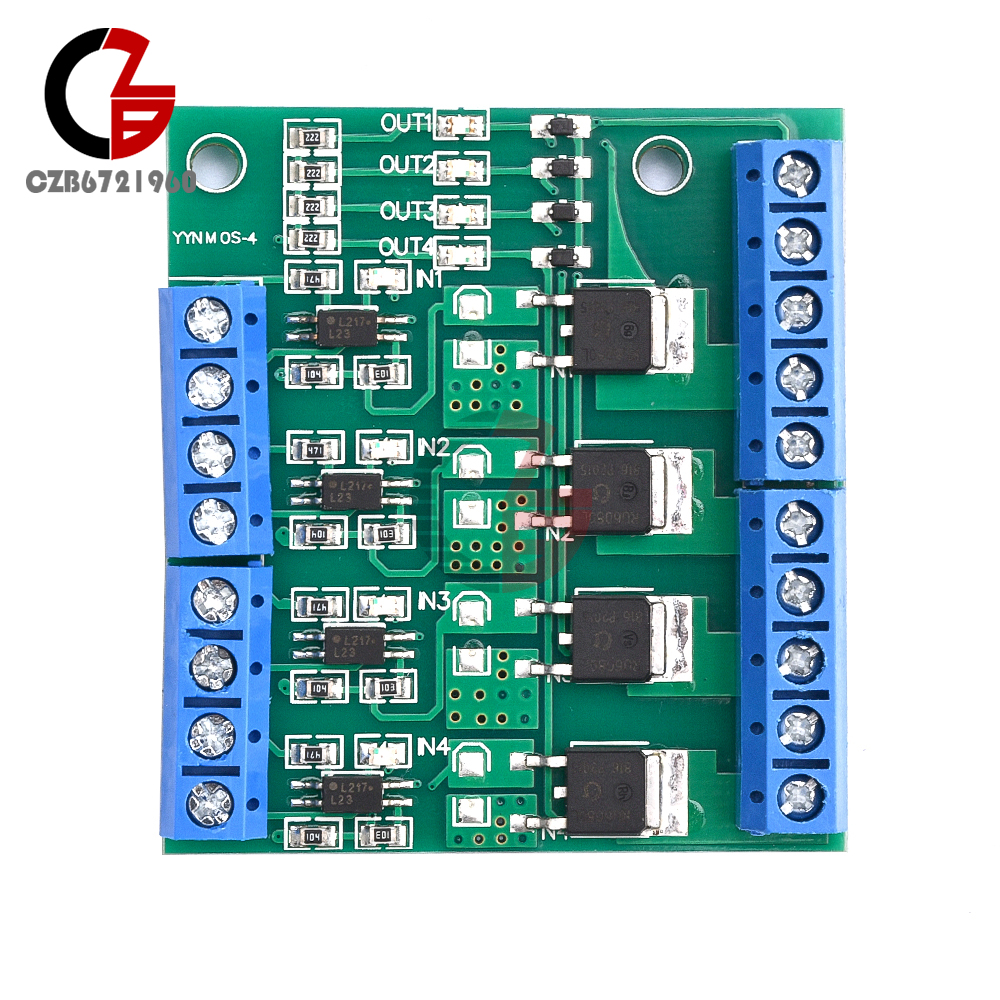

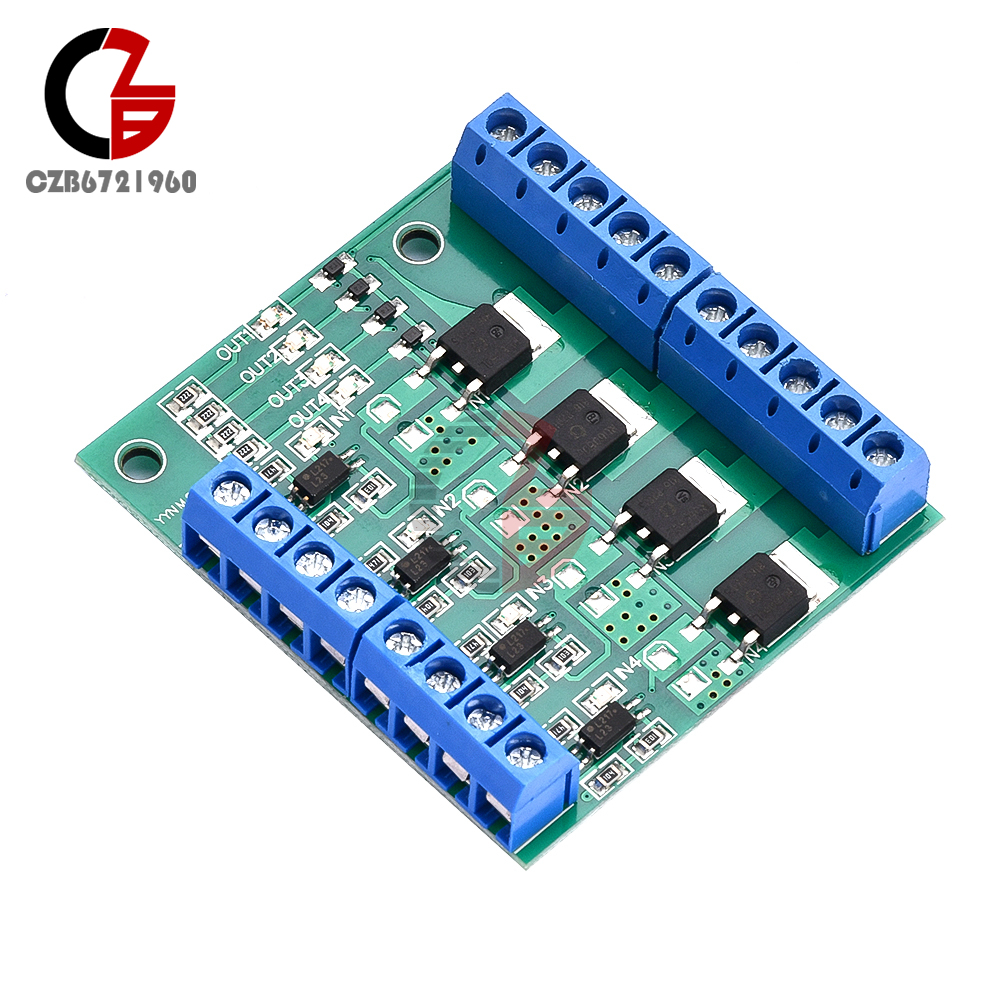

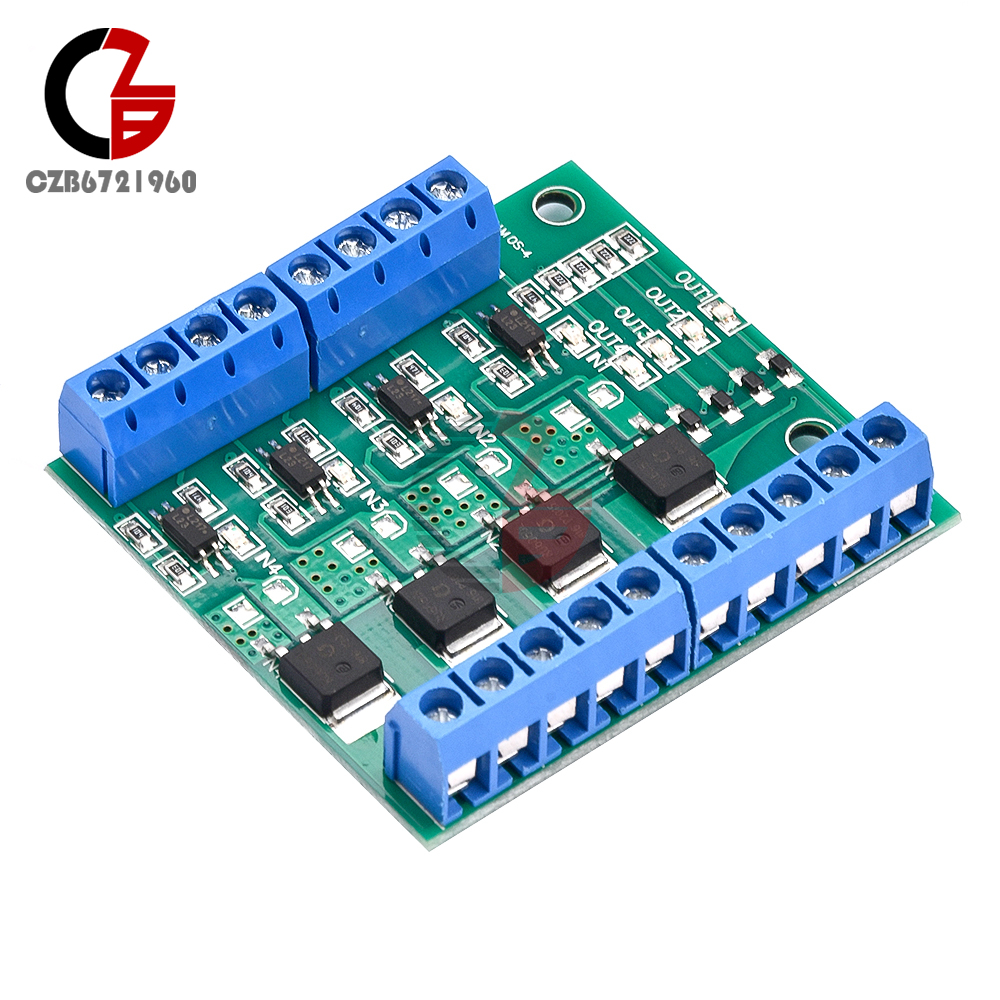

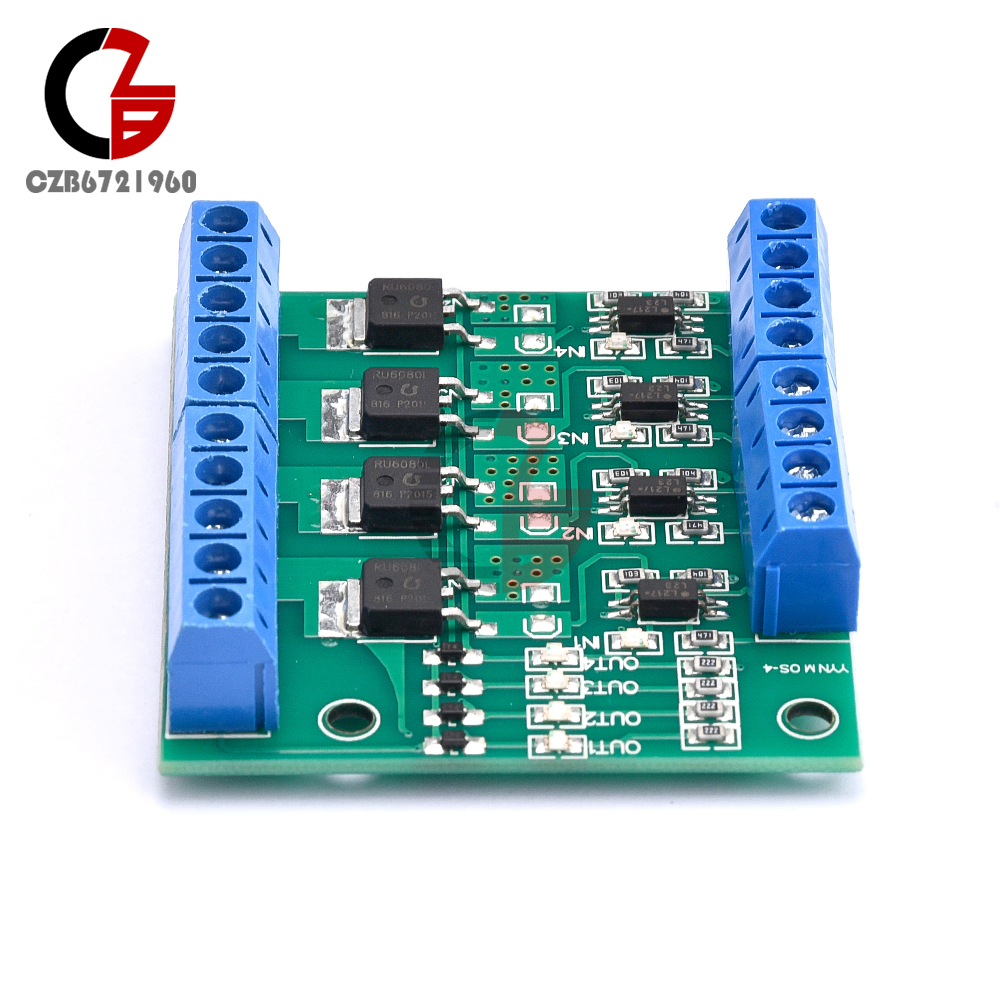

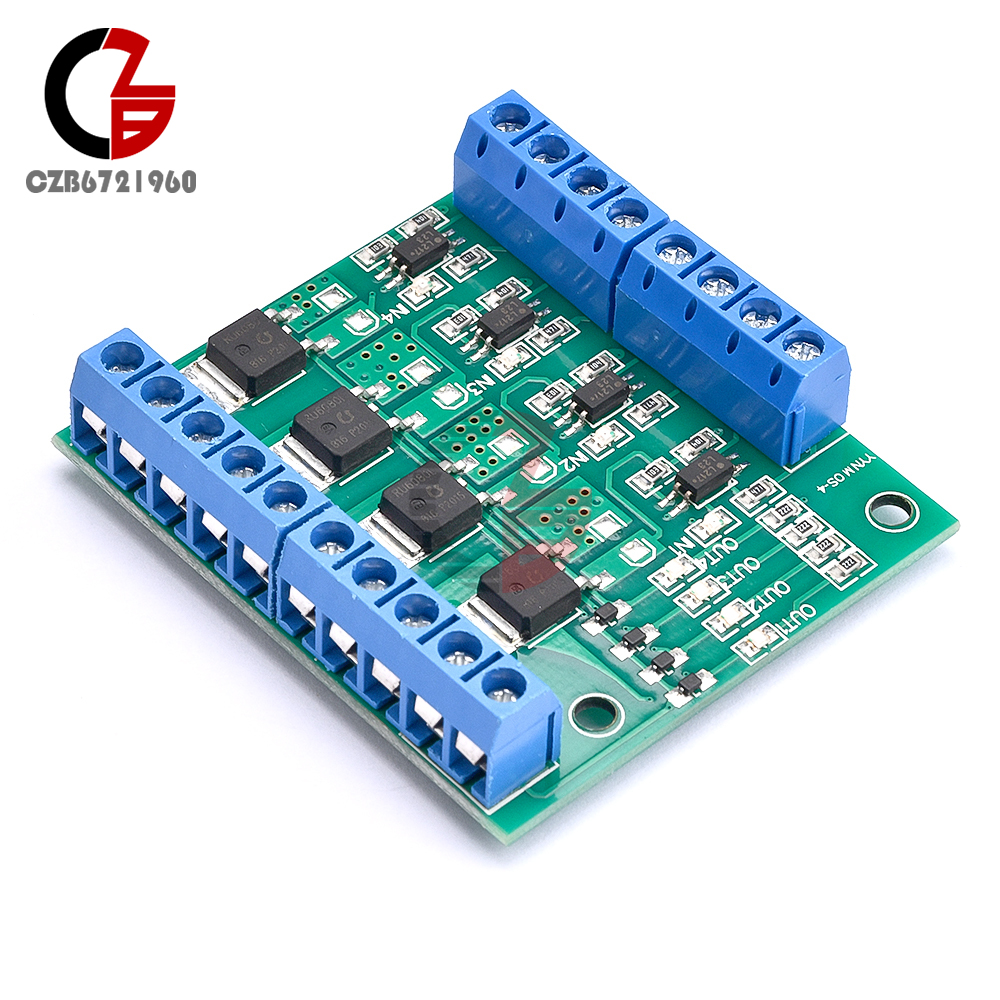

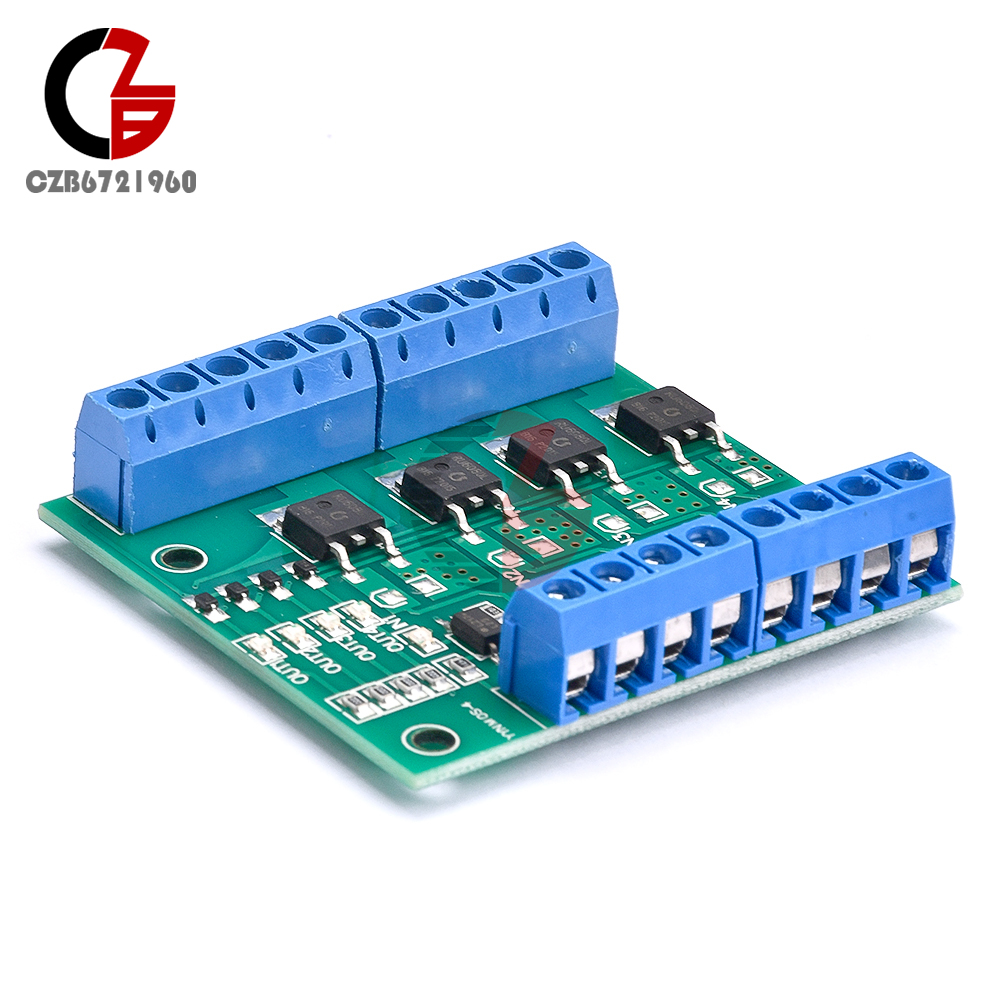

4 Channel MOS FET Optocoupler Isolated Drive Switch Module PWM PLC Circuit Board
Popular
Product Introduction
Features
1. Strong anti-interference ability: adopting opto-coupler isolation technology to ensure complete isolation of input signals and outputs, stable and reliable performance, suitable for complex electromagnetic environments.
2. Intuitive status indication: Equipped with input signal and output indicator, real-time monitoring of the working status, convenient for debugging and maintenance.
3. Wide range PWM frequency support: compatible with 0~200Hz PWM frequency, meet the needs of a variety of application scenarios, higher flexibility.
4. High-efficiency drive design: Combined with FET module and PLC amplifier circuit board, it provides strong drive capability, more efficient and stable operation.
5. Application Note: The output can control high-power devices, motors, light bulbs, LED light strips, DC motors, micro pumps, solenoid valves and so on.
1. Strong anti-interference ability: adopting opto-coupler isolation technology to ensure complete isolation of input signals and outputs, stable and reliable performance, suitable for complex electromagnetic environments.
2. Intuitive status indication: Equipped with input signal and output indicator, real-time monitoring of the working status, convenient for debugging and maintenance.
3. Wide range PWM frequency support: compatible with 0~200Hz PWM frequency, meet the needs of a variety of application scenarios, higher flexibility.
4. High-efficiency drive design: Combined with FET module and PLC amplifier circuit board, it provides strong drive capability, more efficient and stable operation.
5. Application Note: The output can control high-power devices, motors, light bulbs, LED light strips, DC motors, micro pumps, solenoid valves and so on.
Specifications
Input signal: PWM signal between 4-20V
Output capacity: DC 3.7V~27V, current within 10A per circuit
PWM frequency: 0~200HZ

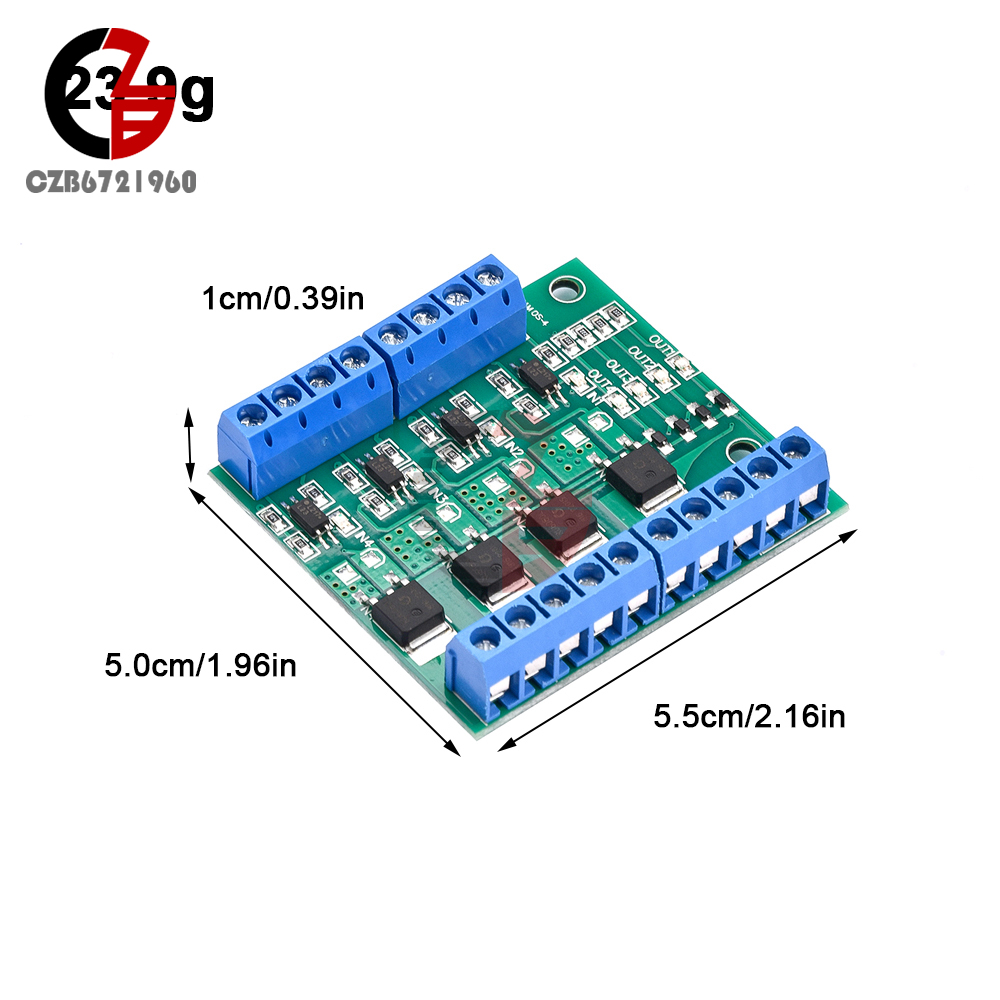

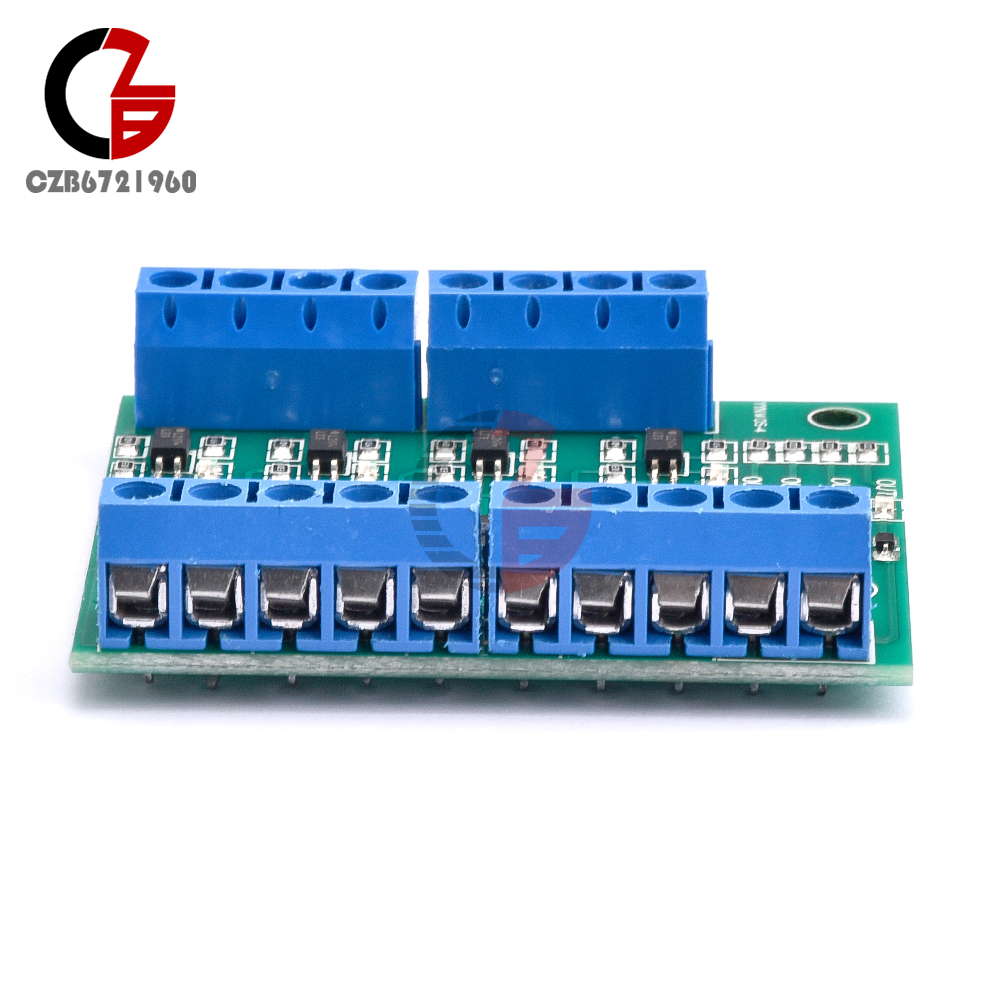

Product size: 55*50*10mm
Application Note: The output side can control high-power devices, motors, light bulbs, LED light strips, DC motors, miniature pumps, solenoid valves and so on. The PWM can be input to control the speed of motor, brightness of light, etc.

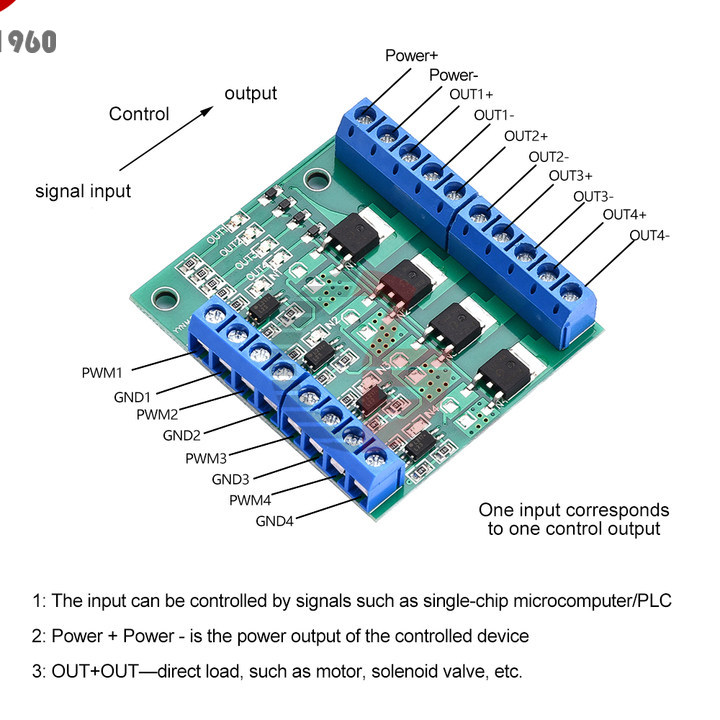

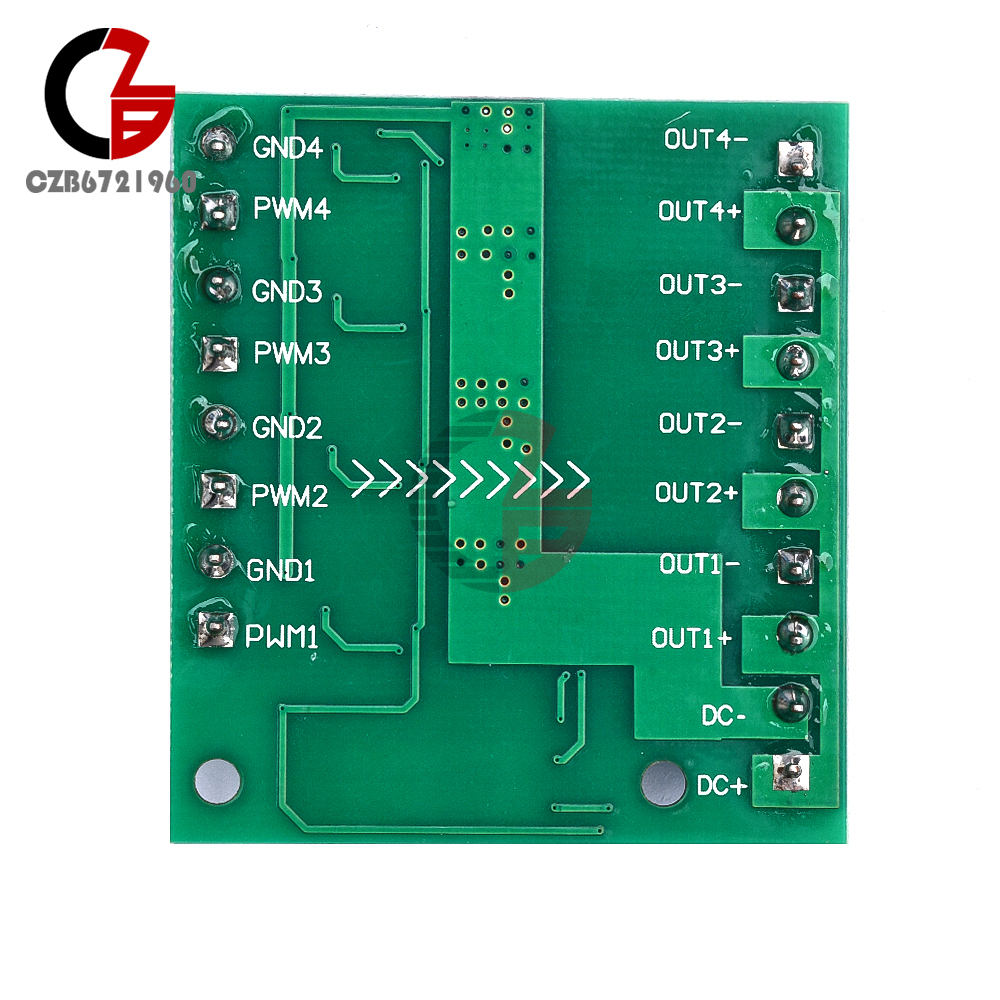

Module Interface Description:
1, DC+: positive pole of DC power supply of the equipment
2, DC-: negative pole of DC power supply of the equipment
3, PWM: signal input (connected to MCU IO port, PLC interface, DC power supply, etc.)
4, GND: negative pole of the signal
5, OUT+: positive pole of output (connected to the positive pole of the equipment)
6, OUT-: negative pole of output (connected to the negative pole of the equipment)
Input signal: PWM signal between 4-20V
Output capacity: DC 3.7V~27V, current within 10A per circuit
PWM frequency: 0~200HZ
Product size: 55*50*10mm
Application Note: The output side can control high-power devices, motors, light bulbs, LED light strips, DC motors, miniature pumps, solenoid valves and so on. The PWM can be input to control the speed of motor, brightness of light, etc.
Module Interface Description:
1, DC+: positive pole of DC power supply of the equipment
2, DC-: negative pole of DC power supply of the equipment
3, PWM: signal input (connected to MCU IO port, PLC interface, DC power supply, etc.)
4, GND: negative pole of the signal
5, OUT+: positive pole of output (connected to the positive pole of the equipment)
6, OUT-: negative pole of output (connected to the negative pole of the equipment)
Package includes
1 x module
1 x module
