1, Vertical Alignment Adjustment: Equipped with a semi-circular groove and reinforced bolts for precise angle adjustment, ensuring perpendicular alignment between tap and workpiece to prevent tap breakage.
2, Height-Adjustable Beam: Features a solid steel column and thickened steel beam. Adjust the fixing ring to meet varying workpiece heights.
3, Brass Bearing Joints: Aluminum alloy parallel arms with brass bearings for smooth rotation, wear resistance, and extended lifespan.
4, Dual Cantilever + Gas Spring: Dual-arm stabilization and gas spring support for quick reset and enhanced stability during operation.
5, Stepless Speed Control: Adjust speed up to 200r/min (max). Lower speed for reduced torque; higher speed for increased efficiency. Optimized for different tapping diameters.

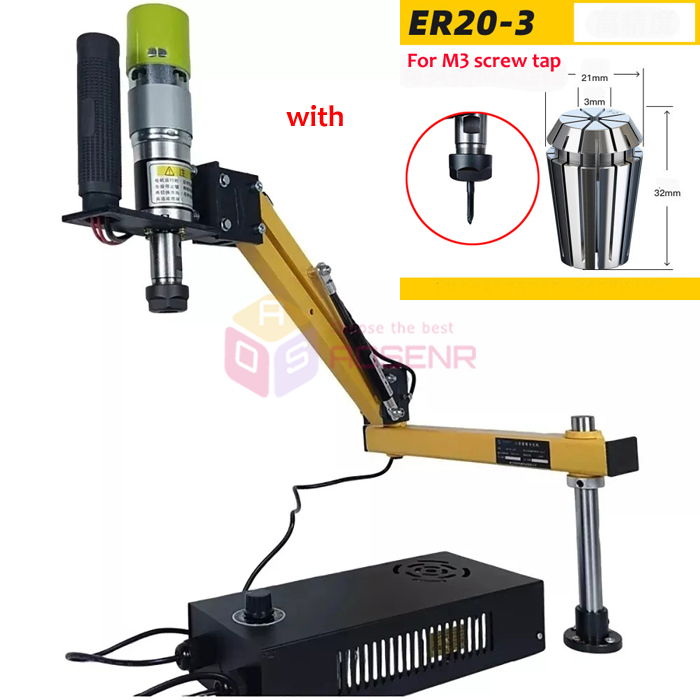

6, ER Spring Collet: High-grip ER collet securely holds taps to prevent slippage, ensuring efficient and precise threading.
Specifications:
Name: Mini Cantilever Electric Tapping Machine
Input Voltage: AC110V/AC220V (change by switch)
Applicable Thread Sizes:
Steel: 3-12mm / Aluminum: 3-14mm
Cast Iron: 3-14mm / Plastic: 3-14mm

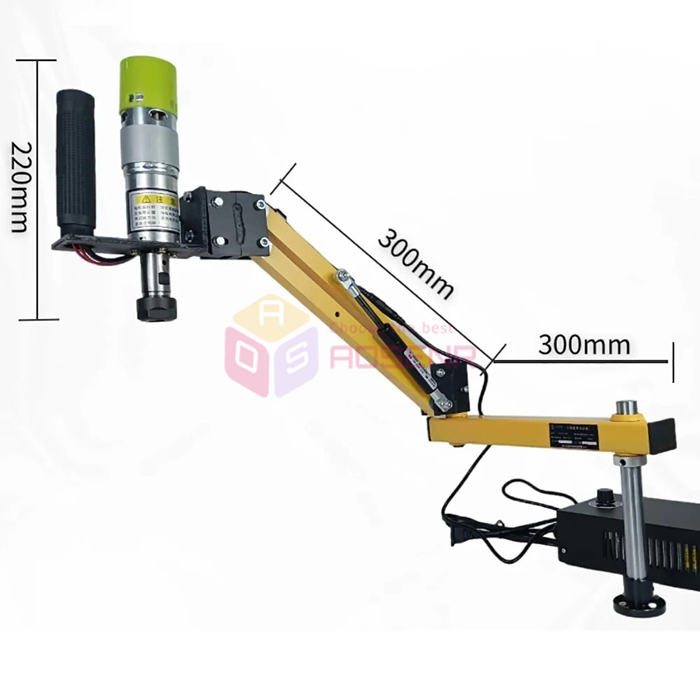

Working Radius: 600mm
Speed Range: 0-250r/min

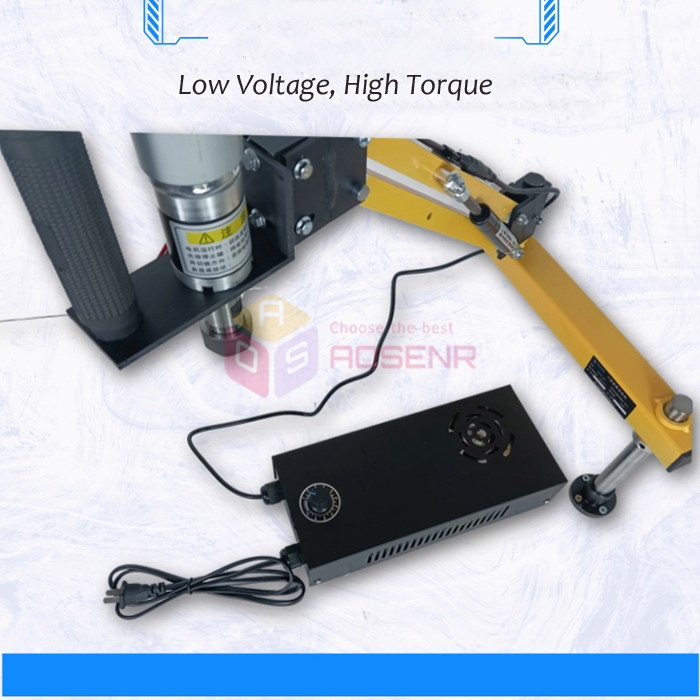

Motor Power: 360W (Low Voltage, High Torque)
Weight: 7kg
Package includes:
1 x Swing Arm Tapping Threading Machine
1 x Collet
