AIM MXK10 Kawasaki ZX-10R (Gen5 2016-19) Motorcycle Plug & Play Dash Logger

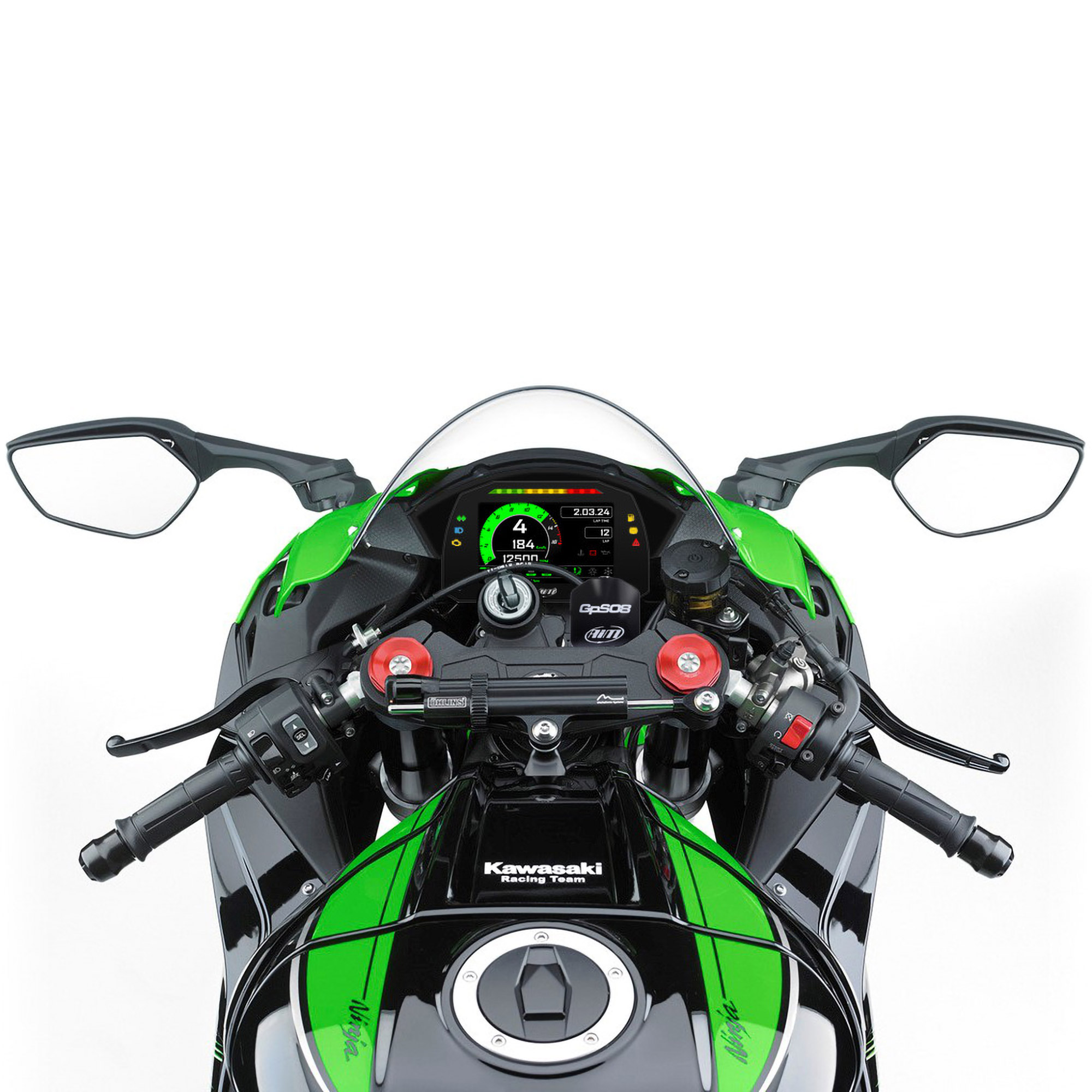

    The AIM Motorsport MXK10 is a plug and play dash display and data logger specific to Kawasaki Ninja ZX-10R (Generation 5) bikes from 2016-2019. The dash is completely compatible with the original wiring plug and a bike specific mounting bracket provide hassle free fitment.

    • Specific to Kawasaki Ninja ZX-10R, ZX-10RR and ZX-10R SE bikes (Gen 5) from 2016-2019
    • Easy plug and play installation
    • 4GB data recording with USB or WiFi connectivity for downloading data
    • GPS lap timing with built in track recognition
    • Expansion port allows additional sensors or AIM Smartycam HD camera to be added

    The MXK10 dash logger from AIM Motorsport is the perfect tool for track day bikes as it allows you to monitor and record the parameters of your bikes performance for review. This data can be used to highlight faults or to see where improvements can be made from the bikes setup or riders lines or braking points.

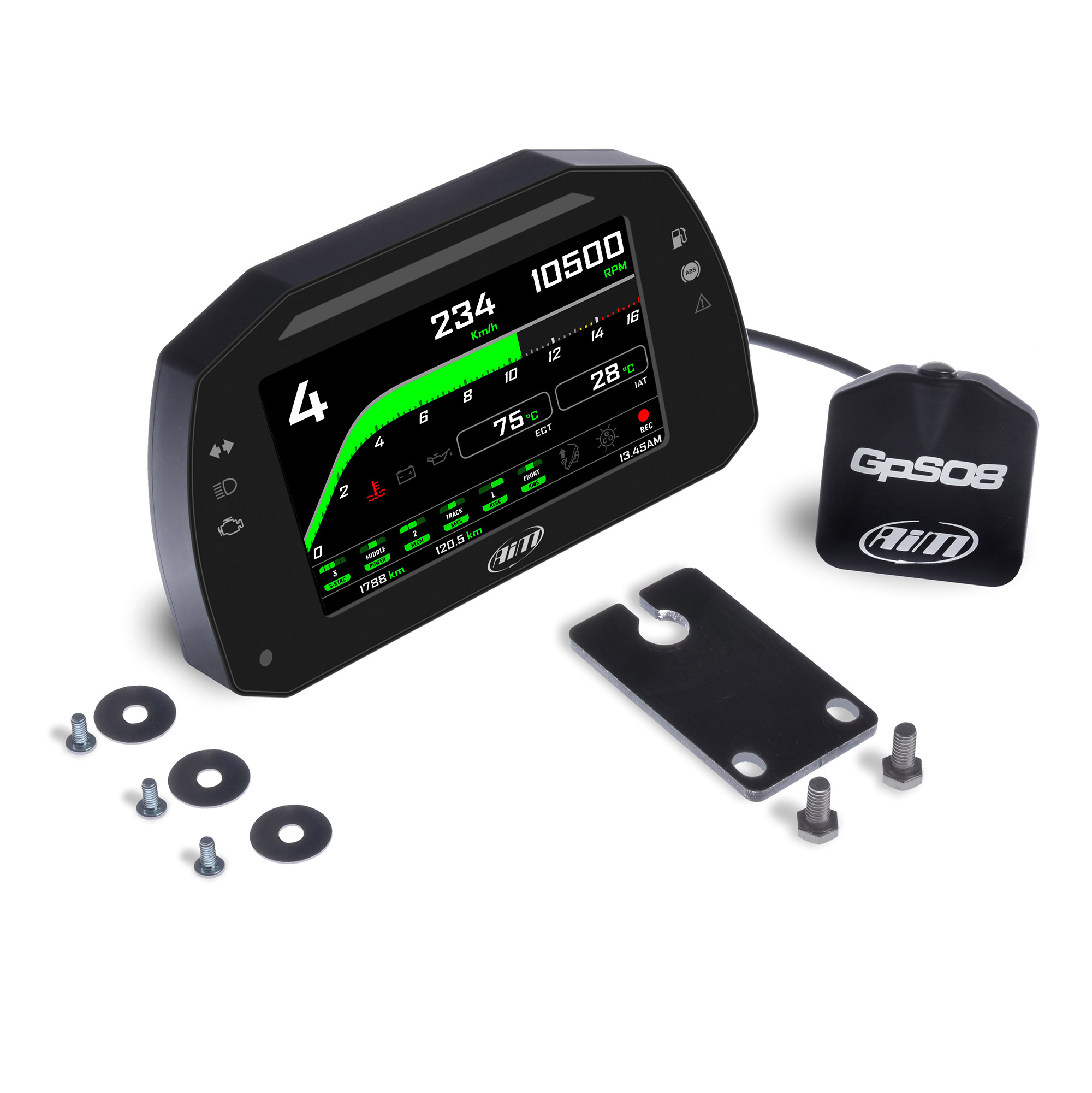

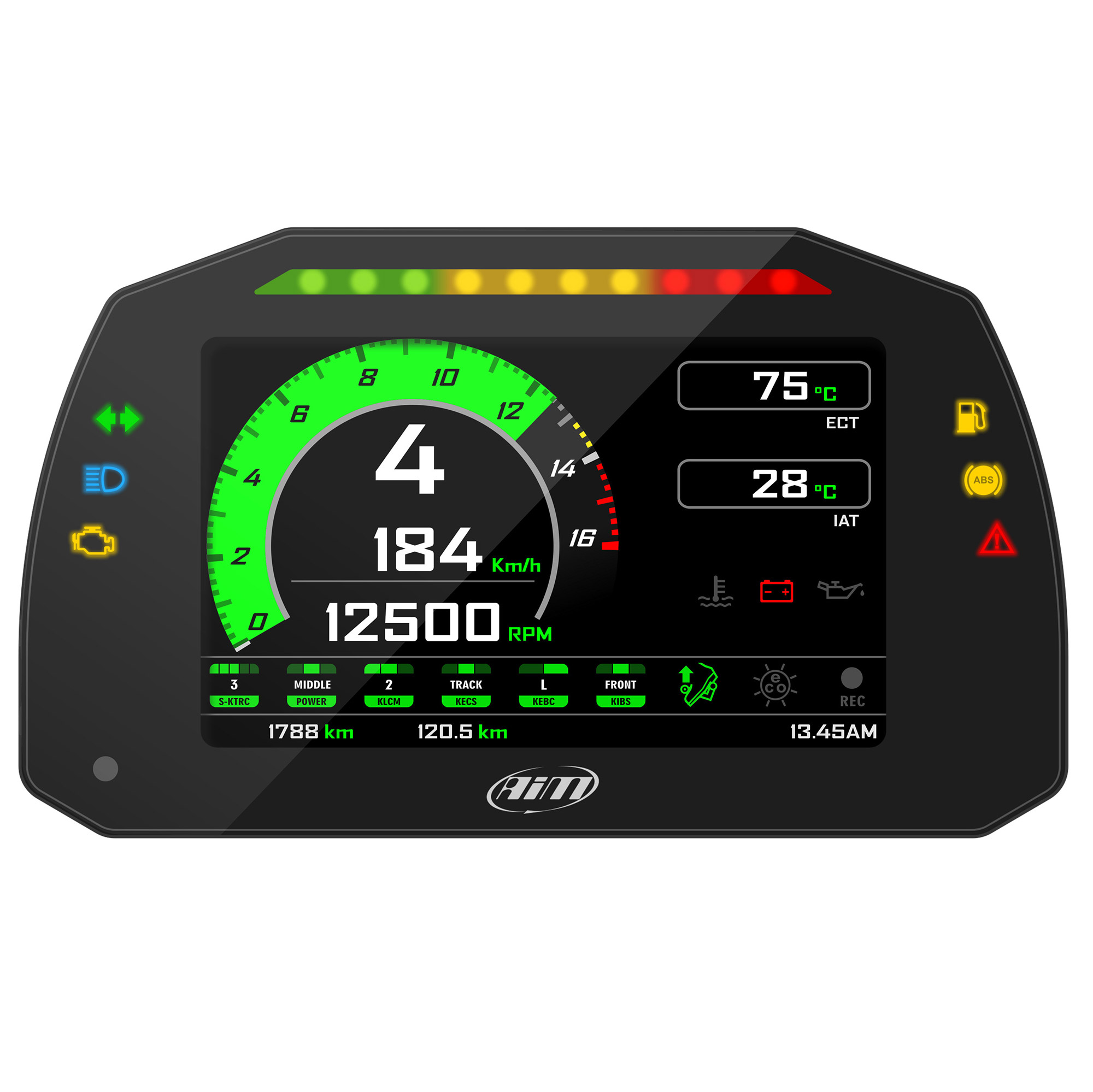

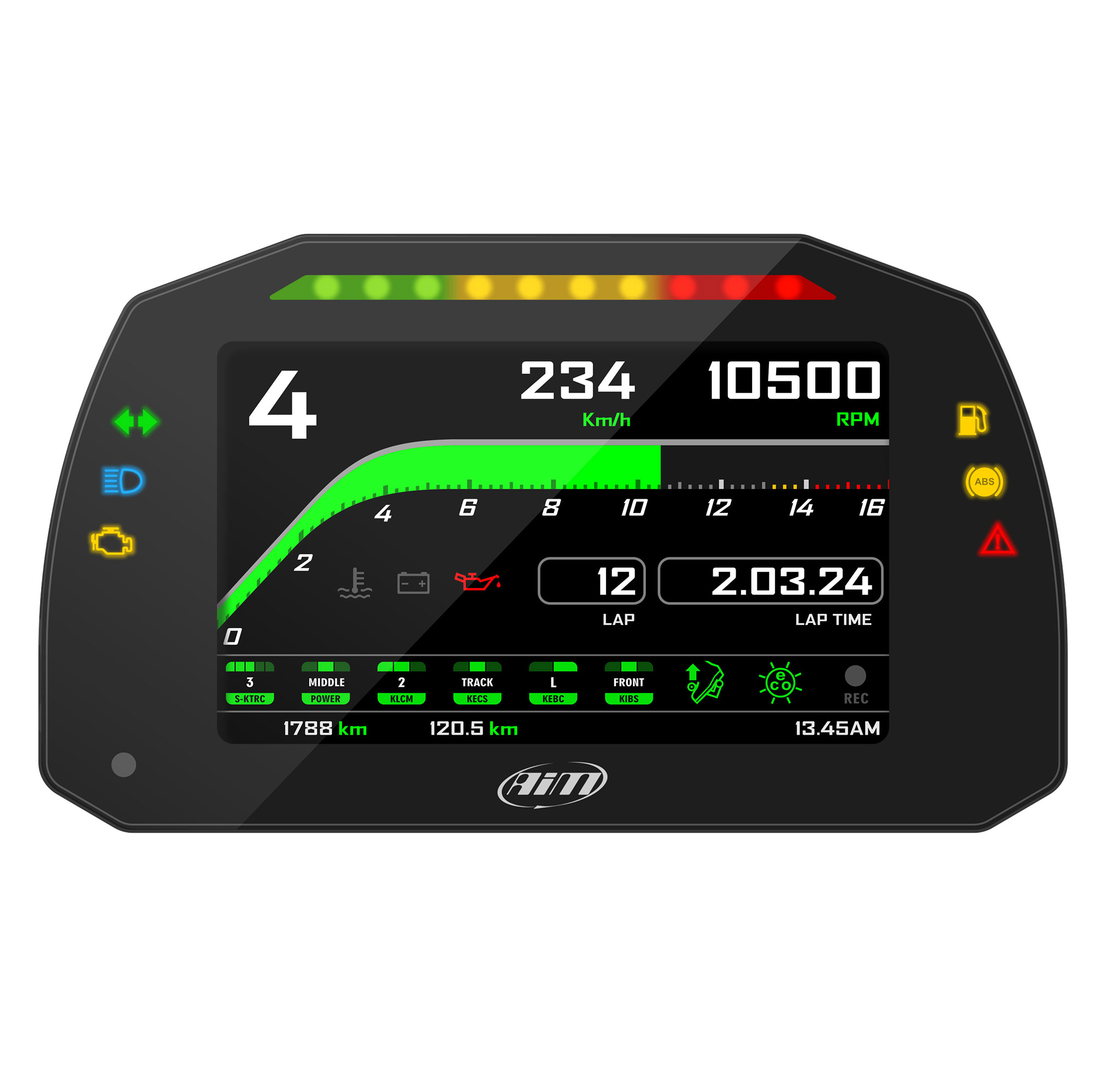

    The MXK10 features a 5" high contrast TFT screen which gives the rider crystal clear vision whatever the conditions. The display is user configurable and can show all the information the OEM dash did plus mush more. The dash is supplied with a GPS08 module which provides accurate GPS lap timing and track mapping. In-built track recognition software means no sighting laps are needed, the dash knows the track already so you will get times from your first lap on track.

    The MXK10 dash includes AIM Motorsports Race Studio 3 software which enables you to display all the data in easy to understand graphs, histograms or tables so you can quickly make comparisons from different laps, sessions or track days.

    A modular system: Using the built-in CAN bus you can add optional expansion modules to visualise additional information:

    Channel Expansion - Add up to 4 0-5 Volt analogue channels.
    SmartyCam - A range of compact HD cameras designed specifically for motorsport use.
    LCU One S Lambda Controller - Wide band Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data, lambda value and exhaust gas temperature, allows for perfect tuning of the fueling.
