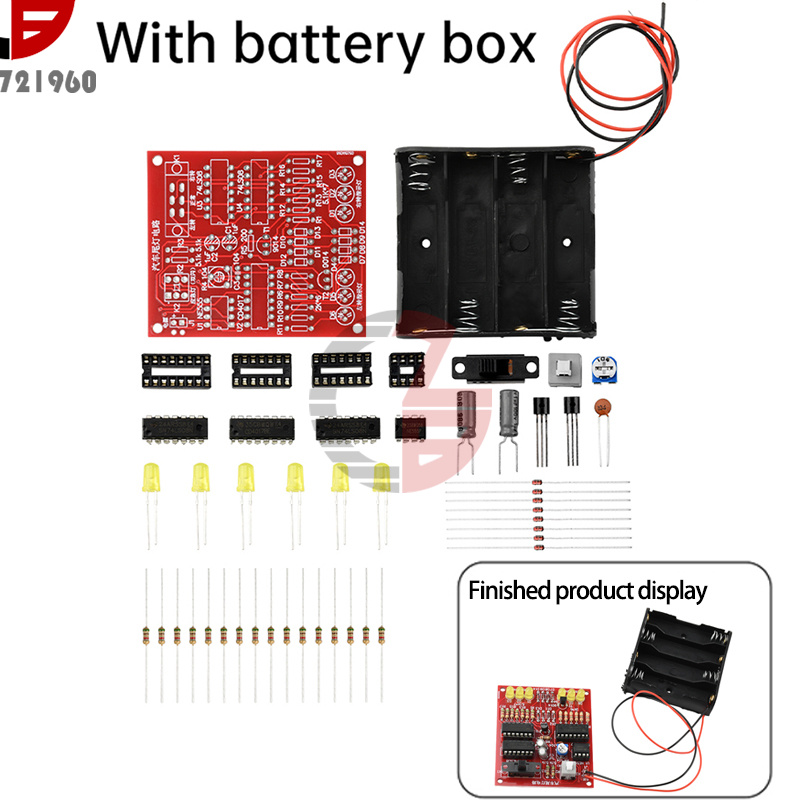

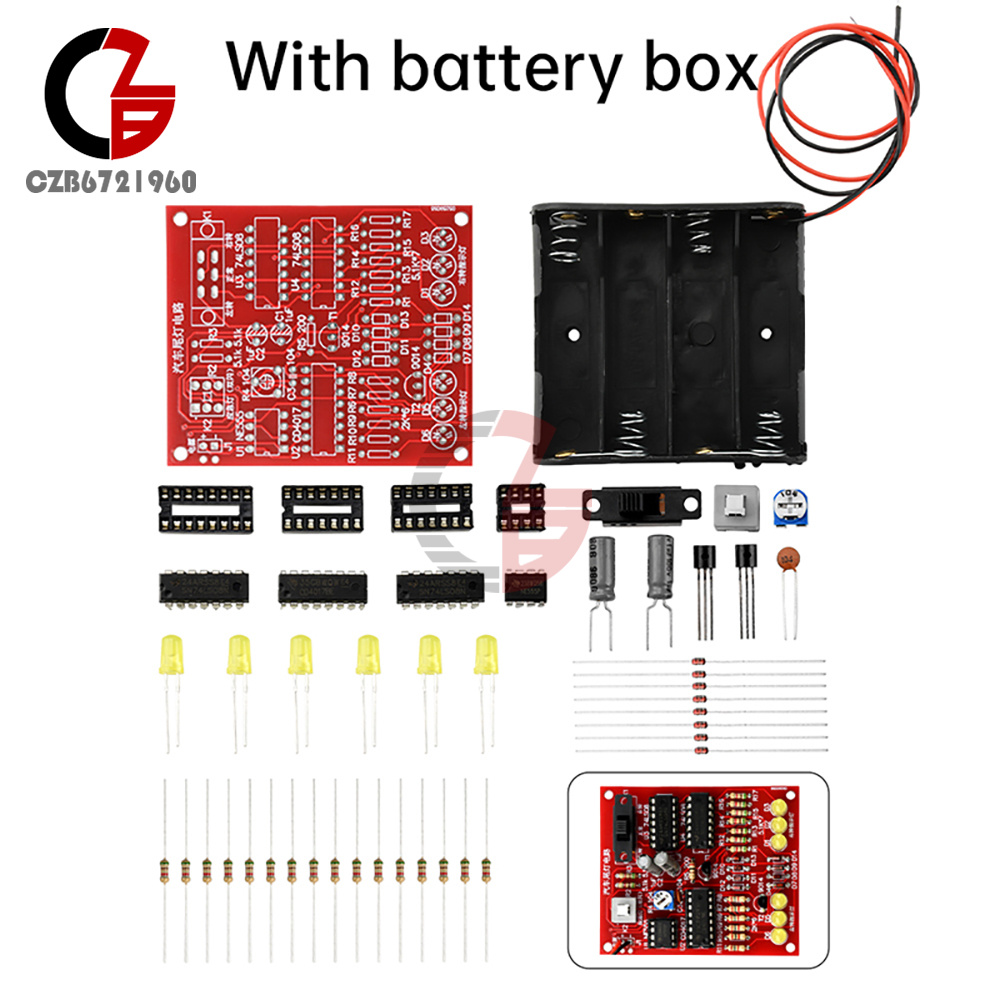

DIY Simulation Car Light Soldering Electronic Kit With Battery Box Welding Learn
Popular
Product Introduction
Features

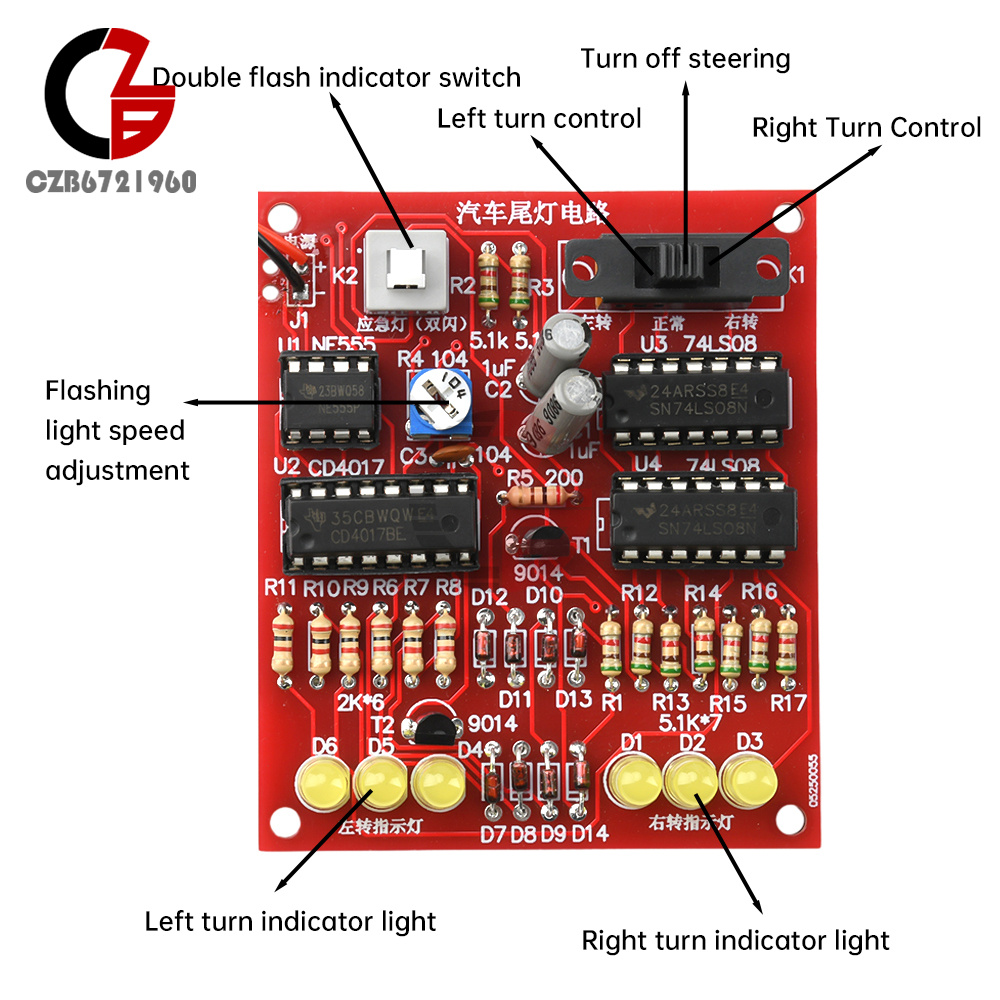

1. Left and right have three indicator lights, simulating car tail lights: left turn, right turn, double blinking

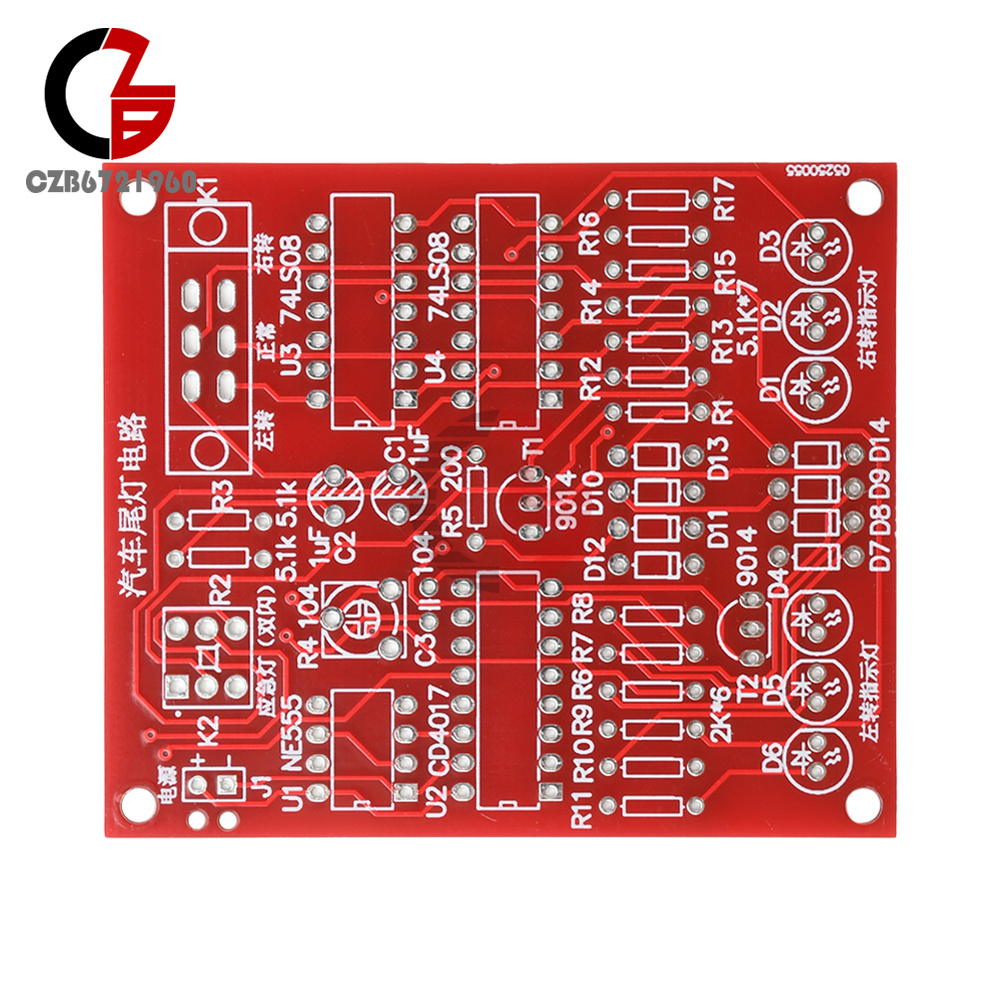

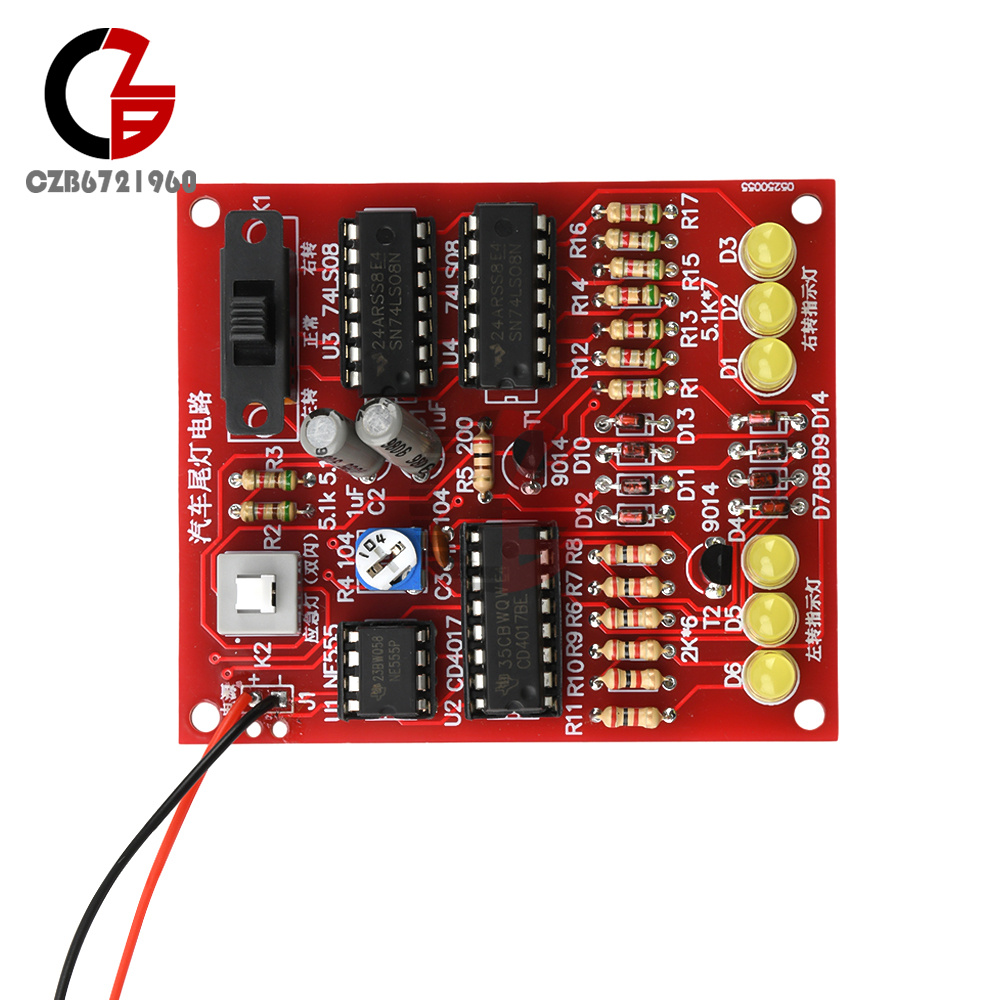

2. 6 light-emitting diodes on the circuit board for the direction of the left positive pole, the right negative pole
3. R4 is a 100K potentiometer, used to adjust the indicator flow or blinking frequency

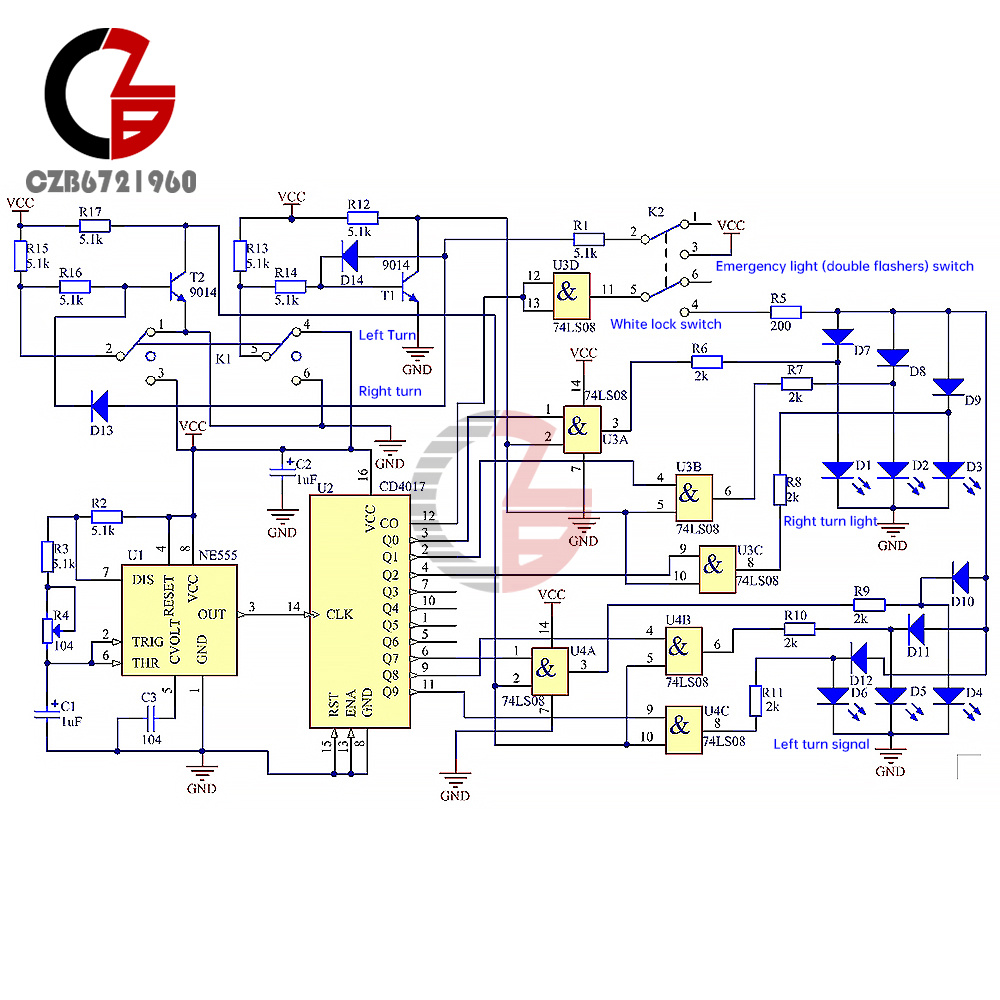

4. The circuit consists of a pulse generator, running light circuit, left turn right turn control circuit, emergency light control circuit
5. D7, D8, D9, D10, D11, D12 the role of the six diodes is to ensure that the left and right turn signal and emergency lights signal independent transmission, to avoid causing confusion and misconnections
6. Self-locking switch installed in accordance with the direction shown on the circuit board, then press down, emergency lights flashing, not press down to stop flashing; if installed in reverse, then press down to stop flashing, not press down to flash!
1. Left and right have three indicator lights, simulating car tail lights: left turn, right turn, double blinking
2. 6 light-emitting diodes on the circuit board for the direction of the left positive pole, the right negative pole
3. R4 is a 100K potentiometer, used to adjust the indicator flow or blinking frequency
4. The circuit consists of a pulse generator, running light circuit, left turn right turn control circuit, emergency light control circuit
5. D7, D8, D9, D10, D11, D12 the role of the six diodes is to ensure that the left and right turn signal and emergency lights signal independent transmission, to avoid causing confusion and misconnections
6. Self-locking switch installed in accordance with the direction shown on the circuit board, then press down, emergency lights flashing, not press down to stop flashing; if installed in reverse, then press down to stop flashing, not press down to flash!
Specification
Supply voltage: DC 5-6V

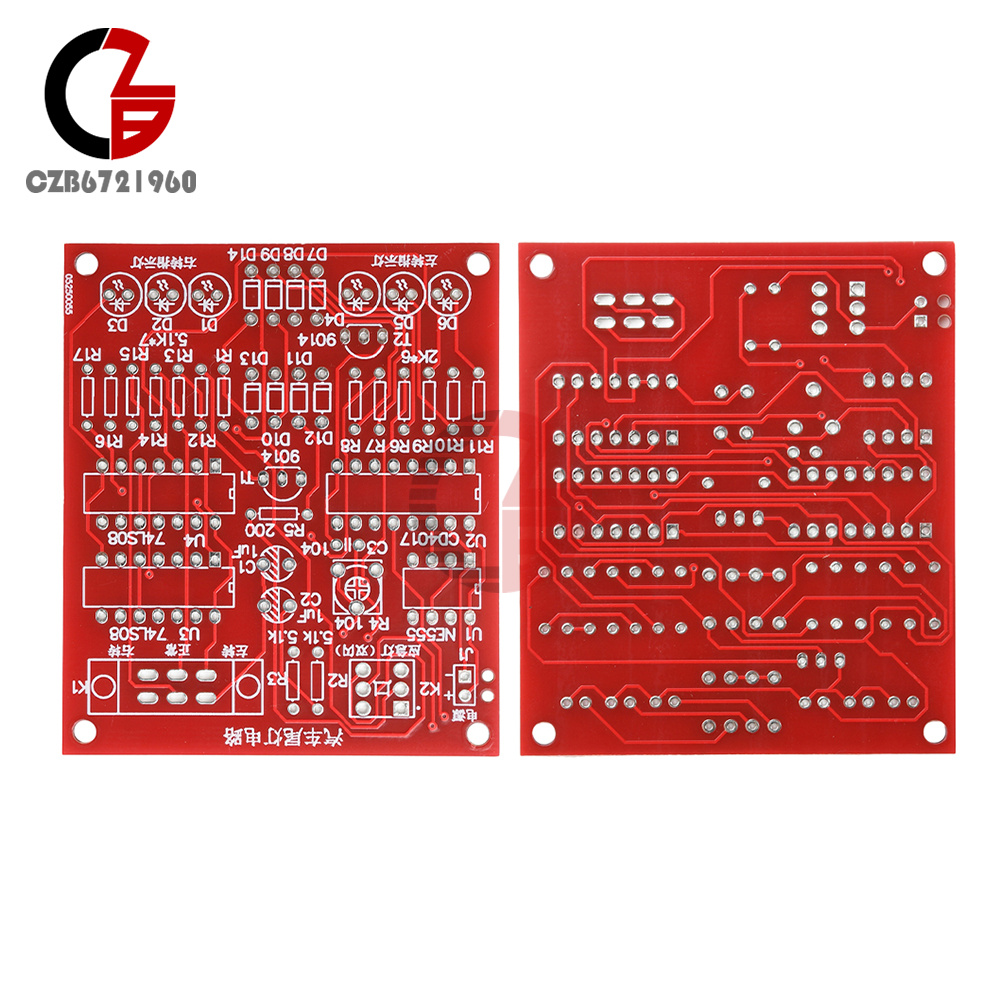

Circuit board size: 69*59mm

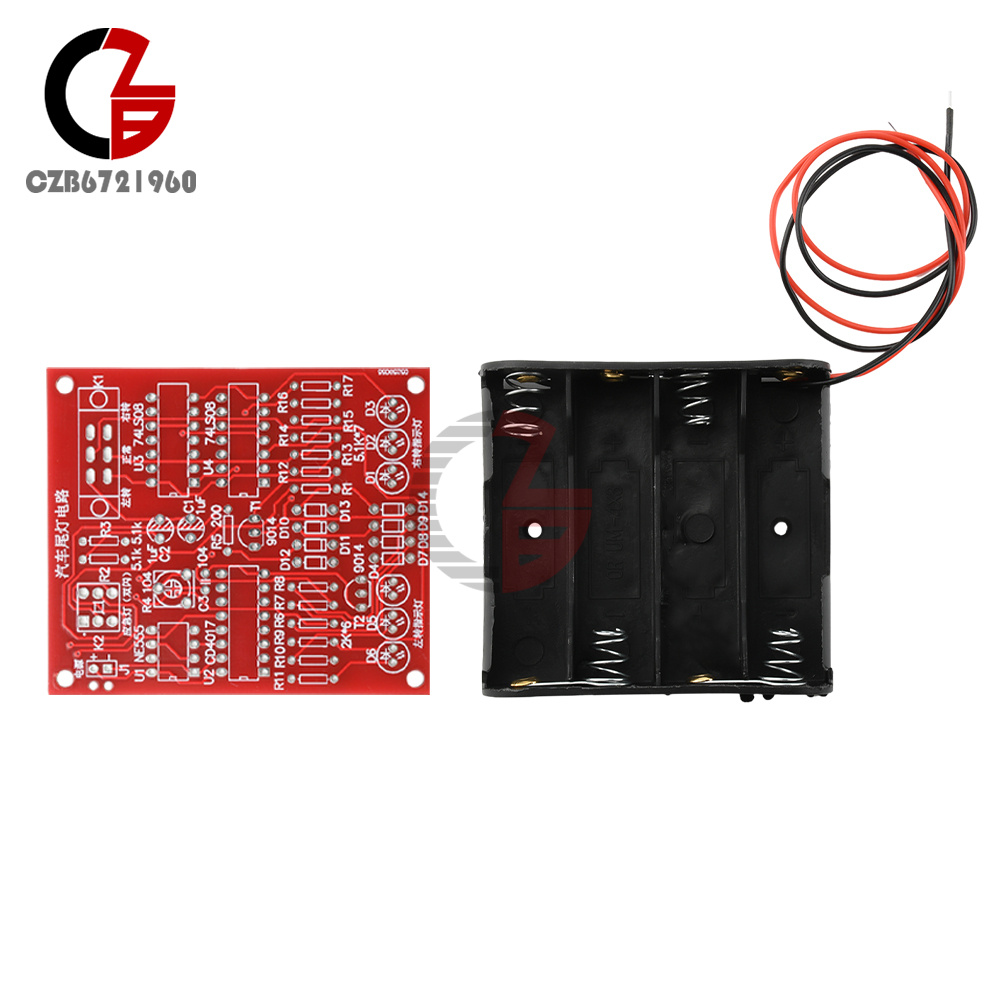

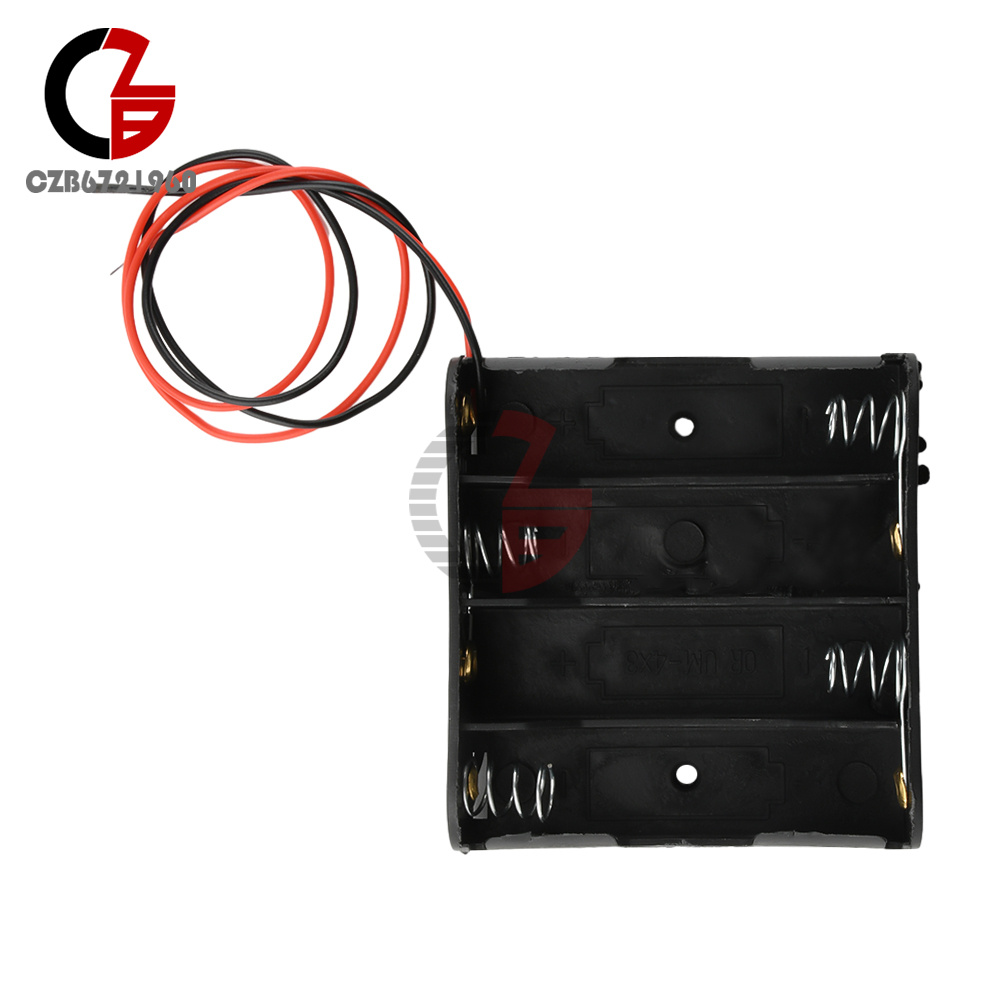

Batteries: AA * 4 (not included in the shipment)
Supply voltage: DC 5-6V
Circuit board size: 69*59mm
Batteries: AA * 4 (not included in the shipment)
Package Includes

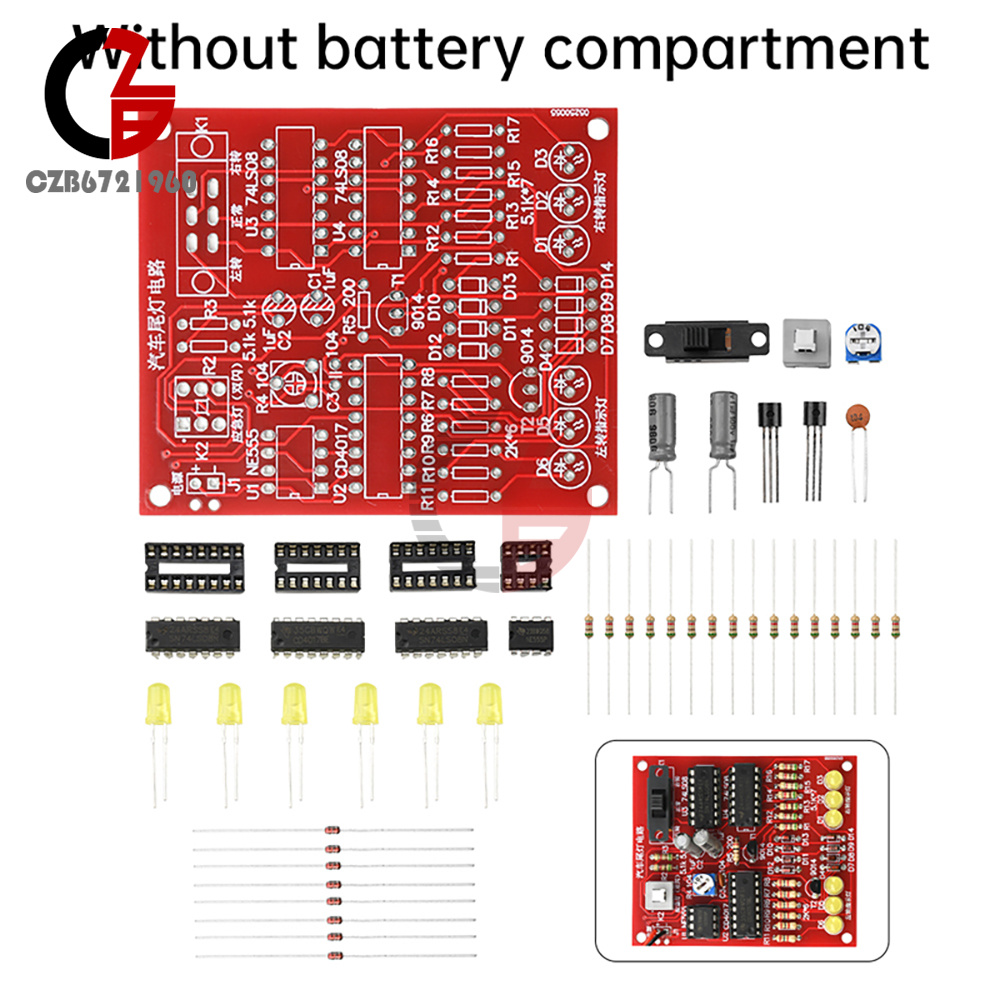

1 x DIY loose parts
1 x DIY loose parts
