Key Features

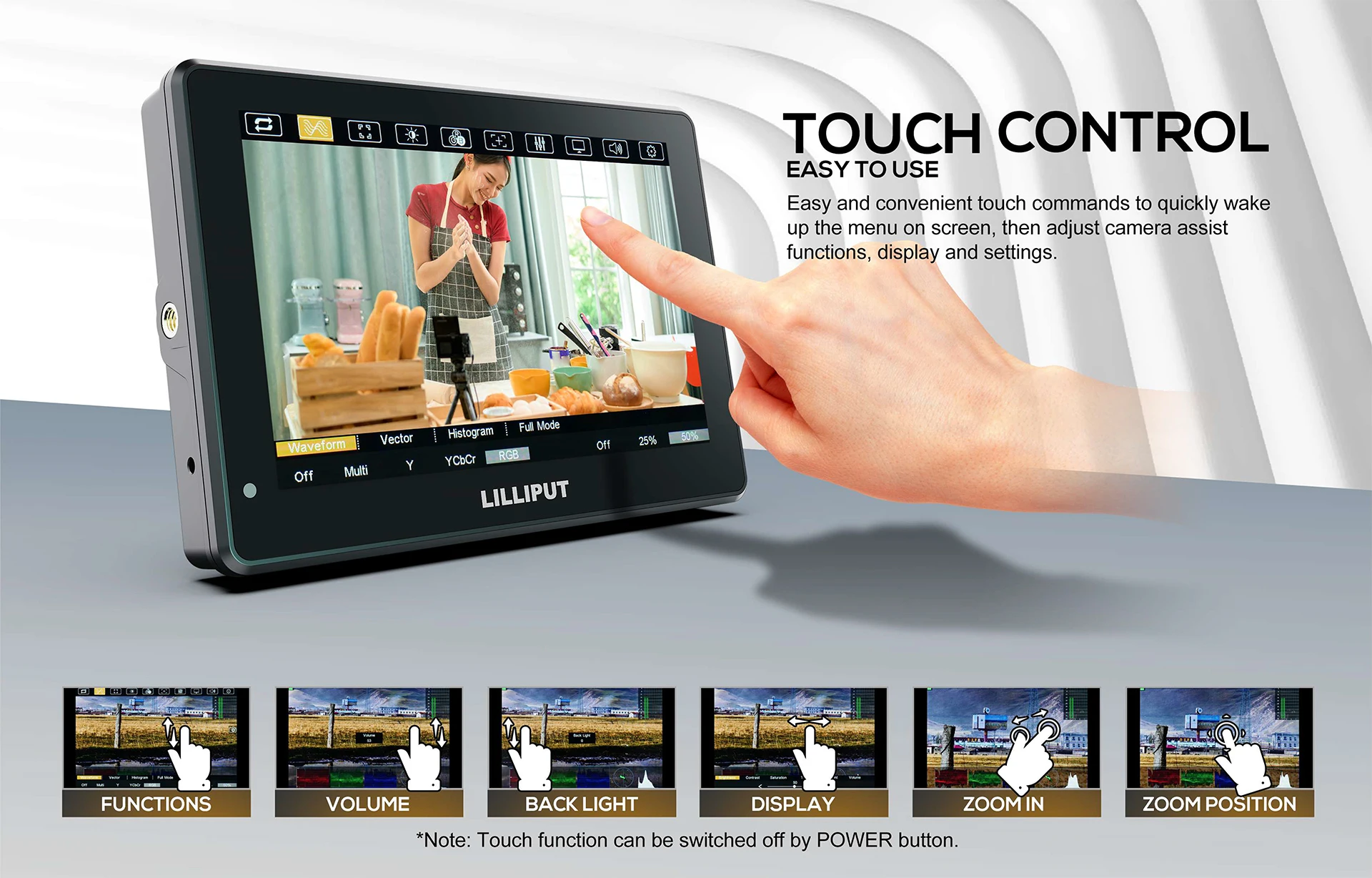

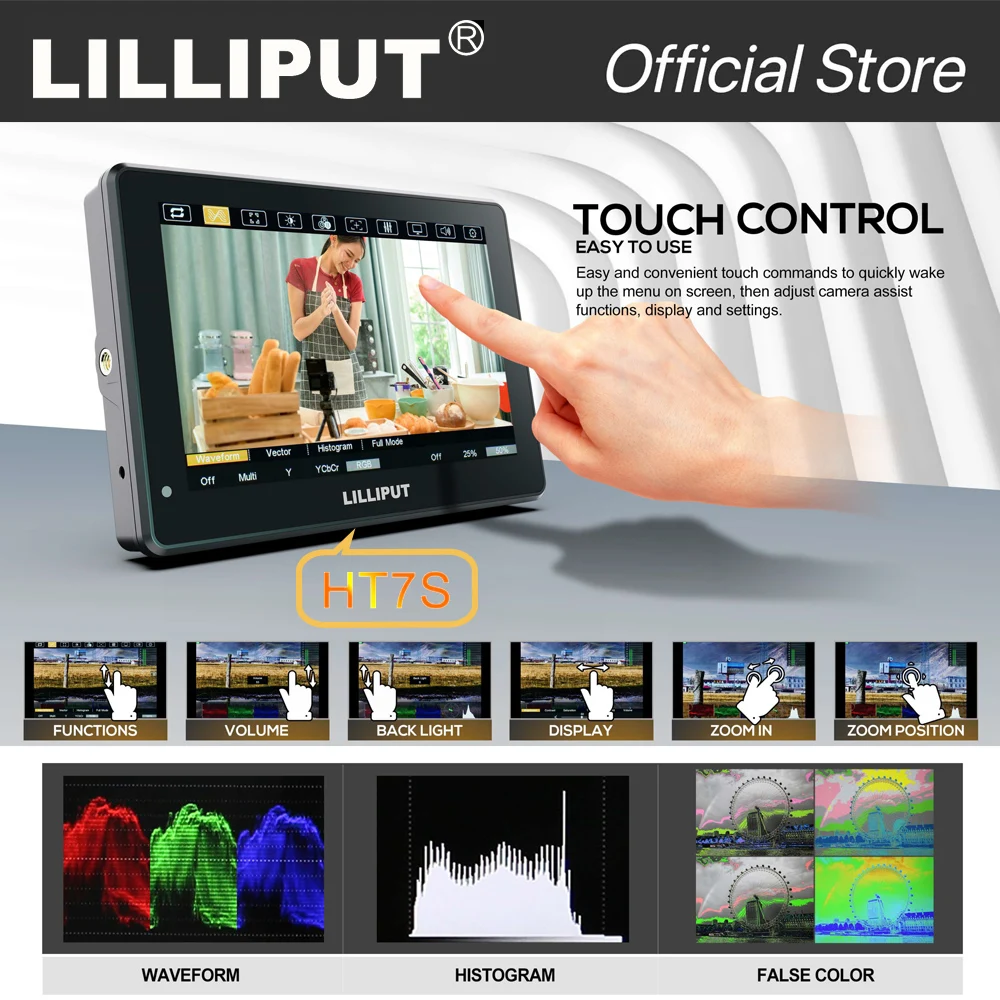

• 1920 x 1200 Native Touchscreen
• Supports up to DCI 4K Input

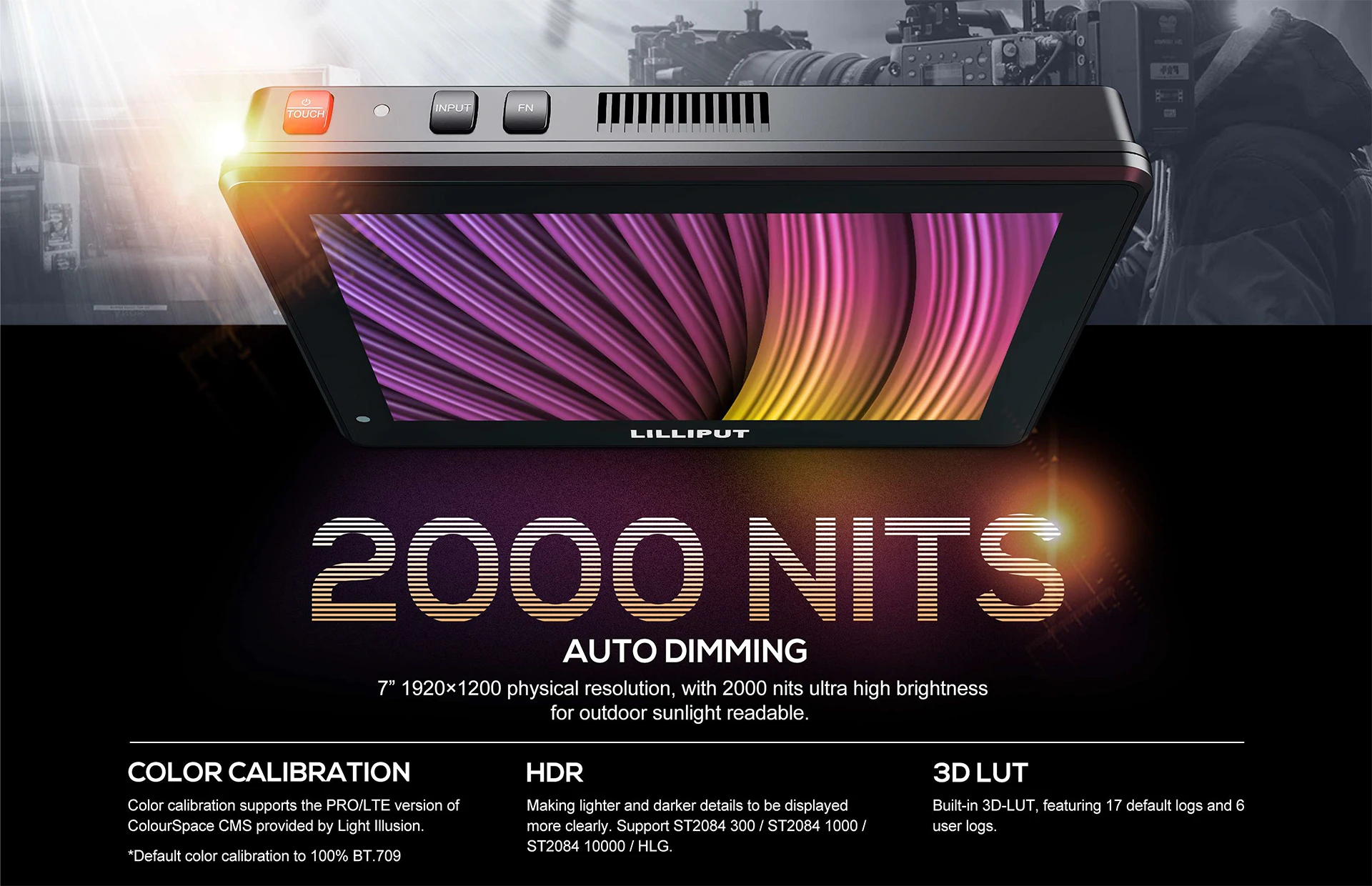

• 2000 cd/m² Brightness, HDR Support
• 1200:1 Contrast Ratio, 16:10 Aspect
• HDMI 2.0/3G-SDI Inputs/Outputs
• Hot-Swap Dual L-Series Battery Plate
• HDR Support, Load 3D LUTs via USB
• 1 x Speaker, 1 x Headphone Jack
• 3 x 1/4"-20 Mounting Threads
• 180° Tilting Shoe Mount

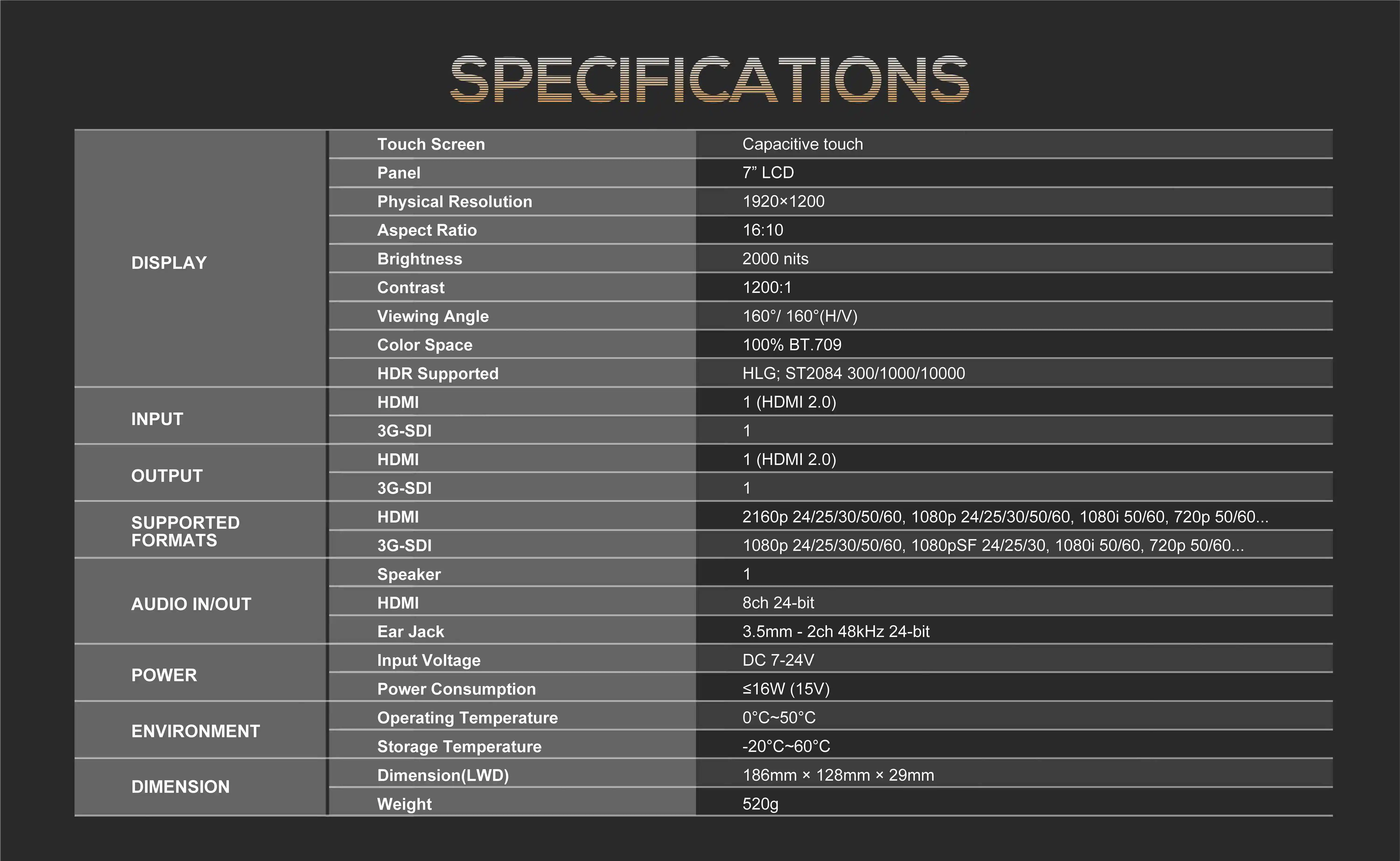

Lilliput HT7S Specs
Display
Panel Type IPS-Type LCD
Display Size 7.0" / 17.8 cm
Resolution 1920 x 1200
Aspect Ratio 16:10
Viewing Angle Horizontal: 160°
Vertical: 60°
Touchscreen No
Maximum Brightness 2000 cd/m2
Contrast Ratio 1200:1
HDR Compatibility Hybrid Log Gamma
Pixels Per Inch (ppi) 323 ppi
Real-Time LUT Monitoring HDR

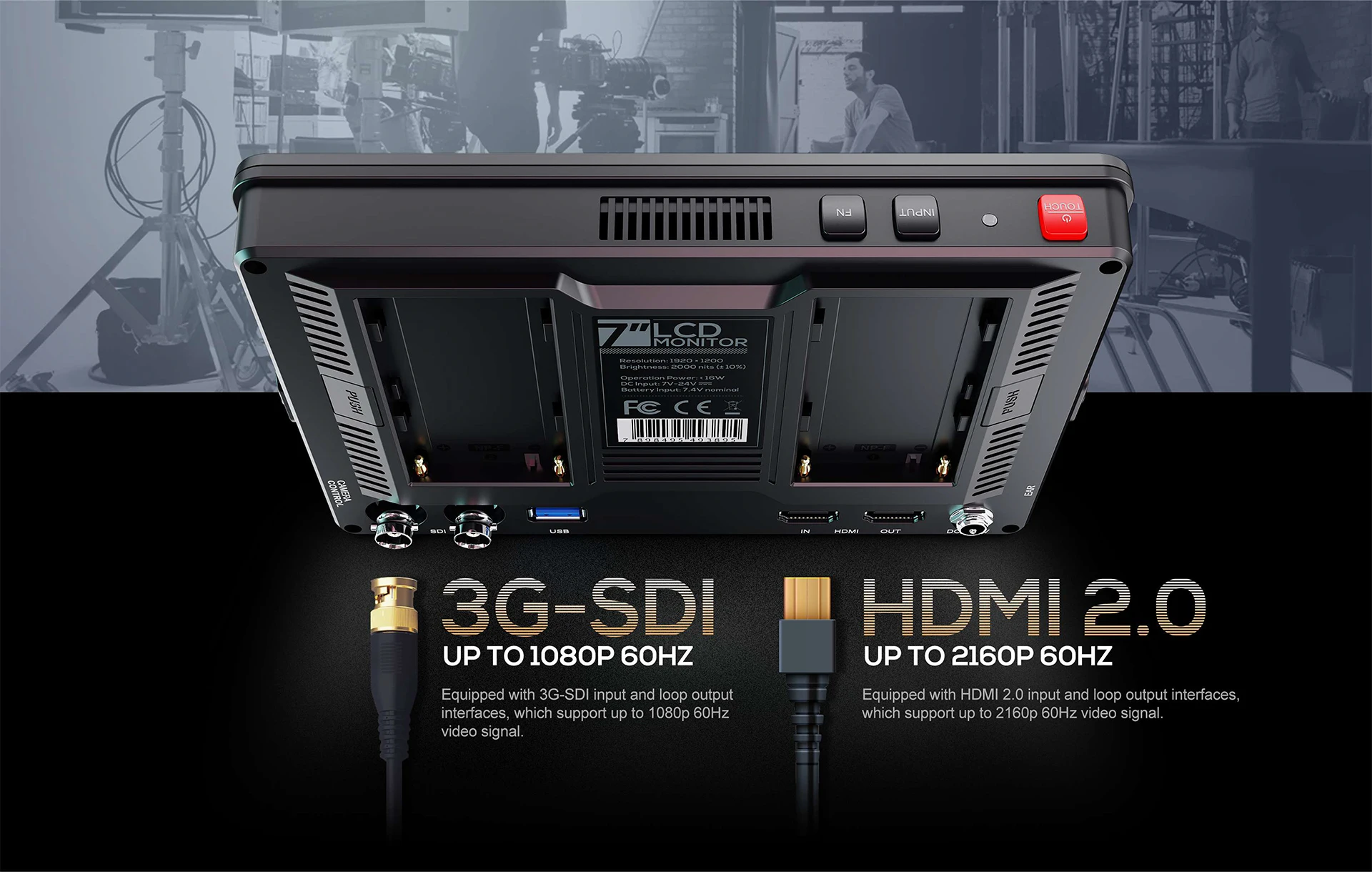

Inputs / Outputs
Video I/O 1 x HDMI 2.0 Input
1 x HDMI 2.0 Output
1 x BNC (3G-SDI) Input
1 x BNC (3G-SDI) Output
1 x HDMI 2.0 Output
1 x BNC (3G-SDI) Input
1 x BNC (3G-SDI) Output
Audio I/O 1 x 1/8" / 3.5 mm Headphone Input
Built-In Speaker 1 x 1 W
Built-In Speaker 1 x 1 W
Other I/O 1 x USB-A 2.0 Input
Media/Memory Card Slot None
Wi-Fi None
Bluetooth None
App Compatible No
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility
Media/Memory Card Slot None
Wi-Fi None
Bluetooth None
App Compatible No
*As of November, 2022: Check with manufacturer for the most up-to-date compatibility
Format Support
Video Format HDMIRGB
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080PsF: 30/25/24
1080i: 60/50
720p: 60/50
DCI 4K: 60/50/30/25/24
UHD 4K: 60/50/30/25/24
1080p: 60/50/30/25/24
1080PsF: 30/25/24
1080i: 60/50
720p: 60/50
Power
DC Input Power 7 to 24 VDC
Battery Type 2 x L-Series
Power Consumption 16 W (Maximum)
DC Input Power 7 to 24 VDC
Battery Type 2 x L-Series
Power Consumption 16 W (Maximum)
Mounting
Mounting 3 x 1/4"-20 Female
Mounting 3 x 1/4"-20 Female

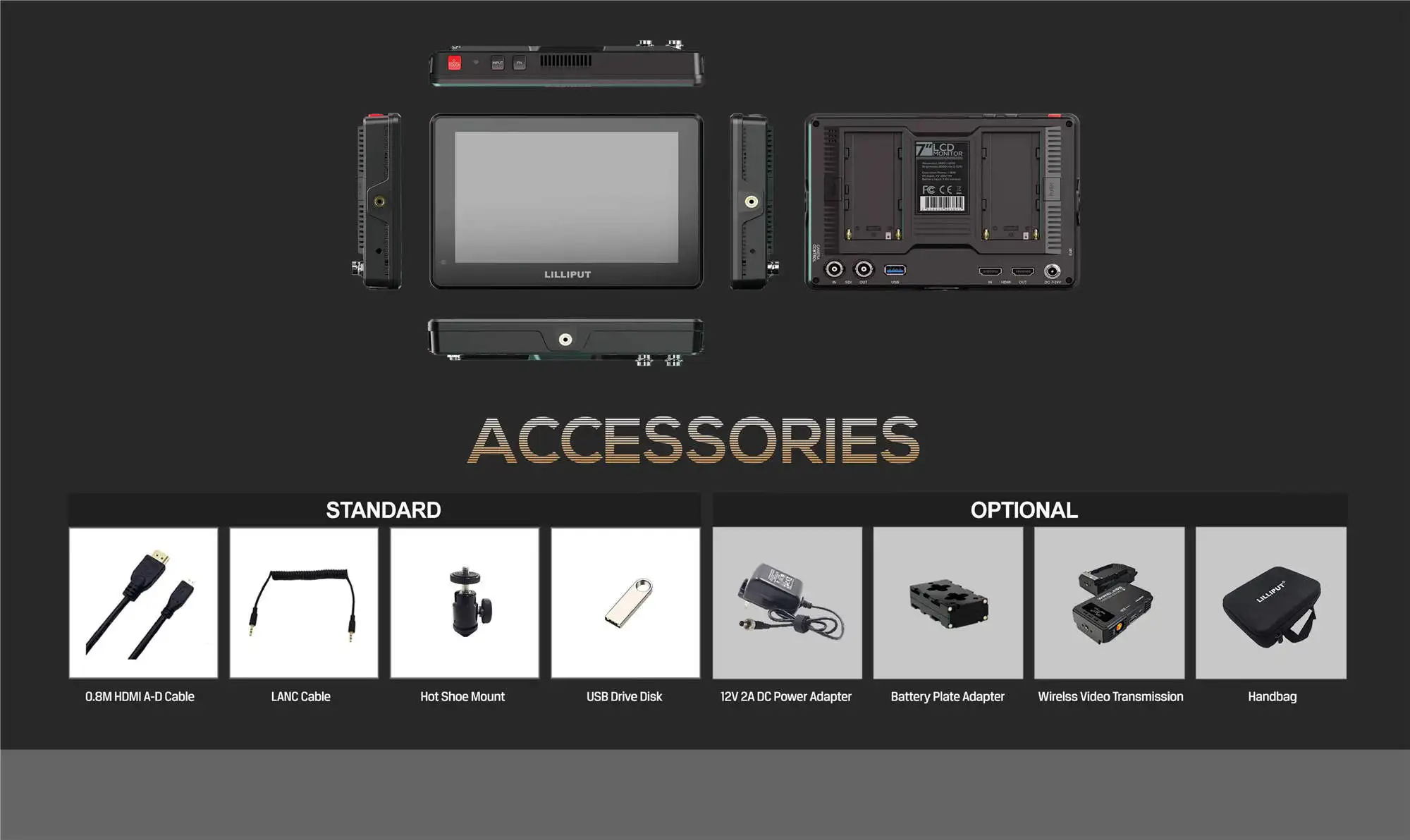

Package Include:
HT7S Monitorx1
0.8M HDMI A-D Cablex1

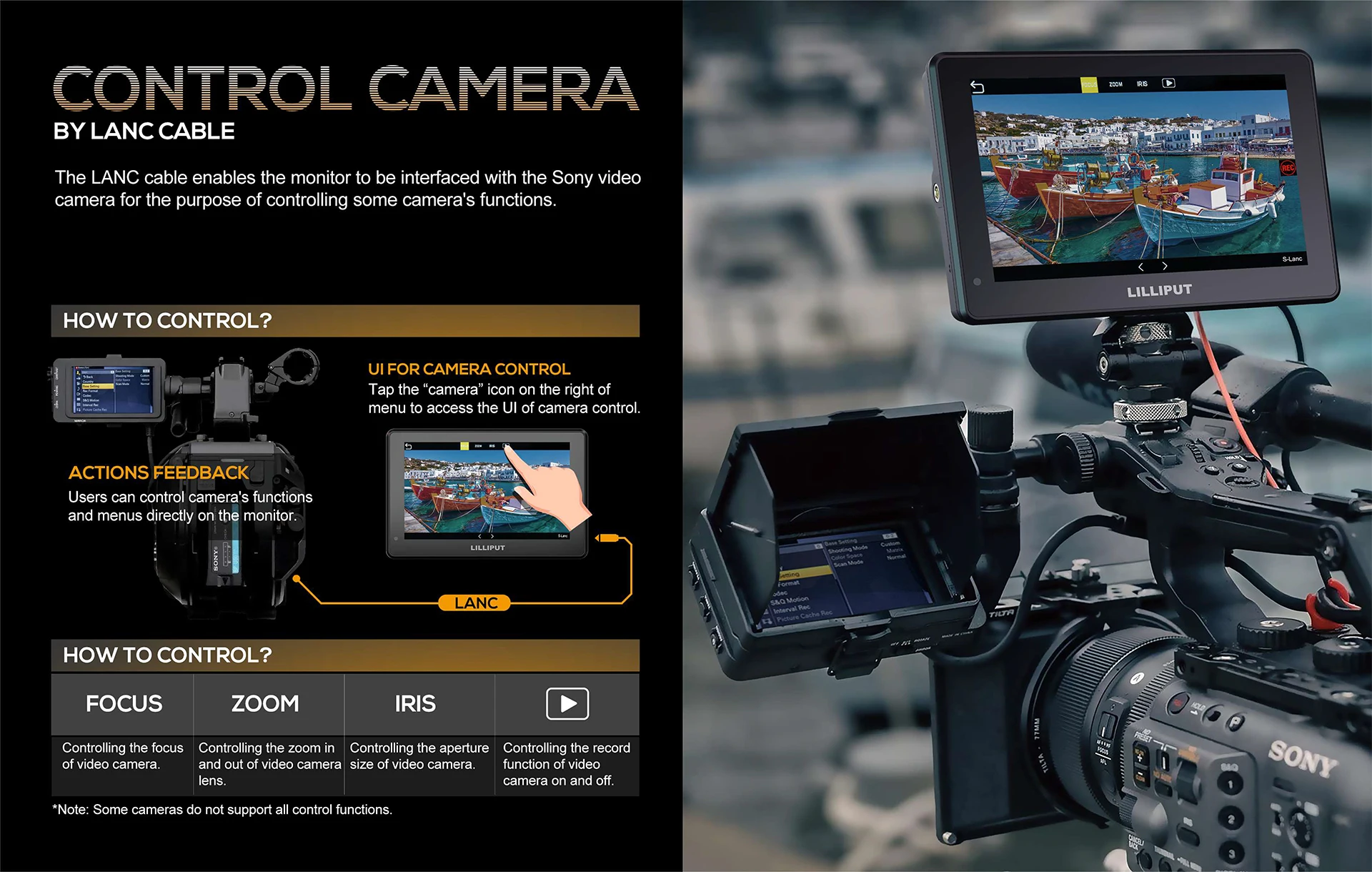

LANC Cablex1
Hot Shoe Mountx1
USB Drive Diskx1
12V 2A Power Adapterx1
Battery Plate Adapterx1

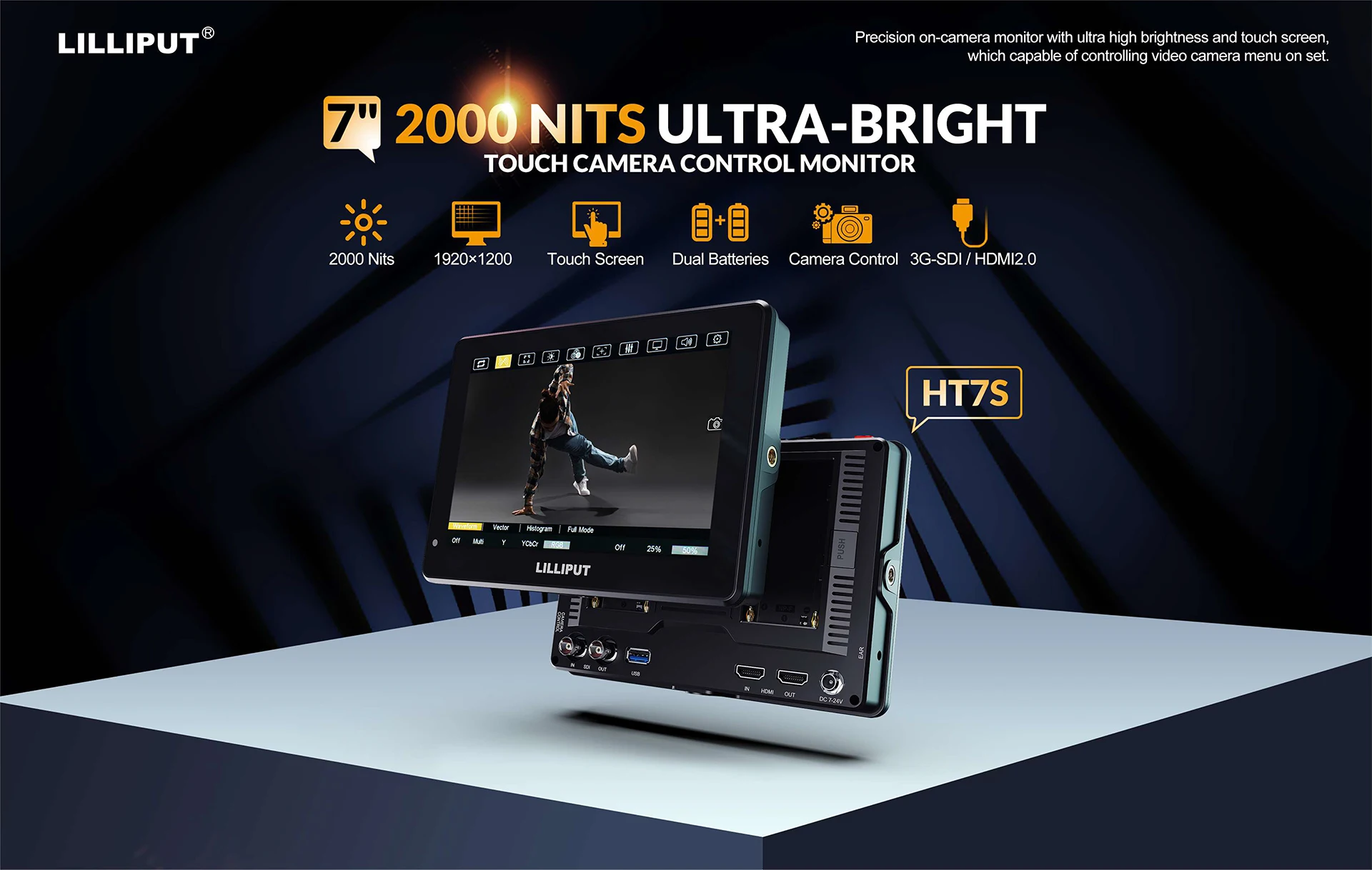

7inch 2000nits 3G-SDI Touch Camera Control Monitor
