DESCRIPTION:
Description:

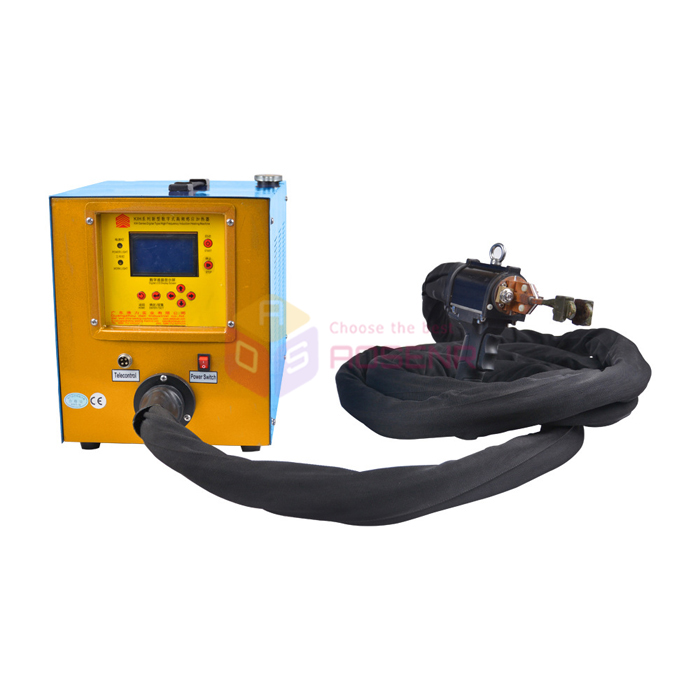

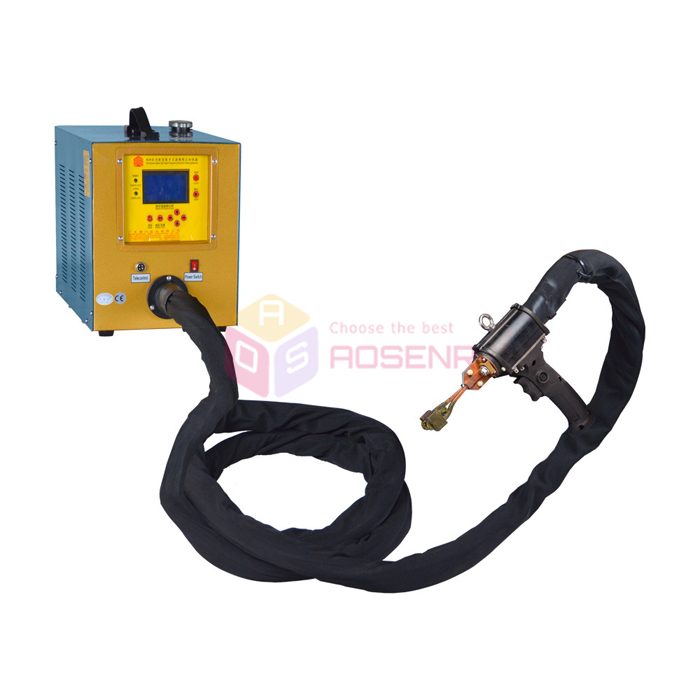

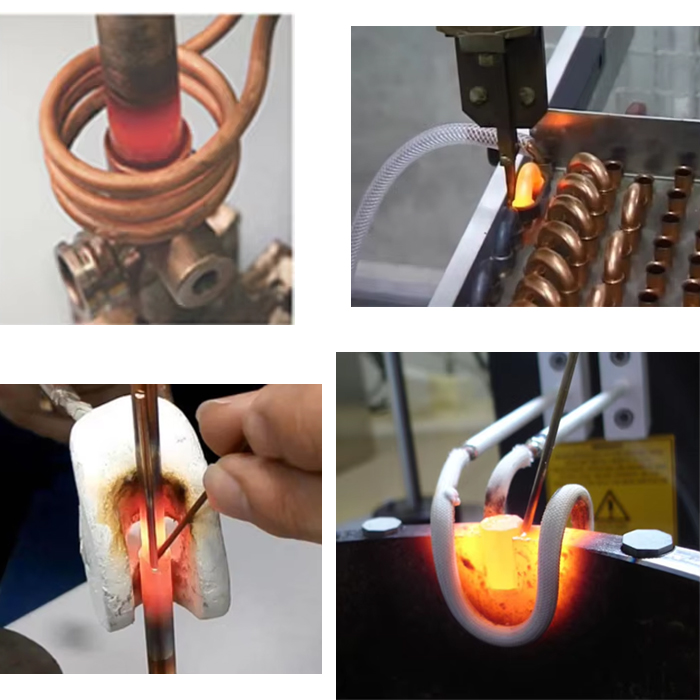

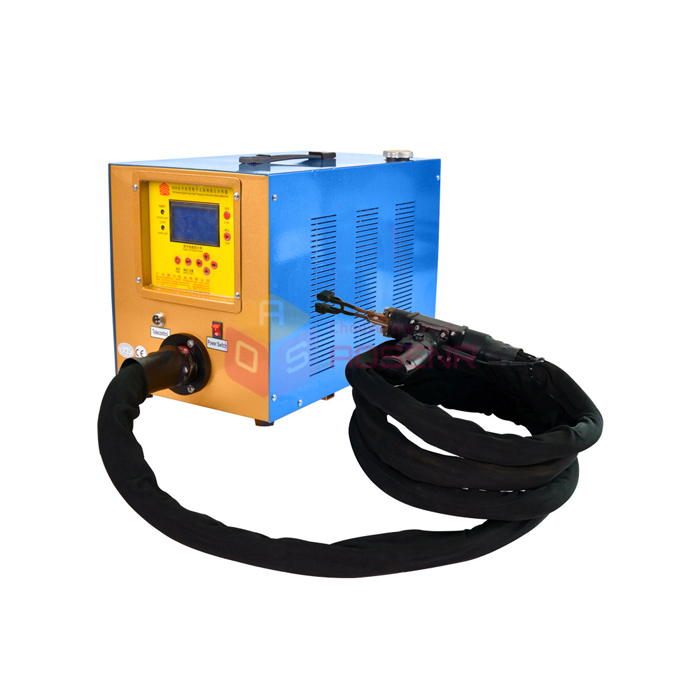

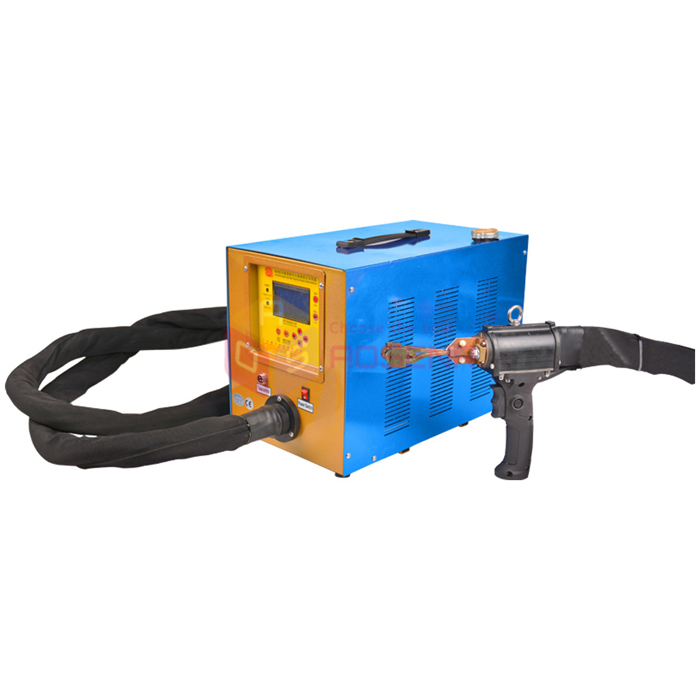

DW-15KW Portable Induction Heater is one kind of portable and mobile induction heater integrated wateand air cooling system.To heat different kind of workpiece.the induction coiler is changeable ancreplaceable.Can be used for heating and brazing various material,suchas steel and copper, can also heat anosolder different kind of products,such as steel round rod and flat sheet,copper and bras.tube,bolts,nuts,shafts,bearinas,round steel.sheet.and son on.Especially used for soldering and brazing the copper tube when install the air condition,no need to usethe gas fire again.
Equipment Main
Characteristics
1. Portable induction
heater integrated with water cooling system. Mainly used for heating and
weldingvarious metal workpieces, such as locally quenched workpieces, copper
tube welding, annealing, etc.

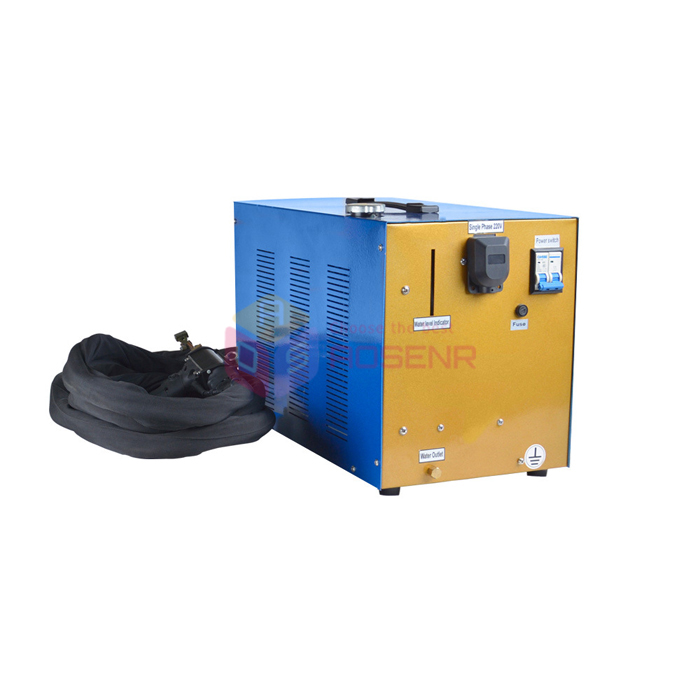

2. The body is equipped
with a 2.5 liter water tank andcooling system, which eliminatestheneed
forexternalwater sources.lt is compact and portable, breaking through the
limitations of traditional high frequencyinduction heaters, and can meet
outdoor operations.
3. Adopt imported
MOSFETs and lGBT solid-state power modules and advanced frequencyconversion
technology.
4.Fully functional,
incuding fault status protection and display for overcurrent, overvoltage,
water shortage,overheating, etc., providing higher reliability and durability.
5. Novel design, simple
installation, no need for debugging, and convenient use.
6. Simple and safe
operation, easy to carry, single-phase can meet turn on, especially suitable
for temporaryheating steel and brazing copper,Includes metal rods, tubes,
plates, screws, nuts, spindles, bearings, and more.
Main Technical Parameters
Type:DW-15KW
Fluctuating
Frequency:45-60HZ
Max Output Power:15KW
Input
Voltage:110/220/240V,50/60HZ
Output Cable Length:5
Meter Satand Length
Coolant liquid:2.5L
Water orOther Cooling Liquid
Water Temperature
Protection Point:50°C
Net Weight(KG):15KG
Dimension
(L*W*H):40*22*28cm
What's in Package:
1x High Frequency
Induction Heater
1x Soldering head
1x Soldering coil
(OD:
5cm standard, if you need other size, pls contact us)
|
