6 in 1 Electricity Usage Monitor Din Rail

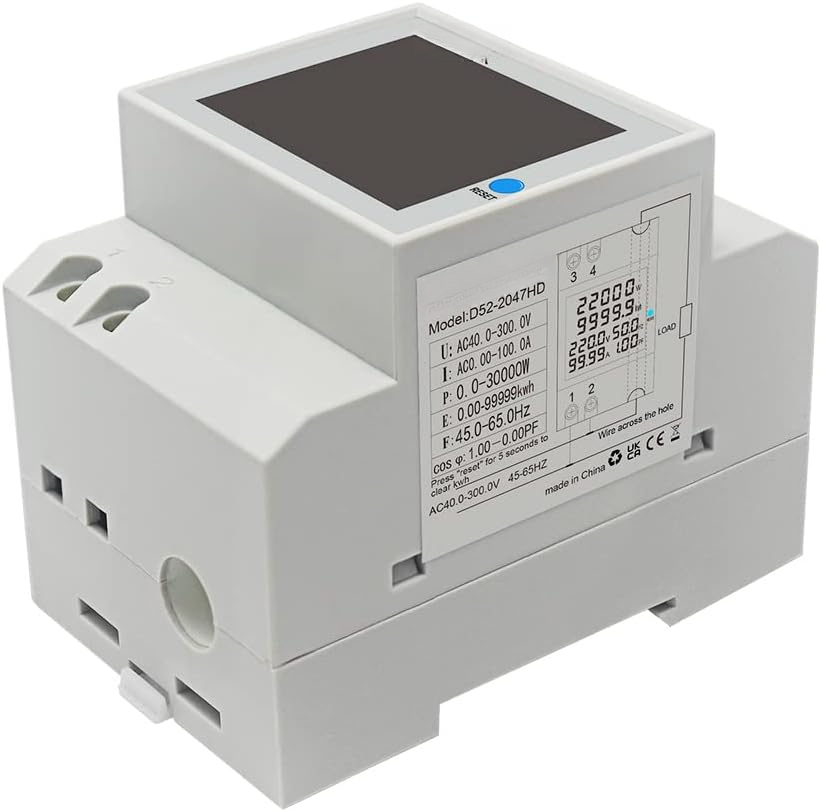

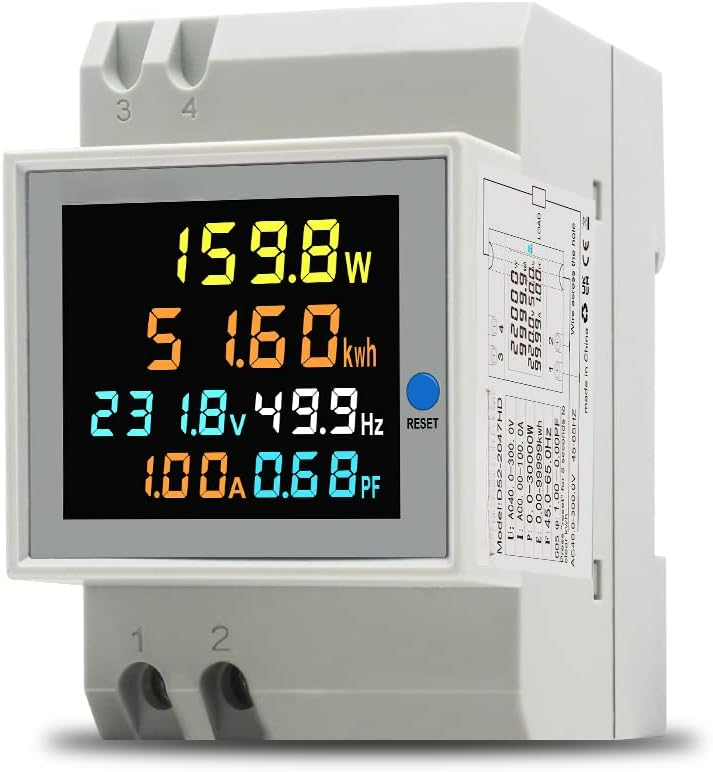

This single phase energy meter can measure AC voltage, AC current, active power, power factor, frequence and electric energy at the same time. The power meter have a colorful, full-view, highdefinition LCD to display the measure parameters.

Main Function:

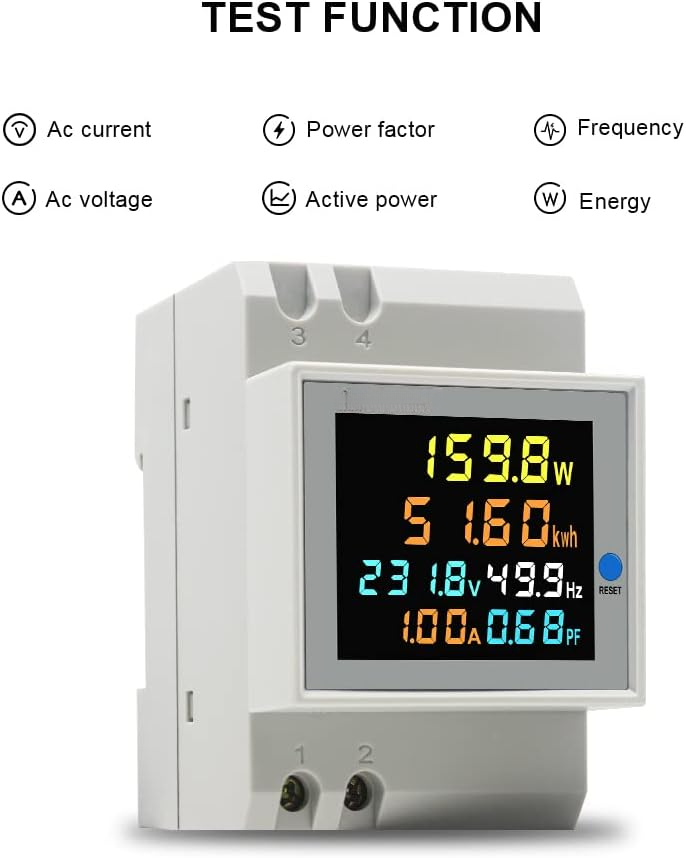

1. Electrical parameter measurement function (voltage, current, active power, electric energy, frequency, power factor)
2. Data reset
3. Store data when power off
4. Colorful, full-view, high definition LCD screen
5. Backlight function

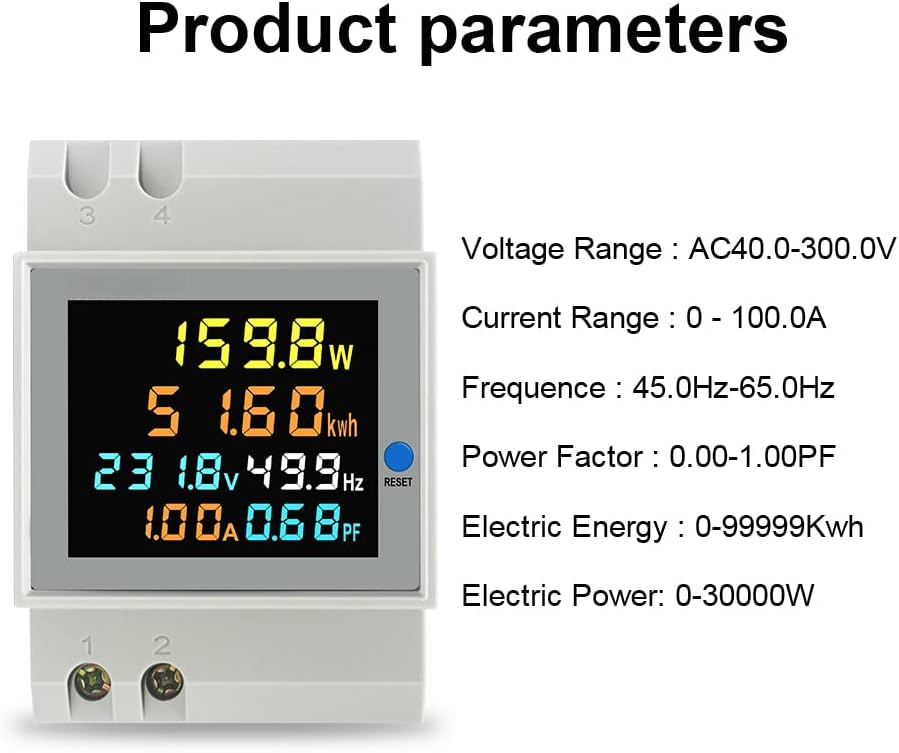

Specification Parameters:

• Active Power: 0.0~30000W
• Electric Energy: 0.00~99999Kwh
• Voltage: AC 40.0~300.0V
• Current: AC 0.00~100.0A
• Frequency: 45.0~65.0Hz
• Power factor: 1.00~0.00PF
• Accuracy: 1％±2 words
• Current Resolution: 0.01A

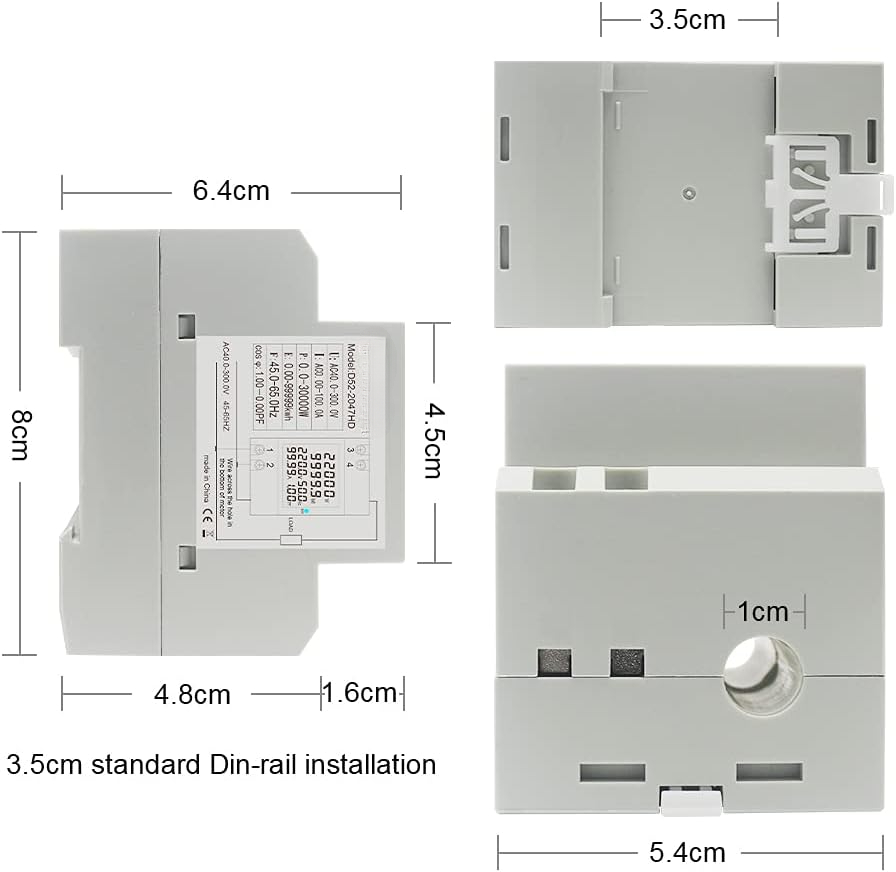

• Protruding Part Size: 54mmx45mmx16mm
• Installation Width=3P (DZ47/C45 air switch position)

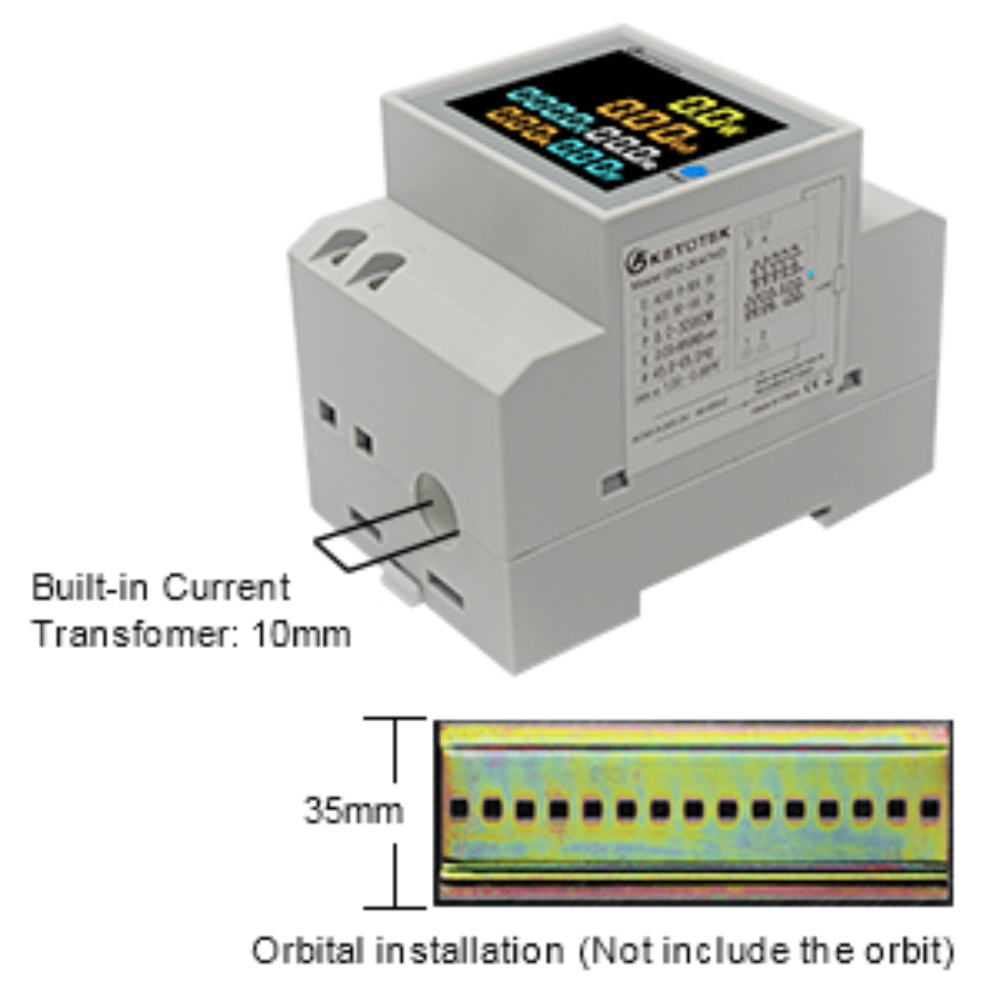

Built-in CT

Built-in sensor hole diameter: 10mm.

Integrated current transformer: Passing the measurement circuit cable through the circular hole in the right side of meter, user can arbitrarily select the direction of the cable according to the use situation.

Full viewing angle color LCD screen

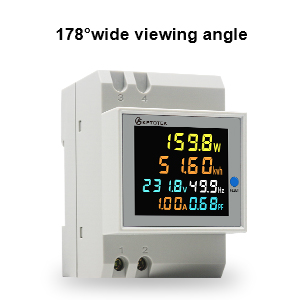

Colorful LCD HD display, 178° viewing without dead angle, with backlight function, this power consumption meter is clearly visible whatever day or night.

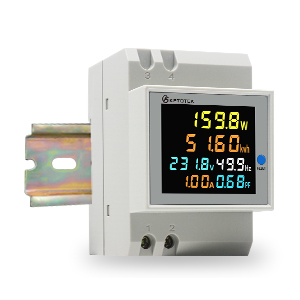

Rail installation

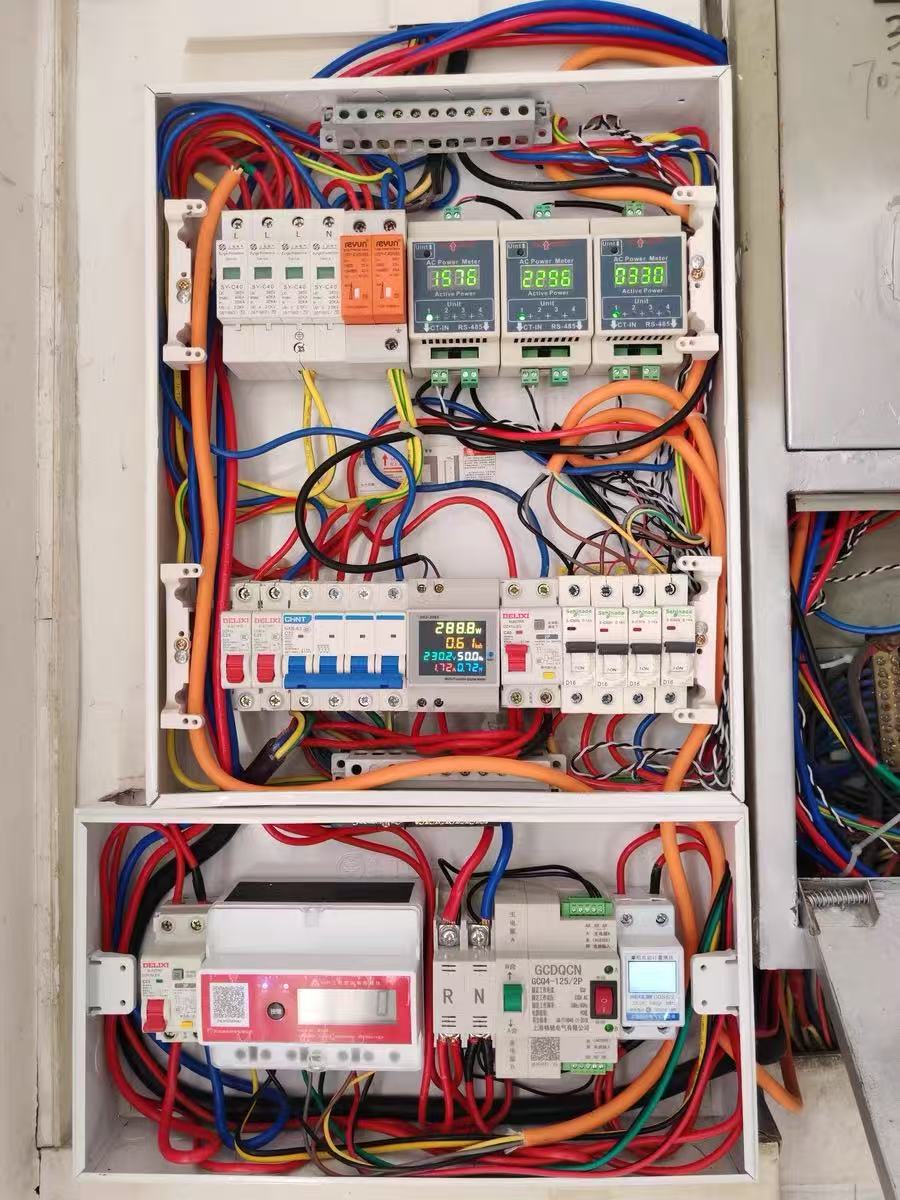

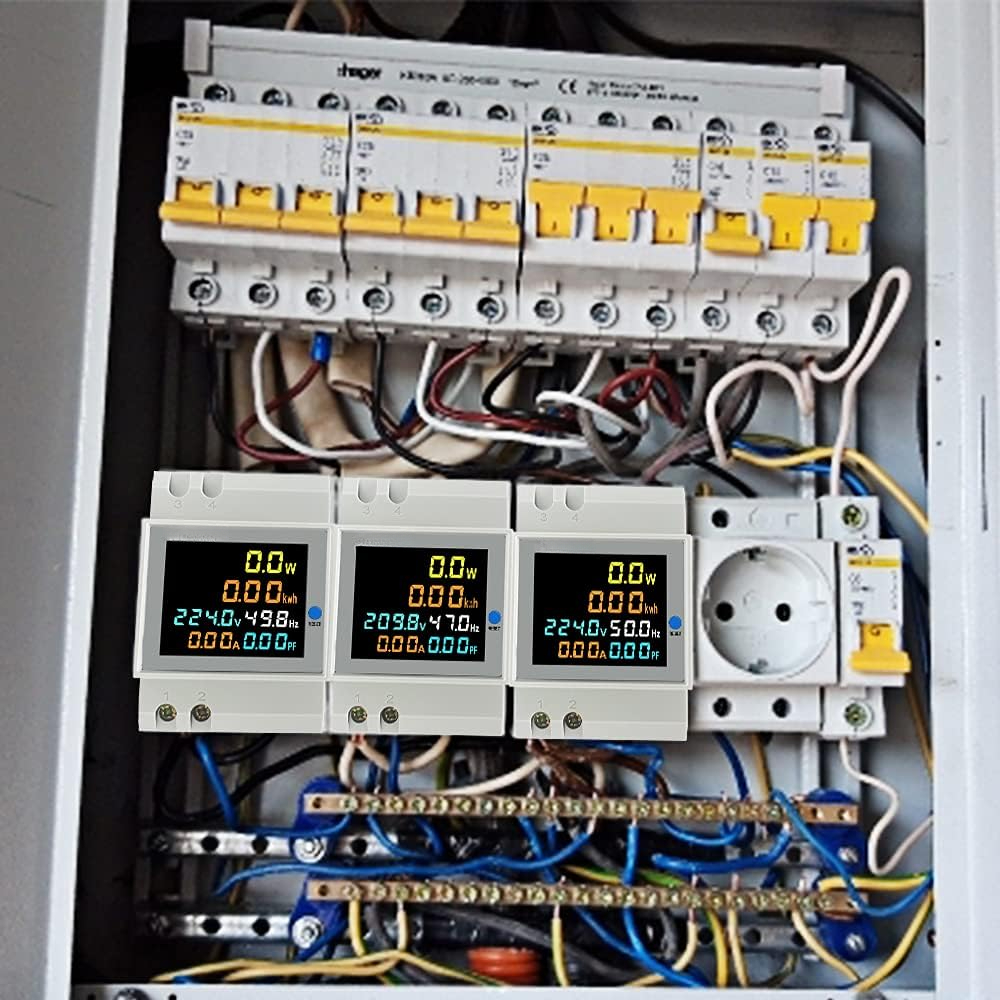

Standard guide rail 35MM can combined with circuit breaker and installed in the distribution box (Not include the orbit)

Wiring steps:

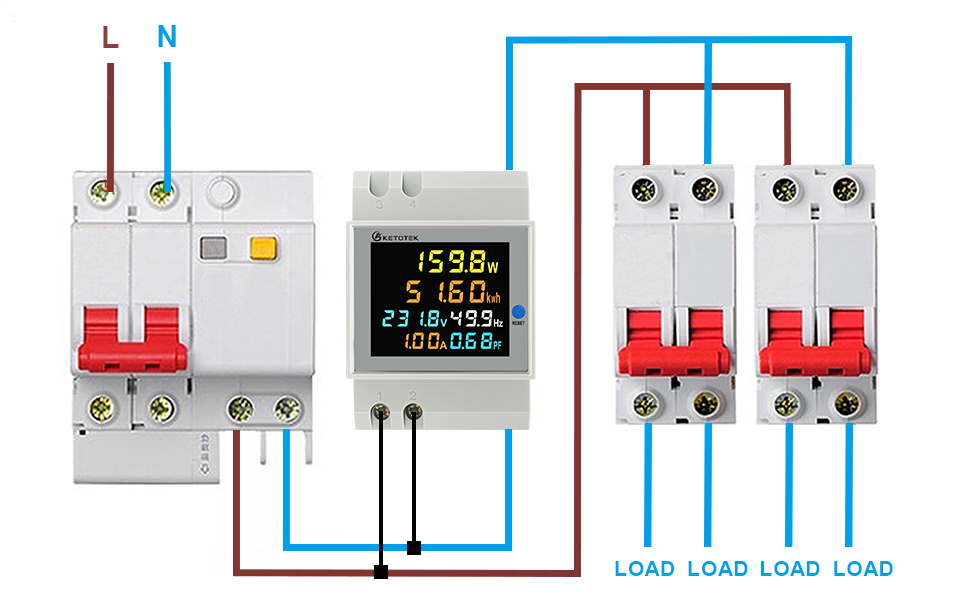

1. Connect terminals 1 and 2 on the lower left of the meter to the power supply to power this electric meter.

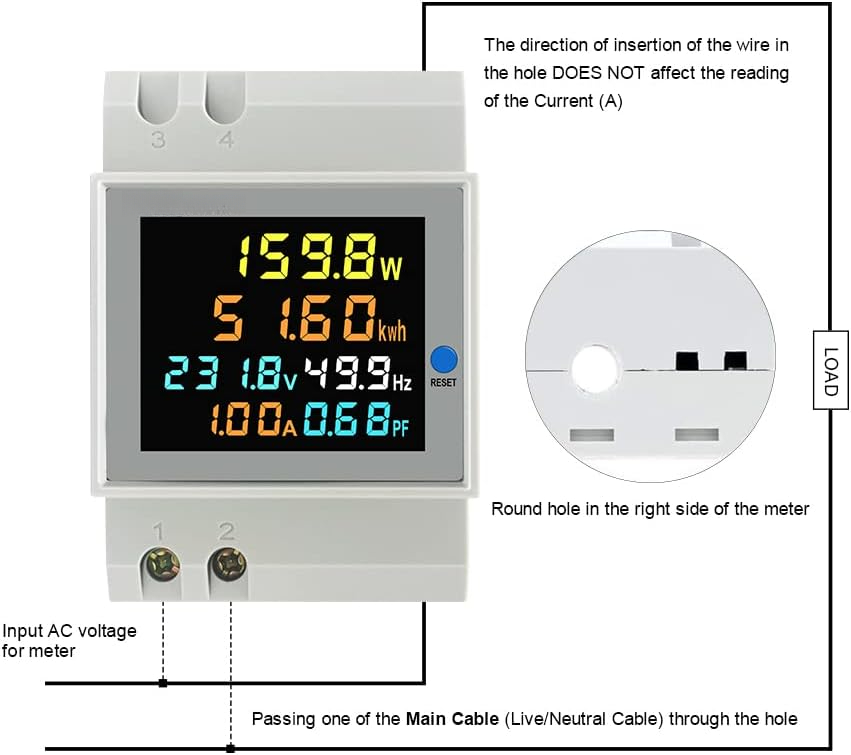

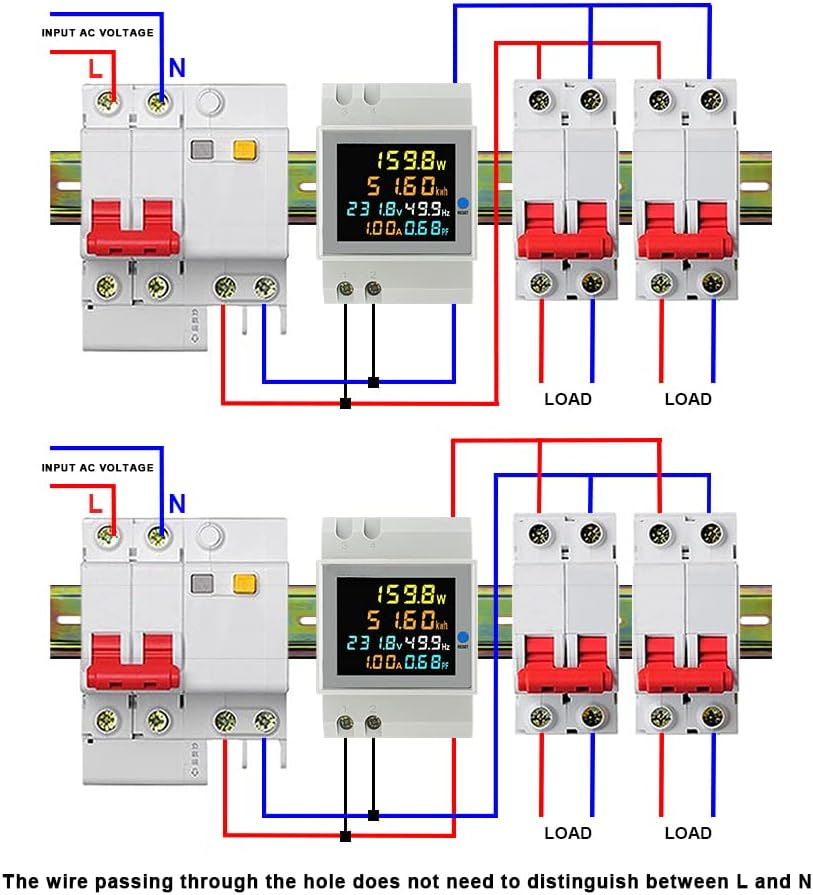

2. Passing the measurement circuit cable through the circular hole in the right side of meter, user can arbitrarily select the direction of the cable according to the use situation.

• Note: You must insert either the neutral or live wire into the "Integrated current transformer" hole, the meter will display the current, watts and other measurement data.
