Product Description
This voltmeter is widely used in equipment and electromechanical device, cars,boat etc. for measuring voltage and monitoring battery & electrical system.
· Work stable.
· Low Power consumption.
· Over-range indication.
· Snap on design for easy installation.
· Reverse polarity protection.
|
Parameter |
Value |
|
Measuring Range |
DC 0～±199.9 mV |
|
Power Supply |
Independent power DC/AC 9-12V |
|
Running current |
<20 mA |
|
No. of Digits |
3 1/2 |
|
Sampling rate |
2-3 readings per second |
|
Accuracy |
± 0.5% |
|
Display |
7 segment |
|
Type of display |
LCD |
|
Working environment humidity |
≤85%RH |
|

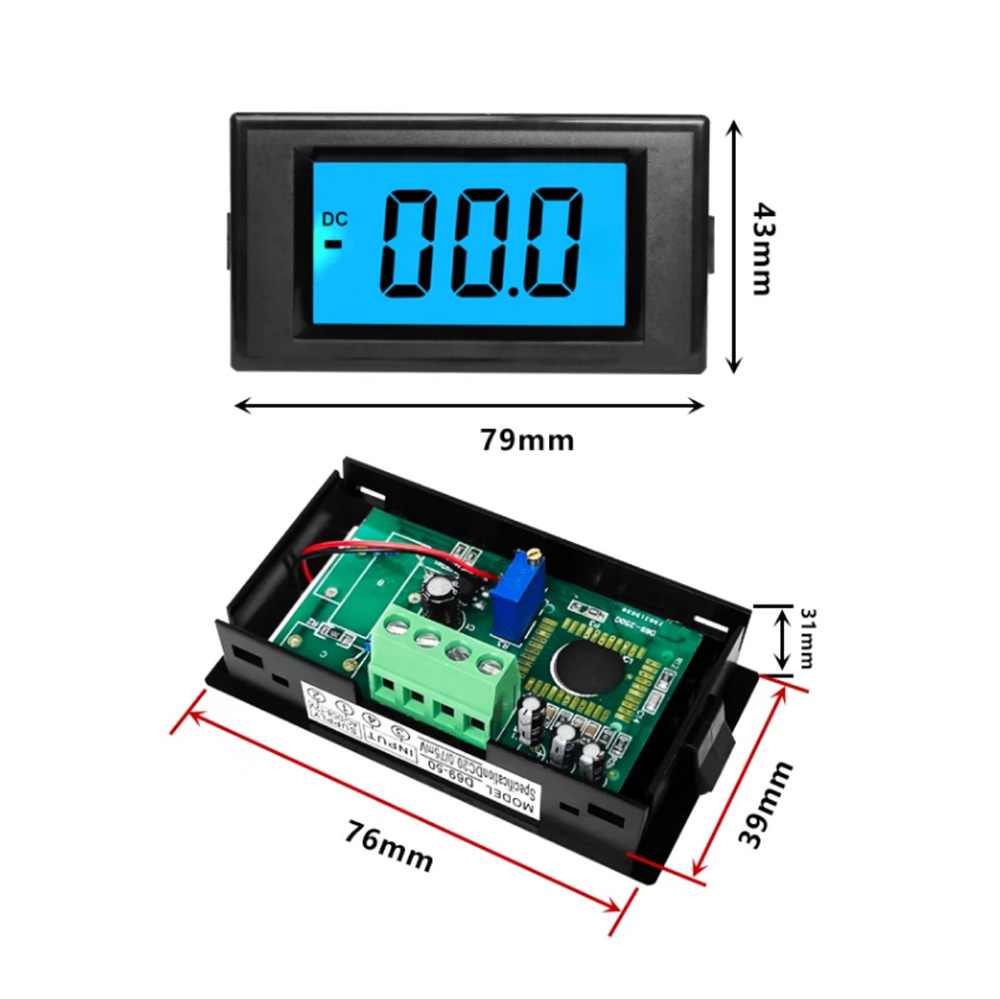

Dimensions |
79mm×43mm×24mm |
|
Size of mounting hole |
76mm×39m |
|
Weight |
40g |
Note: It is recommended to use an isolated power supply for powering. Otherwise, an incorrect connection at the measurement end will lead to damage to the instrument.
-
-
Items will be shipped to your eBay address, please make sure it is correct.
- Payment must be received 4 days after auction ended.
-
-
Item will be shipped within 1 business days after received a verified payment.
- Shipped by air mail which normally takes 5-10 business days to USA, AU, UK, Canada and it will be longer to Europe or other countries.
- Delivery Time upon purchase Locations.
- 1 x Panel meter.
