Digital Clamp Meter T-RMS 6000 Counts Multimeter Voltage Tester Auto-Ranging Volt Amp Meter Measures Current Voltage Temperature Capacitance Resistance Diodes Continuity (AC/DC Current)
Description
| Item model number | CM83E-Red |
| Style | AC/DC Clamp Meter Red |
| Power Source | Battery Powered |
| Color | Red |
| Product Dimensions | 7.9 x 3 x 1.5 inches; 7.52 ounces |
| Country of Origin | China |
| Item Weight | 0.47 Pounds |
- True-RMS 6000Counts Clamp Meter: MESTEK CM83E clamp meter can accurately measure max 600A AC/DC Current, 600V AC/DC Voltage, Temperature, Resistance, Capacitance, Continuity, Diode; True RMS for accurate measurements on non-linear loads. The clamp meter has VFD and LoZ modes that can provide more accurate readings. A useful troubleshooting tool that will help you solve electrical problems in the car, industrial or at home quickly and safely
- Non-contact Voltage Testing: Non-Contact Voltage (NCV) detector with sound and light alarm. It can easily and quickly determine whether there is a voltage, without touching any wires. Simply push the NCV button with your thumb
- Large Jaw Opening: The jaw opening measures AC/DC current in a conductor without touching or interrupting the circuit. Its slim and compact size makes it easy to operate in narrow spaces. To measure the current you need to clamp the meter around one of the wires and not the whole power cord
- Easy to Read: The AC/DC clamp meter has a Backlit screen and LED flashlight so you can see the readings when working in dim or low-light conditions, like electrical closets, under buildings, behind appliances, and in other enclosed spaces,convenient LED flashlight illuminates a dimly lit area
- Multi-Function Digital Clamp Meter: Temperature Measurement for liquids and air conditioning ports, Low Battery Indication, Data Hold, Automatic Range, SEL fuction, Auto power off after 10 minutes inactivity, ZERO function decreases the data error influenced by the Earth’s magnetic field, and helps you to obtain a more accurate measurement, 2 x 1.5 V AAA batteries included. (Operation note：Please take off the cap before using the test leads)
- Safety First & Customer Service: Safety standard IEC 61010-1, CAT III 600V, and it has overload protection on all ranges. MESTEK provides 24 months after-sale service and technical support, 7/24 customer service. If the clamp meter is damaged within 24 months of purchase, just contact us and we replace it! Package includes clamp multimeter, test leads, thermocouple, screwdriver, multimeter hard case, batteries and user manual
Product Description
A multimeter is not only professional electricians and electrical engineers would care about, it is also an indispensable asset to the home toolkit for the experienced do-it-yourself or hobbyist
The MESTEK CM83E Digital Clamp Meter with True-RMS 6000 counts, AC/DC Current meter. it has the functions of data hold, ZERO function, automatic range, temperature measurement, automatic shutdown, backlight, flashlight, full-range overload protection and battery under-voltage indication, batterres included. You can use it to measure Current, Voltage, Temperature, Continuity, Diode, Capacitance, Frequency, Resistance and Continuity of circuits, switches, fuses and contacts
×Correct Measurement
Please measure in the correct way, otherwise the readings will not be accurate.We have attached a operation guide and notes to the manual for reference.
1.To measure the current you need to clamp the meter around one of the wires and not the whole power cord.
2.Please take off the cap before using the test leads
× Stylish and Robustness,prevents any damages or scratches caused by accidentally bumping,dropping, secures the device in good condition on travelling or outdoors.
× Weight & Size
Weight :215g. Size: 7.68 x 1.97 x1.38 inches.
Small and light, easy to carry when working.

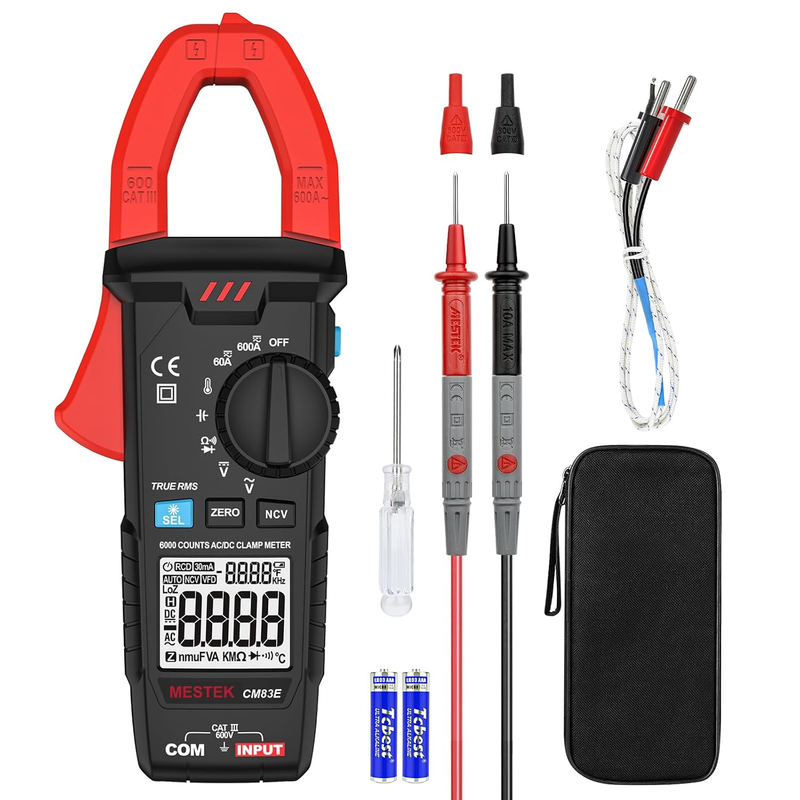

Package Included
- 1 x Digital Clamp Meter
- 1 x Temperature probe
- 1 x Color Box
- 2 x 1.5V AAA Battery
- 2 x Test Leads
- 1 x screwdriver
- 1 x Carrying bag
- 1 x User Manual
MESTEK 6000 Counts TRMS Clamp Meter
The MESTEK True RMS 6000 Counts Digital CLAMP METER is designed to be safely and accurately used by professionals and weekend DIYer’ s. It is suitable for commercial and household electrical problems. Accurately measures AC/DC Voltage, AC/DC Current, Frequency,Resistance, Capacitance Measurement and NCV Detection, Flashlight, Diode and Audible Continuity Testing
- 600A AC/DC current measurement
- 600V AC/DC voltage measurement
- Non-Contact Voltage Testing (NCV)
- Backlit LCD display and Flashlight
- Keeping the last measurement result (data Hold function)
- Automatic change of the measuring range (autoranging)
- CAT III 600V, Double insulation protection, CE, Ground
AC/DC Current Clamp Meter
The measuring range of AC current is 60A~600A,Accuracy: ±(3%+10)
The measuring range of DC current is 0A~600A,Accuracy: ±(3%+10)
To measure the current you need to clamp the meter around one of the wires and not the whole power cord. The power cord contains two wires carrying current and ground wire. The current in two wires always flows in opposite directions, so the magnetic fields from two wires canceling each other, therefore the meter reads 0 A
MESTEK CM83E Digital Clamp Meter True-RMS 6000 Counts AC DC Current Meter
Large Jaw Opening
The Jaw is marked with maximum voltage and current measured value. Suitable for one-hand operation
Test AC/DC Voltage, AC/DC Current
The CM83E Clamp Meter can accurately measure AC/DC Voltage, AC/DC Current,
Use the test leads to get the reading quickly and accurately
ZERO Function
Ensure the accuracy of the measured data.Short press the ZERO button under DC current and capacity mode to clear the base number caused by the electromagnetic interference in the use environment.
Automatic Shutdown
No operation in 10 minutes, the clamp meter beeps 3 times. Without further operation, it beeps again and switches off automatically.
Technical Indicators
| AC Voltage | 6V/60V/600V ±(0.8%+5dgt) |
| DC Voltage | 600mV/6V/60V/600V ±(0.5%+3dgt) |
| AC Current | 60A/600A ±(3.0%+10dgt) |
| DC Current | 60A/600A ±(3.0%+10dgt) |
| Resistance | 600Ω/6KΩ/60KΩ/600KΩ/6mΩ ±(1.0%+3dgt), 60mΩ ±(2.0%+5dgt) |
| Capacitance | 600nF/6uF/60uF/600uF/6mF/60mF ±(4%+10dgt) |
| Temperature | -20℃~1000℃ ±(2.0%+2dgt), -4~1832℉ ±(2.0%+4dgt) |
| Maximum Display Value | 5999 |
| Continuity Test | If the resistance of the tested circuit is less than 50, the indicating light is always and the buzzer will sound |
| Diode Test | The meter displays the forward voltage drop of the diode under test |
| Overrange display | OL or -OL |
| Automatic range | Yes |
