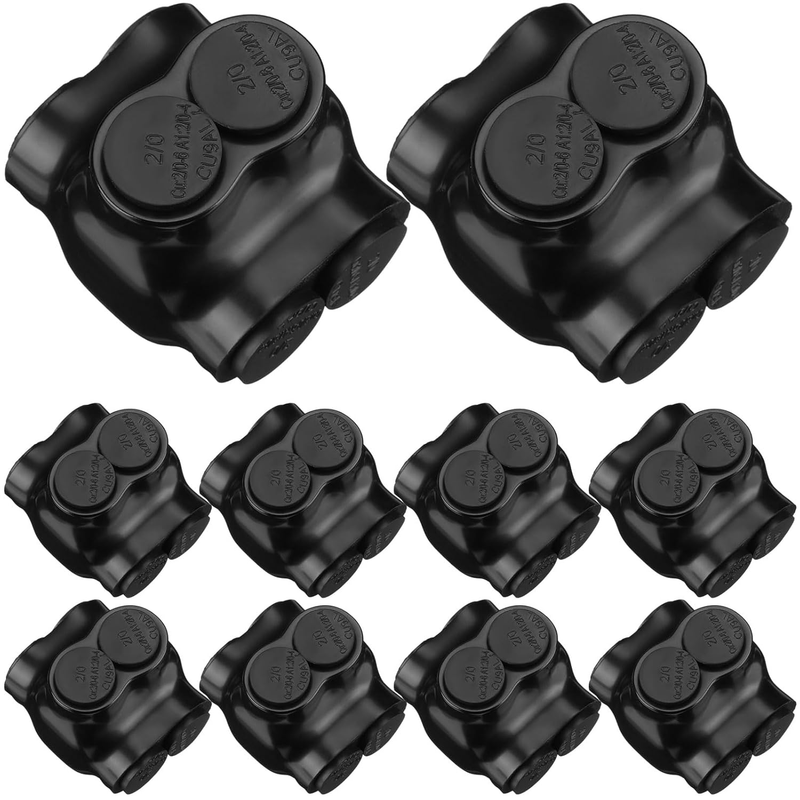

Insulated Wire Connectors Multi Splice Connector Dual Entry Electrical Power Connector Black Cable Connectors 2 Port Wire Connectors(10 Pcs,2/0-6 Wire Range, Slotted or 3/16" Allen Hex)
Description
| Item Package Quantity | 10 |
| Color | black |
| Product Dimensions | 1.65 x 1.71 x 1.52 inches; 1.87 Pounds |
| Country of Origin | China |
| Connector Type | Atx |
| Terminal | Screw Terminal |
| Contact Material | Copper |
| Insulation Material | Polyvinyl Chloride |
| Size | 2/0-6 Wire Range, Slotted or 3/16" Allen Hex |
- Heavy Duty Insulation: wire connectors terminals are insulated with strong high dielectric rubber and vinyl coating for long term use, suitable for copper or aluminum conductors, and prevents oxide formation
- Ease of Use: dual entry insulated in line cable connectors can be easily reinserted for inspection and troubleshooting, quick and convenient to use
- Pre Filled: 2 wire cable connectors are pre filled with oxide inhibitors to withstand temperatures ranging from -49 to 194 degrees Fahrenheit; 600 Volt cable conductors are aluminum CU9AL dual rated for use with copper and aluminum wire for added safety
- Size and Specifications: the insulated wire connector kit has an external size of about 1.65 x 1.71 x 1.52 inch and accepts 2/0-6 wire range designs, slotted or 3/16” Allen Hex; Each connector is marked with the maximum length of the wire, so you don't have to worry about the wire connector fit, and you can fit one wire into each terminal, making it a must have in electrical tool box
- Design: wide range of electrical connector: 750Kcmil-14, 600V, 90°C, low temperature rating of -45°C; The removable connector is suitable for daily use
Product Description
Ease of Use:
dual entry insulated in line cable connectors can be easily reinserted for inspection and troubleshooting, quick and convenient to use
Insulated Wire Connectors：
Material:
6061-T6 aluminum
Wire Diameter Range:
2/0-6AWG
Hex Size:
Slotted or 3/16"
Line Ports: 2
Temperature Rating:
49*F -194F （ - 45 - 90C）
- Wire connectors terminals are insulated with strong high dielectric rubber and vinyl coating for long term use
STEP 1- Strip the insulation to a sufficient length for full insertion into the connector and to obtain proper screw contact.
STEP 2 - Remove caps and prepare wires for installation.
STEP 3 - Back off set screw.
STEP 4 - After conductors are properly prepared for installation, insert conductors into conductor body to a sufficient depth to allow full contact with set screw.
Step 5 - Set screws tightened to proper torque value
