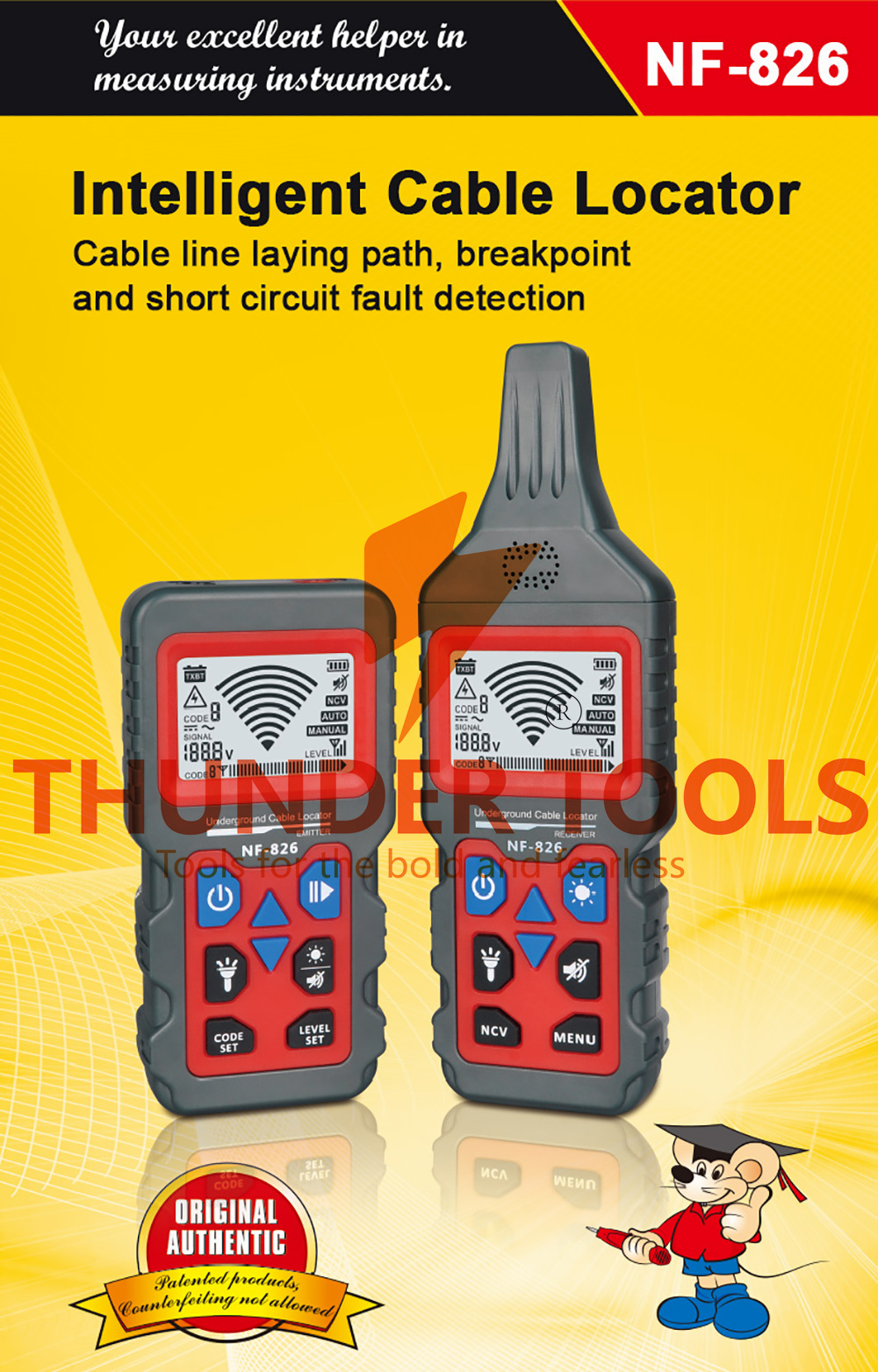

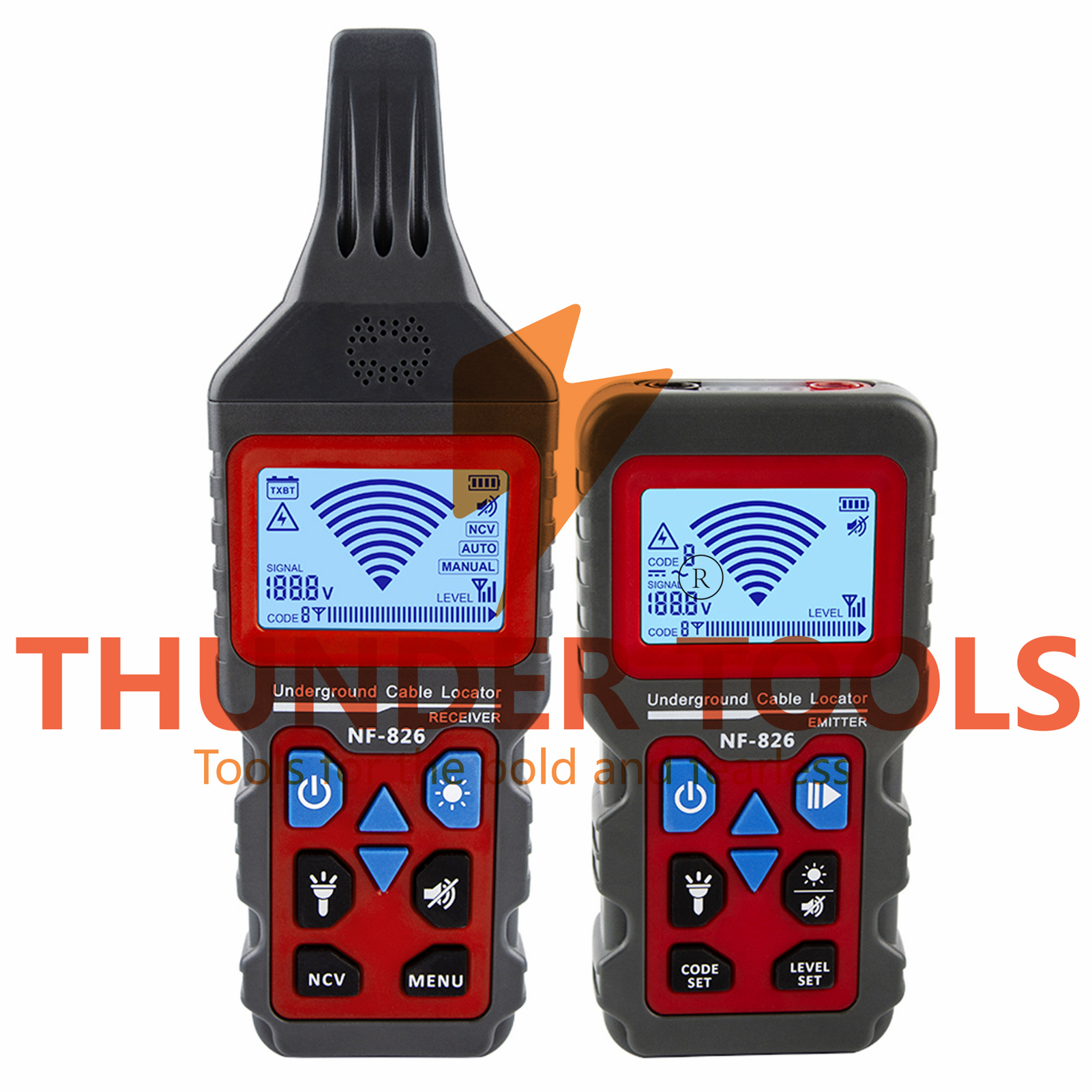

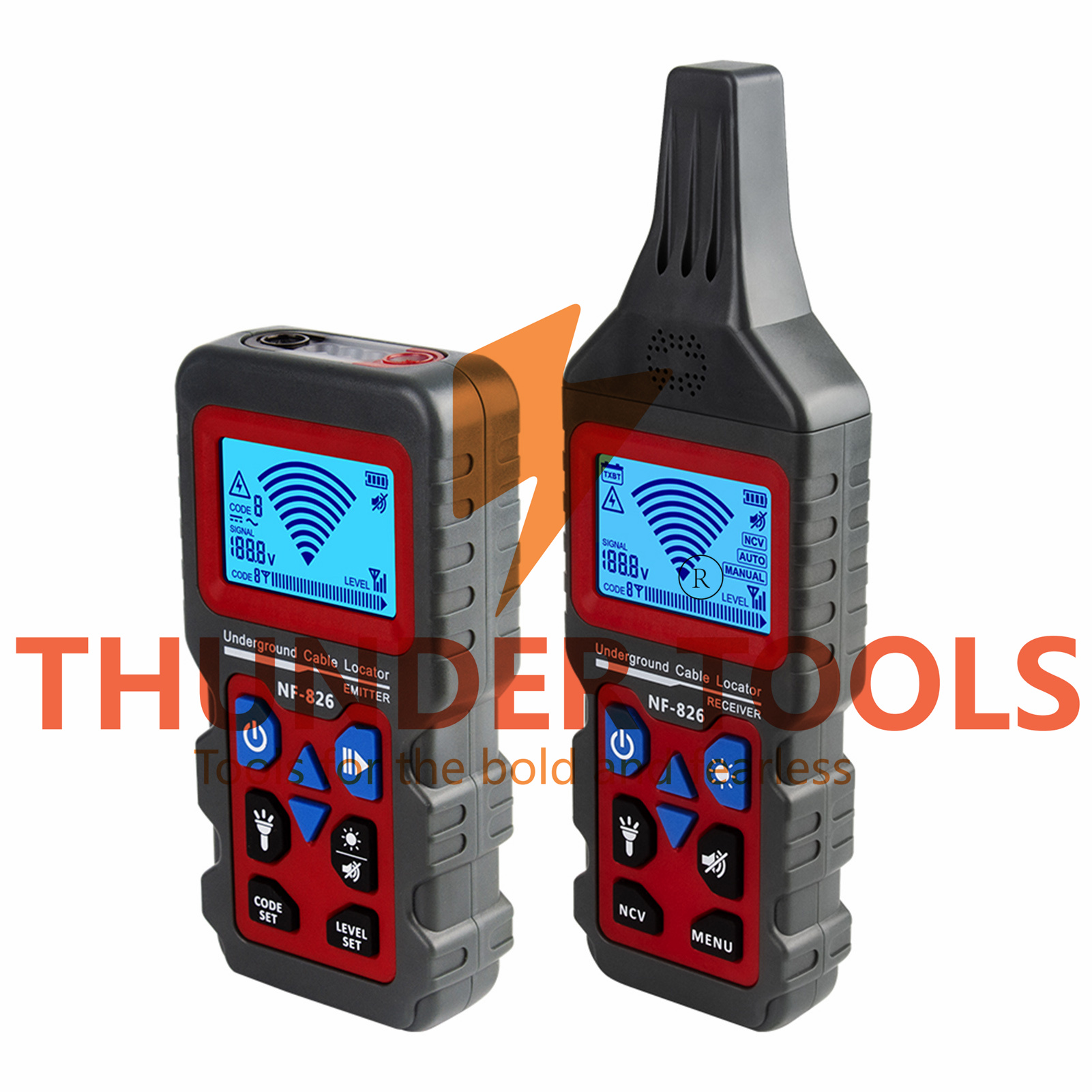

NF-826 underground & in-wall cable detector is a portable instrument, which consists of transmitter, receiver and accessories.

Selecting new integrated devices and digital circuit technology, the electrical performance is stable and reliable. According to the change of the signal, the specific location and fault of the buried cable or pipelinecan be detected. It is suitable for the maintenance of communication cable construction, power cable construction, building pipeline construction, communication cable and power supply line and electric heating line.

Features:

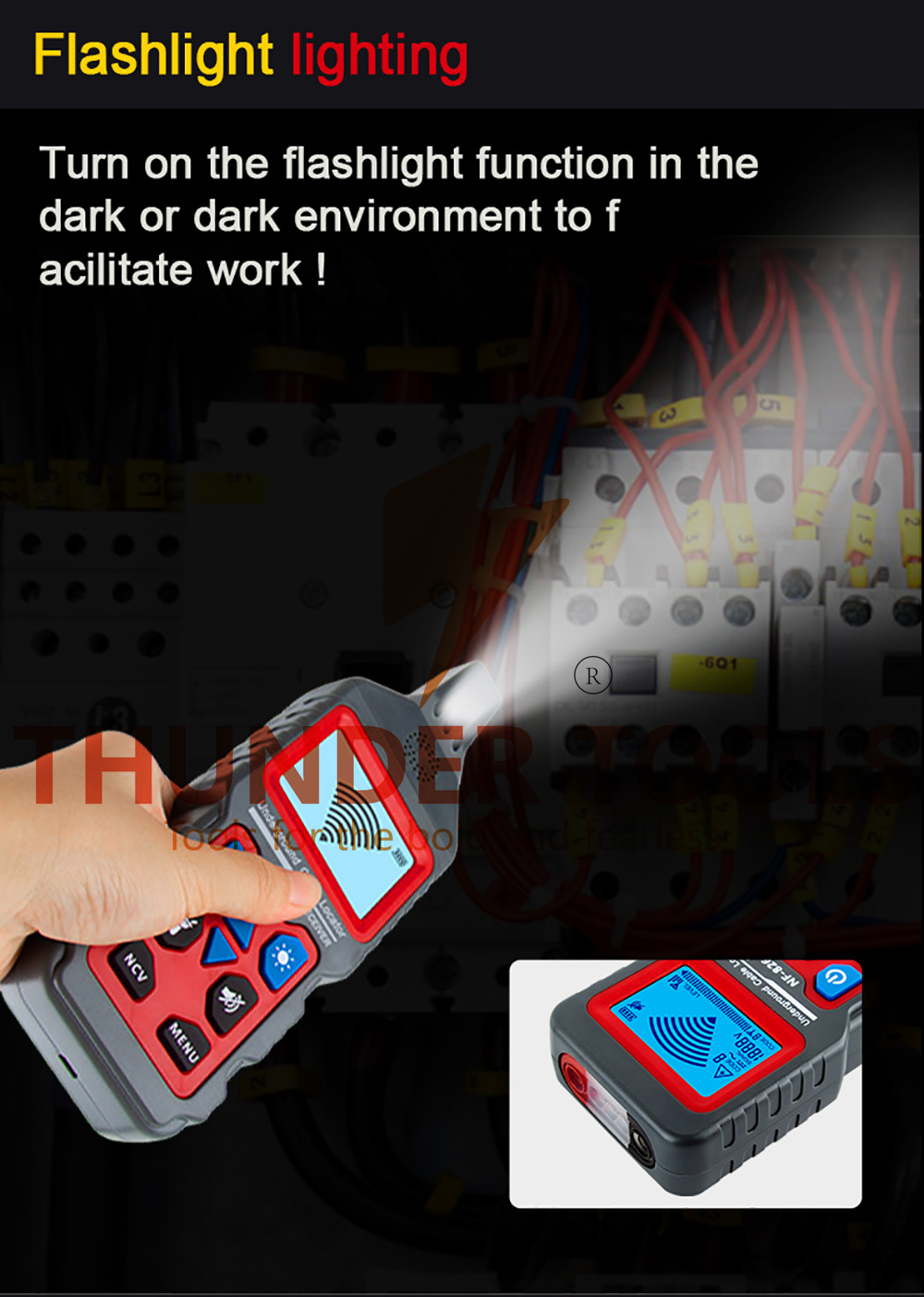

[Underground Wire Locator]Detects breaks and shorts in underground cables and wires buried in walls or deep inside, built-in flashlight function, works in dark environments, adjustable sensitivity.

[Buried Detector]Detect fuses and circuits that distribute current, track outlets and junction boxes covered with plaster.

[Wire Break Locator]Detector built-in AC/DC voltmeter function, can linearly measure AC/DC voltage from 12 to 400V.

[Underground Cable Locator]Detects interruptions and shorts in floor heating, both transmitter and receiver display power level, code, battery, type and value of voltage detected, and high voltage alarm.

[Wide Application]Widely used in communication cable construction, power cable construction, building pipeline construction, communication cable, power supply line and electric heating line maintenance, and is an indispensable tool for maintenance personnel and families.

Specifications:

Material: ABS

Transmitter

Output Signal: 125kHz

External Voltage Identification Range: DC 12~400V,  plus or

AC 12~400V (50~60Hz),  plus or minus 2.5%

External Voltage's Dielectric Strength: Max. 400V AC/DC

Overvoltage Type: CAT III 300V

Pollution Degree: 2

Power Consumption: MIN Current: 80mA

MAX Current: 300mA

Fuse: F0.5A 500V, 6.3x32mm

Range of Temperature: In Work: 0 Degrees Celsius~40 Degrees Celsius, with maximum relative humidity of 80% (non-condensation)

In Storage: -20 Degrees Celsius~60 Degrees Celsius, with maximum relative humidity of 80% (non-condensation)

Altitude: Max. 2000m

Receiver

Depth of Tracking: The depth of tracking depends on the material and specific applications

Cable Locating Mode: Signal Pole Application: About 0~1m

Dual Pole Application: 0-0.5m

Signal Loop Line: Up to 2.5m

Grid Voltage Identification: About 0~0.4m

Display: LCD, with function display and column chart

Power Supply: 3.7V, 1400mAh Lithium battery

Power Consumption: MIN Current: 100mA

MAX Current: 300mA

Range of Temperature: In Work: 0 Degrees Celsius~40 Degrees Celsius, with maximum relative humidity of 80% (non-condensation)

In Storage: -20 Degrees Celsius~60 Degrees Celsius, with maximum relative humidity of 80% (non-condensation)

Altitude: Max. 2000m

Transmitter Size: 156 * 80 * 32mm / 6.14 * 3.15 * 1.26in

Transmitter Weight: 235g / 0.52lb (with battery)

Receiver Size: 226 * 73 * 29mm / 8.89 * 2.87 * 1.14in

Receiver Weight: 235g / 0.52lb (with battery)

Package Weight: 1050g / 2.31lb

Package Size: 25.7 * 18.4 * 6.5cm / 10.12 * 7.24 * 2.56in

Package List:

1 * Transmitter

1 * Receiver

1 * User Manual (English)
