Application&advantage:
For Universal fitment. (for Auto and Motorcycle with Air Bag Suspension System).
The Solenoid Valve Suitable for Auto and Motorcycle with Air Bag Suspension System,And Suitable for uses with e-Level Controller or any other brand of controller or switches.
The robust internal solenoid valve structure maximizes flow rates and offers operation up to 200 PSI for millions of cycles,Controls 4 valves individually, and compact Layout for minimal space usage.
Weather-Proof Cable，The air ride solenoid valve includes two wires that are weather-proof for harsh under vehicle environments.
2 x 1/4 inch G female inlet ports, 2 x 1/8 inch G female exhaust ports. Dual inlet and exhaust ports for maximum flow.
Direct replacement and easy to operate, 1/4" NPT ports for more flexibility of installation, prewired and numbered port to reduce installation time,The air ride suspension valves provide seamless installation and reliable operation.
Using less fittings means quickest response times and fewer places to leak.
State normally closed, It is suitable for medium air, corrosive gas and so on, fatigue life test 10 million times, instruction Included.
Please measure the size before purchase to ensure it can be installed .Provide this product have 3-month warranty.When You Encounter Any Questions About The Product, You Can Contact Me As Soon As Possible, And I Will Answer It For You.
Specification:

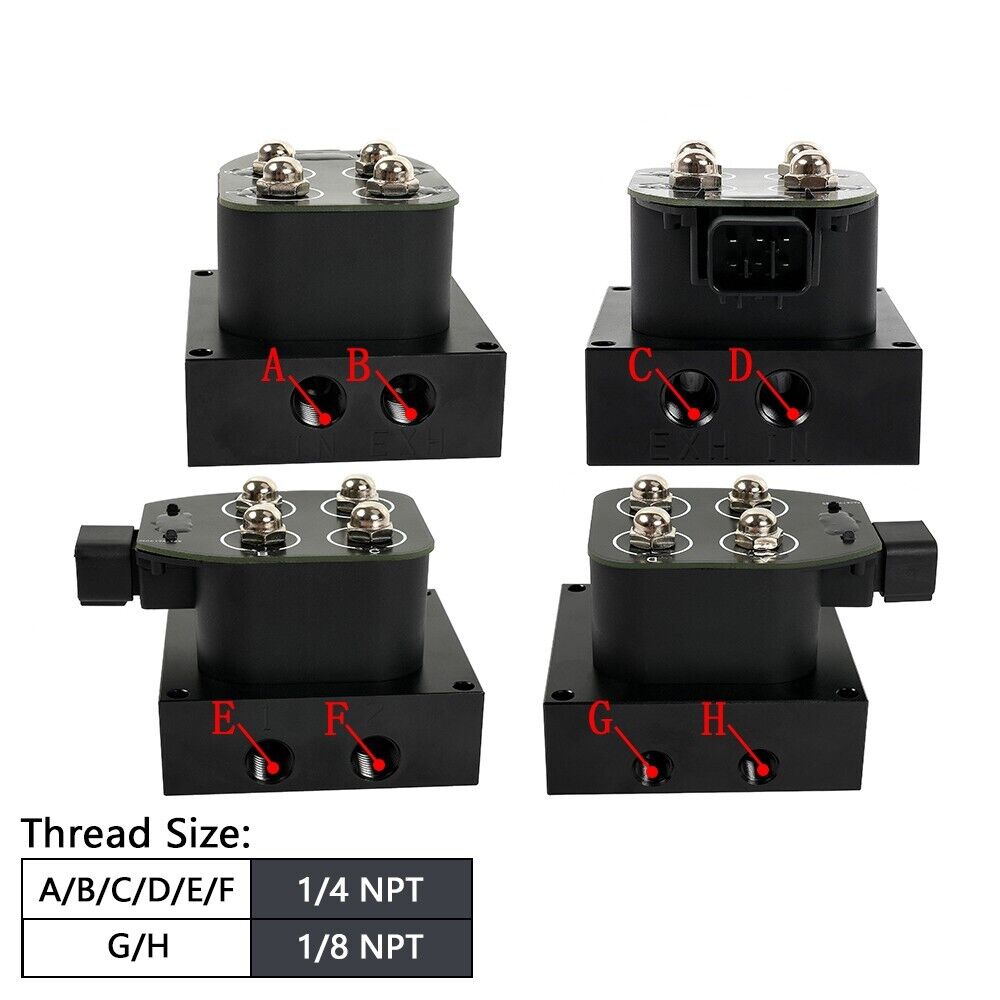

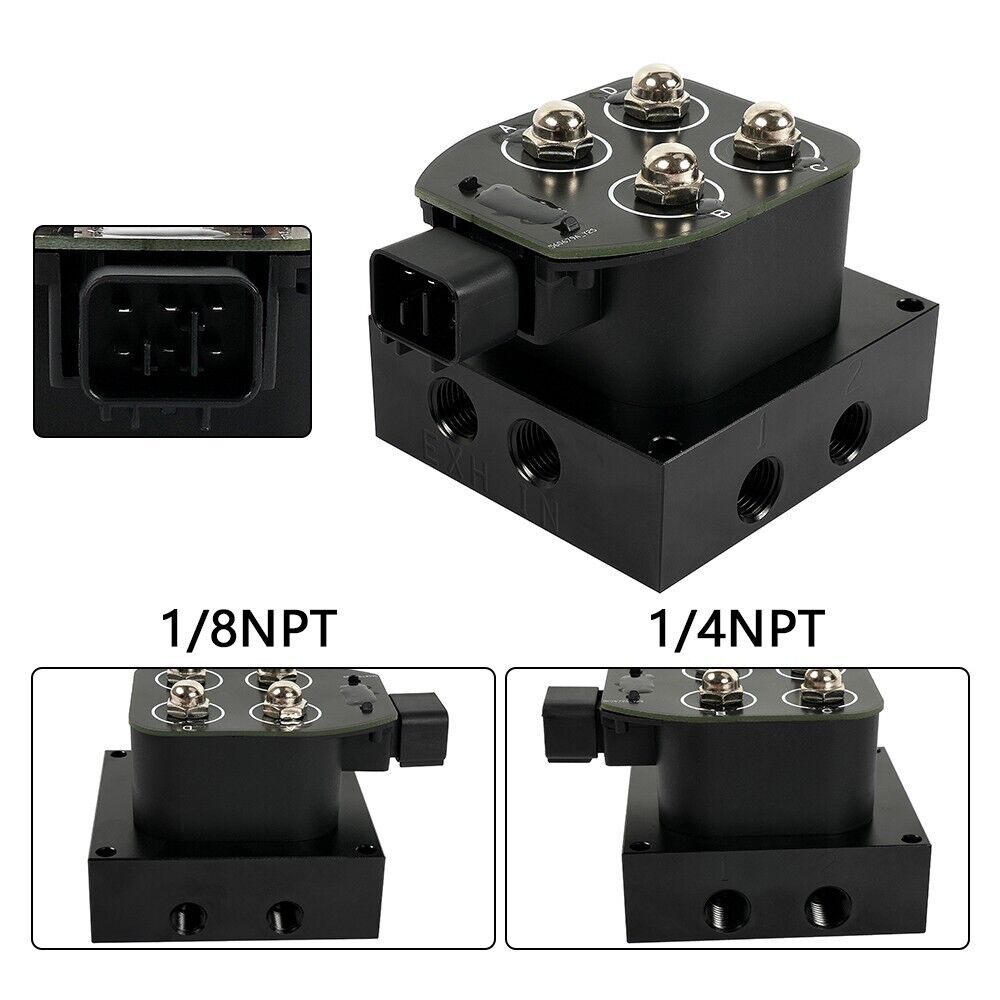

1/4 NPT for all 6 ports and 2-Corner 1/8 NPT.
The diameter: 6.5.
The CV value: 0.2 flow.
Sealed material EPDM.
The work pressure: 0-200Psi. (Max: 230 Psi)
The leakage rate: 0.
The response time of <3ms.
Amount power: 12.6W.
Working voltage: 12V.(Minimum: 8V)
Coil insulation grade: H/180 C.
The ambient temperature: -40 DEG C ~ +85 C.
Anti vibration: 10g/500HZ.
Note:
No tee fittings needed to run analog or digital gauges.
No tee fittings needed between inflate and deflate valve.
Professional Install ation is Highly Recommended!

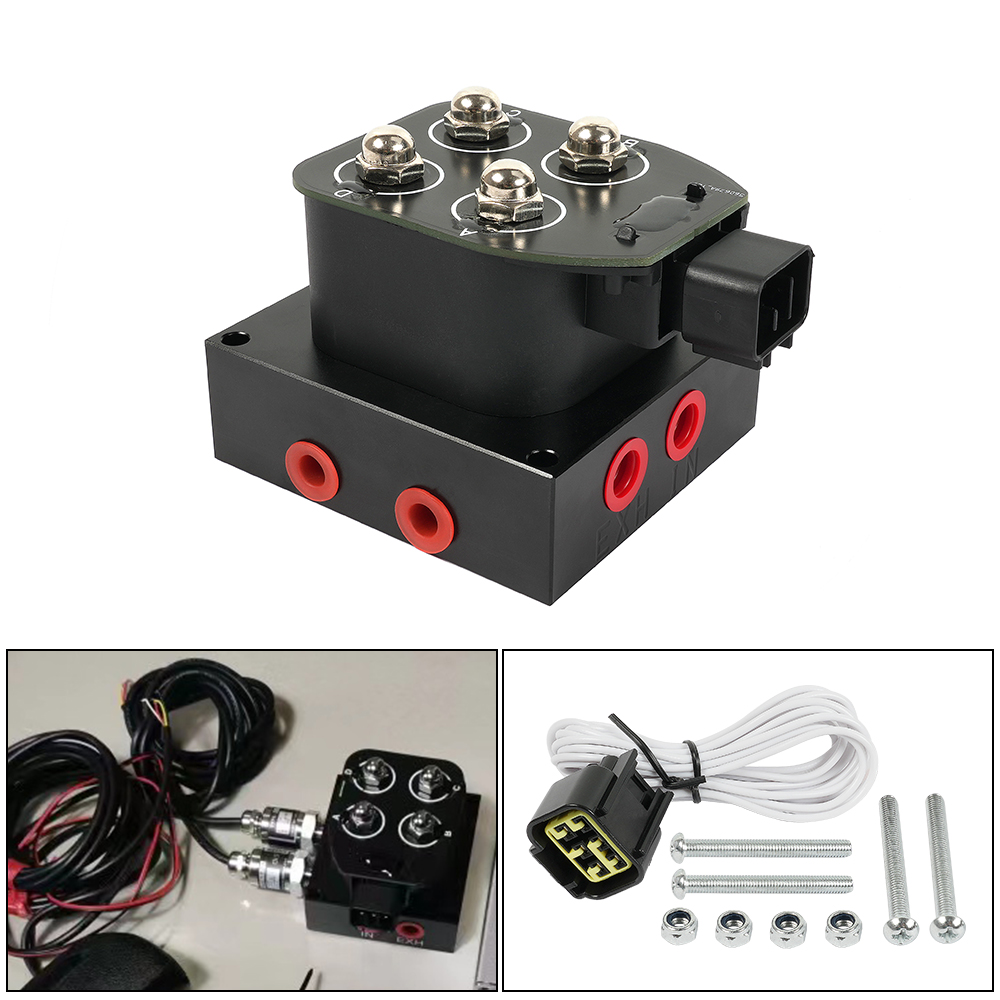

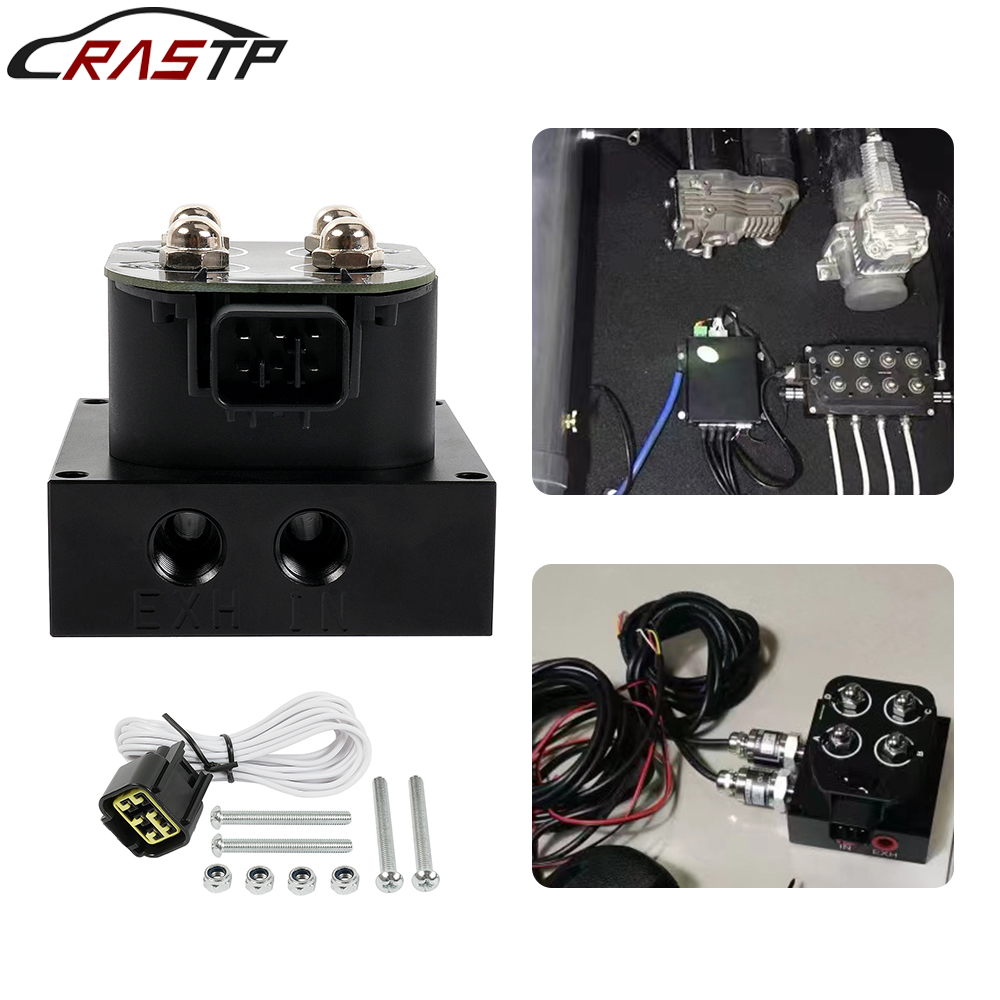

Package Included:
1x Valve controller
1x Installation hardware
1x Wiring harness
