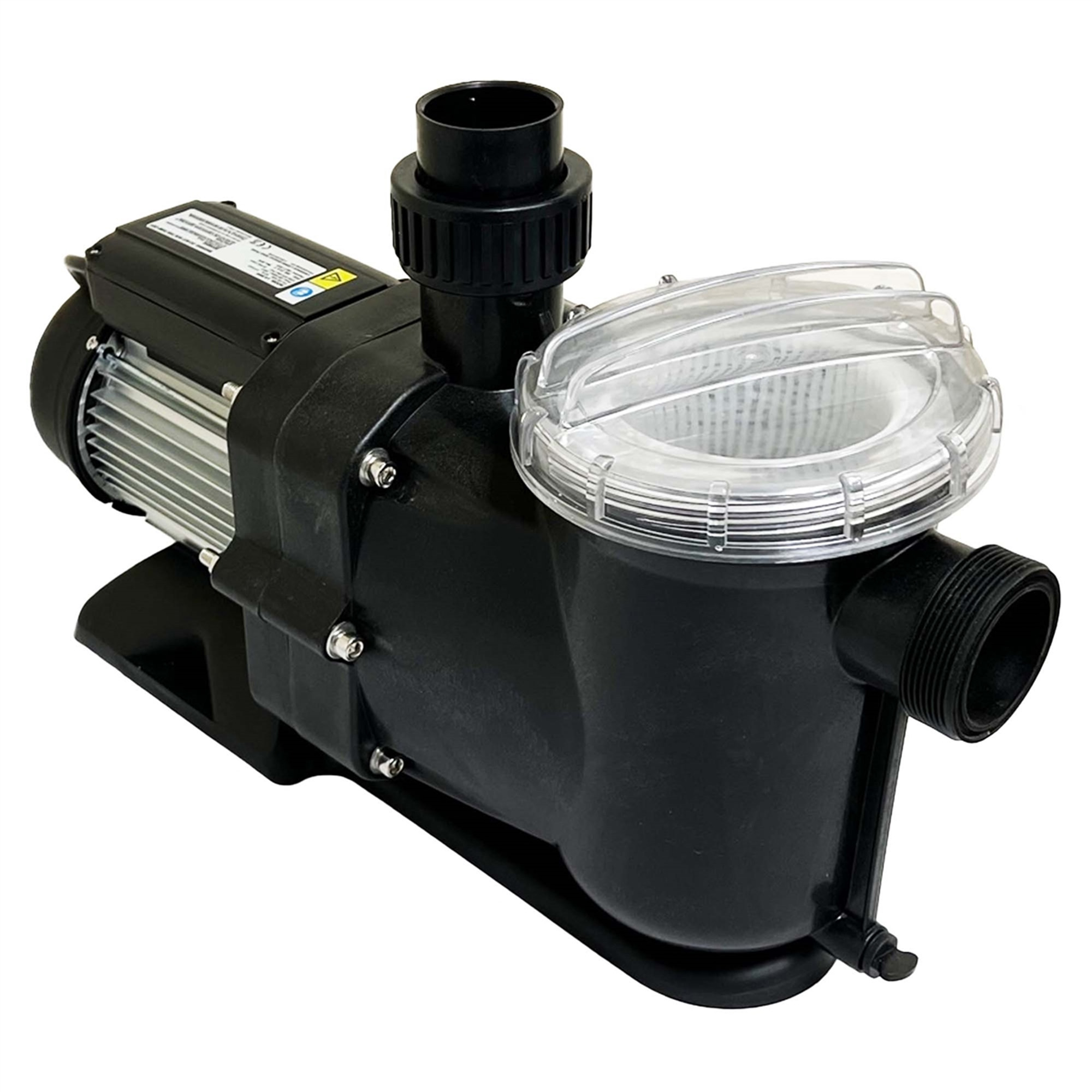

Aqua Pulse 1/2 HP 3,200 GPH Inline Pool & Pond Pump with Strainer Basket – Energy Efficient 120V
The Aqua Pulse Inline Pool Pump is an energy-efficient and powerful self-priming external water pump. The 1/2 horsepower motor achieves a flow rate up to 3,200 gallons per hour. The reliable direct drive motor self-lubricates to maintain peak performance. Overheating is prevented by the built-in thermal sensor. Each component is built to endure all the way down to the professional-grade bearings and seals. Equipped with an easy-to-remove debris basket, this unit makes cleaning simple. The debris basket collects leaves, twigs, and various types of organic debris that can be removed using the transparent quick release lid. The Aqua Pulse Inline Pool Pump features quiet operation, hydraulically leveled, the impeller balances on its own to operate vibration-free. Powered by a grounded 120 volt/5.0-amp motor and a durable double-insulated 4.5-foot power cord. Backed by a 2-year warranty.
- High efficiency, single-speed 1/2HP pool pump is designed for above-ground pools up to 38,000gal (for 12 hr turnover)
- Heavy-duty motor features high quality seals and bearings and self-balancing impeller for quiet, vibration free operation
- Self-priming pump with thermal sensor to prevent overheating
- Oversized removable basket protects pump and captures debris for easy cleaning

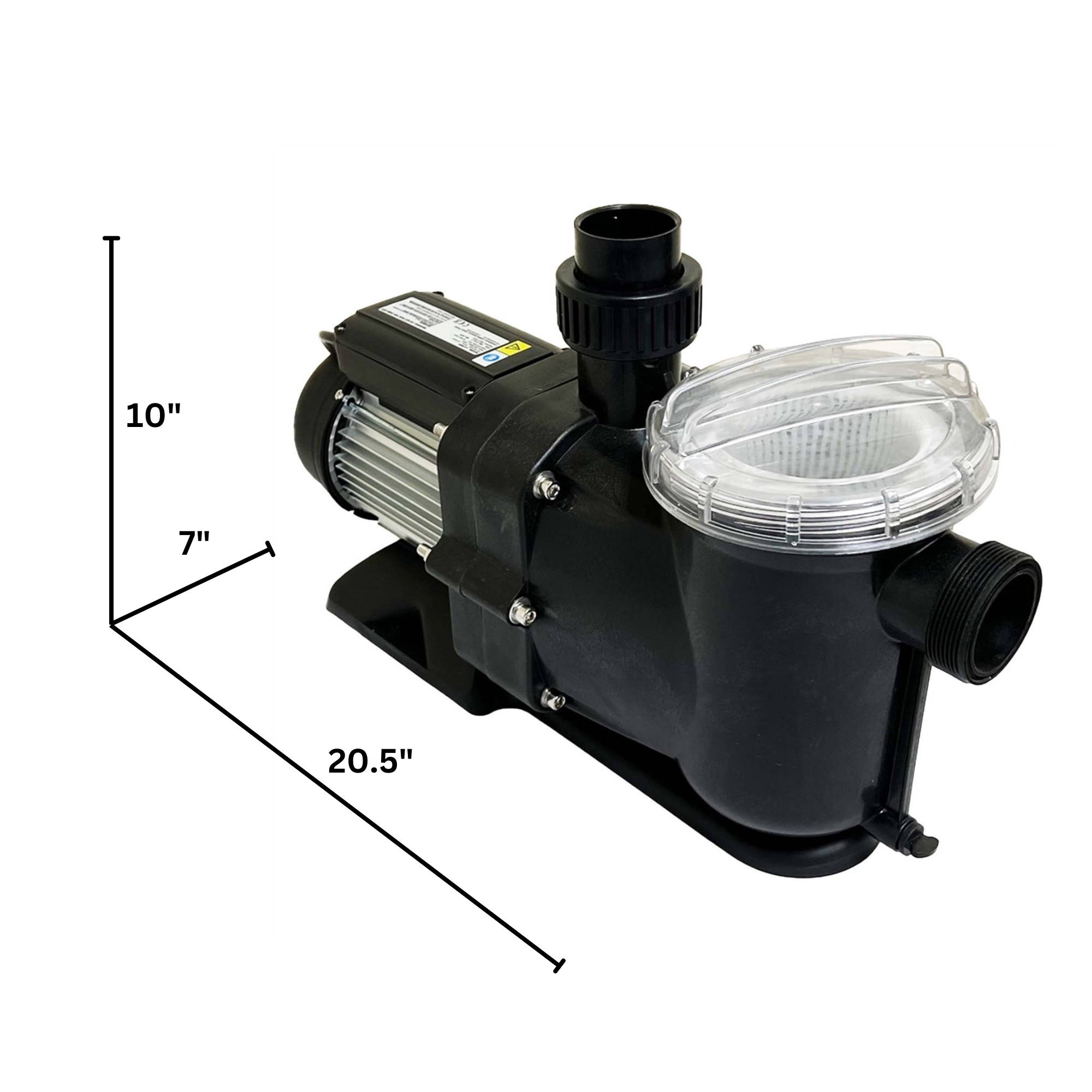

- 600 Watts, 5-Amp, 120-Volt water pump with 32-foot max head height. Dimensions: 20.5 inches x 7 inches x 12 inches. 4-foot double insulated power cord. 2 Year warranty.
Aqua Pulse 1/2 HP 3,200 GPH Inline Pool & Pond Pump with Strainer Basket – Energy Efficient 120V
- Flow Rate & Capacity :Energy-efficient 1/2 HP external pump for above ground pools and garden ponds up to 6,400 gallons — ideal for reliable 24-hour water circulation.
- Motor & Performance: Built for durability: heavy-duty motor with premium seals, bearings, and a self-balancing impeller ensures quiet, vibration-free operation for pond or pool setups.
- Safety Features: Self-priming inline pool pump with built-in thermal protection to prevent overheating and extend motor life.
- Maintenance & Design: Clear lid for quick inspection, oversized debris basket protects the pump and makes cleaning fast and easy — great for pond skimmers and pool filtration.
- 600W, 5 amp, 120V inline water pump with 32-ft max head height. Dimensions: 21" x 7.5" x 11". Includes 4-ft double-insulated cord. Output and Input utilize 1.5 inch slip union adapter. 2-Year Warranty & U.S.-Based Support. For freshwater use only — not suitable for saltwater or chlorinated pools.
FAQs & Calculations to Help Select the Correct Kit
1. How Many Gallons of Water does My Water Feature Hold?
Rectangular Ponds
Length x Width x Average Depth x 7.48 = Gallons
Example: A rectangular pond 15’ long, 10’ wide and 1.5’ Deep Pond is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: A rectangular pond 15’ long, 10’ wide and 1.5’ Deep Pond is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Oval Ponds
Length x Width x Average Depth x 0.8 x 7.48 = Gallons
Example: An oval pond 15’ long, 10’ wide and 1.5’ deep is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: An oval pond 15’ long, 10’ wide and 1.5’ deep is...
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Round Ponds
Length x Width x Average Depth x 7.48 =Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Streams
Length x Width x Average Depth x 0.25 x 7.48 = GALLONS =Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
Example: 15’ long, 10’ wide and 1.5’ Deep Pond
15’ x 10’ x 1.5’ x 7.48 = 1683 Gallons
2. How Big of a Pump Do I Need??
Minimum pump size is determined by pond type, water volume, head height and friction loss. The minimum pump size recommendations are:
Water Garden, Few Small Goldfish
Circulate total pond water valoume every 2 hours.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Fish Pond, Several Small Fish
Circulate total pond water valoume every 1 hour.
Example: 3,800 GPH pump for a 3000-gallon pond with 2’ waterfall.
Example: 3,800 GPH pump for a 3000-gallon pond with 2’ waterfall.
Koi Pond, Several Large Fish
Circulate total pond water valoume every 3/4 hours.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Example: 2,000 GPH pump for a 3000-gallon pond with 2’ waterfall.
Calculating Head Height
Dynamic head pressure is found by taking the vertical height of your waterfall; the distance between where your pump is (typically in the skimmer) and where your waterfall is, and adding the static head pressure (pipe and fittings) 1’ for every 10’ of tubing and 1’ for every elbow or “T” fitting.
Example: 3' (vertical height) + 2.5 (25' of tubing) + 2' (for 2 elbows) = 7.5' of Dynamic Head Pressure
Note:It is important to take into consideration while calculating how much flow will be at the top of your waterfall by accounting for the head height due to the laws of fluid dynamics. Please refer to the flow chart above to help choose the correct pump.
Example: 3' (vertical height) + 2.5 (25' of tubing) + 2' (for 2 elbows) = 7.5' of Dynamic Head Pressure
Note:It is important to take into consideration while calculating how much flow will be at the top of your waterfall by accounting for the head height due to the laws of fluid dynamics. Please refer to the flow chart above to help choose the correct pump.
3. What Size Tubing Do I Need?
| Tubing Size | Efficiency GPH | Minimum GPH | Maximum GPH |
|---|---|---|---|
0.5” |
< 300 |
60 |
420 |
0.75” |
< 720 |
300 |
900 |
1” |
< 1,200 |
700 |
1,500 |
1.25” |
< 1,600 |
900 |
3,200 |
1.5” |
< 2,600 |
2,000 |
4,400 |
2” |
< 4,800 |
3,000 |
6,800 |
3” |
< 9,000 |
6,000 |
14,000 |
4” |
< 21,000 |
14,000 |
28,000 |
6” |
< 42,000 |
33,000 |
60,000 |
