Portable NDT Live Leaf Area Measuring Instrument For Plant LeavesAnd Upload Data
Leaf Area Measuring Instrument

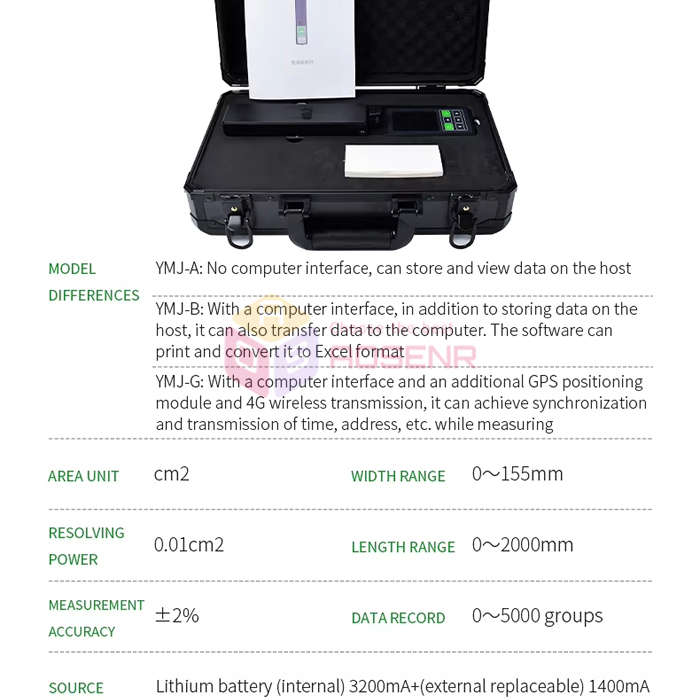

MODEL
YMJ-A: No computer interface, can store and view data on the host
YMJ-B: With a computer interface, in addition to storing data on the host, it can also transfer data to the computer.
The software can print and convert it to Excel format

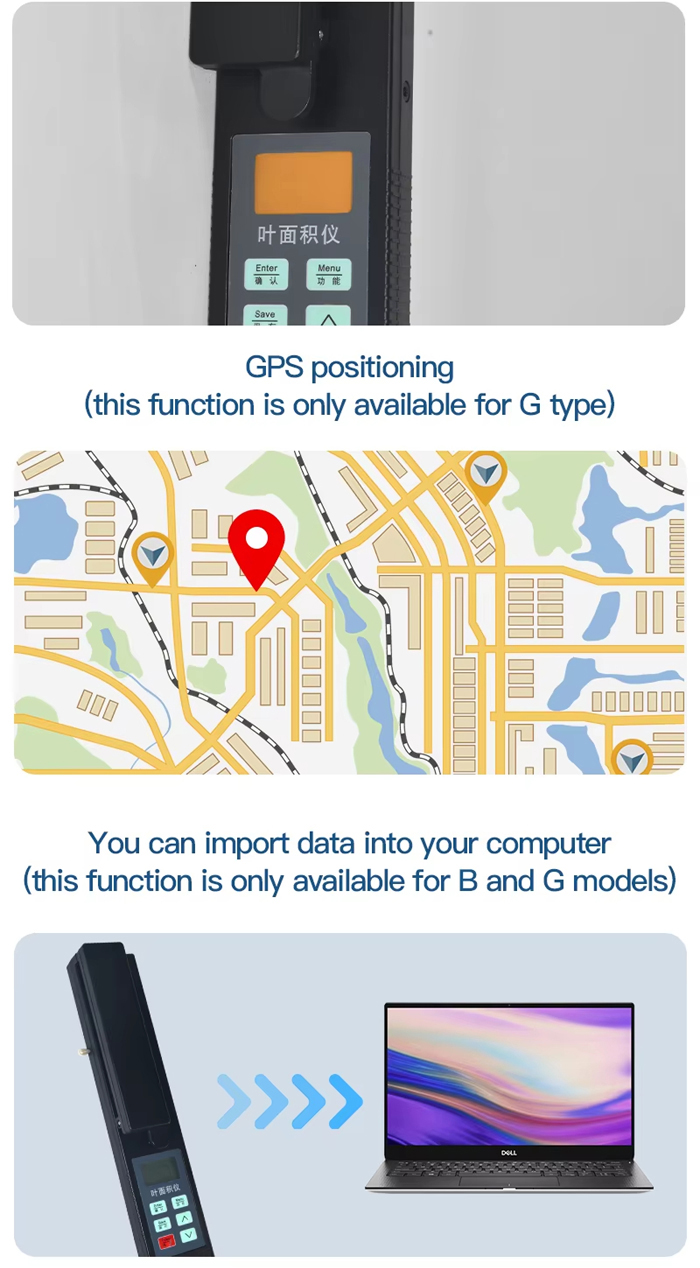

YMJ-G: With a computer interface and an additional GPS positioning module and 4G wireless transmission,
it can achieve synchronization and transmission of time, address, etc. while measuring
Functional characteristics：

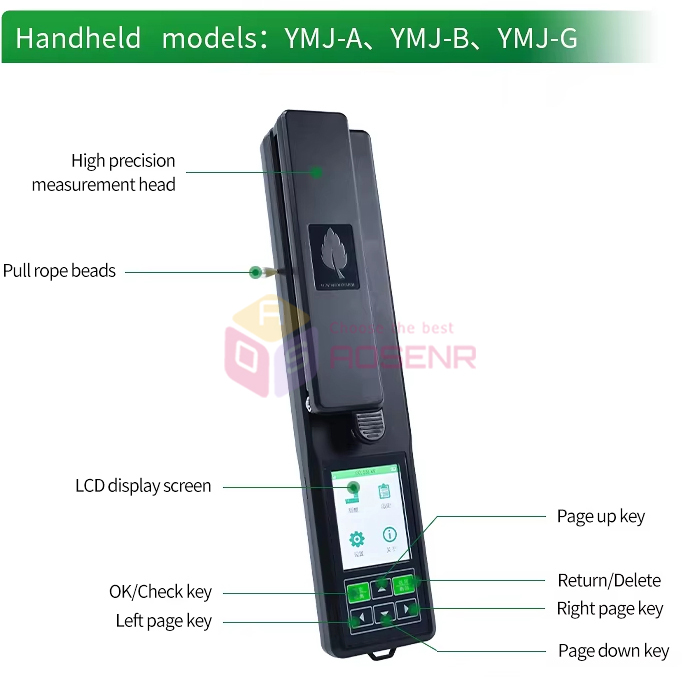

1) The integrated design of the host and probe makes it more convenient to operate. Adopting microcomputer technology, LCD large liquid crystal display.
2) High performance and large capacity battery, without external power supply, low voltage display, sustainable measurement, more suitable for field measurement.
3) Large blade area can be measured at once (2000 * 155mm2)
4) Can store 5000 sets of data (leaf area, leaf length, leaf width).There is a computer interface, in addition to storing data on the host, it can also transmit data to the computer, the software can be printed, and converted into EXCEL format

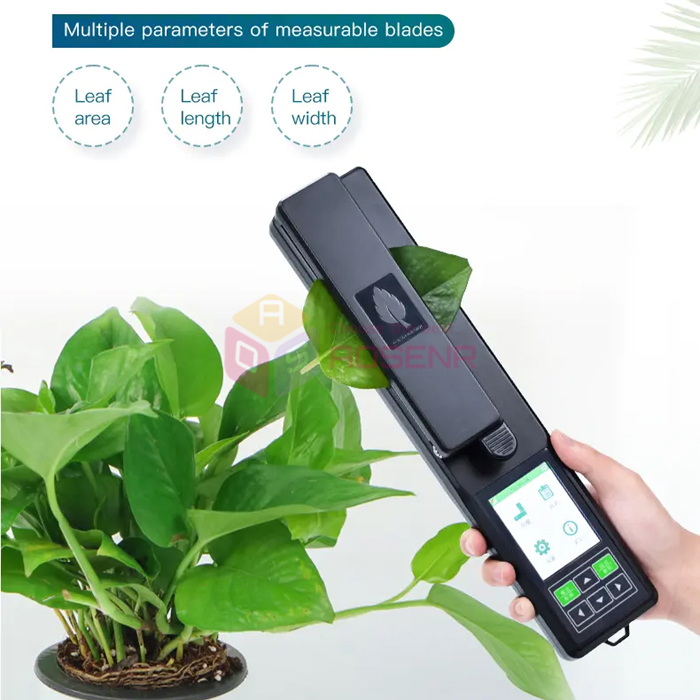

5) Multiple parameters of the blade can be measured: leaf area, average leaf area, leaf length, and leaf width.
Host Introduction:
The YMJ series live leaf area measuring instrument is a newly developed product. It is a portable instrument that is easy to use and can work in the field. It can accurately, quickly, and undamaged measure the leaf area and related parameters of leaves, as well as measure the area of picked plant leaves and other sheet-like objects. Widely used in agriculture, meteorology, forestry, and other fields.
The instrument can directly measure the length, width, and area of the blade.
Technical Parameters
(1) Area unit: cm2
(2) Resolution: 0.01cm2
(3) Measurement accuracy: ± 2%
(4) Width range: 0-155mm
(5) Length range: 0-2000mm
(6) Data recording: 0-5000 sets
(7) Power supply: Lithium battery (internal) 3200mA+(external replaceable) 1400mA

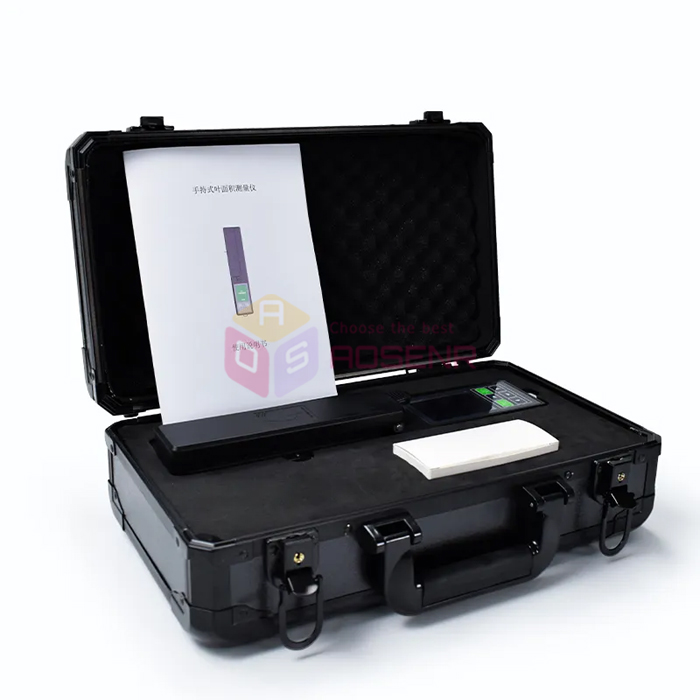

Package Includes:
1 x Leaf Area Measuring Instrument
