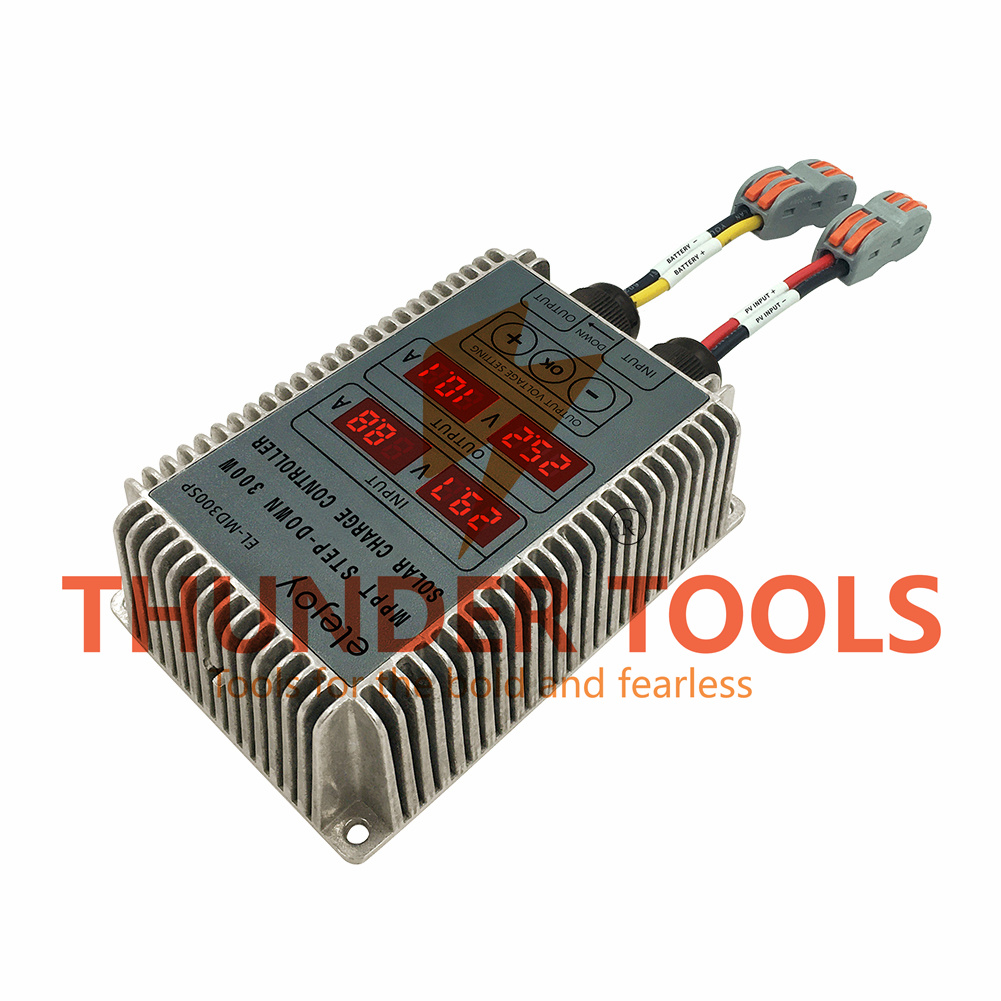

This MPPT step-down real-time tracking solar battery recharging controller with the LED display, and the output voltage can be adjusted, and suitable for le-ad-acid, lithium-ion and other batteries in line with 10~30V recharging voltage. Come on and try it, it will not let you down.

Features:

With the LED display to show the input and output current and voltage, you can see the data more clearly.

The output voltage can be adjust between 10~30V, you can choose the suitable for your needs.

Suitabe for the le-ad-acid, lithium-ion and other batteries in line with 10~30V recharging voltage.

Efficient MPPT real-time tracking function, give you a better using experience.

Overheat protecting function: When the internal ambient temperature of the MPPT controller exceeds 100 Degrees Celsius, the output power of the MPPT controller will be reduced. If the internal ambient temperature continues to rise to 110 Degrees Celsius, the output of the MPPT controller will be automatically turned off. When the internal ambient temperature of the MPPT controller falls below 85 Degrees Celsius, the MPPT controller will automatically resume operation.

Short circuit protecting function: when the MPPT controller output comes unexpected short circuit, MPPT controller will automatically close the output, the short circuit will automatically return to normal after elimination.

Input under-voltage protecting: when the MPPT controller input direct current voltage is lower than 15V, MPPT will protective shutdown, the input voltage is normal automatically resume work.

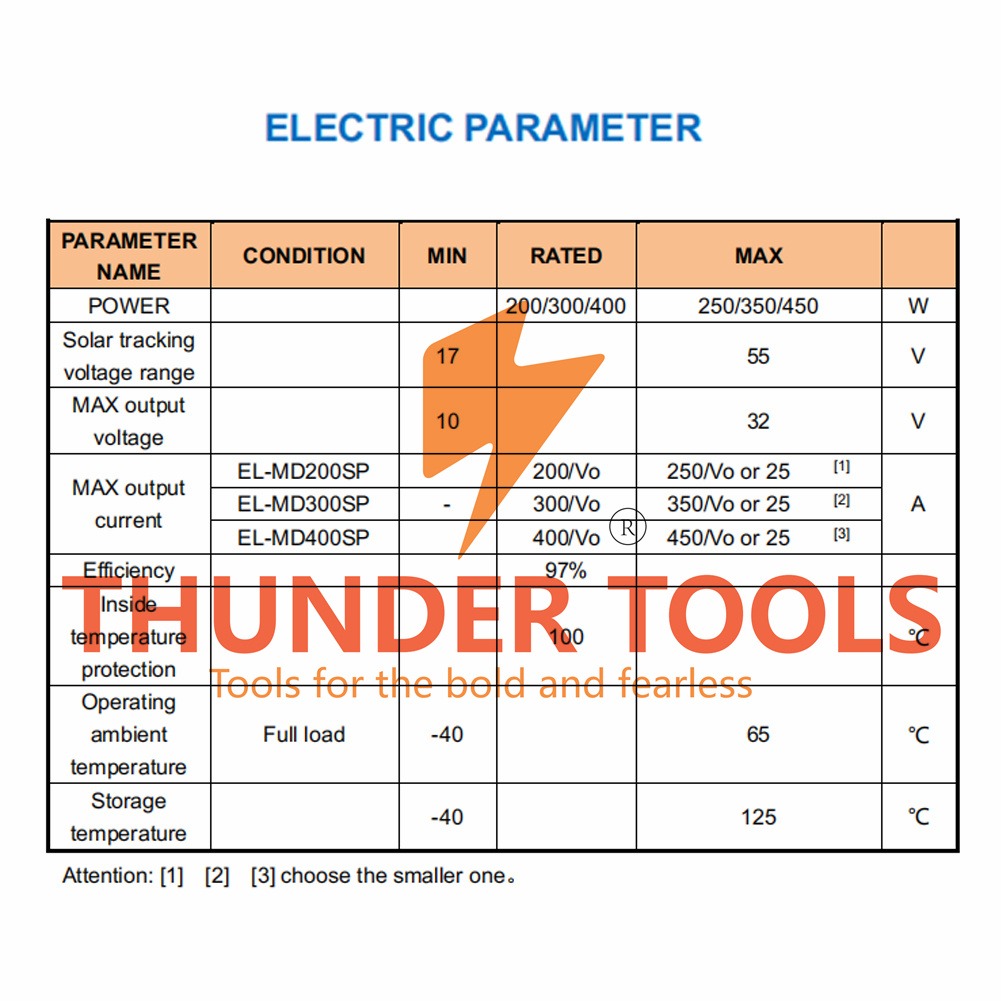

Specifications:

Material: aluminum

Suitable for: the battery of recharging voltage between 10~30V

Suitable solar panel:

The open circuit voltage: 18V~55V

Maximum power voltage: 17V~55V

Output power: 200W, 300W, 400W (optional)

Photovoltaic input starting voltage: 18V~55V

Photovoltaic input tracking voltage: 17V~55V

Output to the battery voltage: 10~30V (adjustable)

Output to the battery current: Max.25A

No-load loss: 0.35w

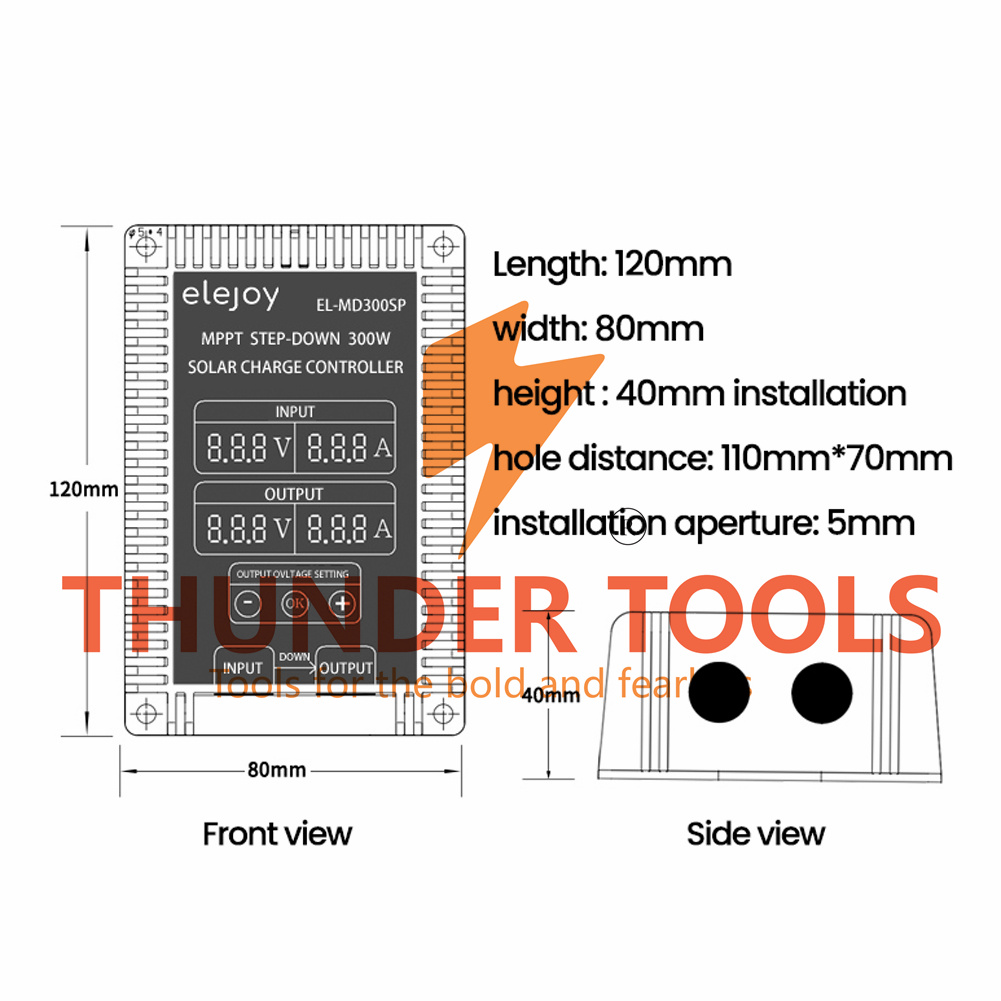

The pi-tch of the installation: 110mm * 70mm

Installation hole diameter: 5mm

Voltage adjustment rate: 1%

Load adjustment rate: 1%

PWM conversion efficiency: 97%

MPPT efficiency: 99%

Working temperature: -40 Degrees Celsius~65 Degrees Celsius

Install line length: 50mm

Item size: 130 * 80 * 40mm / 5.1 * 3.1 * 1.6in

Item weight: 450g / 1.0lb

Package size: 160 * 90 * 50mm / 6.3 * 3.5 * 2.0in

Package weight: 500g / 1.1lb

Packing list:

1 * Solar Recharge Controller (Optional)
