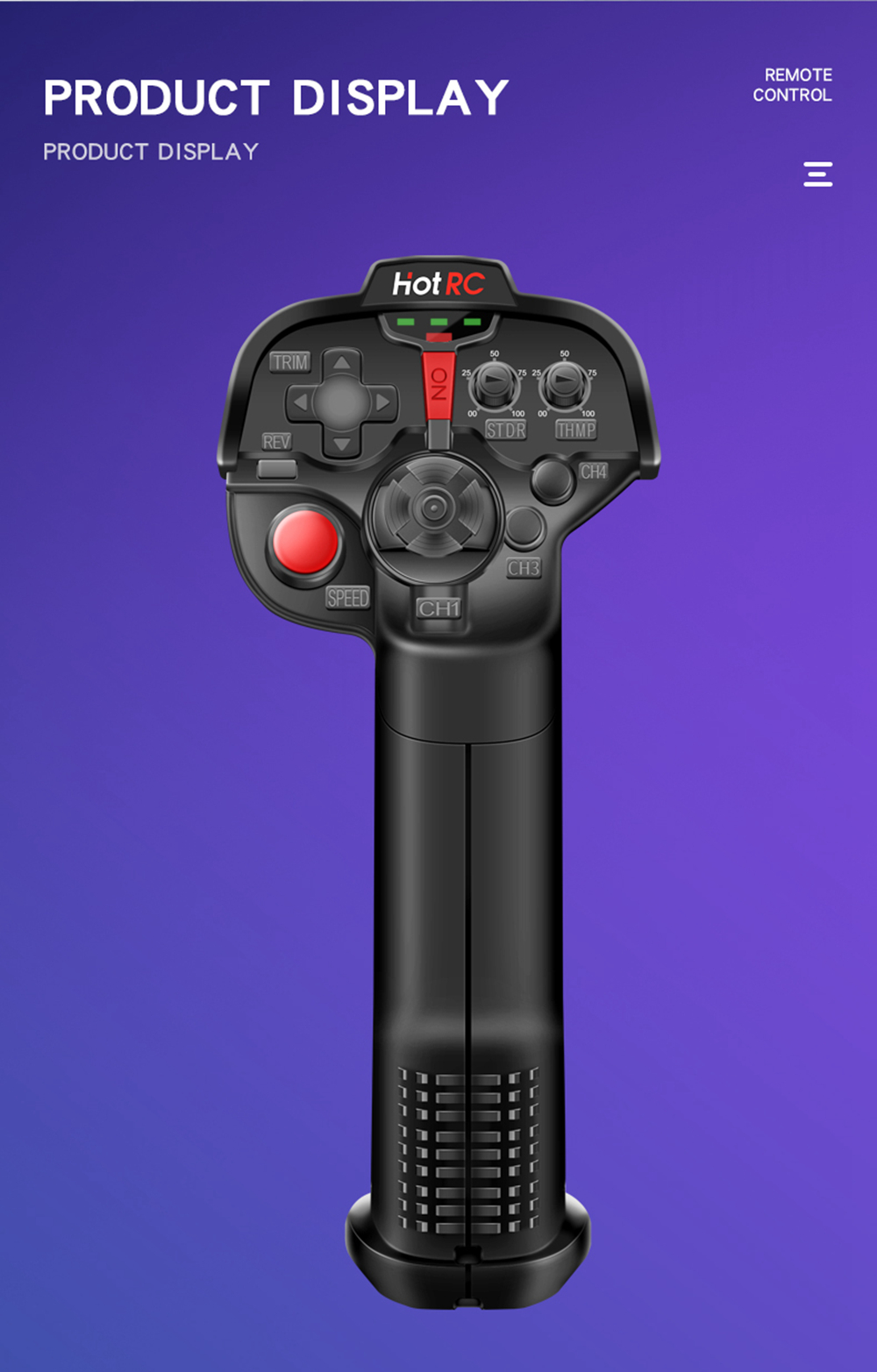

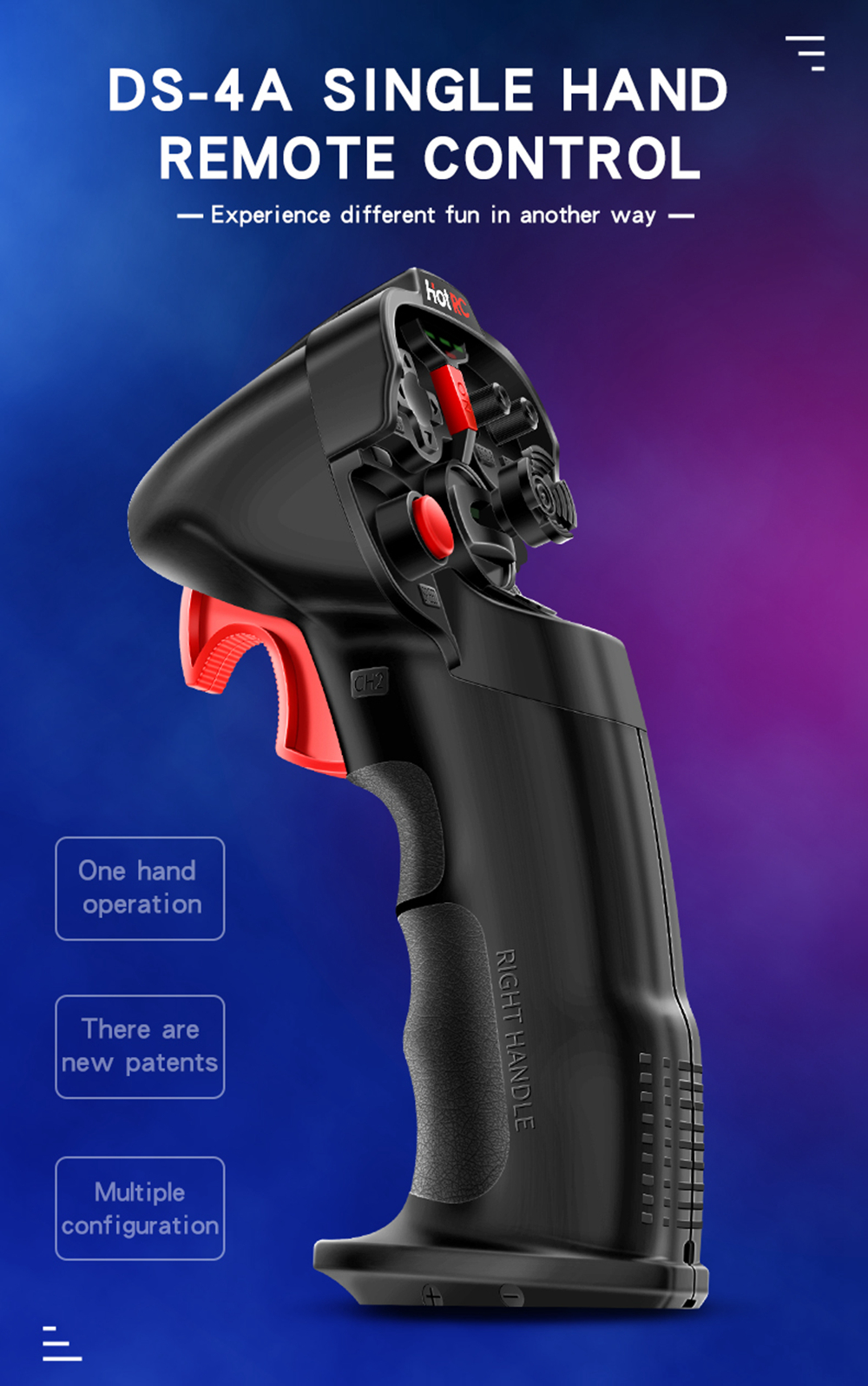

HotRC DS-4A Single Hand RC Radio Transmitter 2.4GHZ 4Channel ARM Core 32-bit Chip With F-04A 4CH Double Signal Receiver For RC Car Boat Robot Airplane Toys
Features:

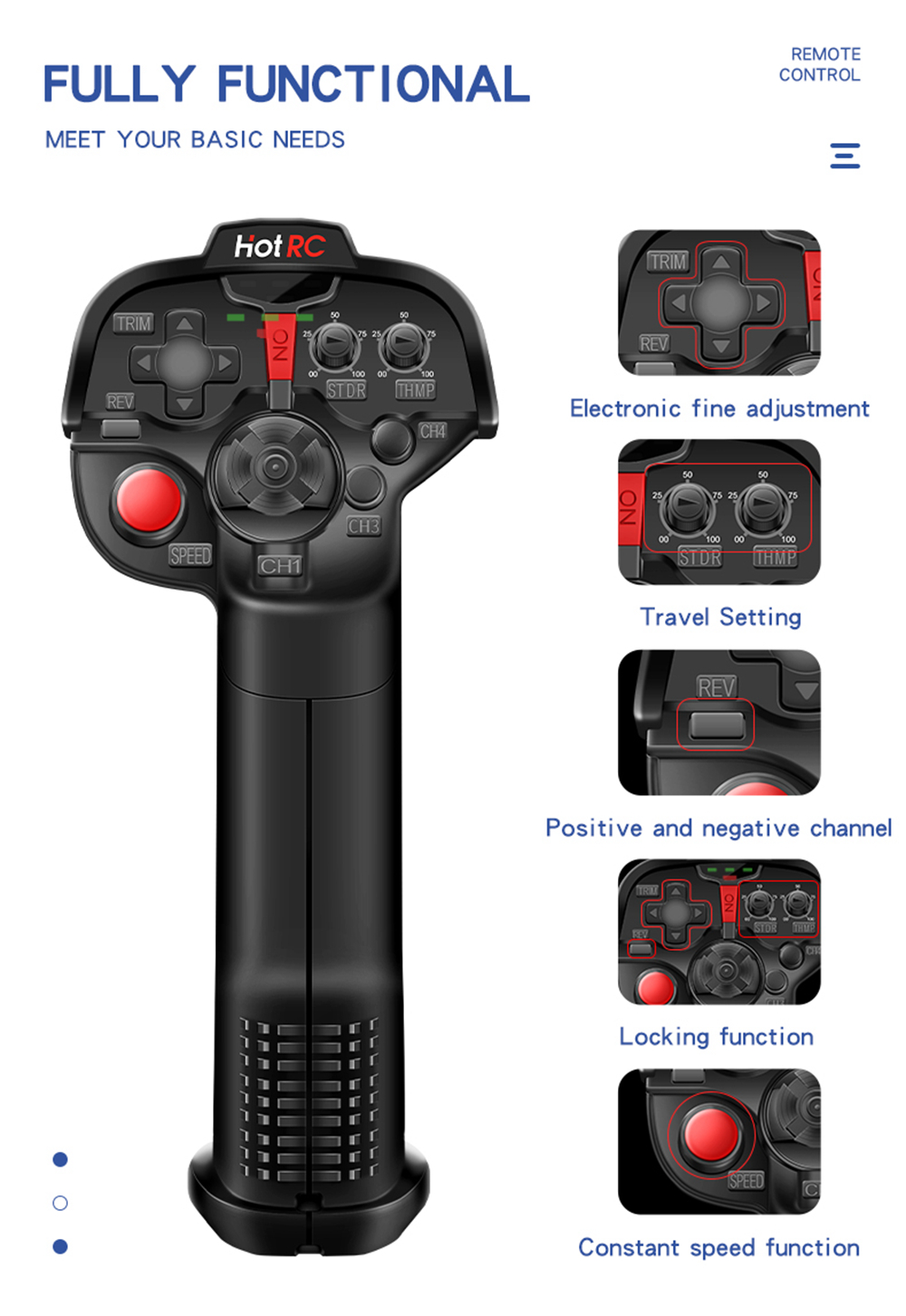

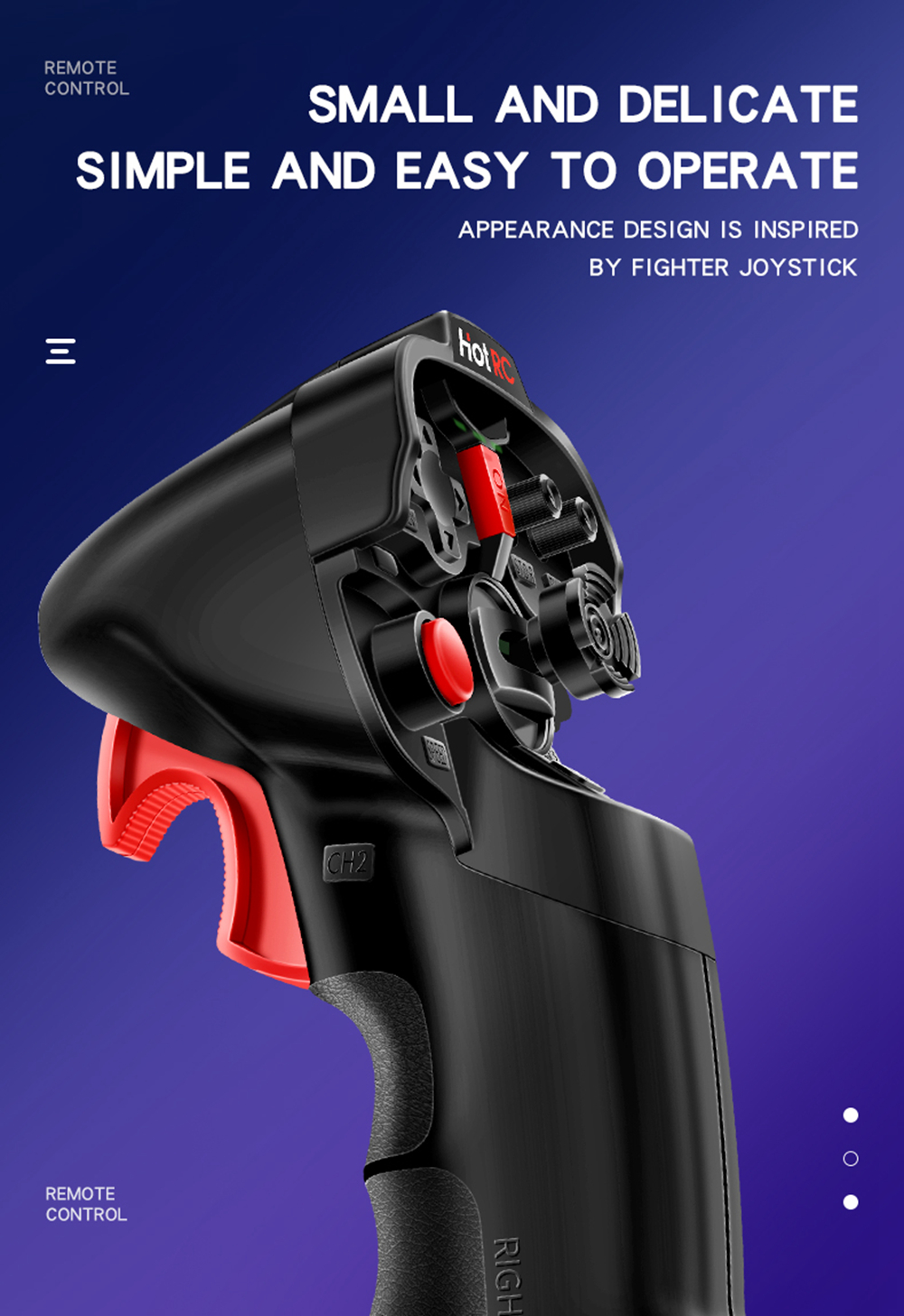

1. New structure, real one-handed remote control.
2. It has the locking function (lock the fine-tuning rudder of 1 and 2 channels). Press and hold the 4-way switch while pressing the power switch.

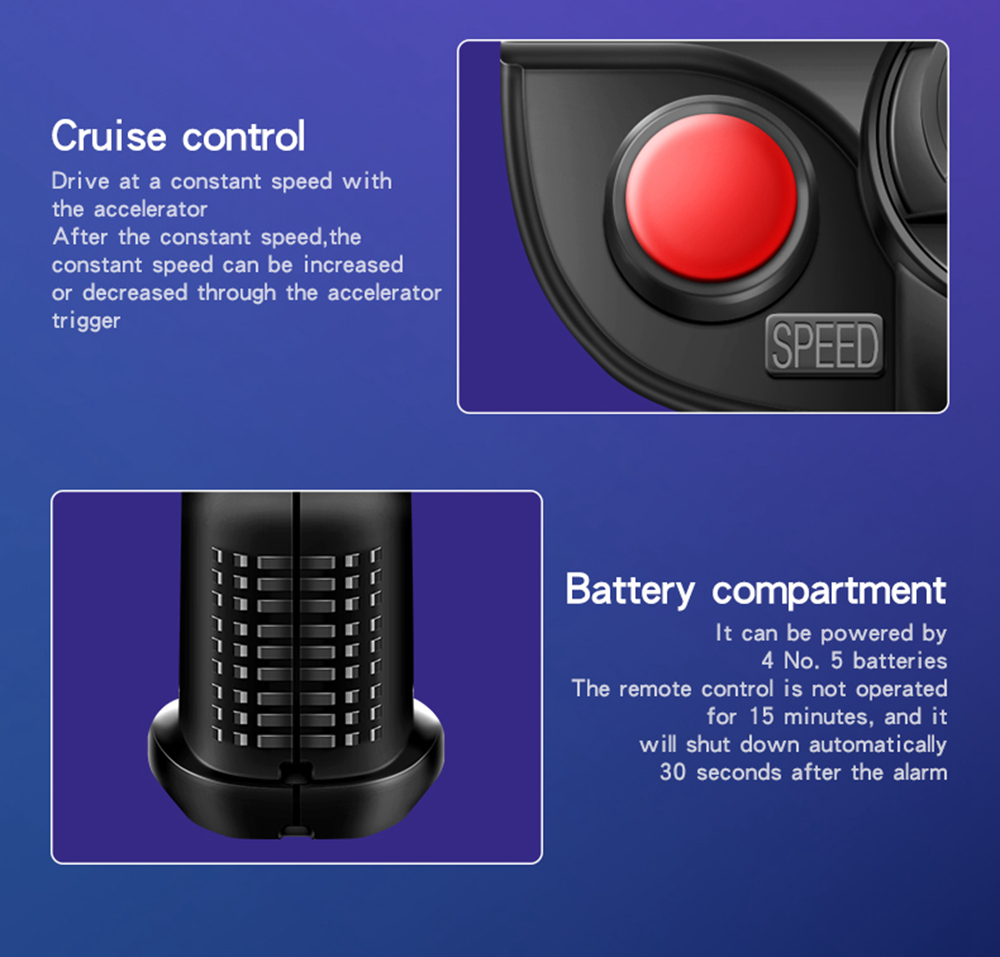

3. It has fixed-speed cruise function. After fixed-speed, it can also increase and decelerate, which can be realized by increasing or reducing the throttle.
4. Support unidirectional and bidirectional modes (hold down the positive and negative channel parts while holding down the power switch).
5. The remote control will automatically shut down after 15 minutes without operation.
6. Mixed-control function (1 2-channel operation at the same time), hold down the 3-way switch while holding down the power switch.
7. Out of control protection (press and hold the receiver to the code piece while inserting the power supply).

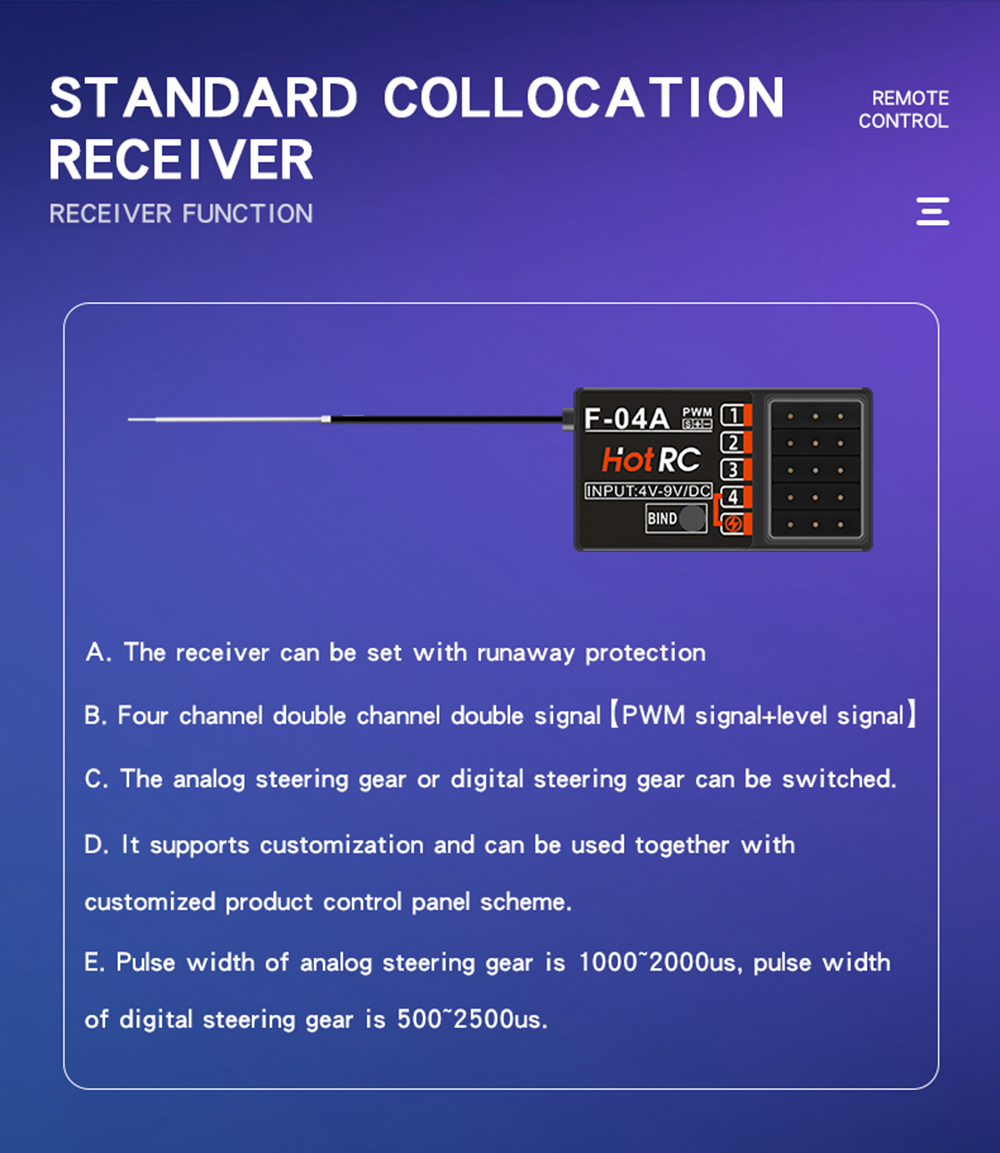

8. Receiver 4 channels support electrical frequency signal and pwm signal.
9. Receiver Pulse width of analog steering gear is 1000~2000us, pulse widthof digital steering gear is 500~2500us.
Description:
HotRC DS-4A single hand RC radio transmitter 2.4GHZ 4channel,It has the locking and fixed-speed cruise function,Support unidirectional and bidirectional modes,New structure, real one-handed remote control.
Specifications:
Applicable: Model vehicle/ship/tank/two-way aircraft
Channels: 4CH
Batteries: 4 No. 5 batteries
Frequency range: 2.4GHZ ISM
Transmitting power: about 60MA
Modulation mode: GFSK
Spread spectrum mode: FHSS
Response speed: PWM≤20MS
Remote control distance: Ground distance≈400m,Air distance≈800m
Receiver sensitivity: -97dbm
Channel resolution: 4096
Remote control power supply: DC 4V-9V
Receiver Channels: 4CH
Receiver power supply: DC 4V-9V
Steering gear pulse: 1000~2000us
Widthof digital pulse: 500~2500us
Receiver signal: PWM signal+level signal
Product weight: 120g

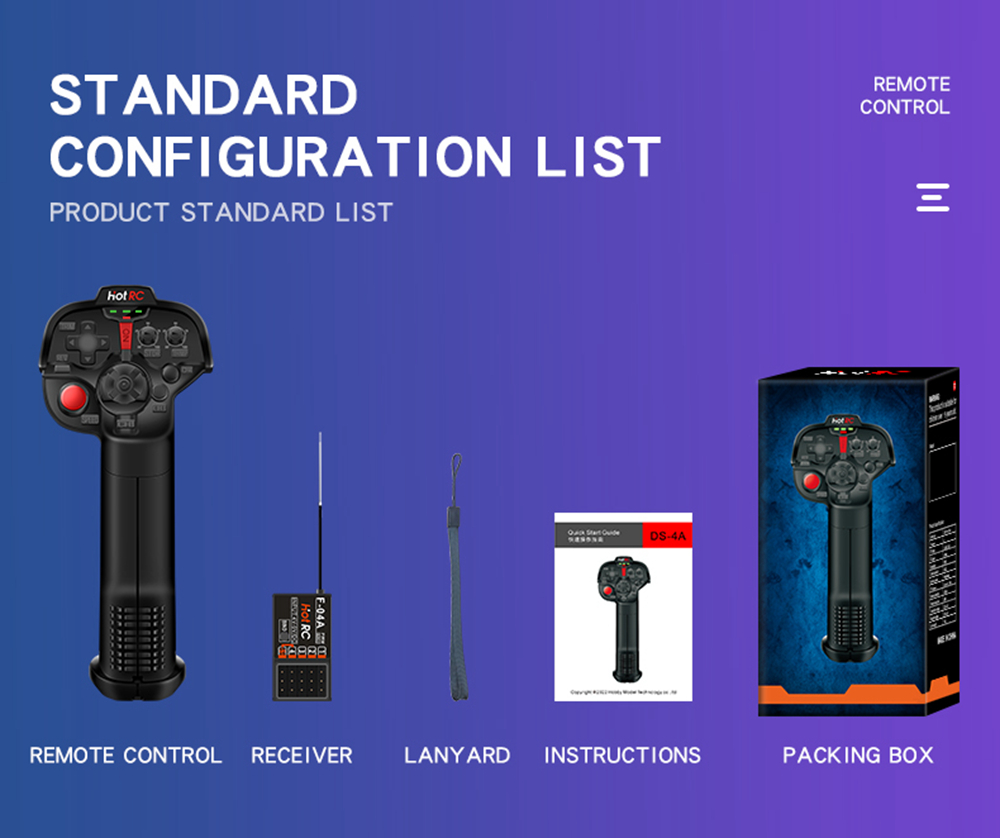

Package contents:
1* remote control
1* receiver
1* lanyard
1* instructions
1* packing box
Note:
Only the above package content, other products are not included.
