Radiomaster NEXUS Helicopter Flight Controller Built-in 128Mb Black Box ICM-42688-P Gyro 6-axis MEMS motion tracking device For RC Fixed Wing Helicopter
Features:
1. Equipped with an advanced STM32F722 MCU and TDK 6-axis MEMS motion tracking device, which combines a 3-axis gyroscope and a 3-axis accelerometer.
2. Built-in Black Box: A large 128Mb of onboard flash memory ensures you can log all your flights for fine-tuning and adjustment.
3. Locking connector system compatible with our Plug'n'Play solder-free RP3-H ExpressLRS receivers, there will be a stable connection between the control unit and the receiver (RP3-H not included).
4. Features multi-function ports (UART) for future expansion.

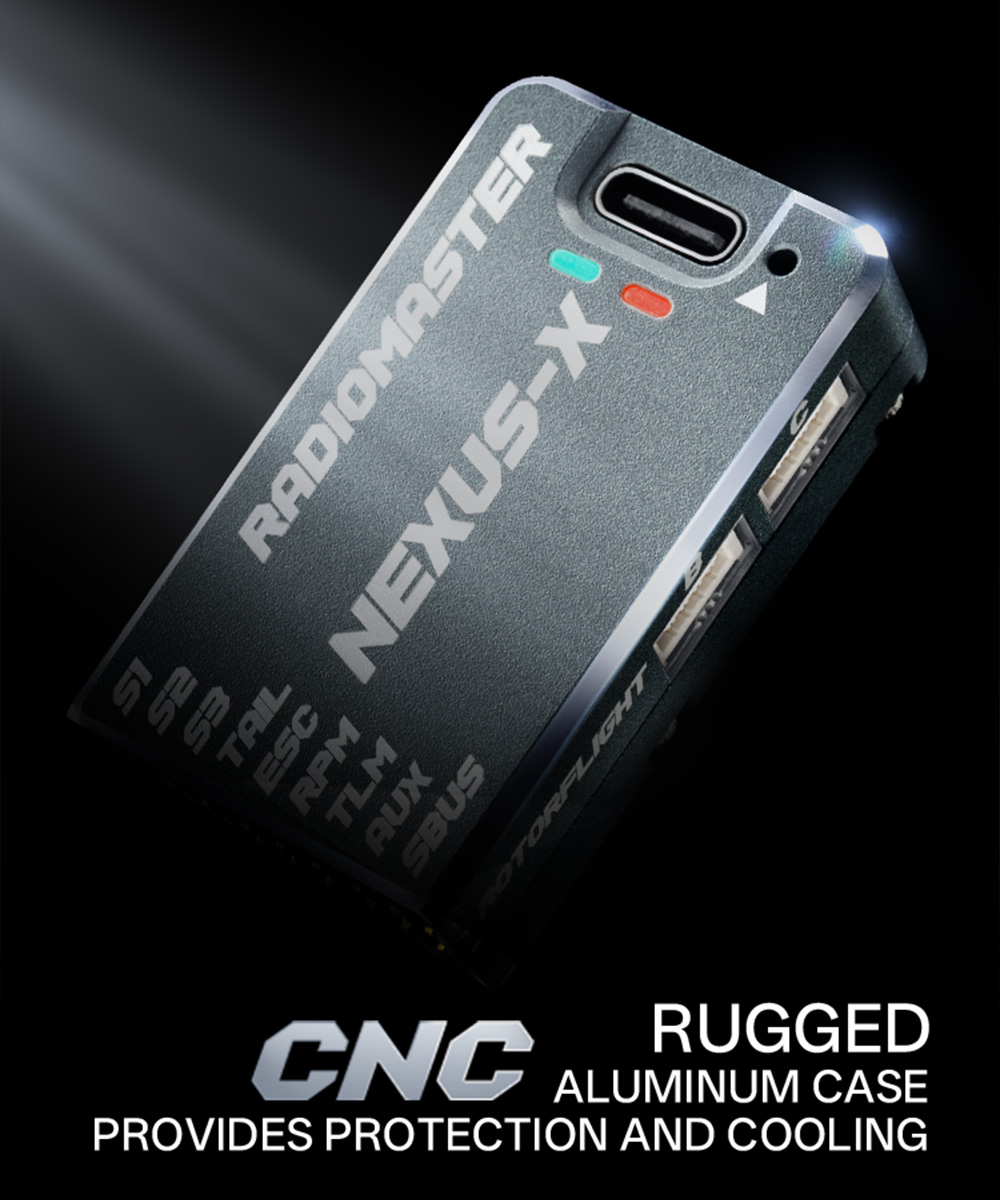

5. The Nexus flight controller is compact and rugged. The CNC case not only protects the internal components but acts as a heat sink to help keep the electronics cool.
6. The Nexus measures just 41mm x 25mm and is only 13mm high, making it a perfect fit for any size heli build, including 250/450/500/550/600/700 helicopters.

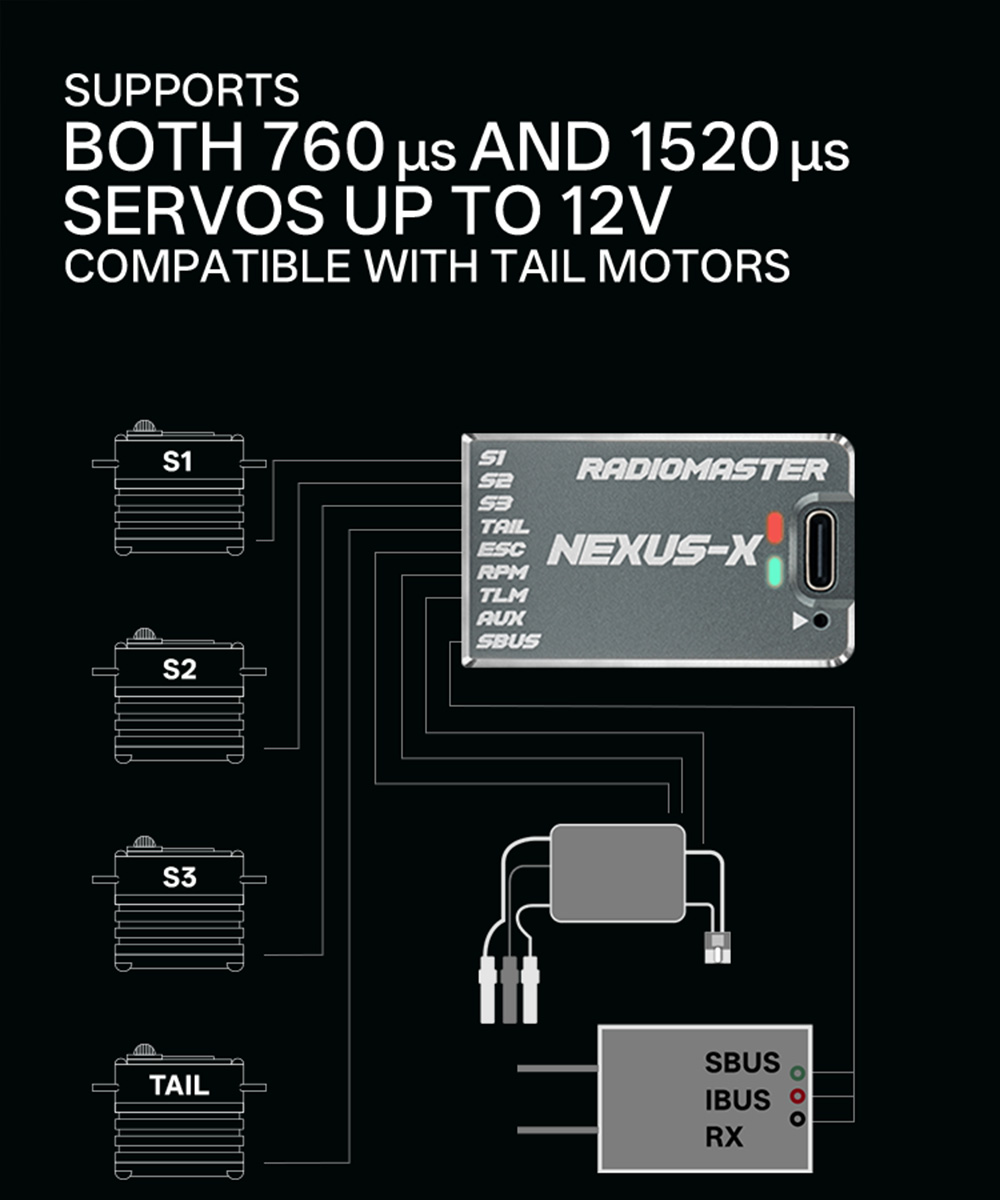

7. Supports a wide range of Tail Motors and Tail ESCs (760s / 1520s).
8. A variety of receivers are supported, including CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP, DSM2, DSMX, and F PORT.
9. The device has multiple independent power supplies that minimize noise when reaching 1.8V. It includes 1.8V for Gyro, 3.3V for the MCU, and 5.0V for the external interface.
Description:
With its advanced STM32F722 MCU and the TDK ICM-42688-P 6-axis MEMS motion tracking device, which combines a 3-axis gyroscope and a 3-axis accelerometer, the Nexus flight controller ensures precision control and flight. A large 128Mb of onboard flash memory ensures you can log all your flights for fine-tuning and adjustment.
Specifications:
Item: Nexus Heli Flight Controller
Firmware: Rotorflight 2.0
MCU: STM32F722RET6
Gyro (IMU): ICM-42688-P
Flash Memory (Black Box. IC): 128Mb (W25N01GVZEIG)
Barometer: SPL06-001

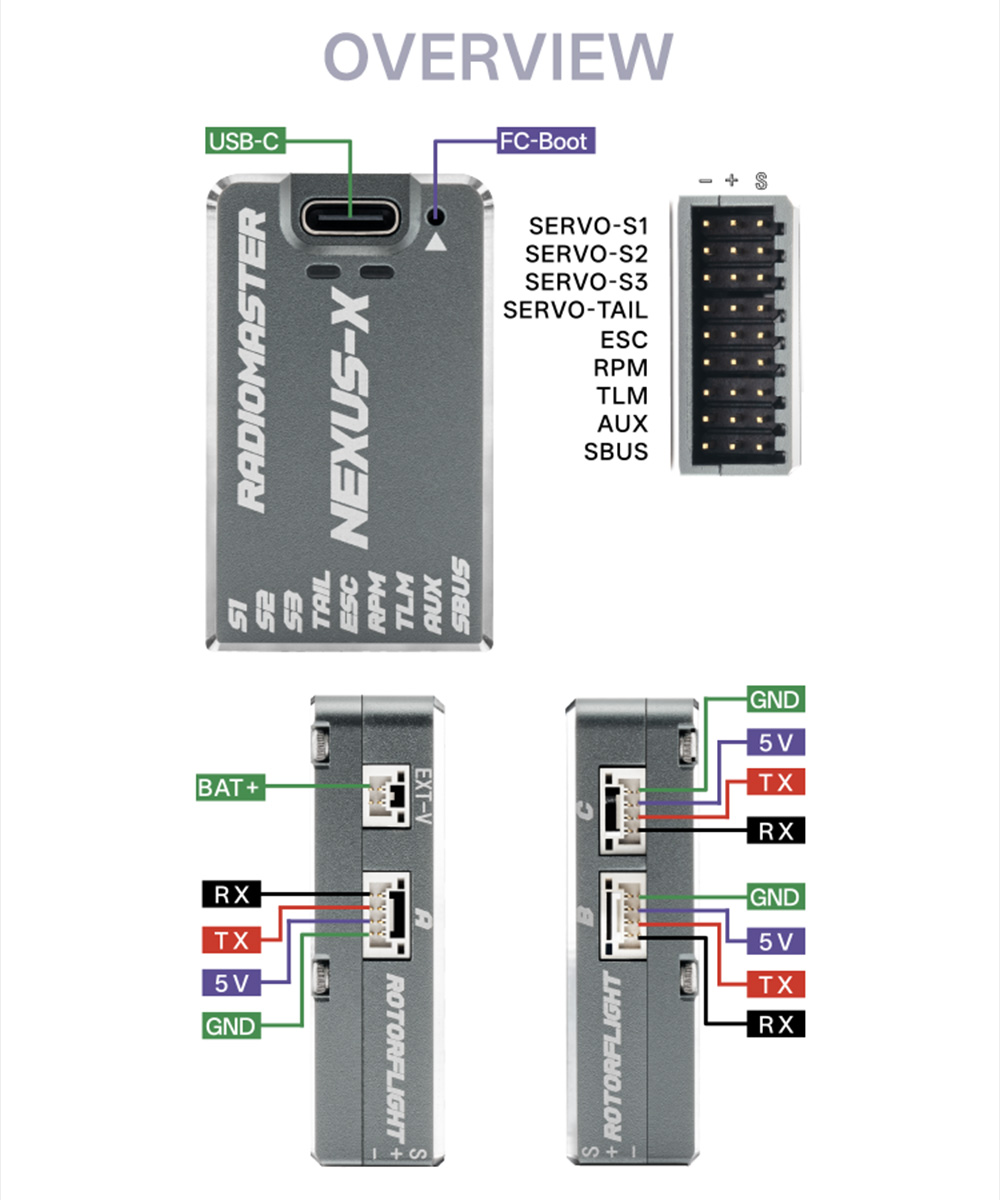

Uart: 6 - DSM[UART1], S.BUS[UART2], A-CRSF[UART4], PORT-B[UART6], PORT-C[UART3]
Servo: 4 - S1, S2, S3, TAIL
Rpm Sensor: 1 - FROM ESC FREQUENCY SENSOR
Receiver Support: CRSF, ELRS, GHOST, S.BUS, SUMD, IBUS, XBUS, EXBUS, PPM, MSP, DSM2, DSMX
Voltage Supply(DC): 5 - 12.6V
A-B-C Serial Port Power Output: 5V - 2.0A
DSM Serial Port Power Output: 3.3V - 0.5A
Telemetry: S.BUSH, HoTT, S.Port, MSP, EDGETX, ELRS
ESC: PWM, Oneshot, Multishot, Dshot
Support Tail ESC: 760s/1520s Servo
Support Tail motor: Yes
Demensions: 41.3 X 25.4 X 13.1mm
Weight: 16.8g
Package contents:
1 * Nexus Helicopter Flight Controller
3 * JST-GH 4 Wire pigtail cables
1 * JST-GH to Servo Plug (dupont 3 pin connector)
1 * Ultra light-weight and flexible USB-C extender
1 * Type C extension cable
3 * 3M double-sided mounting tape
2 * Heat shrink tubing
