Product Description



solar panel


solar panel

High efficiency

Made with high efficiency (23%) solar panels. The part-cut design effectively reduces internal resistance, improves module efficiency and reduces the risk of hot spots.

Reliable quality

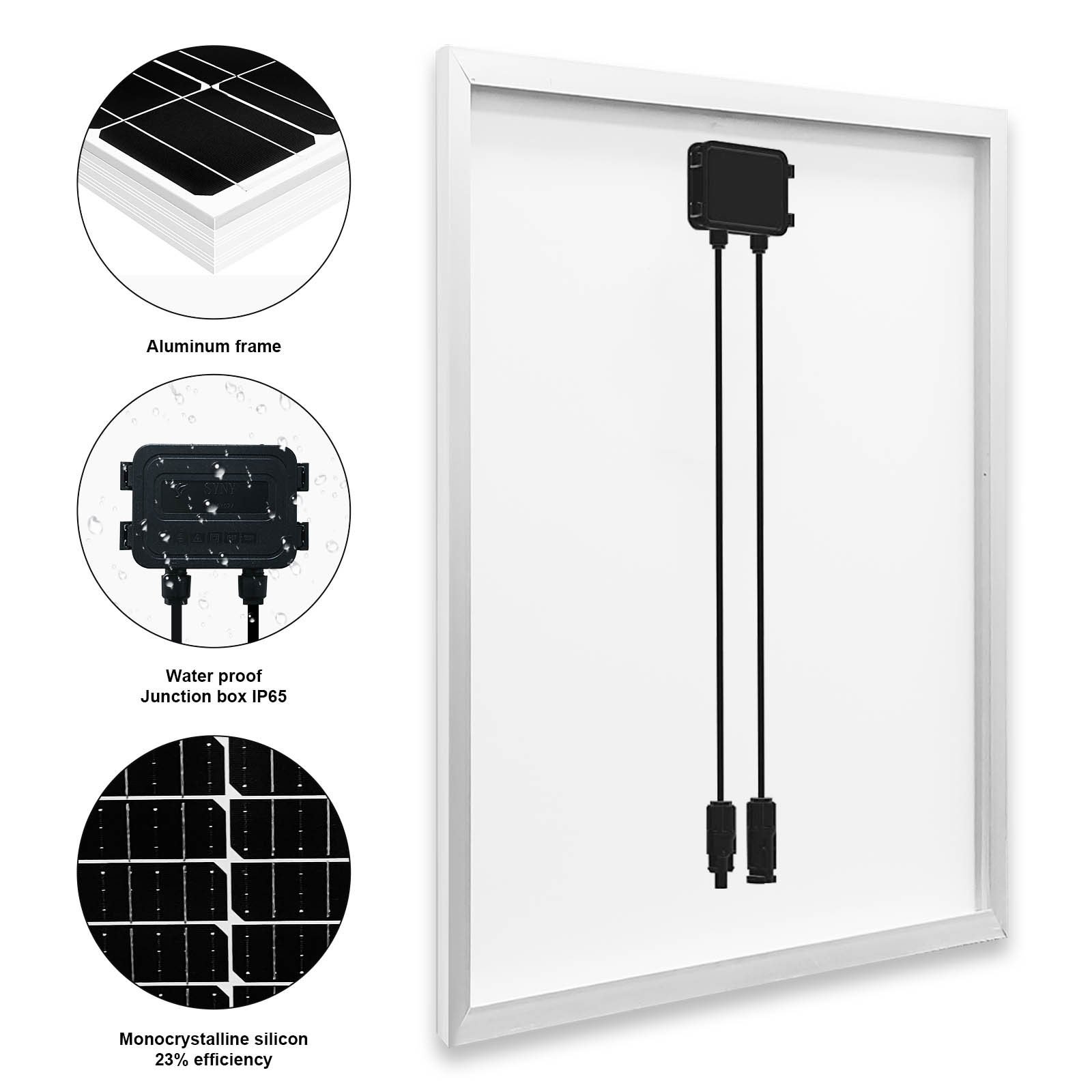

IP65 waterproof junction box; corrosion-resistant aluminium frame and back panel; withstands strong winds up to 2400 Pa and snow loads up to 5400 Pa.

Upgraded Design

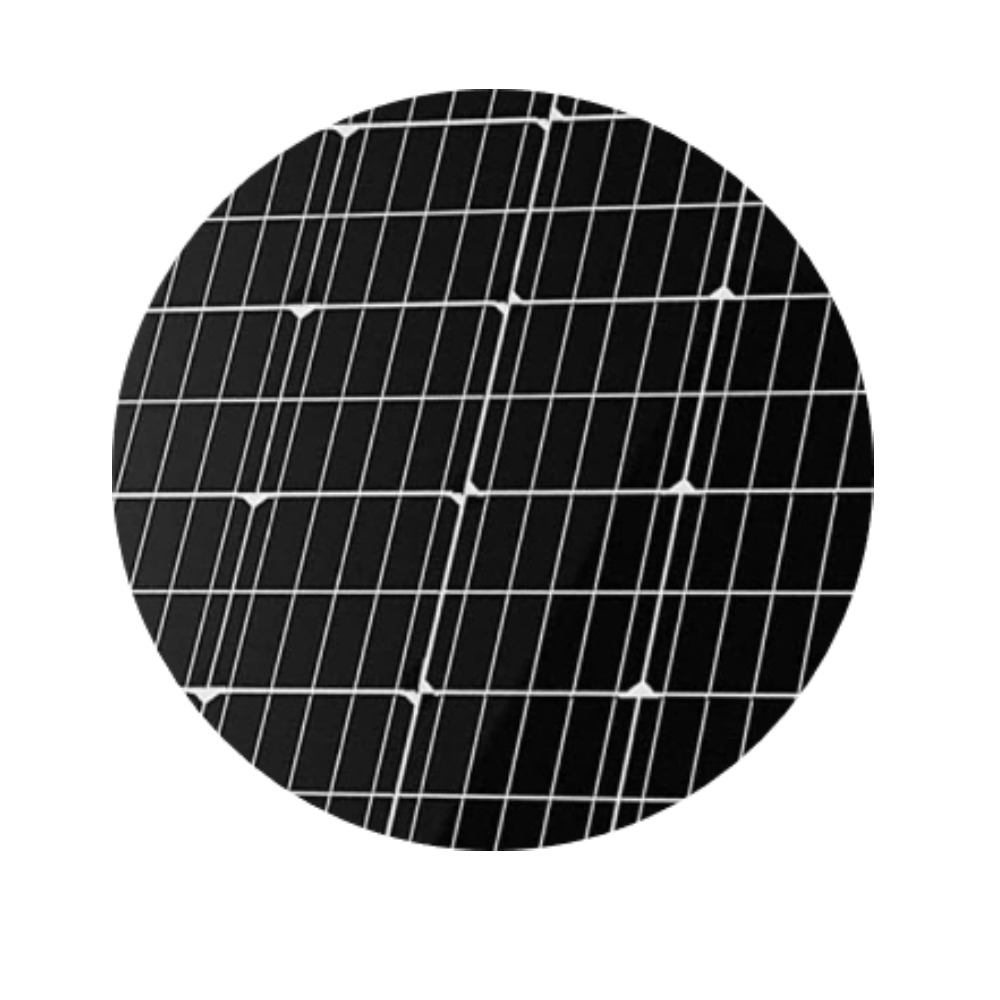

Monocrystalline solar panels are upgraded with the latest half-cut cell technology, which reduces power loss, lowers panel temperature, and reduces the impact of shading on performance compared to regular solar panels.

Wide range of applications

Support the use of off-grid systems such as motorhomes and yachts. They can also be used in grid-connected photovoltaic systems on balconies, roofs and courtyards.


200W Solar Panel
High Efficient Monocrystalline
Maximum Power: 200W
Open Circuit Voltage (Voc): 21.6V
Maximum/Peak Voltage(Vmp): 18V
Short Circuit Current (Isc): 12.2A
Working Current (Iop): 11.11A
Output Tolerance: ±3%
Charge Voltage: 12V
Frame: Aluminum alloy frame
Temperature Range： -40℃ to +80℃(-40°F to +176°F)
J-Box IP Rating: IP65

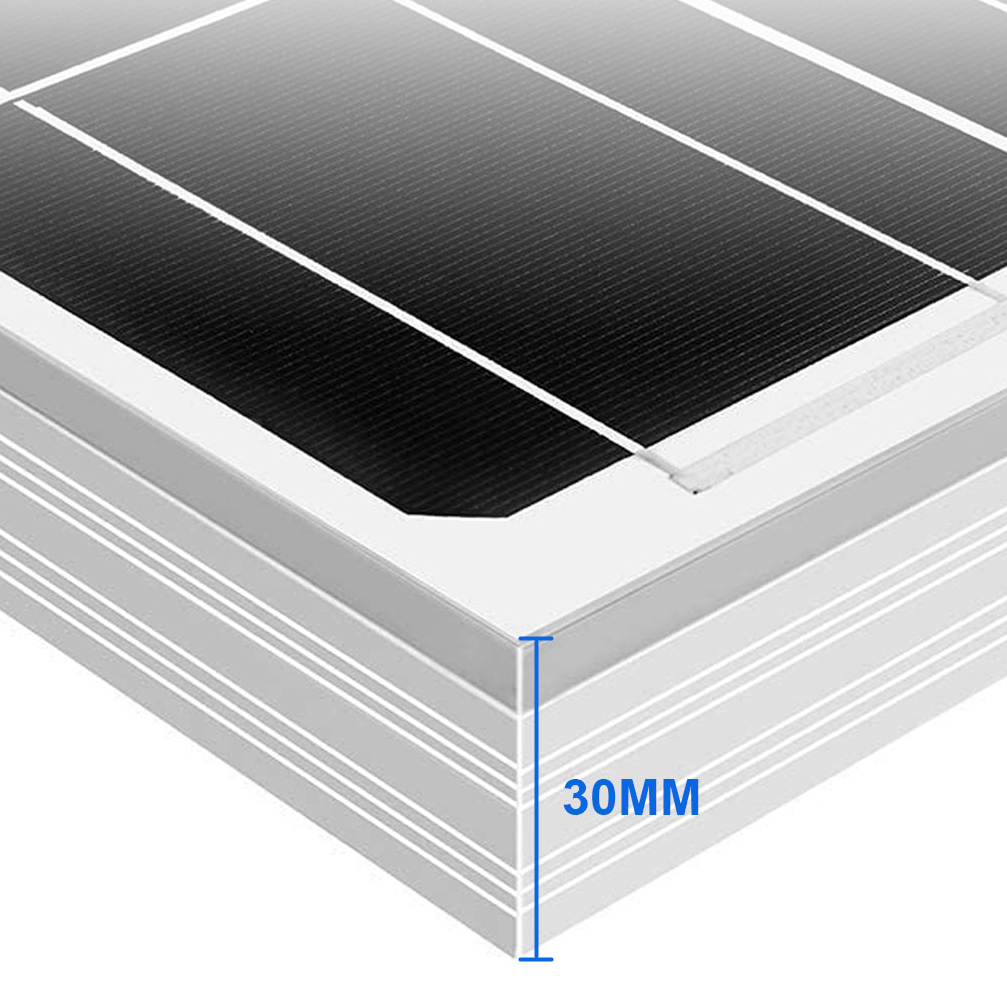

Product size：129*76*3 CM ( 50.78*29.92*1.18 Inch )
Product weight：11.6 kg (25.57 lbs )





PFCTART 200 Watt 12 Volt Monocrystalline Solar Panel is the perfect option for any off-grid application. Ideal for RVs, motorhomes, cabins, marine areas, home backup power, and more. The panels feature lightweight aluminum frames and shatter-resistant glass, making them perfect for outdoor applications.


Features:
【High Conversion Efficiency】
Over 90% transferable power output in 10-year, 80% transferable power output in 20-year.
Under 4 hours full sunshine:
200W solar panel generating 0.8KWH per day

【Upgraded Design】PFCTART monocrystalline solar panel upgraded the latest half-cut cell technology, which makes the solar panels obtain better and more stable performance. Compared to regular solar panel, half-cut cell technology can reduce power loss, lower solar panel temperature and reduce the impact of shading on performance.

【Easy to install】
It comes with pre-drilled mounting holes, solar connector leads, and a junction box. Allowing you to install, connect it to a controller, or expand with panels without breaking a sweat. The panels are made of premium Grade A+ monocrystalline solar cells that are more efficient than conventional polycrystalline solar cells.

【High Quality】

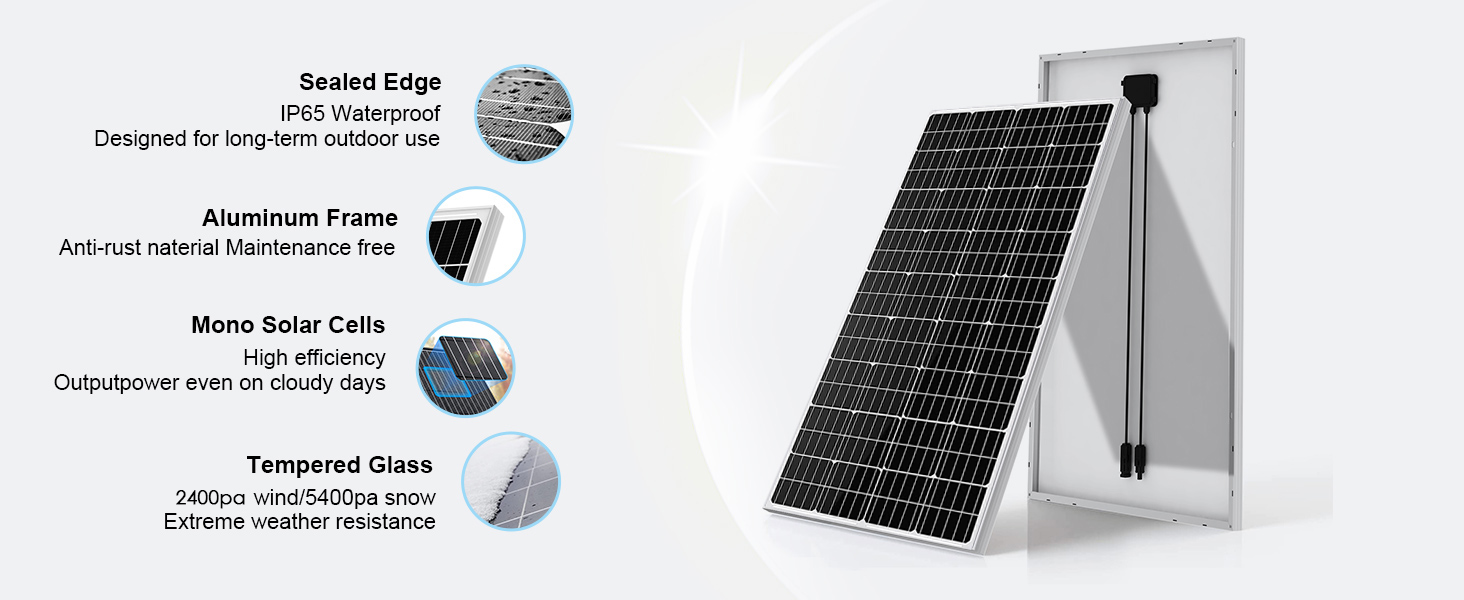

The panel is covered with a special glass to protect against the bad environmental conditions. Good quality frame, withstands high winds (2400Pa) and snow loads (5400Pa).

【Built to Last】Corrosion-resistant aluminum frame of this solar panel  provides extended outdoor use that ensures the panel can last for decades. The IP65-rated junction box is versatile due to its ability to withstand dirt, dust, debris, and low-pressure water jets.


40A Solar Charge Controller

Solar Charge Controller: 40A

Battery Voltage/System Voltage: 12V/24V Auto

Max PV Open Circuit Voltage: 30V

Self-consumption: ≤10mA

Loop Voltage Drop: ≤0.3V

Battery Typel: User, Flooded, AGM, GEL, LifePO4, Lithium

USB Output: 5V/2A×2

Operating Temperature: -4℉~+122℉

Protection Category: IP44

Humidity: 95%, no-condensing

Product size: 170*92*45MM


【Solar Charge Controller】The solar charger controller compatibility with 12V 24V  system. It helps you manage the working of solar panels and battery in solar systems automatically with the built-in industrial microcontroller. Dual USB output 5V/2A to support mobile phone charging.


【SAFE TO USE】Equipped with overcurrent protection, short-circuit protection, inverse connection protection, low voltage, and overcharge protection.Smart LCD display shows the charging status and battery status to make you more assured of charging,Besides regular input, output, and battery protection, protection of over-current from the solar panels are applied.


【LCD Display】Comes with a display that can clearly indicate the status and data, solar charger can be conveniently switched modes and parameter configurations.


【Battery Type】Adaptable to User, Flooded, AGM, GEL, LifePO4, Lithium, and other customized battery types. For protecting the lifespan of your battery, once the voltage of the battery is out of range, the solar controller will turn off automatically.


【Easy to Use】Charge controllers for solar panels should connect the battery first, then the solar panel, and finally the load.LCD display, adjustable parameter, suitable for home, industrial, commercial etc.


Correct link, working instructions :

Make sure the battery has sufficient voltage for the controller to recognize the battery before the first installation.

1.Connect the battery to the solar controller, the solar charge controller automatically recognizes the voltage.

2.Connect the solar panels to the charge regulator.

3.Connect the consumer to the solar charge controller.


How Many Solar Panels Do You Need To Buy?
1-4 Solar Panels For Boat power generation
1-6 Solar Panels For RV Power Generation
1-30 Solar Panels For House power generation
More Welcome to consult !


Packages Includes：
1 x 200W Mono Solar Panel

1 x 40A Solar Charge Controller

1 x Solar Panel Bracket

1 x Waterproof Junction Box

1 pair Solar Panel Extension Cord
