Wouxun KG-UV950P Mobile Radio Quad Band Cross Truck Car Repeater 50W Transceiver
Description：
  • Full Duplex Cross-Band (Offset Frequency and Frequency Shift Direction programmable)
  • Remote Control (Programmable for work mode, like Transceiver mode, Directional Repeating mode and Duplex Repeating mode). Remote Control (Programmable for reset function)
  • CTCSS/DCS Encoding & Decoding, CTCSS/DCS Scanning
  • Automatic Fan (The fan is working once the radio powers on)
  • 8 Groups Scrambler , High Output Power: VHF 50W, UHF 40W


Functions:
  • Full Duplex Cross-band Repeater
  • Both Station can Form Combined Same or Different Band(s) Repeat
  • Full Duplex Working Mode on A/B Areas
  • Dual Speaker & Dual Output
  • Same or Different Band(s) Simultaneous Reception: UU, VV, UV or VU
  • Frequency Range Suitable for any Region of any Country
  • Dual Display
  • Over 999 Memory Channels
  • Remote-head Mounting Capacity
  • UV or VU Duplex Cross-band Repeat(Offset Frequency Programmable)
  • Air Band Receiving Function & AM Mode Receiving Capacity
  • High Output Power: VHF 50W, UHF 40W
  • CTCSS/DCS Encoding & Decoding, CTCSS/DCS Scanning
  • Multiple Speaker Output Setting
  • DTMF Hand Microphone with Speaker, TX/RX Indicator and Volume Controller
  • Incoming (Caller) ID Display
  • DTMF Encoding & Decoding
  • Group Calls, All Calls and Selective Calls
  • 8 Groups Scrambler
  • Priority Channel Scanning.
  • APO Power Management
  • Bandwidth Selectable
  • Chinese/English Voice Guide
  • Automatic Temperature Testing
  • Minimum Operating Voltage Setting
  • Stun and Kill Function
  • 2100Hz / 1750Hz / 1450Hz / 1000Hz Single Tone Pulse Frequency
  • Three Colors Backlight Selectable
  • Remote Control Setting
  • Frequency / Channel Scanning with CTCSS / DCS Detection
  • Multiple Cooling Ways
  • Simultaneous Scanning on AB Areas

Specification:
General
Frequency Range
28-29.7Mhz
50-52Mhz
 144-146Mhz
 430-440Mhz
AM 108-136Mhz （only RX）
Step Frequency 5KHz/6.25KHz/10KHz/12.5KHz/20KHz/25KHz/30KHz/50KHz/100KHz
Memory Channels 999
Work Mode F2D/F3E
Operating Temperature -20°C~+60°C
Power Requirement 13.8VDC±15%(Negative Grounded)
Antenna Impedance 50Ω
Weight 1437.8g(Including Microhone )
Dimensions 140x44x207(mm)
Receiver Wide Bandwidth Narrow Bandwidth
Adjacent Channel Selectivity ≥70dB ≥60dB
Intermodulation ≥65dB ≥60dB
Spurious Response ≥70dB ≥70dB
Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~2.55KHz)
Signal to Noise Ratio ≥45dB ≥40dB
Audio Distortion ≤5%
Audio Power Transceiver≤3W
Hand Microphone≤1W
Sensitivity UHF/VHF:0.25µV
Transmitter Wide Bandwidth Narrow Bandwidth
Output Power 50W/25W/10W/5W(VHF) 40W/25W/10W/5W(UHF)
Type of Modulation 16K F3E 11K F3E
Adjacent Channel Power ≥70dB ≥60dB
Signal to Noise Ratio ≥40dB ≥36dB
Spurious ≥60dB ≥60dB
Audio Response +1~-3dB(0.3~3KHz) +1~-3dB(0.3~2.55KHz)
Max.Frequency Deviation ±5KHz ±2.5KHz
Frequency Stability ±2.5ppm
Audio Distortion ≤5%

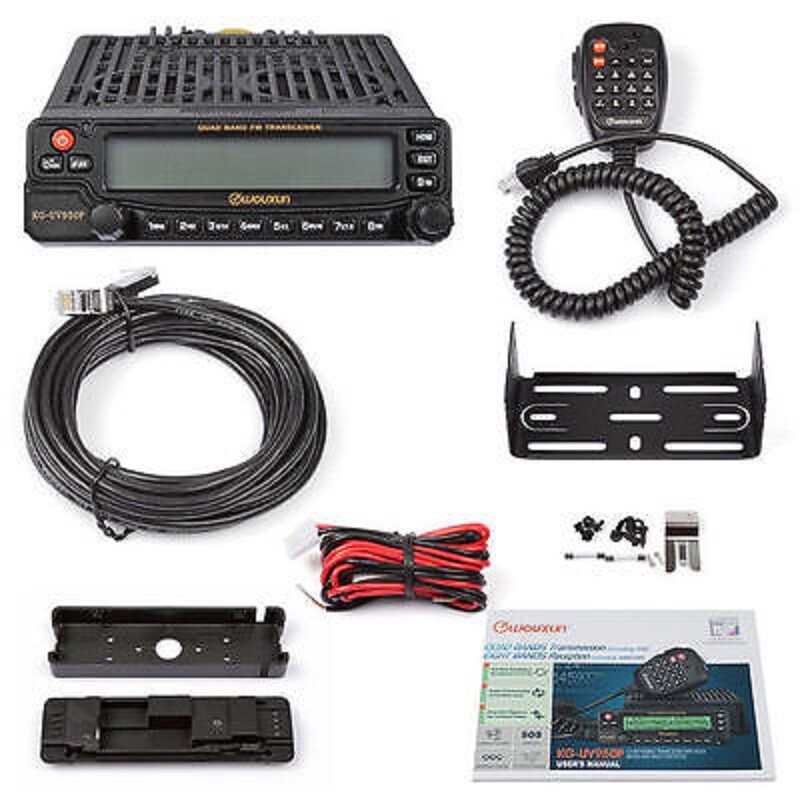

Packing List：
1x Wouxun KG-UV950P QUAD BAND Mobile Transceiver
1x Mobile power cord
1x Hand Monophone
1x Flat switchboard pannel
1x Mobile Mounting Bracket
1x User Manual
1x Extension Cable
1x Screw Sets
1x Hand Microphone Hook
1x Programming Cable
