Feature:

1. Efficient: DC motor, low noise, high efficiency. Automatic counting function, saving time and effort, easy to complete filling. Liquid filling machine is suitable for viscous liquid canning, clean and hygienic, low noise and convenient to use and easy to clean. Shell sheet metal, more durable.
2. Speed: The speed depends on the viscosity of the honey and the ambient temperature. If the honey is thinner, the thicker the honey, the faster the speed.
3. The Filling Weight Can Be Set At Will: M1 (500g) M2 (1000g) M3 (2500g) M4 (5000g). Manual, automatic switching function operation key.
4. Widely Used: Antidrip discharge port, automatic quantitative counting, adjustable lifting rod, suitable for bottles of different sizes and heights. Liquid temperature up to 90 degree celsius.
5. Warm Note: The pallet is connected to the weight sensor, please clean the transparent acrylic pallet in time to avoid weight failure. Fill accuracy depends on control panel settings and device calibration.



Specification:

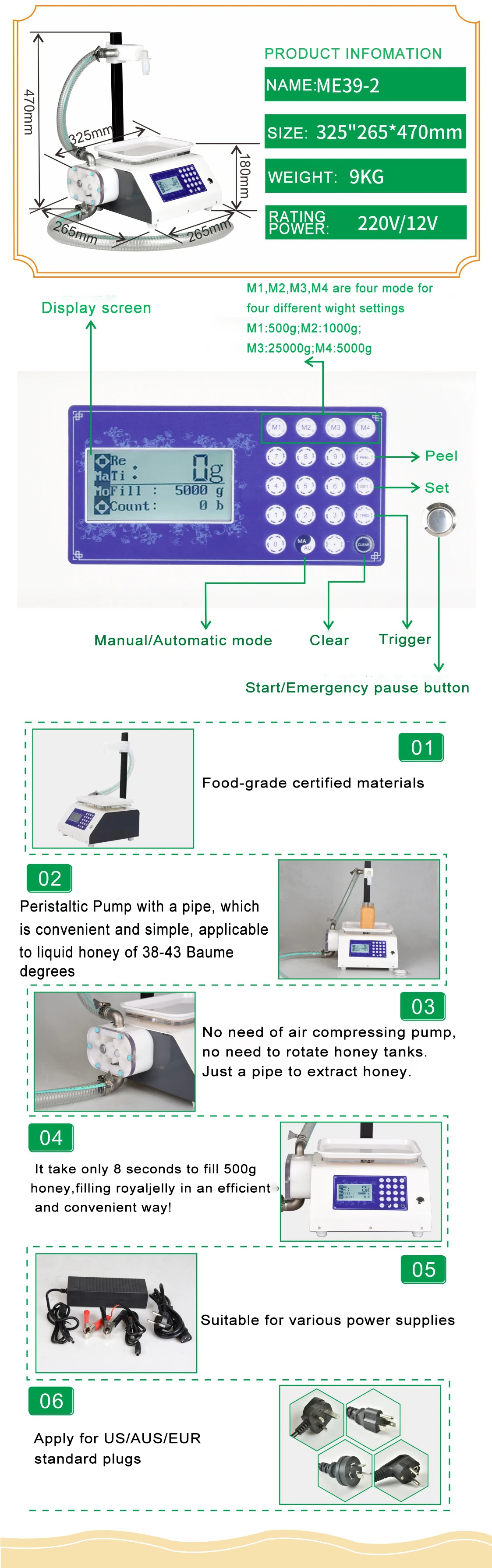

Item Type: Honey Filling Machine
Suitable For: Bees
Type: Beekeeping Tool
Material: Sheet Metal, 304 Stainless Steel
Weight: Approx. 10000g / 352.7oz
Product Size: Approx. 32.5x26x17.5cm / 12.8x10.2x6.9in
Power Supply: 12v Battery Clip
Panel Language: Chinese And English Language
Rated Power: 60W-120W
Applicable Volume: 100g-5000g
Throughput: For Example, 500 GB 360 B/H And 1000 GB 240 B/H
Filling Error: 1%-3%
Filling Height: 0-280mm (Adjustable Bottle Height)
Applicable Viscosity Liquid: 36-43Baume
Liquid Temperature: 15-90 Degree Celsius



Package List:

1 x Honey Filling Machine

2 x Pipe

1 x Clip

1 x Support Rod

1 x 60ml Injection Cylinder

3 x Hoop

1 x Transparent Accessory

2 x Screw

1 x Hex Wrench

1 x Black Handle Screw

1 x White Accessory

1 x White Tray

1 x Acrylic Tray

1 x Liquid Outlet Accessory

1 x Instruction



Note:

1.When selecting 12v power supply, first check the battery voltage 12v (current 20A or greater).
