Geomembrane Welding Machine Hot Wedge Welder HDPE Sheet Plastic Pond Liner Welder PVC Repairing Welding Machine
input voltage：220V
Frequancy :50HZ
Power :800W
Welding speed :0.5-5m/min
Heating temperature: 0-450 degrees
Welding Thickness :Rubber Wheel 0.2-1.5mm Steel wheel ：1.0-2.0mm
LAP WIDIH :10CM
Weld width :17mm*2
Cavity :12mm
Welding Strength: ≥ 85% Base
Whole Machine Weight :5KG
Insulation Registeation :Class II
Application Scenario
Mainly used in water conservancy, dike slope protection, artificial lake, aquaculture, solid waste landfill, sewage treatment, petrochemical, tailings treatment, landscaping, planting roof and other anti-permeability geomemmembrane construction.
|
Input voltage
|
220V
|
Lap width
|
150mm
|
|
Frequency
|
50HZ
|
Welding Width
|
16mm*2 Intermediate cavity 12mm
|
|
heat closing speed
|
0-4m/min
|
Welding material thickness
|
0.2mm-2.2mm
|
|
Power
|
800W
|
Machine weight
|
5.5kg
|

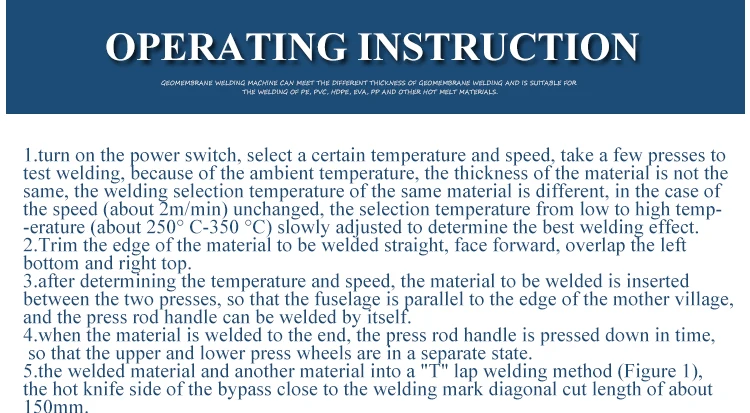

1.turn on the power switch, select a certain temperature and speed, take a few presses totest welding, because of the ambient temperature, the thickness of the material is not thesame, the welding selection temperature of the same material is different, in the case ofthe speed (about 2m/min) unchanged, the selection temperature from low to high temp--erature (about 250° C-350 C) slowly adjusted to determine the best welding effect.
2.Trim the edge of the material to be welded straight, face forward, overlap the leftbottom and right top.
3.after determining the temperature and speed, the material to be welded is insertedbetween the two presses, so that the fuselage is parallel to the edge of the mother village.and the press rod handle can be welded by itself.
4.when the material is welded to the end, the press rod handle is pressed down in timeso that the upper and lower press wheels are in a separate state.

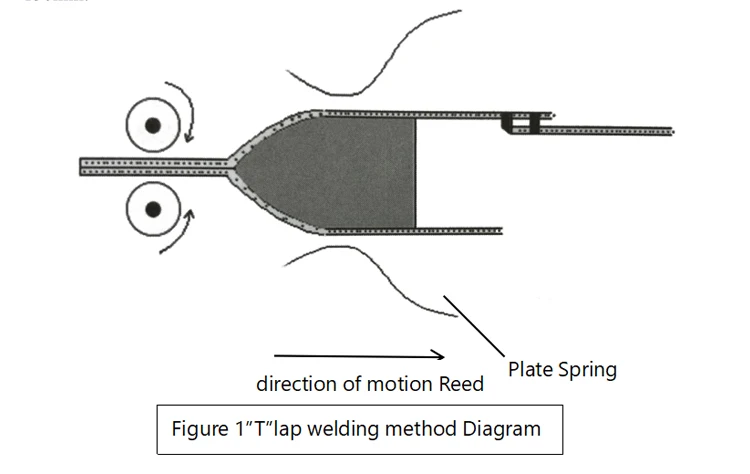

5.the welded material and another material into a "T" lap welding method (Figure 1),the hot knife side of the bypass close to the welding mark diagonal cut length of about150mm
Note:
