Product introduction:

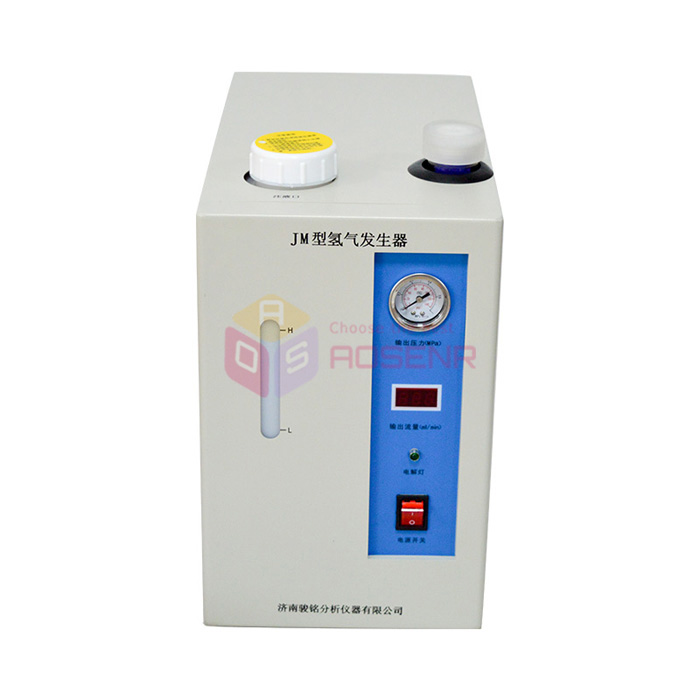

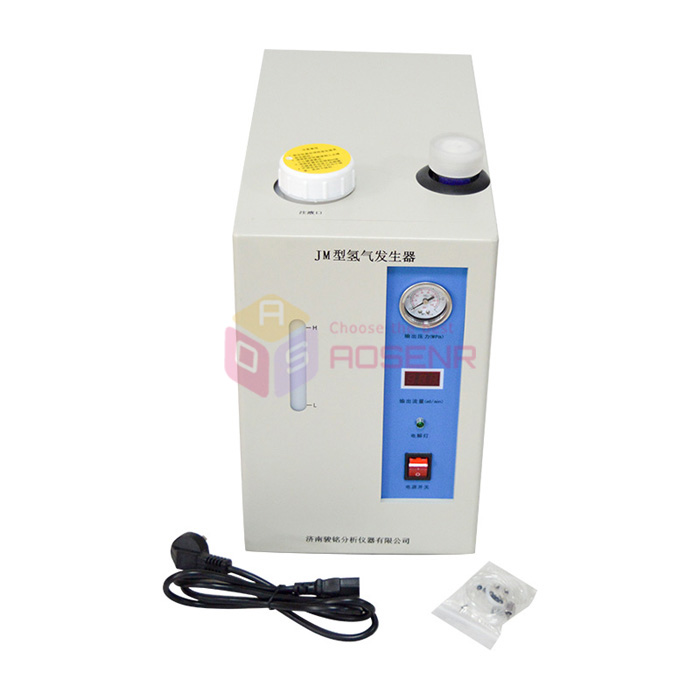

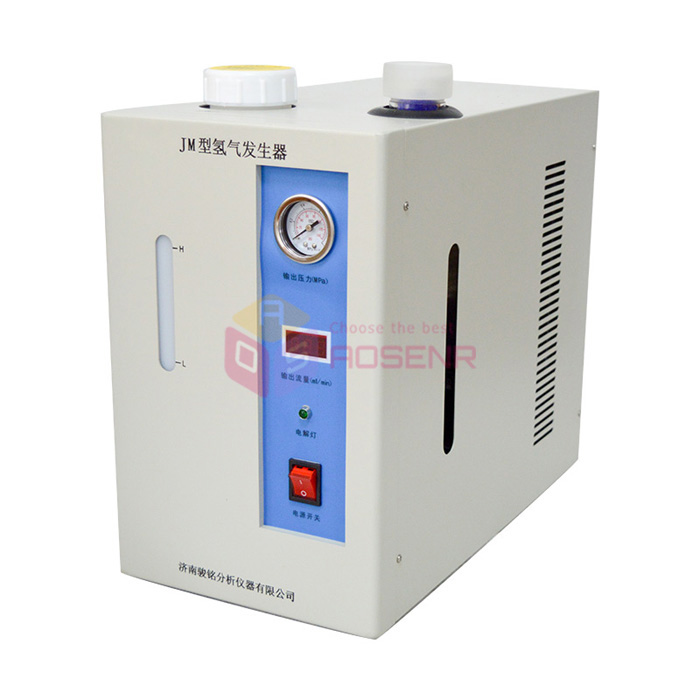

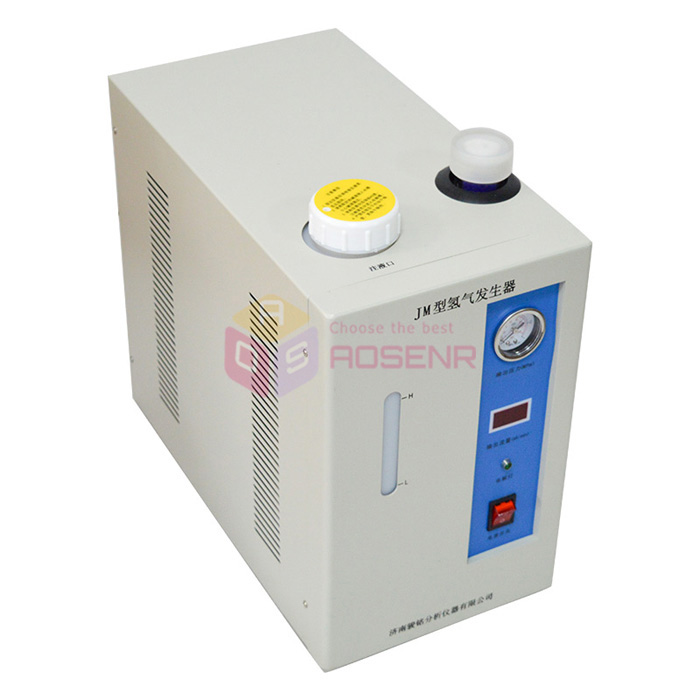

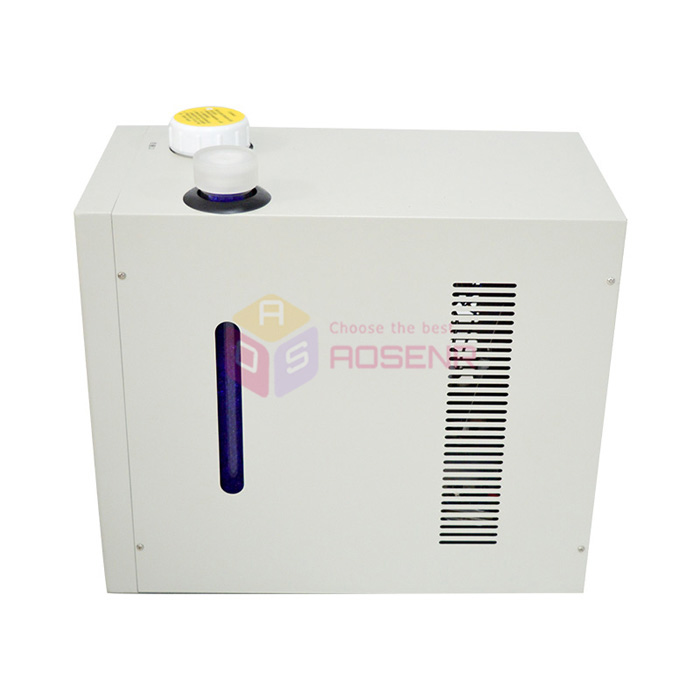

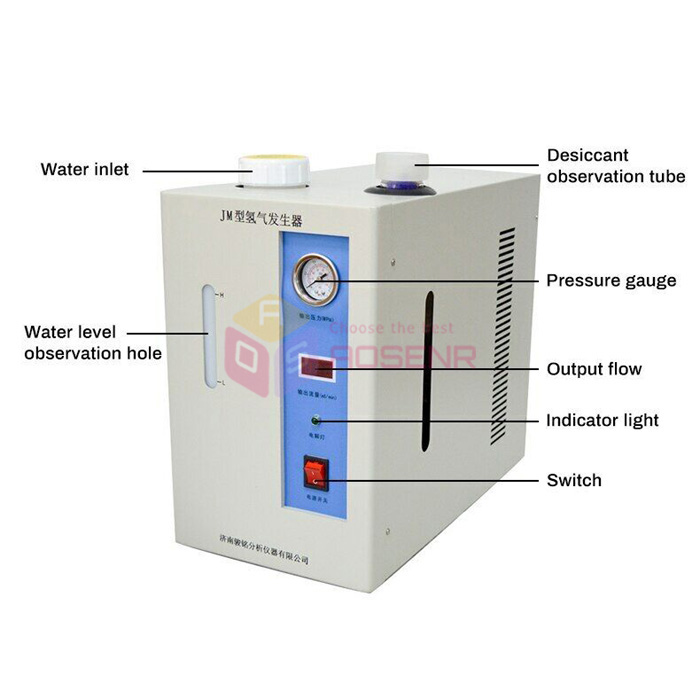

High purity hydrogen generator is small in volume, light in weight and high in flow. The design of gas path system is unique. Data display, easy to observe.
Features and advantages:

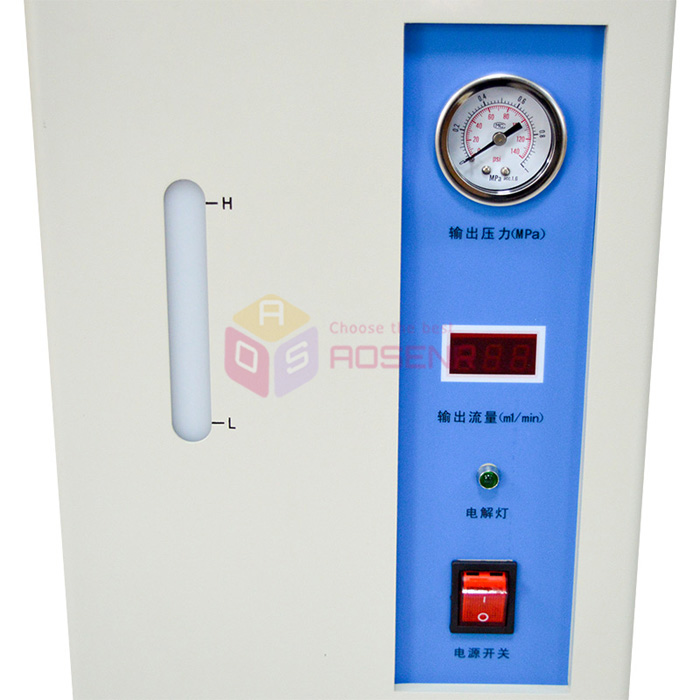

1. The operation is simple, just start the power switch, the gas can be produced, the output pressure is stable, and the flow rate is digitally displayed by the LED, which is more intuitive and eye-catching.
2. Daily use only needs to be supplemented with distilled water, which can be used continuously or intermittently.
3. Liquid storage, electrolytic hydrogen production, and oxygen exhaustion integration, low pool temperature and long life.
4. There is no liquid return device, which can effectively ensure that the instrument has no liquid return phenomenon.
Applications: petroleum, chemical, pharmaceutical, brewing, food, environmental testing, automotive, energy, scientific research, education, etc.
Technical Parameters
|
Model
|
JM-300 /500
|
|
Output flow (ml/min)
|
0-300 /500
|
|
Output pressure (MPa)
|
0-0.4 (can be adjusted according to user needs)
|
|
Overpressure protection value (MPa)
|
0.45
|
|
Hydrogen purity (%)
|
>99.999
|
|
Power supply voltage (V)
|
AC 220 110 50-60Hz
|
|
Output power (W)
|
<150 /<300
|
|

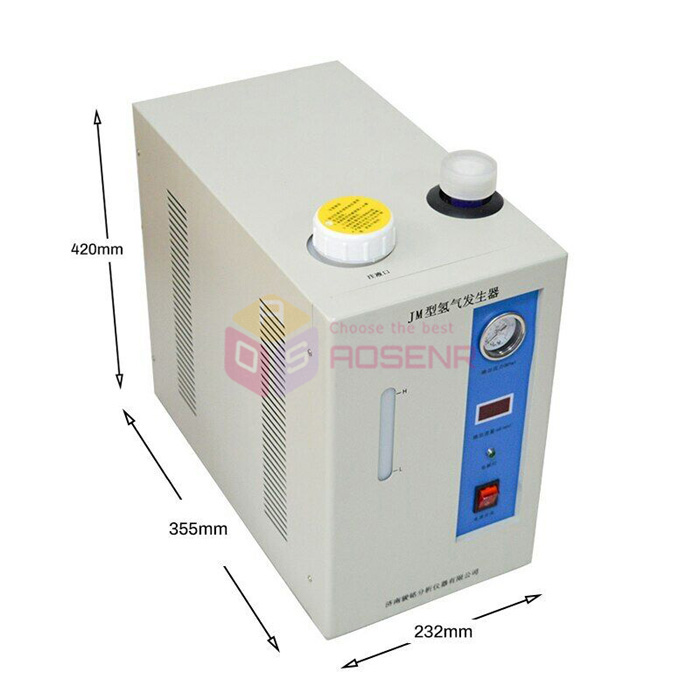

Dimensions (mm)
|
420×232×355
|
|
Machine weight (Kg)
|
<14/<16
|
