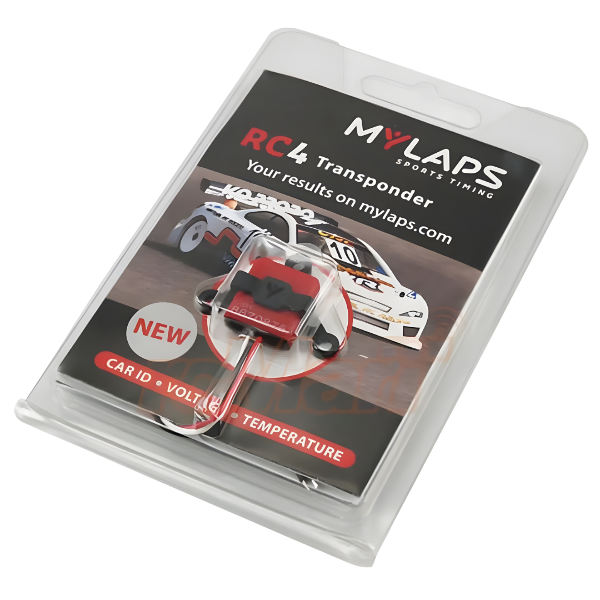

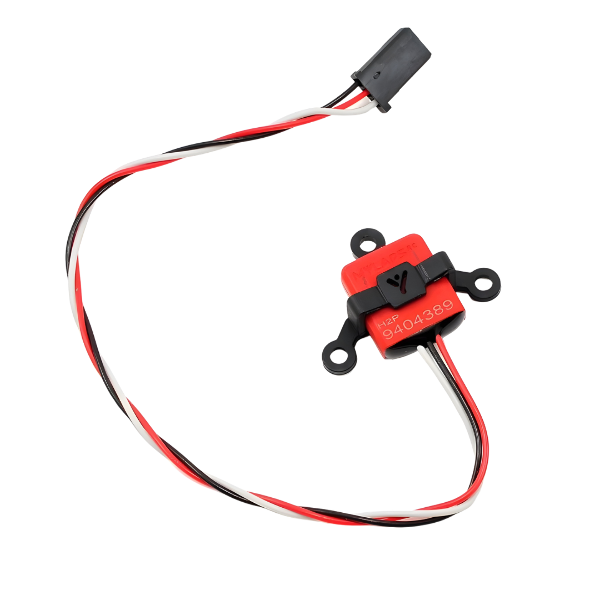

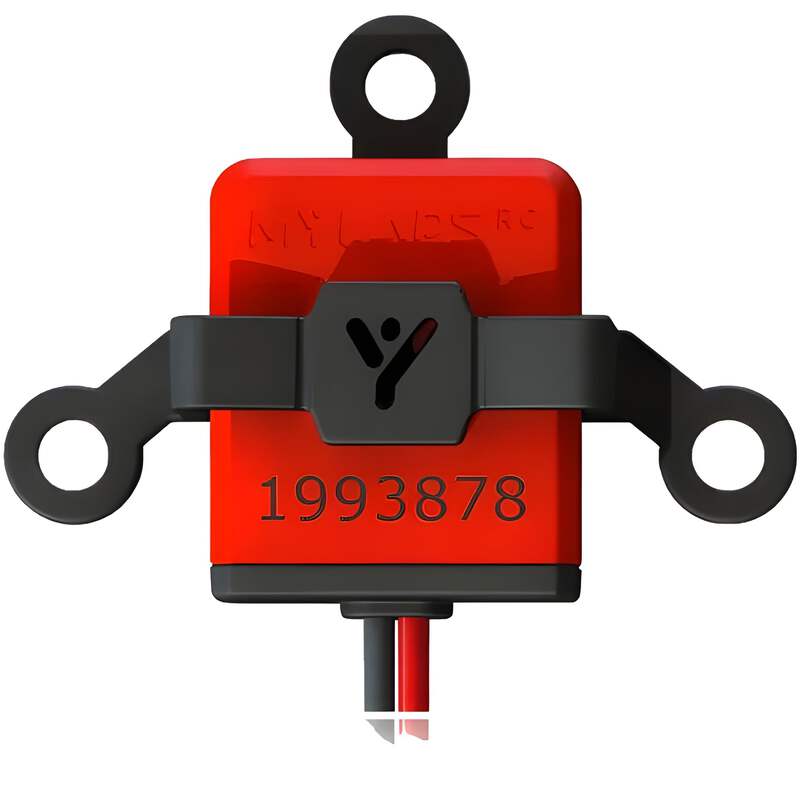

MYLAPS RC4 Direct Powered Transponder 3 Wire 10R120 10R120

The MYLAPS RC4 Direct Powered Transponder is a precision timing device designed for RC racing systems using the RC4 decoder platform. Compact and lightweight, it connects directly to a receiver channel to deliver accurate lap timing and reliable performance for competitive racing environments.

Features

  • Designed for MYLAPS RC4 timing systems
  • Direct powered design connects to a receiver channel
  • Compact and lightweight construction for easy installation
  • High accuracy lap timing with 1.5ms code resolution
  • Reliable magnetic induction signal transfer
  • High temperature PTFE wire insulation resistant to fuel and heat
  • Suitable for electric, nitro and petrol RC vehicles

Specifications

  • Model: 10R120
  • Dimensions: 16 x 19 x 6 mm
  • Weight: 4 g
  • Weight with Holder: 4.7 g
  • Operating Voltage: 3.0V to 16V DC
  • Power Consumption: 14 mA
  • Maximum Speed: 120 km/h
  • Temperature Range: 0°C to 50°C
  • Maximum Humidity: 90% relative
  • Connection: Standard servo plug
  • Maximum Transponder Position: 15 cm
  • Signal Transfer: Magnetic induction
  • SKU: 00035954

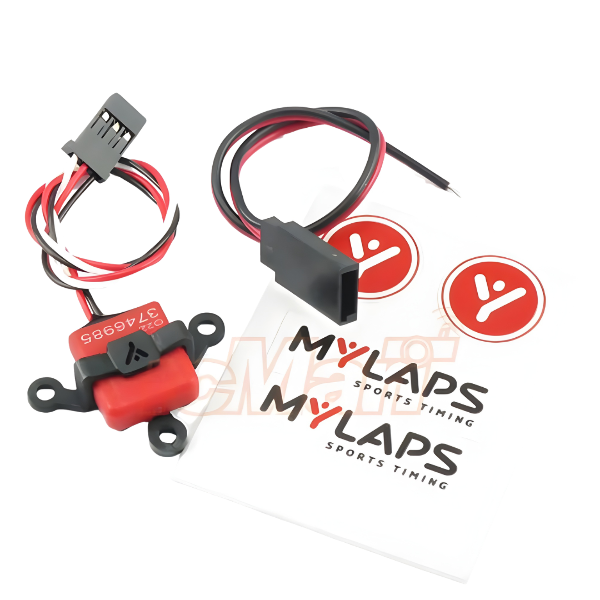

Includes

  • 1 x MYLAPS RC4 Direct Powered Transponder
  • 1 x Mounting Sticker
  • 1 x User Manual
×
×
×
×
×
