Brass Gate Valve PN20 - Full Bore BSPT/BSPP
Professional Grade Valve for Water & Heating Applications
Brass Gate Valve PN20 designed for reliable control in water and heating applications. Featuring a wheel head for smooth operation, this valve is constructed from solid brass with a full bore design, offering a pressure rating of 20 BAR (290 PSI) at room temperature. Suitable for both domestic and commercial use.
Product Specifications
- Maximum Pressure: 20 BAR (290 PSI)
- Thread Type: BSPT (3/8" to 2.1/2") / BSPP (3" to 4")
- Construction: Solid brass body and components
- Design: Full bore for maximum flow rate
- Handle: Wheel head for smooth operation
- Pressure Rating: PN20 rated for pressures up to 20 BAR at room temperature
Available Sizes

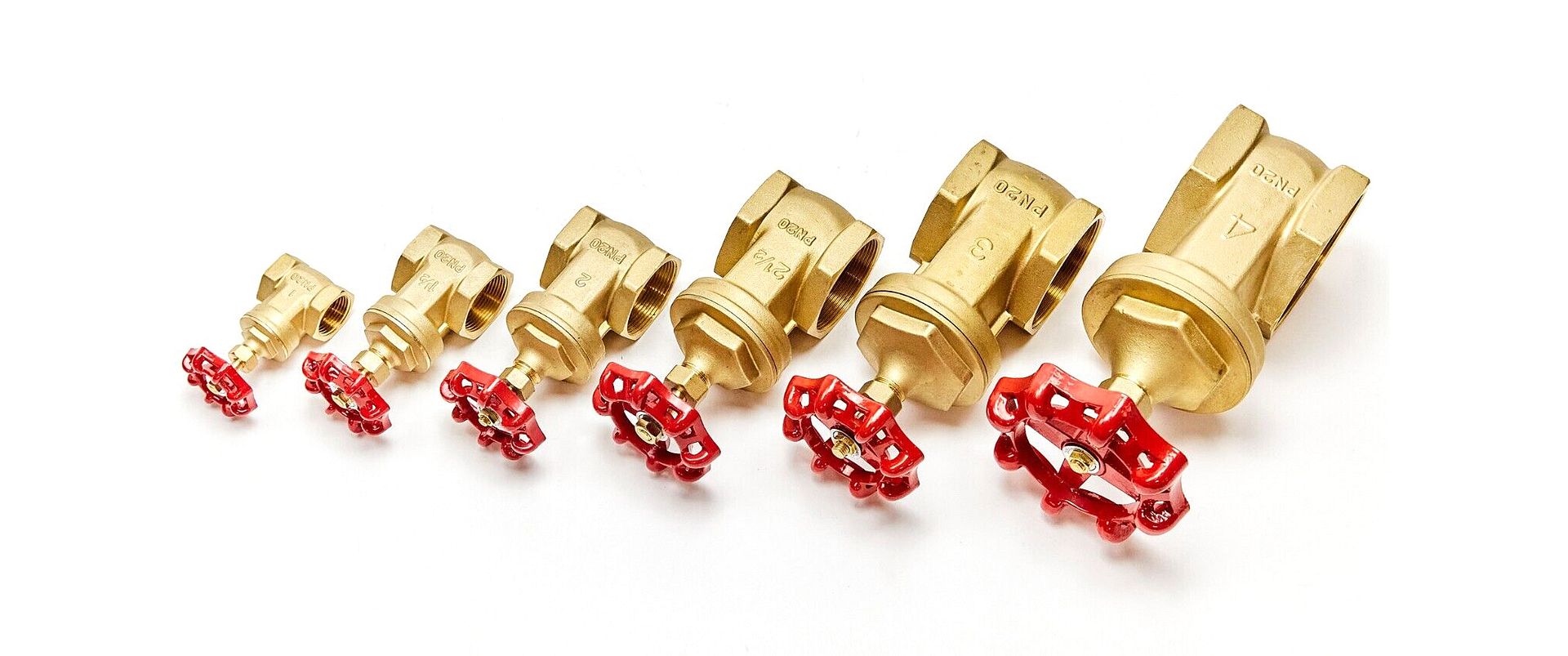

- 3/8 inch
- 1/2 inch
- 3/4 inch
- 1 inch
- 1.5 inch
- 2 inch
- 2.5 inch
- 3 inch
- 4 inch
Key Features
- Full bore design ensures maximum flow efficiency
- Durable brass construction resists corrosion
- Smooth wheel operation for precise control
- Suitable for both water and heating applications
- Easy to maintain and service
Applications
- Domestic water systems
- Central heating installations
- High-pressure water services
- Commercial plumbing systems
Installation Information
- Suitable for horizontal and vertical installation
- Requires appropriate thread sealant (PTFE tape or thread sealant not supplied)
- Regular maintenance recommended for optimal performance
- Package includes installation instructions

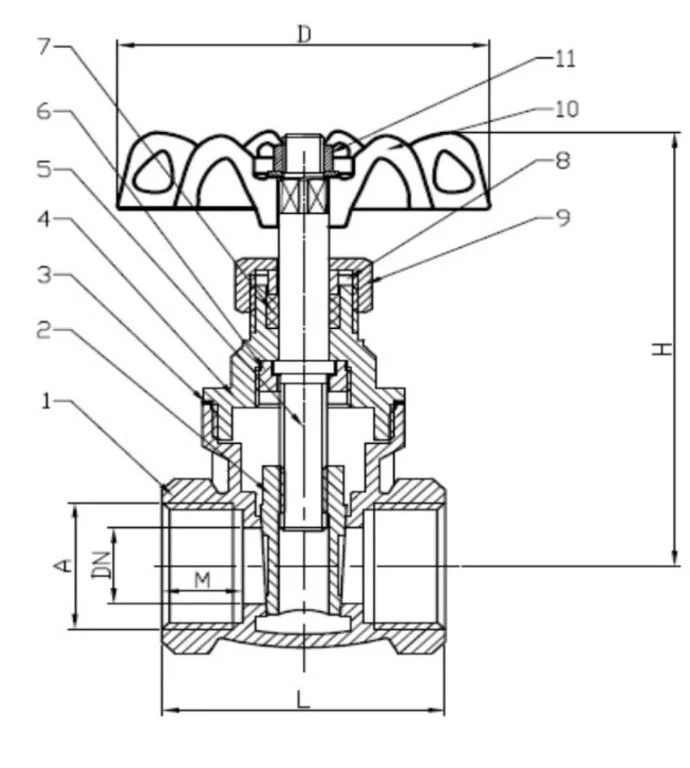

Technical Dimensions
Brass Gate Valve PN20
| Size (mm) | ||||||
|---|---|---|---|---|---|---|
| Size (A) | DN | D | H | L | M | Kg |
| 3/8" | 10 | 51 | 65 | 37 | 10 | 0.16 |
| 1/2" | 15 | 55 | 76 | 43 | 12 | 0.26 |
| 3/4" | 20 | 55 | 90 | 48 | 13 | 0.34 |
| 1" | 25 | 60 | 96 | 52 | 16 | 0.44 |
| 1.1/4" | 32 | 73 | 117 | 58 | 17 | 0.70 |
| 1.1/2" | 40 | 73 | 121 | 62 | 17 | 0.89 |
| 2" | 50 | 77 | 143 | 70 | 18 | 1.45 |
| 2.1/2" | 65 | 100 | 184 | 81 | 21 | 3.10 |
| 3" | 80 | 107 | 210 | 97 | 22 | 3.70 |
| 4" | 100 | 140 | 250 | 102 | 25 | 5.80 |
| # | Part Description | Material |
|---|---|---|
| 1 | Body | Brass |
| 2 | Disc | Brass |
| 3 | Seal | PTFE |
| 4 | Bonnet | Brass |
| 5 | Stem | Brass |
| 6 | Nut | Brass |
| 7 | Packing | PTFE |
| 8 | Washer | Brass |
| 9 | Nut | Brass |
| 10 | Handle | Cast Aluminum |
| 11 | Nut | Brass |
