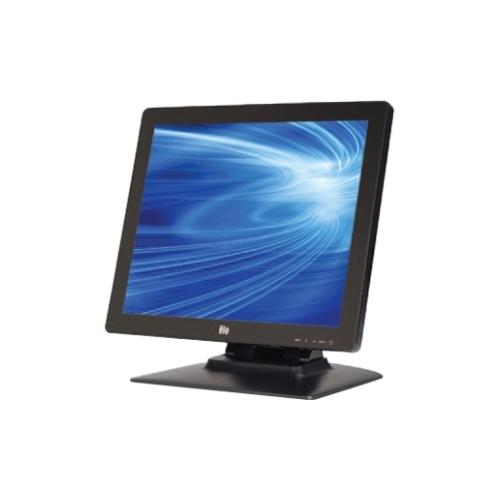

E394454 Elo 1523L 38.1 cm (15") LCD Touchscreen Monitor - 4:3 - 25 ms

E394454 Elo 1523L 38.1 cm (15 E394454 Elo 1523L 38.1 cm (15

Product information

Elo 1523L 38.1 cm (15") LCD Touchscreen Monitor - 4:3 - 25 ms
Overview
Elo 1523L 38.1 cm (15") LCD Touchscreen Monitor - 4:3 - 25 ms - Surface Acoustic Wave - Multi-touch Screen - 1024 x 768 - Adjustable Display Angle - 16.2 Million Colours - 700:1 - 250 cd/m² - Speakers - DVI - USB - VGA - Black - 3 Year
Marketing Information
The Elo Touch Solutions 1523L 15-inch touchmonitor is well-suited to meet the durability and aesthetic requirements for a variety of high traffic retail and hospitality interactive solutions and includes options for 3-track Magnetic Stripe Reader (MSR), webcam, RFID reader and brackets for mounting a 0700L rear facing customer display. iTouch Plus zero-bezel multi-touch surface acoustic wave touchscreen technology provides stable "drift-free" operation with outstanding image clarity, resolution, and light transmission-for an accurate touch response and vivid images. iTouch Plus offers a unique, aesthetically-pleasing seamless design and is resistant to water, impacts, scratches and other contaminants on the screen.

General Information
Manufacturer: Elo Touch Solutions, Inc
Manufacturer Part Number: E394454
Brand Name: Elo
Product Model: 1523L
Product Name: 1523L Multifunction 15-Inch Desktop Touchmonitor
Product Type: LCD Touchscreen Monitor
Technical Information
Screen Size: 38.1 cm (15")
Screen Mode: XGA
Screen Surface:
  • Anti-glare
  • Anti-scratch
  • Response Time: 25 ms
    Aspect Ratio: 4:3
    Horizontal Viewing Angle: 160°
    Vertical Viewing Angle: 140°
    Adjustable Display Angle: Yes
    Adjustable Display Height: Yes
    Mount Type:
  • Desk Mountable
  • Wall Mountable
  • Features:
  • Security Lock
  • Water Proof
  • Cable Management
  • Video
    Maximum Resolution: 1024 x 768
    Standard Refresh Rate: 60 Hz
    Colour Support: 16.2 Million Colours
    Contrast Ratio: 700:1
    Brightness: 250 cd/m²
    Audio
    Speakers: Yes
    Touchscreen Information
    Touchscreen: Yes
    Touchscreen Type: Surface Acoustic Wave
    Multi-touch Screen: Yes
    Interfaces/Ports
    DVI: Yes
    USB: Yes
    VGA: Yes
    Built-in Devices
    Built-in Devices:
  • USB Hub
  • Speaker
  • Power Description
    Input Voltage:
  • 110 V AC
  • 220 V AC
  • Operating Power Consumption: 12 W
    Physical Characteristics
    VESA Mount Compatible: Yes
    VESA Mount Standard: 75 x 75
    Colour: Black
    Height with Stand: 199 mm
    Width with Stand: 358 mm
    Depth with Stand: 318 mm
    Weight (Approximate): 2.65 kg
    Weight with Stand (Approximate): 4.44 kg
    Miscellaneous
    Package Contents:
    • 1523L Multifunction 15-Inch Desktop Touchmonitor
    • Touch Cable
    • Video Cable
    Certifications & Standards:
    • UL/cUL
    • FCC-A
    • Semko
    • CE
    • VCCI
    • C-Tick
    Platform Supported: PC
    Warranty
    Limited Warranty: 3 Year
