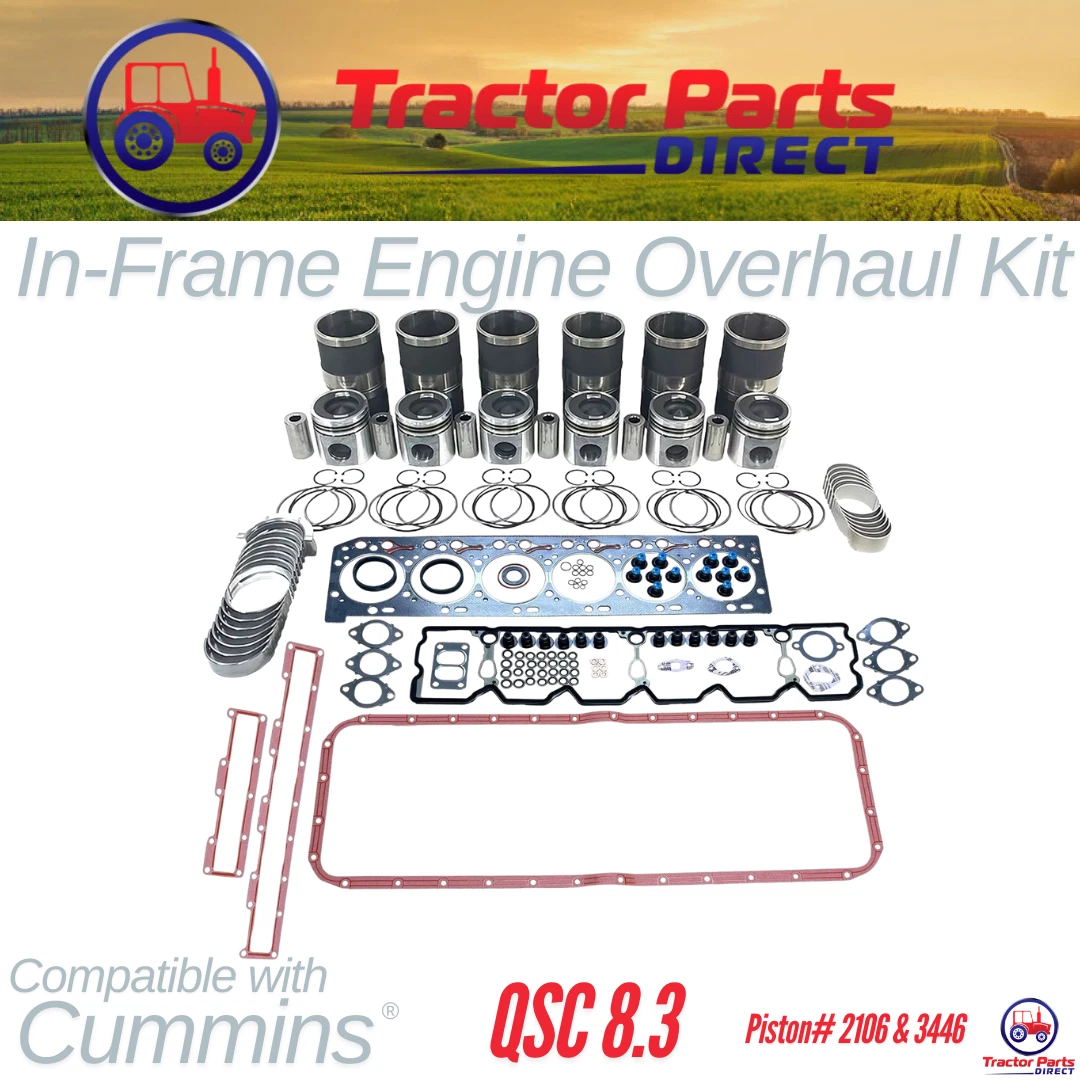

Inframe Engine Overhaul Kit
compatible with
Cummins® QSC 8.3
PISTON# 2106 & 3446
A brand-new premium quality Inframe Engine Overhaul Kit with full manufacturer's warranty.
Tractor Parts Direct Product code#
CTPD- OHCUQSC8.3P2106/3446-L(L9.212/OD5.152)-M
Specifications:
6 Cyl. - Diesel - Turbo Charged
Bore: 4.484" (114mm)
Stroke: 5.31” (135mm)
Piston Marked: 2106, 3446
Weight: 116 lbs

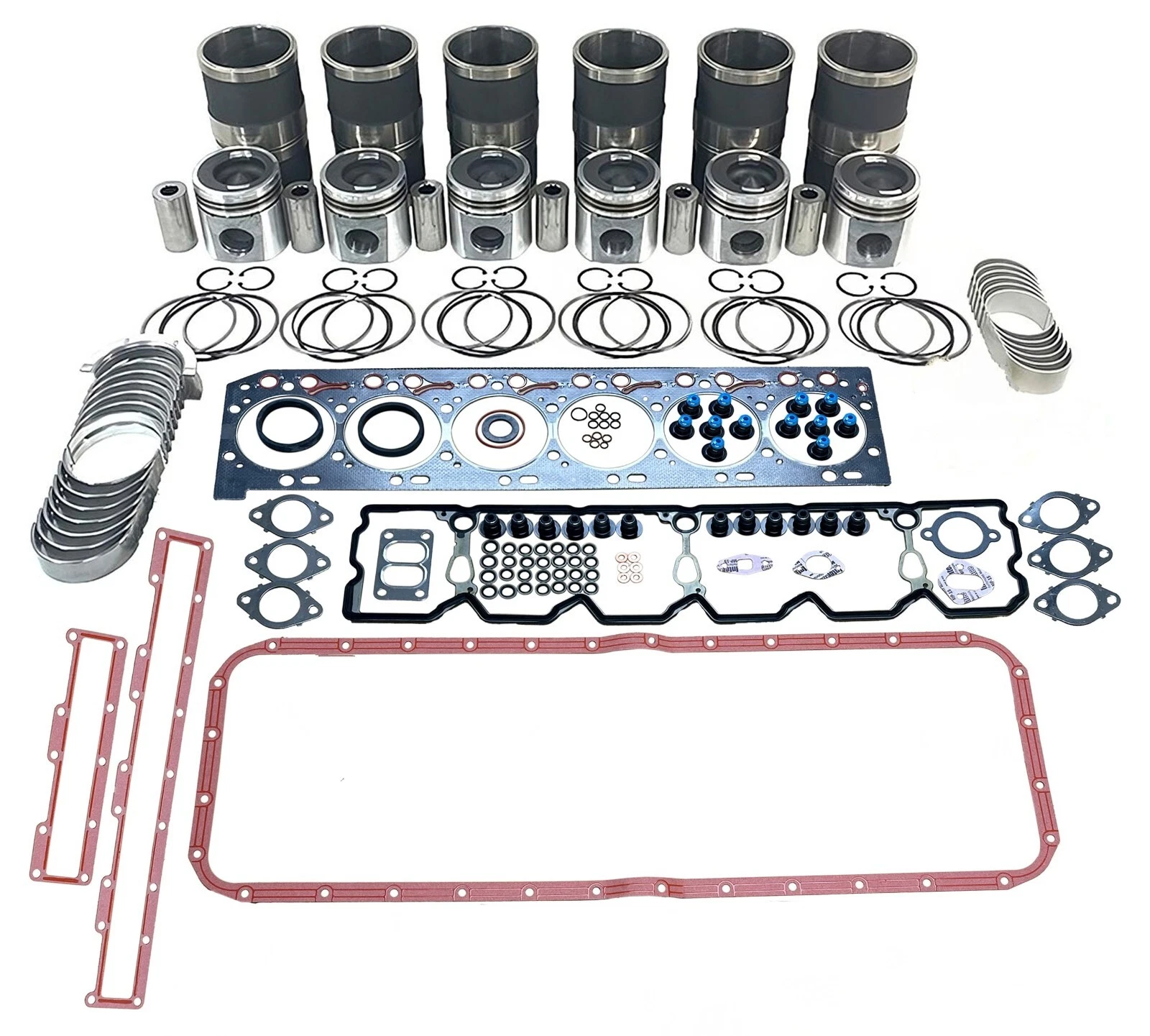

Included in this Kit:
6 Piston Ring and Liner Kit1 Main Engine Bearing Set
1 Connecting Rod Bearing Set
1 Top Gasket Set
1 Oil Pan Gasket Set
Compatible Engine Models
| QSC 8.3 Cummins® Engine Piston# 2106 & 3446 Diesel Engine |
Compatible Cummins® CPL Numbers:
| 2092 | 2230 |
| 2231 | 2232 |
| 2233 | 2234 |
| 2235 | 2236 |
| 2237 | 2241 |
| 2299 | 2688 |
| 2689 | 2690 |
| 2691 | 2692 |
| 2693 | 2694 |
| 2964 | 8088 |
| 8153 | 8203 |
| 8578 |
Compatible Equipment Models
| 630C Tigercat® SKIDDER |
635C Tigercat® SKIDDER |
| C640C Tigercat® SKIDDER |
F30CE Dynapac® ASHPALT PAVER |
| W120F Wirtgen® COLD PLANER |
W130F Wirtgen® COLD PLANER |
| MX240 Case IH® TRACTOR |
MX255 Case IH® TRACTOR |
| MX270 Case IH® TRACTOR |
TG255 New Holland® TRACTOR |
| TJ275 New Holland® TRACTOR |
When it comes to selecting a supplier for engine kits, it is crucial not to settle for anything but the best. At TractorPartsDirect, we pride ourselves on offering engine kits that are unmatched in quality. We collaborate with reputable suppliers, many of whom also cater to original equipment manufacturers
Our cylinder components are meticulously manufactured to meet OEM specifications, ensuring that they effectively rejuvenate worn-out engines. Our products are capable of maintaining high performance standards for many years to come.
Our commitment to excellence is reflected in our heavy-duty permanent mold pistons. These pistons are cast with ni-resist inserts that are bonded into the top or both the top and second ring grooves, ensuring optimal durability and performance.
Our engine kit suppliers employ metallurgical expertise and incorporate high nickel content iron inserts into our pistons, effectively extending their lifespan by minimizing groove wear. The careful adherence to close tolerance ring groove specifications eliminates the risk of blow-by, guaranteeing optimal power output.
Our liner packing is molded using cutting-edge compounds like Viton, which retains its pliability and resilience. Additionally, our piston rings, gasket and bearings are crafted from superior materials, ensuring trouble-free installation and reliable performance.
At TractorPartsDirect, we take pride in offering engine products that embody the cutting-edge advancements in manufacturing technology. Our engine kit suppliers are dedicated to perpetually enhancing their processes, driving the development of innovative CAD/CAM designs and implementing state-of-the-art CNC manufacturing techniques. As a result, we deliver a range of superior, high-quality products to our customers.
