Feature:
- Simul-focal function, that means eyepiece and camera can output at the same time, no need to swtich.
- 7X-45X zoom magnification power with crisp sharp images
- Black Color
- Super widefield high-eyepoint optics
- widefield of view
- 4" (100mm) working distance
- Sturdy all-metal pillar stand
- Powerful 144-LED ring light with dimmer
This stereo microscope has a 144-LED ring light that offers
super widefield optics and 7X-45X zoom magnification power with a cool
light illumination system. It is an ideal instrument for industrial
inspection and/or biological lab applications. This microscope is
perfect for gemologists, manufacturing engineers, dental lab
technicians, and anyone in electronic and semiconductor industries.
Feature:
- An excellent stereo inspection microscope with intensity-adjustable 144-LED ring light
- 7x-45x super wide zoom magnification power
- Bright cool light 144-LED illumination system
- High resolution with great flatness and contrast, giving sharp and clear images
- Binocular head with 45 degree inclined 360 degree swiveling eye tubes
- Sharp stereo erect images with a wide field of view
- Crystal clear original true color microscope images
- Dual eye tubes with adjustable diopters
- Large working distance
- Sturdy all-metal table stand
- Accurate alignment reduces eye strain for longer periods of viewing
- Full optical glass elements
- Precise ground glass lenses
- Full metal chrome-plated mechanical components
- Adjustable interpupillary distance
- Rubber eye-guards included
Specification:
- Head: 360 degree rotatable 45 degree inclined binocular
- Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM
- Objective Zoom Range: 0.7X-4.5X
- Working Distance: 4" (100mm)
- Diopter Adjustment: +/- 5dp
- Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)
- Round Plate: 3-3/4" (95mm) in diameter
- Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)
- Illumination: 144-LED Ring Light
- Accessories: Paired eye-caps
Basic Microscope Set Package including:
- 1 x Binocular Stereo Zoom Head
- 1 x Pair of Super Widefield 10X Eyepieces
- 1 x 144-LED Ring Light with Adapter
- 1 x Pillar Table Stand
- 1 x Focusing Rack
- 1 x C-mount Adapter
- 1 x Pair of Eye-Guards
- 1 x Pair of Clips
- 1 x Dust Cover

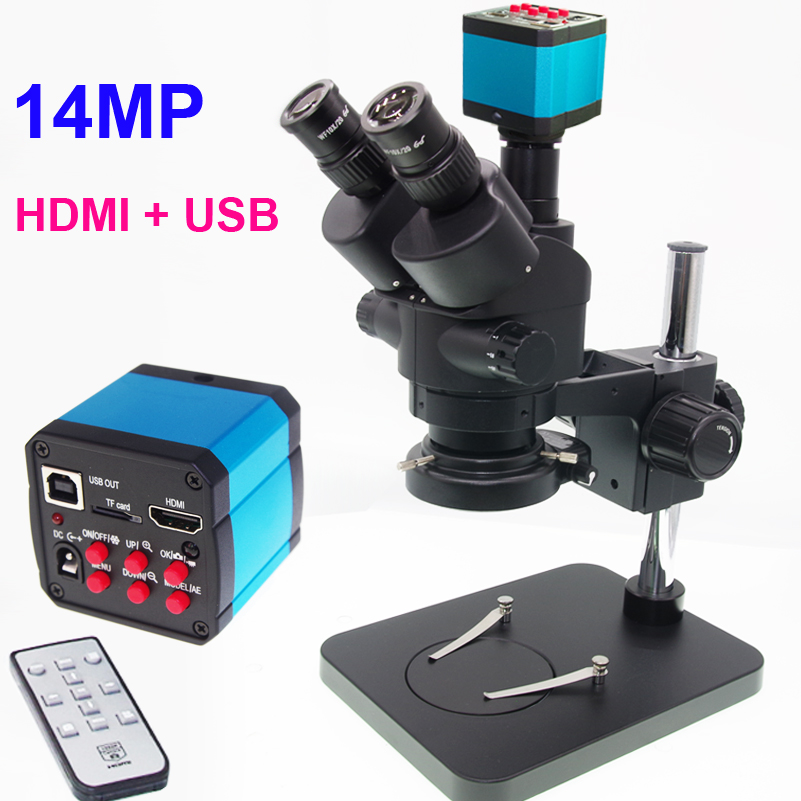

with 14MP Digital Camera (optional)
- High Quality, High Resolution, Clear Images
- 14 megapixel Panasonic sensor
- Photo Model / Video Model
- Industry Cmos Camera. It can show the living image directly on any HDMI monitor , Projector or TV.
- It build in digital crosshairs and color control, add line in the pictures, freeze ,Mirror, Rotate, Negative，Compare function
- Supply USB2.0,HDMI HD video,Two output ports
- We sold a lot of to the factory for review and analysis, it is a good tool to find the problem directly on monitor.
- Image resolution: 4320 * 2432 (for TF Card), 1920 *1080 (for USB),.
- HDMI Video resolution: 1920 *1080 @ 30FPS
- USB Video resolution: 1920 *1080 @ 25FPS
- TF Card Video Recorder
- 1080P 1280*1080@30FPS video recorder
- White balance: Auto/manual
- Digital magnification: 5 times digital zoom
- Brightness control: Auto/manual
- Freeze: Support
- OSD: Support
- Film and record: Support
- Cross cursor: Support multi-color, size adjustable
- Transverse and vertical line Support multi-color, 4 pcs of transverse lines/vertical lines, moveable SNR Support
- TF card interface: Max 32G
- HDMI interface: Standard HDMI output (Type A)
- Video format: AVI
- Light: Auto
- Color: Color
- Negative: Support
- Morror: Left/right,Up/Down
- Freeze: Support
- OSD: English/Chinese

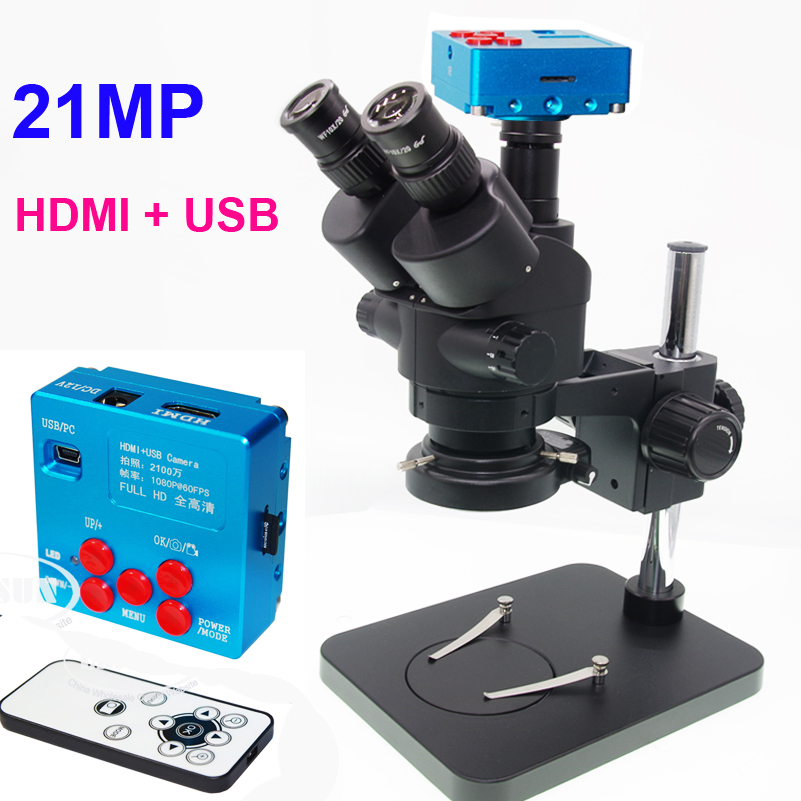

with 21MP Digital Camera (optional)
- High Quality, High Resolution, Clear Images
- Supply HDMI & USB 2 ways video output alternative
- Industry CMOS Camera. It can Show the live image directly on any HDMI monitor or Projector.
- We sell much to the industy factory, then the works can see the problems directly in the Monitor.
- Image sensor: 21MP
- 1080P @60FPS HDMI output
- TF Card Video Recorder
- 6080*3420 Image sensor
- 1/2.5 inch sensor
- 1920*1080 pixels (HDMI / USB Video output), 6080*3420 pixels (image)
- White balance Automatic or Manual
- Brightness control automatic
- NOTE: When you connect with computer via USB port, you
need to take out the TF memory card, if not, the computer can not detect
the camera.

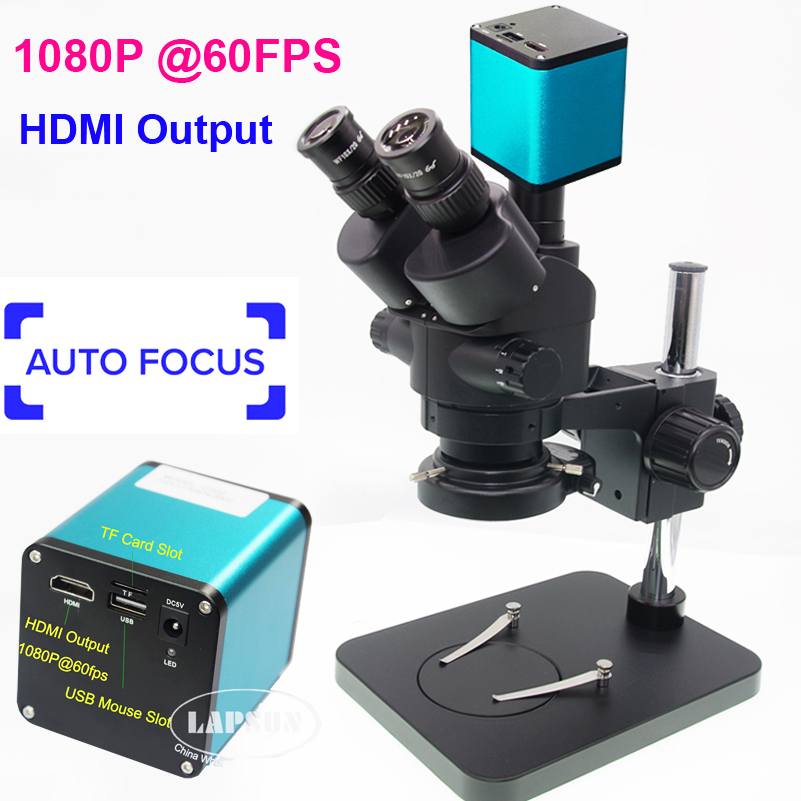

with Autofocal Digital Camera (optional)
- 1080P FULL HD 60FPS high speed camera
- UI design menu, easy to control by mouse
- Autofocus, when observation Objects of different heights(MAX 10CM), you do not need adjust the lens's Working distance
- When you adjust the lens's Magnification, you do not need adjust the lens's Working distance
- When you adjust the lens's Working distance(MAX 10CM), you do not need adjust the lens's Magnification, The camera can Autofocus
- Product Model : C202
- Image Sensor : Colour CMOS
- Pixel size : 1/2.8〞
- Menu : Fully digital UI design
- Method of Operation : Mouse
- Lens interface : C/CS-type
- Power DC : DC5V
- Output method : HDMI
- White Balance : Auto / Manual / One-push control
- Exposure : Auto / Manual
- Display Frame rate : 1080P@60fps
- Scanning method : Line by line scanning
- Shutter Speed : 1/50s(1/60s)～1/10000s
- Operating Temperature : 0℃～50℃
- Magnification / Zoom : Support
- Saving function : Support TF card
|
