Simul-focal

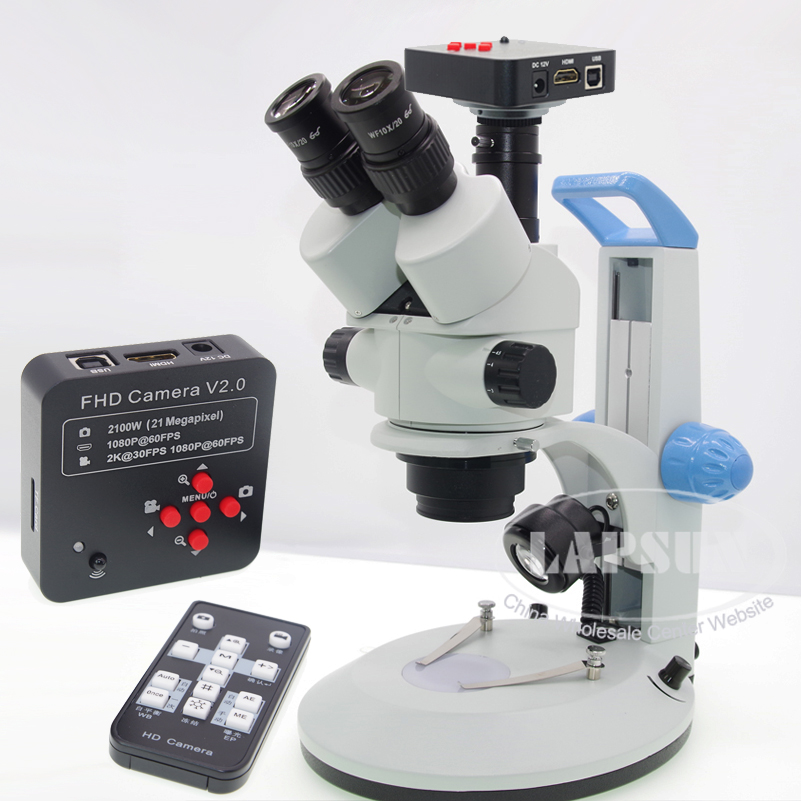

3.5X-90X Trinocular Industrial Inspection Zoom Stereo Microscope
+ 30X-200X 2K @30FPS HDMI, 1080P @60FPS HDMI / USB Output , TF Card Video Recorder
Industry Microscope Camera





Key Feature:

  • Simul-focal Trinocular
  • 3.5X-90X zoom magnification power with crisp sharp images
  • Super widefield high-eyepoint optics
  • widefield of view
  • 4" (100mm) working distance
  • Sturdy metal pillar stand
  • Sturdy track stand with built-in top & bottom LED lights
This precision instrument is a high quality 3.5X-90X trinocular stereo zoom microscope, and features extreme widefield optics, both incident (top) and transmitted (bottom) LED lighting systems, and a convenient track stand for easy focusing. Optically, the large zoom magnification range of 7-45X maintains focus at a 4" (100mm) working distance. This confocal feature provides ample room for various sample sizes, and with its 360 degree swiveling head and 45 degree ocular tubes, the ultimate experience in comfort can be achieved to your liking.

Feature:

  • 3.5X-90X super wide zoom magnification power
  • High resolution with great flatness and contrast, giving sharp and clear images
  • Binocular head with 45 degree inclined 360 degree swiveling eye tubes
  • Sharp stereo erect images with a wide field of view
  • Crystal clear original true color microscope images
  • Dual eye tubes with adjustable diopters
  • Large working distance
  • Sturdy metal table stand
  • Accurate alignment reduces eye strain for longer periods of viewing
  • Full optical glass elements
  • Precise ground glass lenses
  • Full metal chrome-plated mechanical components
  • Adjustable interpupillary distance
  • Rubber eye-guards included

Specification:

  • Head: 360 degree rotatable 45 degree inclined binocular
  • Eyepieces: 30mm super widefield high-eyepoint WF10X/20MM
  • Objective Zoom Range: 0.35X-9.0X, using the Barlow lenses
  • Working Distance: 4" (100mm)
  • Power Input: 110-240V, 50-60HZ, Automatic Switching
  • Accessories: Paired eye-caps
  • Round Plate: 2-3/8" (60mm) in diameter
  • Stand: 12.5" x 10" x 7.5" (320 x 250 x 190mm)
  • Illumination: 3W top LED lights (Adjustable brightness),   3W bottom LED lights(Adjustable brightness)
  • Accessories: Paired eye-caps

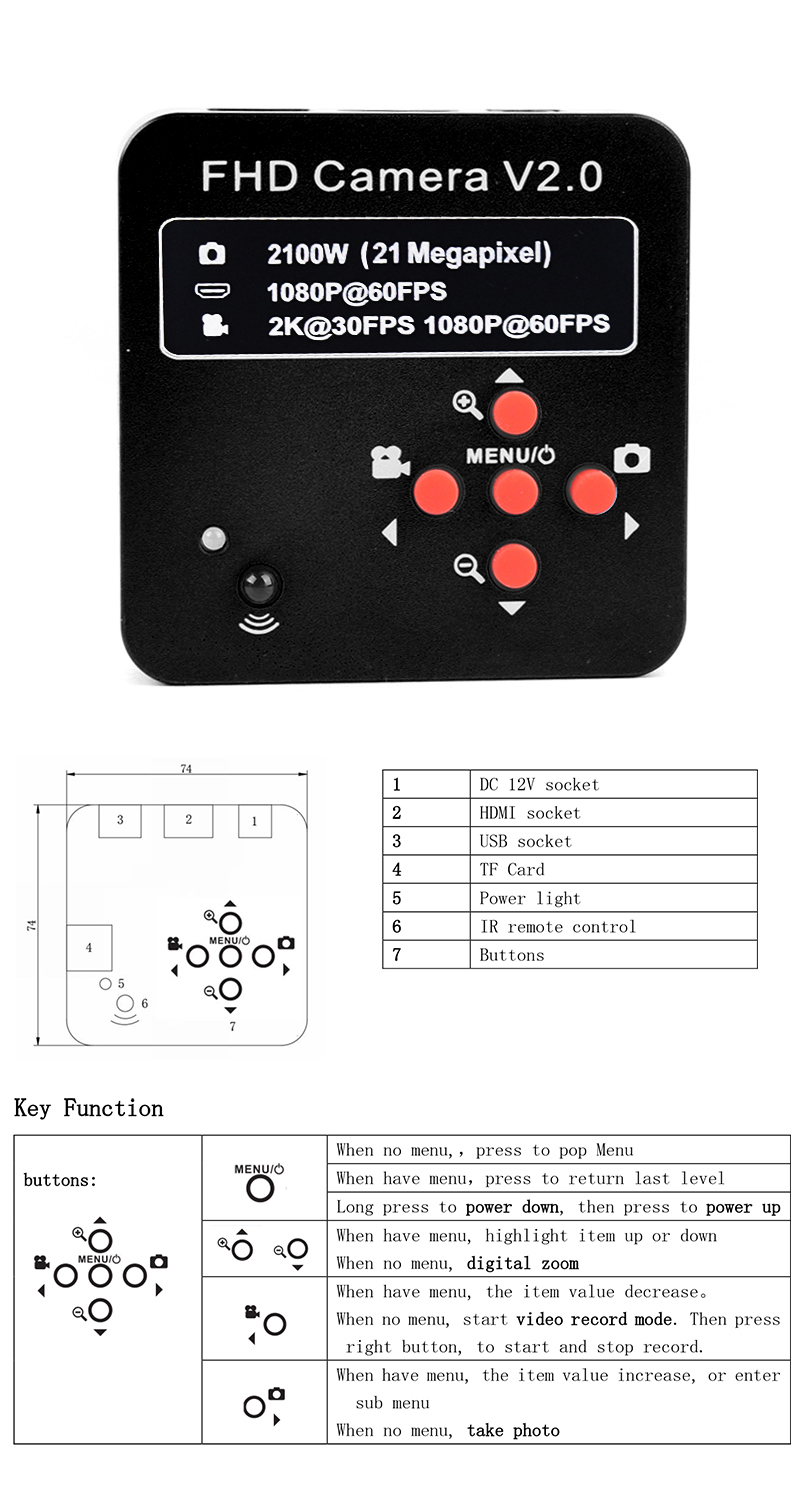

Microscope Camera :

  • 2019 Latest industrial camera
  • High Quality, High Resolution, Clear Images
  • 21.0MP 1/2.3 Inch big size Japan CMOS
  • TF Card Video Recorder
  • Photo Model / Video Model

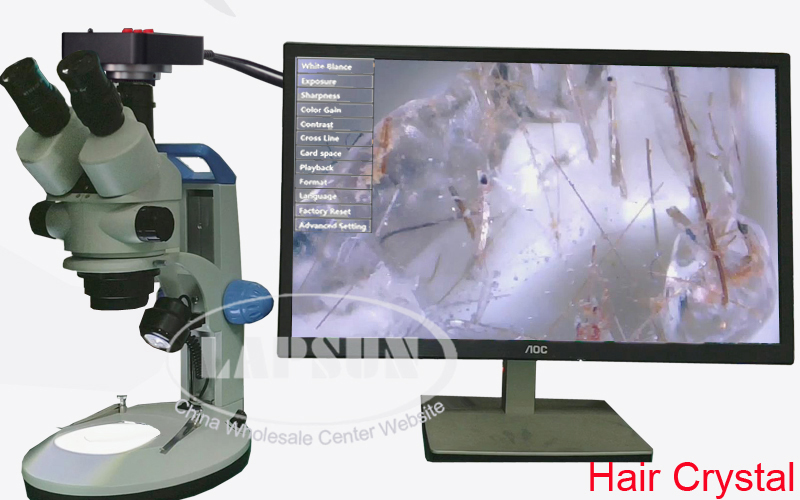

  • Industry Cmos Camera. It can Show the live image directly on any HDMI monitor , Projector or TV.
  • It build in digital crosshairs and color control, add line in the pictures, freeze ,Mirror, Rotate, Negative
  • Supply USB2.0,HDMI HD video,Two output ports

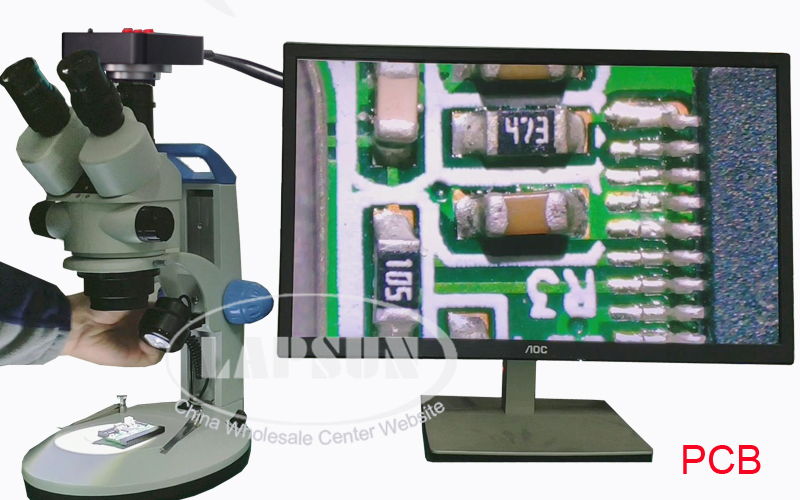

  • We sell much to the industy factory, then the works can see the problems directly in the Monitor.
  • Module:HD216
  • Sensor Panasonic:21 MegaPixel, 21 million pixels CMOS

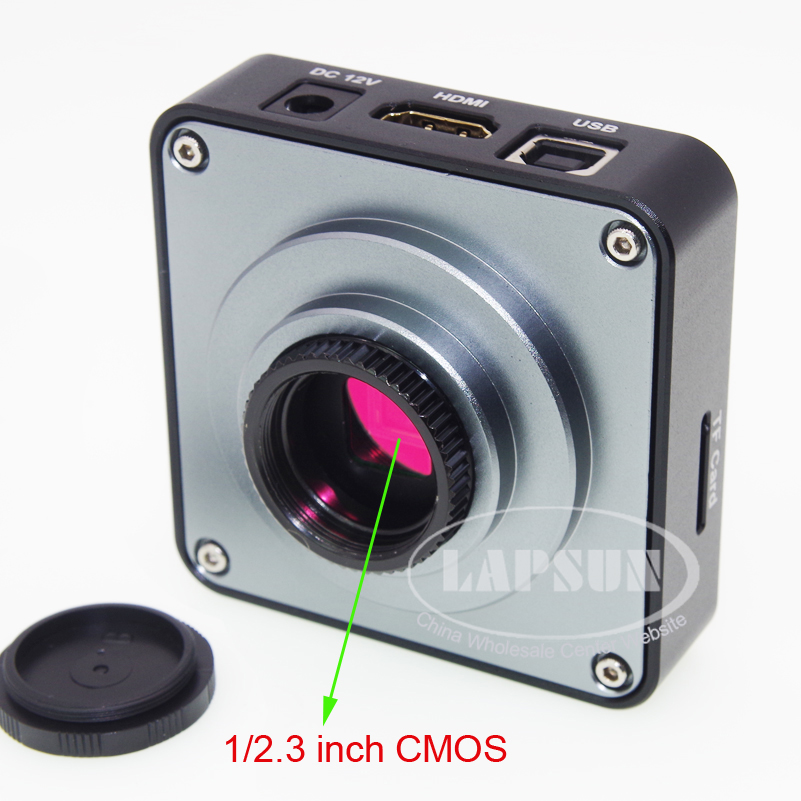

  • Optical format:1/2.3 inch
  • pixel size:1.335μm x1.335μm

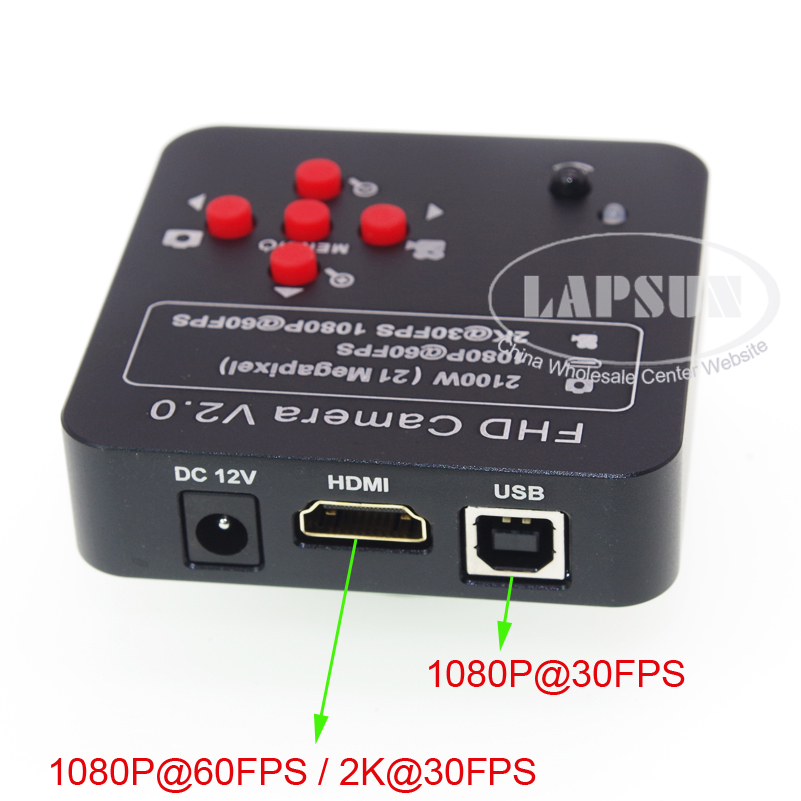

  • Interface:HDMI(Type A).USB(Type B).TF Card
  • Image resolution:21MegaPixel
  • Video record resolution:2K@30FPS 1080p@60FPS
  • HDMI resoltion:1920*1080p 60FPS

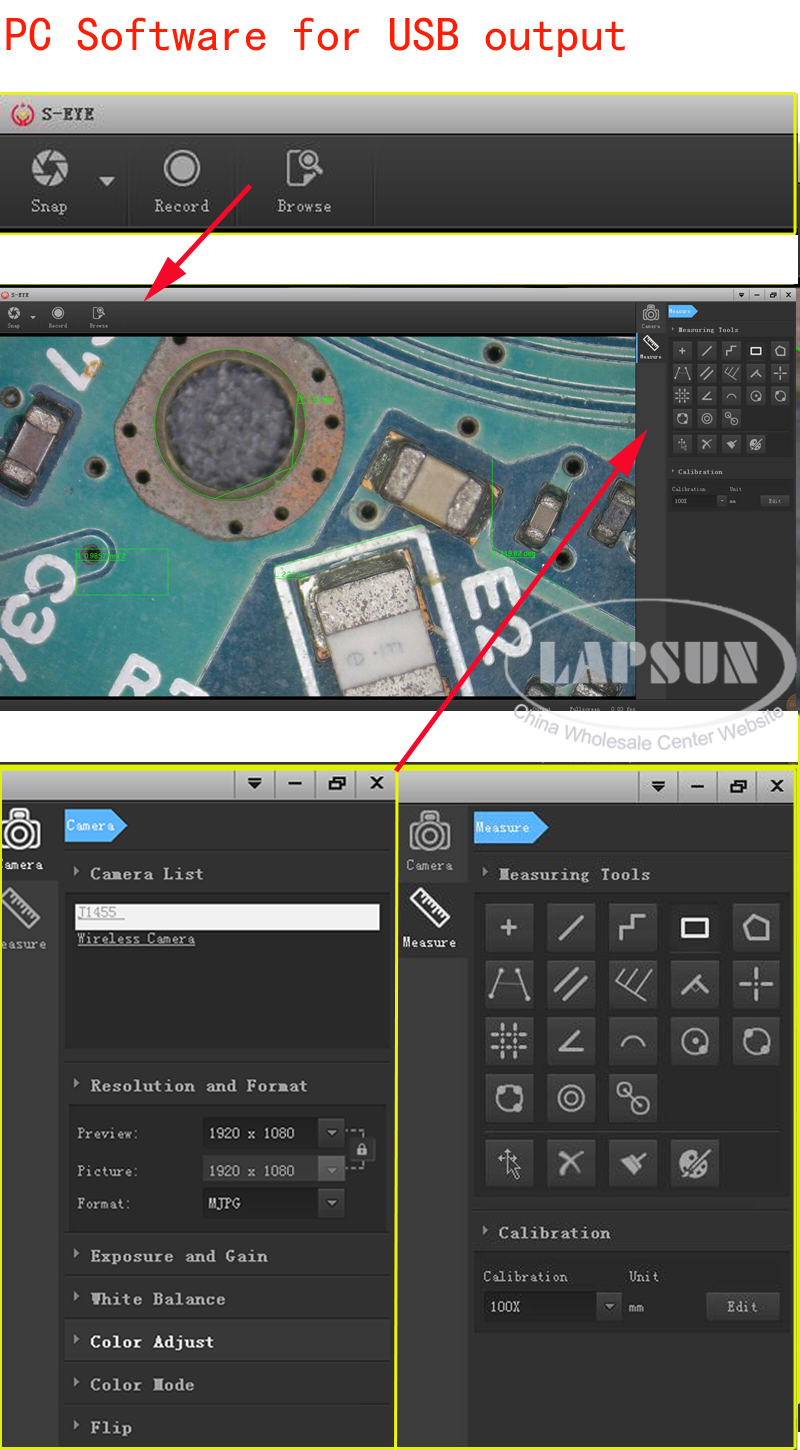

  • Can output with USB at the same time
  • HDMI scale:Support 4:3,16:9,16:10 screen
  • USB2.0(Drive free):1920*1080@30FPS 1280*720@30FPS 640*480@30FPS
  • Can output with HDMI at the same time
  • TF card:MAX 64GB

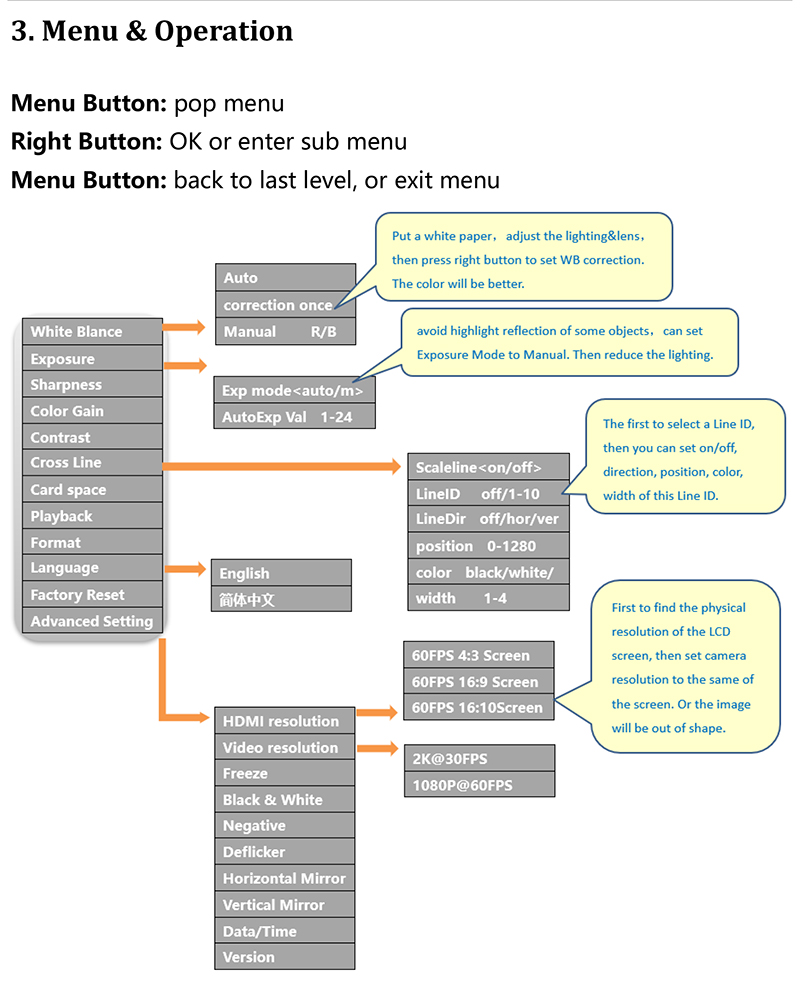

  • AWB:WB color correction/Auto/Manual
  • R.G.B value setting independent
  • Exposure:Auto/Manual.AE value can set
  • Cross lines:8lines.Can set color& width& position
  • Scale mark lines:2lines.
  • Dotted lines:2lines.Can set color& width& position
  • Sharpness Contrast Color gain:Support
  • Mono Negative:Support
  • Mirror:Horizontal vertical mirror
  • Language:English/simplified Chinese
  • Digital Zoom:Support
  • IR remoter:Support
  • Voltage in:DC 12V 55-21mm size
  • Power consumption:MAX 0.15W 12V,0.12A

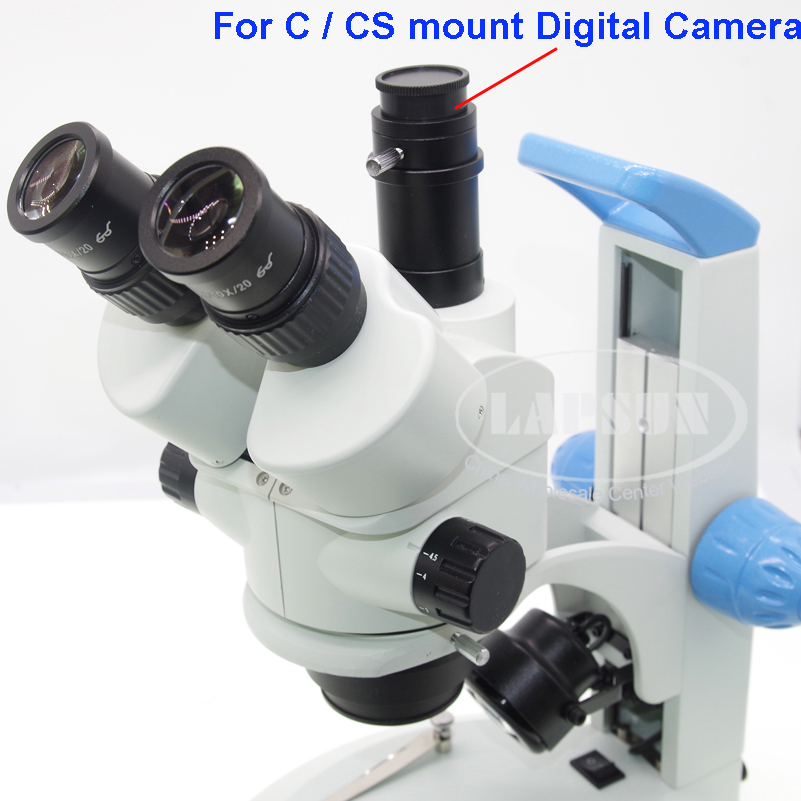

  • Lens interface:C/CS口
  • Net weight:180g
  • Gross weight:400g
  • Camera size:74*74*35mm
  • Packaging size:160*100*80mm

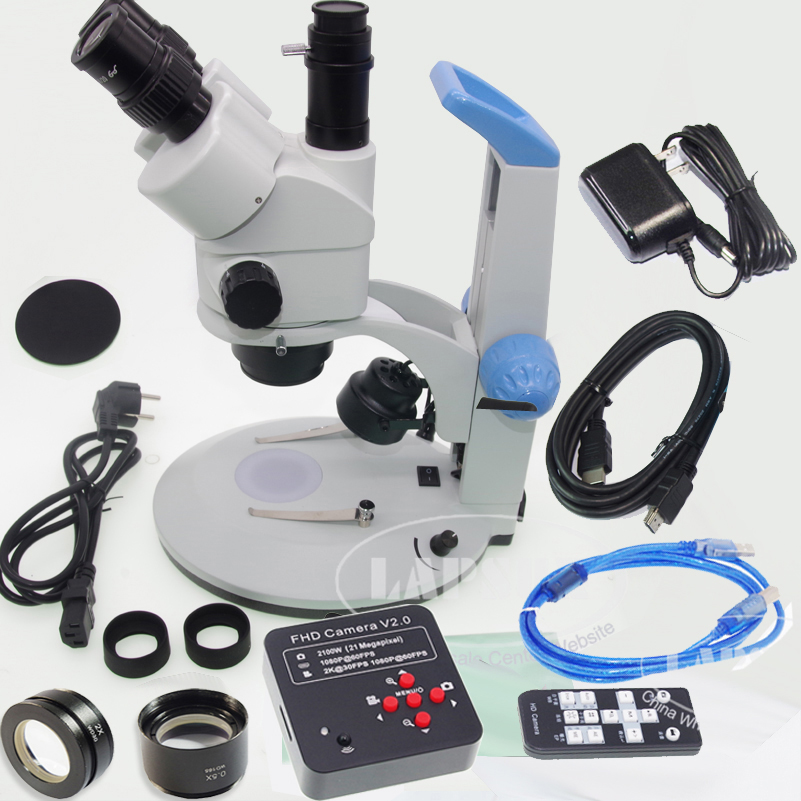

Packing including:

  • 1 x Binocular Stereo Zoom Head
  • 1 x Pair of Super Widefield 10X Eyepieces
  • 1 x Microscope Camera
  • 1 x Power Supper for Camera
  • 1 x Pillar Table Stand
  • 1 x HDMI Cable
  • 1 x USB Cable
  • 1 x Wireless Control
  • 1 x C-mount Adapter
  • 1 x Pair of Eye-Guards
  • 1 x Pair of Clips
  • 1 x Dust Cover
  • 1 x 2.0X Barlow lense
  • 1 X 0.5X Barlow lense
